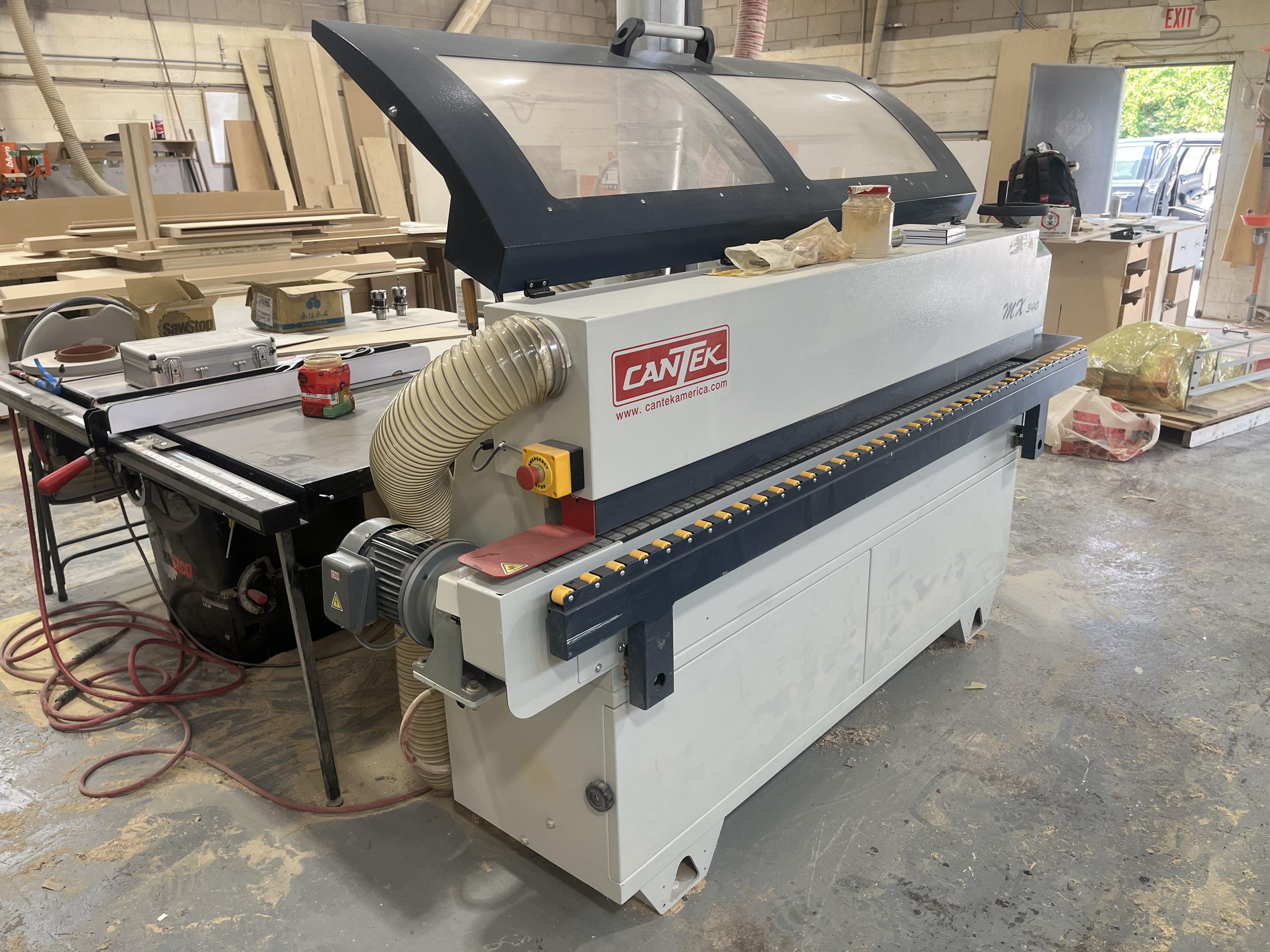

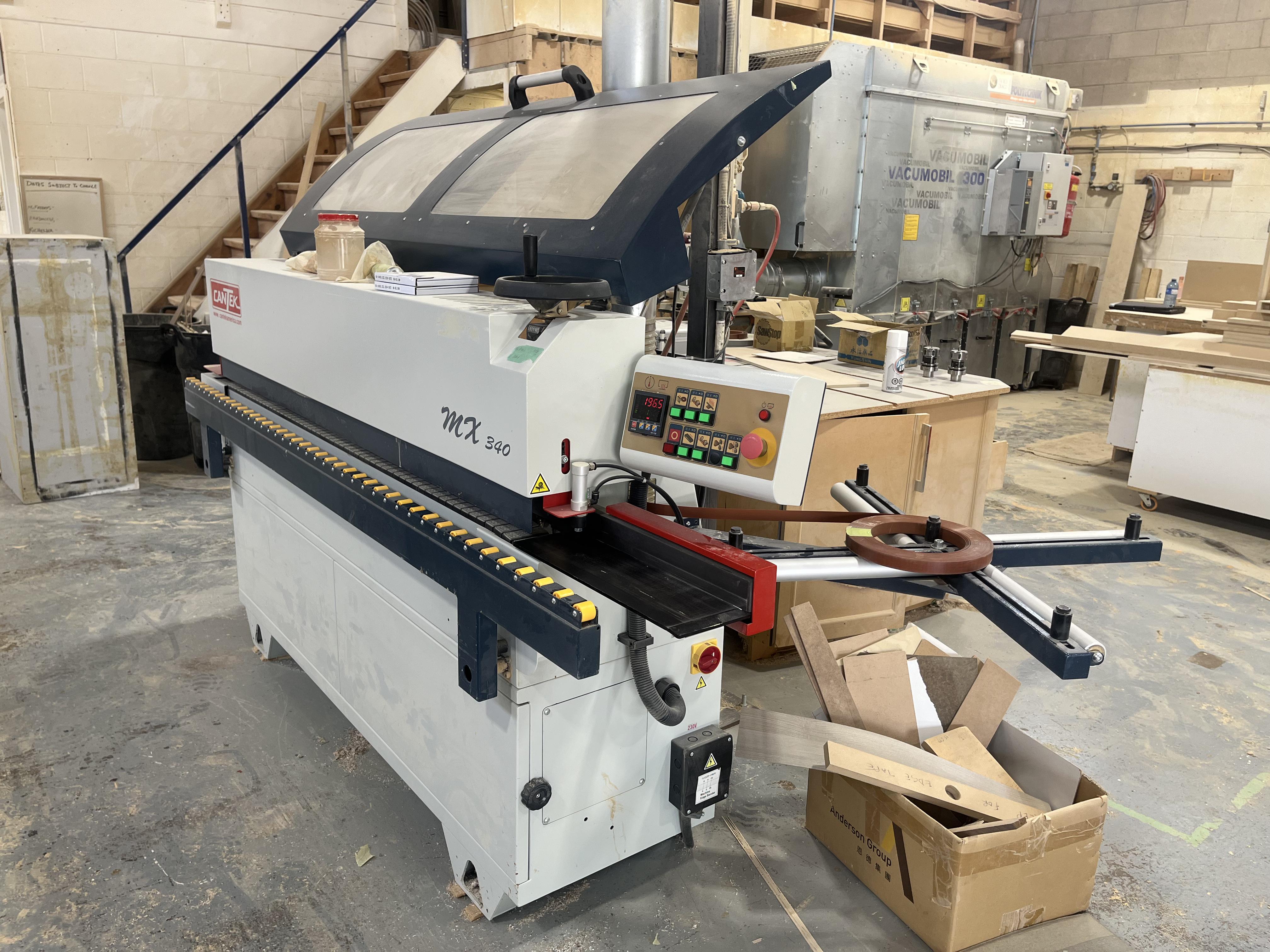

2014 Cantek MX340 Automatic Edgebander

Manufacturer: Cantek

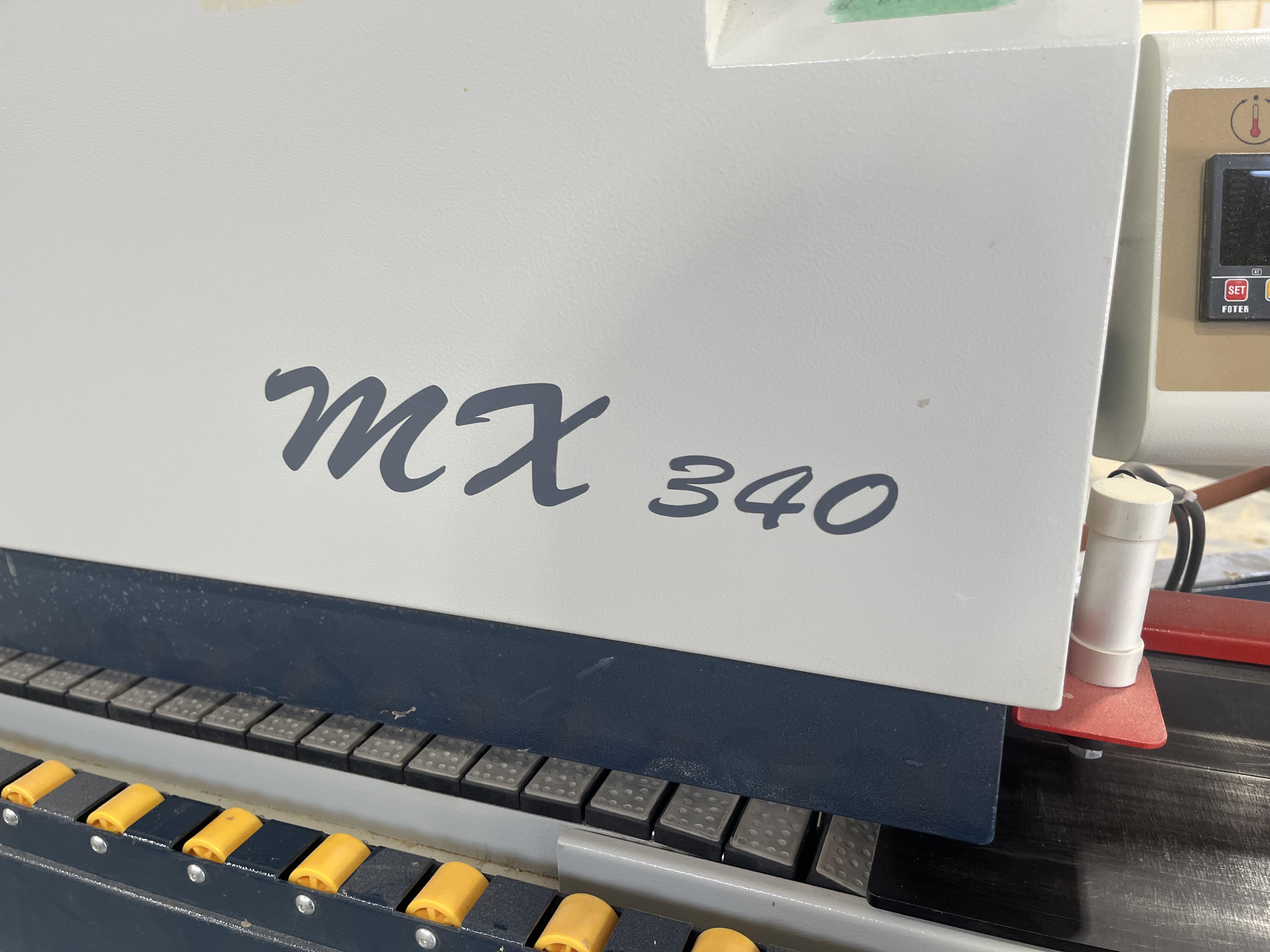

Model: MX340

Year: 2014

Condition: Used – Good Operating Condition

Machine Type: Automatic Single-Sided Edgebander

Machine Description

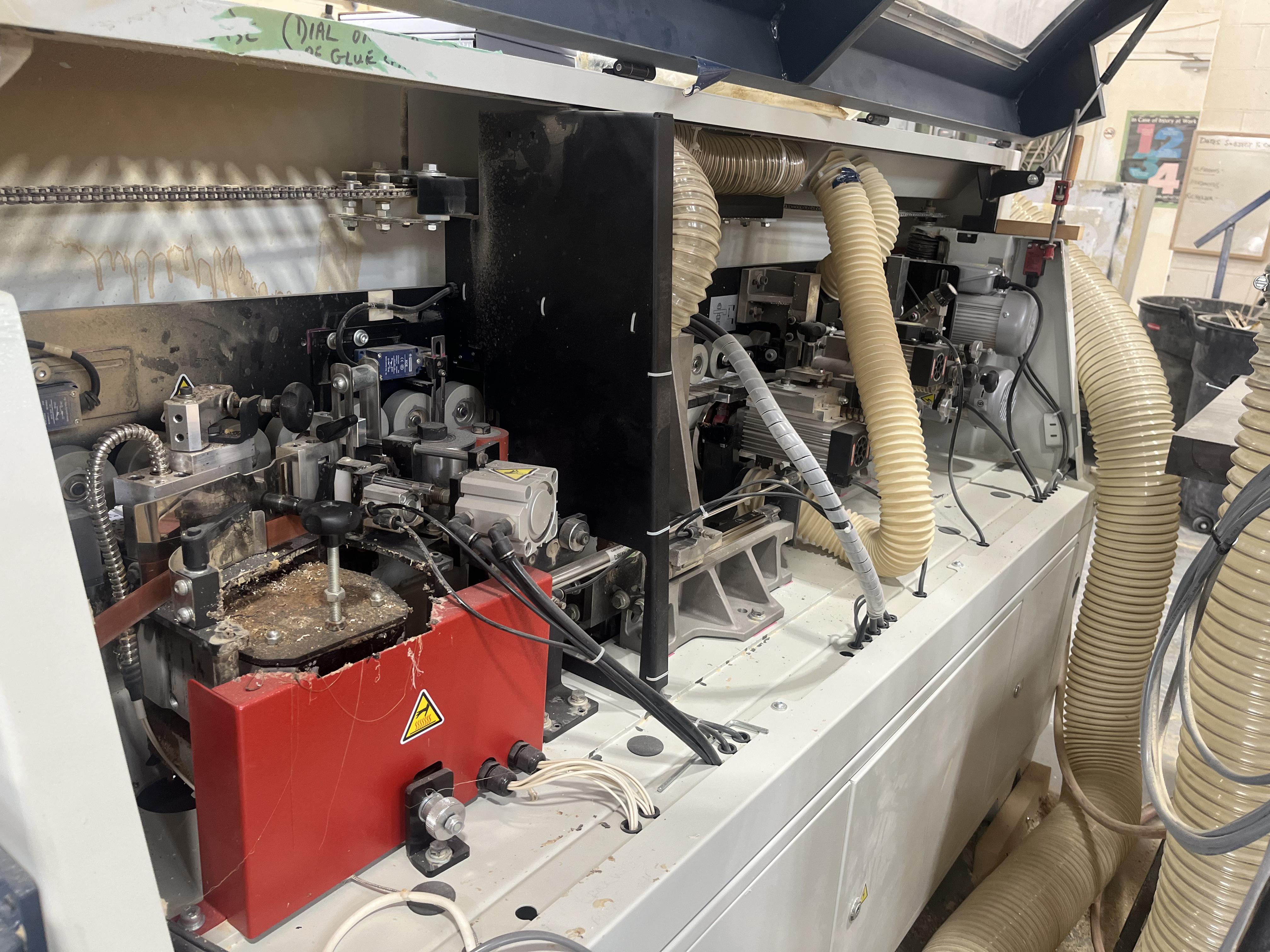

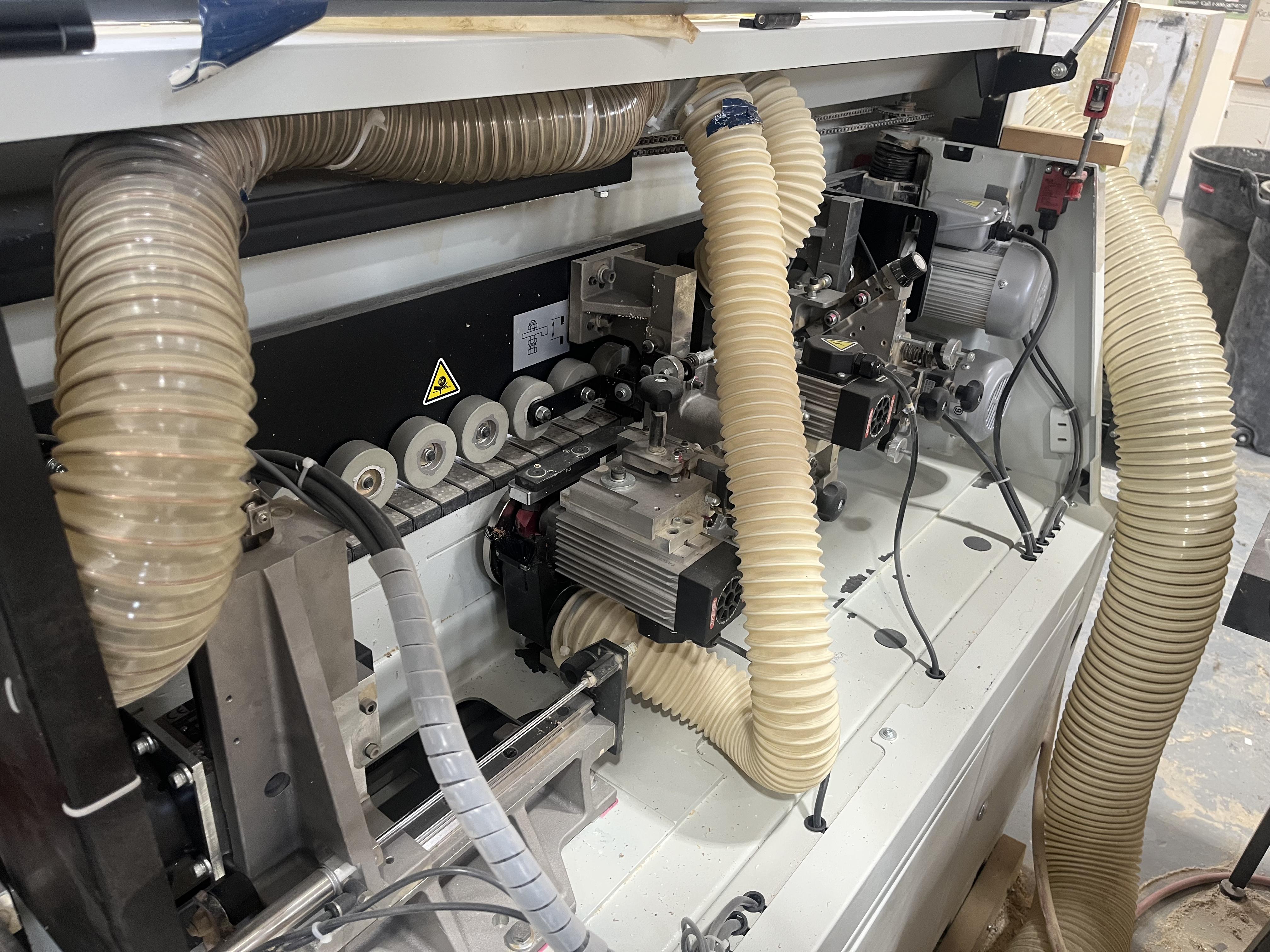

The Cantek MX340 is a compact production edgebander designed for cabinet, furniture, and millwork applications. Equipped with end trimming, top and bottom trimming, radius scraping, and buffing, it provides a complete edge-finishing solution in a space-efficient footprint.

Key Features

• Hot melt glue application system
• Pneumatic guillotine
• End trimming unit
• Top & bottom flush trimming
• PVC radius scraping
• Top & bottom buffing

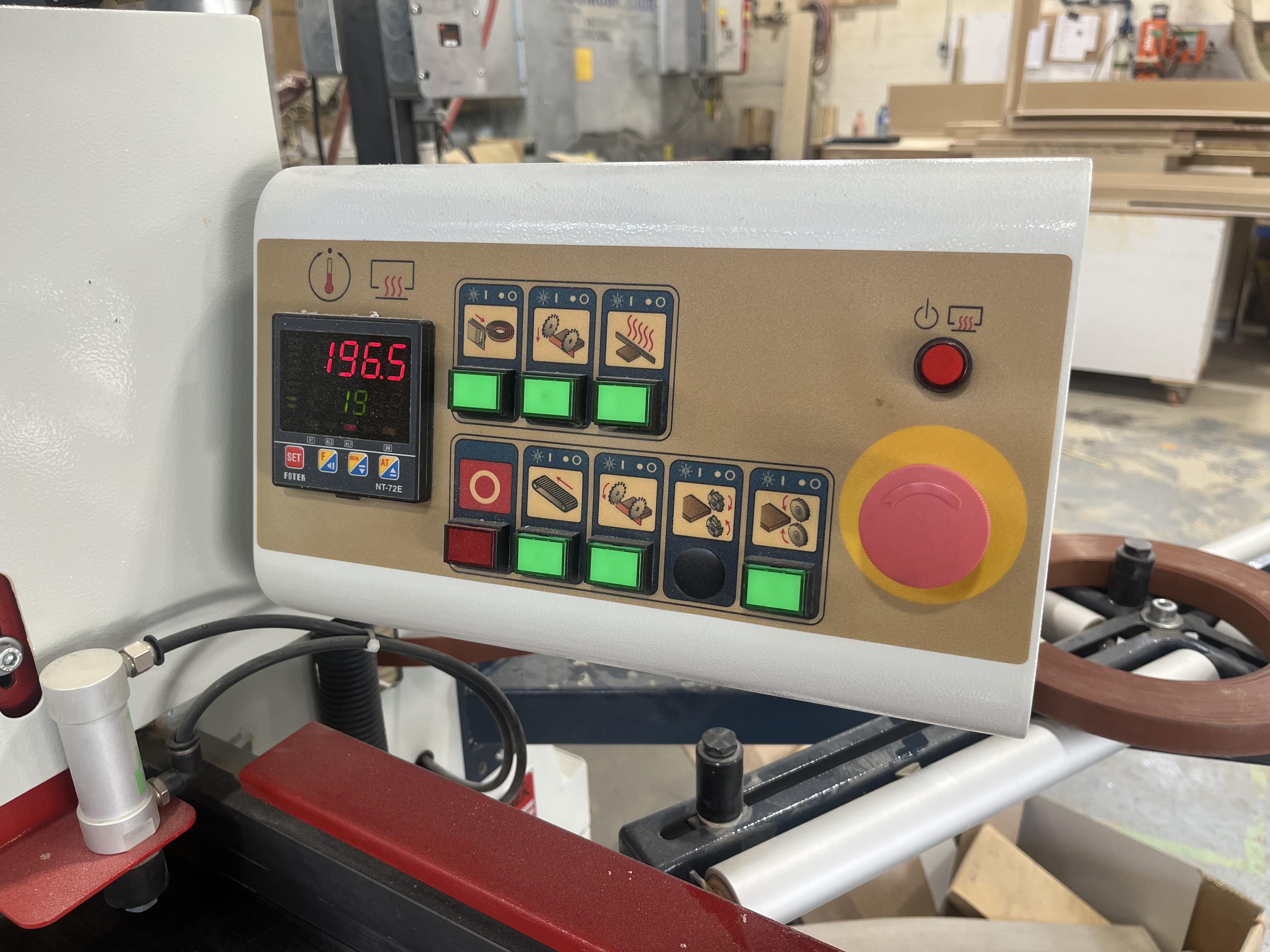

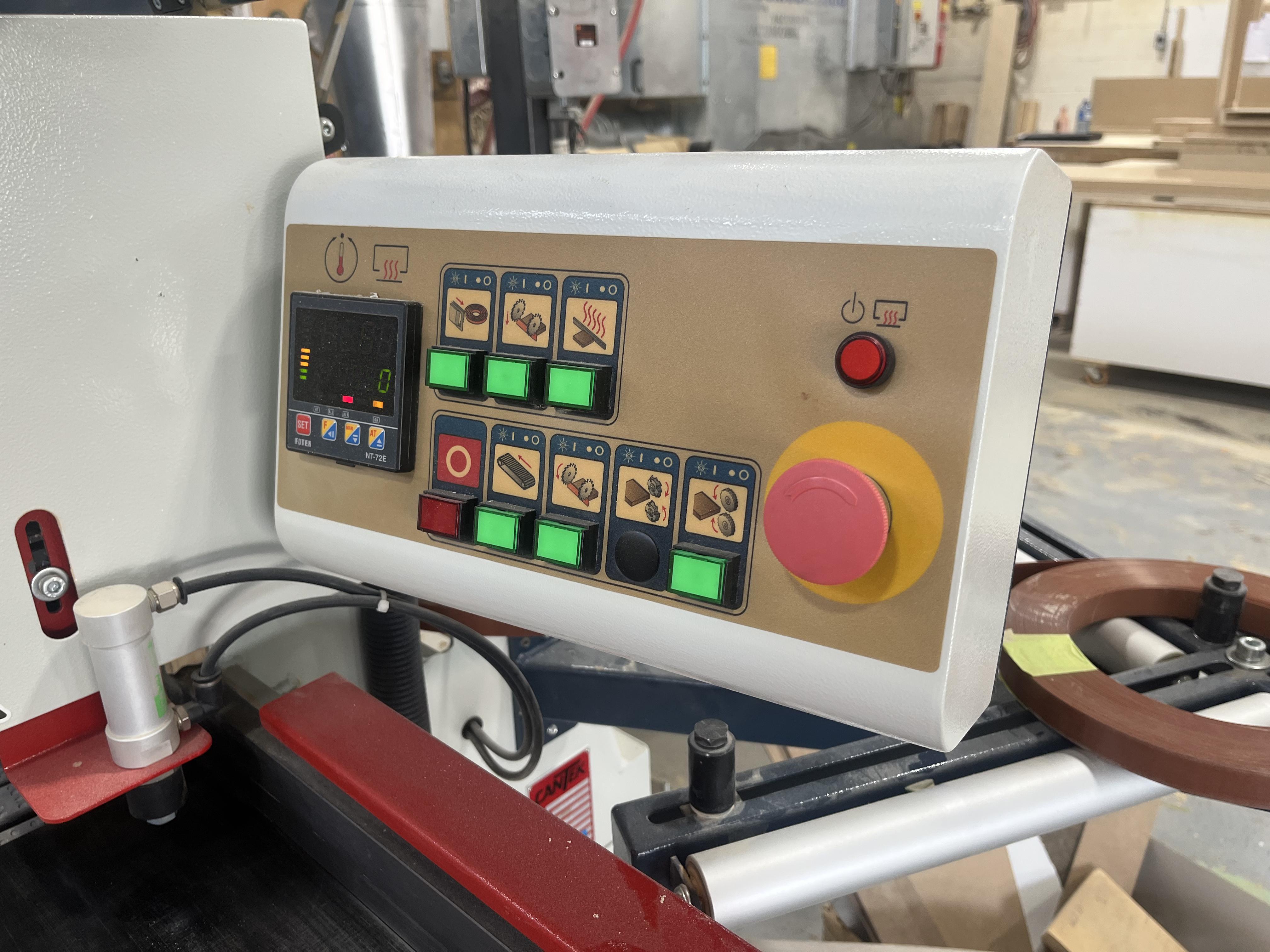

• PLC controls with LED display
• Quick-change glue pot
• Chain feed conveyor system

Technical Specifications

Capacity

• Panel Thickness: 8 – 45 mm
• Edge Thickness: 0.4 – 3.0 mm
• Minimum Panel Size: 100 × 170 mm (4" × 6.7")
• Feed Speed: 9 m/min (29.5 FPM)

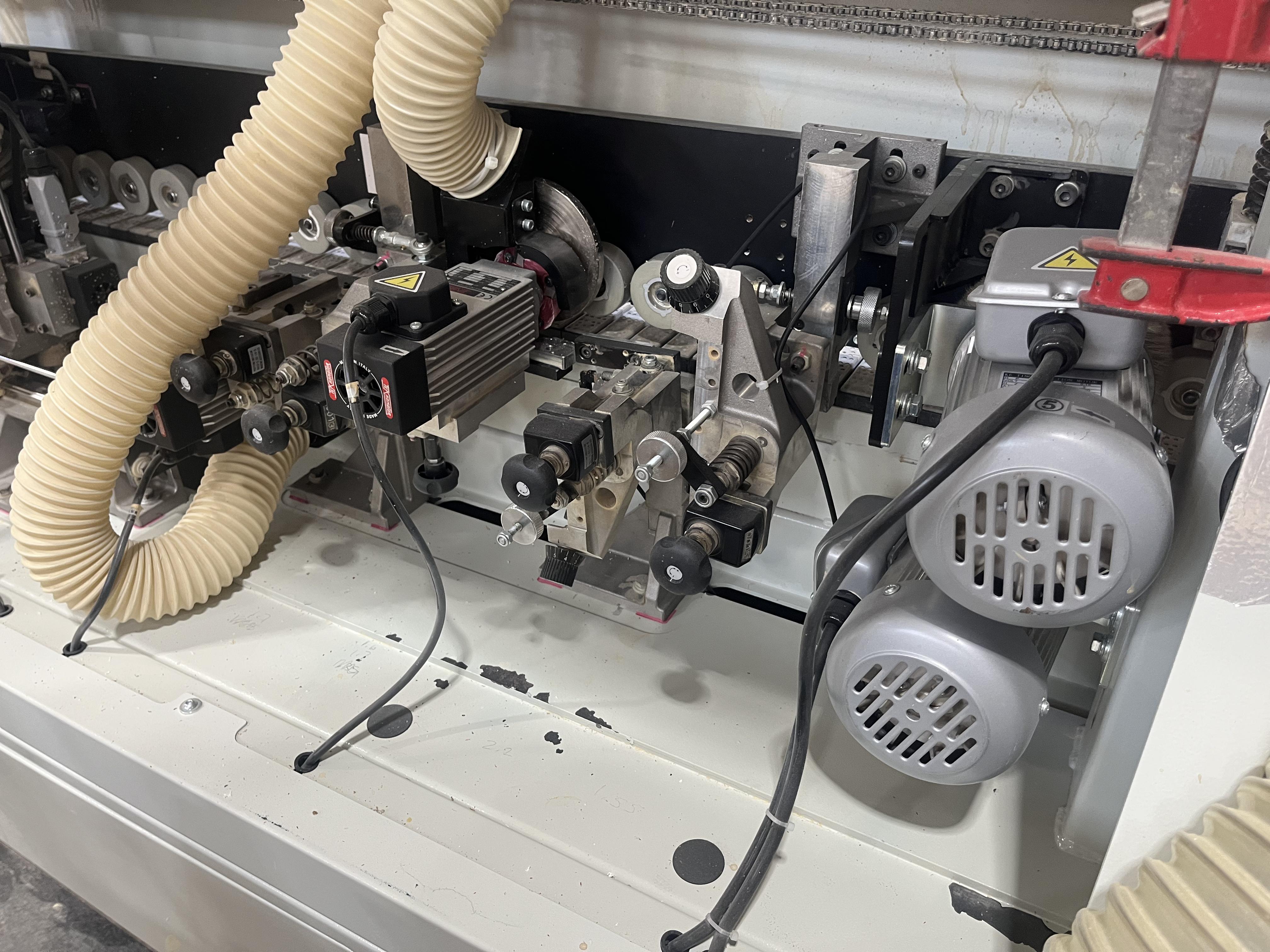

Working Units

• Glue Station
• Double pressure rollers
• Front & rear end trimming
• Top & bottom trimming
• Radius scraping
• Top & bottom buffing

Machine Dimensions

• 2950 × 1120 × 1390 mm
• Approx. Weight: 558 kg (1,228 lbs)

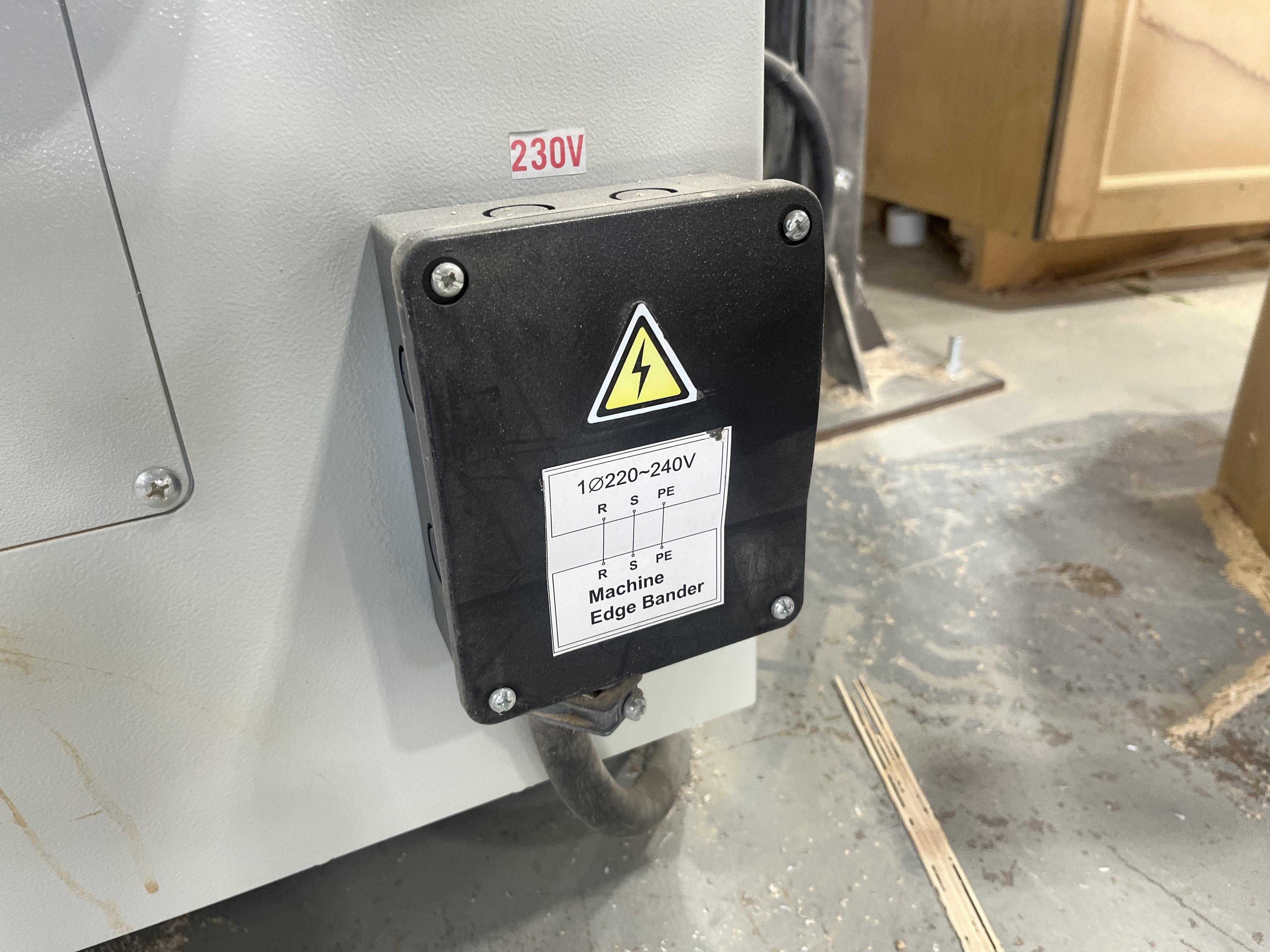

Electrical Specifications

Verified from Machine Nameplate

• Voltage: 230V
• Total Connected Power: 5.5 kW
• Total Current Draw: 35 Amps

Condition

Used – Good Operating Condition

Machine is in good operating condition and suitable for continued production use.

Notes

The Cantek MX340 is a reliable compact edgebander featuring glue application, end trimming, flush trimming, radius scraping, and buffing. With 0.4–3 mm edge capacity, 9 m/min feed speed, and PLC controls, it is well suited for small to medium-sized woodworking operations.
