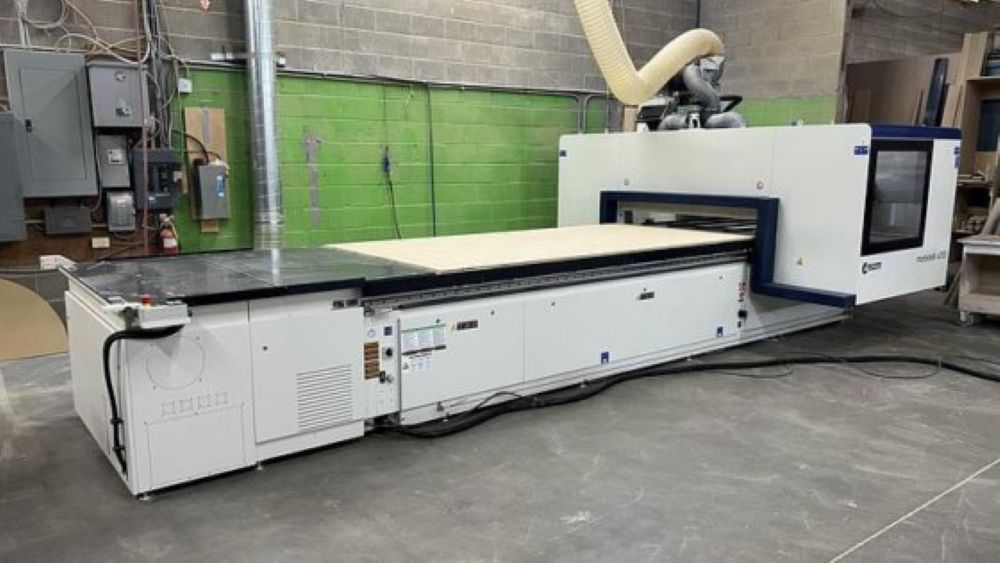

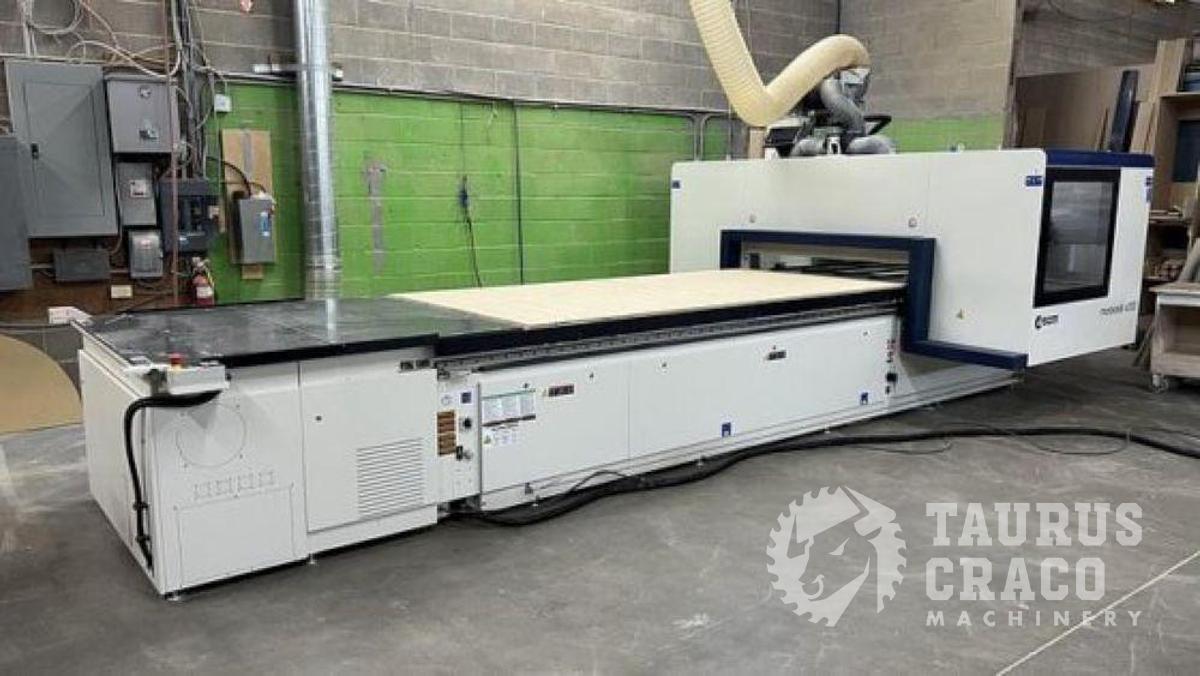

2024 SCM Morbidelli X200 Cell CNC Router

Manufacturer: SCM Group (Italy)

Model: Morbidelli X200 Cell 1531

Year of Manufacture: 2024

Condition: Like New / Very Lightly Used

Machine Type: 5' × 10' Flat Table Nesting CNC Machining Centre

Machine Description

The SCM Morbidelli X200 Cell is a high-performance CNC machining centre designed for nesting, routing, drilling, and panel processing applications. Engineered for cabinet manufacturing, furniture production, architectural millwork, and nested-based manufacturing, the X200 combines heavy-duty machine construction, advanced vacuum hold-down technology, high-speed machining capability, and SCM's latest control and software platform.

This machine remains in exceptionally clean, lightly used condition. Configured as a 5' × 10' Cell model, it features SCM's PRO-SPACE safety system, FAST tool changer, RO.AX drilling technology, and a 14 kW HSK spindle package.

Key Features

• 5' × 10' nesting CNC router
• Morbidelli X200 Cell platform
• 14 kW (19 HP) HSK-63F electrospindle
• RO.AX F16V vertical drilling head
• 14-position FAST automatic tool changer
• High Efficiency aluminum vacuum table
• 8-zone vacuum system
• Dual high-capacity vacuum pumps
• Automatic outfeed pusher
• Tool length detection system
• PRO-SPACE safety system
• Maestro Active control system
• Eye-M PRO operator console
• Adaptive feed-rate control
• Automatic centralized lubrication

Working Capacity

Table Size

• Working Table: 5' × 10' (1531 format)

Processing Area

• X (Inside Stop to Outside Table): 3117 mm (122")
• X (Outside Table to Outside Table): 3156 mm (124")
• Y (Inside Stop to Outside Table): 1557 mm (61")
• Y (Outside Table to Outside Table): 1596 mm (62.8")
• Alternating Work Process Panel Length: 1064 mm (41.9")

Routing Spindle

Main Electrospindle

• Power: 10/14 kW (13.6 / 19 HP)
• Speed Range: 1,500 – 24,000 RPM
• HSK 63F Tool Interface
• Fan-Cooled
• Programmable Left and Right Rotation
• Ceramic Bearing Construction

Spindle Features

• Adaptive feed-rate control
• Automatic dust extraction hood
• Integrated air blast system
• Automatic tool length compensation capability

Drilling System

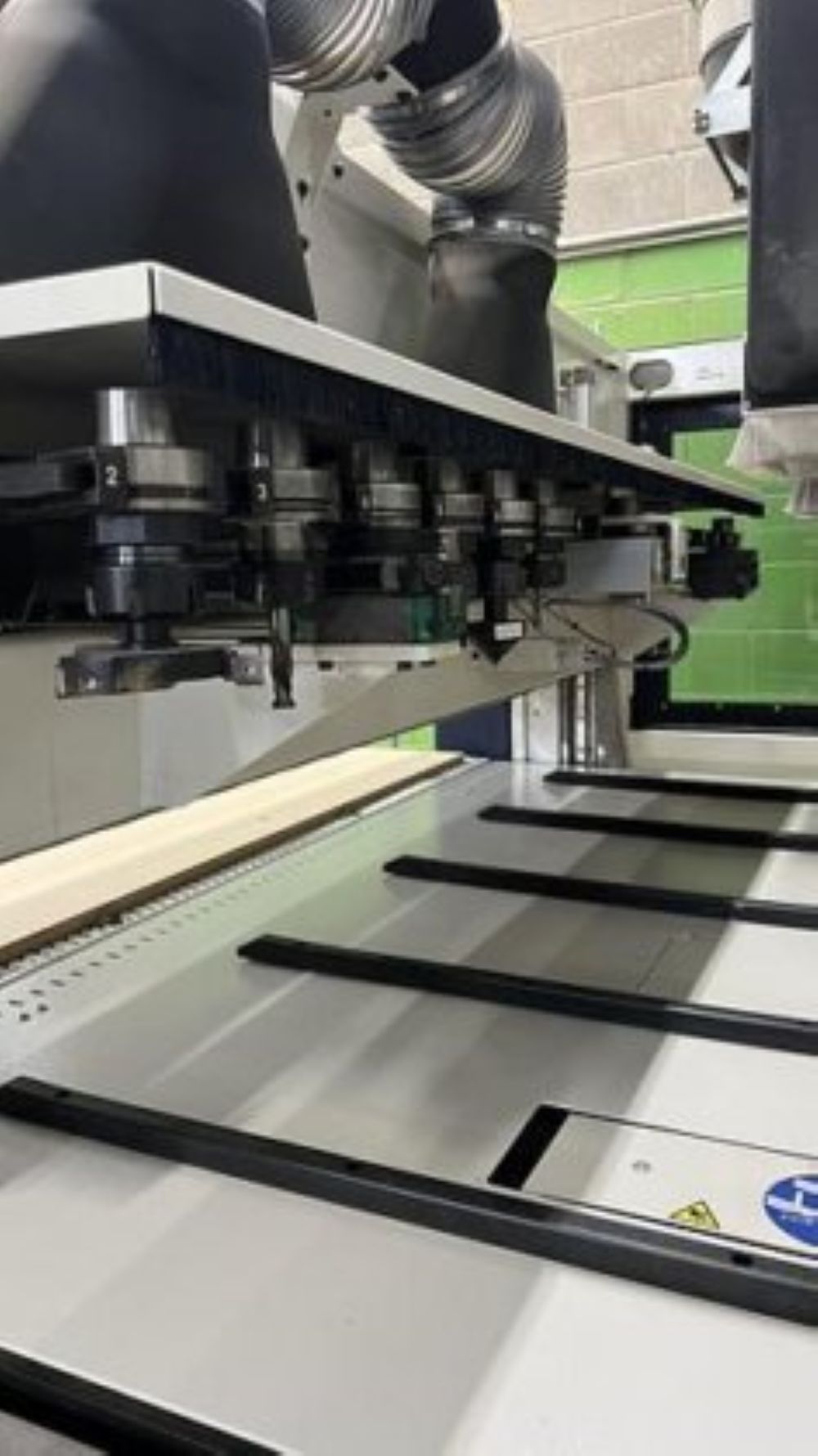

RO.AX F16V Drilling Head

• 16 Vertical Spindles
• Weldon Tooling Interface
• 32 mm Spindle Spacing
• Independent Pneumatic Spindle Selection
• Drilling Speed:Standard: 4,200 RPM
• Variable: 3,000 – 8,000 RPM
• Drive Power:Up to 3.9 kW (5.3 HP)

Features:

• Increased drilling pressure system
• Quarter-lock tooling system
• High-pressure pneumatic drilling thrust
• Integrated dust extraction hood

Automatic Tool Changer

FAST14 Linear Tool Changer

• 14 Tool Positions
• Maximum Tool Diameter:160 mm
• Maximum Tool Weight:8 kg
• Maximum Tool Changer Capacity:42 kg
• Maximum Head Weight:10 kg

The FAST tool changer is mounted directly on the moving carriage to minimize tool change times and maximize productivity.

Vacuum Work Table

High Efficiency Aluminum Vacuum Table

• Multifunction aluminum construction
• 120 mm vacuum grid spacing
• Magnetic vacuum zone closure system
• MDF spoilboard
• Tool length detection device

Vacuum Configuration

• 8 Vacuum Zones
• Automatic or Manual Zone Selection
• High-capacity vacuum package
• Dual vacuum pumps
• 500/600 m³/h system

Designed to maximize holding power for nested sheets, small parts, and highly porous materials.

Material Handling

Automatic Outfeed System

• ON/OFF Workpiece Outfeed Pusher
• Integrated spoilboard cleaning
• Built-in blower and extraction system
• Unloading table controls with photocell monitoring

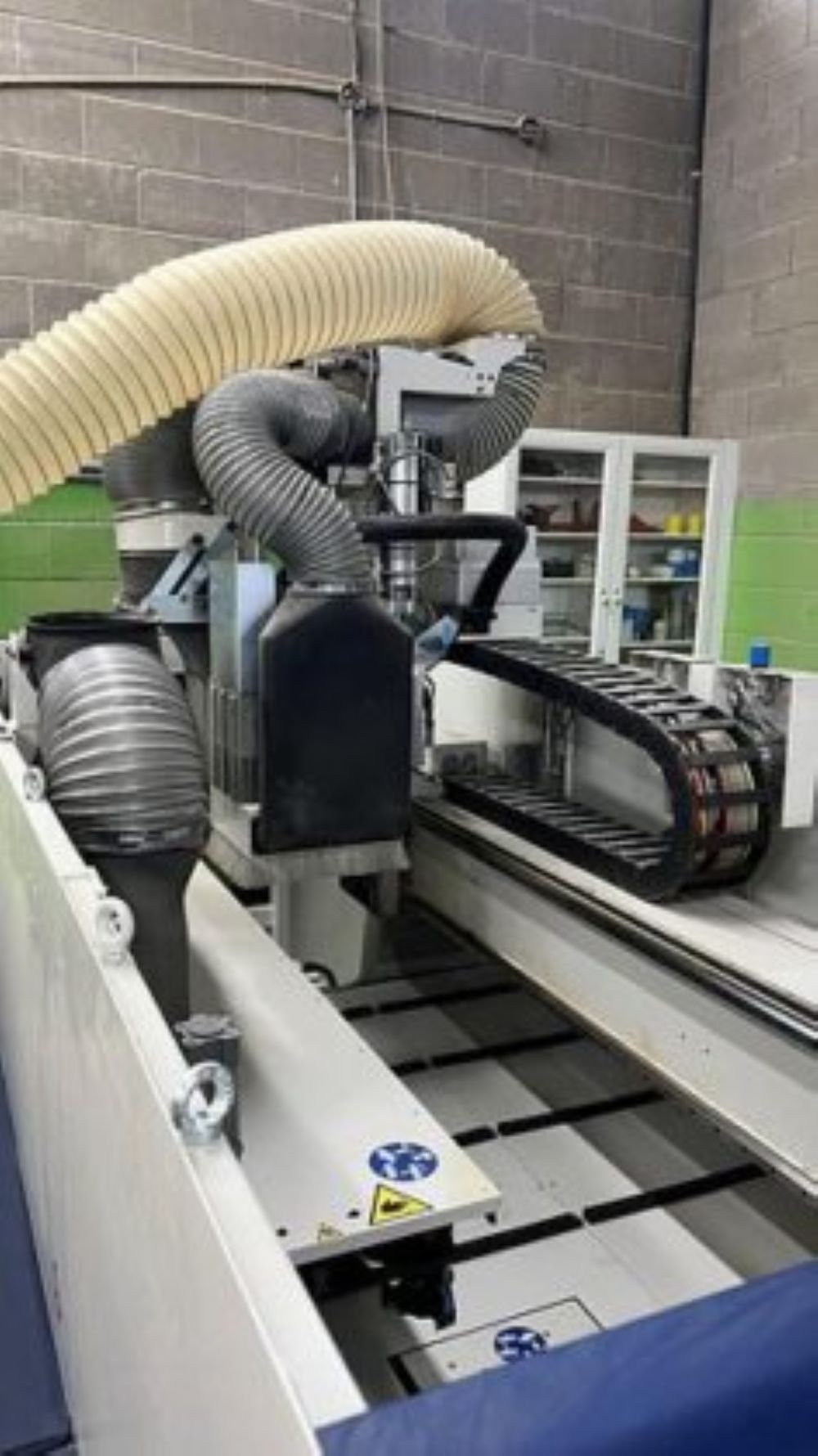

Dust Collection

• Centralized extraction manifold
• Automatic extraction valve management
• Main Extraction Diameter:250 mm
• Lower Extraction Grid:250 mm
• Air Consumption:Up to 8,860 m³/h during unloading

Control & Software

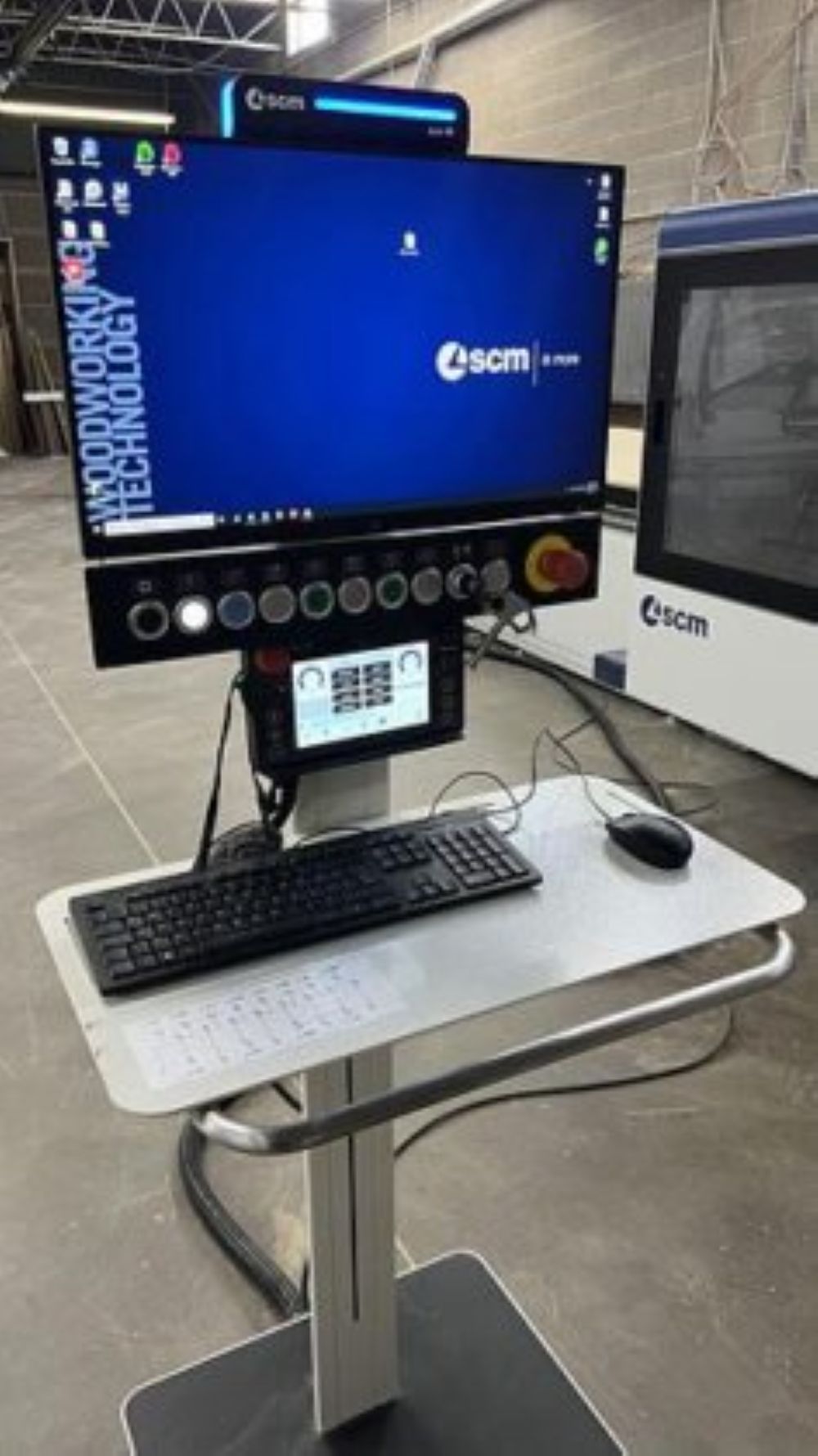

Eye-M PRO Industrial Console

• 21.5" Full HD Touchscreen
• Intel i7 Processor
• 8 GB RAM
• 256 GB SSD
• Windows 10 Embedded 64-bit
• Industrial Fanless Design

SCM Software Package

• Maestro Active HMI
• Maestro CNC CAD/CAM Platform
• Maestro Connect
• Nesting Free-Form Module
• Label Printing System
• DXF Import
• CSV Import
• Barcode Integration
• Production Reporting
• Maintenance Management

Electrical Specifications

Factory Configuration

• Voltage: 380/400V
• Frequency: 60 Hz
• Phase: 3 Phase
• Maximum Installed Current:56 A
• Connected Load:38.8 kVA

Air Requirements

• Operating Pressure:6.5 Bar
• Average Air Consumption:400 NL/min

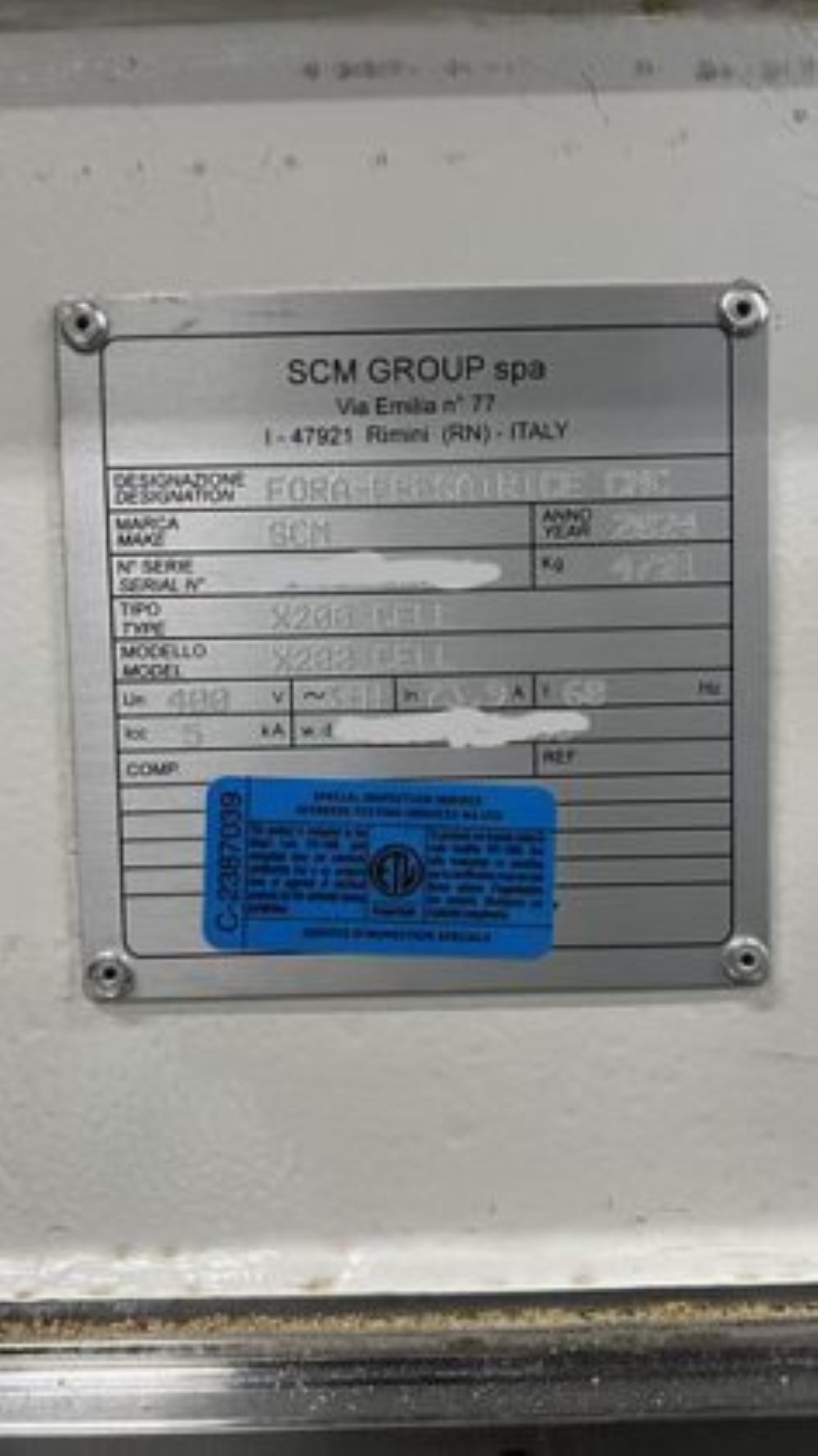

Machine Identification

• Manufacturer: SCM Group
• Model: Morbidelli X200 Cell 1531
• Year: 2024
• Approximate Weight: 4,721 kg (10,408 lbs)

Condition

Like New / Very Lightly Used

This machine has seen minimal runtime. It remains in exceptional condition and is available immediately without the lead times associated with ordering new equipment.

Notes

The 2024 SCM Morbidelli X200 Cell represents SCM's latest generation of industrial nesting technology. Equipped with a 14 kW HSK spindle, 16-spindle RO.AX drilling head, FAST14 automatic tool changer, 8-zone vacuum table, automatic outfeed system, and Maestro software suite, this machine is designed to deliver exceptional productivity, precision, and reliability in demanding manufacturing environments.
