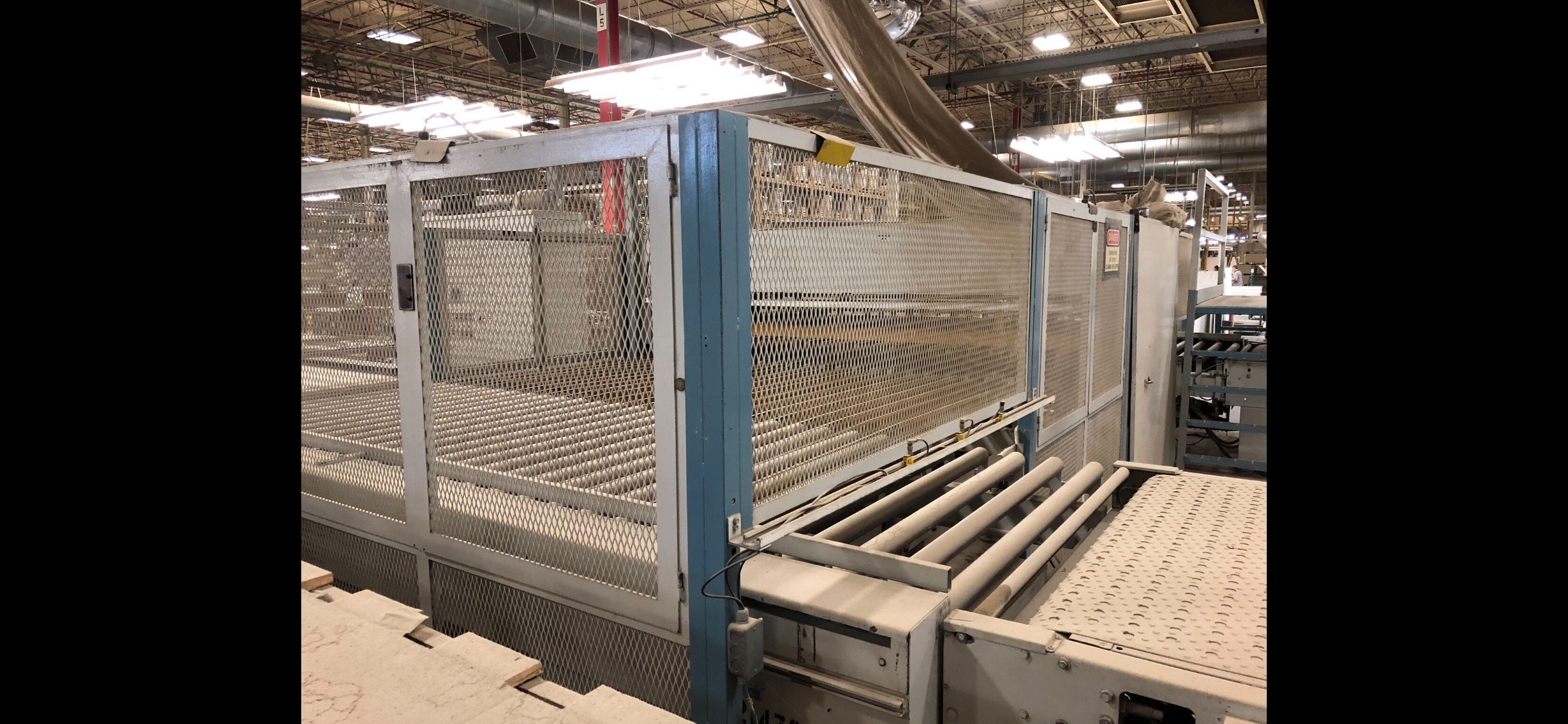

Cefla QEG 180° Panel Flipper / Turn Over Unit

Manufacturer: Cefla Finishing

Model: QEG

Serial Number: C06189_18A

Condition: Used – Good Operating Condition

Machine Type: Automatic Panel Flipper / Turn Over Unit

Machine Description

The Cefla QEG is a heavy-duty automatic panel flipper designed for integration into finishing, sanding, coating, and material handling lines. Combining transfer conveyor and turnover functions into a single machine, the QEG automatically rotates panels 180° during production, allowing both faces of a workpiece to be processed without manual handling.

Designed for continuous production environments, the system utilizes pneumatic clamping and conveyorized transport to safely flip and transfer panels while maintaining production flow. The machine is ideally suited for cabinet manufacturing, furniture production, architectural millwork, finishing operations, and panel processing applications.

Key Features

• Automatic 180° panel turnover system

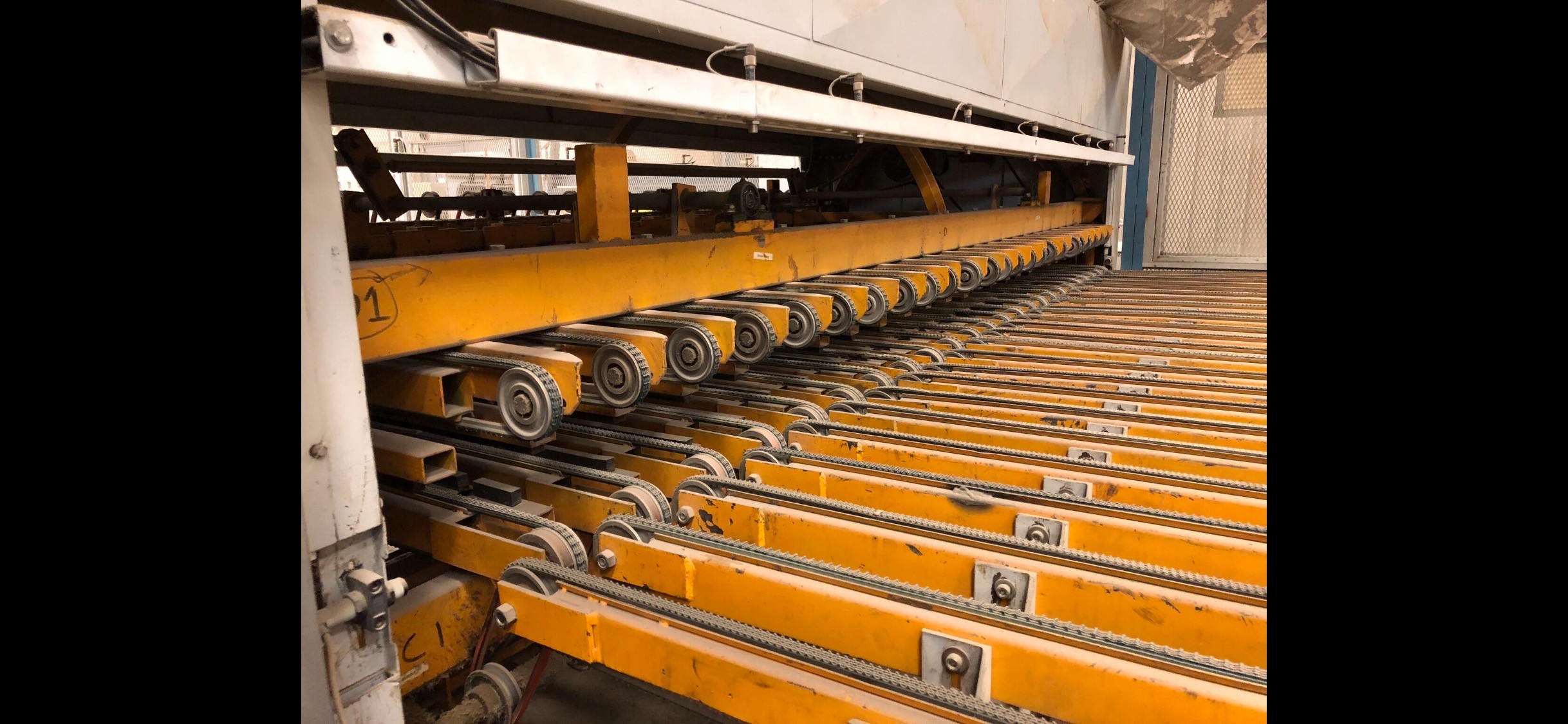

• Integrated transfer conveyor

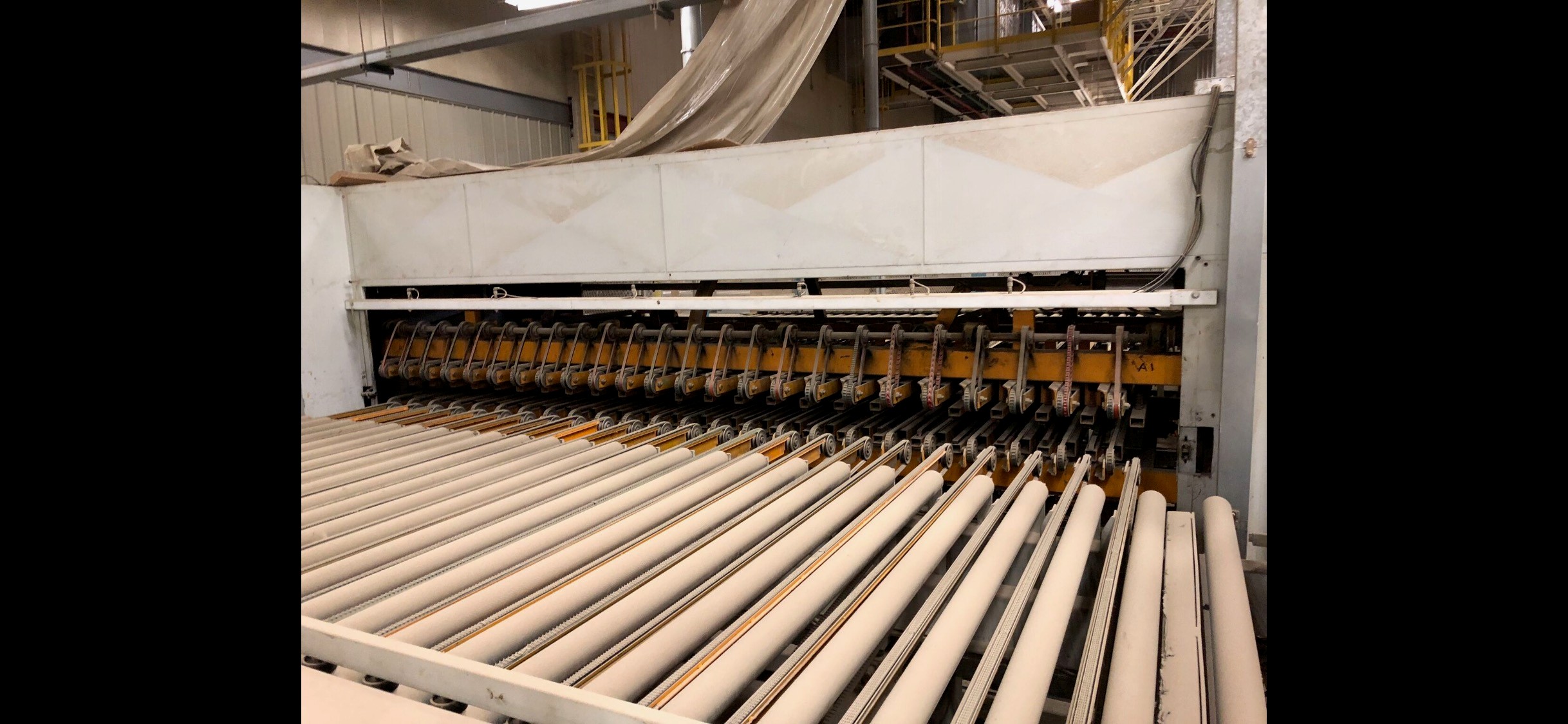

• Pneumatic panel clamping mechanism
• Variable-speed operation
• Continuous production design
• Designed for finishing and coating lines
• Heavy-duty industrial construction
• European-built Cefla equipment

Working Capacity

Panel Dimensions

• Panel Thickness: 5 mm – 70 mm (0.20" – 2.75")
• Maximum Panel Length: 3,500 mm (137.8")
• Maximum Panel Width: 1,450 mm (57.1")

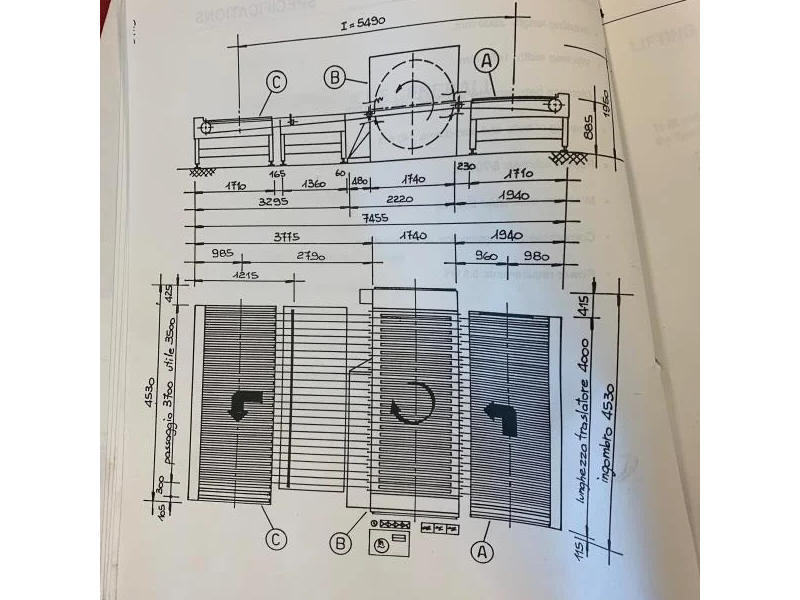

Transfer Dimensions

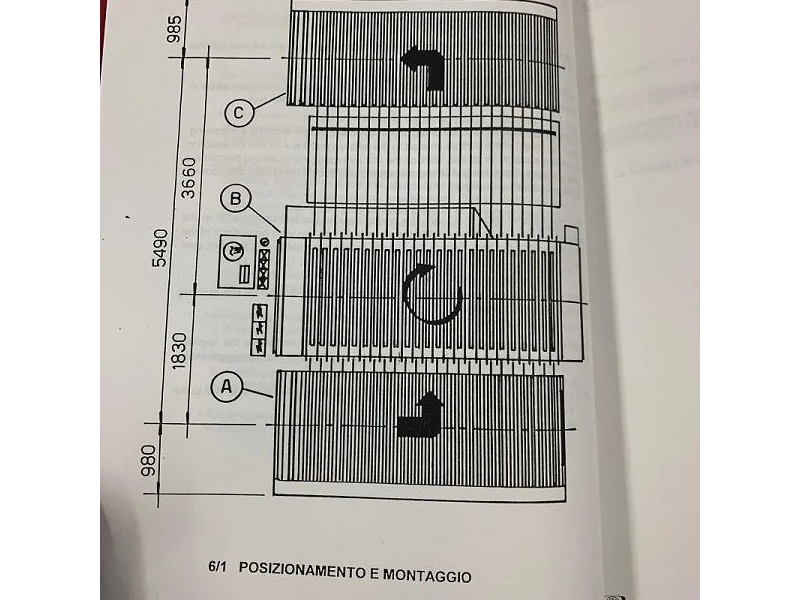

• Center distance between infeed and outfeed: 3,660 mm (144")
• Belt spacing / hold-down spacing: 140 mm (5.5")
• Minimum working height: 895 mm (35.2")

Performance

Variable Transfer Speed

• 5 – 25 m/min
• Approx. 16 – 82 FPM

Operating Function

• Integrated transfer and turnover system
• Automatic 180° panel rotation
• Suitable for two-sided finishing operations
• Continuous conveyorized material handling

Pneumatic Requirements

• Air Consumption:
• 30 Nl per cycle
• Operating Pressure:
• 6 Bar (90 PSI)

Electrical Specifications

• Voltage: 600V
• Frequency: 60 Hz
• Phase: 3 Phase + Ground (3+PE)
• Total Installed Power: 16.5 kW
• Full Load Current: 38 Amps
• Largest Motor: 3 kW
• Largest Motor Current: 5.5 Amps

Condition

Used – Good Operating Condition

The machine appears complete and configured for continued production use. Its integrated transfer conveyor and automatic turnover system provide an efficient solution for facilities looking to automate panel handling and reduce manual labor.

Notes

The Cefla QEG 180° Panel Flipper is a purpose-built automation solution designed to improve throughput and reduce manual handling in panel processing and finishing environments. By automatically rotating panels within the production line, the machine enables efficient two-sided processing while maintaining consistent workflow and production efficiency. The QEG remains a valuable addition to furniture, cabinet, and finishing operations looking to increase automation and material handling capacity.
