2019 SCM Class TF 130 Shaper Package

Manufacturer: SCM Group

Model: Class TF 130

Year of Manufacture: 2019

Condition: Used – Excellent Condition

Machine Type: Tilting Spindle Shaper, Power Feeder & Mortising Table

Machine Description

The SCM Class TF 130 is a professional-grade European spindle shaper designed for precision profiling, tenoning, joinery, raised panel production, and custom moulding applications. Built for demanding woodworking environments, the TF 130 combines heavy-duty construction, high spindle capacity, and versatile tooling capability in a compact industrial package.

This machine is configured as a complete shaping workstation and includes a mortising table, and independently powered feeder system, making it suitable for cabinet manufacturing, furniture production, architectural millwork, door components, and custom woodworking operations.

The machine has been maintained in excellent condition, has low operating hours, and remains under power for inspection and demonstration.

Included Equipment

Main Machine

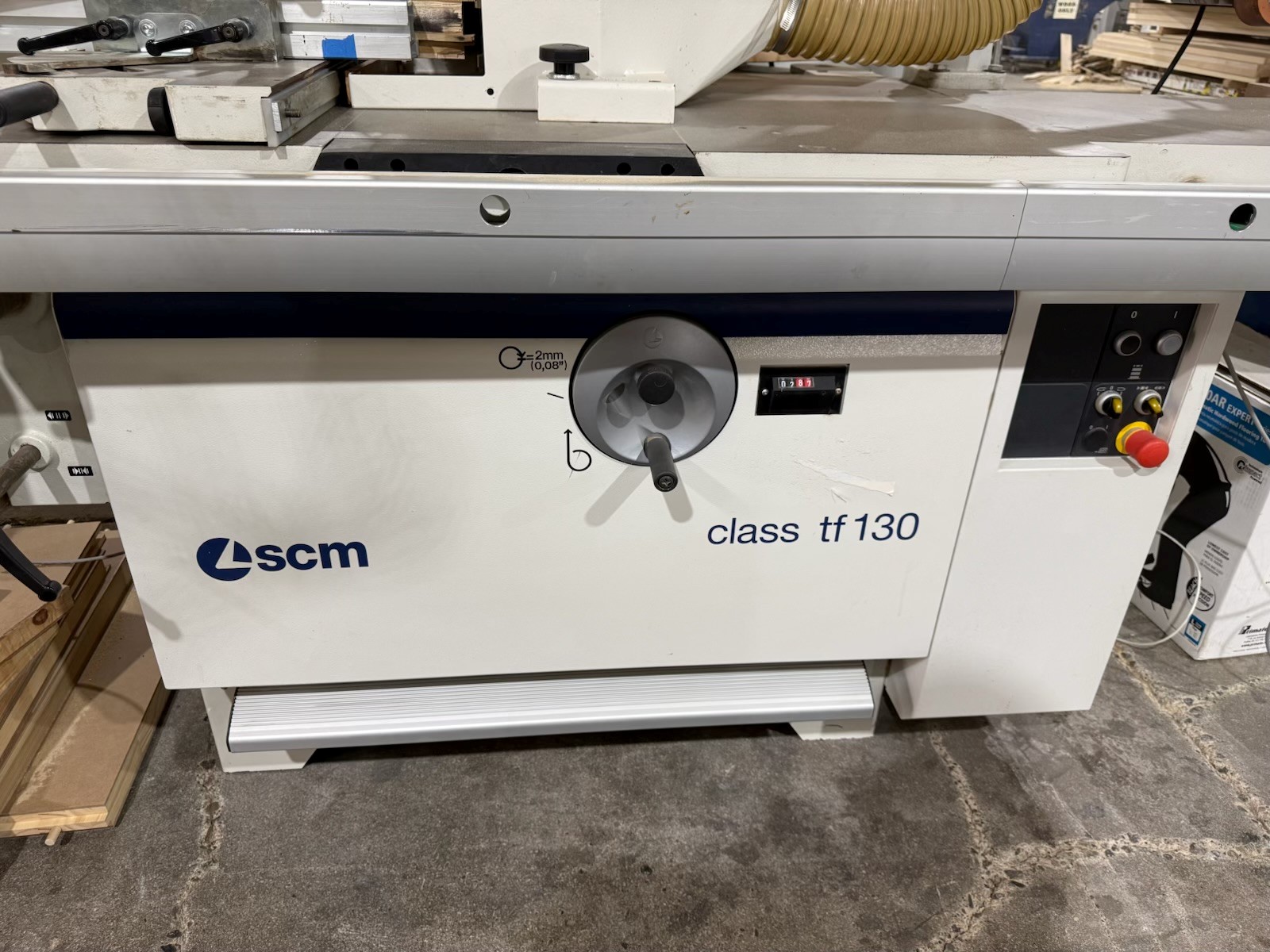

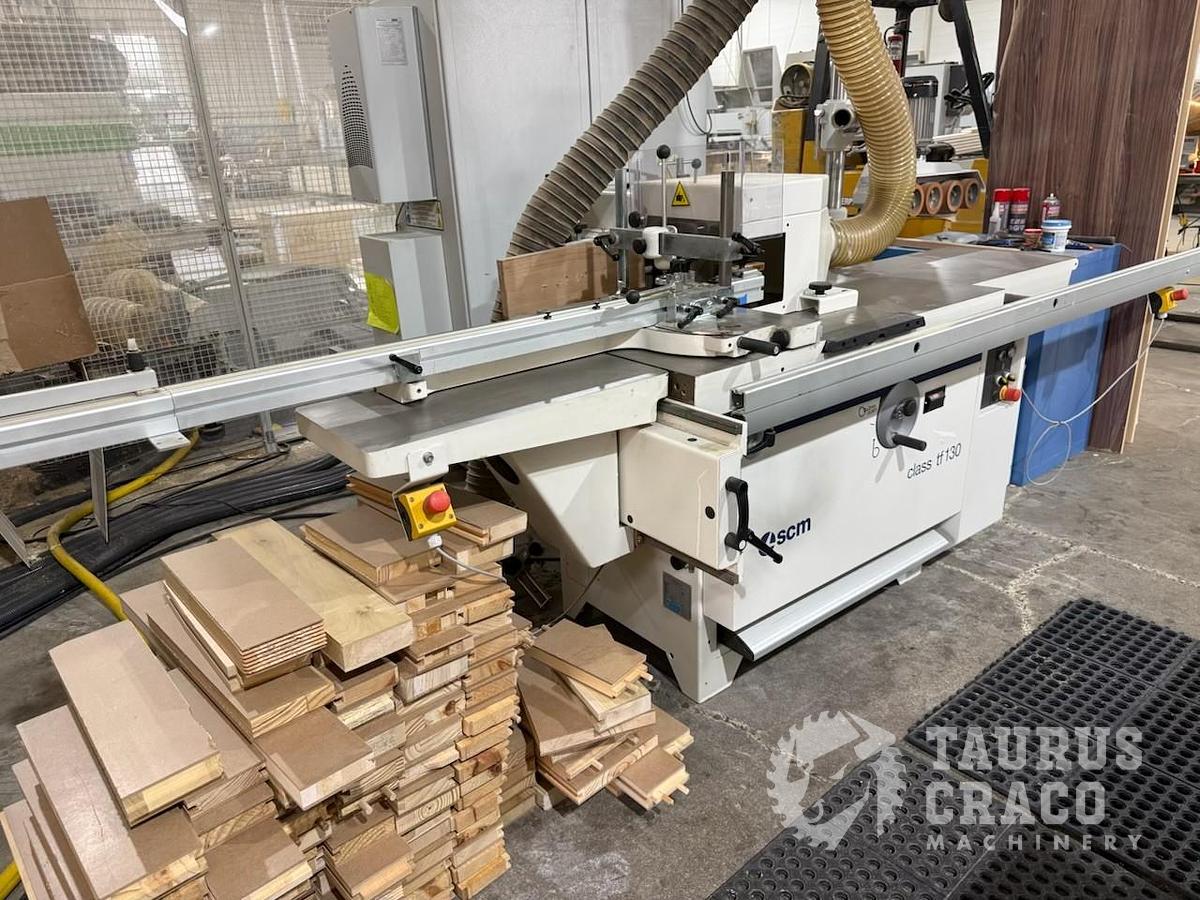

• SCM Class TF 130 Tilting Spindle Shaper
• Heavy-duty cast iron table
• Tilting spindle configuration
• Digital spindle height readout
• Precision adjustable fence system

Additional Equipment Included

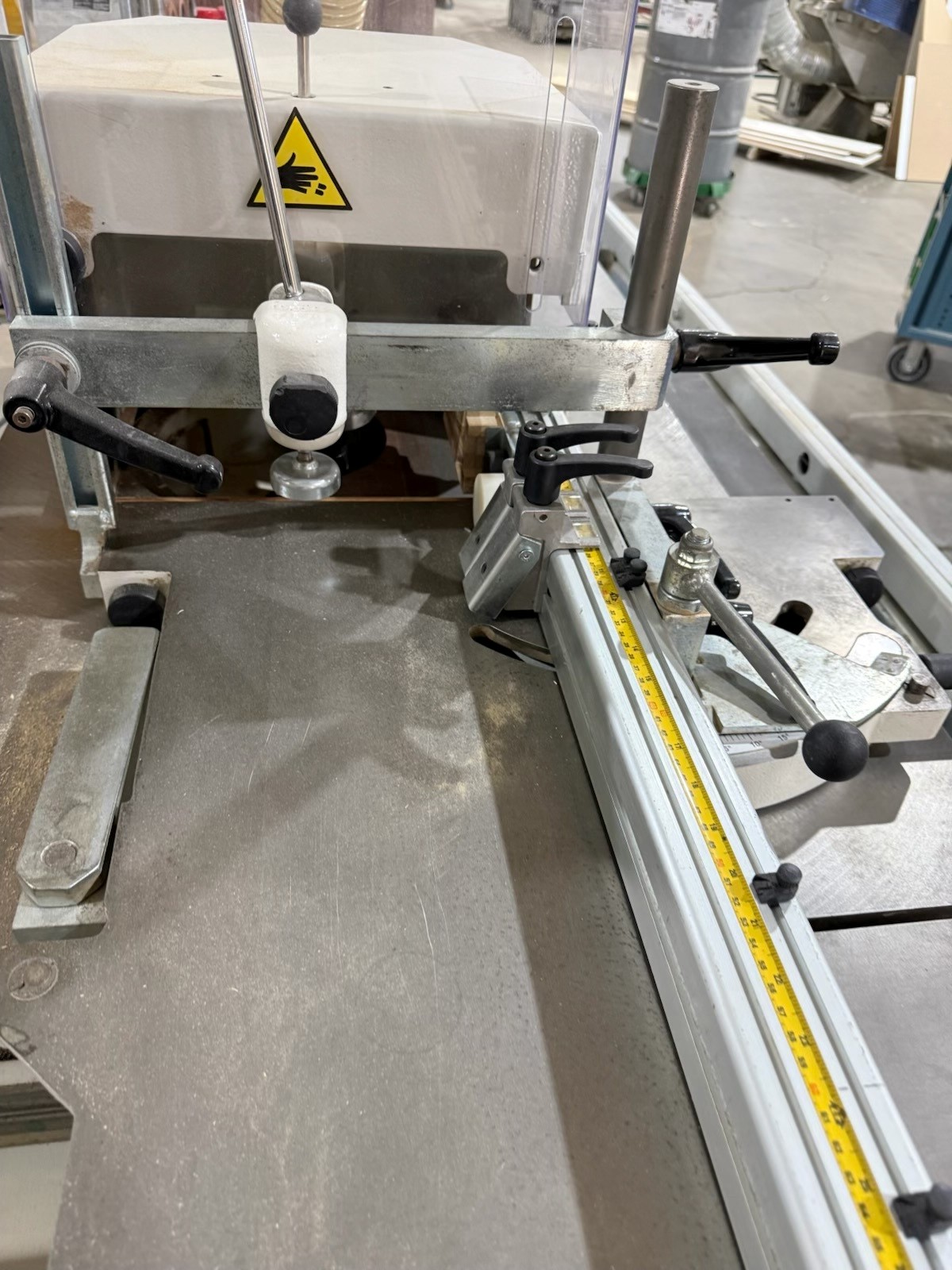

• Mortising table
• Power feeder (220V)
• Manuals
• Spare parts

Key Features

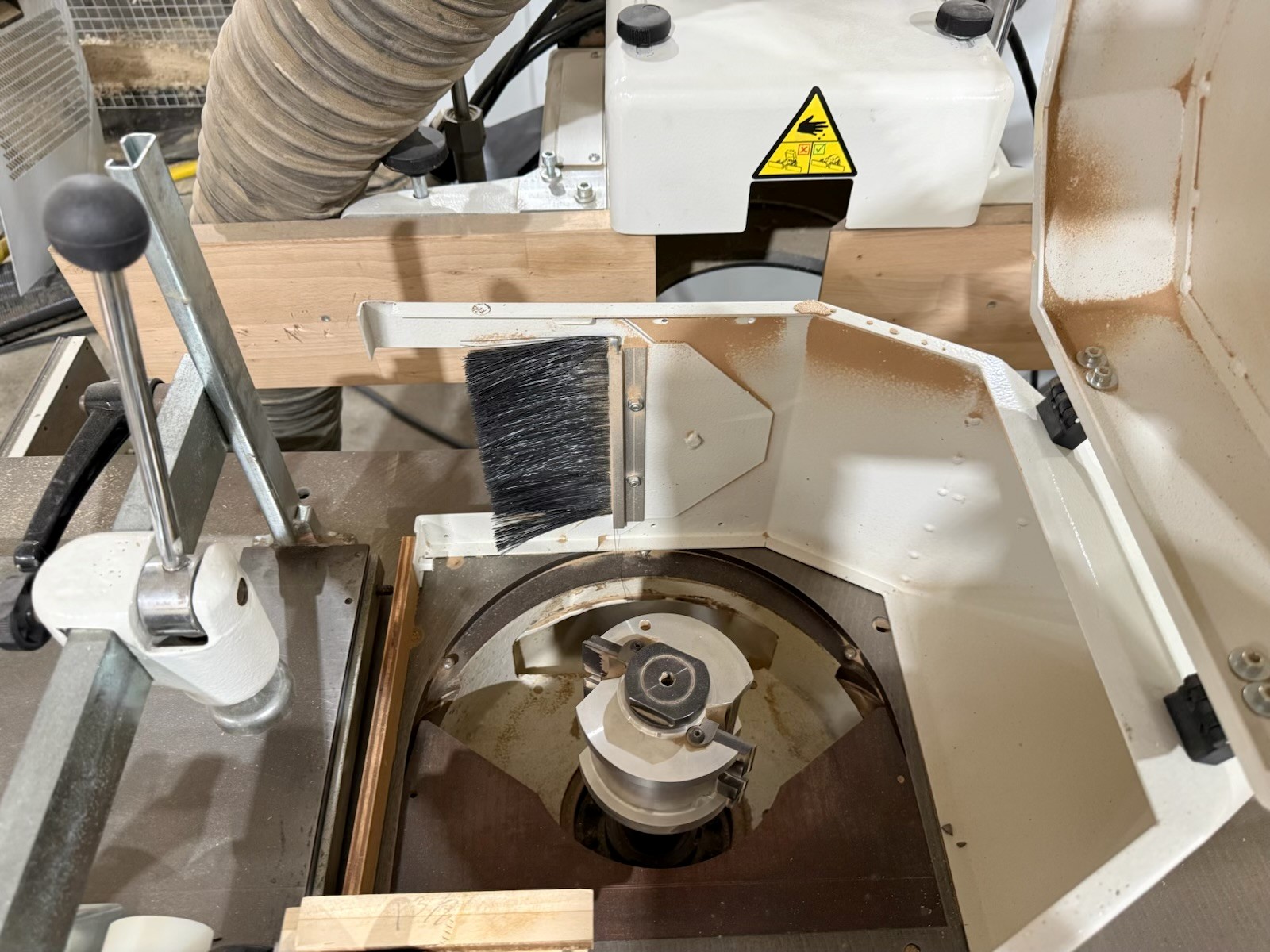

• Tilting spindle design
• Reverse spindle rotation
• Electronic spindle brake
• Multiple spindle speed selections
• Digital spindle height positioning
• Heavy-duty cast iron construction

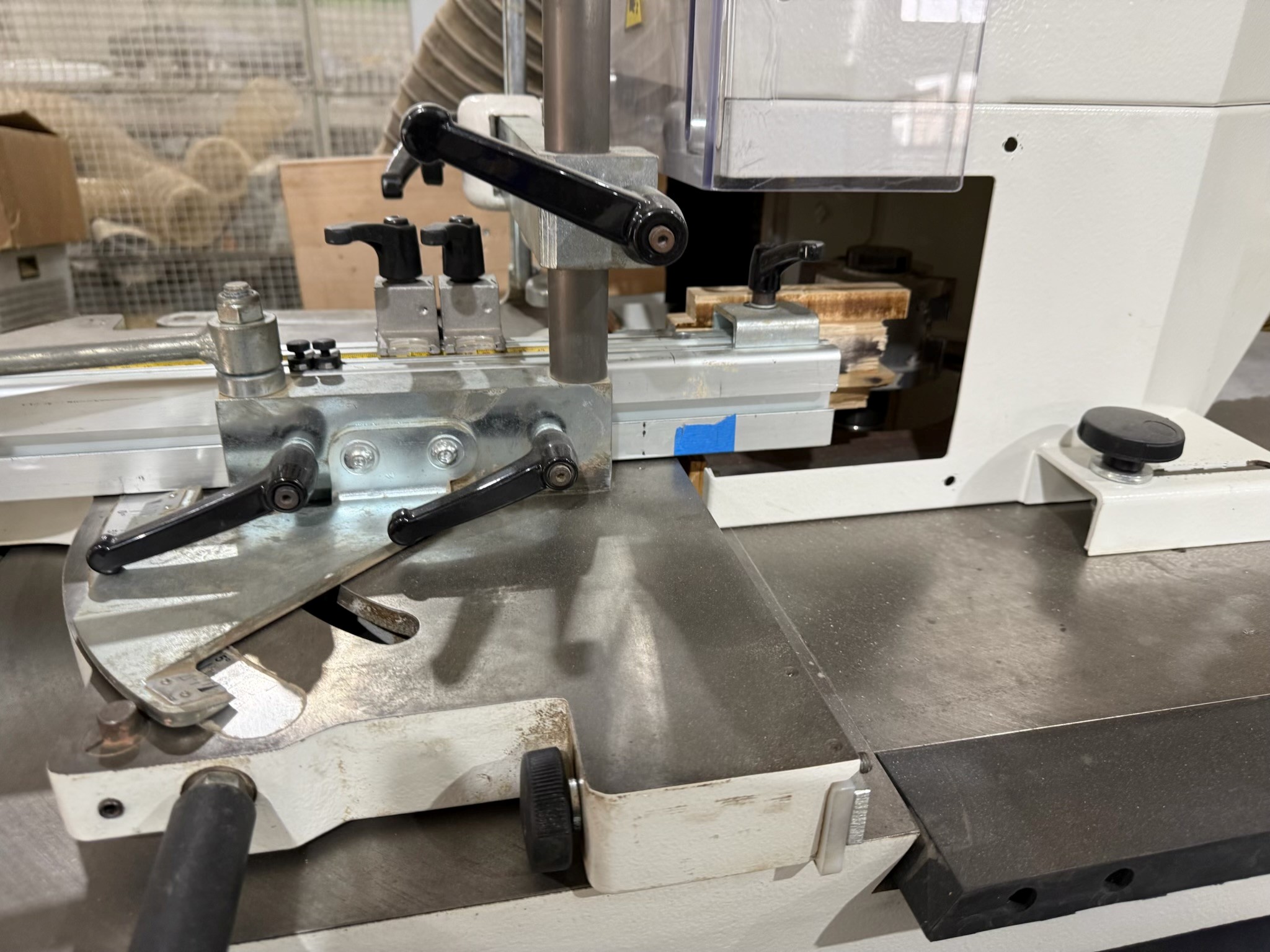

• Professional fence system with precision adjustment
• Industrial European build quality
• Low operating hours

Technical Specifications

Spindle

• Maximum useful spindle length: 180 mm (7")
• Spindle speeds:
• 3,000 RPM
• 4,500 RPM
• 6,000 RPM
• 7,000 RPM
• 10,000 RPM

Tool Capacity

• Maximum profiling tool diameter: 250 mm (9.8")
• Maximum retractable tool diameter below table: 300 mm (11.8")
• Maximum tenoning tool diameter: 300 mm (11.8")

Table

• Approximate table size: 1200 mm × 730 mm
• Heavy-duty cast iron construction

Main Motor

• 11 HP spindle motor

Electrical Specifications

Main Machine – SCM TF 130

• Voltage: 600V
• Phase: 3 Phase
• Frequency: 60 Hz

Power Feeder

• Voltage: 220V
• Independently powered feeder system

Machine Dimensions & Weight

• Length: 120"
• Width: 48"
• Height: 63"
• Weight: Approx. 1,850 lbs (840 kg)

Condition Notes

• Excellent overall condition
• Low operating hours
• Under power
• Complete machine package
• Manuals included
• Spare parts included

Notes

The SCM Class TF 130 is one of SCM's most respected spindle shapers, offering industrial performance, flexibility, and precision. The inclusion of the mortising table, and independently powered feeder system significantly expands the machine's capabilities, creating a complete shaping and joinery workstation suitable for both production and custom woodworking environments.

This package presents an excellent opportunity to acquire a well-equipped, low-hour SCM shaper in excellent operating condition.
