2015 Weeke Optimat ABD050/12/NA CNC Drill & Dowel Insertion Machine

Manufacturer: Weeke (HOMAG Group)

Model: Optimat ABD050/12/NA

Year of Manufacture: 2015

Condition: Used – Very Good Operating Condition

Machine Type: CNC Drill, Glue & Dowel Insertion Machine

Machine Description

The Weeke Optimat ABD050/12/NA is a CNC-controlled drilling and dowel insertion machine designed for the efficient production of cabinet, furniture, closet, and millwork components. The machine combines horizontal drilling, glue application, and automatic dowel insertion into a single process, reducing labor requirements while improving production consistency and accuracy.

Capable of processing parts from 20 mm to 1,250 mm in length, the ABD050/12/NA is ideally suited for both batch and custom production environments. The machine utilizes a high-speed 7,500 RPM drilling spindle and automatic dowel feeding system to deliver accurate and repeatable assembly preparation.

Built on Weeke’s proven production platform, the machine is designed as a stand-alone solution or as an ideal complement to a CNC router or machining centre.

Key Features

• CNC-controlled drill and dowel insertion machine
• Horizontal drilling, glue injection, and dowel insertion in one operation
• High-speed 7,500 RPM drilling spindle
• Automatic glue application system
• Automatic dowel insertion system
• Industrial production design
• Open-ended table configuration
• Ideal for cabinet, furniture, and component manufacturing
• HOMAG / Weeke industrial construction
• Production-ready platform

Working Capacity

Part Dimensions

• Maximum Part Length: 1,250 mm (49.22")
• Minimum Part Length: 20 mm (0.79")
• Maximum Part Width: 800 mm (31.50")
• Minimum Part Width: 50 mm (1.97")
• Maximum Part Thickness: 60 mm (2.36")
• Minimum Part Thickness: 10 mm (0.39")
• Maximum Part Length Using Center Stop: 600 mm (23.62")

Drilling & Dowel Insertion System

Horizontal Drilling Aggregate

• Single horizontal drilling spindle
• Spindle speed: 7,500 RPM
• Drill shank diameter: 10 mm
• Total drill length: 70 mm

Dowel Insertion System

• Automatic dowel insertion
• Automatic dowel feeding system
• Standard dowel sizes:
• 8 mm × 30 mm
• 8 mm × 35 mm

The machine performs drilling, glue application, and dowel insertion in a single automated cycle, making it ideal for cabinet, furniture, and component production.

Glue Application System

• Integrated glue application system
• Automated glue delivery during insertion cycle
• Designed to improve assembly consistency
• Clean and repeatable operation

Material Handling

• Open-ended work table design
• Left and right referencing system
• Center stop positioning system
• Suitable for individual components and batch processing
• Fast setup and repeatability for production environments

Machine Construction

• Heavy-duty industrial frame
• Precision-guided machining system
• Production-grade components
• Designed for continuous manufacturing environments
• HOMAG / Weeke quality construction

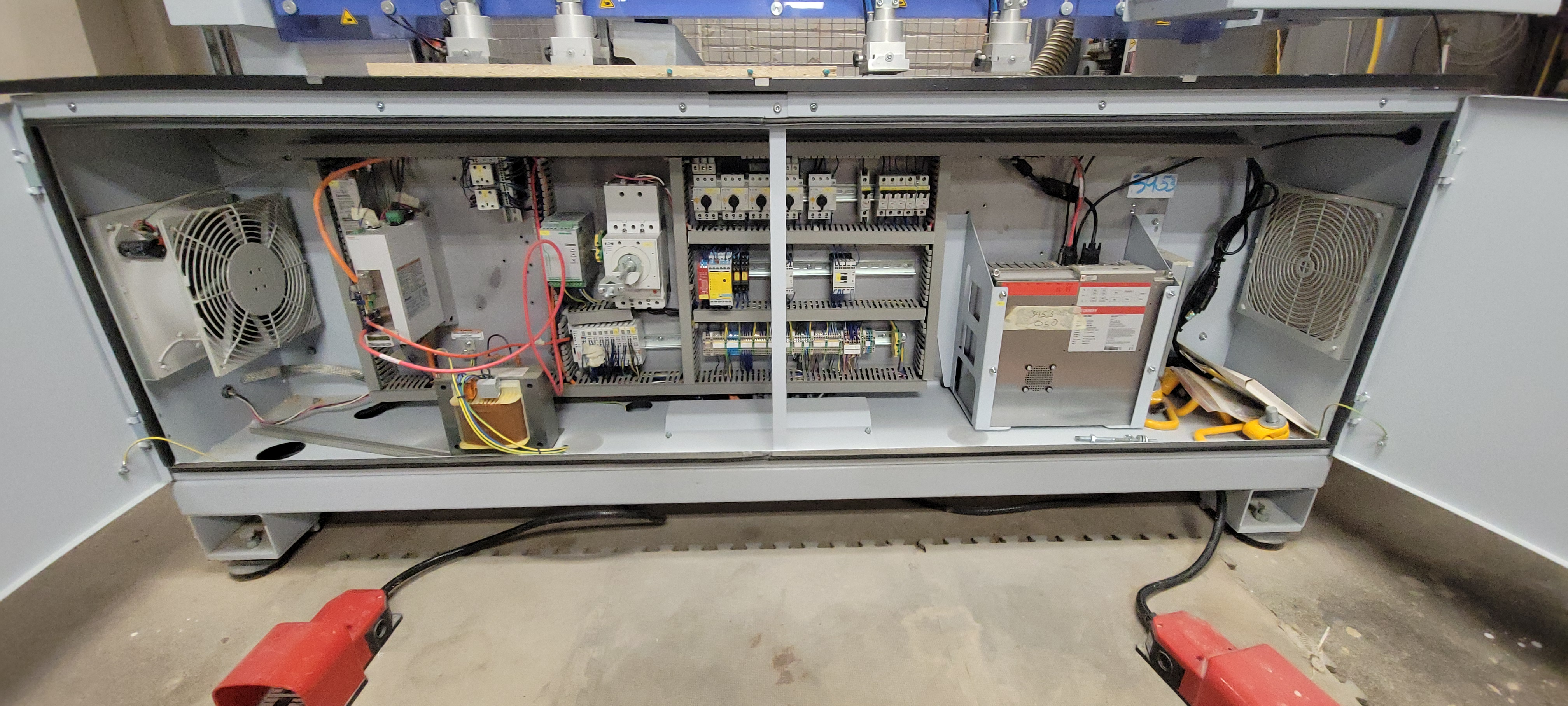

Electrical Specifications

Verified from Nameplate

• Voltage: 480V
• Phase: 3 Phase
• Frequency: 60 Hz
• Maximum Full Load Current: 7 Amps
• Fuse Size: 16 Amps
• Control Voltage: 24V
• Largest Motor Current: 1.5 Amps

Condition

Used – Very Good Operating Condition

This machine has been maintained in a production environment and remains in very good operating condition. It is production-ready and suitable for continued use in cabinet, furniture, and component manufacturing operations.

Known Cosmetic / Minor Condition Item

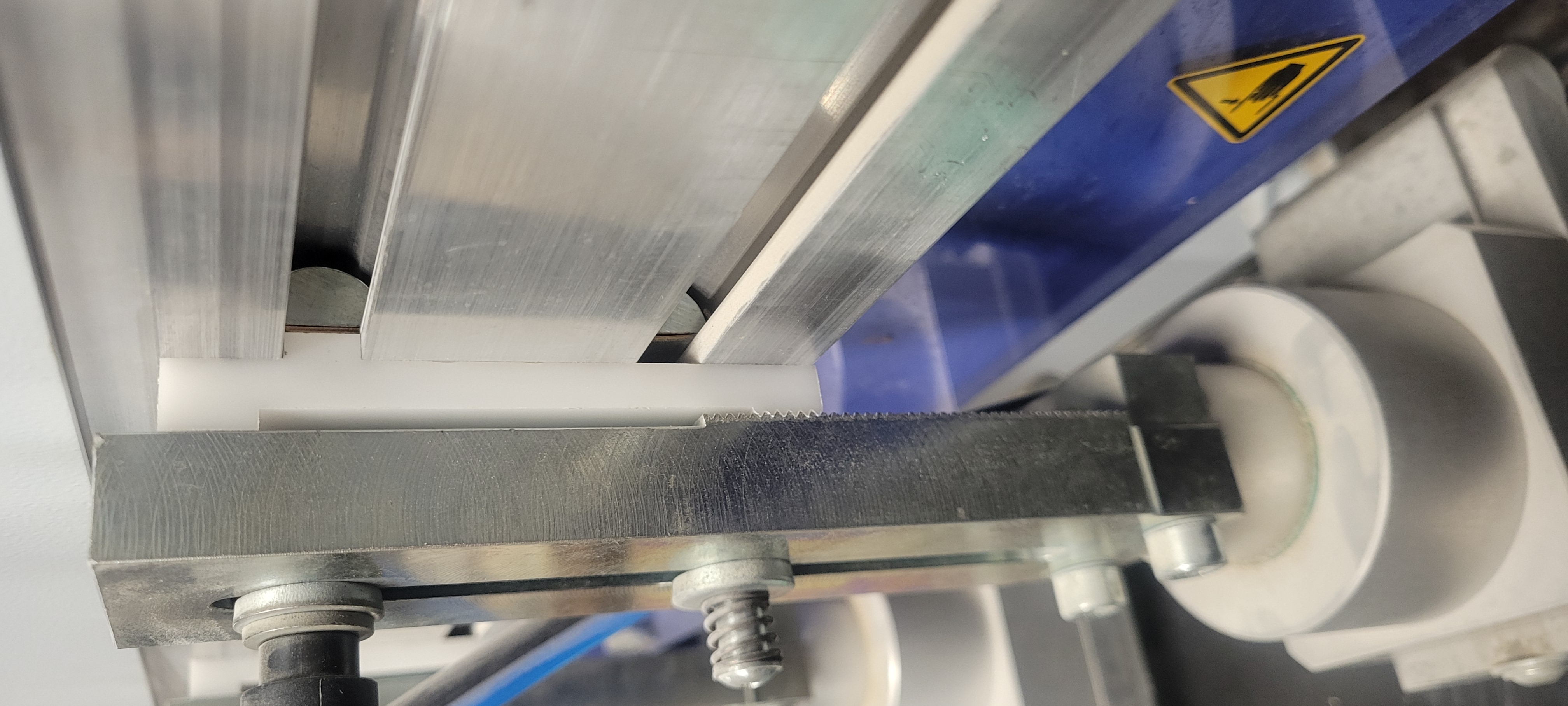

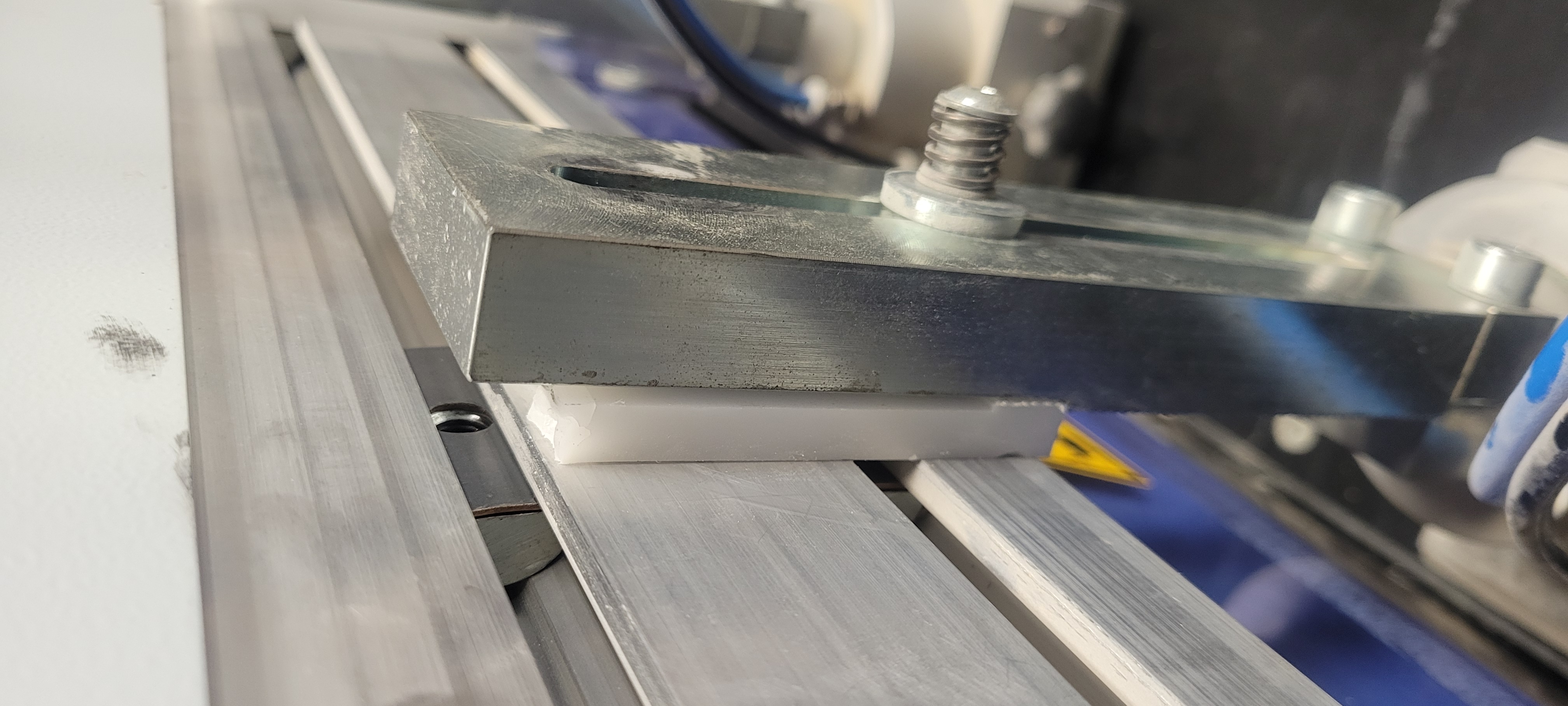

• A small retaining clip on the clamping unit is broken.
• This is a minor issue that does not affect machine operation or performance.
• The condition is visible in the machine photos and has been disclosed for complete transparency.

Condition Notes

• Very good mechanical condition
• Production-ready
• Well-maintained industrial equipment
• Clean operating condition
• Electrical and control systems in place
• Minor broken clip on the clamping unit (visible in photos)
• Does not affect machine functionality
• Suitable for immediate production use

Notes

The Weeke Optimat ABD050/12/NA is a proven CNC drilling and dowel insertion solution designed to improve efficiency and consistency in cabinet and furniture manufacturing. Combining high-speed drilling, glue application, and automatic dowel insertion in a single operation, the machine significantly reduces manual labor while delivering accurate and repeatable assembly preparation for production environments.
