2013 Weeke Optimat BHP008 Vantech 480 CNC

Manufacturer: Weeke (HOMAG Group)

Model: Optimat BHP008 Vantech 480

Year of Manufacture: 2013

Condition: Used – Very Good Operating Condition

Machine Type: CNC Point-to-Point Machining Centre / CNC Router

Machine Description

The Weeke Optimat BHP008 Vantech 480 is a versatile CNC machining centre built for routing, drilling, grooving, and panel processing applications in cabinet, furniture, closet, and millwork production environments.

Manufactured by Weeke, a member of the HOMAG Group, the Vantech series is known for combining machining flexibility, production efficiency, and reliable performance. The machine is designed to perform a wide range of CNC operations while maintaining the accuracy and repeatability required for both custom and production manufacturing.

This 2013 machine remains in very good operating condition and has been maintained in a woodworking production environment. Originally sold and serviced through HOMAG Canada, it is production-ready and suitable for continued industrial use.

Key Features

• 4' x 8' CNC machining centre
• 12 HP (9 kW) HSK 63F routing spindle
• Spindle speed range: 1,250 – 24,000 RPM
• 7-position automatic tool changer
• 7-spindle vertical drill block
• Matrix vacuum table system

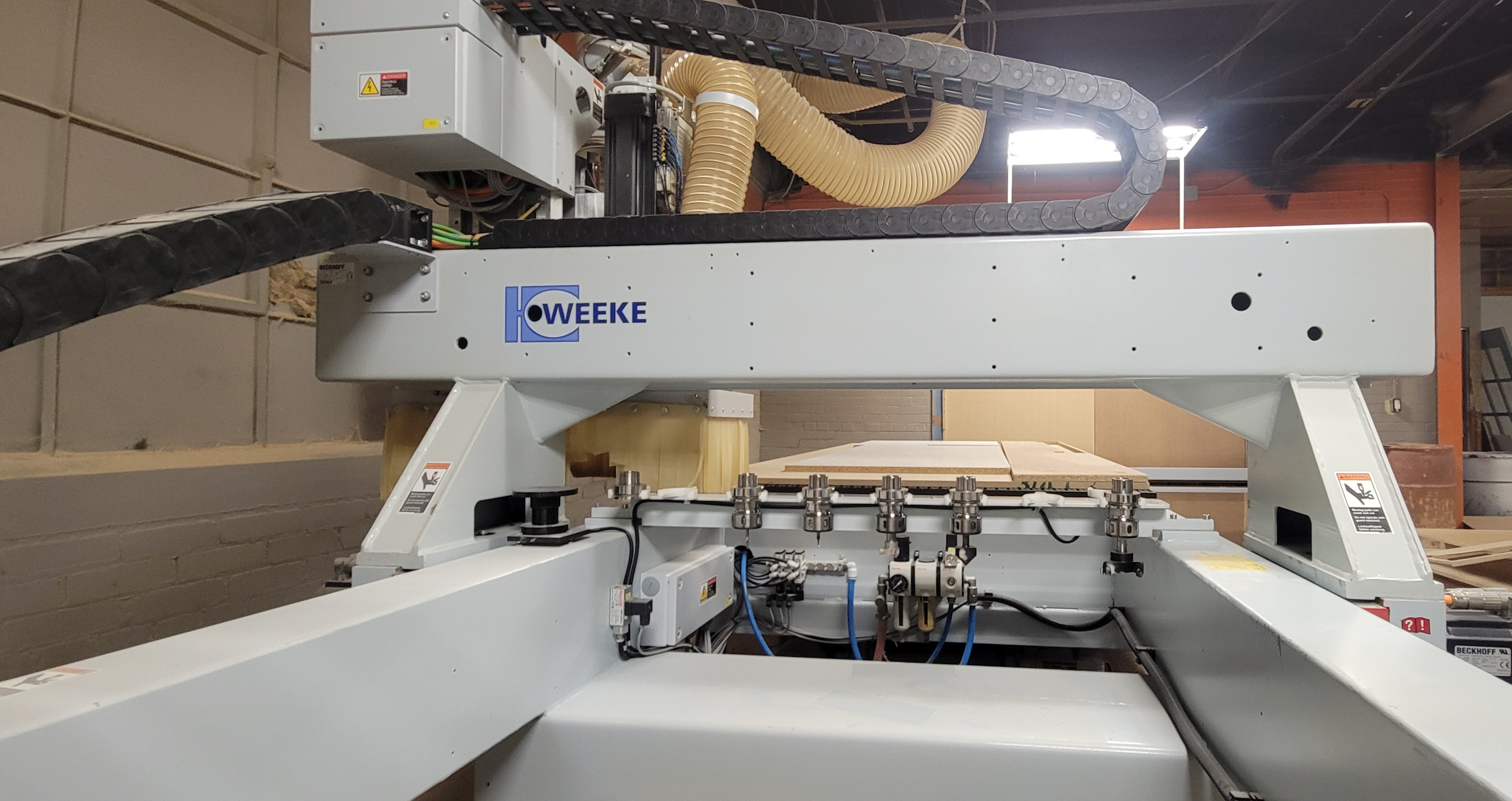

• Dual-drive gantry construction
• WoodWOP programming platform
• CNC routing, drilling, and grooving capabilities
• Heavy-duty HOMAG / Weeke industrial platform
• Automated machining operations
• Suitable for custom and production woodworking applications

Working Capacity

Working Area

• X-Axis Working Length: 2,500 mm (98.4")
• Flat table nesting configuration
• 4' x 8' panel processing capacity
• Matrix vacuum table work surface

Routing System

Main Spindle

• HSK 63F tooling interface
• 12 HP (9 kW) spindle
• Speed range: 1,250 – 24,000 RPM

Tool Changer

• 7-position automatic tool changer
• Automatic tool pick-up station
• Integrated tool length control system

Drilling Capability

Vertical Drill Bank

• 7 vertical drilling spindles
• Integrated boring capability
• Designed for cabinet and panel component production

Axis Drive System

• Dual synchronized X-axis drives
• Rack-and-pinion drive on X-axis
• Ball screw drive on Y and Z axes
• Digital servo motors and controls
• High-precision machine motion system

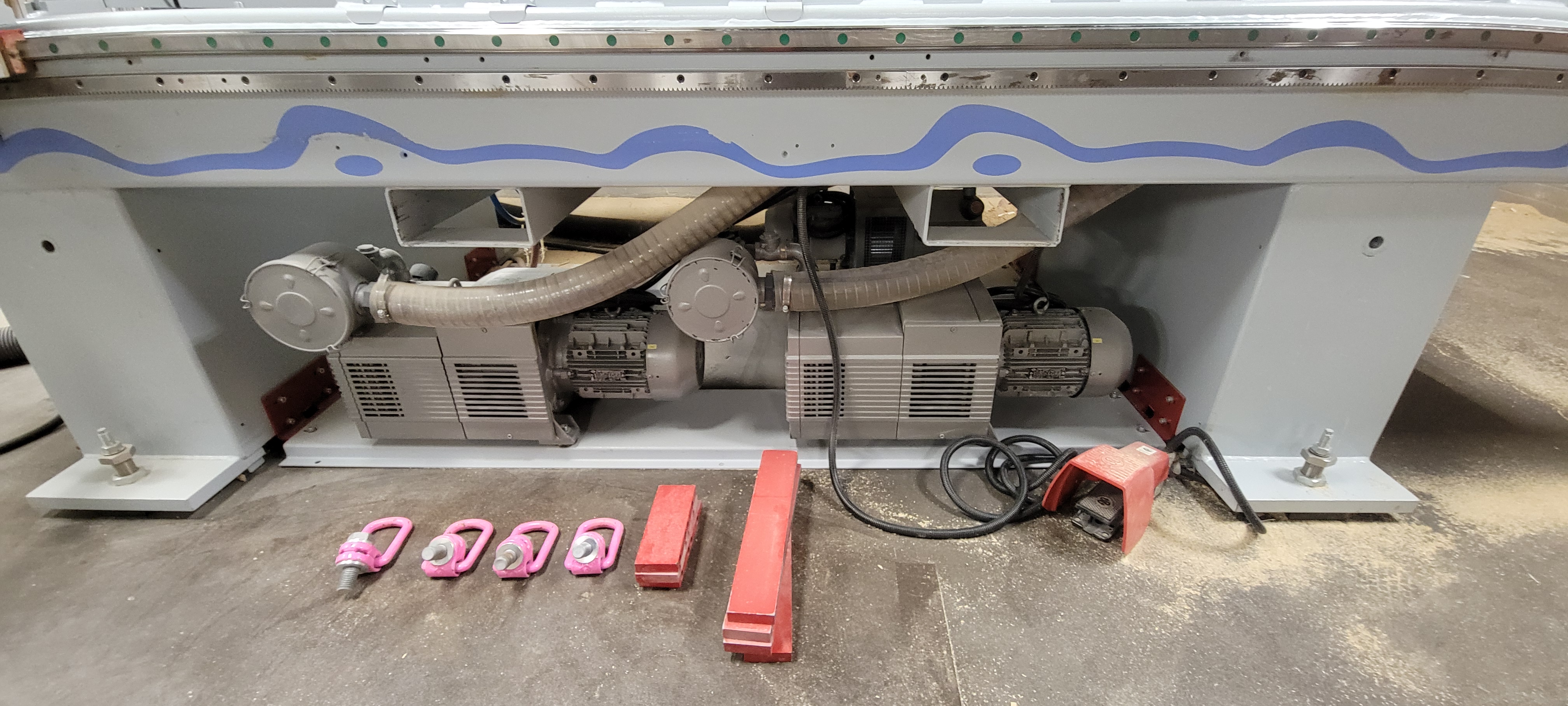

Vacuum System

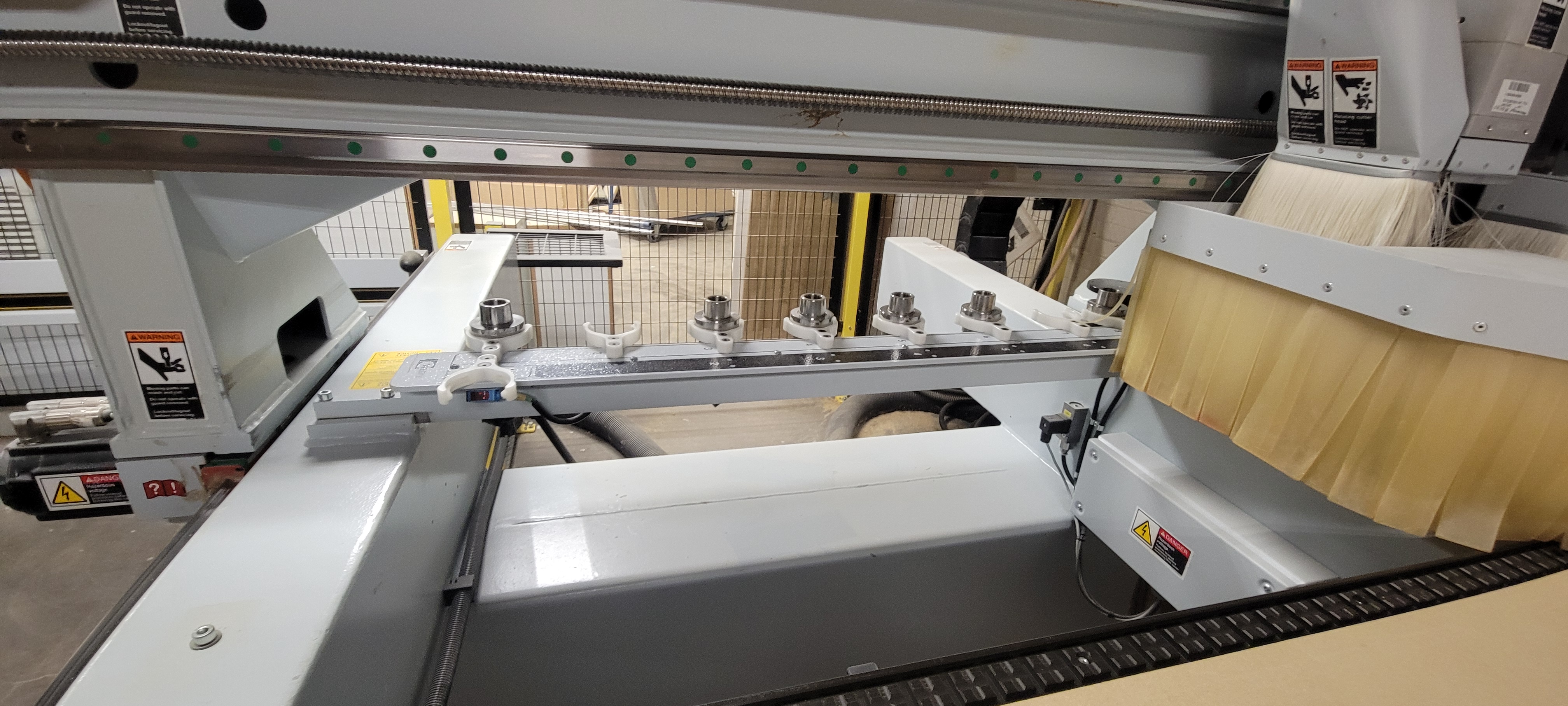

Matrix Vacuum Table

• Segmented Matrix vacuum system
• Total vacuum capacity: 267 m³/h

Machine Performance

• Vector speed: up to 96 m/min
• Dual-drive gantry for improved machining accuracy
• High-speed processing capability

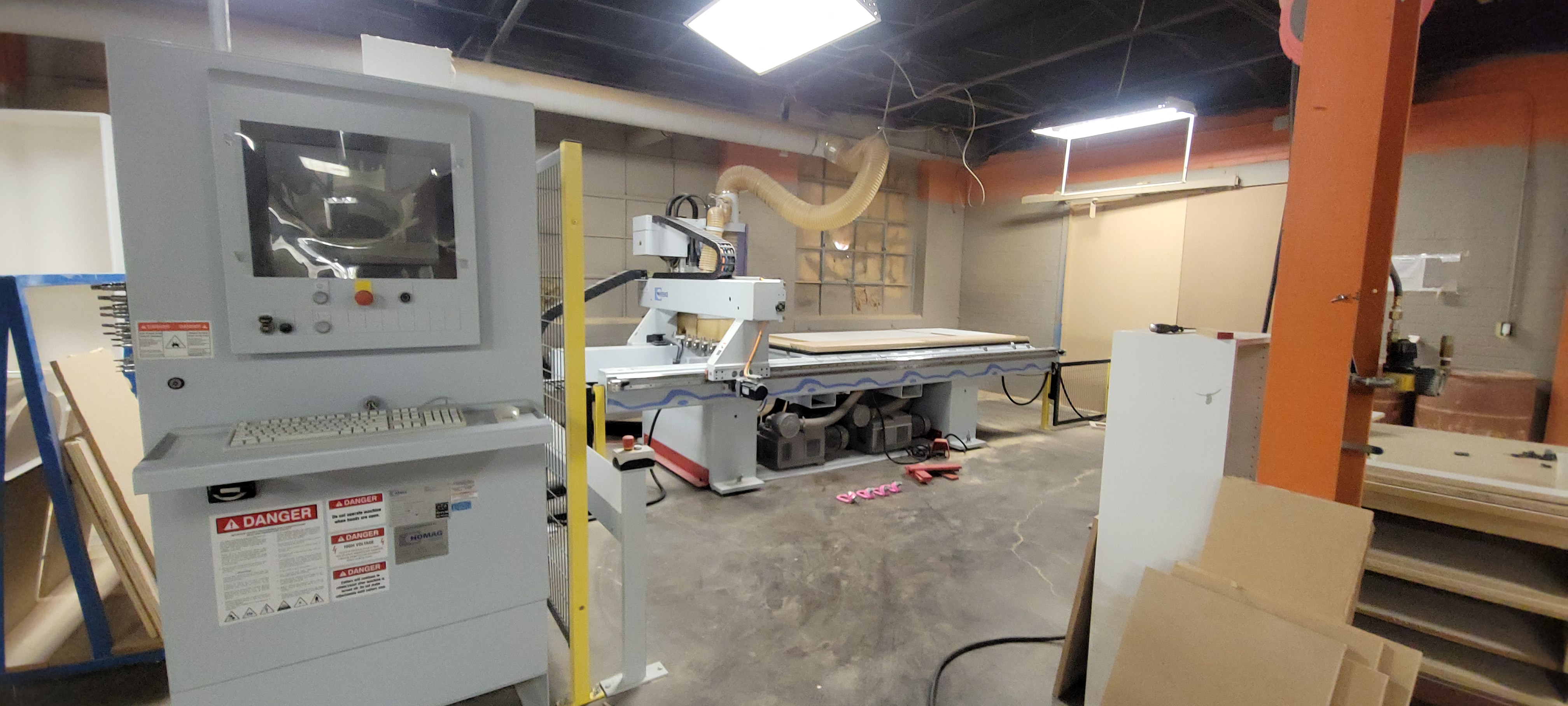

Software & Control

Included Platform

• Weeke CNC Control System
• WoodWOP programming software
• DXF import capability
• CNC simulation functionality

Electrical Specifications

• Voltage: 480V
• Phase: 3 Phase
• Frequency: 60 Hz
• Maximum Full Load Current: 37 Amps
• Fuse Size: 50 Amps
• Control Voltage: 24V
• Largest Motor Current: 21 Amps
• Enclosure Type: 12

Condition

Used – Very Good Operating Condition

This machine has been maintained in a production environment and remains in very good operating condition. It is currently production-ready and suitable for continued use in cabinet, furniture, and millwork manufacturing applications.

Notes

The Weeke Optimat BHP008 Vantech 480 is a proven German-built CNC machining solution that combines routing, drilling, grooving, and nesting capabilities in a compact and efficient platform. With its 12 HP spindle, 7-position automatic tool changer, 7-spindle drill block, Matrix vacuum table, and WoodWOP software, this machine offers an excellent balance of flexibility, performance, and reliability for woodworking manufacturers looking for a capable production CNC at a fraction of replacement cost.
