2015 HOMAG Automation MPH410/25/07 Case Clamp

Manufacturer: HOMAG Automation GmbH

Model: MPH410/25/07

Year of Manufacture: 2015

Condition: Used – Great Operating Condition

Machine Type: Electromechanical Case Clamp / Cabinet Assembly Press

Machine Description

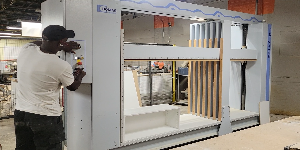

The HOMAG MPH410/25/07 is an industrial electromechanical case clamp designed for the assembly and squaring of cabinet carcasses and furniture cases. Built by HOMAG Automation in Germany, the MPH410 utilizes powered vertical and horizontal pressure beams that automatically adapt to varying cabinet sizes without requiring manual repositioning of pressure elements.

The machine's pressure-beam design provides uniform pressure across the entire cabinet surface, ensuring accurate, repeatable results while reducing setup time between different case sizes. This design makes the machine particularly well suited to high-mix cabinet production environments.

Key Features

• Electromechanical case clamp system
• Simultaneous horizontal and vertical pressing
• Automatic adaptation to varying cabinet sizes
• No manual repositioning of pressure pads required
• Variable pressure adjustment
• Push-button clamp operation
• Two-speed positioning system
• Heavy-duty German construction

Working Capacity

Case Dimensions

• Maximum Case Length: 2,500 mm (98.4")
• Minimum Case Length: 250 mm (9.8")
• Maximum Case Depth: 700 mm (27.6")
• Minimum Case Depth: 250 mm (9.8")
• Maximum Case Height: 1,400 mm (55.1")
• Minimum Case Height: 150 mm (5.9")

Pressing System

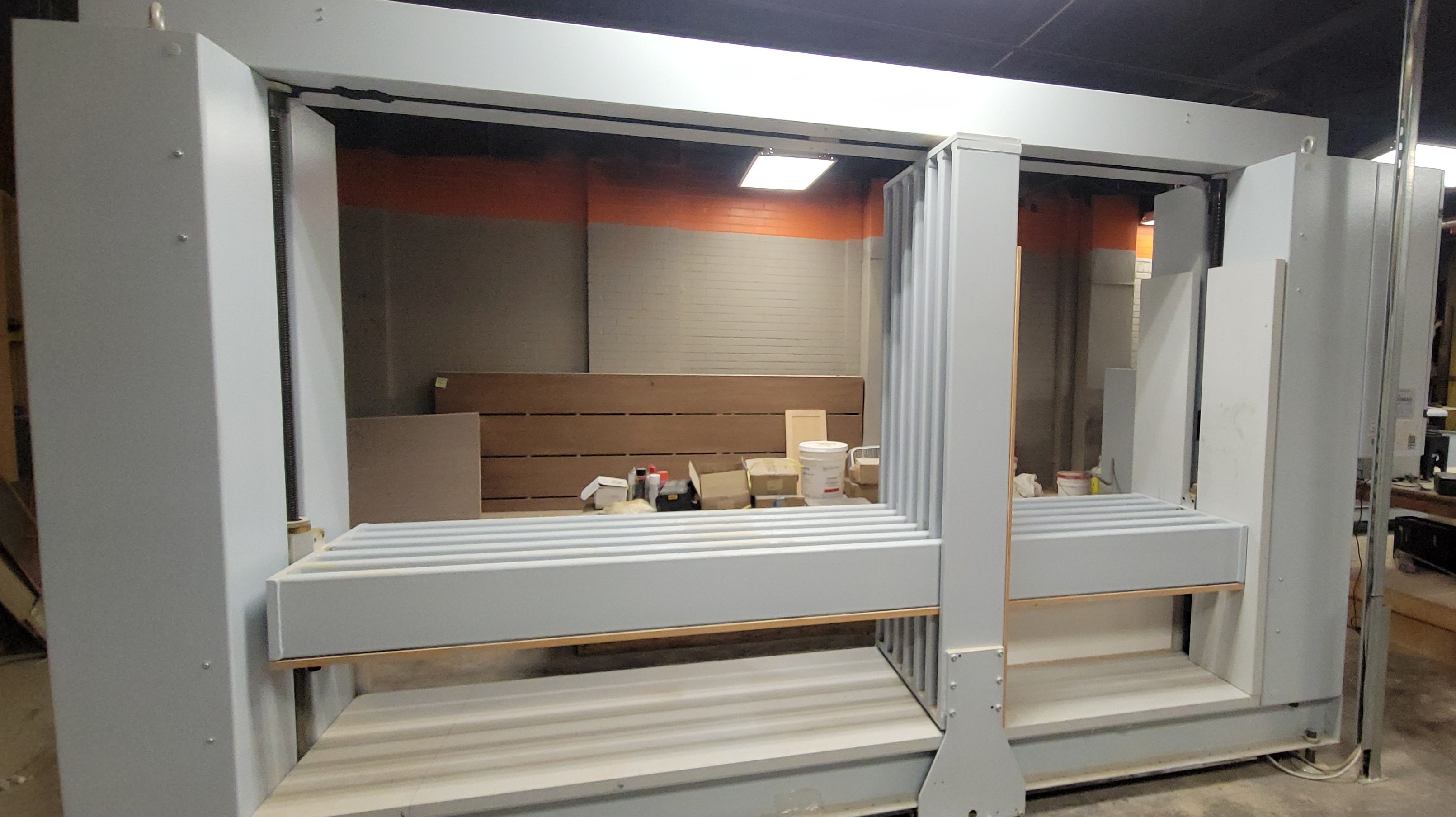

The MPH410 utilizes powered vertical and horizontal pressure beams that apply even pressure across the entire case, helping maintain squareness and assembly accuracy while accommodating varying cabinet dimensions.

Pressing Specifications

• Vertical & Horizontal Pressure: 15 kN (3,372 lbs force)
• Positioning Speed: 25 mm/sec and 50 mm/sec
• Frequency-controlled pressure adjustment
• Chain-driven pressure beam system

Machine Construction

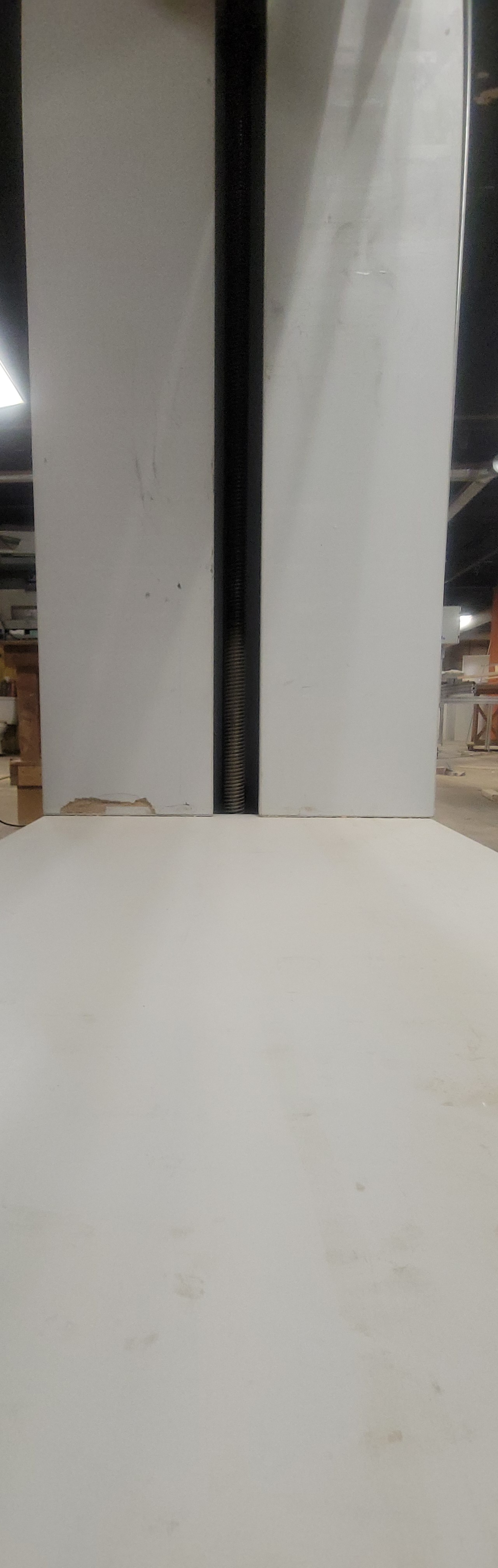

• Full-contact pressure beam system
• Steel pressure beams
• Alternating pressure beam arrangement
• Heavy-duty welded frame construction

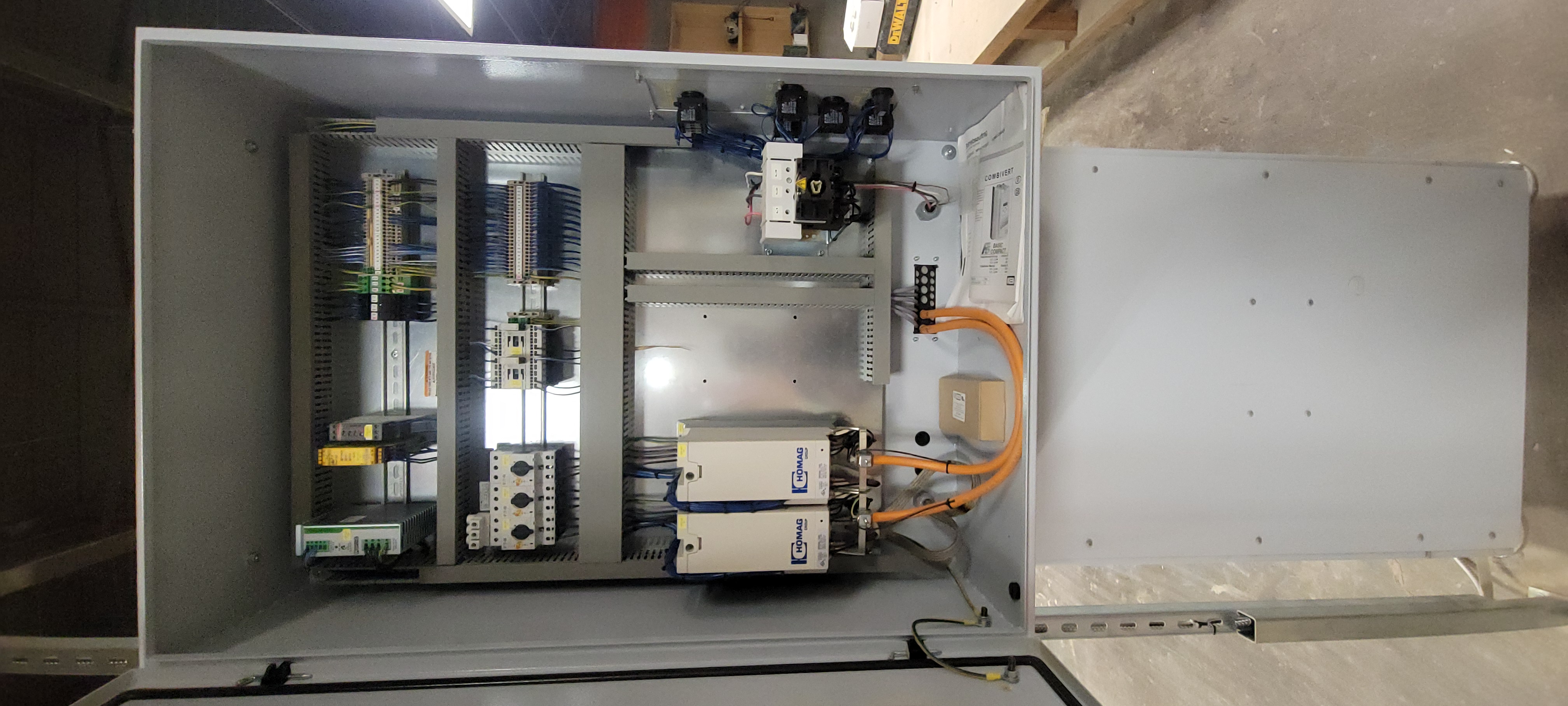

Electrical Specifications

• Voltage: 480V
• Phase: 3 Phase
• Frequency: 50/60 Hz
• Maximum Full Load Current: 4 Amps
• Control Voltage: 24V
• Amperage: 16 Amps

Machine Dimensions

Foundation Requirements

• Required Floor Length: 4,000 mm (157.5")
• Required Floor Width: 750 mm (29.5")
• Required Height Clearance: 2,500 mm (98.5")

Condition Notes

• Great operating condition
• Industrial production machine
• German-built HOMAG Automation equipment
• Suitable for flexible cabinet production

Notes

The HOMAG MPH410/25/07 is a proven industrial case clamp designed to improve cabinet squareness, assembly consistency, and production throughput. Its self-adjusting pressure beam design virtually eliminates setup between varying cabinet sizes, making it an excellent solution for both batch and custom production environments.
