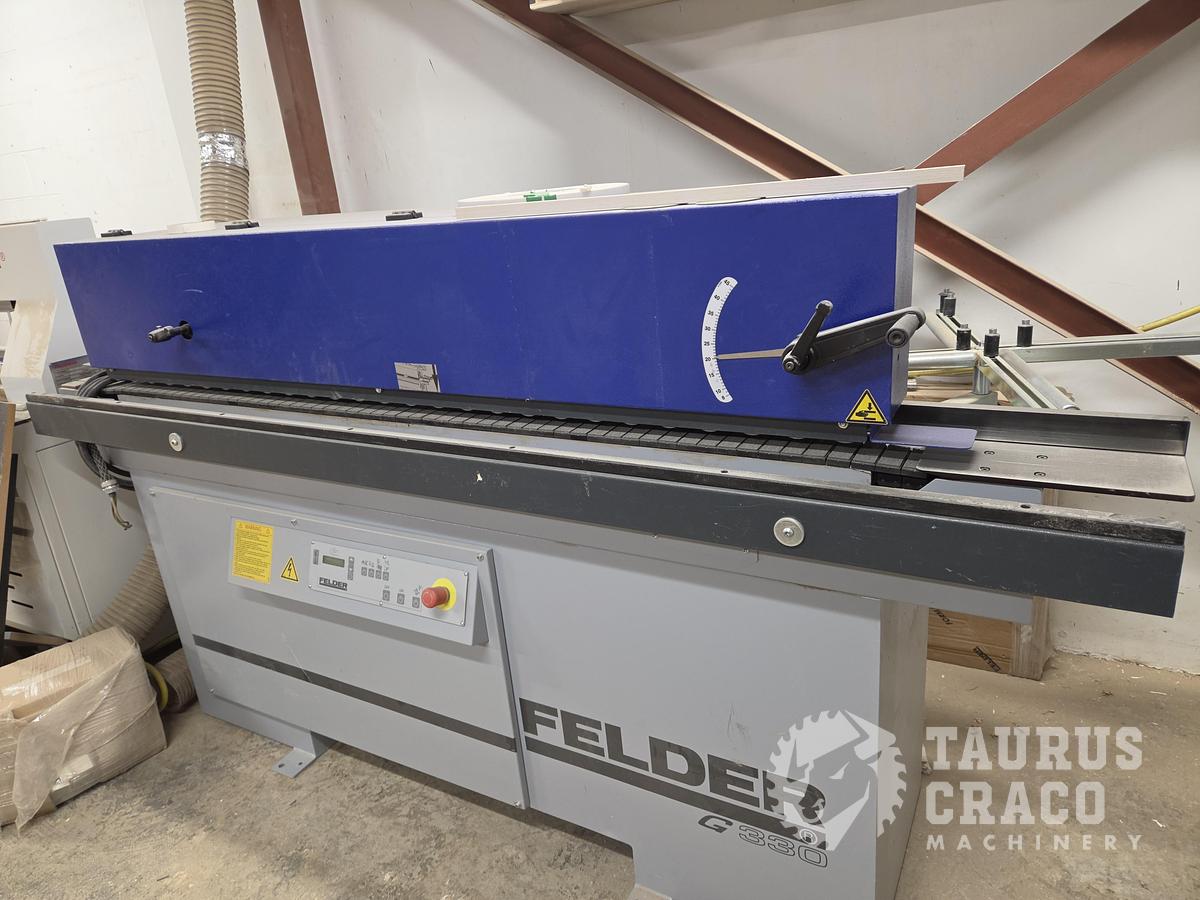

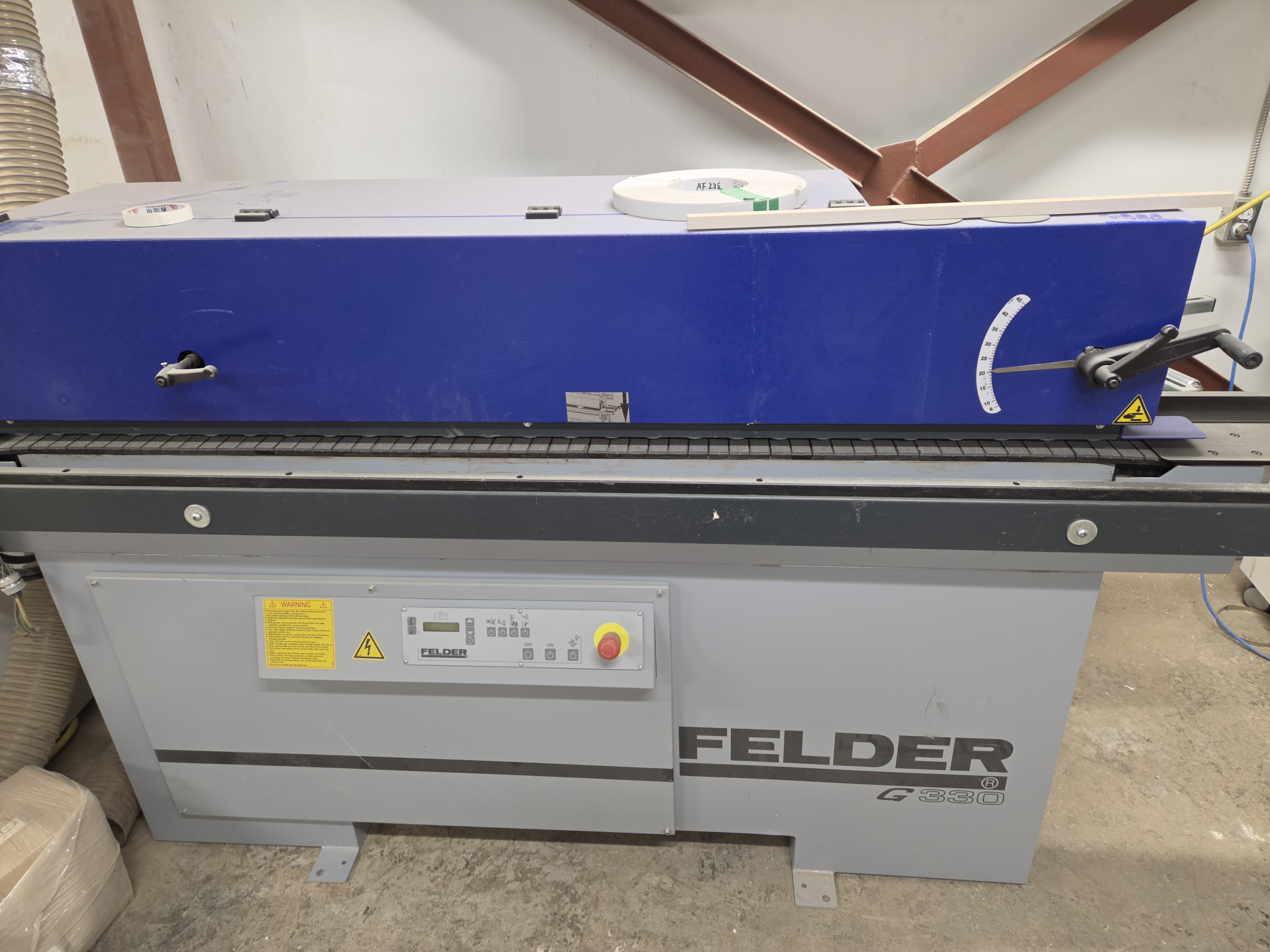

2018 Felder G330 Edgebander

Manufacturer: Felder

Model: G330

Year of Manufacture: 2018

Condition: Used – Good Operating Condition

Machine Type: Automatic Single-Sided Edgebander

Machine Description

The Felder G330 is a compact automatic edgebander designed to provide professional edge finishing while maintaining a remarkably small footprint. Marketed as the "Felder space saver," the G330 offers full edgebanding functionality in a machine requiring less than two metres of floor space when operational.

This machine is equipped with Felder's Quick-Set-System, allowing fast adjustments between different materials and edge thicknesses while maintaining consistent bonding and finishing quality. The machine is configured with automatic edge feeding, glue application, end trimming, radius trimming, and glue scraping functions, making it an ideal solution for cabinet shops, custom millwork operations, and furniture manufacturers.

Key Features

• Compact "space saver" design
• Quick-Set-System for fast material changeovers
• Automatic edge feeding system
• LCD display with keypad control panel
• End trimming saw unit
• Radius trimming capability
• Glue scraping station
• CSA electrical configuration
• Professional edge finishing in a compact footprint

Working Capacity

Workpiece Dimensions

• Minimum Workpiece Width: 70 mm
• Minimum Workpiece Length: 210 mm

Edgebanding Capacity

• Coiled Edge Material: 0.4 mm – 3 mm
• Strip Edge Material: Single strip feeding capability
• Edge Profiles:
• 2 mm radius
• 15° bevel

Feed System

Heavy Duty Chain Feed

The machine utilizes a precision chain-feed system with offset drive rollers designed to provide smooth workpiece transport while minimizing surface marking.

• Heavy-duty chain feed system
• Anti-scratch roller arrangement
• Consistent material positioning

Glue Application System

EVA Glue Pot

• 1.2 kg glue pot capacity
• Teflon-coated glue pot
• Designed for EVA granulated adhesive
• Adjustable glue application roller
• Automatic glue temperature reduction function

Pressure Unit

The pressure station consists of:

• One primary pressure roller
• One secondary pressure roller
• Spring-loaded pressure mechanism
• Quick-Set adjustment system

This system provides consistent pressure and optimal bonding between the edge material and the workpiece.

Edge Feed & End Trimming

Edge Feed System

• Automatic feeding of coiled edging
• Supports edge material from 0.4 mm to 3 mm
• Manual strip feeding capability

End Trimming Unit

• Integrated guillotine end trimming
• High-precision linear guides
• Twin saw blade system
• Saw blade speed: 9,000 RPM

Radius Trimming Unit

The multifunction trimming station allows:

• Flush trimming
• Bevel trimming
• Radius trimming

Standard Tooling Included

• 2 mm radius tooling

Fast and simple adjustment allows rapid changeover between different edging profiles.

Glue Scraping Unit

• Refines edge finish after trimming
• Removes excess glue
• Improves final appearance
• Provides smooth edge transitions

Control System

LCD Control Panel with Keypad

Functions include:

• Glue temperature adjustment
• Automatic glue temperature reduction
• Unit engagement/disengagement

Electrical Specifications

• Voltage: 230V
• Phase: 1 Phase
• Frequency: 60 Hz
• Current Draw: 14 Amps

Included Configuration

• Automatic edge feed system
• Glue pot assembly
• Pressure roller station
• End trimming station
• Radius trimming station
• Glue scraping station
• LCD operating panel
• User manual
• CSA electrical package

Condition Notes

• Good operating condition
• Production-capable machine
• Compact footprint
• Single-phase power configuration

Notes

The Felder G330 is a versatile and space-efficient edgebander that provides automated edge processing without the footprint requirements of larger industrial machines. Equipped with automatic edge feeding, glue application, end trimming, radius trimming, and glue scraping, it offers an excellent solution for shops seeking professional finishing quality in a compact and user-friendly package.
