2016 Dynma ADP-2590 Automatic Door & Frame Press

Manufacturer: Dynma

Model: ADP-2590

Year of Manufacture: 2016

Condition: Used – Good Operating Condition

Machine Type: Automatic Door & Frame Press / Door Clamp / Assembly Press

Machine Description

The Dynma ADP-2590 is a fully automatic electro-mechanical press designed for the accurate assembly and pressing of doors and frames in high-production manufacturing environments. Developed from Dynma's extensive experience in door and frame assembly, the ADP is engineered to provide precise, repeatable clamping while maintaining high throughput and minimal setup time.

The machine is fully automatic and self-adjusting, allowing operators to efficiently process varying door sizes without extensive manual setup. It is capable of assembling both 45° mitered constructions and 90° frame assemblies, making it suitable for a wide range of door manufacturing applications.

Designed for modern production environments, the ADP-2590 incorporates a powerful touchscreen control system that manages machine functions, production settings, and alarm monitoring through an intuitive operator interface.

Key Features

• Fully automatic electro-mechanical pressing system
• Automatic self-adjusting design
• Suitable for both 45° and 90° assemblies
• Touchscreen control terminal with production and alarm management
• Integrated pre-assembly area
• Throughfeed production configuration
• CE-compliant safety design
• Fixed perimeter safety guarding
• Ideal for mitered doors with or without dowels, delicate profiles, and glass panel assemblies

Working Capacity

Door Dimensions

• Maximum door length: 2480 mm
• Minimum door length: 200 mm
• Maximum door width: 880 mm
• Minimum door width: 260 mm
• Maximum door thickness: 60 mm
• Minimum door thickness: 15 mm

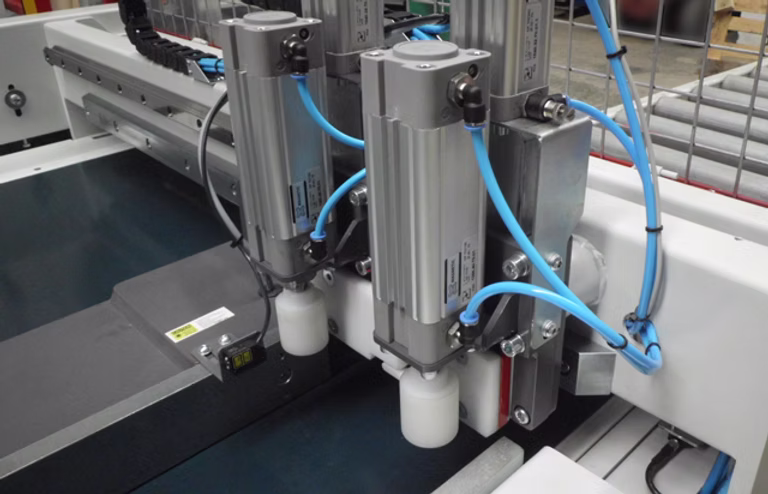

Pressing System

The ADP-2590 automatically adjusts to the dimensions of the door being assembled, allowing efficient production while maintaining consistent clamping performance. The machine is capable of handling a variety of door styles and assemblies while maintaining dimensional accuracy throughout the pressing cycle.

Clamping Force

• Maximum lateral pressing force (Fx): 1,300 kg
• Maximum frontal pressing force (Fy): 1,300 kg

Conveyor System

• PVC conveyor belt system
• Conveyor width: 900 mm
• Standard conveyor transport height: 900 mm
• Integrated pre-assembly zone length: 2,100 mm

Electrical Specifications

• Voltage: 480V
• Frequency: 60 Hz
• Installed Power: 4 kW
• Pneumatic Requirement: 5 Bar

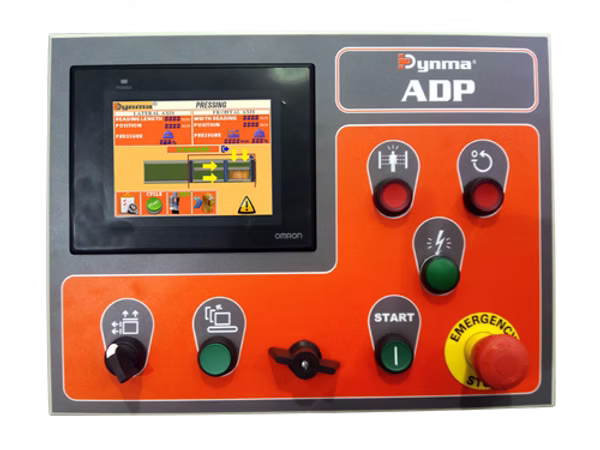

Control System

• Touchscreen operator interface
• Production management functionality
• Alarm monitoring system
• Simple and intuitive machine operation

Machine Dimensions & Weight

• Overall Dimensions:
• 5,875 mm × 1,870 mm × 2,000 mm
• Weight:
• Approx. 1,700 kg (3,748 lbs)

Condition Notes

• Good operating condition
• Automatic production machine
• Industrial-duty construction
• Recently replaced encoder
