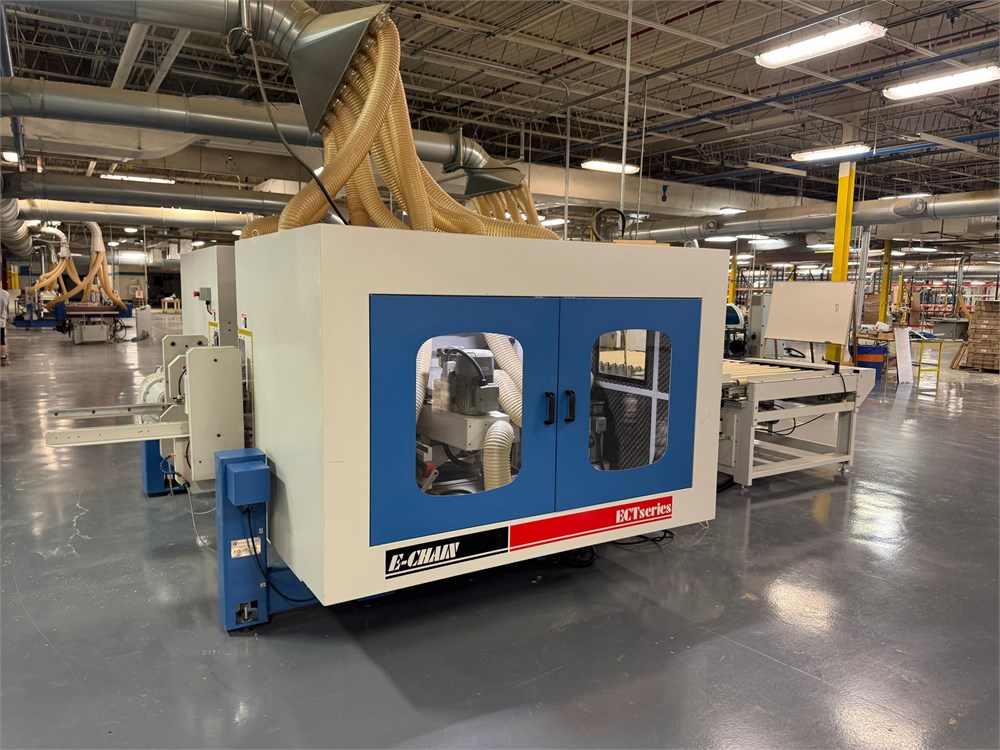

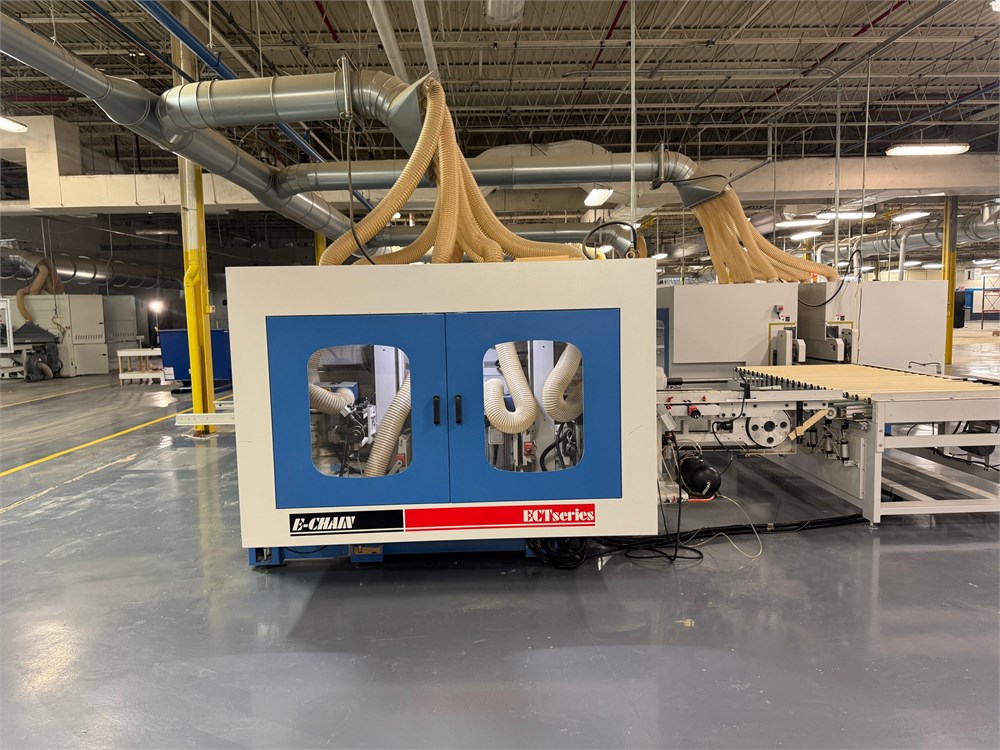

2019 E-Chain ECT Series Angular Double End-Tenoner Line

Manufacturer: E-Chain

Model: ECT-48S Double End-Tenoner Line

Year of Manufacture: 2019

Condition: Used – Great Operating Condition

Voltage: 480V

Phase: 3 Phase

Machine Type: Angular Double End Tenoner / Edge Processing Line

Machine Description

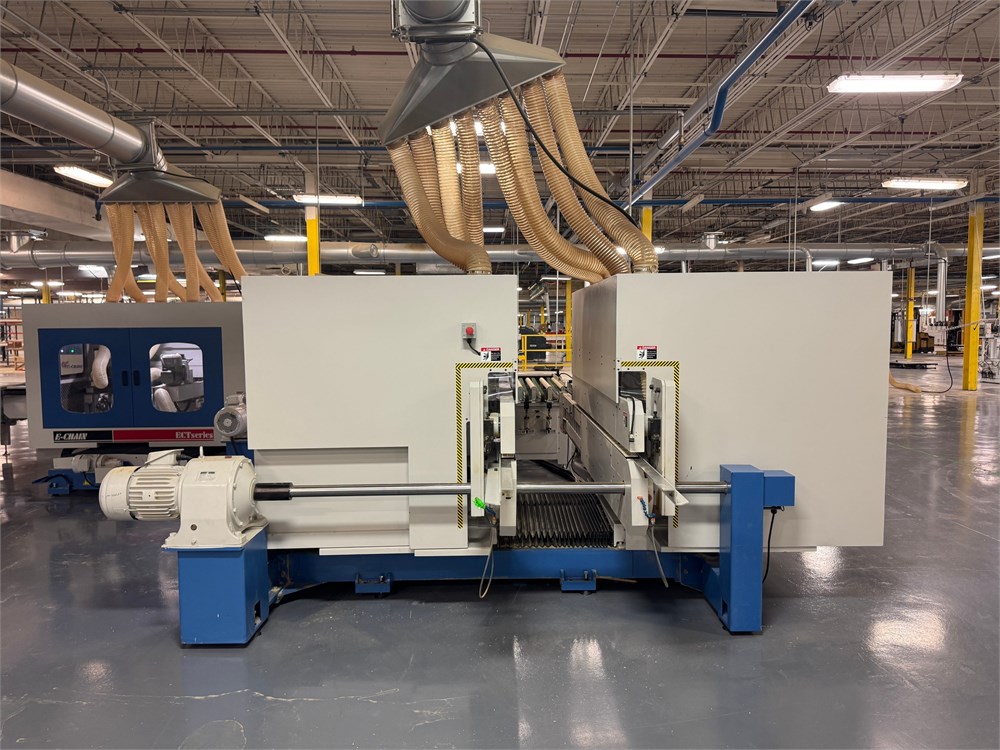

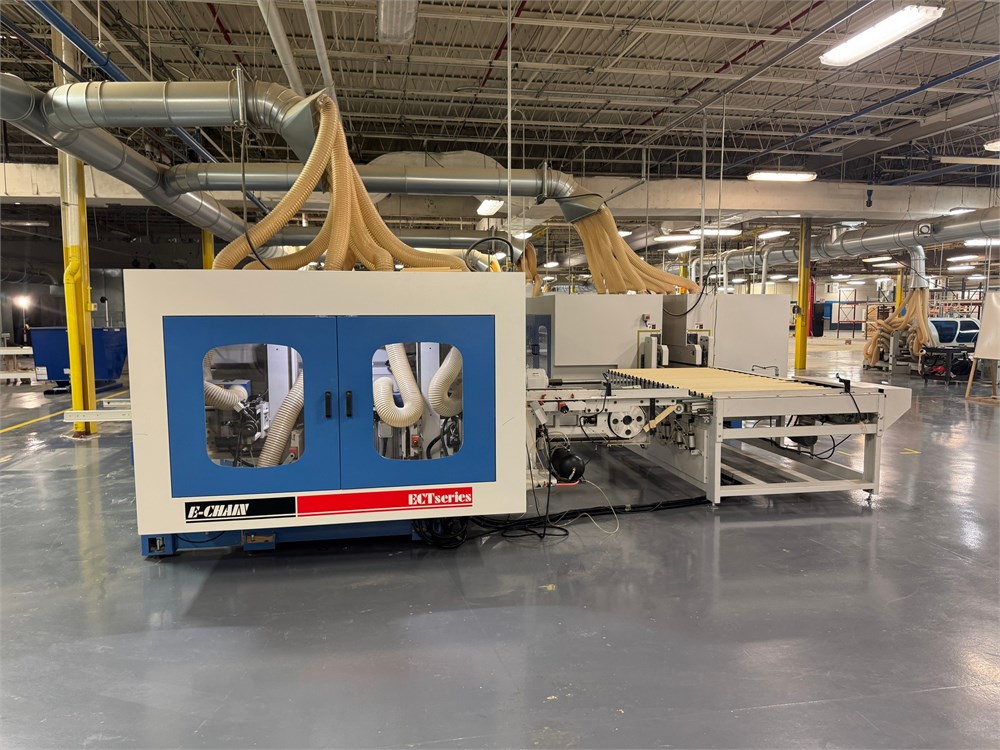

This E-Chain ECT Series is a high-production angular double end tenoner line designed for precision edge profiling, sanding, and panel processing applications. This complete system consists of two ECT-48S tenoners connected by a powered roller conveyor and cross-transfer section, providing continuous material flow and efficient multi-stage processing.

Designed for flooring, panel processing, furniture components, and engineered wood products, the line incorporates heavy-duty chain transport, programmable processing stations, and integrated sound enclosures to support demanding production environments.

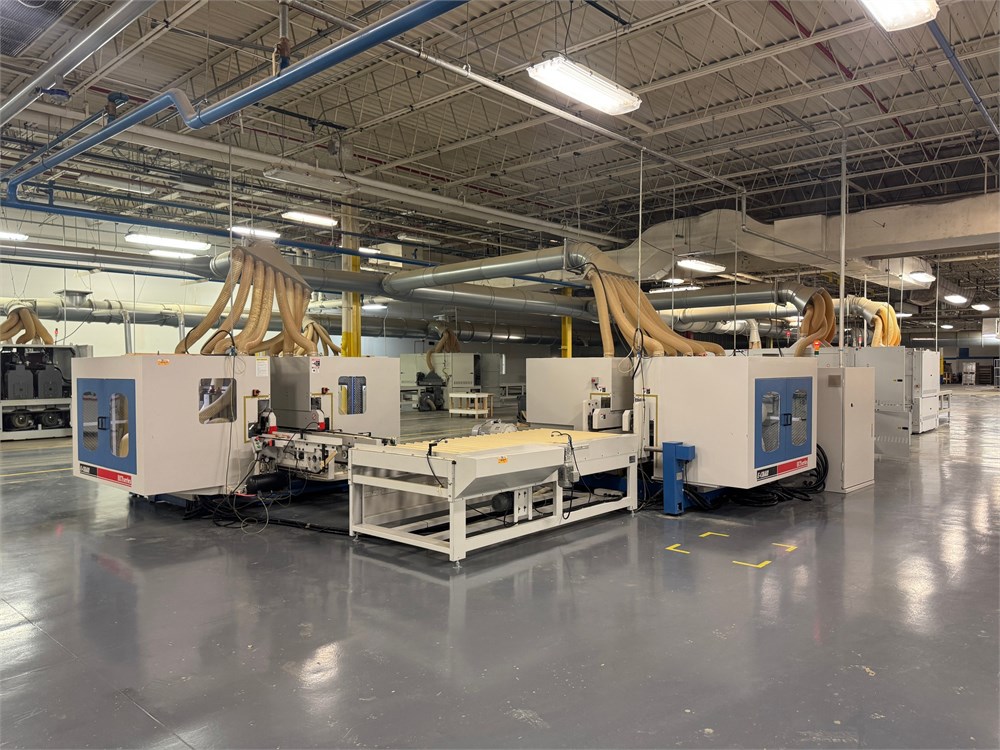

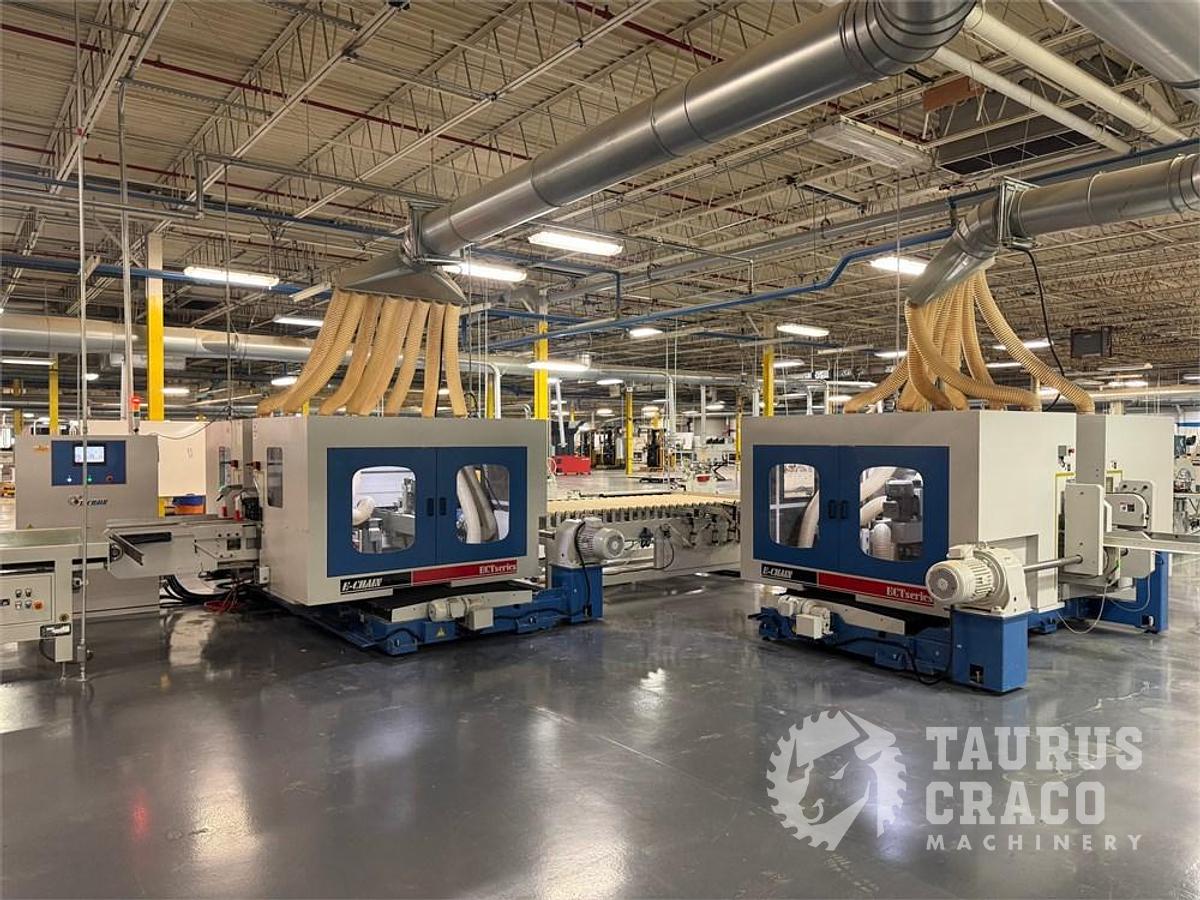

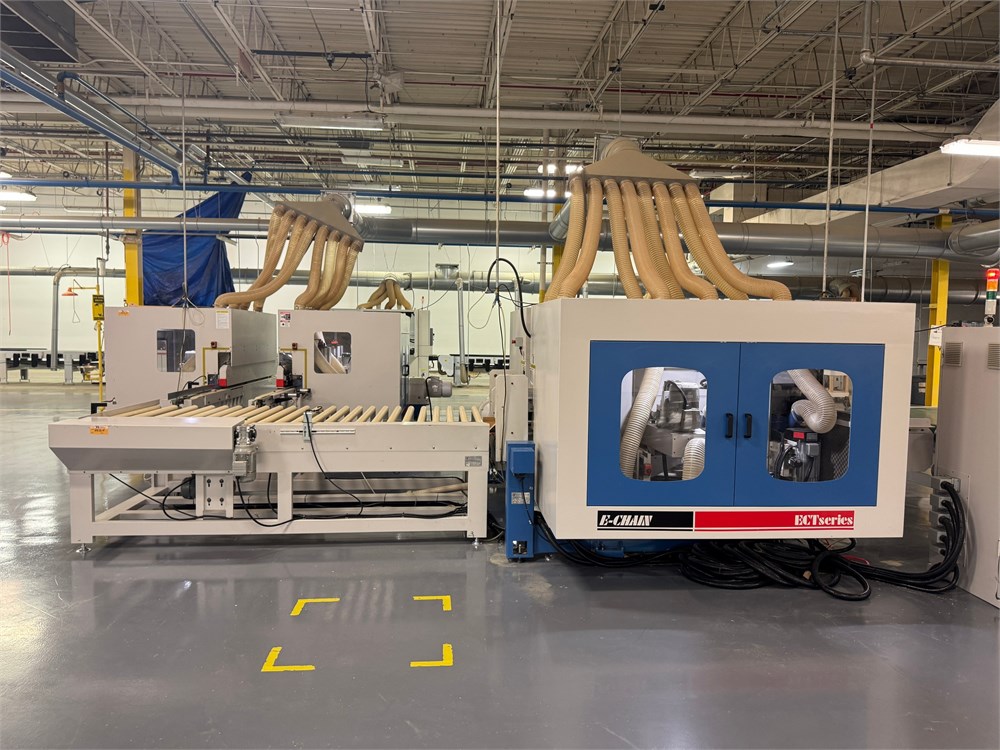

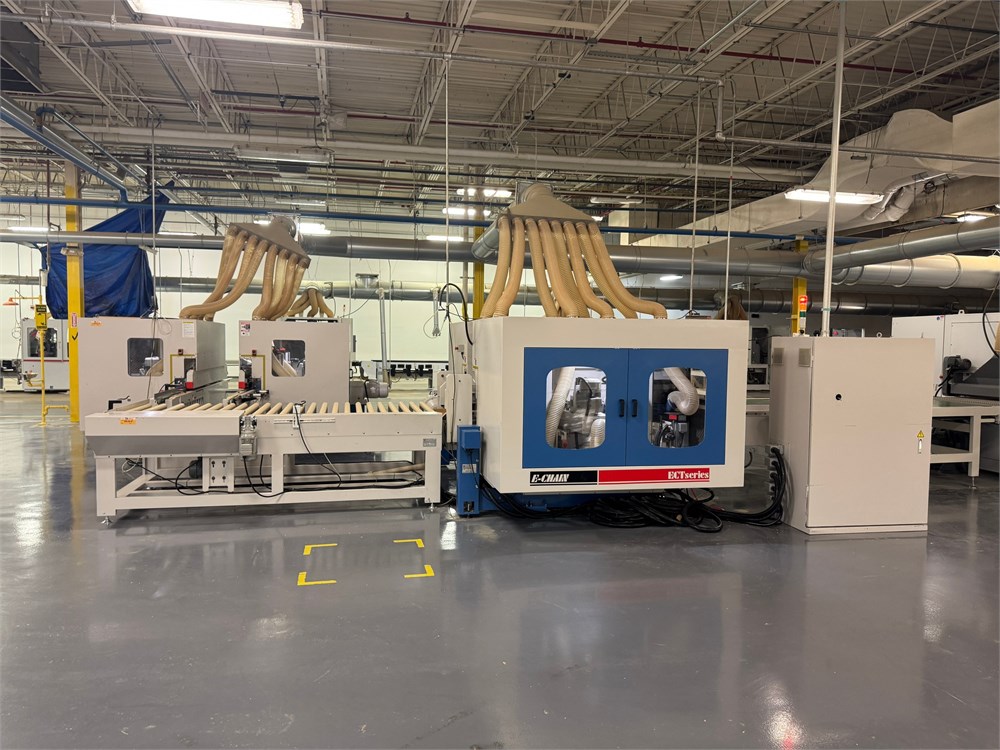

This 2019 system is configured with dual ECT-48S processing stations, a powered roller conveyor with cross-transfer, centralized controls, and custom dust collection manifolds.

System Configuration

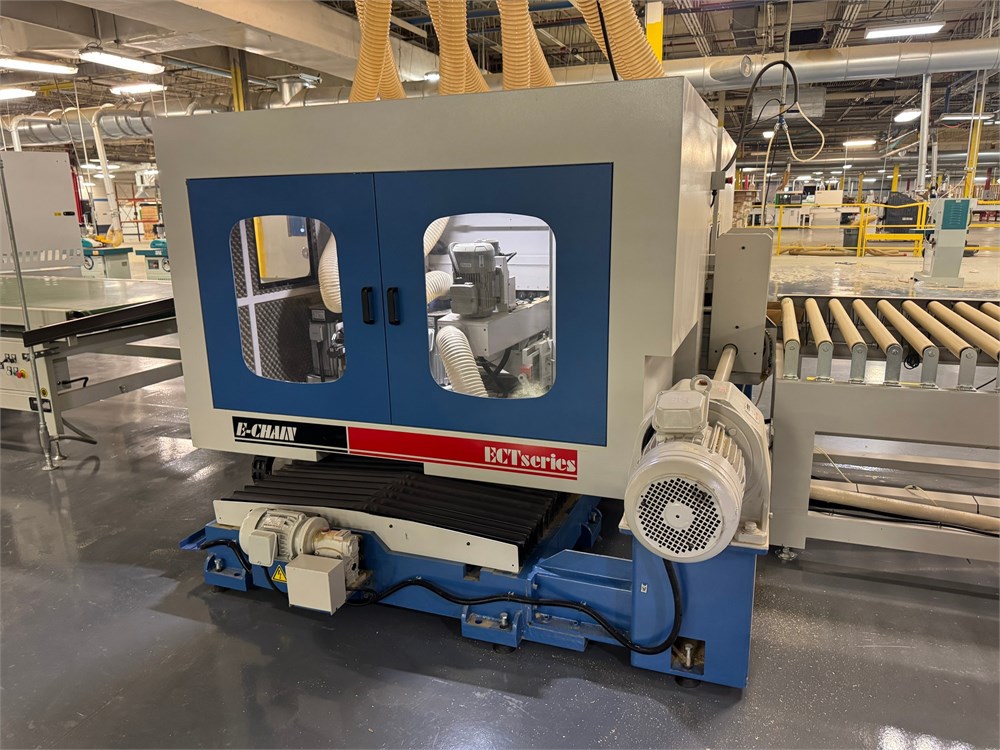

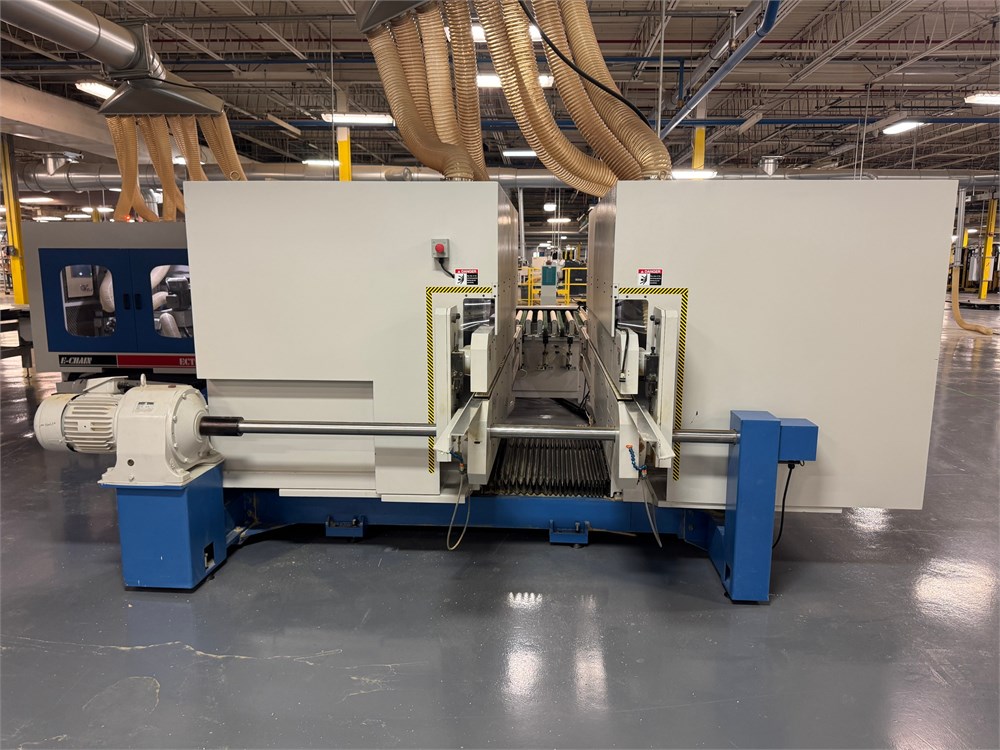

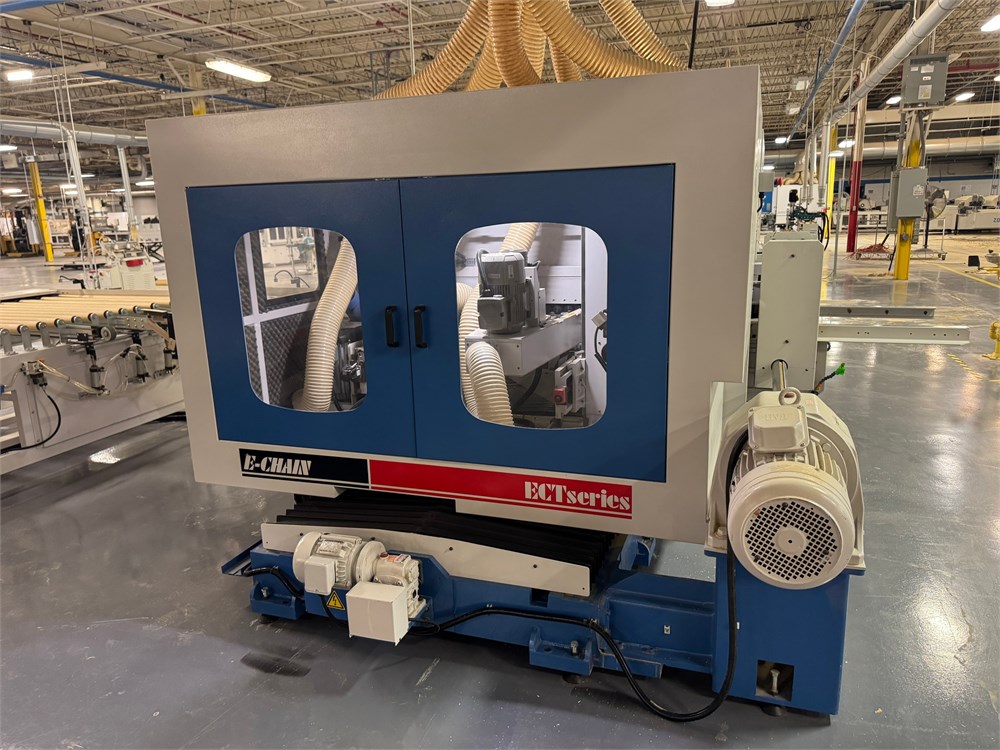

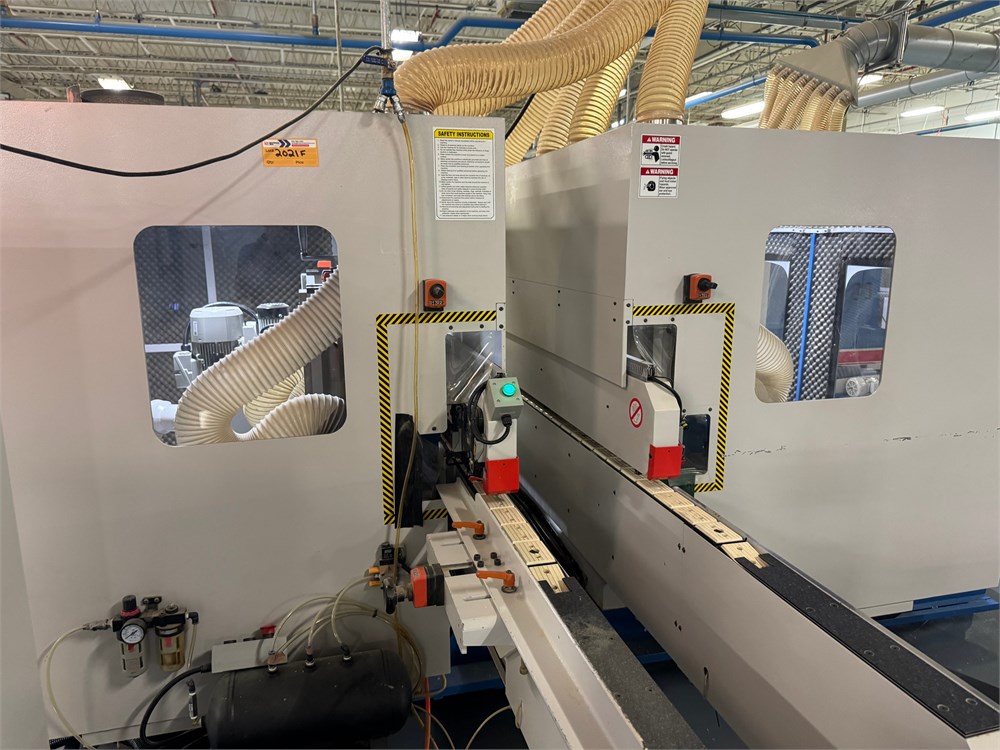

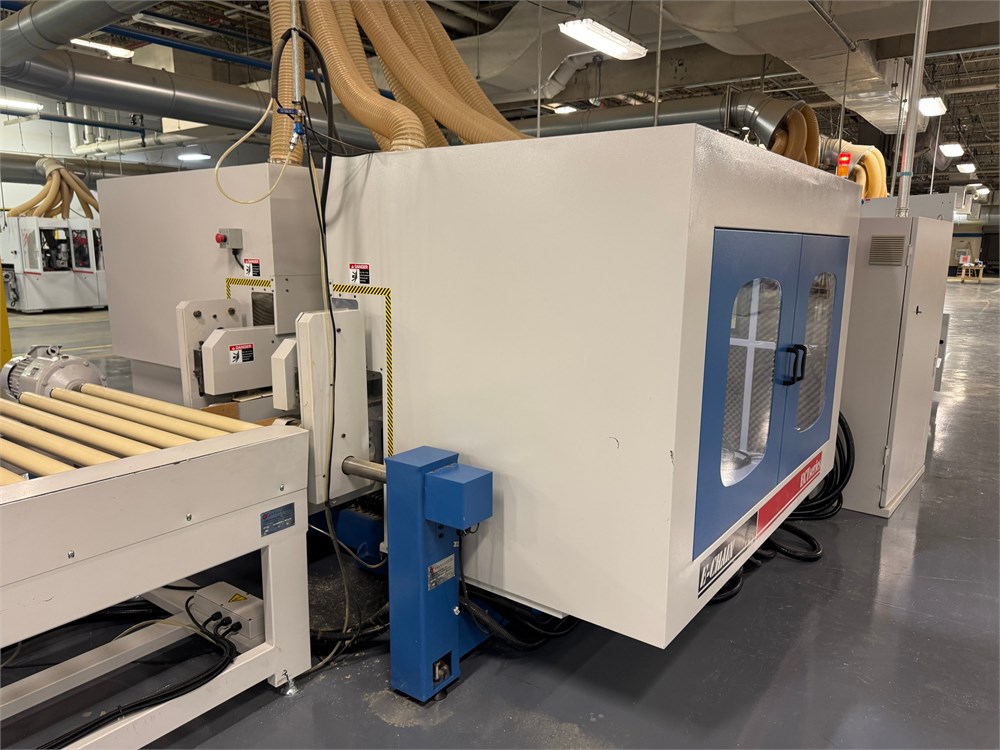

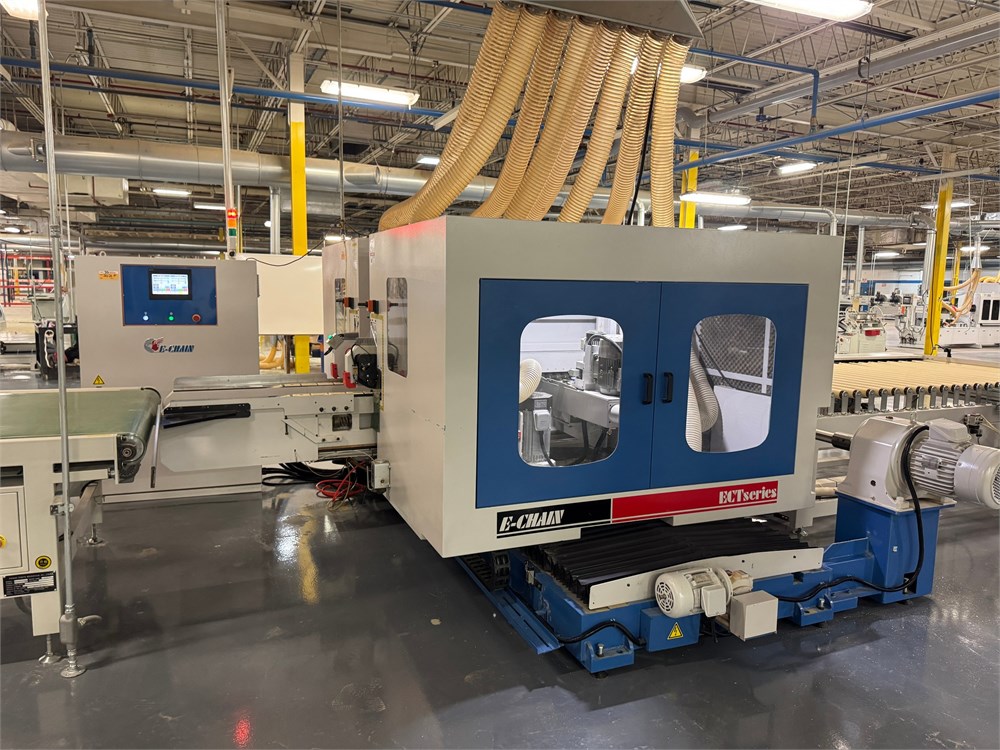

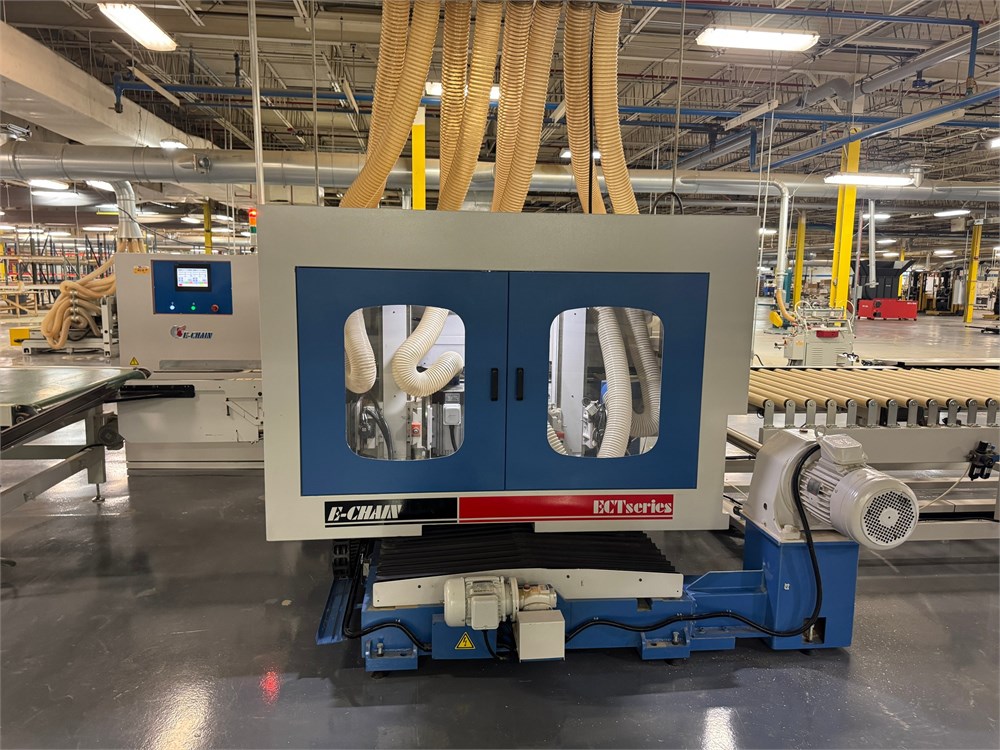

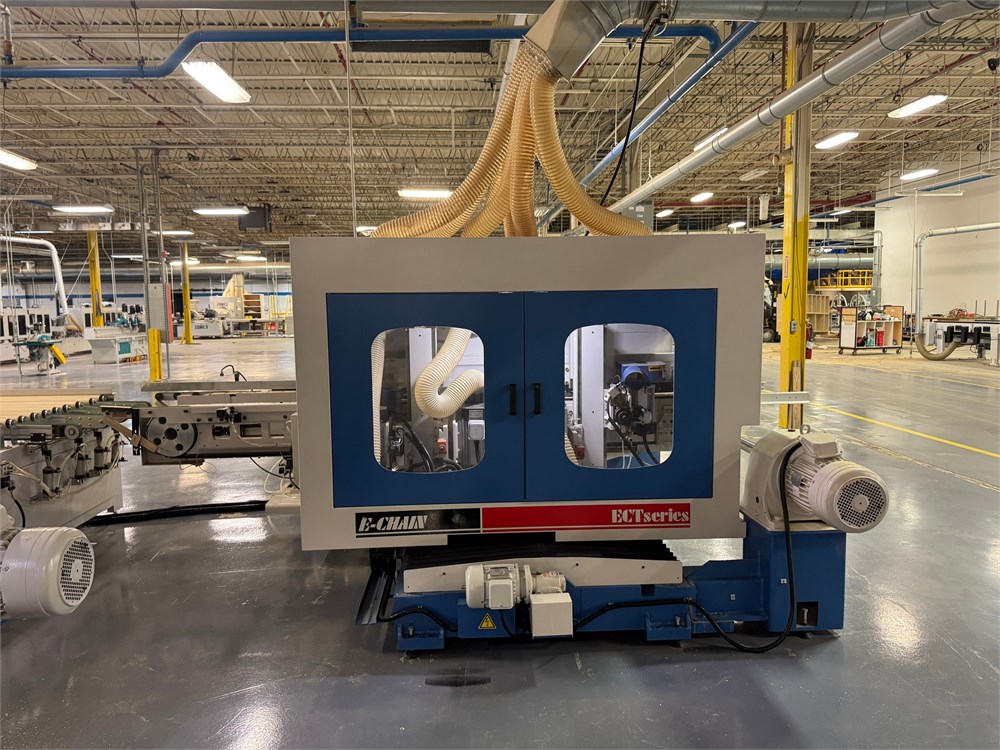

Tenoner #1 – ECT-48S

• 36" load space

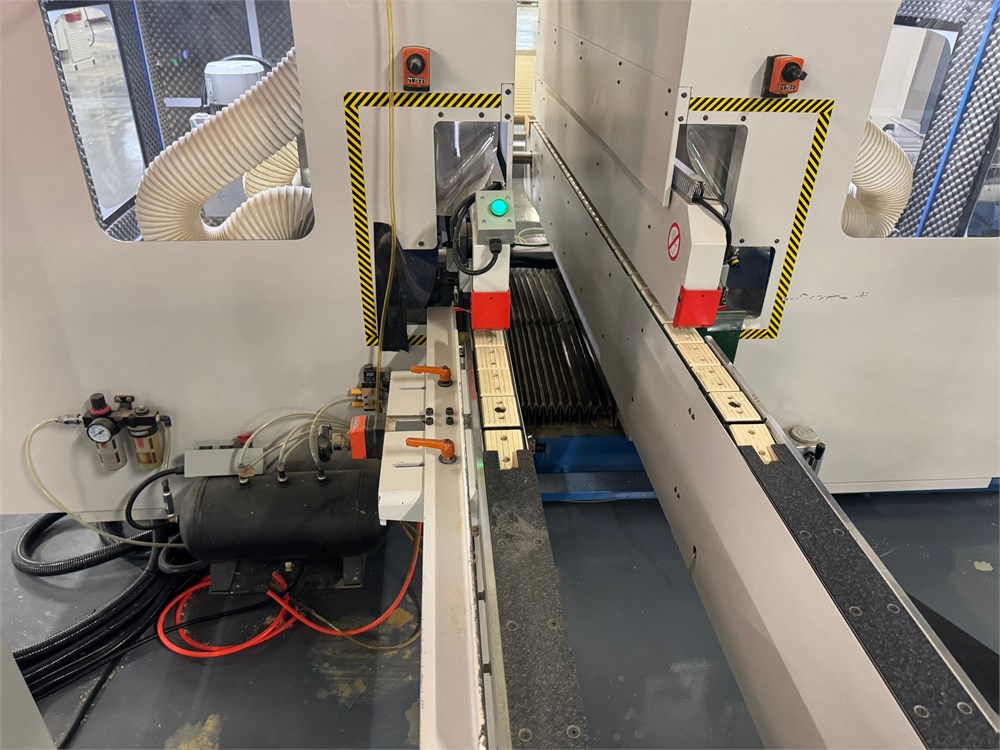

• Heavy-duty 2-1/2" transport chains
• Pop-up dogs every 15-1/2"
• Approximate maximum working width: 54"

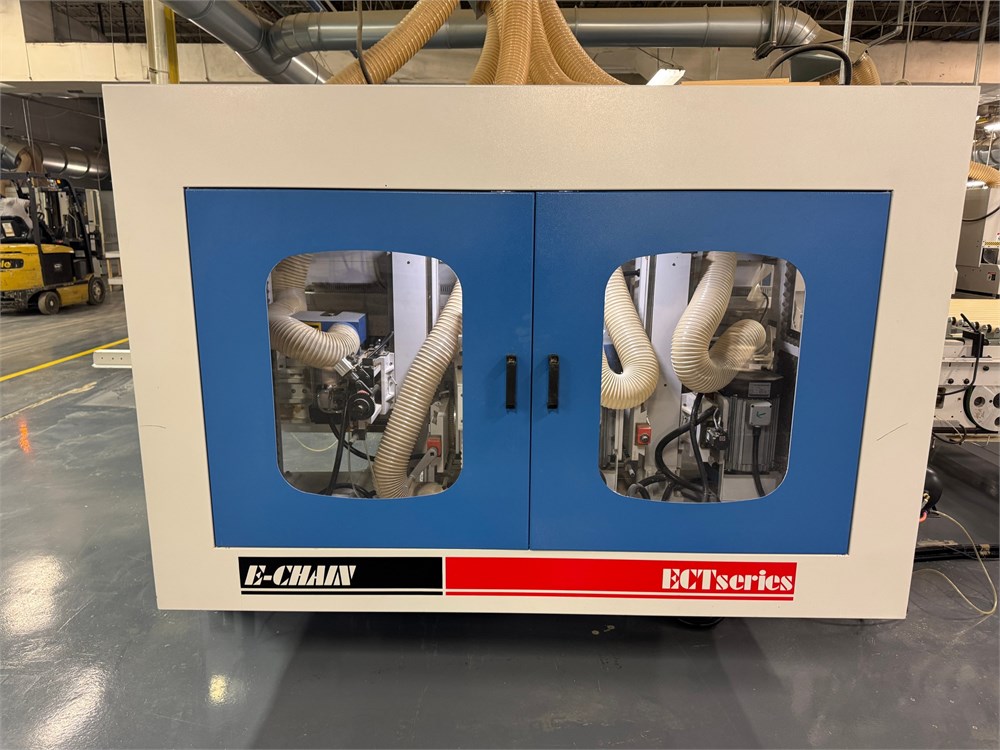

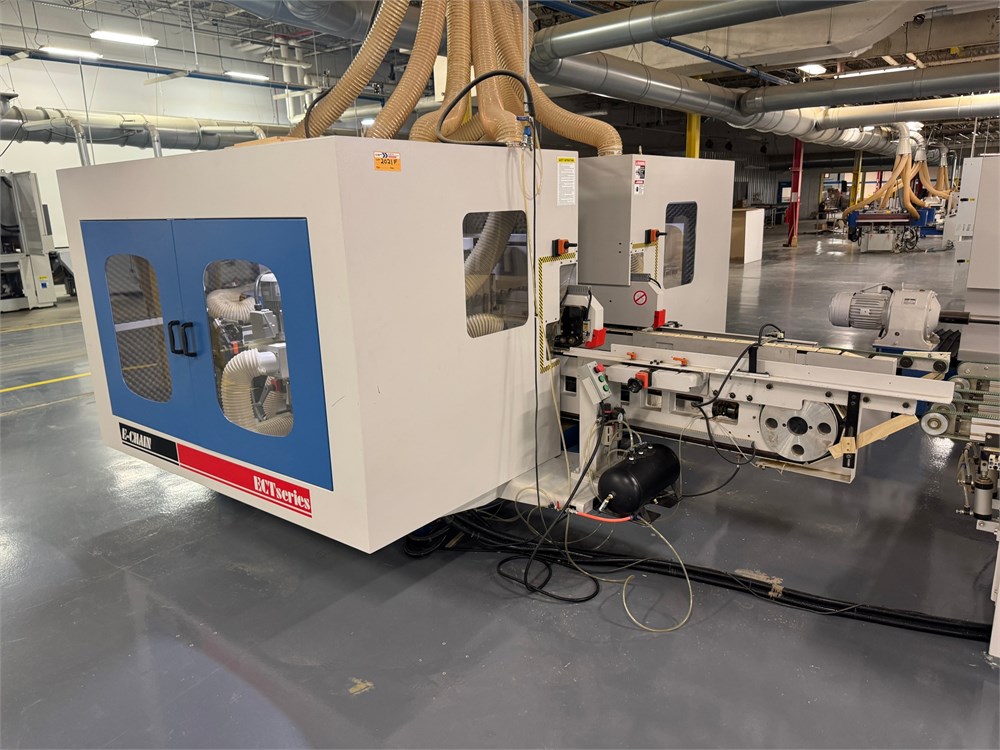

• Lighted sound enclosure

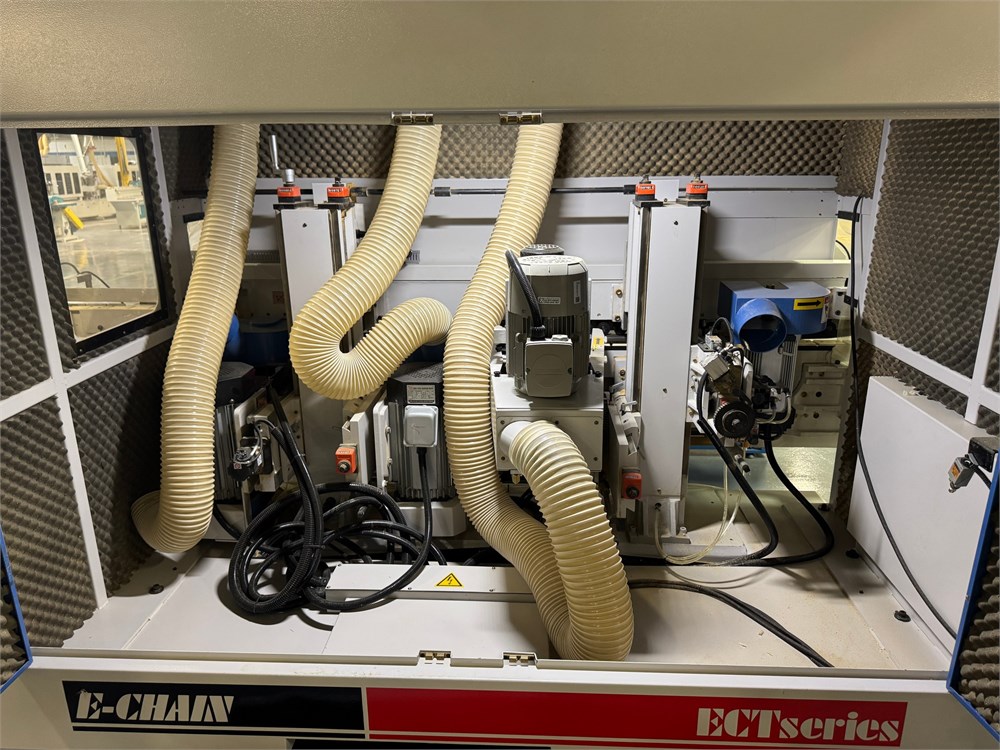

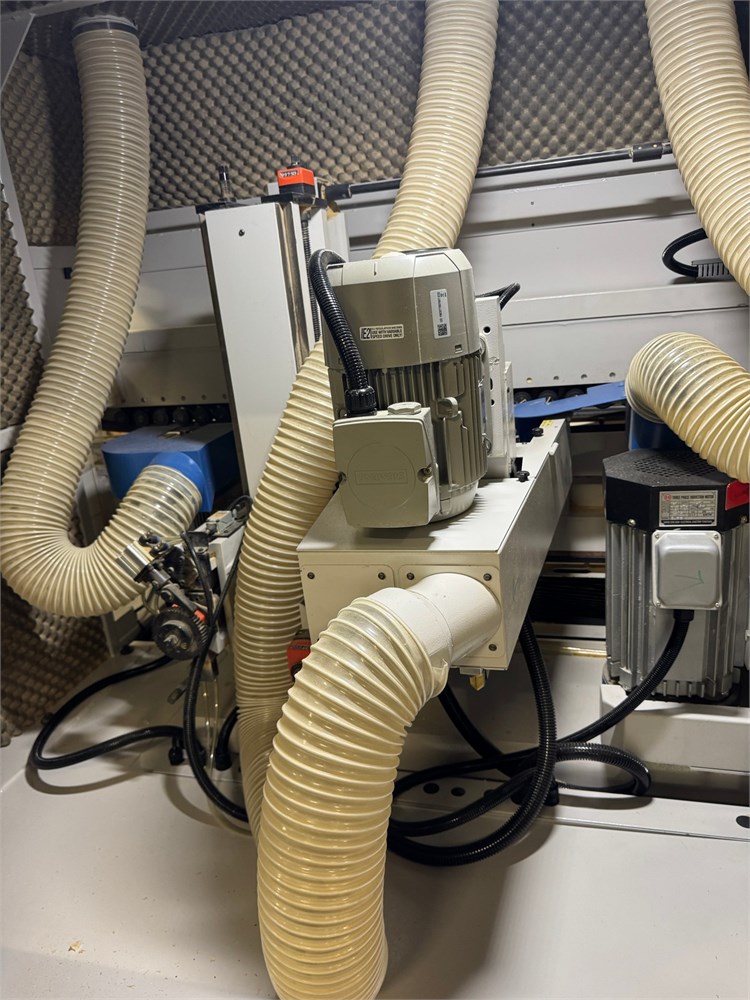

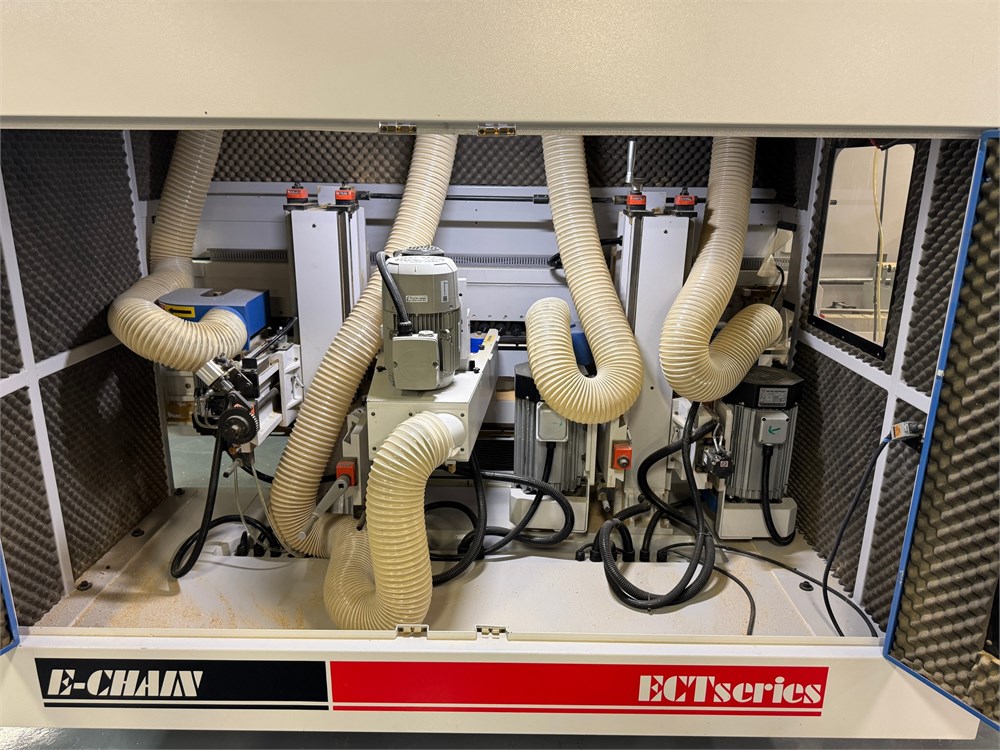

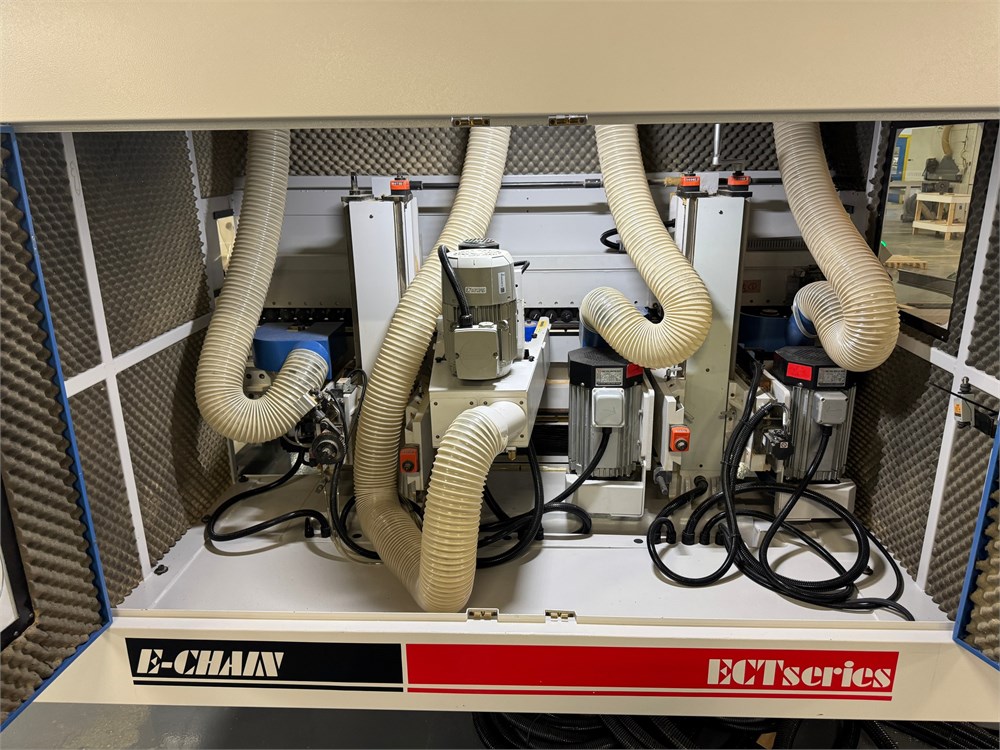

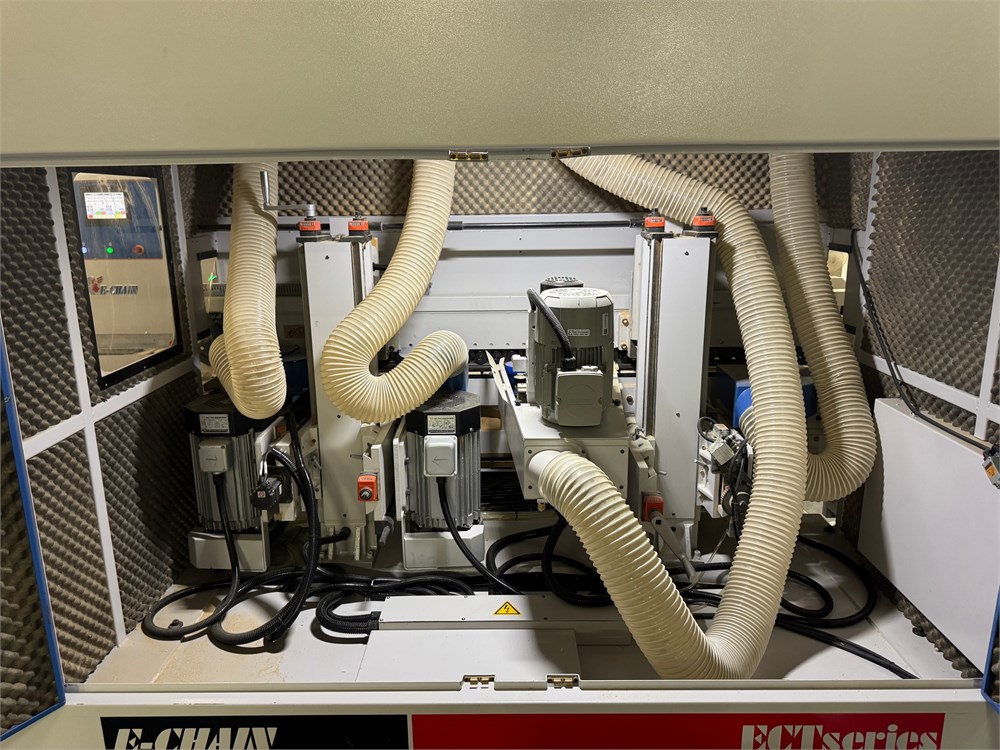

Processing Stations

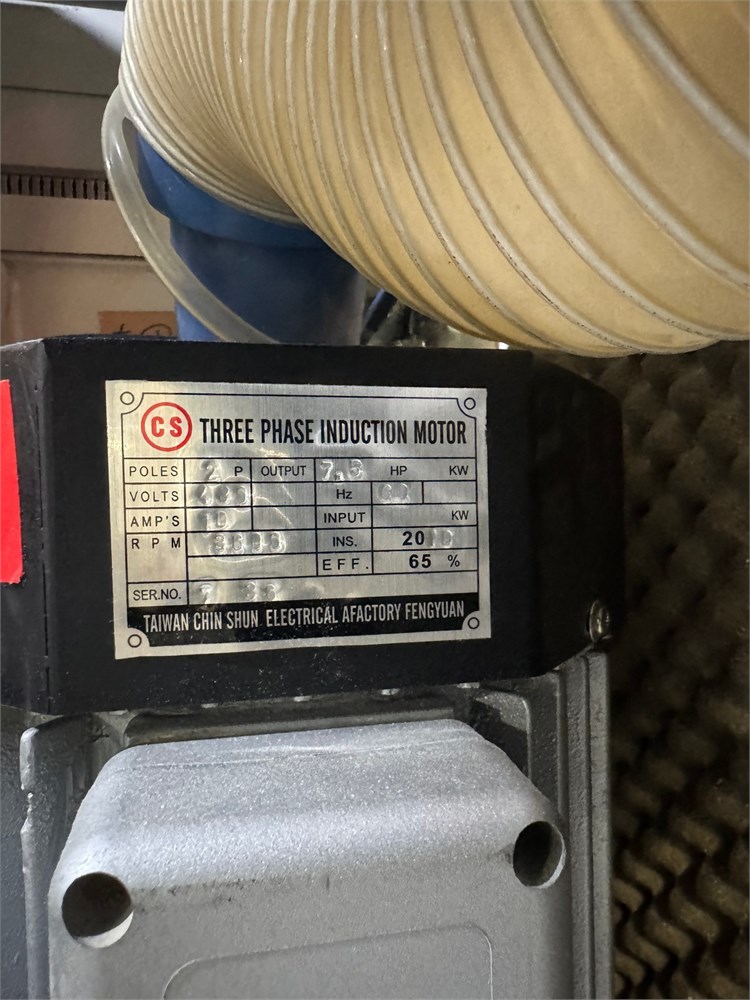

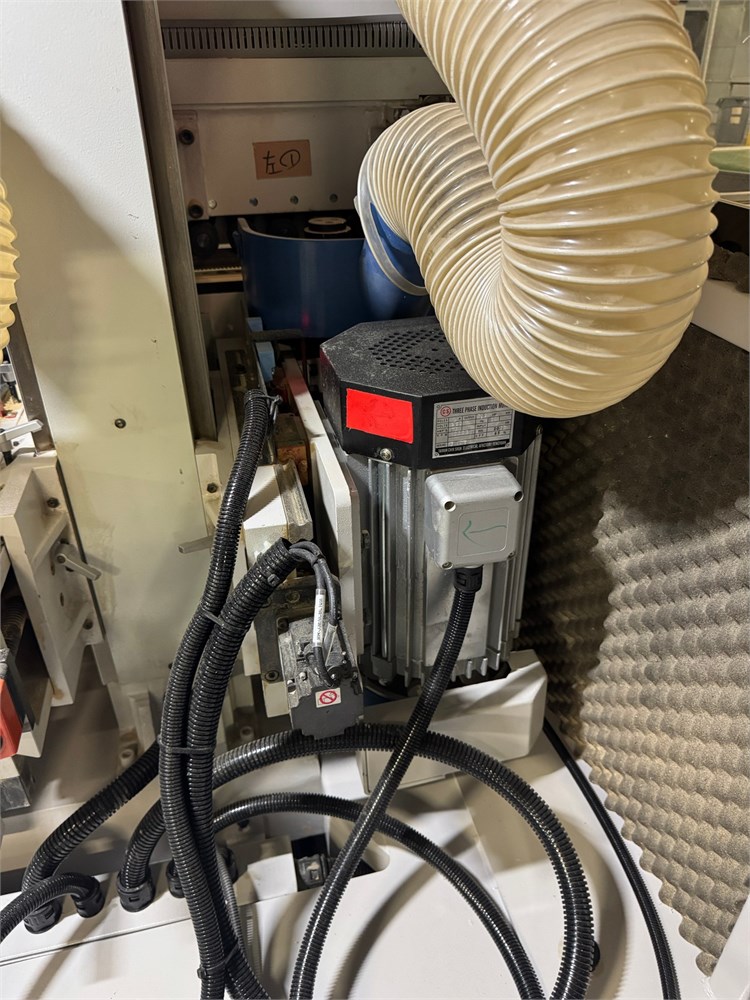

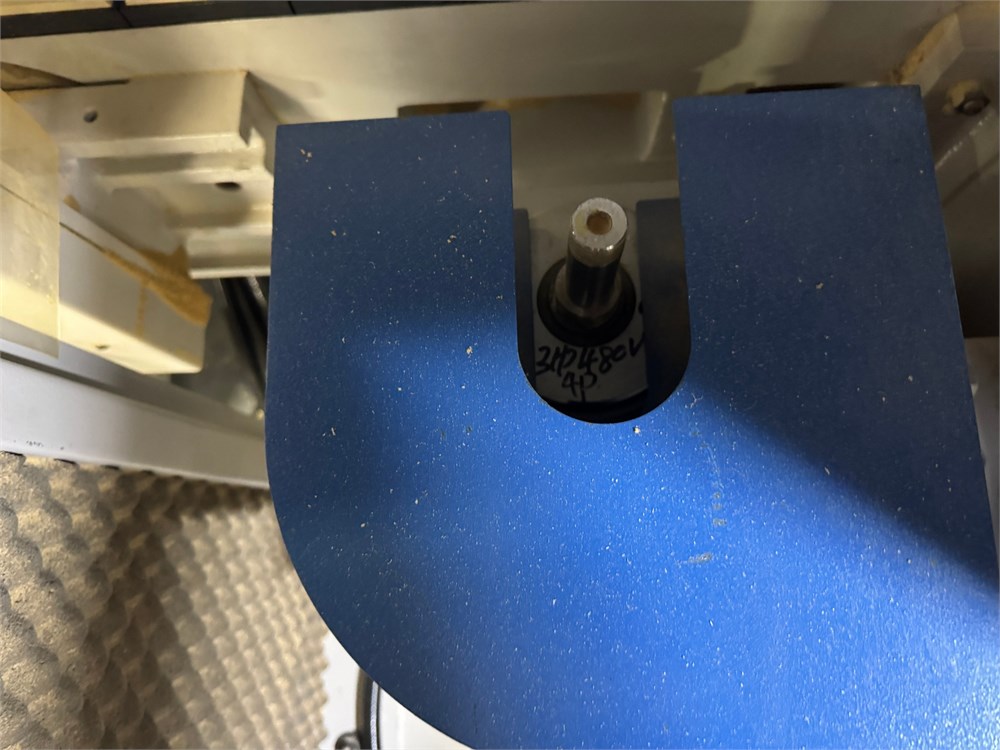

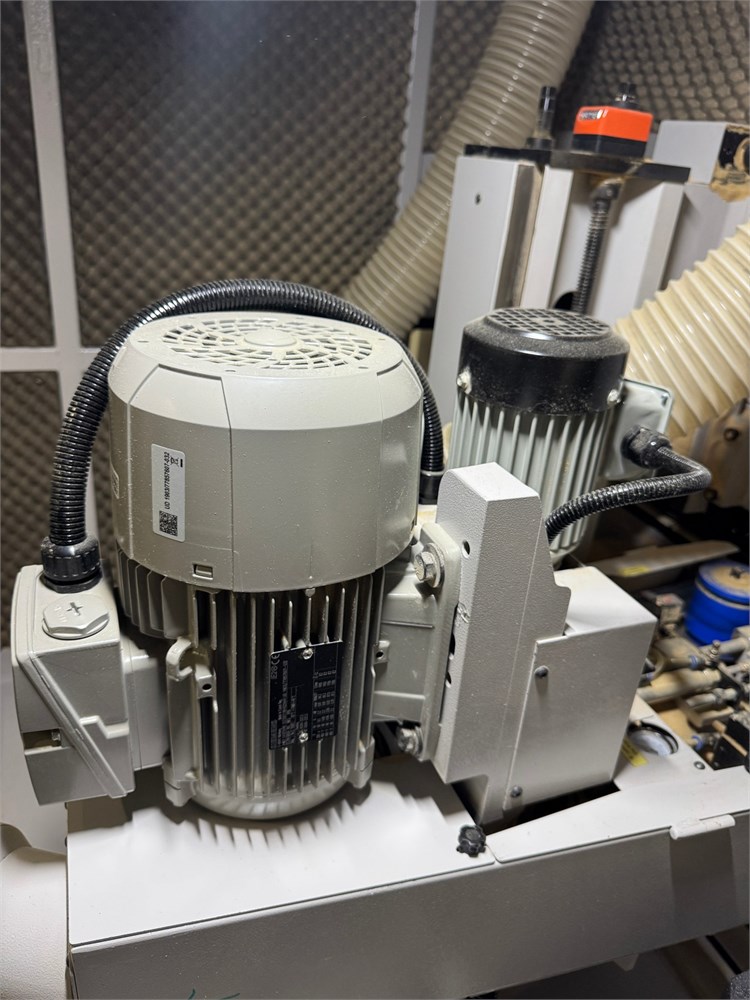

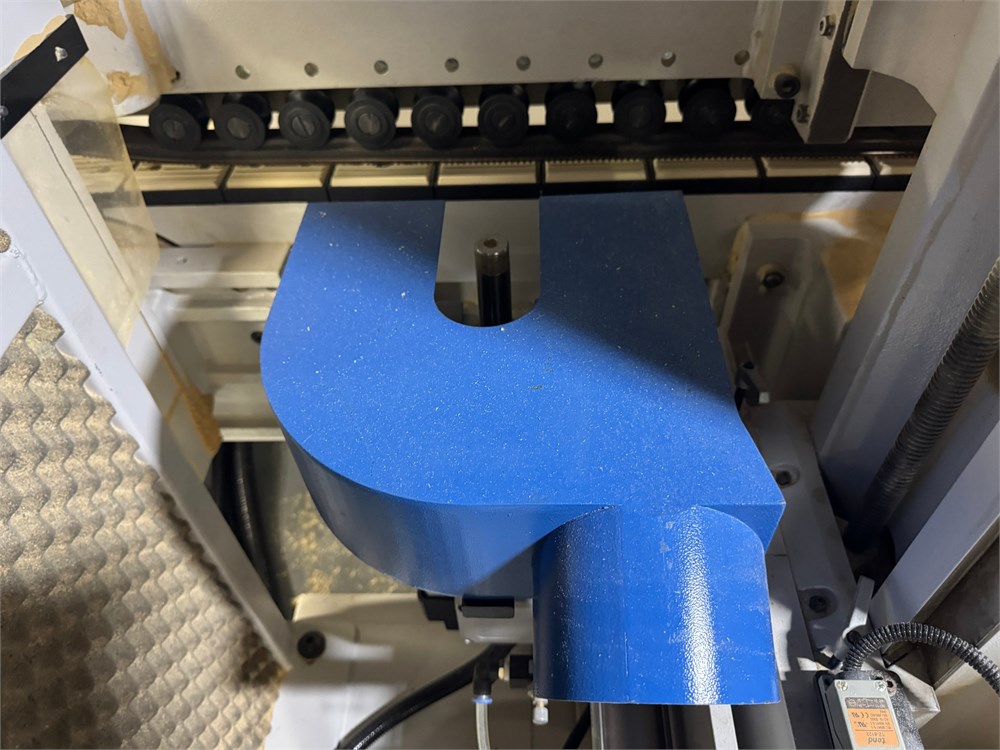

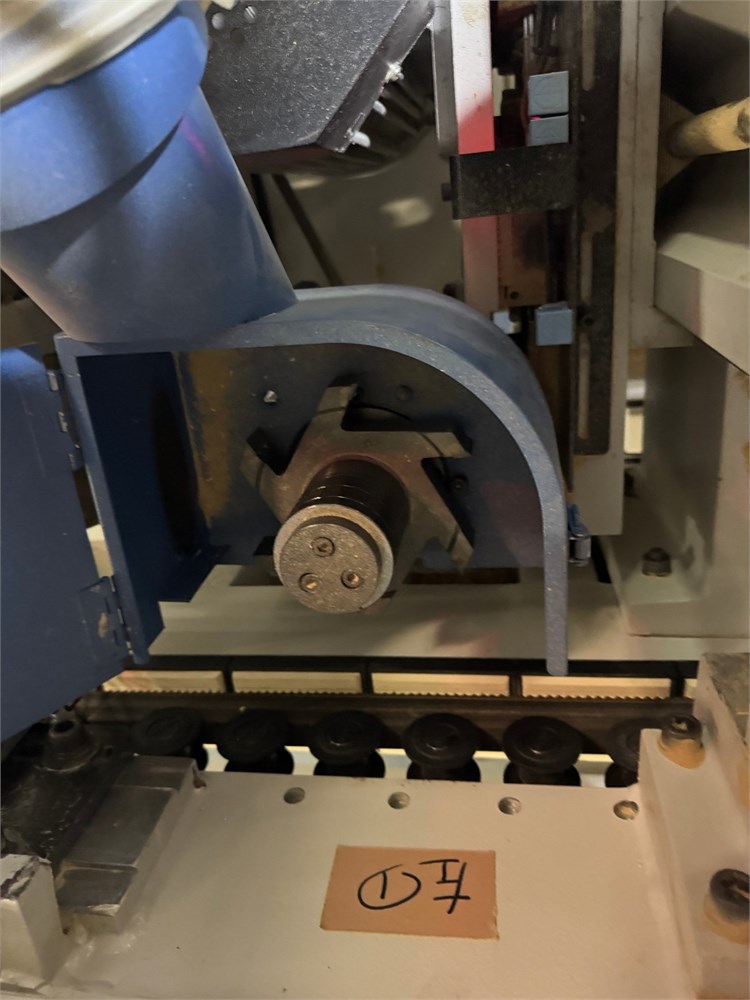

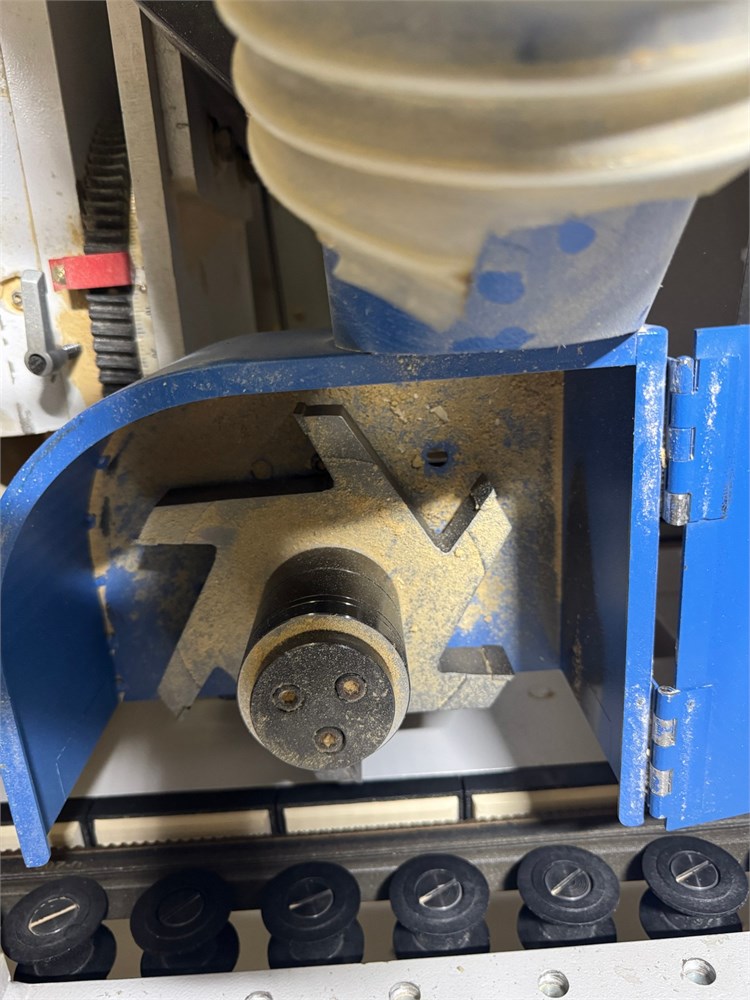

• 1st Station: Vertical ATS spindle, 7.5 HP

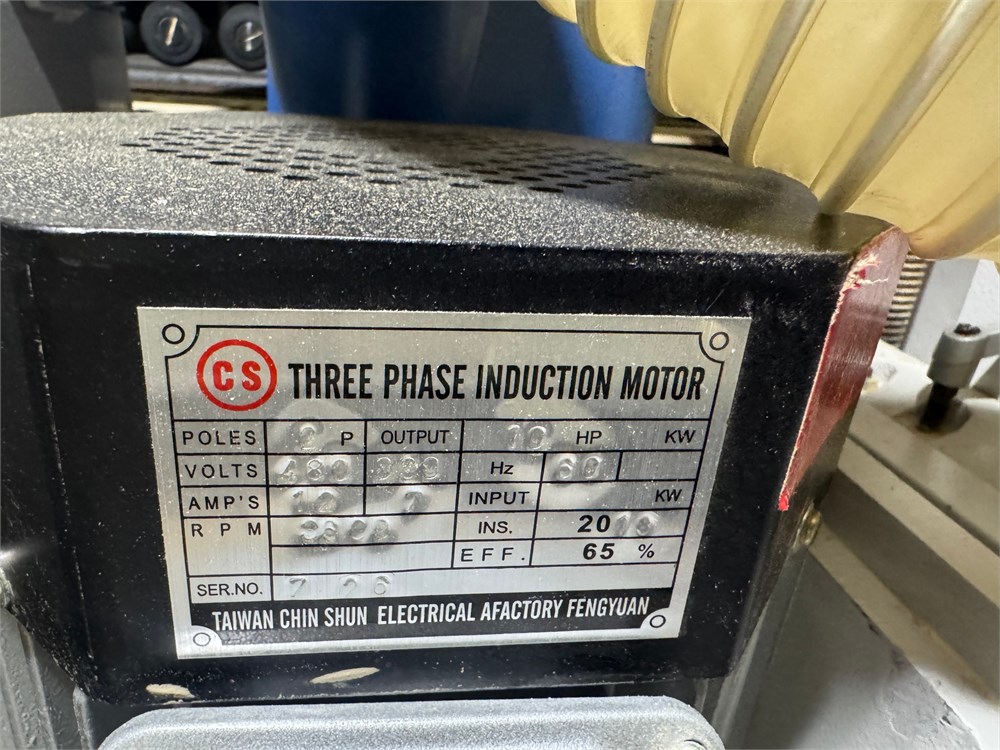

• 2nd Station: 10 HP processing unit
• 3rd Station: 3-point tilting belt sander
• 2.2 kW / 2.9 HP

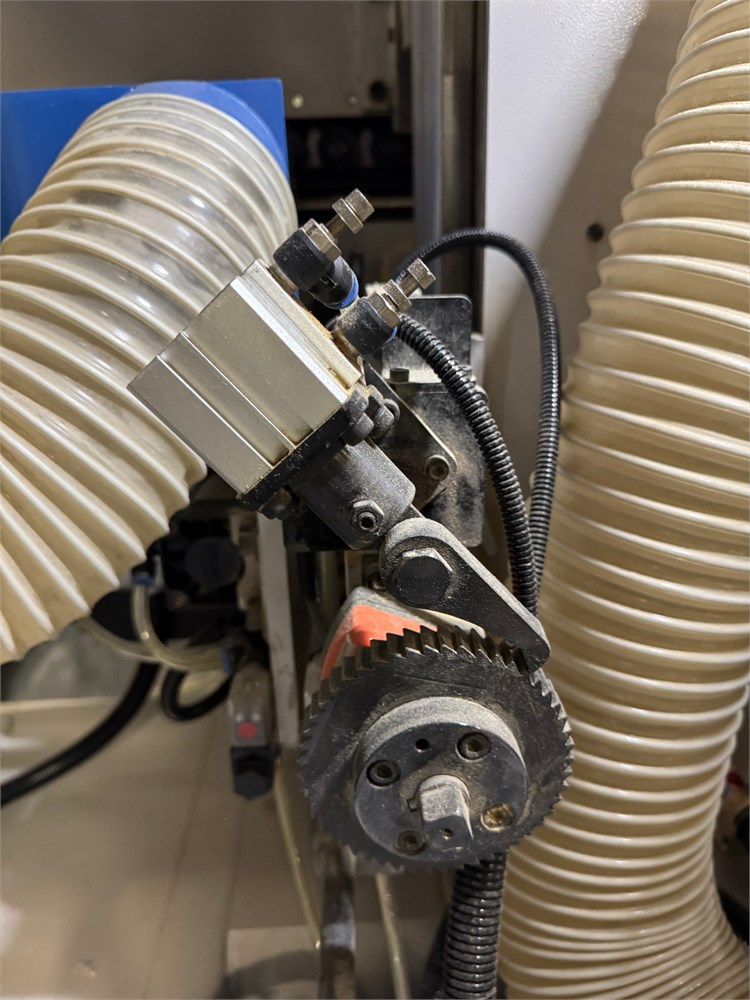

• 4th Station: Pneumatic tilt unit

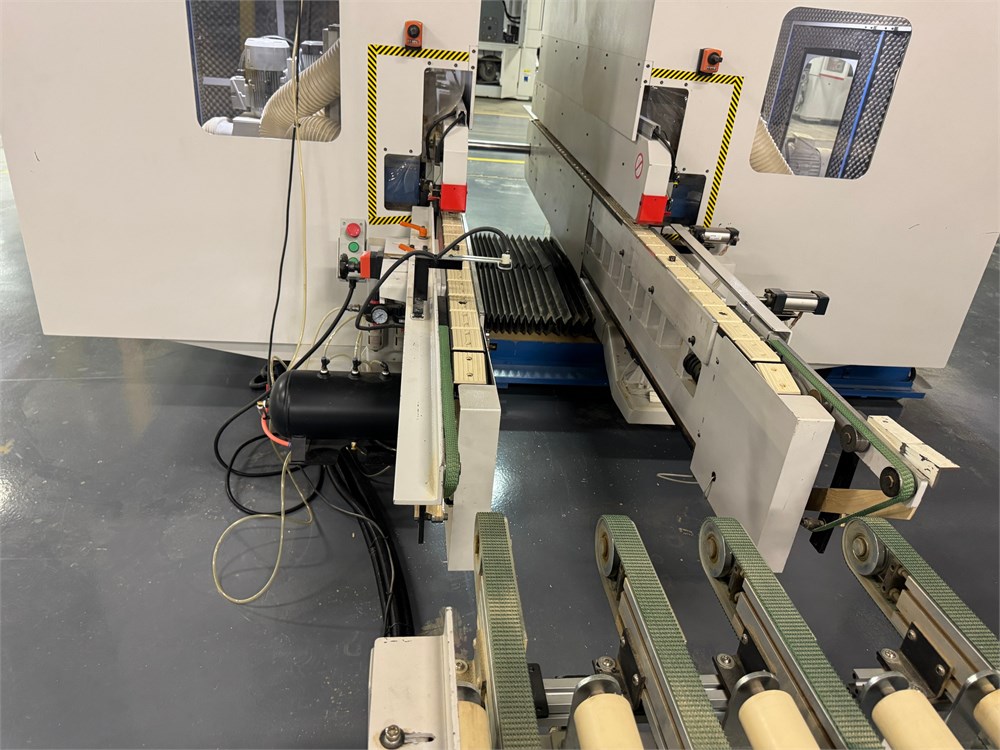

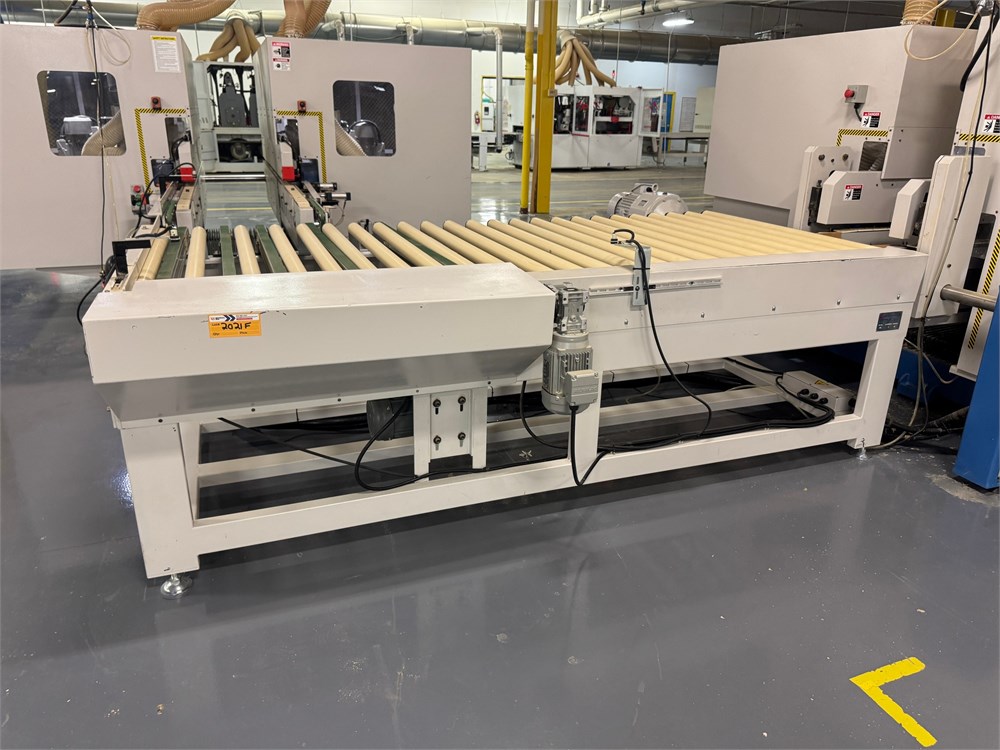

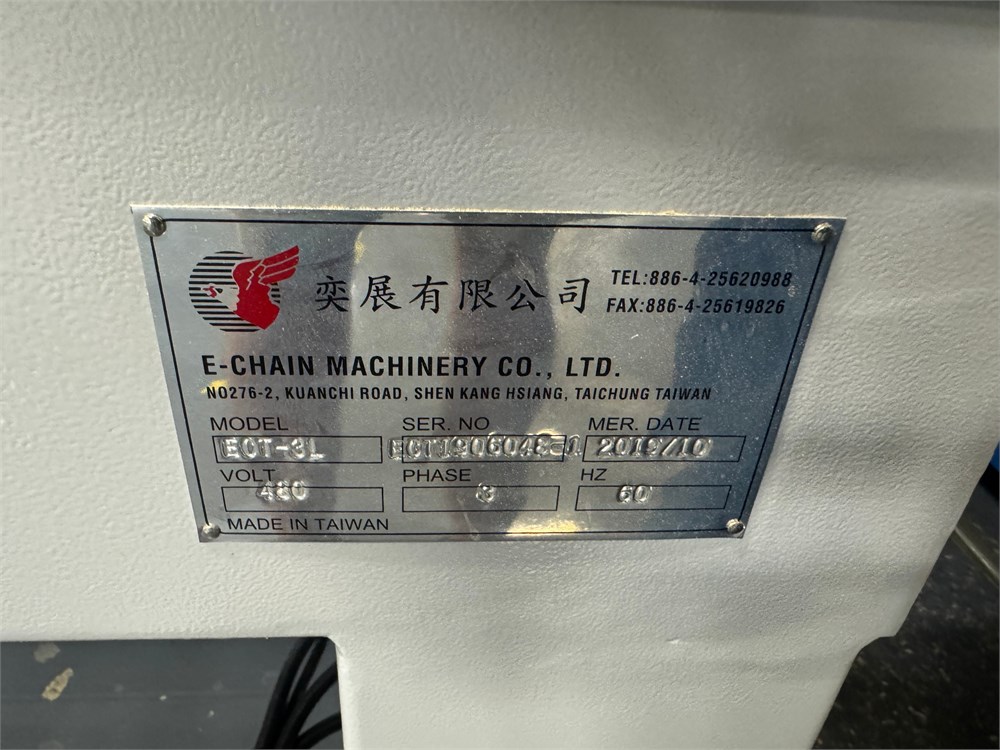

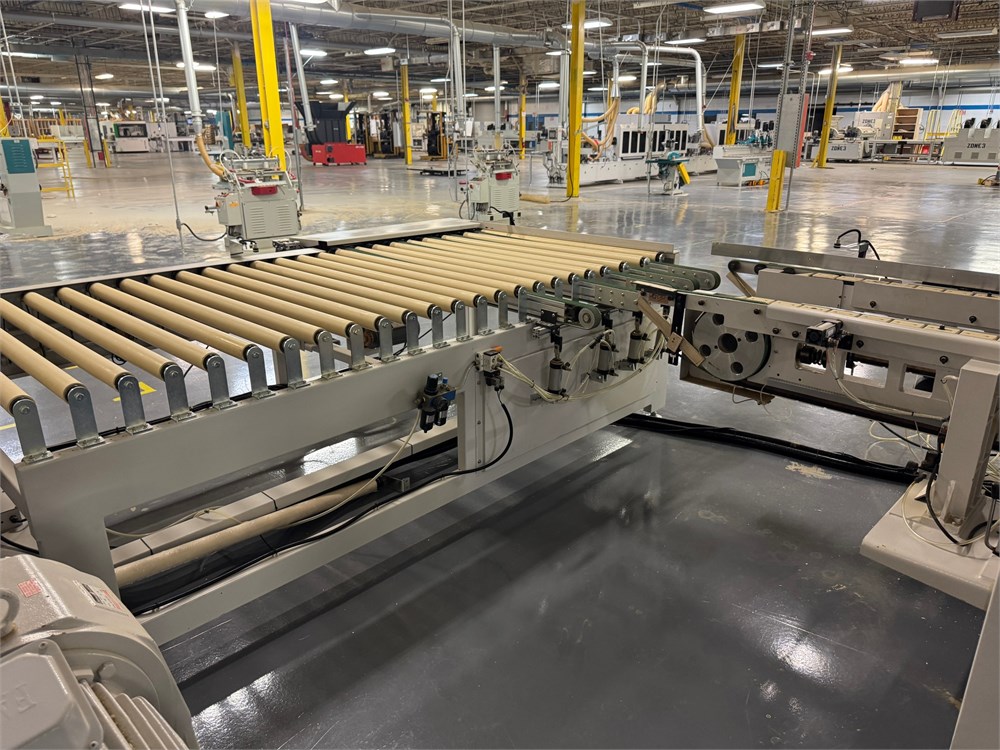

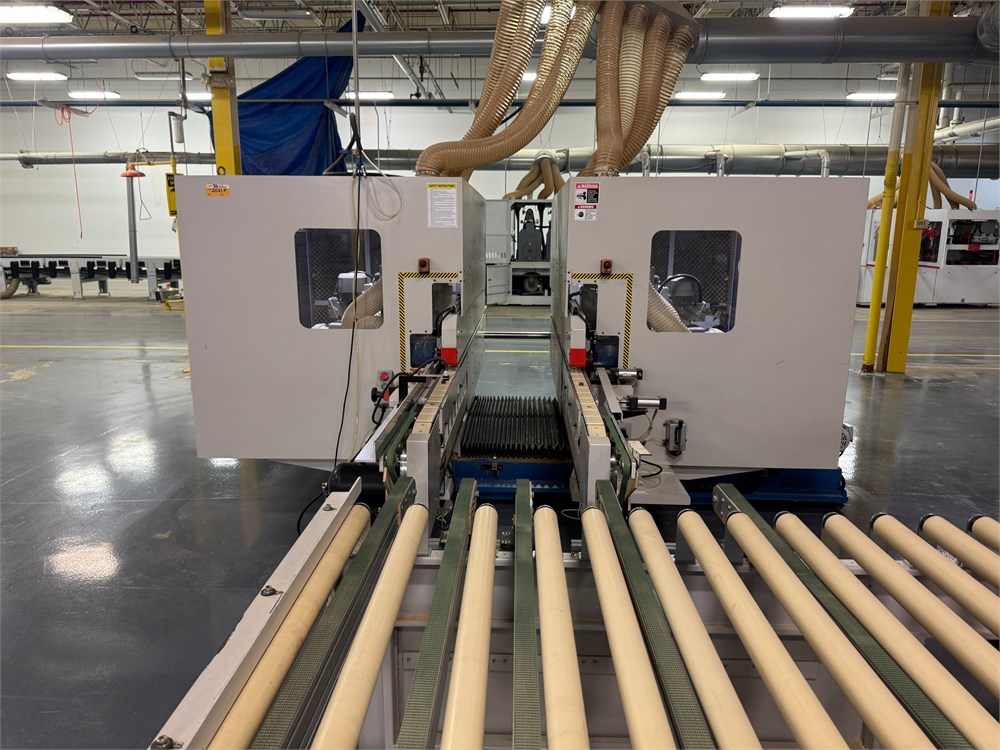

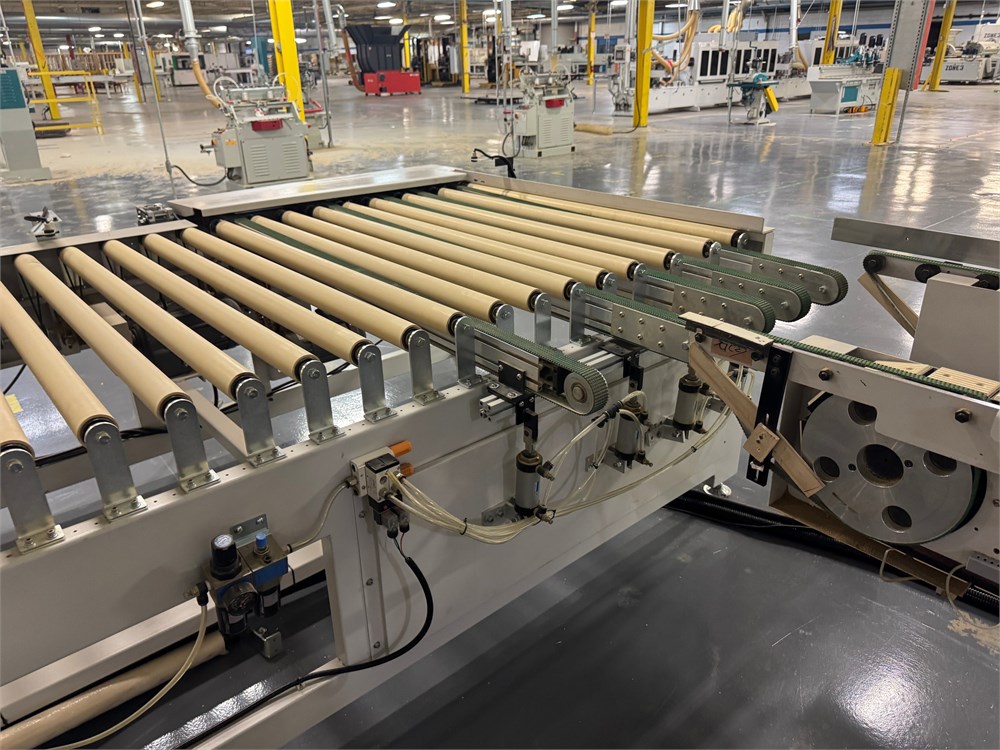

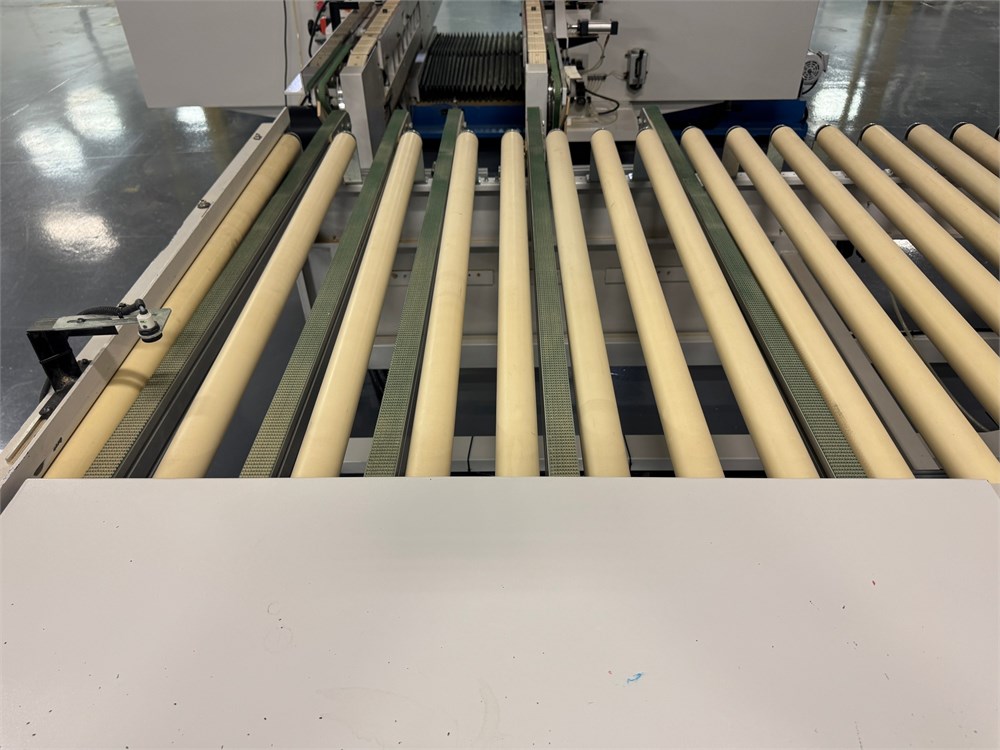

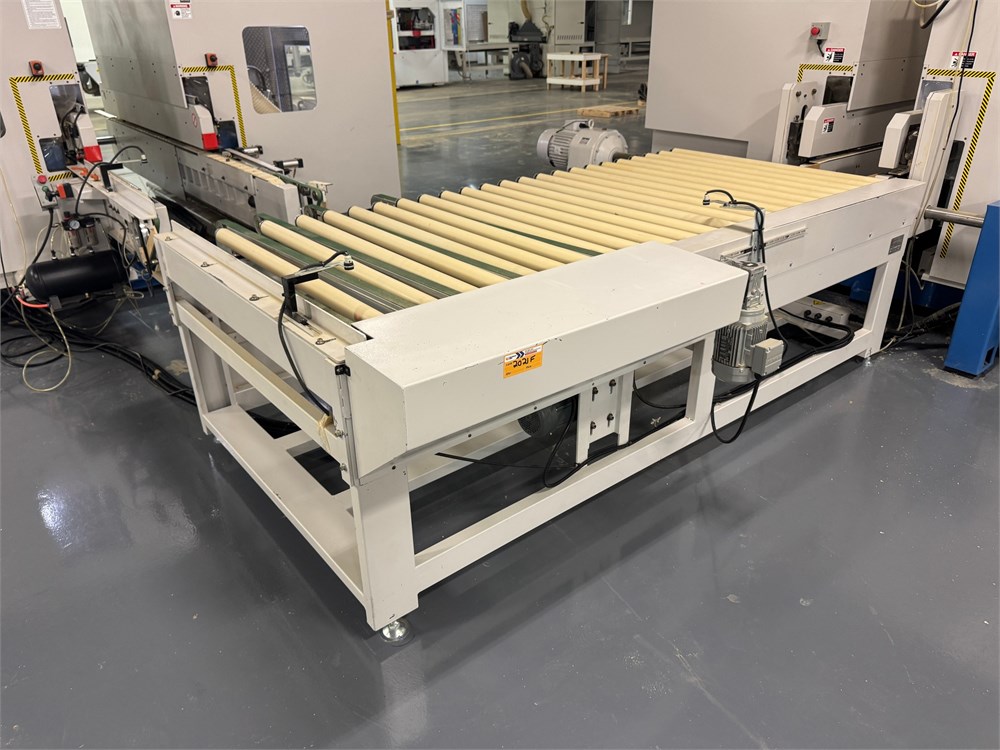

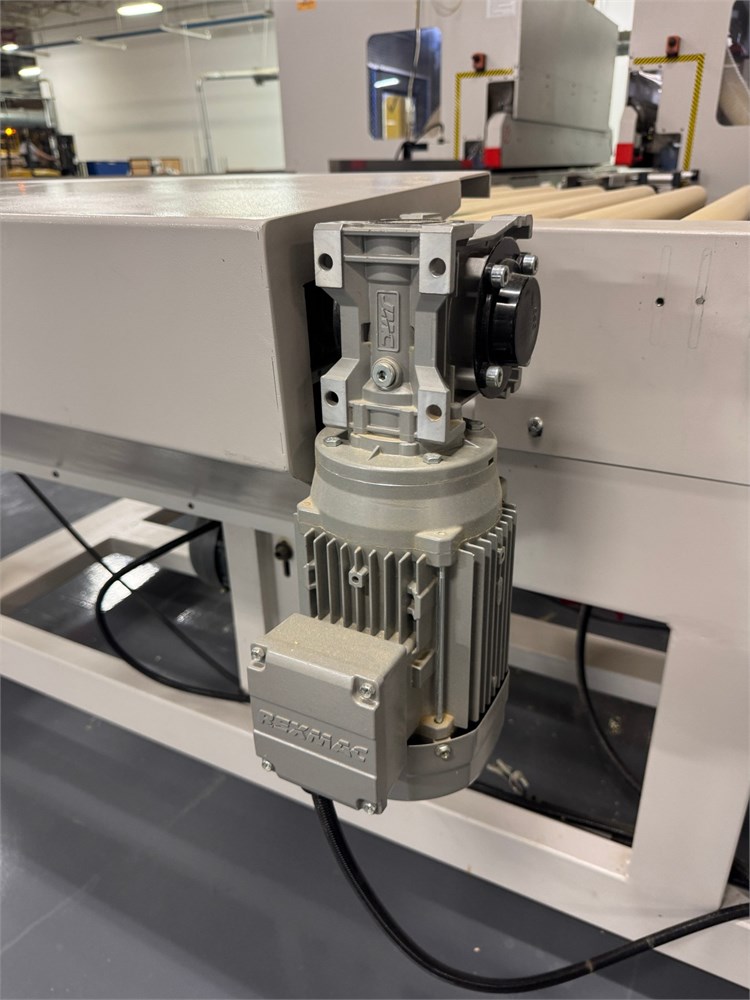

Powered Roller Conveyor & Cross Transfer (ECT-3L)

Designed to transfer material between machines while maintaining part orientation and production flow.

Features

• 51" powered rollers
• (5) cross-transfer belts
• 72" transfer length
• Overall dimensions:
• 120" L × 88" W × 38" H

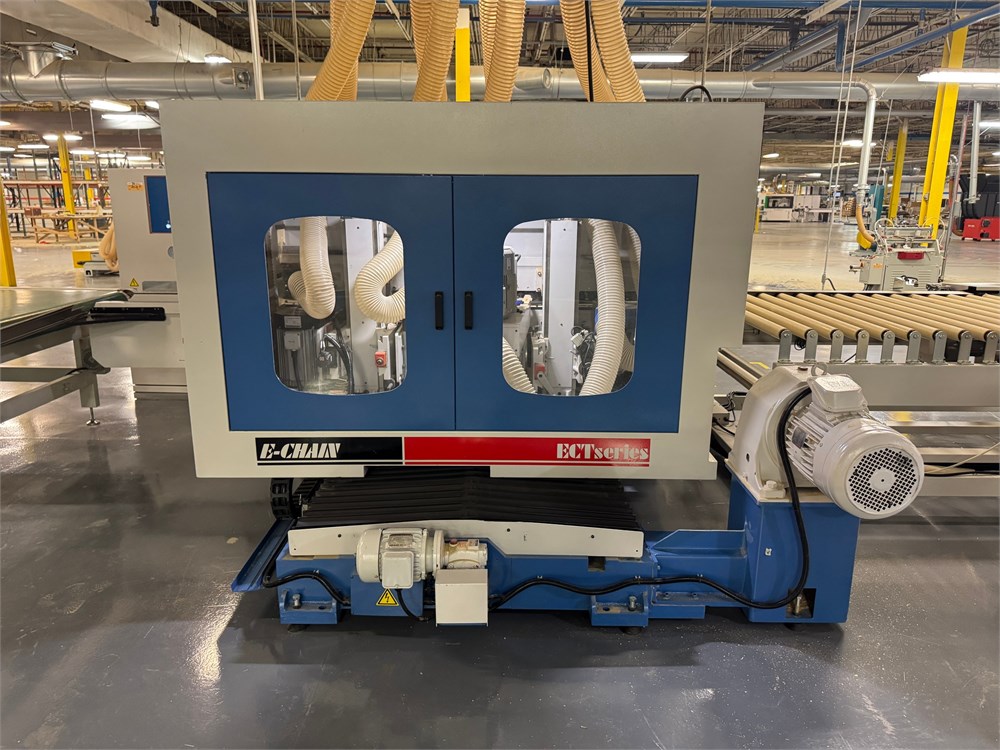

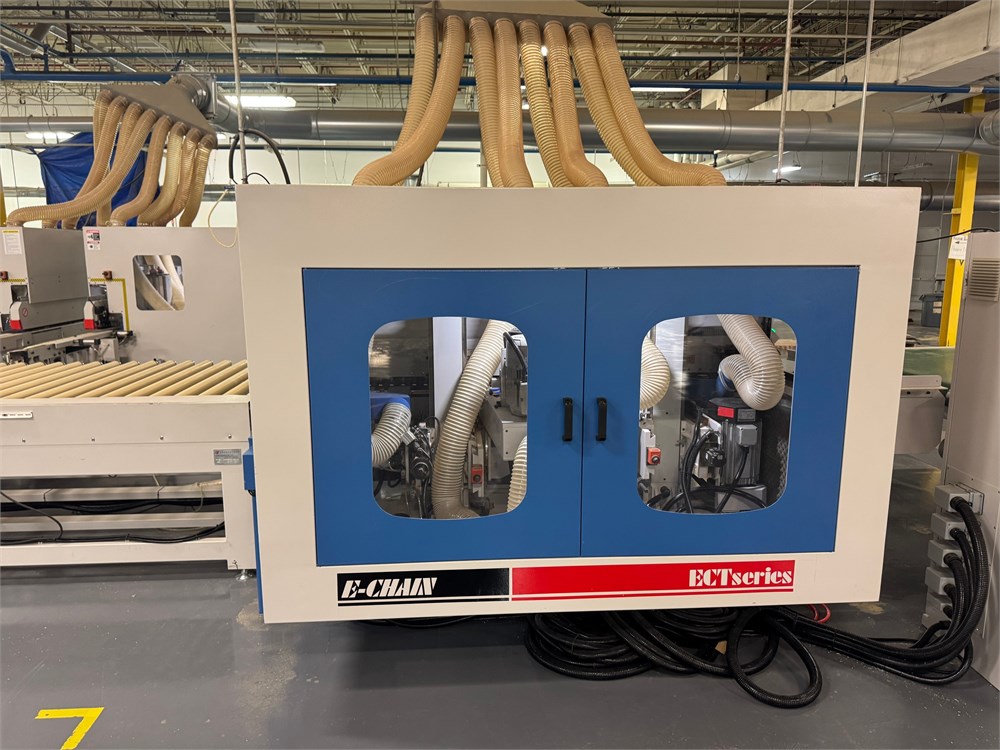

Tenoner #2 – ECT-48S

Configured identically to Tenoner #1:

• 36" load space
• Heavy-duty 2-1/2" transport chains
• Pop-up dogs every 15-1/2"
• Approximate maximum working width: 54"
• Lighted sound enclosure

Processing Stations

• 1st Station: Vertical ATS spindle, 7.5 HP
• 2nd Station: 10 HP processing unit
• 3rd Station: 3-point tilting belt sander
• 2.2 kW / 2.9 HP
• 4th Station: Pneumatic tilt unit

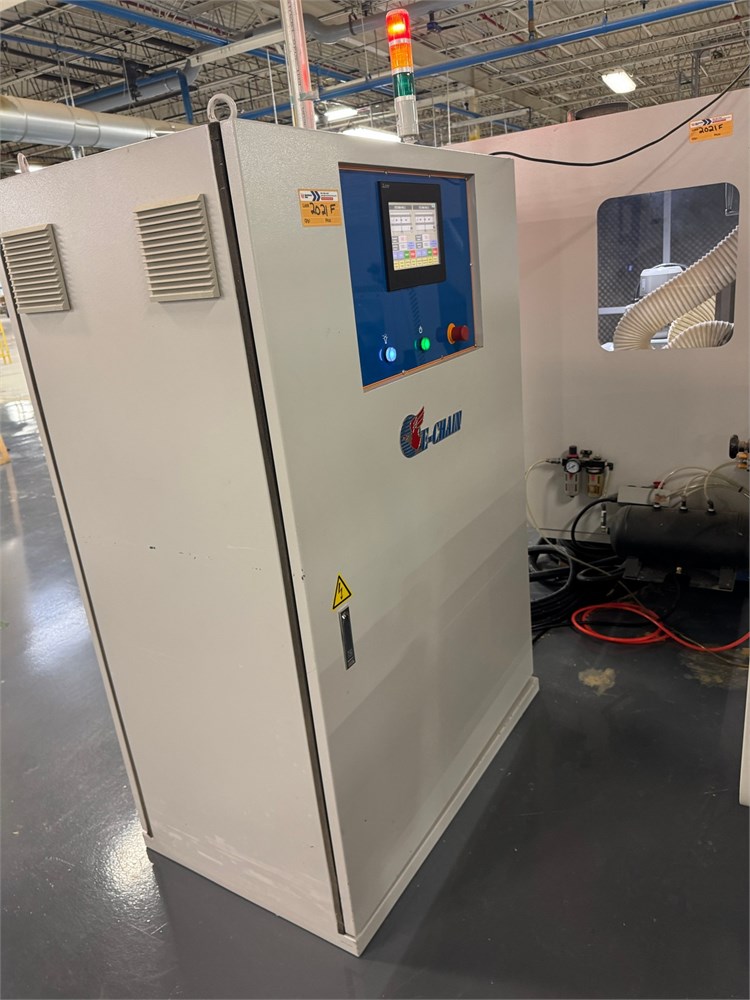

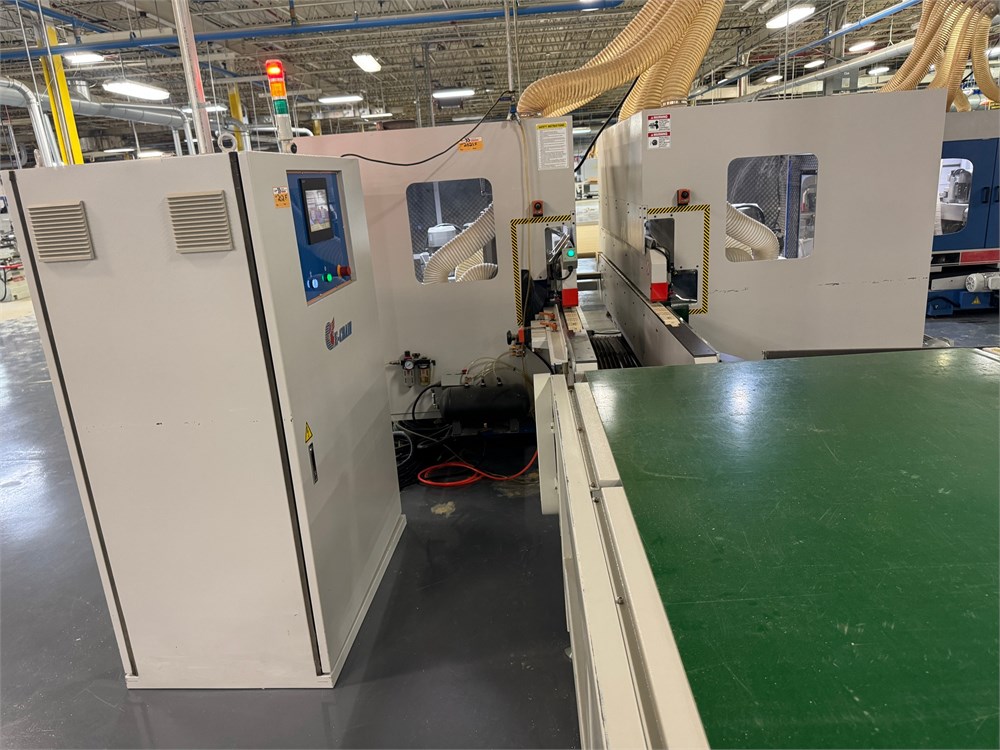

Control Equipment

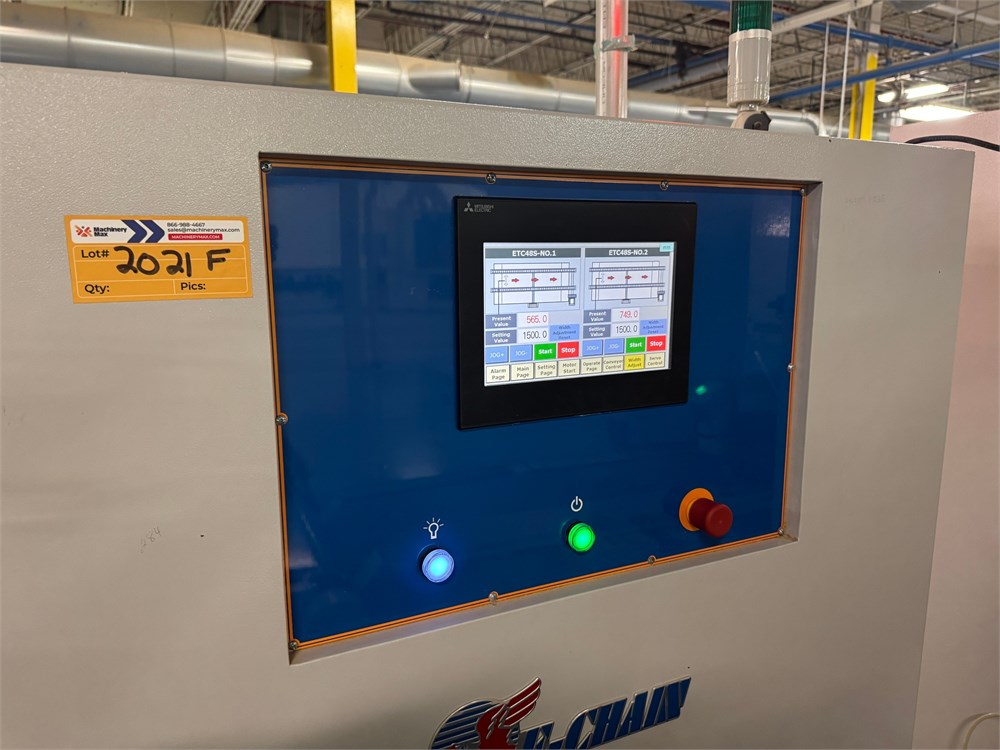

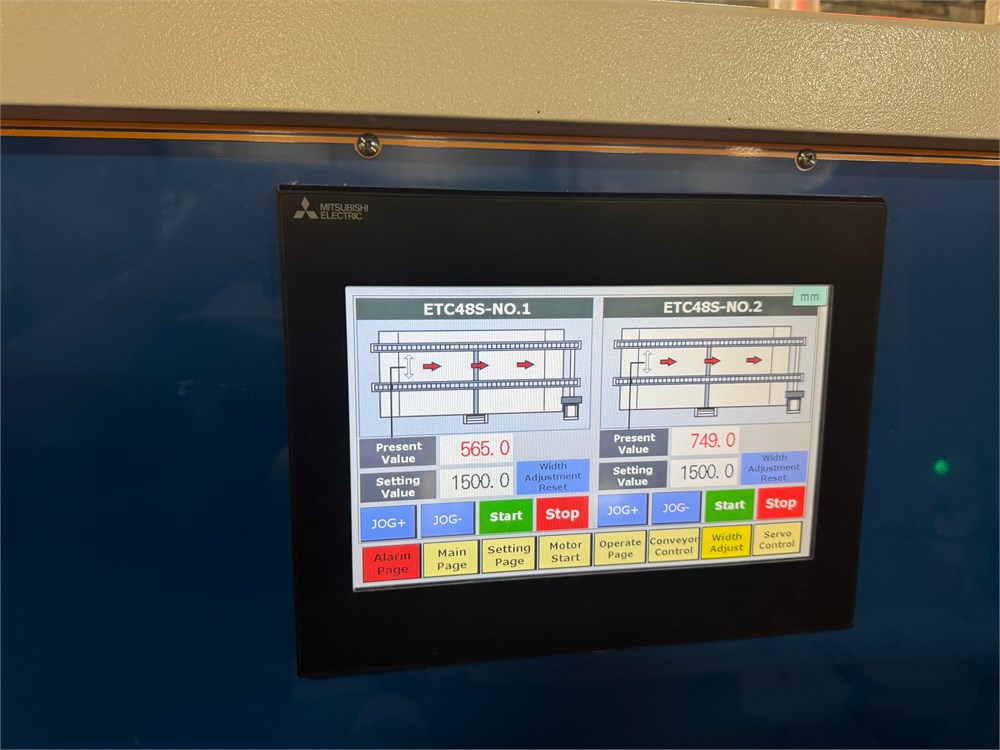

• Central operator control station
• Controller dimensions:
• 48" × 30" × 72"

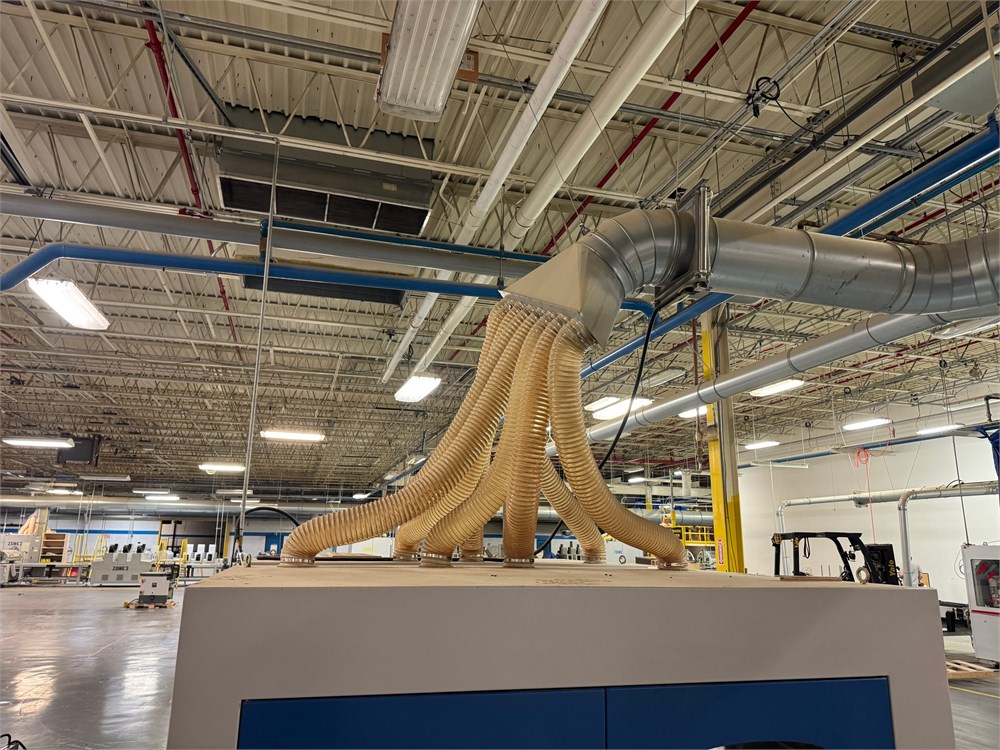

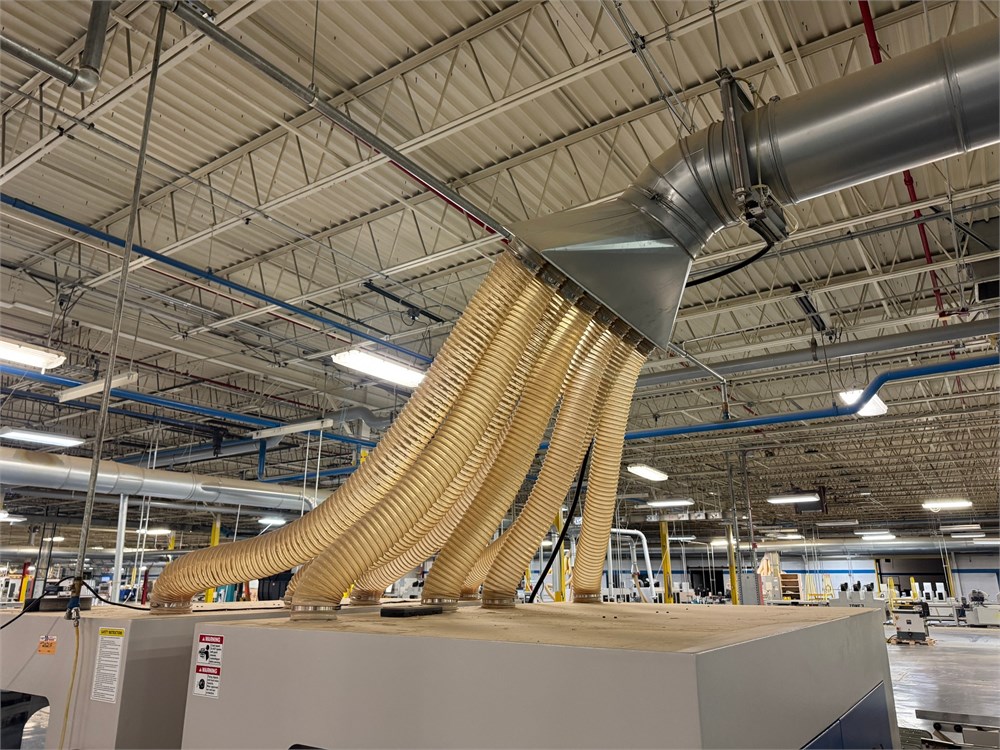

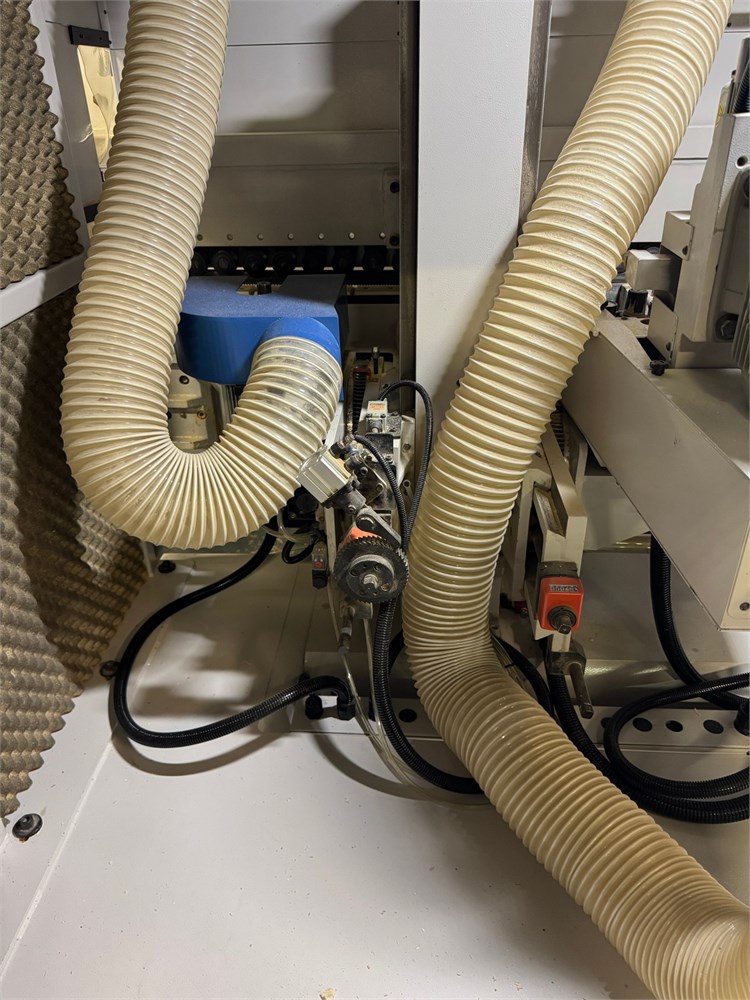

• Custom dust collection manifolds included
• Integrated production line configuration

Condition Notes

• Great operating condition
• Complete production line configuration
• Includes conveyor transfer system and controls
• Heavy-duty industrial construction throughout

Notes

This E-Chain ECT-48S Double End-Tenoner Line is a versatile production solution combining profiling, sanding, transfer, and material handling in one integrated system. With dual processing stations, powered transfer conveyor, and enclosed operation, this line is well suited for manufacturers seeking efficient, repeatable edge processing and high-throughput production capability.
