2024 Salvador Superpush 200 Automatic Optimizing Crosscut Saw

or
Call (905)-451-8430

Specifications

ManufacturerSalvador
ModelSuperpush 200 Automatic Optimizing Crosscut Saw
Year2024
Stock NumberT4577JL

Description

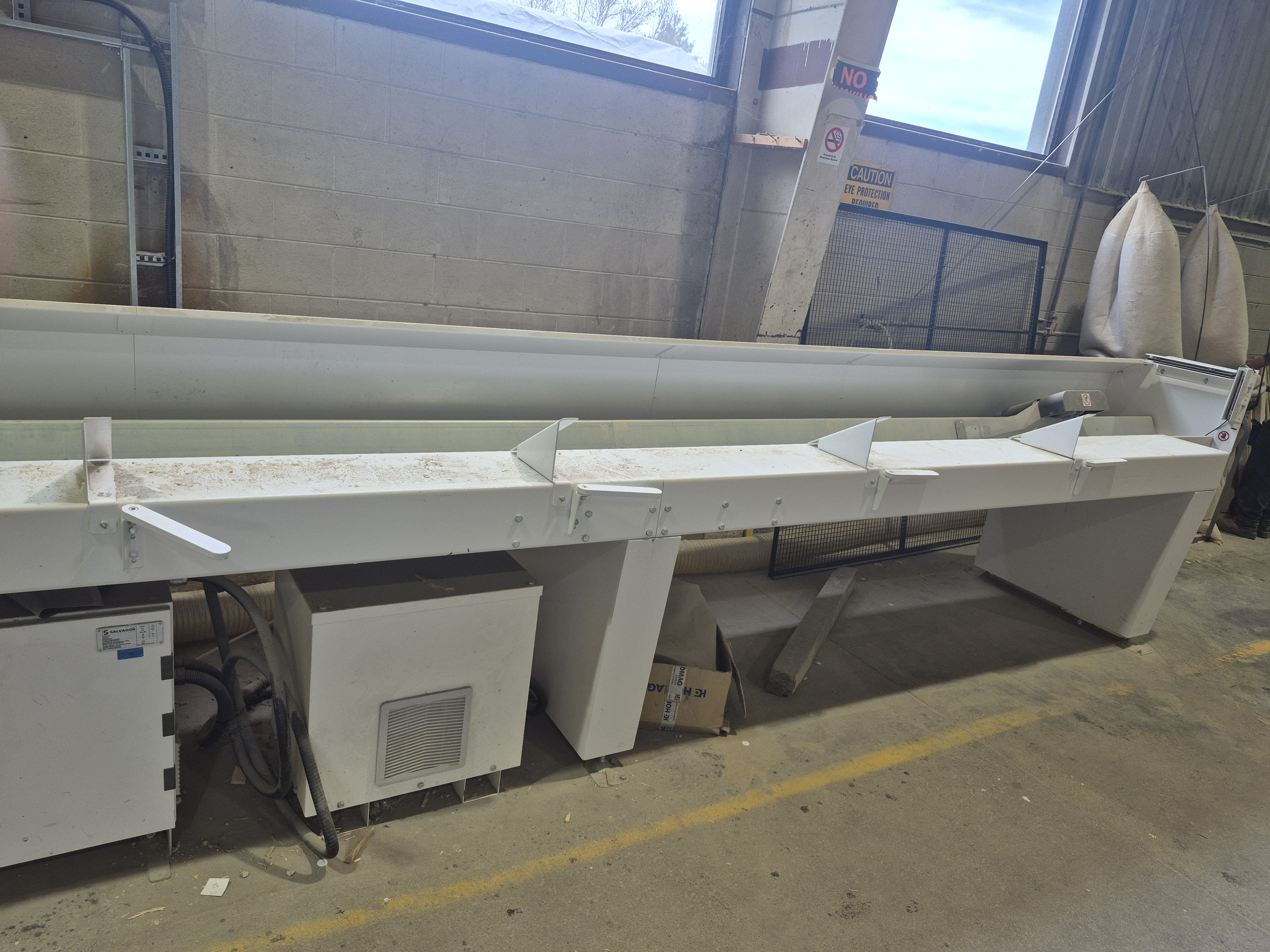

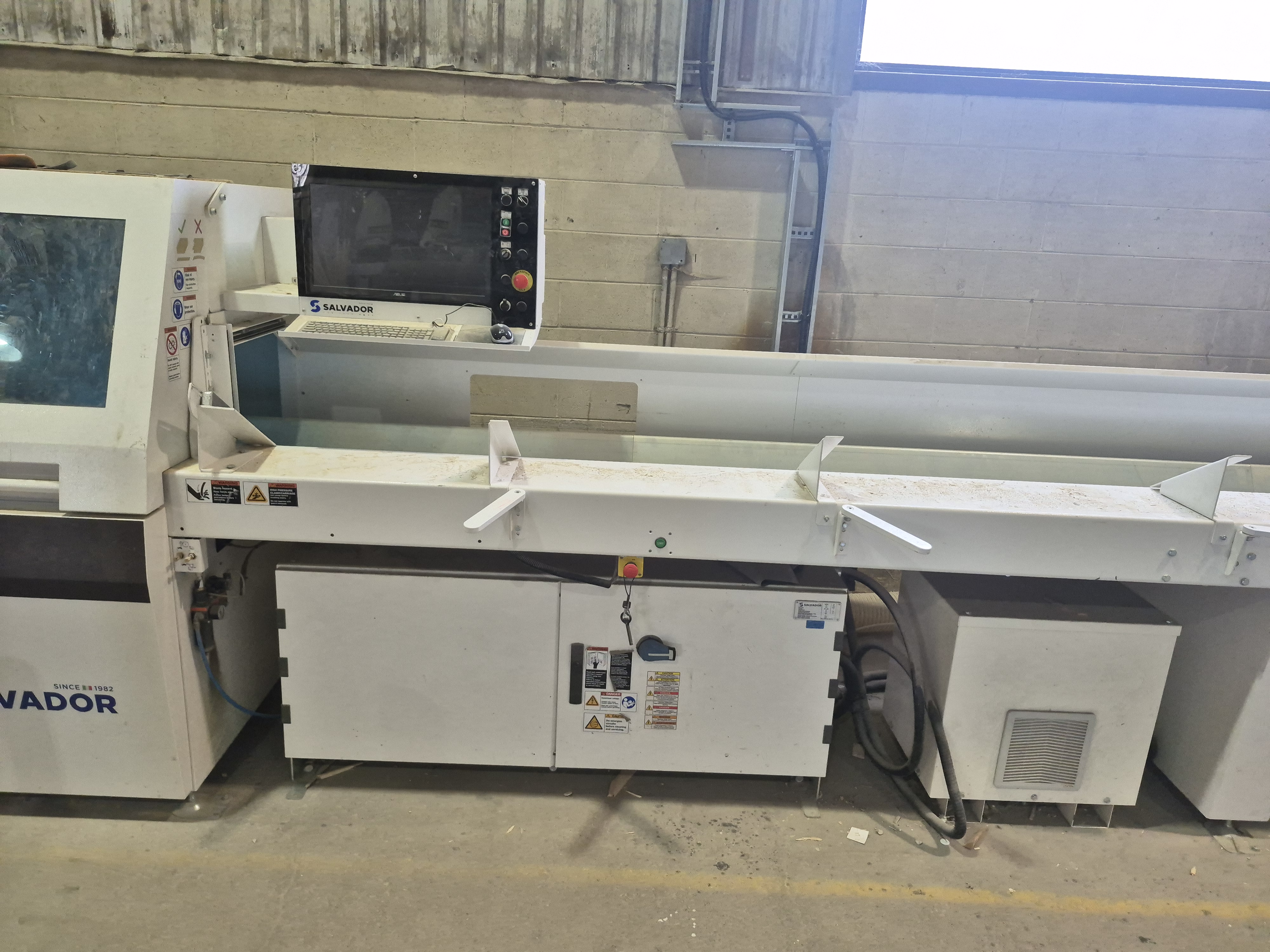

USED 2024 SALVADOR SUPERPUSH 200 AUTOMATIC OPTIMIZING CROSSCUT SAW


Manufacturer: Salvador S.r.l.

Model: Superpush 200

Machine Type: Automatic Optimizing Crosscut Saw

Year: 2024

Condition: Very Good – Under Power

Location: Ontario, Canada

Machine Description

The Salvador Superpush 200 is a high-production automatic optimizing crosscut saw designed for rapid and accurate cutting of lumber, wood stock, planks, and similar materials. This machine features an automatic feeding pusher system, optimization capability, and high-speed crosscut operation for efficient production environments.


Currently under power and in operation, the machine has accumulated approximately 1,627 operating hours and is available with manuals and documentation.

Specifications


Electrical

  • Phase: 3 Phase
  • Supply Voltage: 460V
  • Maximum Installed Power: 6.5 kW
  • Blade Motor Power: 5.5 kW


Saw Blade

  • Blade Diameter: 500 mm
  • Optional Blade Diameter: 550 mm
  • Arbor Diameter: 35 mm
  • Blade Thickness: 4.2 mm
  • Optional Blade Thickness: 4.5 mm
  • Blade Speed: 2,880 RPM


Cutting Capacity

  • Material Capacity: Approximately 2" x 4" up to 6" x 12"
  • Machine Configured to Load Material up to 16 Feet
  • Minimum Workpiece Length: 500 mm
  • Minimum Workpiece Cross Section: 30 x 15 mm
  • Cutting Cycle Time: 0.3 Seconds


Feed System

  • Maximum Pusher Feed Speed: 60 m/min
  • Maximum Pusher Plate Size: 100 x 120 mm


Pneumatic Requirements

  • Operating Pressure: 600–800 kPa (6–8 Bar)
  • Connection: 3/8" Quick Connectors


Dust Collection Requirements

  • Extraction Capacity: 1,800–2,000 m³/hr
  • Upper Extraction Port: 100 mm
  • Lower Extraction Port: 120 mm

Machine Dimensions


Machine Footprint

  • Overall Line Dimensions: 8,870 x 1,481 x 1,720 mm
  • Open Height: 2,045 mm


Loading Area

  • Loading / Marking Table Height: 1,000 mm


Weight

  • Main Unit Weight: 950 kg
  • Maximum Supporting Surface Load: 968 kg

Condition

  • Under Power
  • Available Immediately
  • Approximately 1,627 Operating Hours
  • Very Good Condition
  • Manuals Included
