2005 Biesse Artech Akron 246 Edgebander

Sold

Specifications

ManufacturerBiesse
ModelArtech Akron 246 Edgebander
Year2005
Stock Numbernickd
Voltage600
HZ60
PH3

Description

Description:

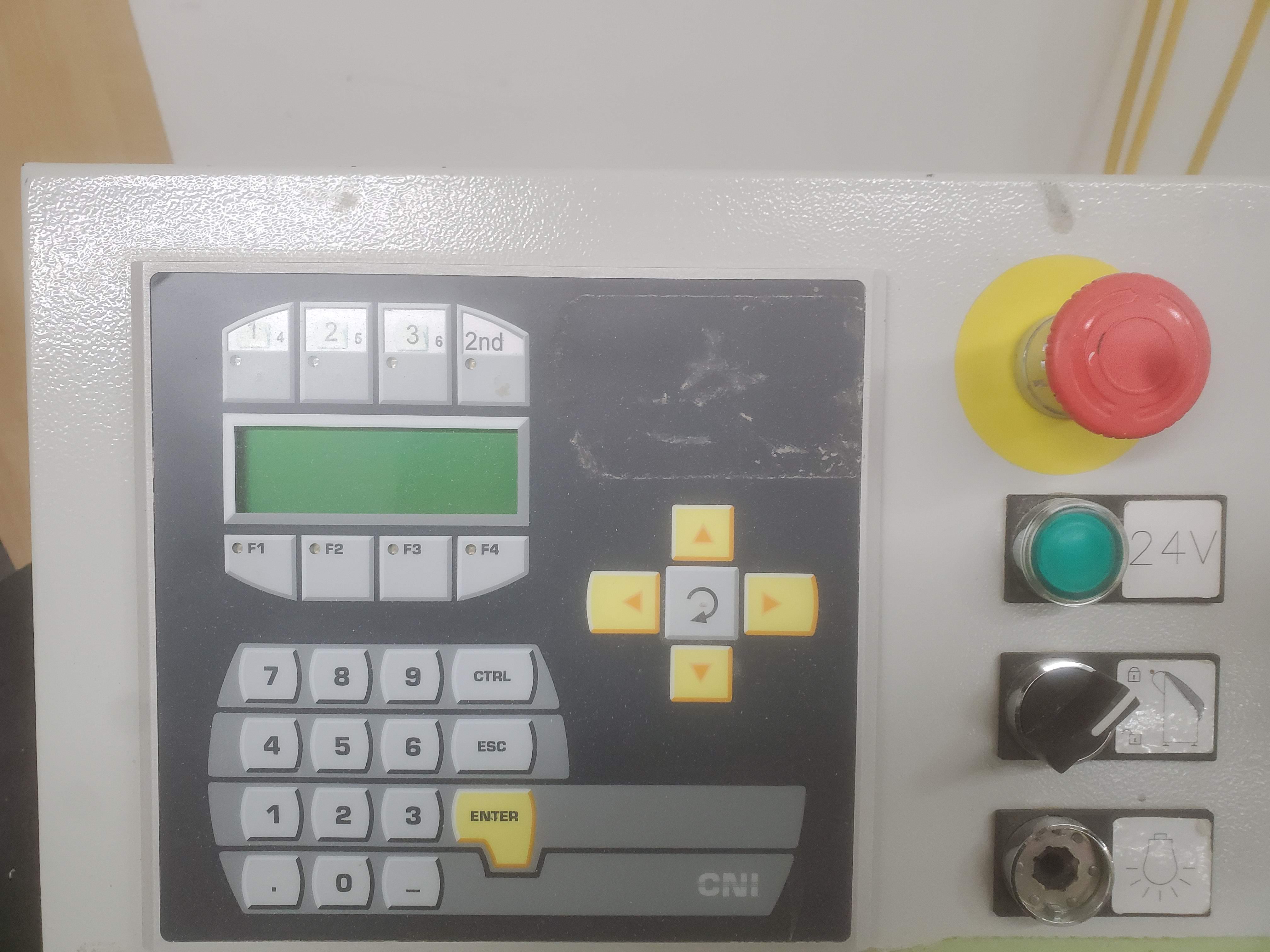

  • Control system to adjust machine operations CNI

Monitor

  • Working height adjustable by Manual control
  • In feed guide controlled
  • Lateral bar with free idle rollers for panel support
  • Pre-milling unit
  • Band coil support
  • Gluing system for EVA glue
  • Pressing unit with 1 + 3 pression rollers
  • End cutting unit, 2 motors, tillable 0/15 degrees
  • trimming unit
  • Multi-function unit (fine trimming + corner rounding unit) with 2 motors with automatic regulation by numerical control.
  • Edge scraper unit
  • Glue scraper unit
  • Buffing unit with n 2 motors for panel cleaning


Gluing edge thickness max mm 8

Gluing height max mm 55

Thickness of rolled material max mm 3

Max feed speed m / min 12

Manual height adjustment

Granulated glue

adjustments

Headers / Miter Saw 2 motors

Trim / Radial / Bevel stations

Rounders 2 motors

Scraper

Profile and flat piece

Brush

synchronized aggregates

Machine length 5700 mm

command and software

BIESSE ARTECH NC 405

Certification CE

declaration of conformity

Weight approx. kg 2100

EXCELLENT state

Specifications:

  • Brand Biesse
  • Model Akron 246
  • Year of Mfg 2005
  • Phase 3 Ph
  • Voltage 600V, 60Hz
  • Height 59″
  • Width 36″
  • Length 210″
