2019 Silver SJK‑19T 19‑Spindle Line Boring Machine

Manufacturer: Silver Machine Inc.

Model: SJK‑19T

Year: 2019

Condition: Used – Very Good Condition

Machine Type: Vertical Line Boring Machine / 32mm System

Machine Description

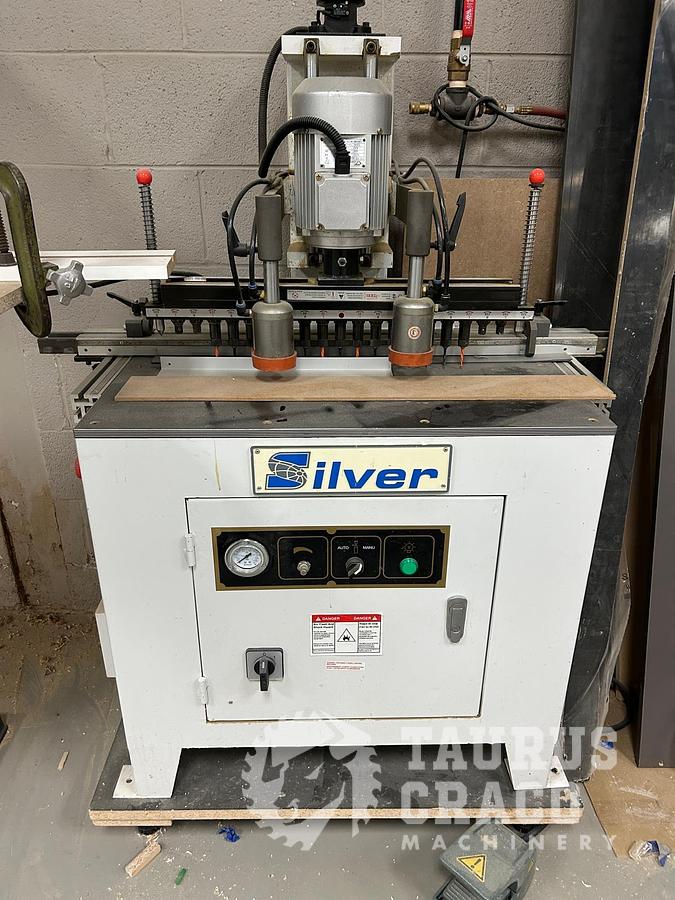

The Silver SJK‑19T is a compact single-line vertical boring machine designed for efficient drilling of cabinet components and panel joinery using the 32 mm system.

Built for high-speed production, this unit features 19 synchronized spindles driven by a 1.5 HP motor, along with pneumatic clamping and foot-pedal operation for fast cycle times and repeatable accuracy.

This machine is ideal for cabinet shops, closet manufacturers, and furniture producers requiring consistent hole drilling for dowels, hinges, and hardware.

Key Features

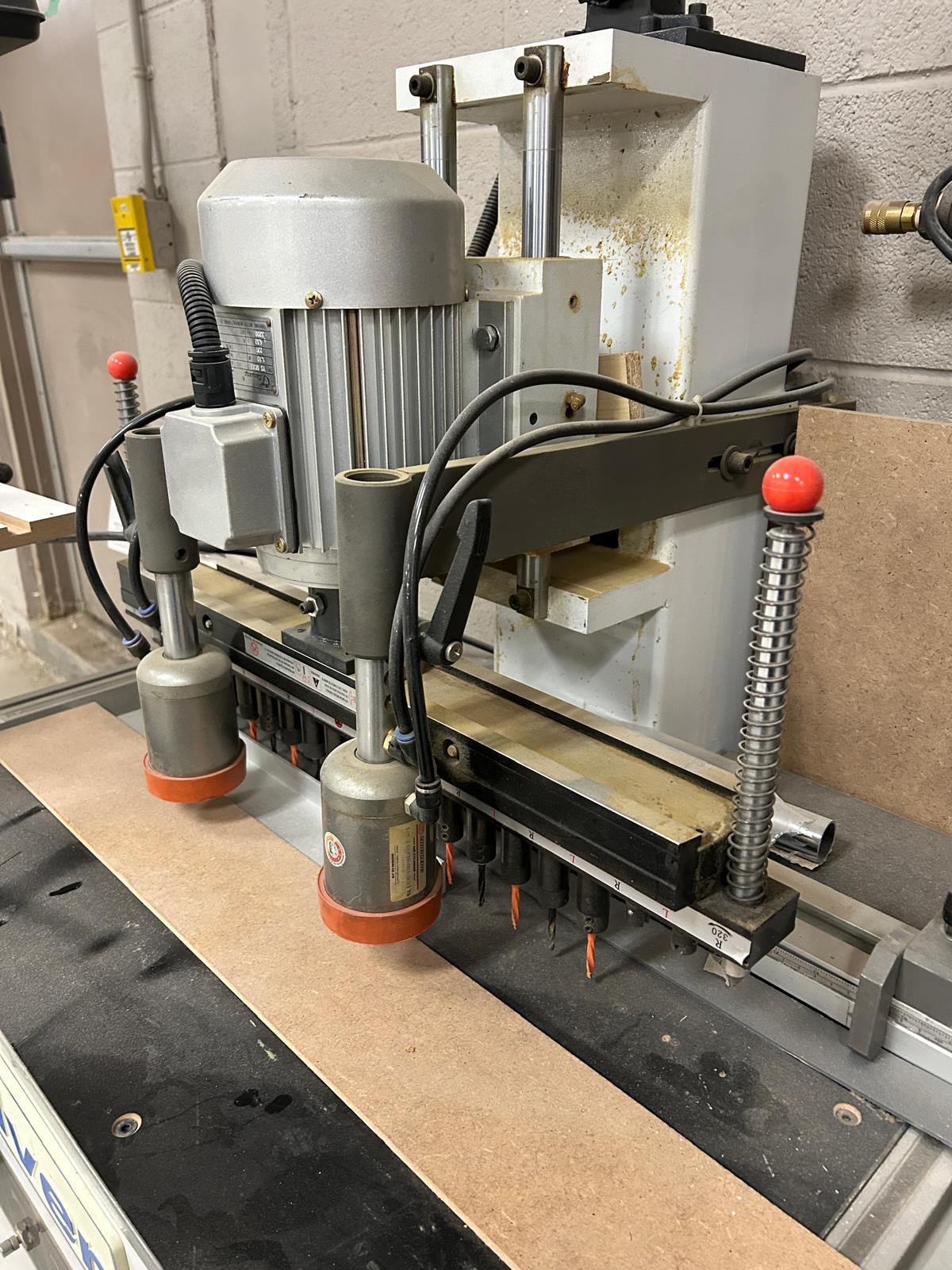

• 19-spindle boring head (32 mm spacing)

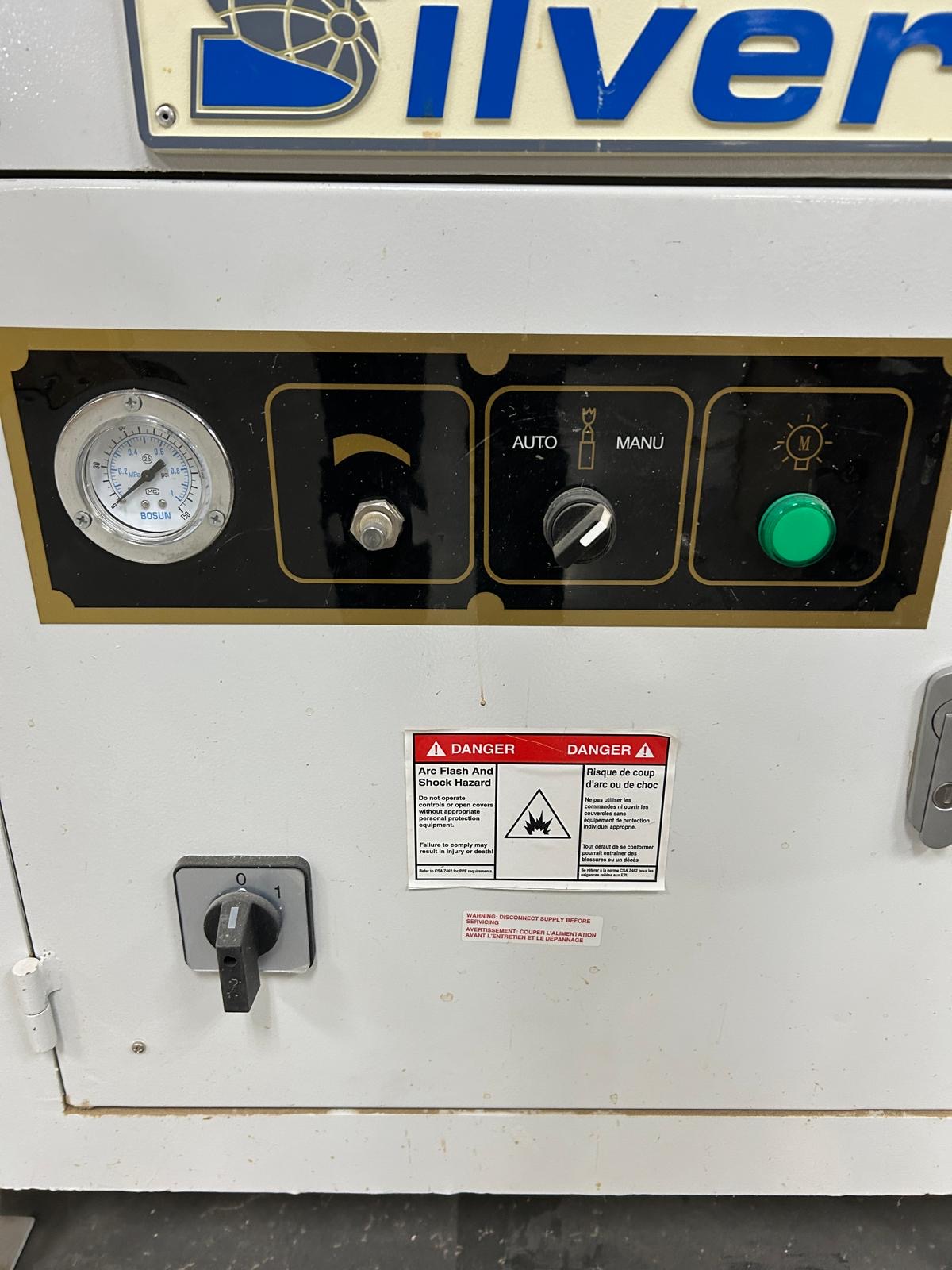

• Pneumatic drilling cycle (foot pedal controlled)
• Adjustable boring depth and feed speed
• Dual pneumatic hold-down clamps
• Back fence system for repeatable setups
• Compact footprint and easy operation
• Quick-change drill chuck system

Technical Specifications

• Spindles: 19
• Spacing: 32 mm
• Max drilling depth: 60 mm
• Motor: 1.5 HP
• Table size: approx. 800 × 500 mm
• Voltage: 220V / 3 Phase / 60 Hz
• Weight: ~220 kg (≈485 lbs)

Condition Notes

• Very good working condition
• Fully operational
• Minimal wear typical for light production drilling machine
• Canadian-installed machine

Notes

The SJK‑19T is an entry-to-mid-level production boring machine, commonly used alongside CNC routers in cabinet shops to handle repetitive drilling tasks more efficiently.
