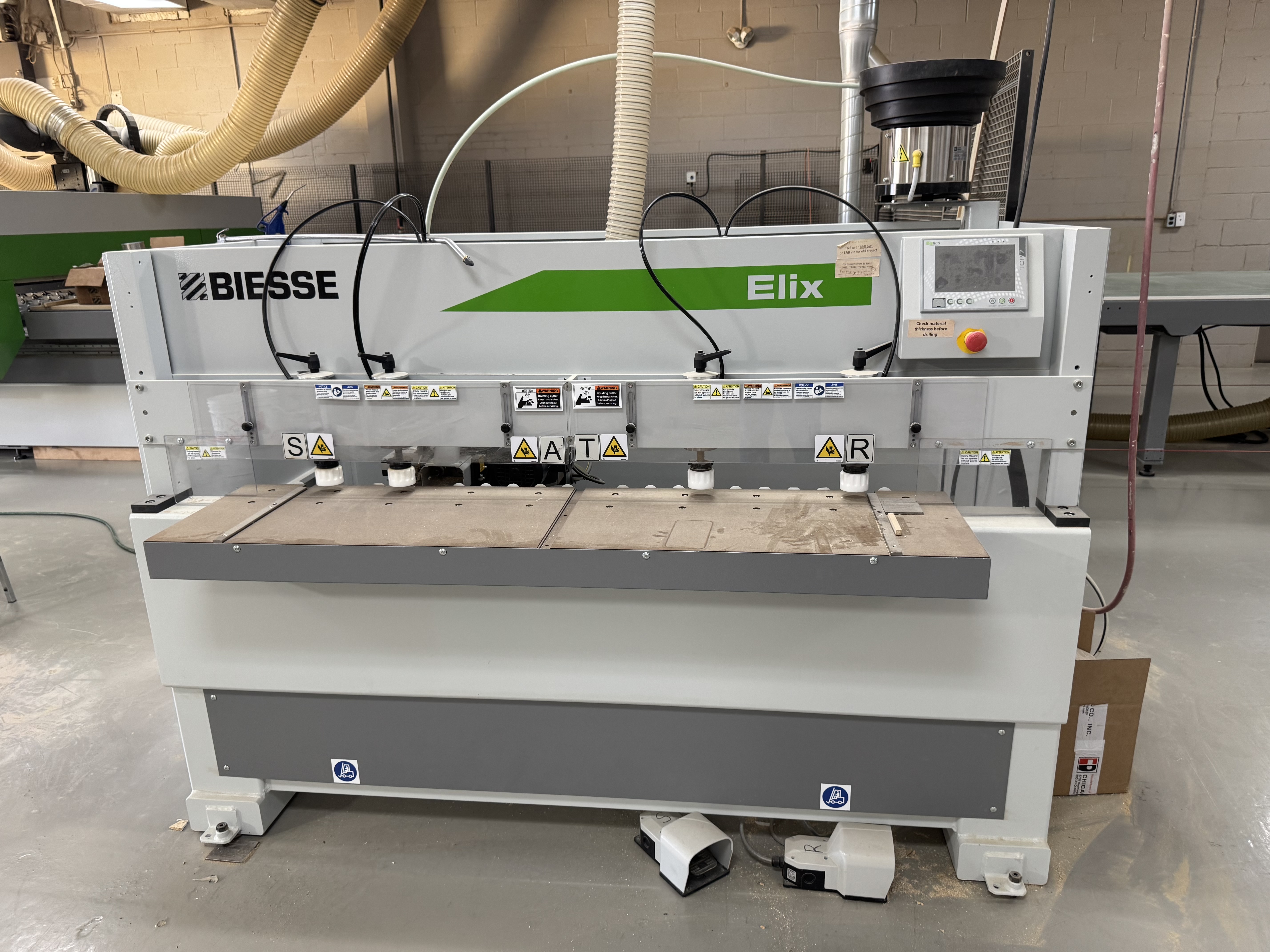

2020 Biesse ELIX B Drill, Glue & Dowel Inserter

Manufacturer: Biesse

Model: ELIX B

Year of Manufacture: 2020

Condition: Used – Very Good Condition

Machine Type: CNC Bore / Glue / Dowel Insertion Machine

Machine Description

The Biesse ELIX B is a compact, high-precision CNC machine designed for point-to-point drilling, glue injection, and dowel insertion in panel processing applications. Built for flexibility and ease of use, this machine is ideal for cabinet shops, furniture manufacturing, and small-part production environments.

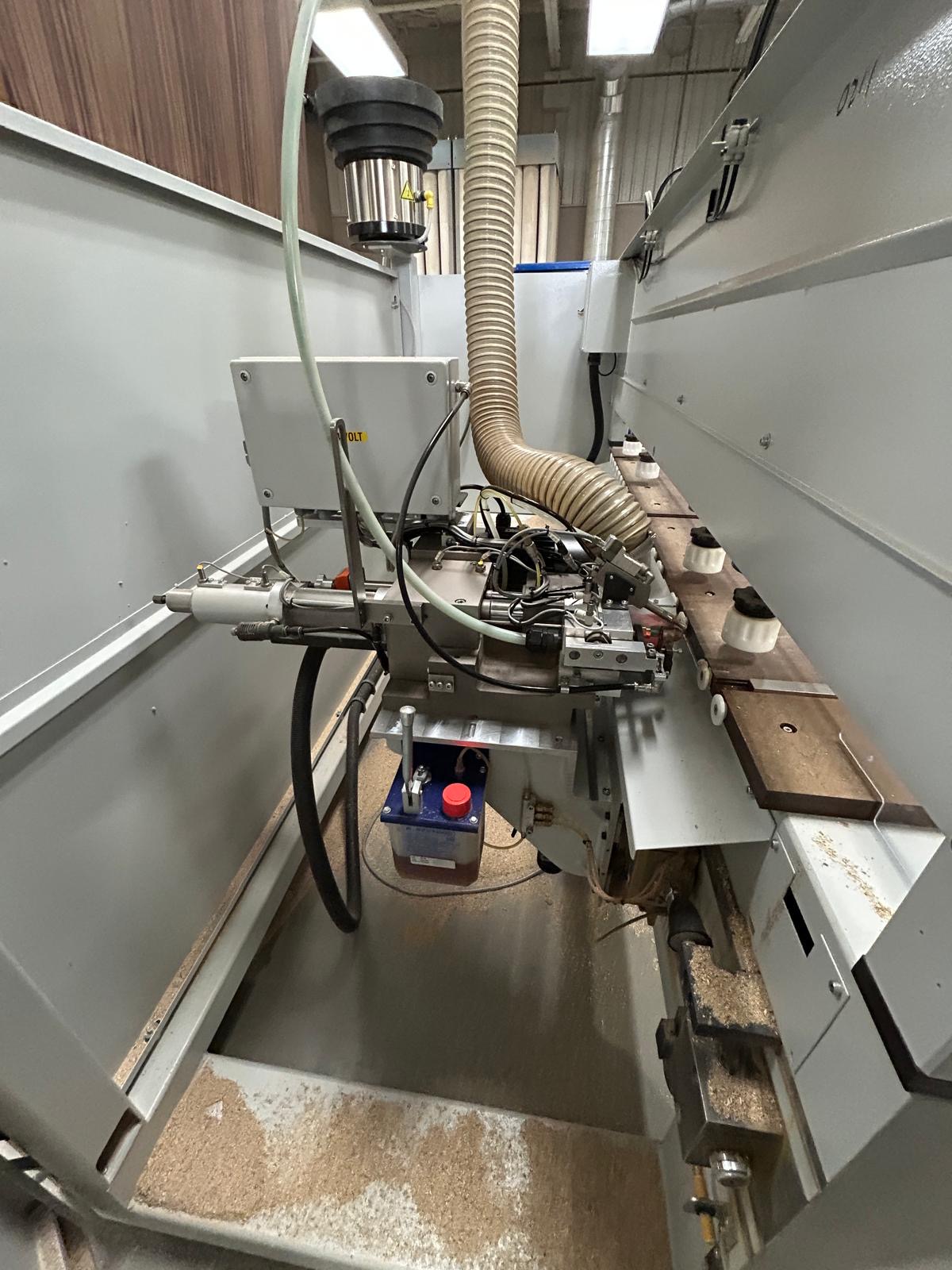

Equipped with a brushless-driven X-axis, precision boring unit, and integrated glue/dowel insertion system, the ELIX B allows operators to reduce manual labour while increasing accuracy and repeatability.

This 2020 unit represents a cost-effective solution for automated joinery production.

Key Features

• CNC-controlled drilling, glue, and dowel insertion
• Compact point-to-point machining design
• Brushless X-axis motion with ball screw drive
• Integrated glue injection system (8L tank)
• High-speed drilling unit (6,000 RPM)
• Single dowel insertion unit (Ø8 mm standard)
• Simple and intuitive CNC interface

Working Capacity / Material Specifications

Panel Size:

• Max length: up to 1300 mm
• Thickness: 10 – 40 mm

Axis Movement:

• X-axis stroke: 1300 mm
• Traverse speed: 50 m/min

Drilling Capability:

• Spindle speed: 6,000 RPM
• Max hole depth: 30 mm
• Max bit diameter: 12 mm

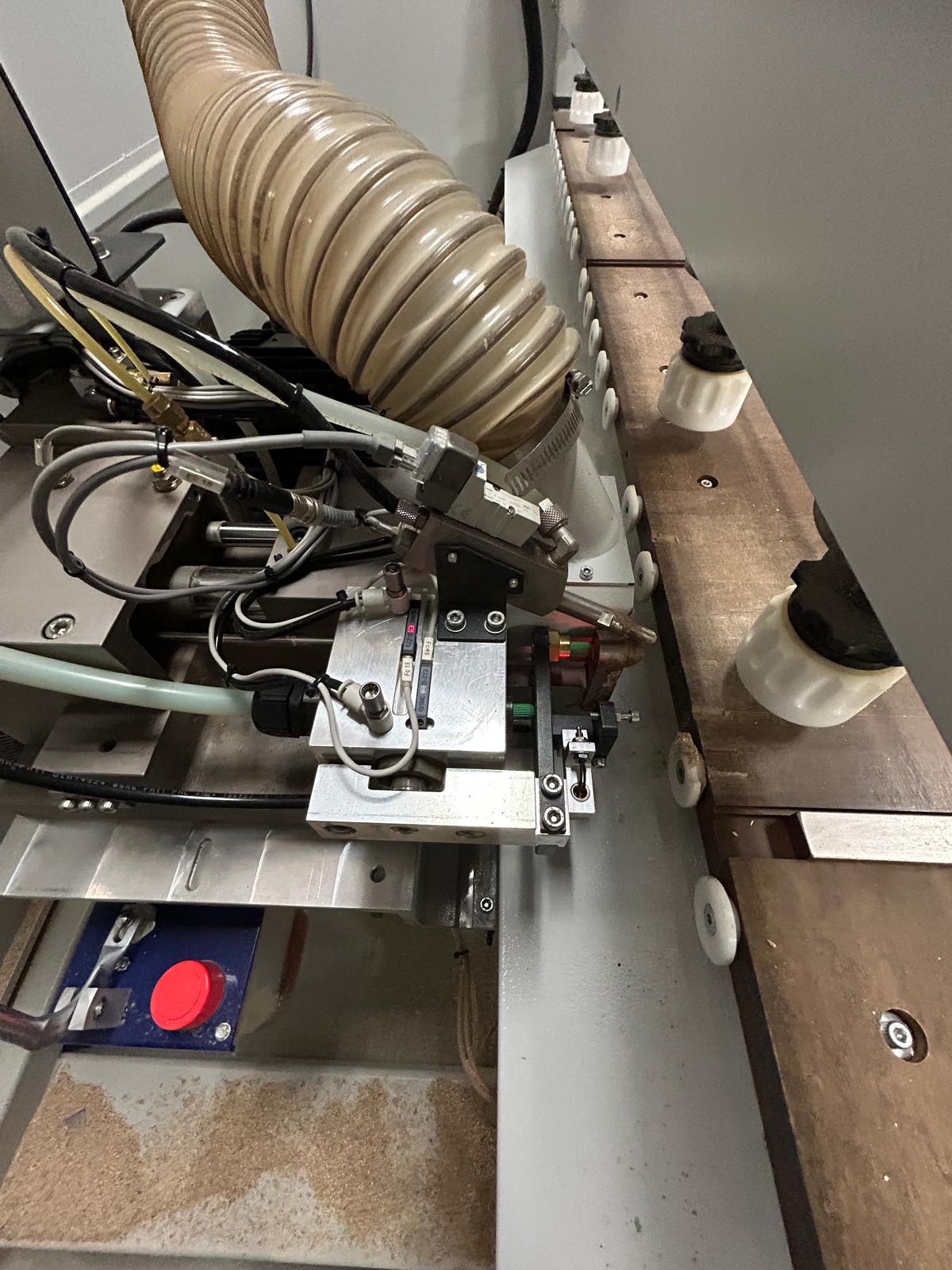

Dowel & Glue System

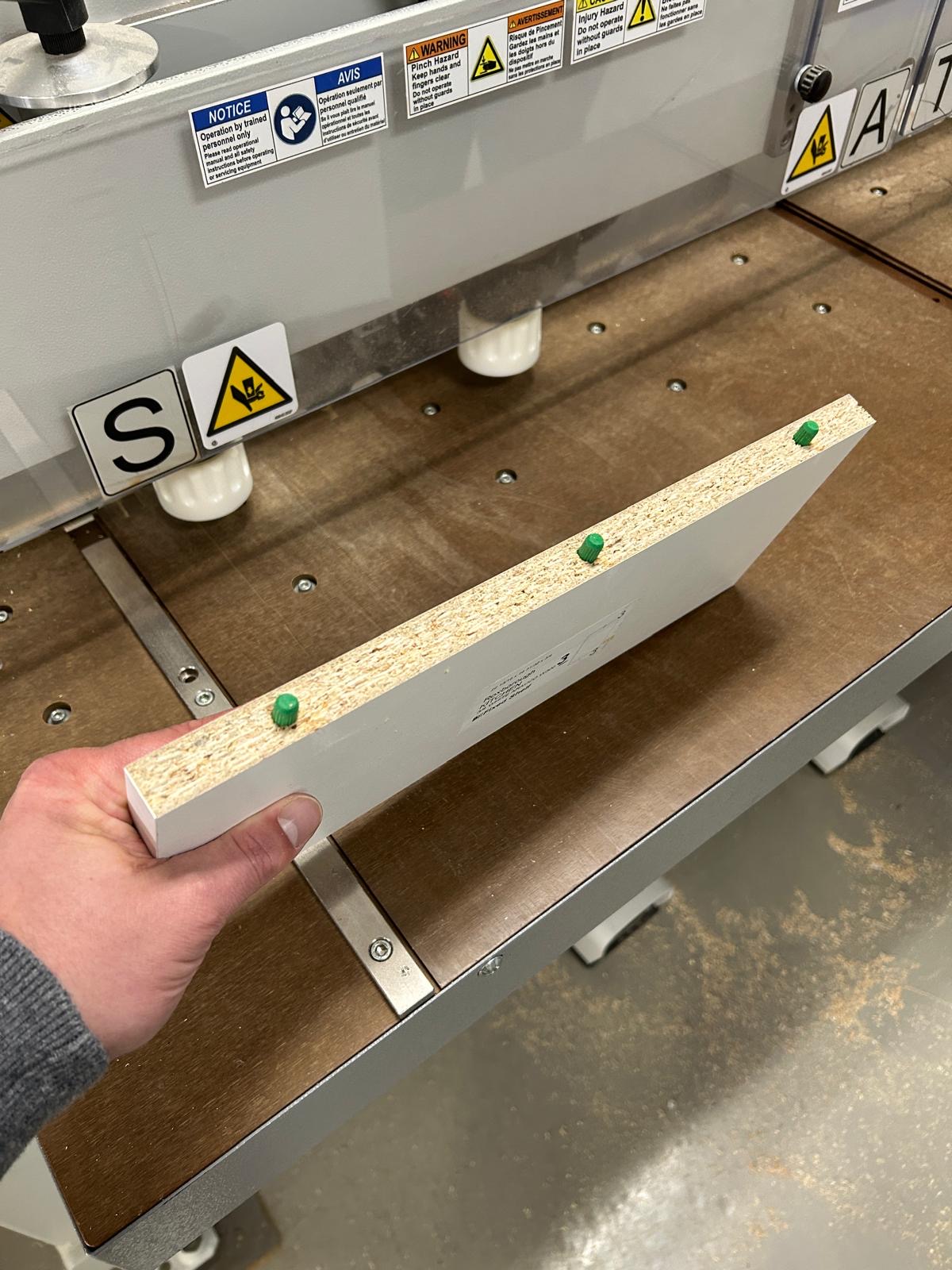

• 1 dowel insertion unit (Ø8 × 30 mm standard)
• Glue tank capacity: 8 litres
• Electronic glue dosing system
• Pneumatic dowel insertion system

Electrical Specifications

• Voltage: 220 V
• Phase: 3 Phase
• Frequency: 60 Hz
• Amperage: 13A
• Air Requirement: 7 bar

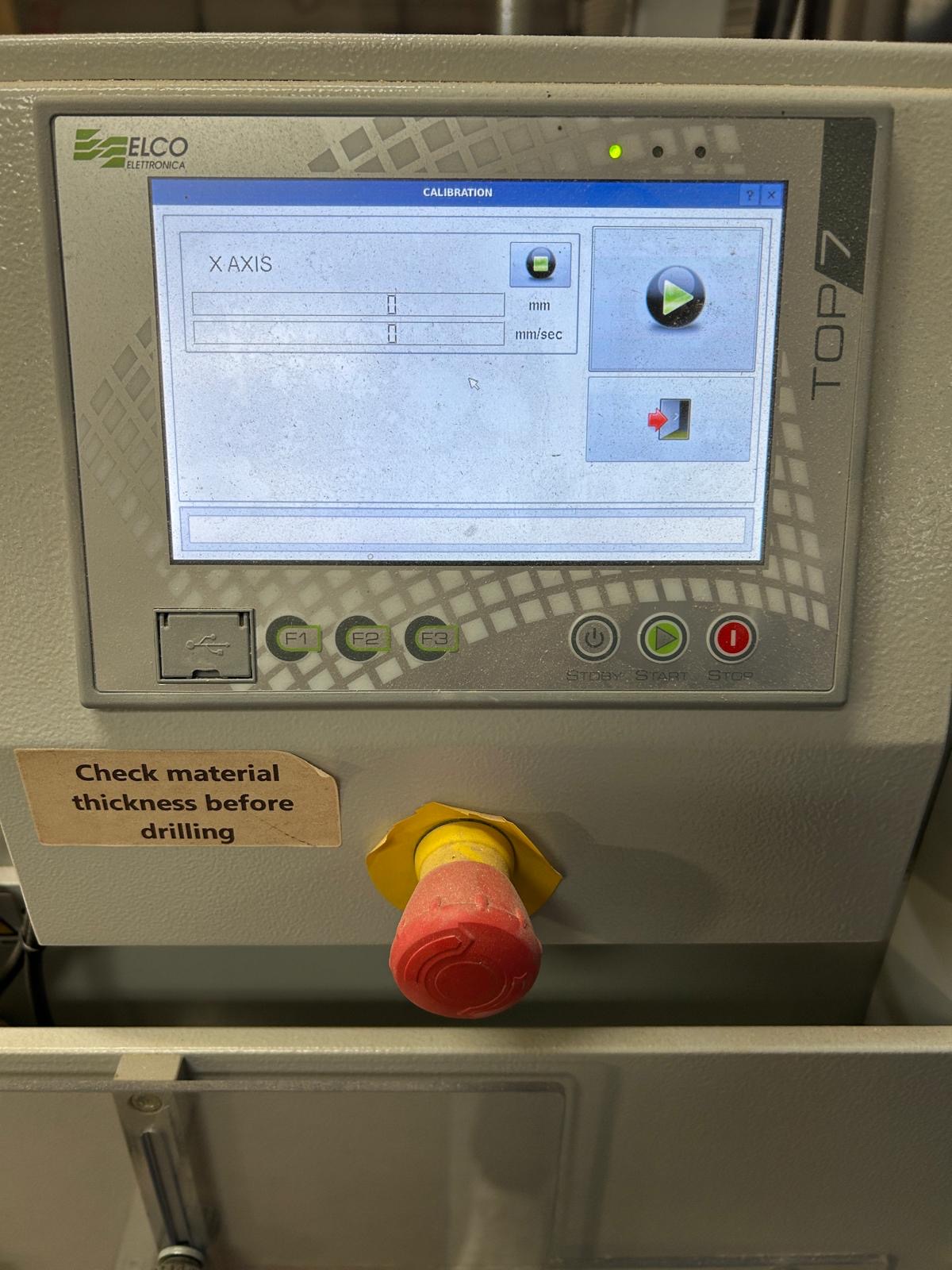

Control System

• Biesse industrial CNC
• Touchscreen interface
• Parametric programming
• Program list management
• Ethernet / USB connectivity

Condition Notes

• Very good operating condition
• Fully functional and production-ready
• Typical wear for machine age
• Clean shop environment

Notes

The Biesse ELIX B is a highly efficient entry-to-mid level CNC dowel inserter, ideal for shops looking to automate cabinet joinery without the footprint or cost of a full CNC machining centre. It offers strong productivity gains over manual drilling and insertion systems.
