2020 Biesse Rover S FT 1536 CNC Router 5' x 12'

Manufacturer: Biesse

Model: Rover S FT 1536

Year of Manufacture: 2020

Condition: Used – Very Good Condition

Machine Type: CNC Router / Flat Table Nesting CNC / Machining Centre

Machine Description

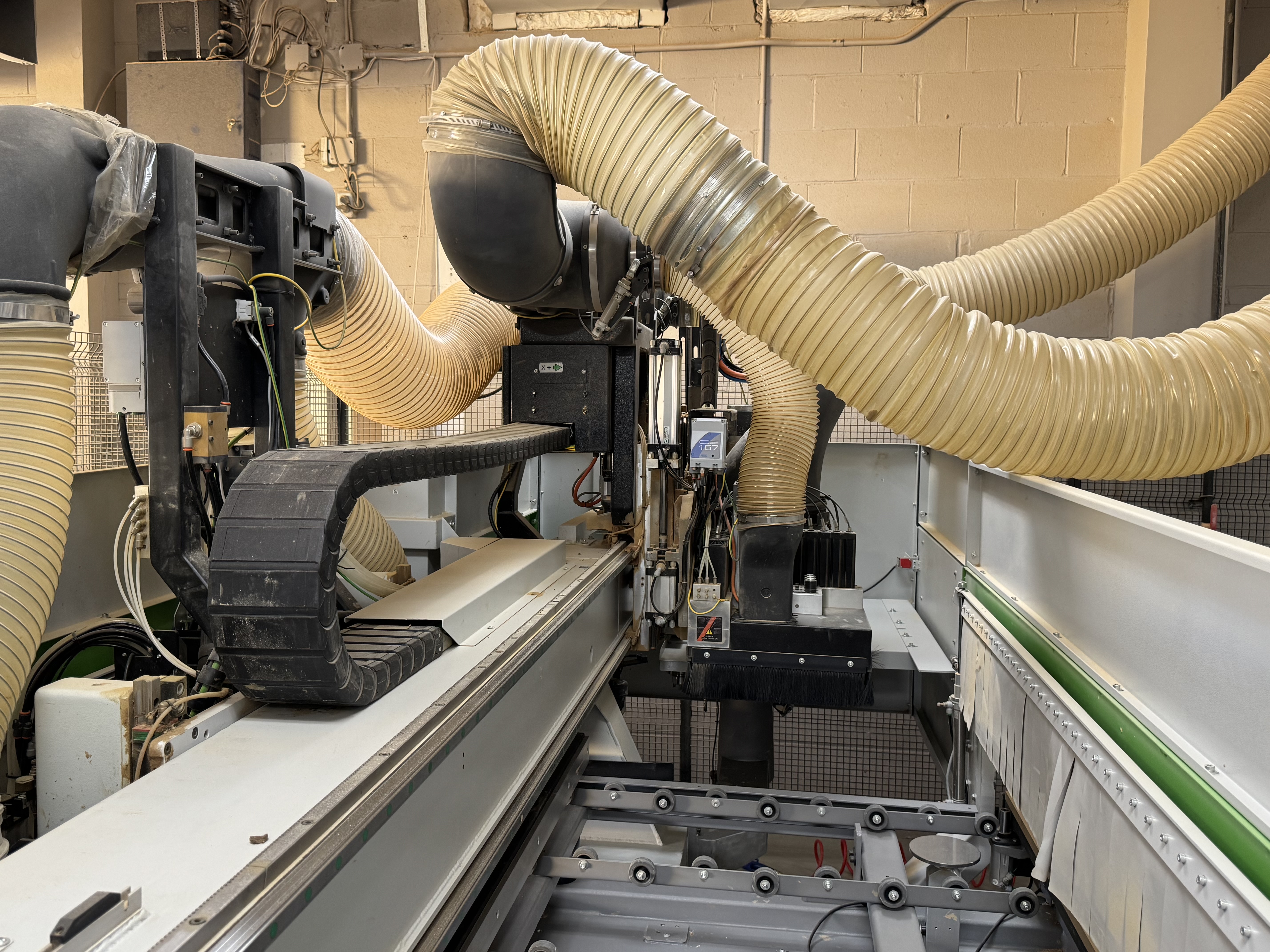

The Biesse Rover S FT 1536 is a high-production CNC nesting machining centre engineered for precision routing, drilling, and panel processing in industrial woodworking environments. Built in Italy and designed for continuous production, this model features a rigid electro‑welded steel gantry frame with high‑precision motion systems for exceptional accuracy and durability.

The machine is equipped with brushless axis drives, rack-and-pinion transmission, and ball screw Z-axis control, ensuring high-speed machining, repeatability, and minimal maintenance requirements.

This 2020 unit is configured as a full nesting platform with vacuum table and automation pre‑arrangements, making it ideal for cabinet production, panel processing, and high-throughput manufacturing environments.

Key Features

• 5' x 12' flat table nesting configuration
• Heavy-duty gantry structure for vibration-free machining
• Brushless servo motors with digital drives
• Rack and pinion drives on X/Y axes for high-speed operation
• Ball screw Z-axis with preloaded nut for precision positioning

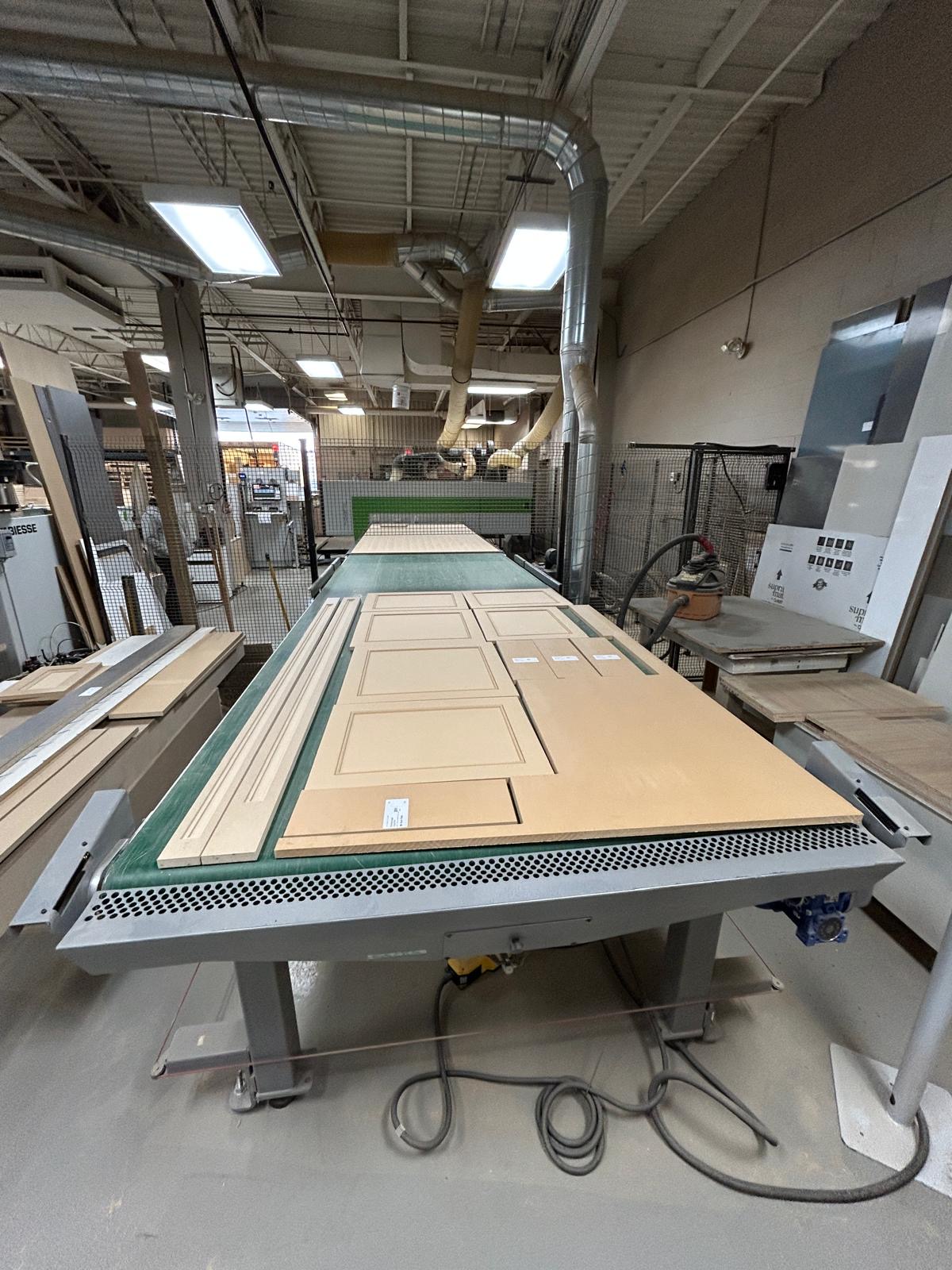

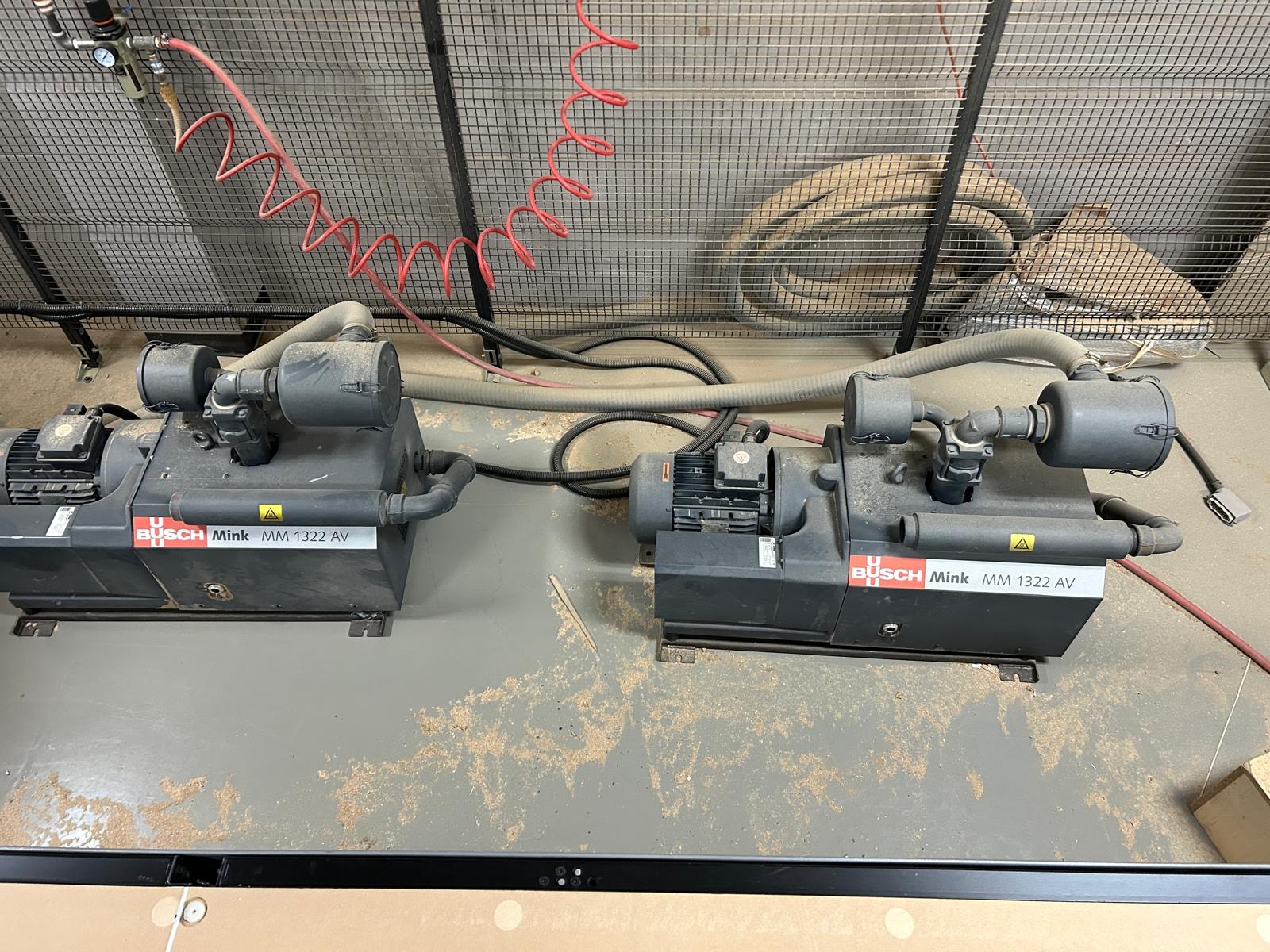

• Multi-zone vacuum table for efficient panel hold-down
• BH660 PC-based CNC control system
• Full CAD/CAM integration with bSolid software suite
• Industry 4.0 ready (OPC-UA + remote connectivity)

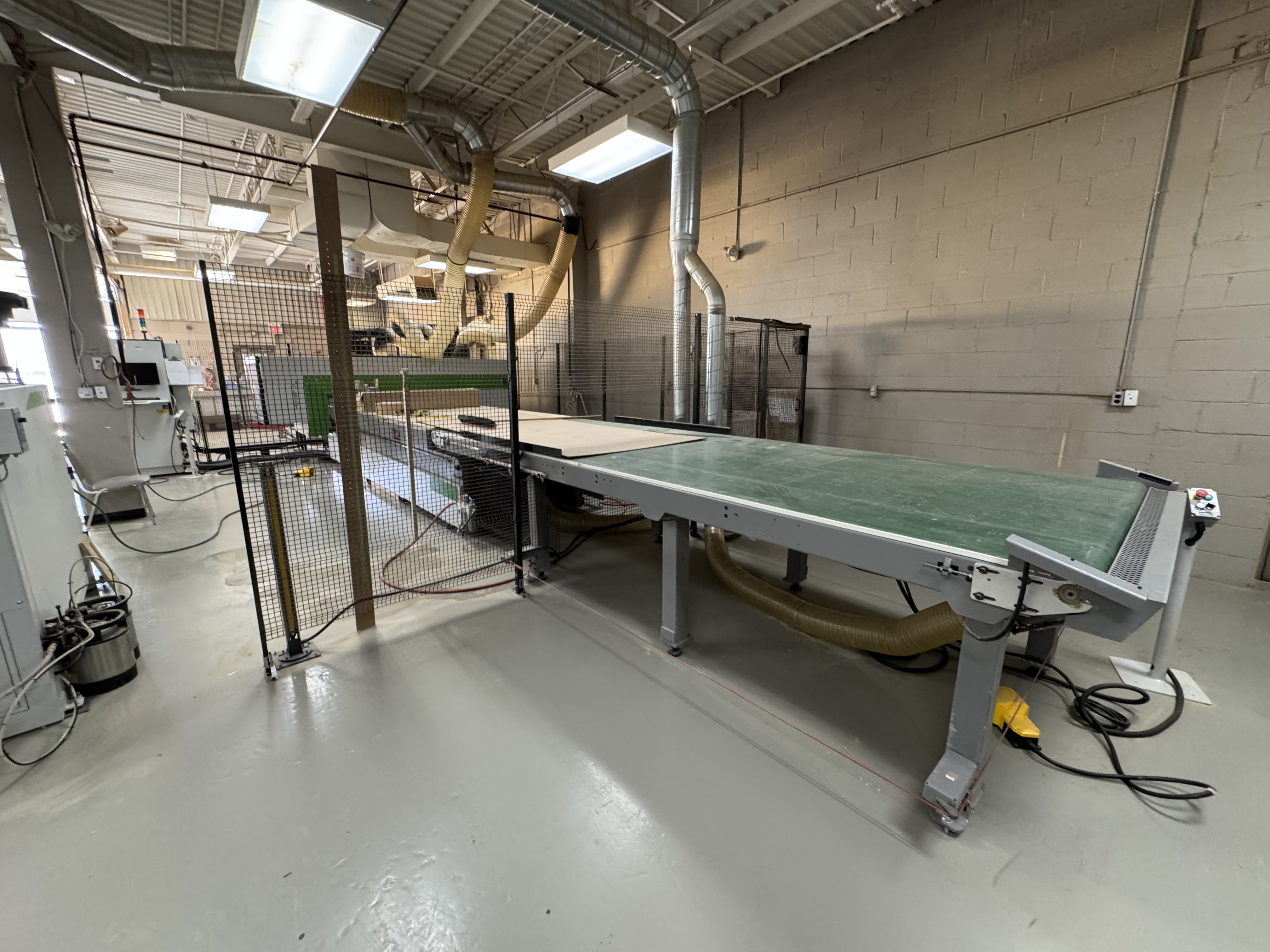

Working Capacity / Material Specifications

Work Table Size:

• 3763 mm (X) × 1558 mm (Y) (~5’ x 12’)

Panel Capacity:

• Max Y panel width: approx. 1555 mm

Z-Axis Stroke:

• 320 mm

Clearance / Passage:

• Standard passage: 170 mm
• With hood: 105 mm

Axis Speeds:

• X / Y: up to 60 m/min
• Z: up to 25 m/min

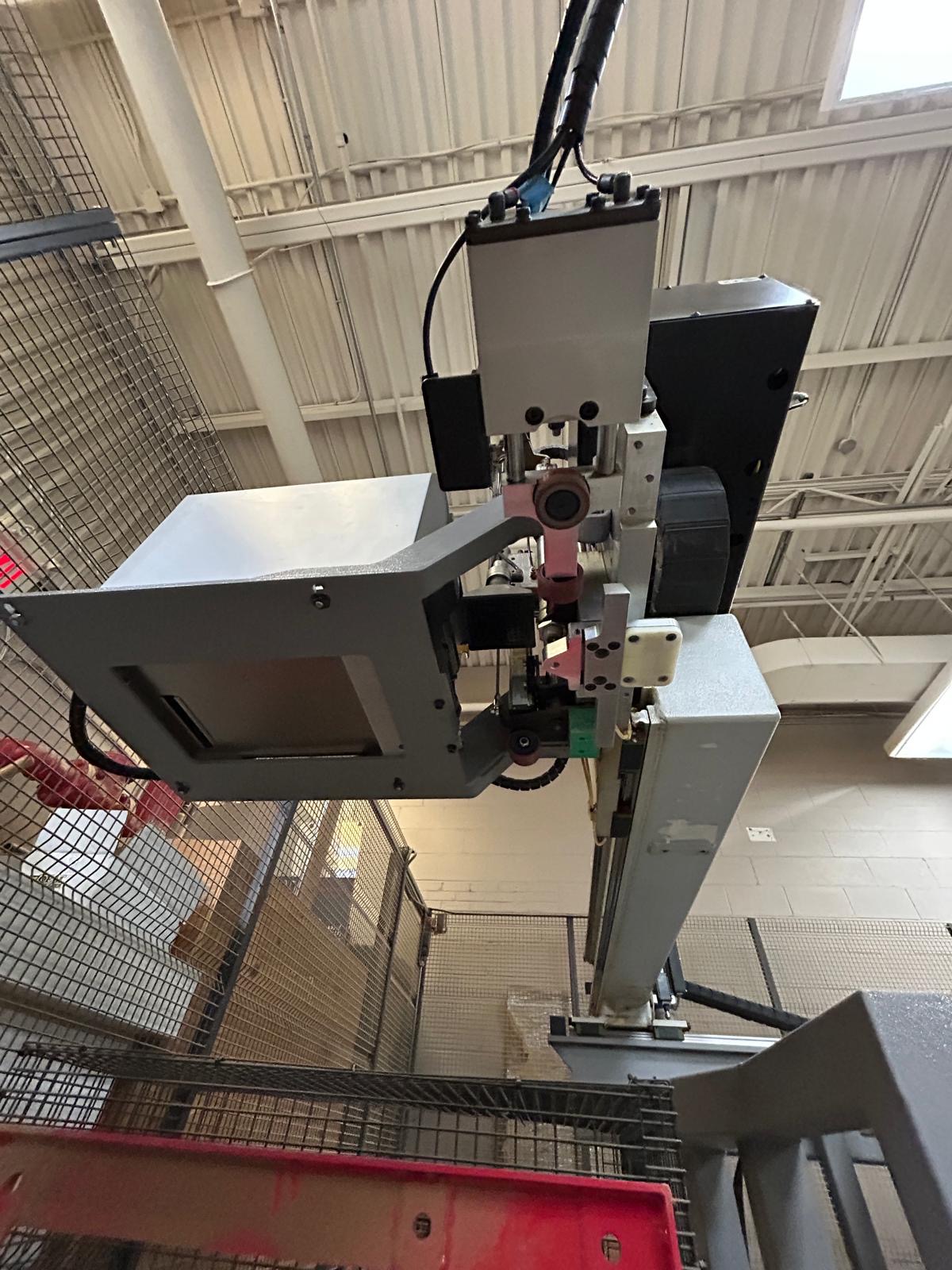

Routing / Spindle

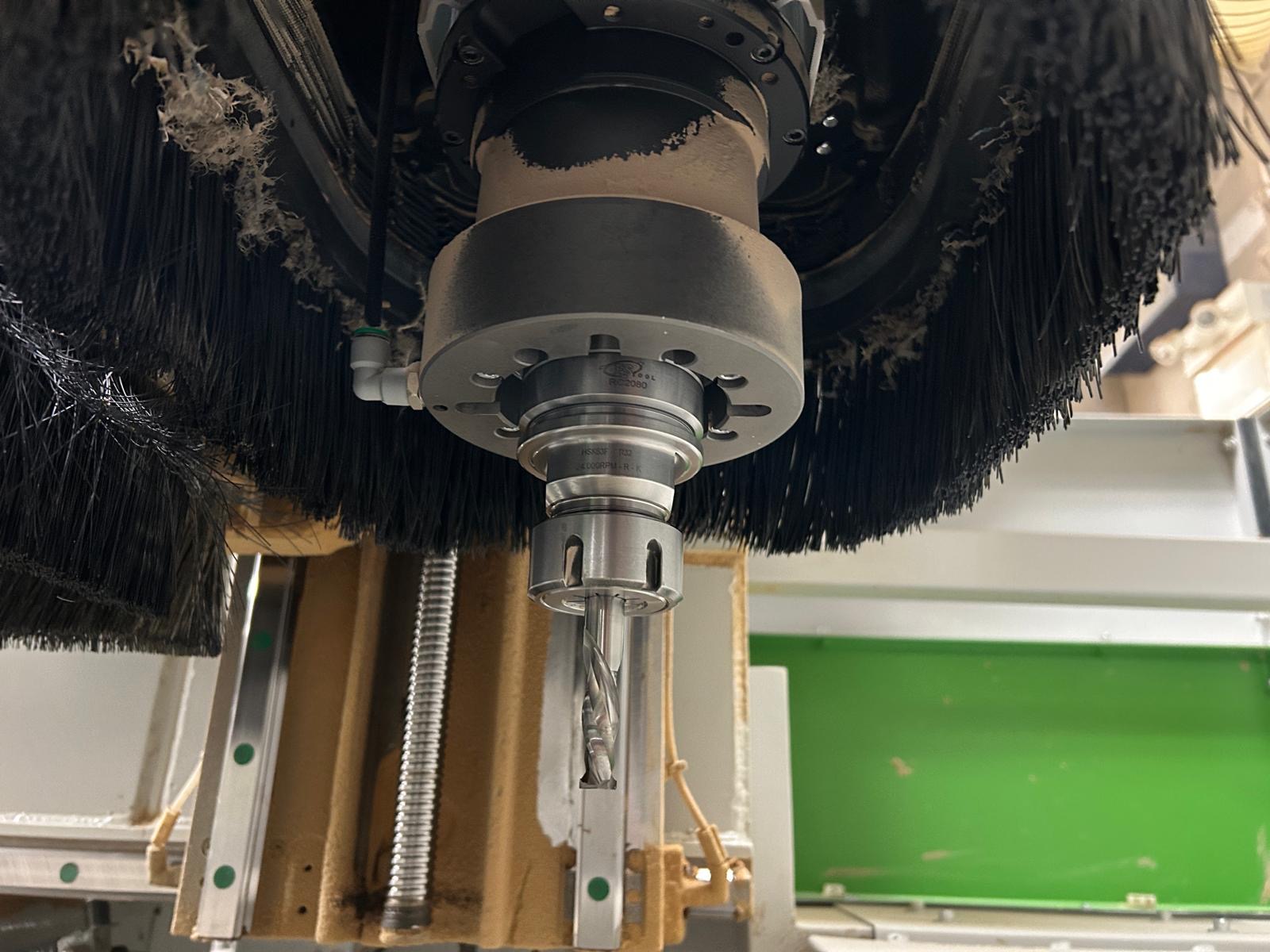

Electrospindle:

• 19.2 kW (25.7 HP) HSK F63 spindle
• Speed range: 1,000 – 24,000 RPM

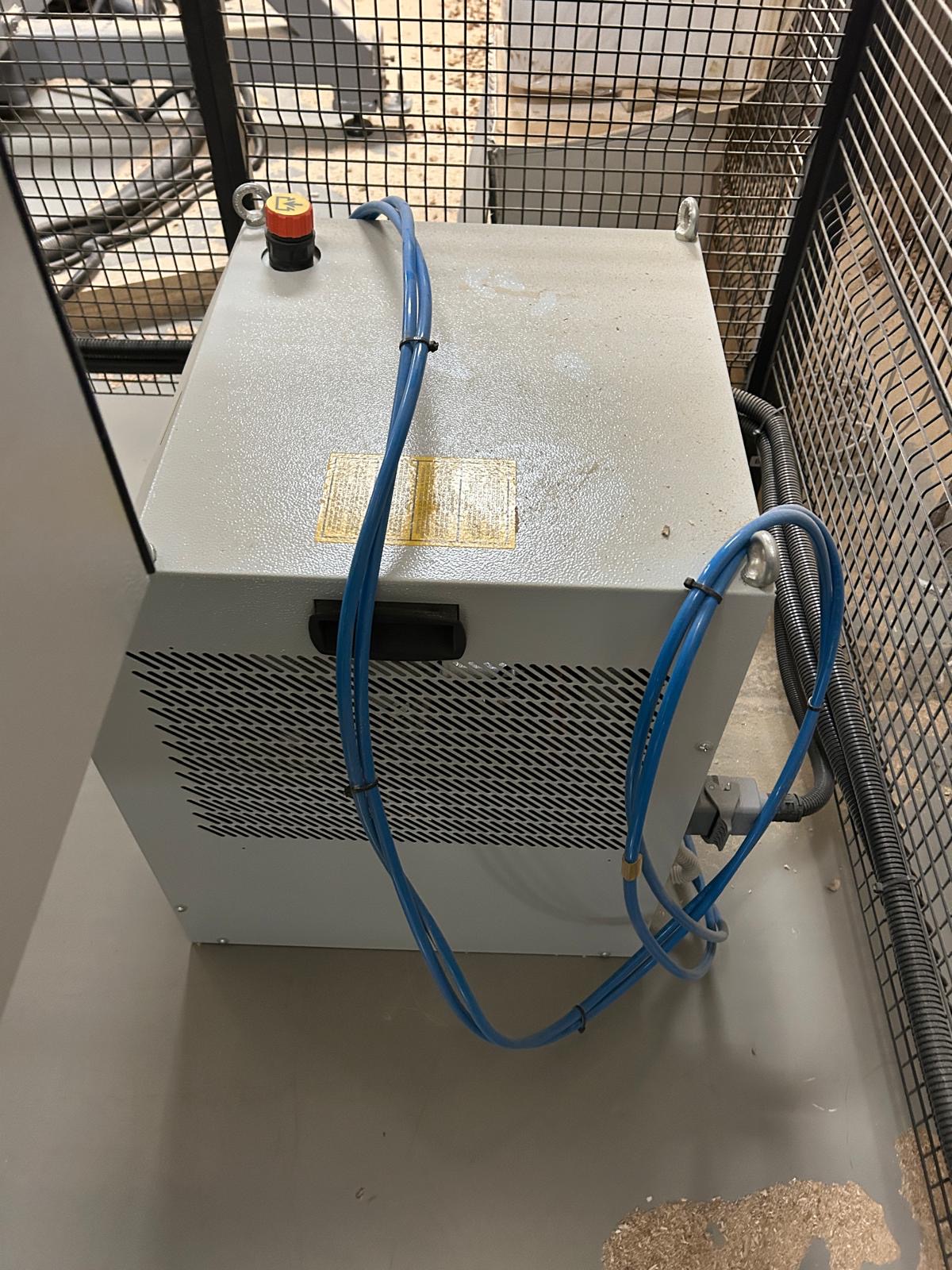

• Liquid cooled system
• Ceramic bearings
• Automatic dust hood positioning

Drilling Capability

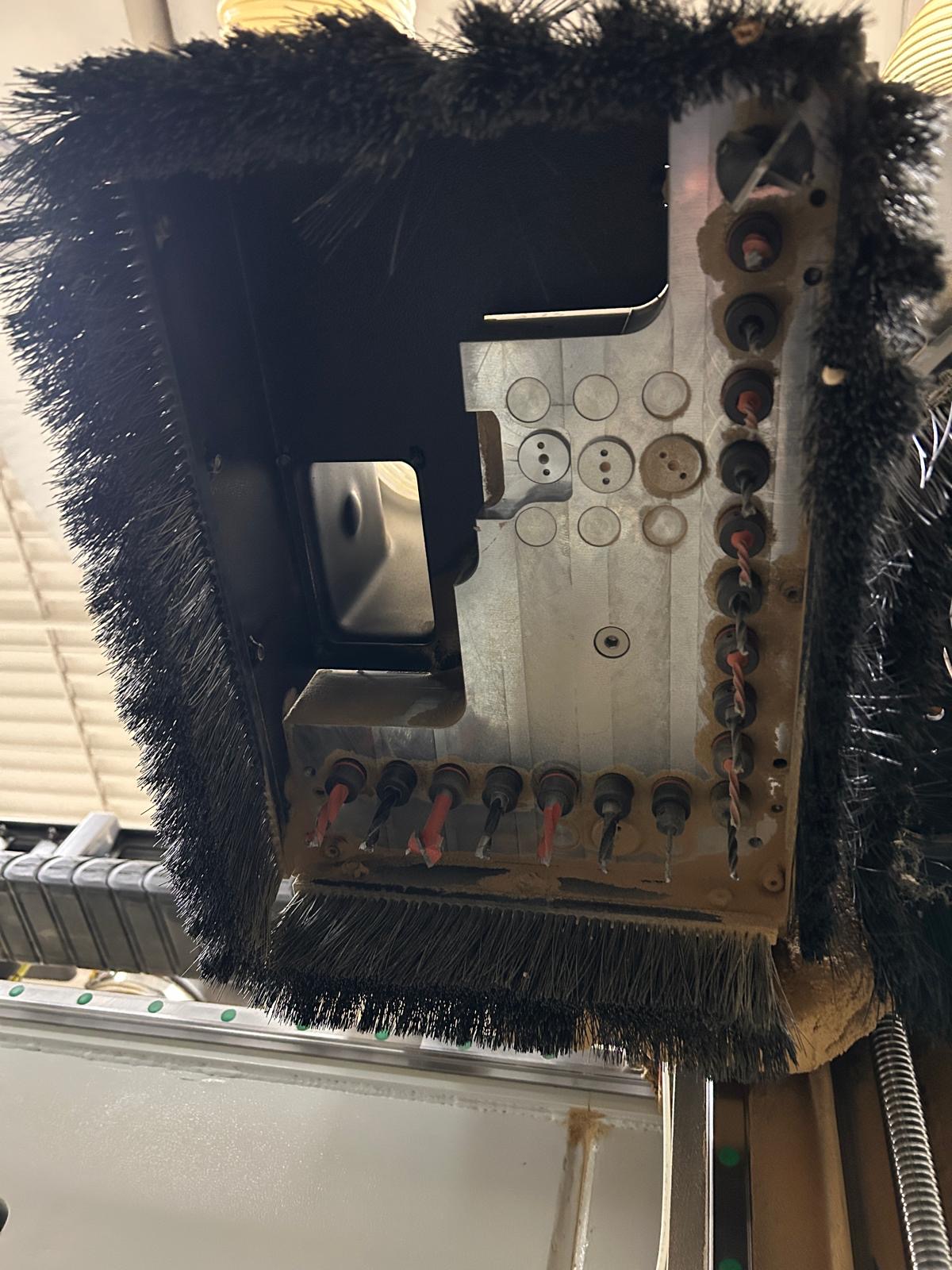

Boring Head (BH18):

• 18 vertical spindles
• 32 mm spacing system
• Speed: up to 6,000 RPM

Tooling & Machining Capability

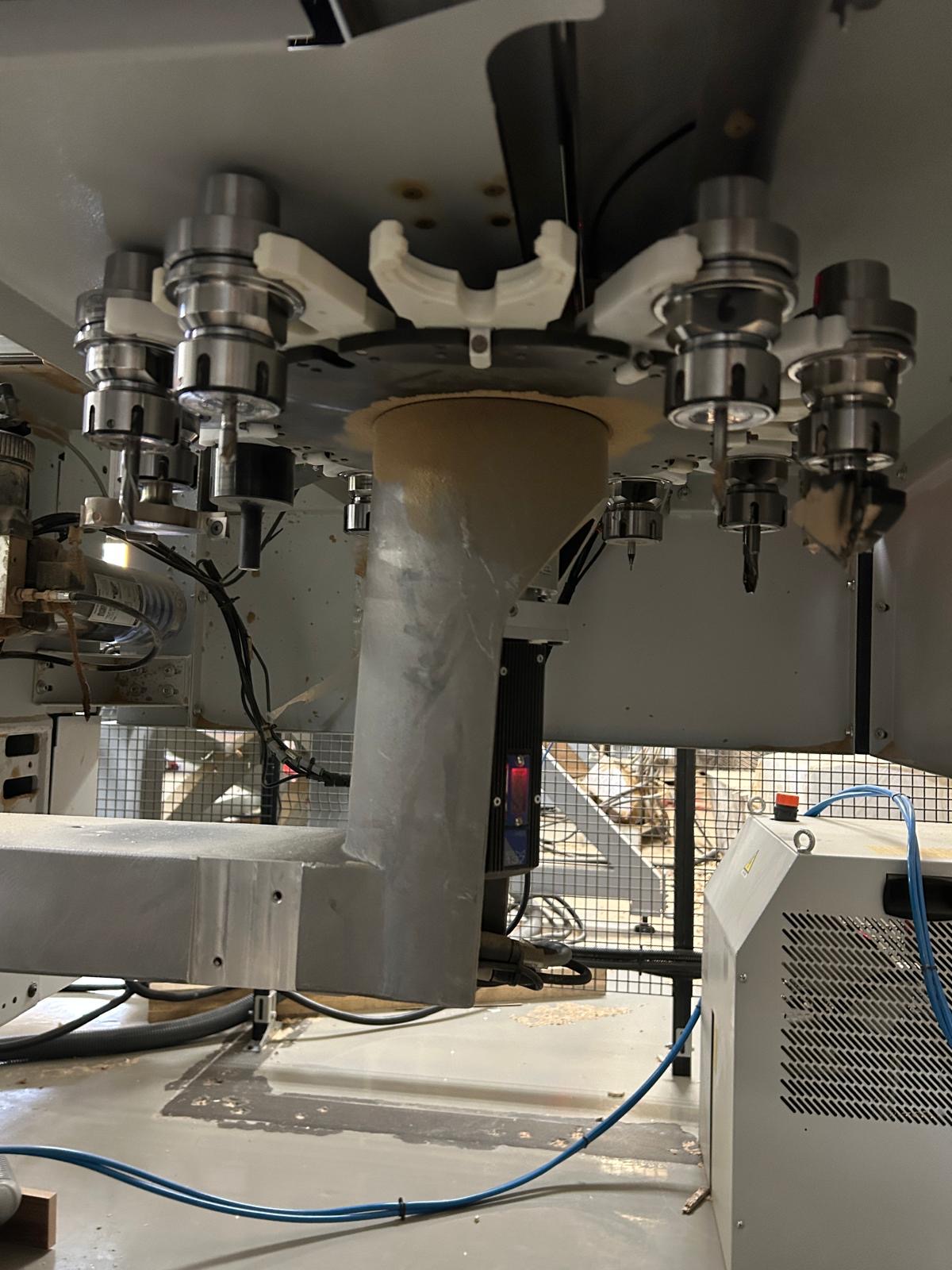

• 12-position tool changer (X-axis mounted revolver)
• Max tool diameter: up to 160 mm
• Max tool weight: 7.5 kg
• Supports:
• Routing
• Drilling
• Grooving
• Nested-based panel processing

Electrical Specifications

• Voltage: 380–415 V
• Frequency: 60 Hz
• Phase: 3 Phase
• Control Voltage: 24V DC stabilized system
• Transformer: Integrated auxiliary transformer
• Optional Compatibility: Up to 575–600V via autotransformer

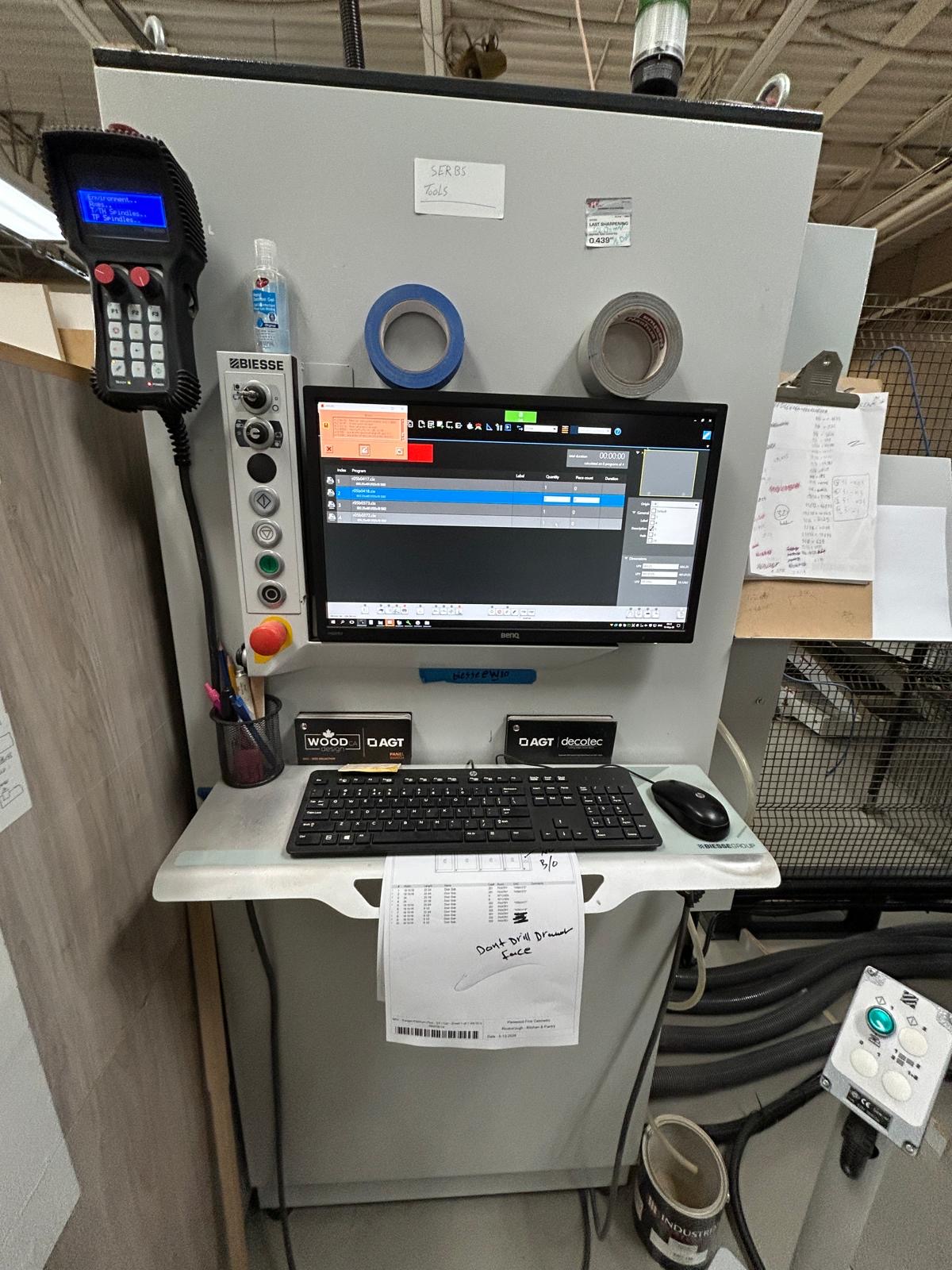

Software & Control System

• Biesse BH660 CNC control system
• bSolid CAD/CAM software platform
• bNest nesting optimization module
• Real-time machining simulation
• Tool life management and diagnostics
• Remote service (teleservice + IoT integration)

Machine Dimensions & Footprint

• Length: approx. 7,318 mm (288”)
• Width: approx. 5,034 mm (198”)
• Height: approx. 2,445 mm (96”)

Condition Notes

• Very good mechanical and cosmetic condition
• Fully operational and production-ready
• Maintained in industrial environment
• Clean electrical and CNC system
• Standard wear consistent with usage

Notes

The Biesse Rover S FT 1536 is a production-level nesting CNC platform offering high throughput, automation readiness, and precision machining. With its robust gantry construction and integrated CAD/CAM workflow, it is ideal for cabinet manufacturers, millwork shops, and high-volume panel processors.
