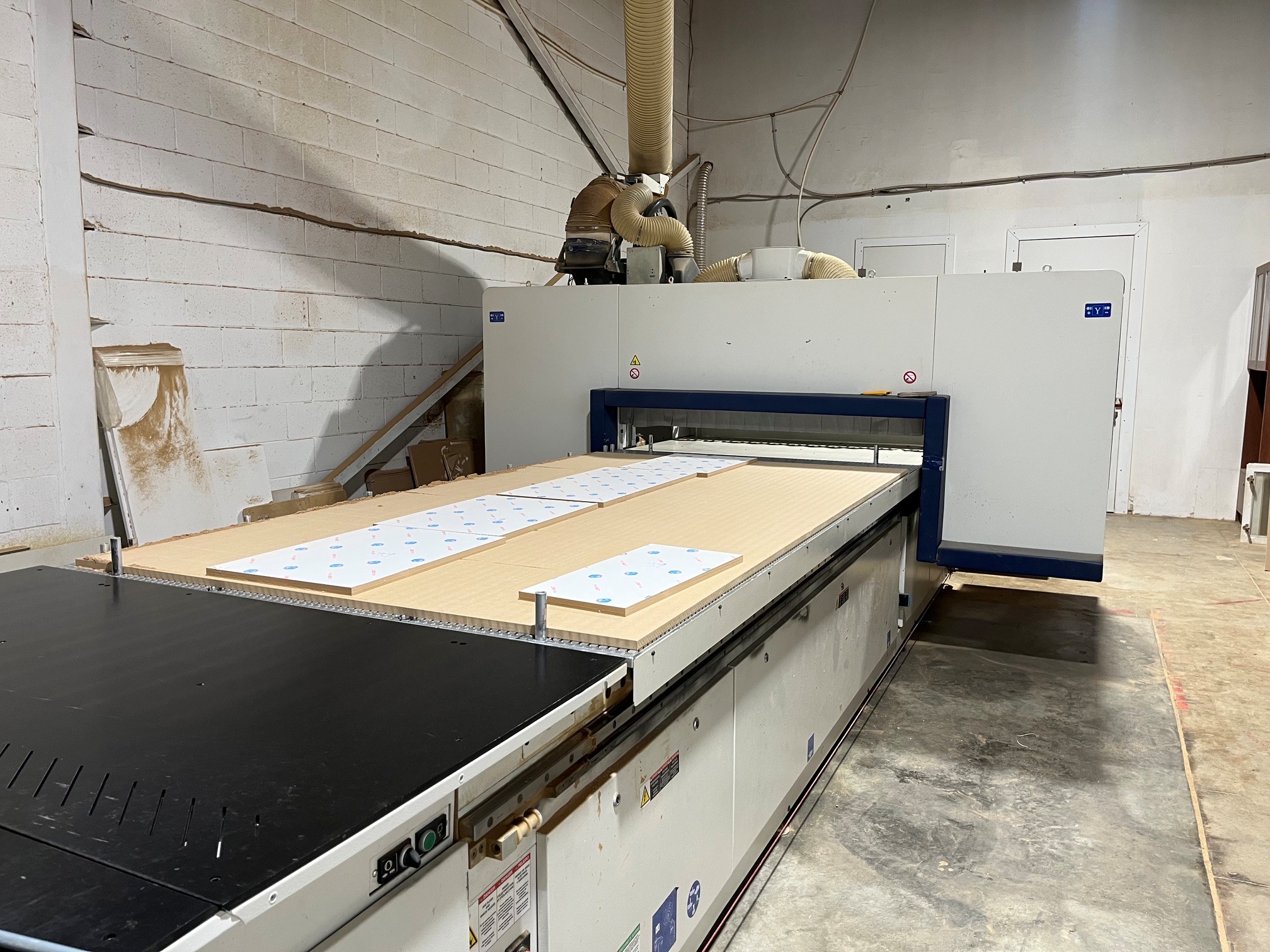

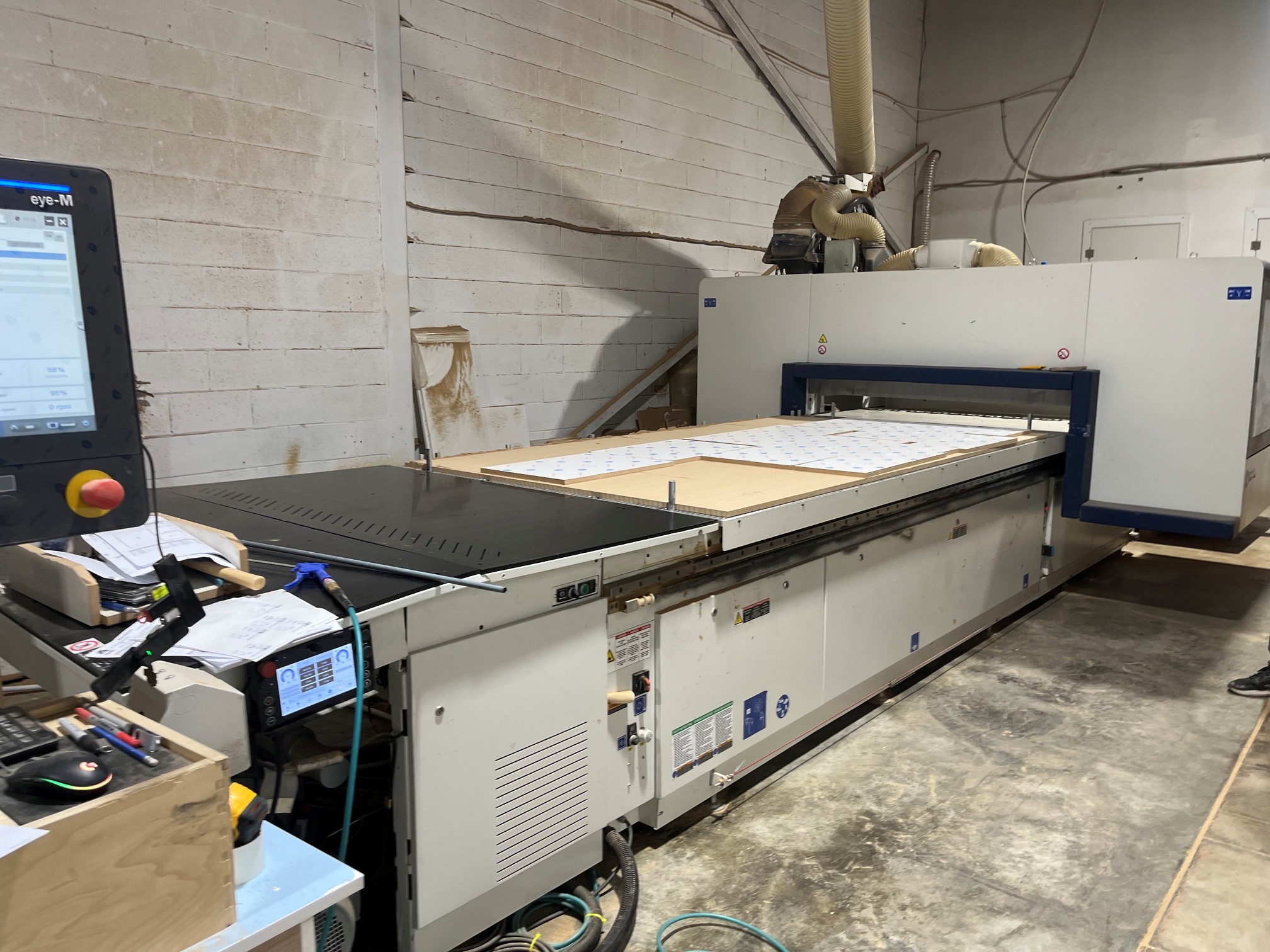

2022 SCM Morbidelli X200 5x10 Flat Table CNC Router

2022 SCM Morbidelli X200 CNC Router – 5x10 Flat Table

Manufacturer: SCM Group

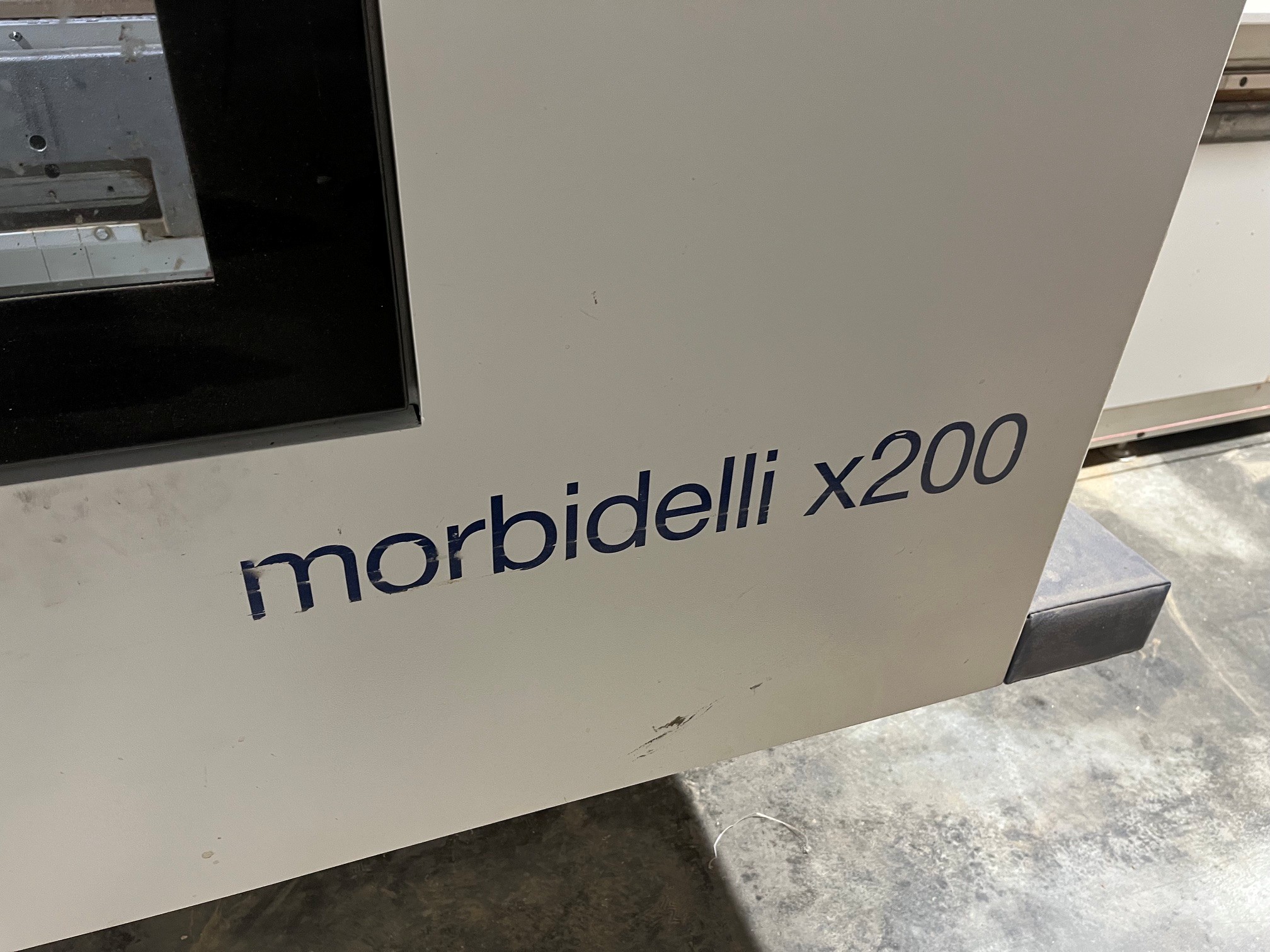

Model: Morbidelli X200

Year of Manufacture: 2022

Condition: Used – Excellent Condition

Machine Type: CNC Router / Flat Table Nesting CNC / Machining Centre

Machine Description

The SCM Morbidelli X200 is a high-performance CNC machining centre designed for precision routing, drilling, and nested-based panel processing in industrial woodworking environments. Built in Italy and engineered with SCM’s rigid cage-structured frame, this machine ensures long-term accuracy, stability, and vibration-free machining performance.

Equipped with advanced brushless axis drives, high-speed electrospindle technology, and SCM’s Maestro CNC software suite, the X200 delivers fast cycle times, high repeatability, and intuitive programming for both custom and production workflows. The integrated vacuum table and multi-zone hold-down system allow for efficient machining of both full sheets and small components.

This 2022 unit is fully equipped and represents an excellent opportunity to acquire a near-new CNC router with premium configuration at a significant savings.

Key Features

• 5' x 10' flat table configuration (nesting capability)
• 14 kW (19 HP) HSK spindle with 24,000 RPM max speed
• RO.AX drilling technology – high rigidity, low maintenance
• 16 vertical spindle drilling head (up to 8,000 RPM)
• TRB14 14-position linear tool changer
• Maestro CNC CAD/CAM software suite
• Multi-zone vacuum table (8 zones) for efficient hold-down
• Brushless servo axis drives for high precision and acceleration

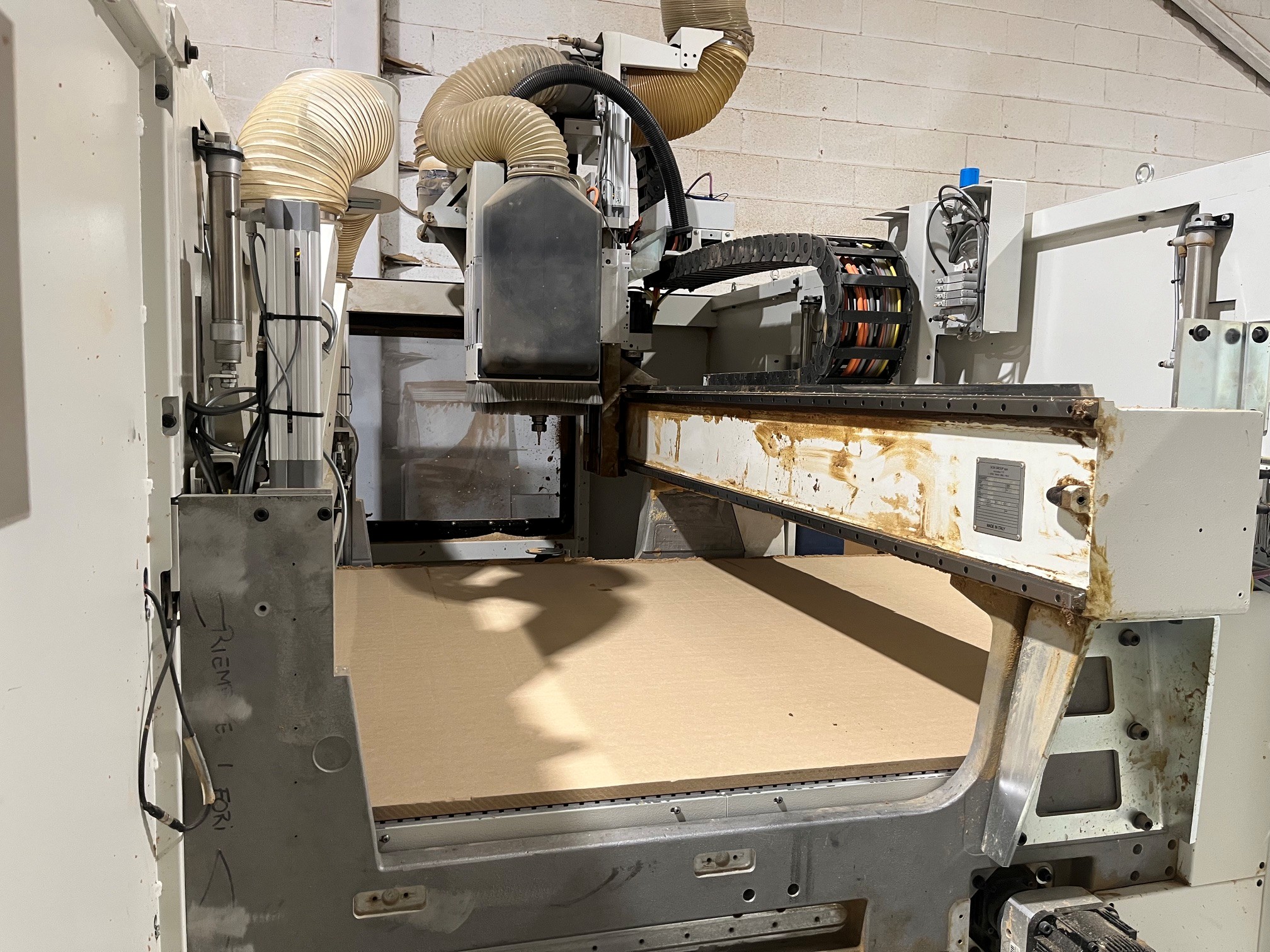

• Heavy-duty welded frame construction for stability and accuracy
• Integrated dust extraction system with centralized hooding

Working Capacity / Material Specifications

Work Table Size:

• 5' x 10' (1531 configuration)

Workpiece Processing:

• Multi-zone vacuum hold-down (8 zones)
• Suitable for nested sheet processing and individual part machining

Drilling Head:

• 16 vertical spindles
• 32 mm spacing
• Max speed: up to 8,000 RPM

Routing / Spindle:

• 14 kW (19 HP) electrospindle
• Speed range: 1,500 – 24,000 RPM

Tooling & Machining Capability

• Linear tool changer: 14 positions (TRB14)
• Max tool diameter: up to 300 mm
• Max tool weight: 8 kg
• Supports routing, drilling, grooving, and contour machining
• Full nesting capability with optimization software

Electrical Specifications

• Voltage: 400 V
• Phase: 3 Phase + Neutral (3 + N)
• Frequency: 60 Hz
• Current: 70.2 Amps
• Short Circuit Rating (Icc): 5 kA

Vacuum & Dust Extraction

• Vacuum Pump: 250–300 m³/h system included
• Multi-area vacuum table with automatic/manual zone control
• Centralized dust extraction system with automatic valve control
• Optimized airflow and reduced noise due to selective extraction zones

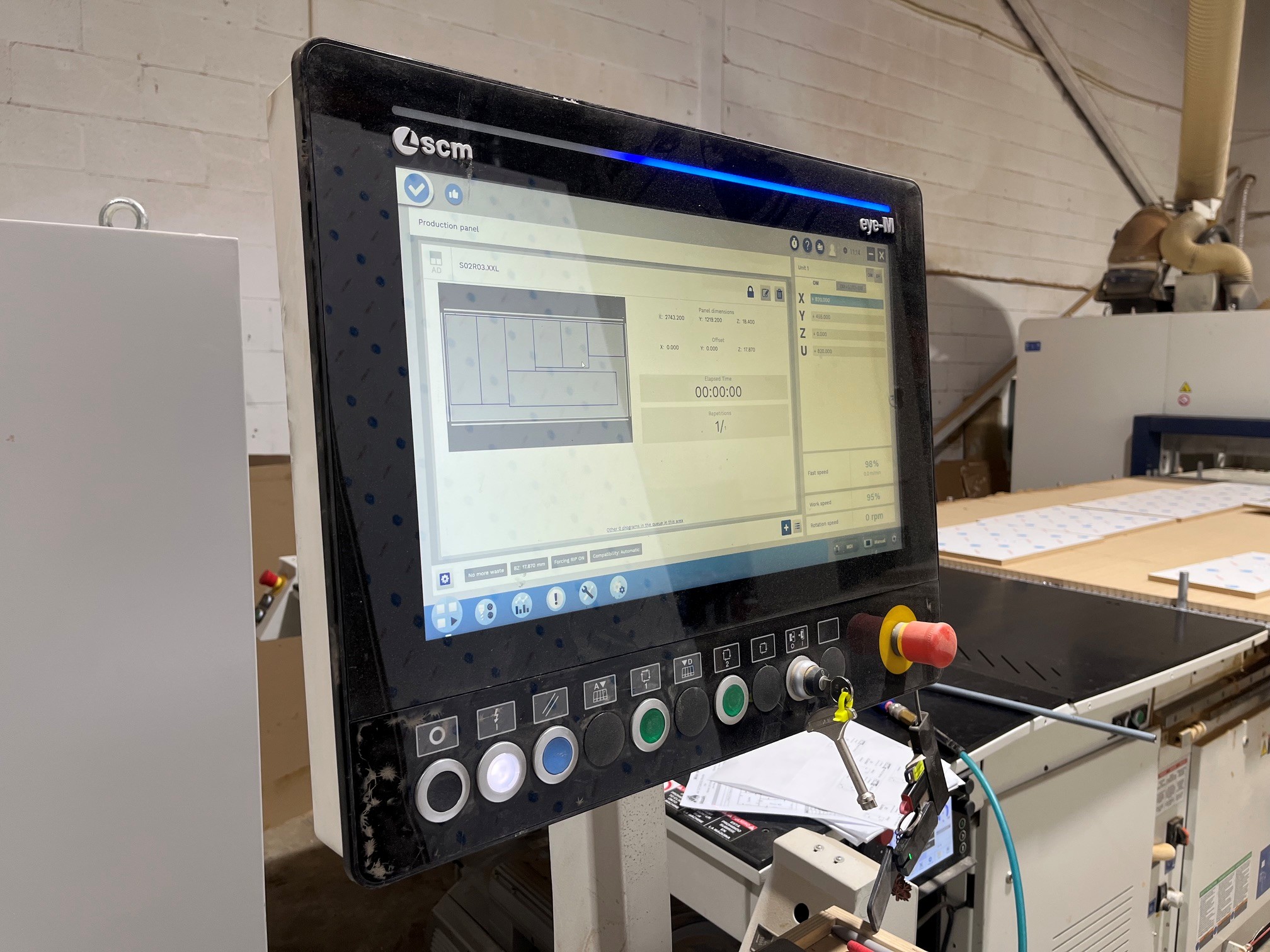

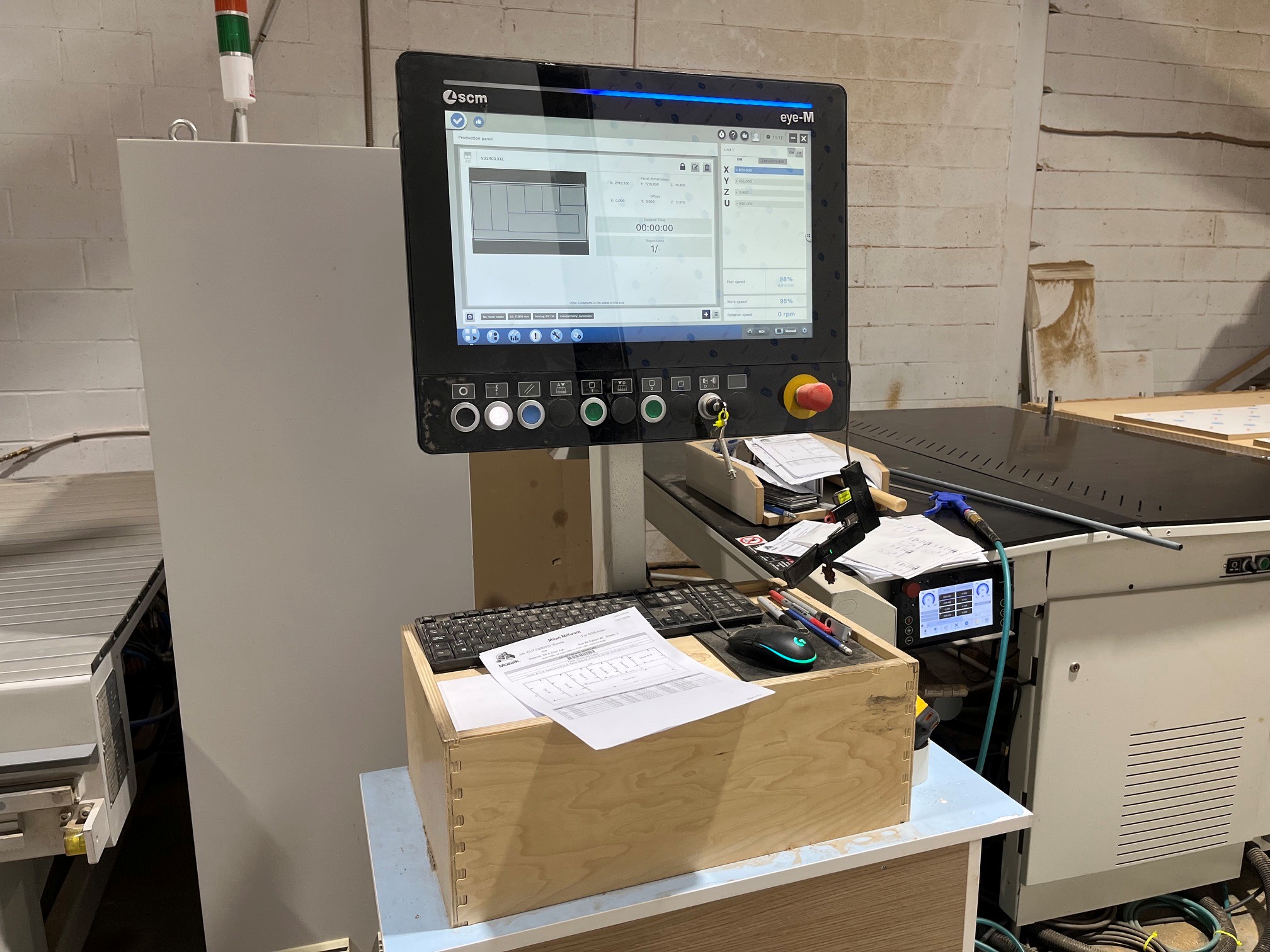

Software & Control System

• Maestro CNC CAD/CAM platform
• 3D programming environment for machining operations
• Tool database and automatic toolpath management
• Integrated nesting optimization (free-form + rectangular)
• Real-time diagnostics, reporting, and machine monitoring
• Remote service capability (TELESOLVE)

Machine Dimensions & Weight

• Weight: approx. 3,660 kg (8,068 lbs)
• Heavy-duty base allows operation without anchoring to ground

Condition Notes

• Verry good mechanical and cosmetic condition
• Fully operational and production-ready
• Clean shop environment

Notes

The SCM Morbidelli X200 is a modern, production-ready CNC solution combining advanced automation, high-speed machining, and flexible programming. With its integrated nesting capabilities, multi-tool configuration, and robust construction, this machine is ideally suited for shops looking to scale production while maintaining high precision and efficiency.
