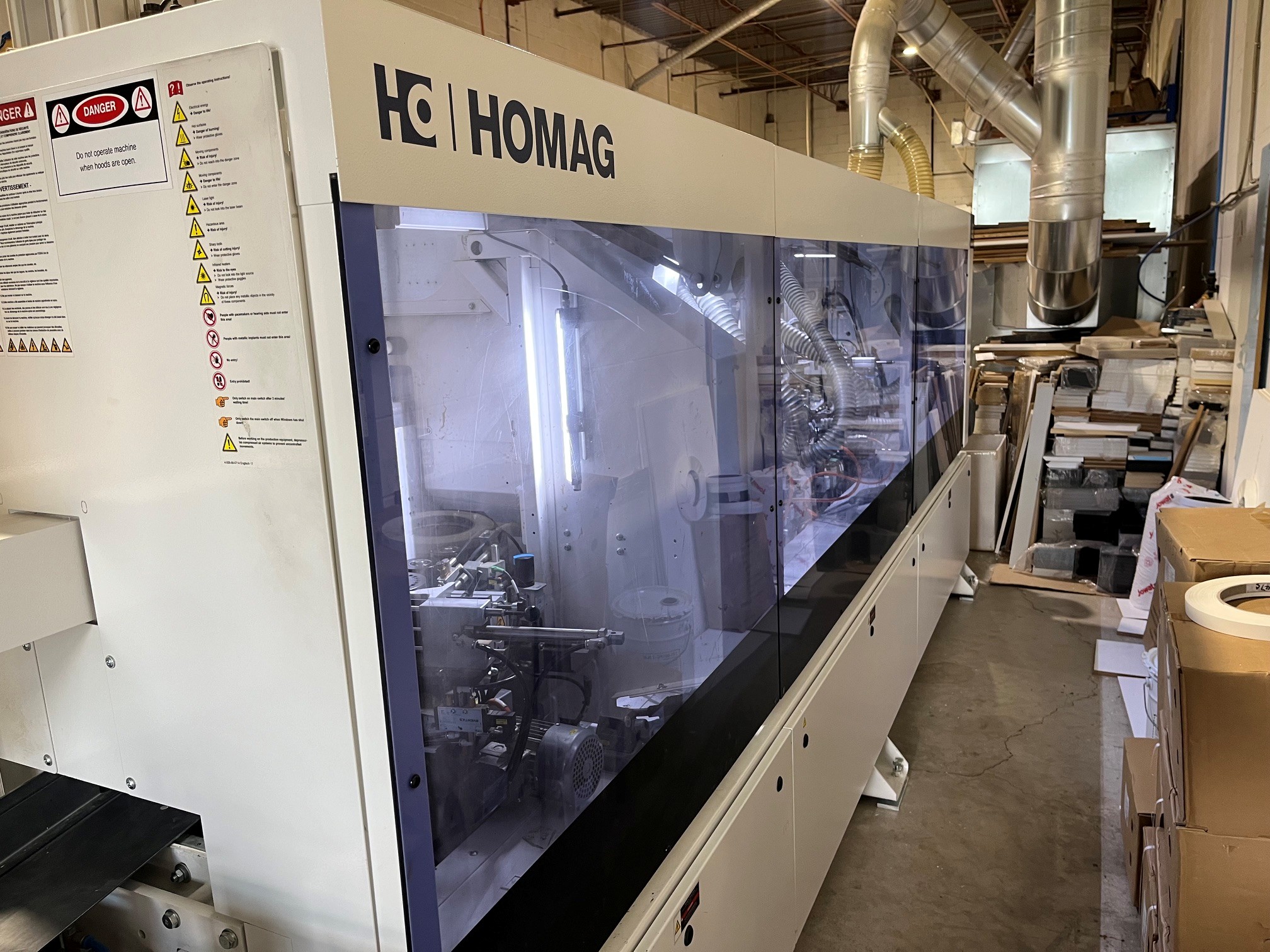

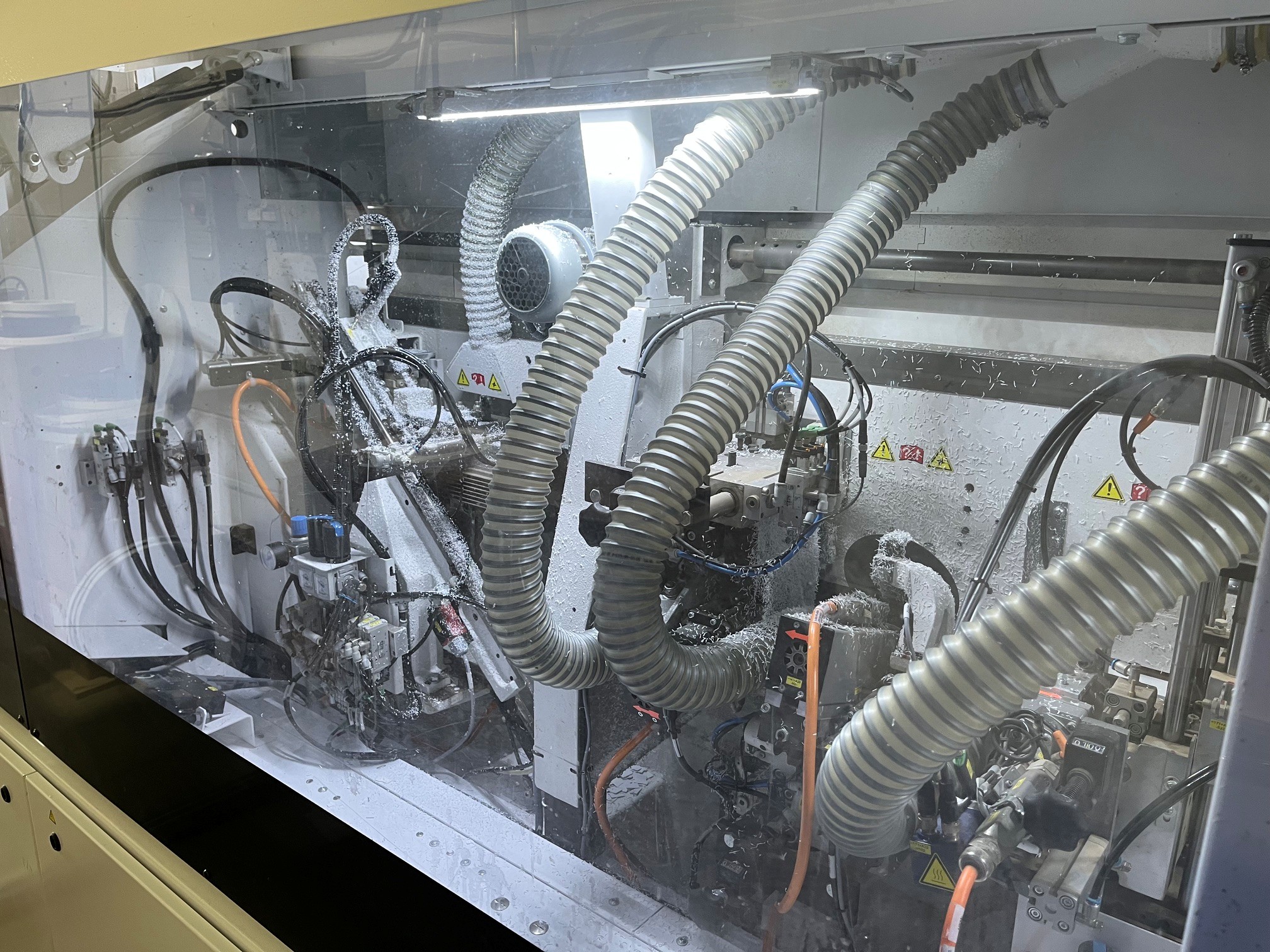

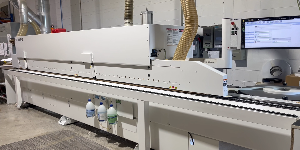

2023 Homag Edgeteq S‑380 Optimat KDF 650 C Edgebander

2023 Homag Edgeteq S‑380 Optimat KDF 650 C Edgebander

Manufacturer: Homag

Model: Edgeteq S‑380 / Optimat KDF 650 C

Year of Manufacture: 2023

Condition: Used – Excellent Condition

Machine Type: Industrial Edgebander

Machine Description

The Homag Edgeteq S‑380 (Optimat KDF 650 C) is a high-performance industrial edgebander engineered for precision edge finishing, efficiency, and continuous production environments. Built in Germany and designed for demanding woodworking operations, this machine integrates advanced PUR/EVA gluing technology with a fully automated processing sequence to deliver consistent, high-quality results.

The EDGETEQ series is known for its robust transport system, precise workpiece guidance, and modular processing capability, allowing each stage from pre-milling through buffing to operate with maximum accuracy. Designed for single-operator efficiency, this machine minimizes setup time and material waste while maximizing productivity.

Key Features

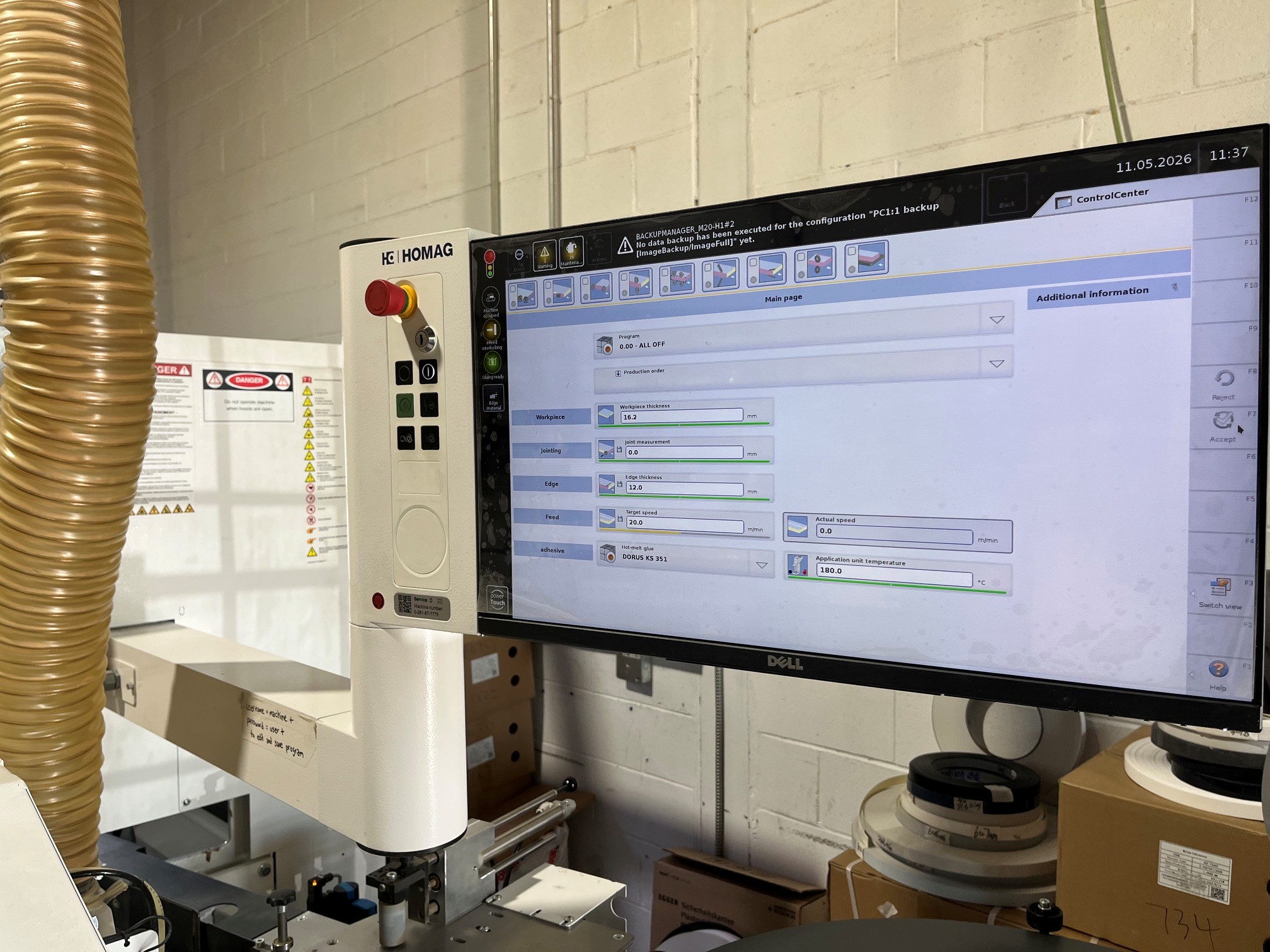

• powerTouch control system with 24” full HD multi-touch display
• PUR / EVA gluing system with automatic purge and temperature control
• Pre-milling unit (2 motors) for edge preparation prior to gluing

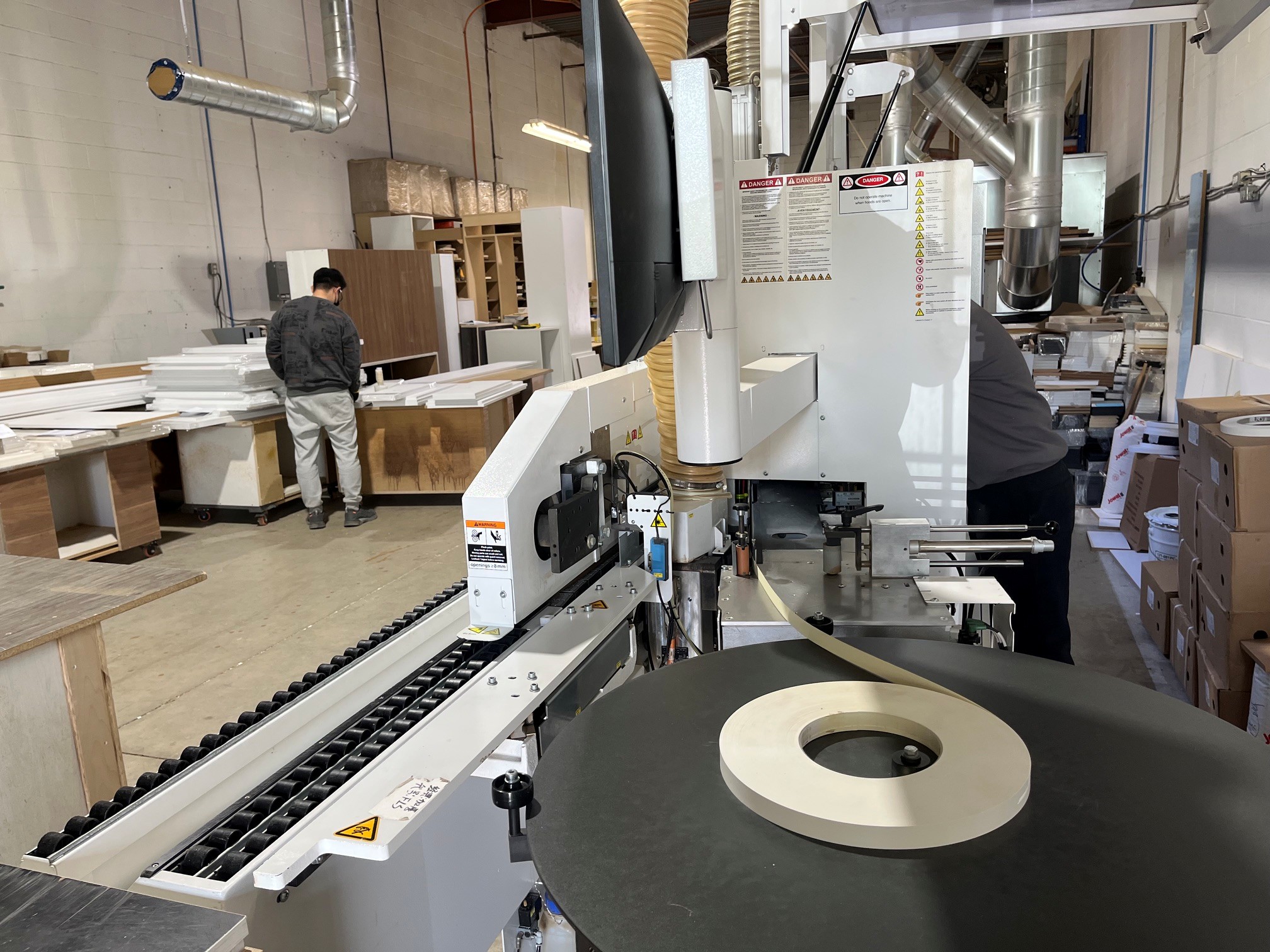

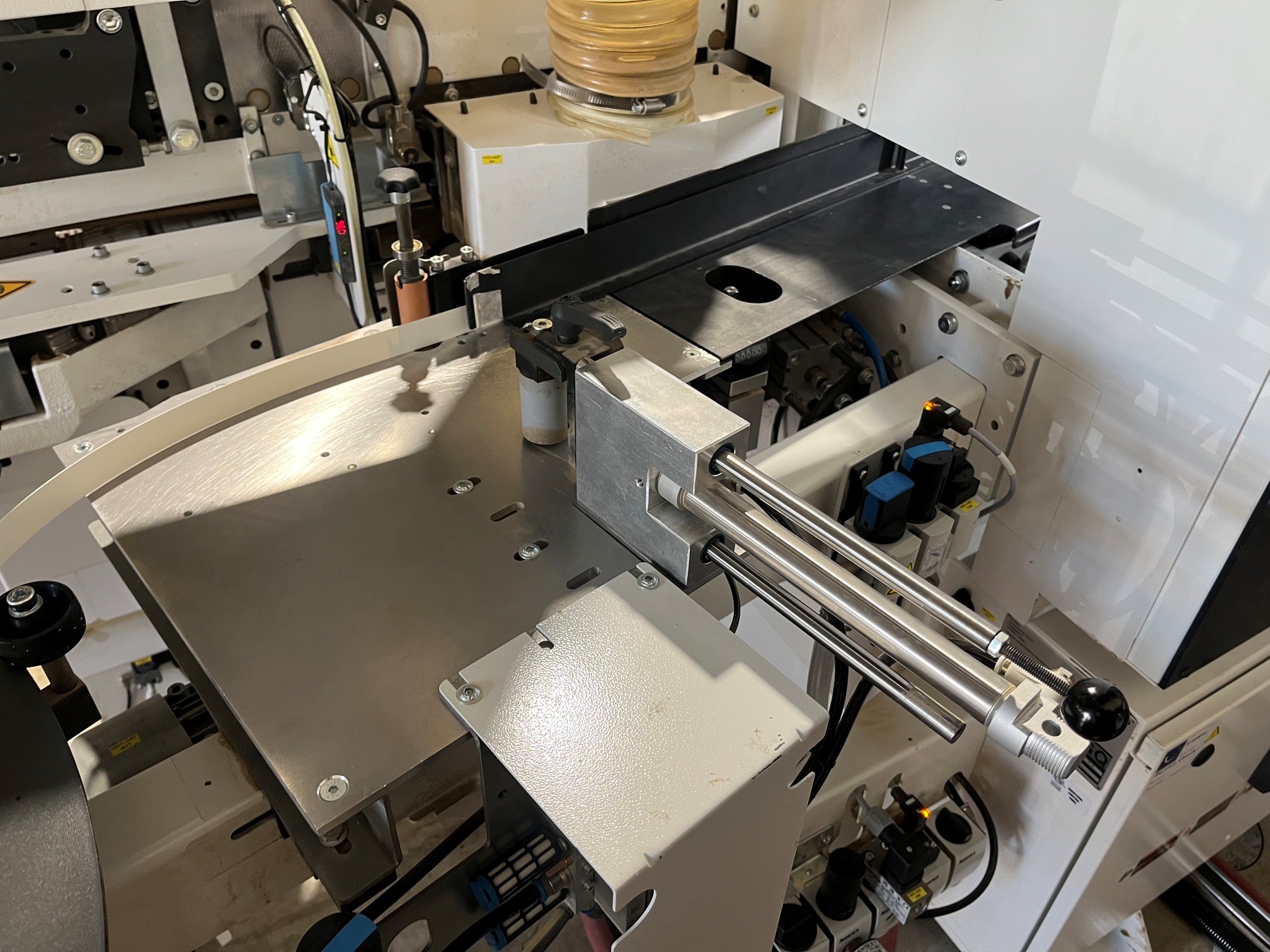

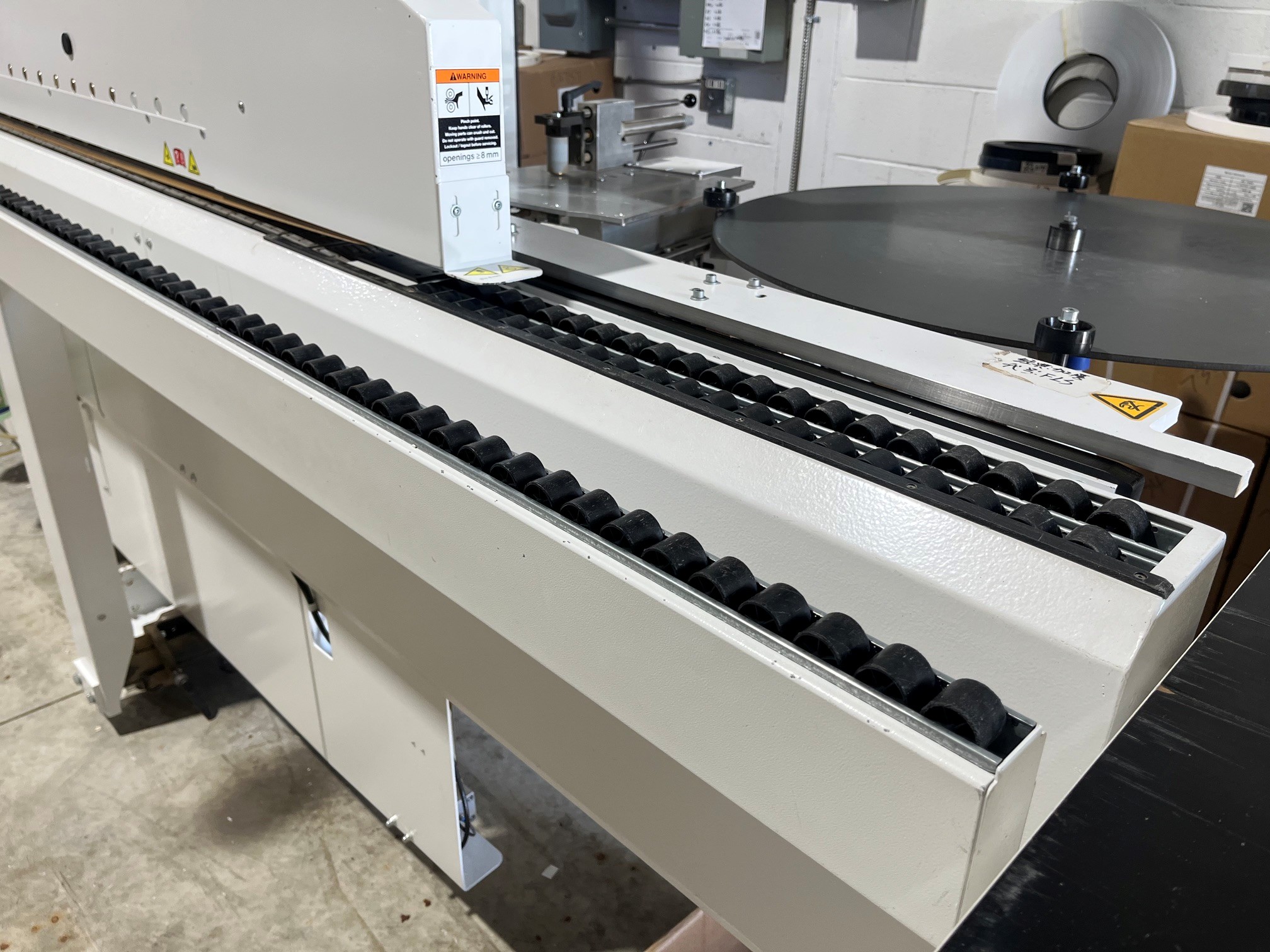

• Automatic edge feeding system (coil and strip processing)
• Panel pre-heating zone for improved adhesive performance
• End trimming, fine trimming & contour trimming units
• Corner rounding unit (servo-controlled)
• Multi-stage scraping and finishing stations
• Anti-static, detergent spray, and buffing units
• Continuous-duty industrial machine designed for multi-shift production

Working Capacity / Material Specifications

Edgeband Thickness:

• Coils: 0.4 – 3 mm
• Strips: 0.4 – 12 mm

Workpiece Dimensions:

• Thickness: 8 – 60 mm
• Minimum Length: 160 mm
• Minimum Width: 70 mm

Feed Speed:

• 8 – 20 m/min
• Up to 14 m/min with corner rounding

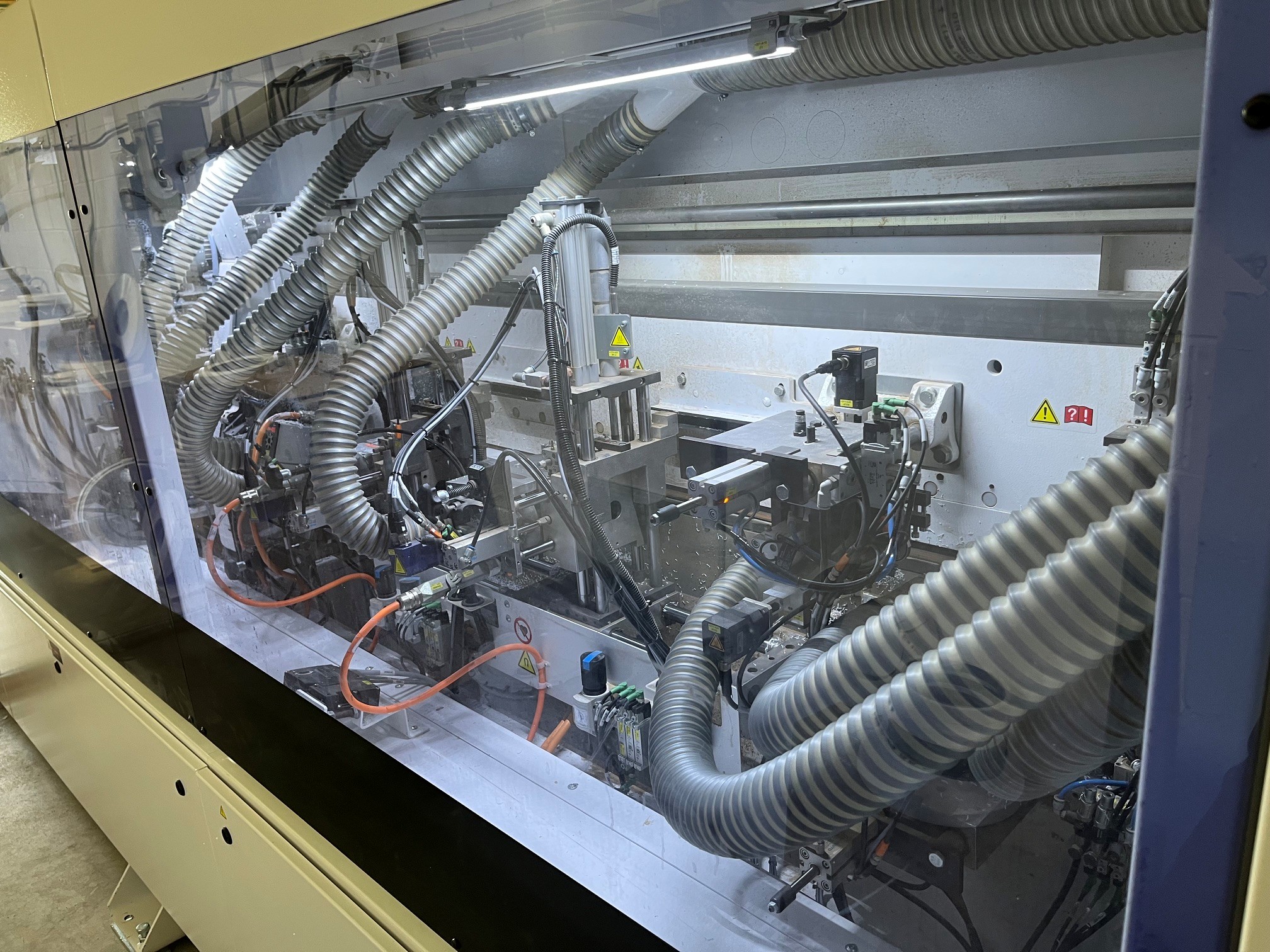

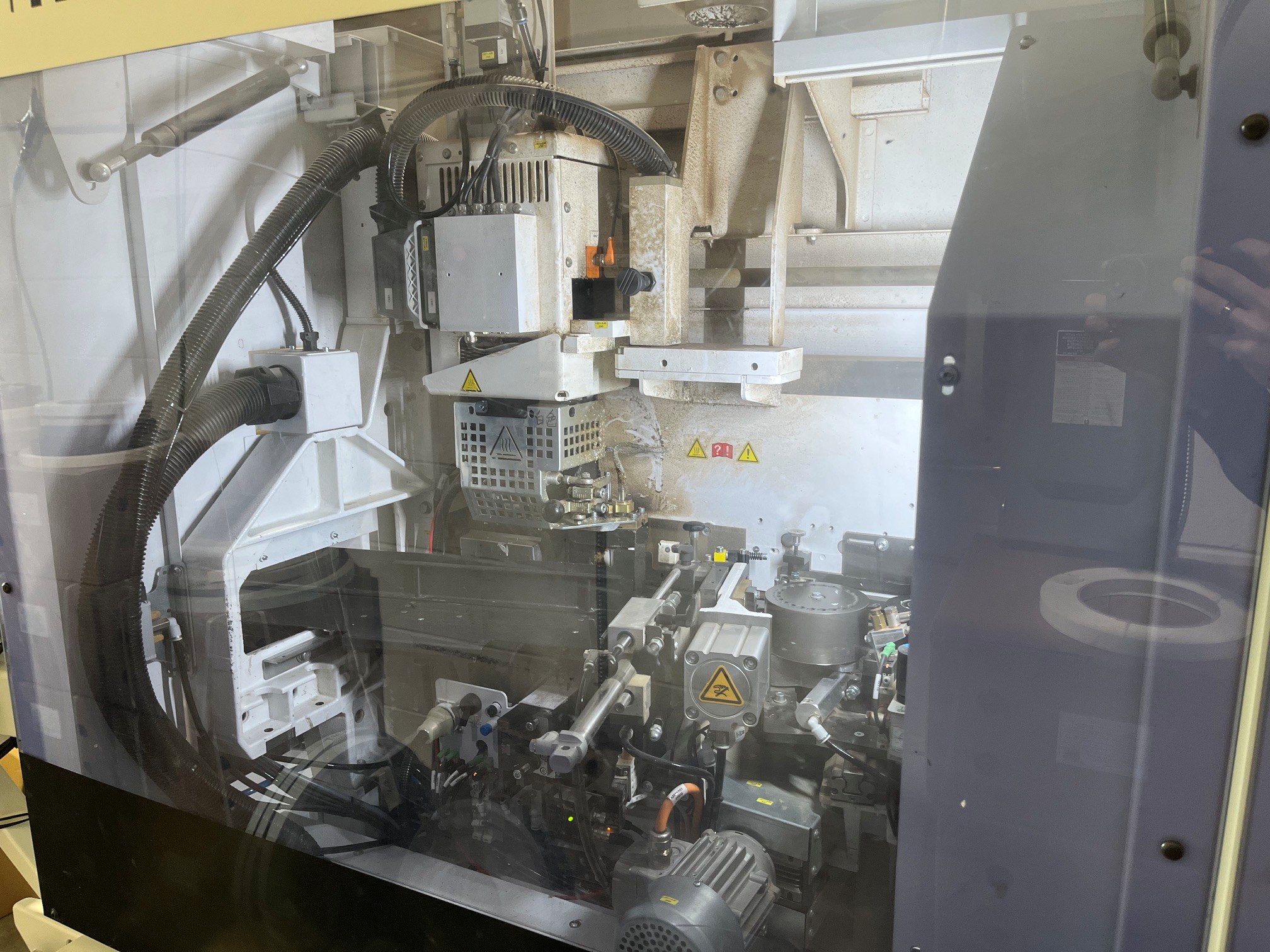

Processing Units / Aggregates

• Pre-Milling Unit: 2 x 2.2 kW / 12,000 RPM
• End Trimming Unit: 2 x 0.35 kW / 12,000 RPM
• Fine Trimming Unit: 2 x 0.55 kW / 12,000 RPM
• Corner Rounding Unit: 2 x 0.40 kW / 12,000 RPM

Electrical Specifications

• Voltage: 400Y / 230 V (Transformer Included)
• Frequency: 60 Hz
• Phase: 3‑Phase
• Current: 39 Amps
• Total Power Requirement: approx. 28 kW

Dust Extraction & Air Requirements

• Extraction Ports: 120 mm, 140 mm, (2x) 100 mm
• Minimum Extraction Volume: 2048 CFM
• Compressed Air: 26 CFM @ 6 bar (87 PSI)

Machine Dimensions & Weight

• Length: 6,075 mm (≈ 20 ft)
• Width: 1,604 mm (≈ 5.2 ft)
• Height: 2,266 mm (≈ 7.5 ft)
• Weight: 2,940 kg (≈ 6,481 lbs)

Condition Notes

• 2023 machine, lightly used
• Excellent mechanical and cosmetic condition
• Fully functional and production-ready
• Clean shop environment

Additional Notes

The Homag Edgeteq S‑380 is a top-tier industrial edgebander offering exceptional precision, automation, and durability. Equipped with advanced PUR/EVA glue processing, servo-controlled finishing units, and a full suite of processing aggregates, this machine is ideal for shops seeking to increase productivity while maintaining superior edge quality.
