Makor K2 Automatic Sprayer – 2022

Complete Finishing System with Kremlin Guns & Pumps

Condition: Used – Great Condition

Year: 2022

Availability: Immediate

Machine Overview

The Makor K2 (KTWO model “C”) is a compact, high‑performance twin‑arm reciprocating automatic spray line, engineered for consistent, high‑quality coating of cabinet components and flat parts. Its design makes it ideal both for shops entering automatic finishing for the first time and for established manufacturers looking for a reliable, space‑efficient spraying solution.

This machine is configured for surface and edge coverage and is suitable for water‑based or solvent‑based coatings, including primers, sealers, and finishes.

This offering includes a complete Kremlin spray gun and pump package, making it a turn‑key finishing solution rather than just the base Makor machine.

Technical Specifications – Makor K2 (from OEM documentation)

Workpiece Dimensions

• Length: Min: 300 mm / Max: 3,200 mm
• Width: Min: 100 mm / Max: 1,300 mm
• Thickness: Min: 6 mm / Max: 60 mm

Line & Production Data

• Configuration: KTWO model “C” – Twin Arm Reciprocating Sprayer
• Fluid Circuits: 3 independent high‑pressure circuits
• Feed Speed:
• Min: 1.2 m/min
• Max: 5.0 m/min
• Typical recommended operating range for surface & edge coating: 2.0–4.0 m/min

Spraying & Control System

• Twin oscillating spray arms, fully electronic and PLC‑controlled
• Touch‑screen HMI operator interface:
• Full control of spray arm motion
• Recipe‑based program storage
• Individual spray gun overspray and setup controls
• 2D part reading system:
• Electronic barrier scans part dimensions
• Guns open and close in real time
• Improves transfer efficiency and reduces overspray

Spray Cabin & Air Management

• Fully pressurized spray cabin
• Dual‑stage air filtration for intake and exhaust
• Variable‑frequency controlled intake and exhaust fans
• Designed to maintain balanced airflow and consistent finish quality

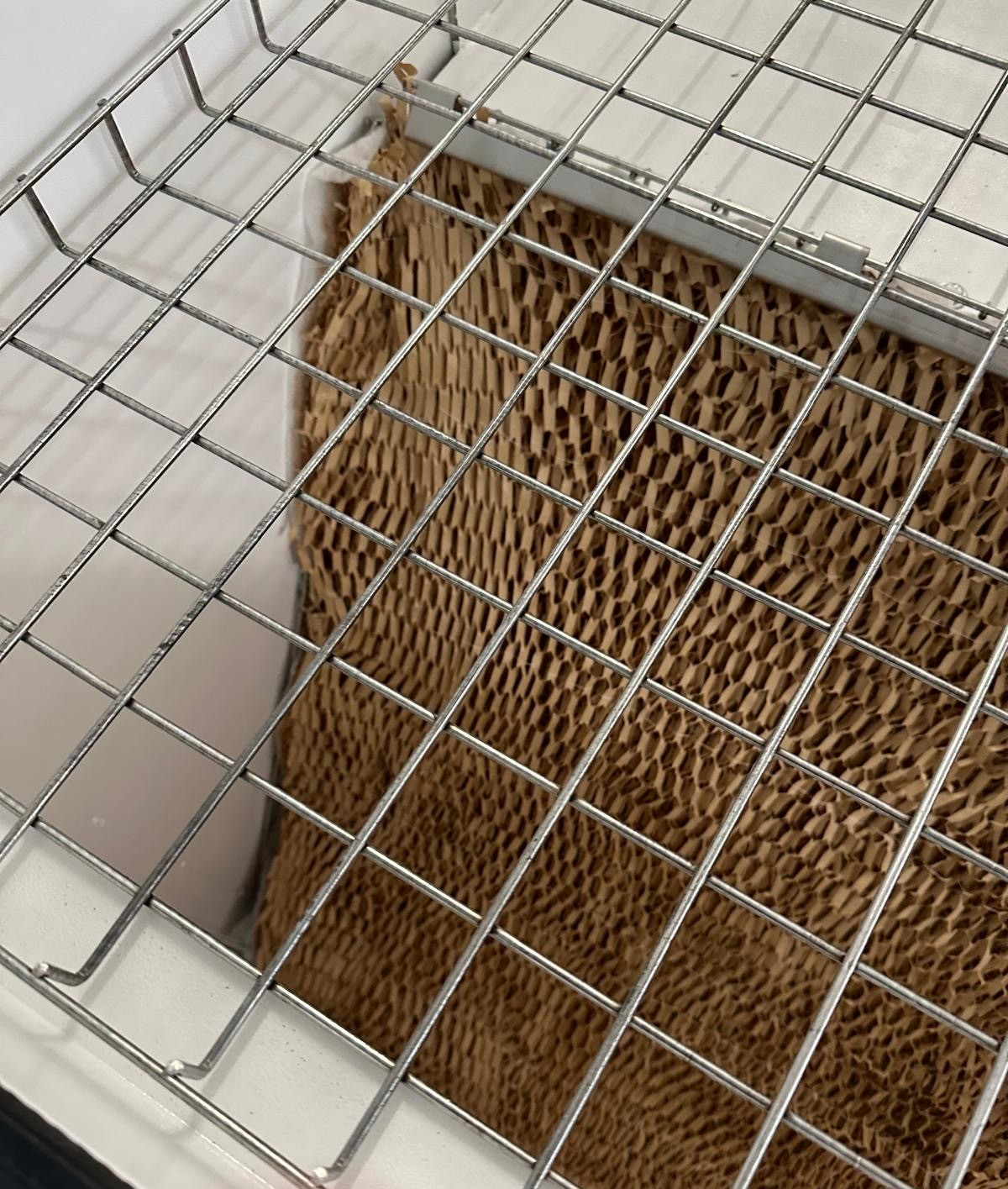

• Multiple dry filter stages for effective paint particle capture

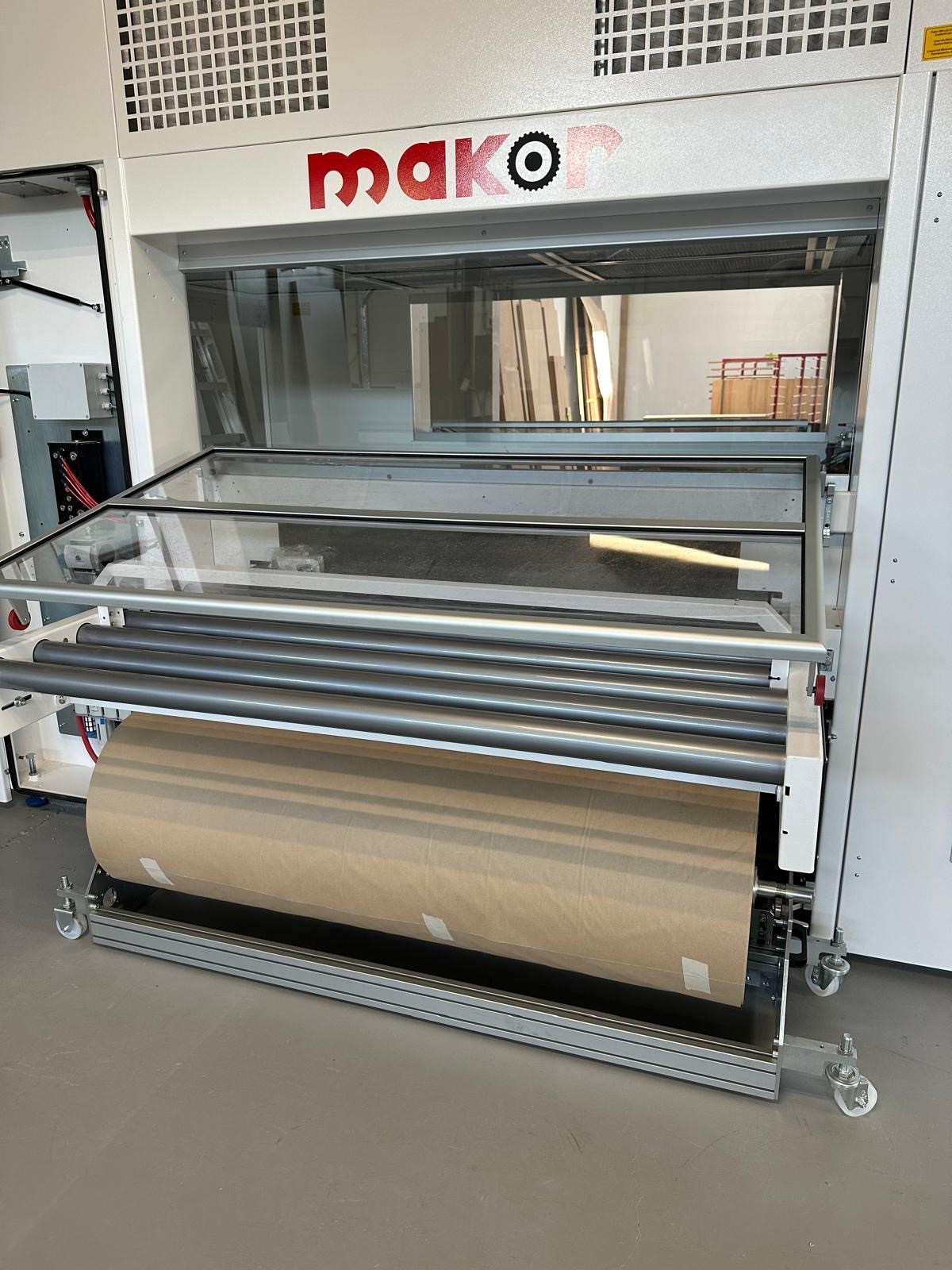

Paper Transport & Self‑Cleaning System

• Integrated paper transport belt system:
• Covers entire spray area
• Eliminates internal overspray buildup
• Paper indexes only when parts are detected, reducing consumable cost
• Quick roller replacement and minimal cleaning requirements

Utilities & Electrical

• Electrical: 480 V / 60 Hz / 3‑phase
• Transformer included
• CSA electrical certification included
• Total installed power: approx. 10 kW
• Air capacity: up to 10,000 m³/h
• Working height: 900 mm ± 30 mm

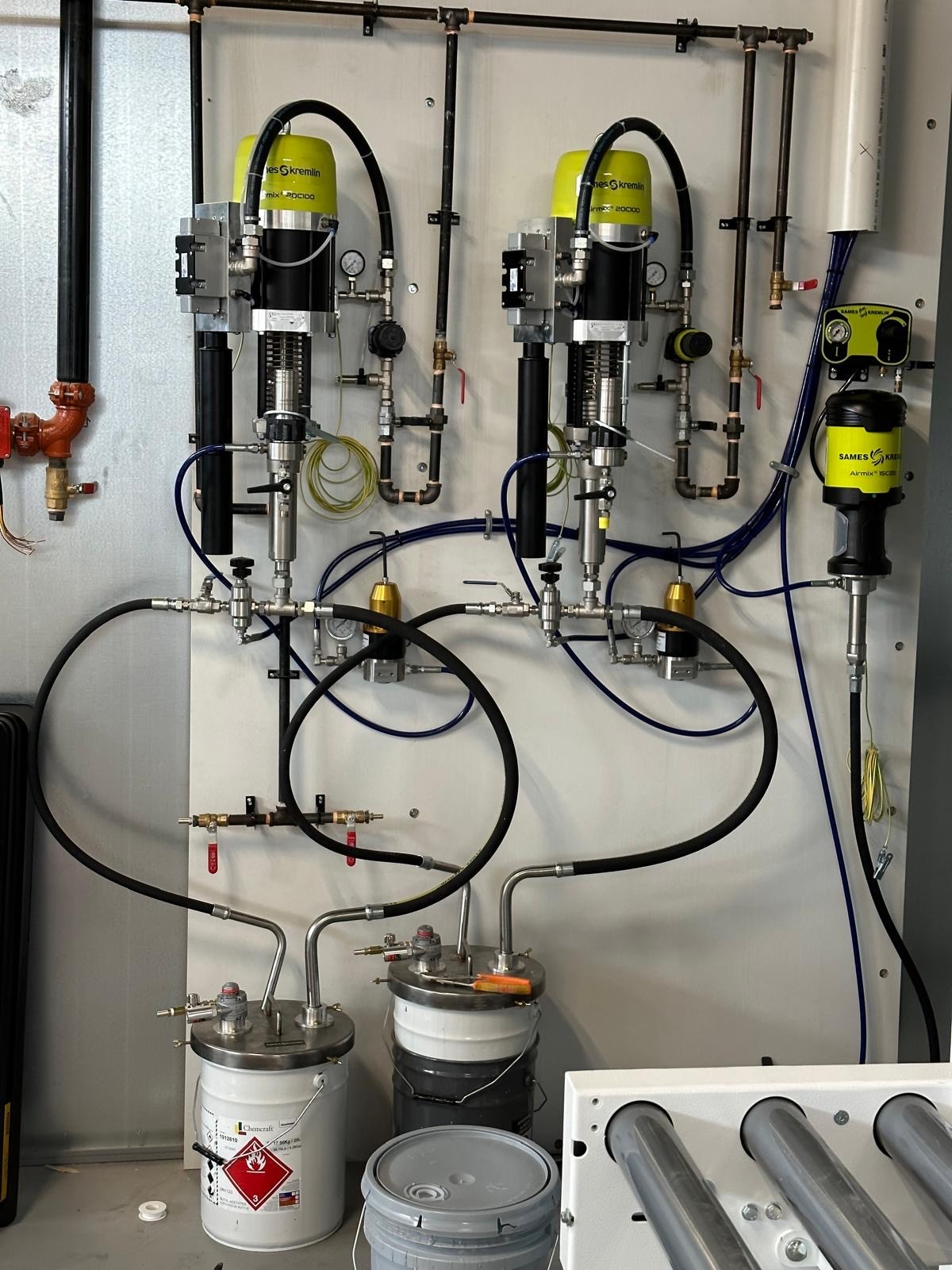

Included Spray Equipment – Kremlin

This Makor K2 is sold with a complete Kremlin spray system, already configured for Makor integration.

Included

• Kremlin automatic spray guns
• Kremlin pumps with regulators and filtration
• Agitated material containers
• Circulation valves and fluid management components
• Hose packages, fittings, and Makor‑specific mounting hardware
