2012 Homag Optimat BHP008 Vantech 480 4' x 8'

Available quantity

1

or
Call (905)-451-8430

Specifications

ManufacturerHomag
ModelOptimat BHP008 Vantech 480 4' x 8'
Year2012
Serial Number0-250-80-3003
Stock NumberT4538JL

Description

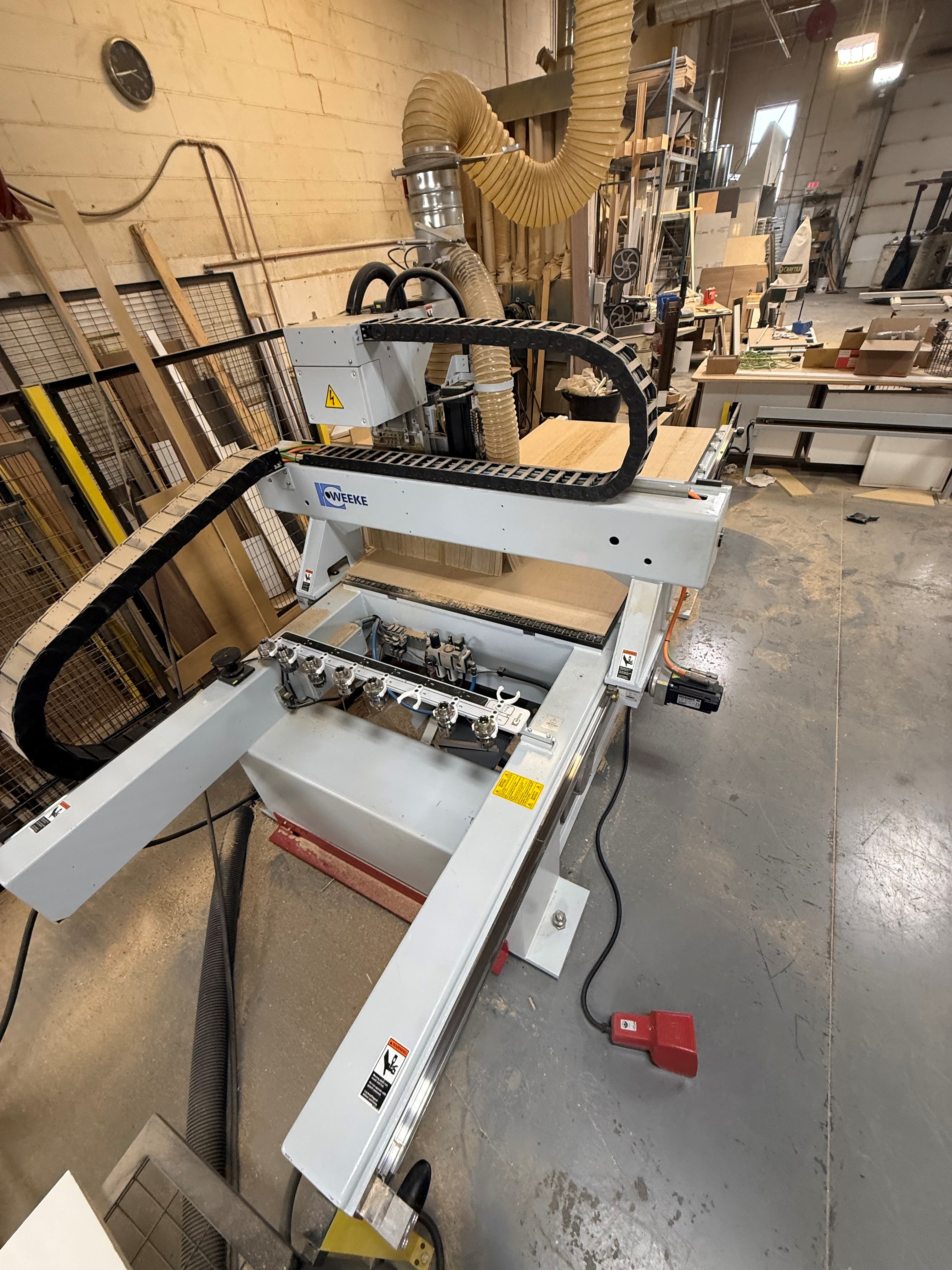

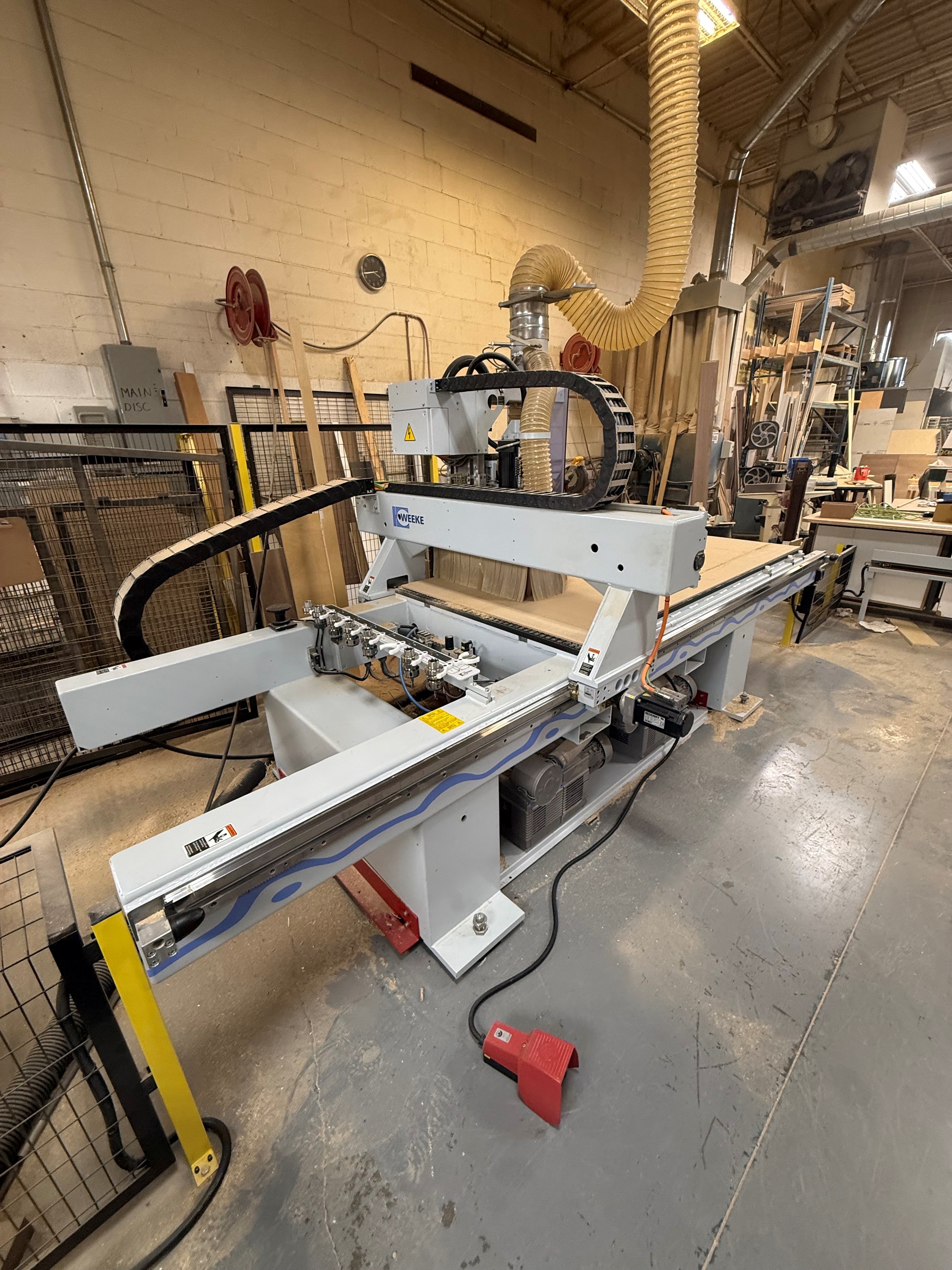

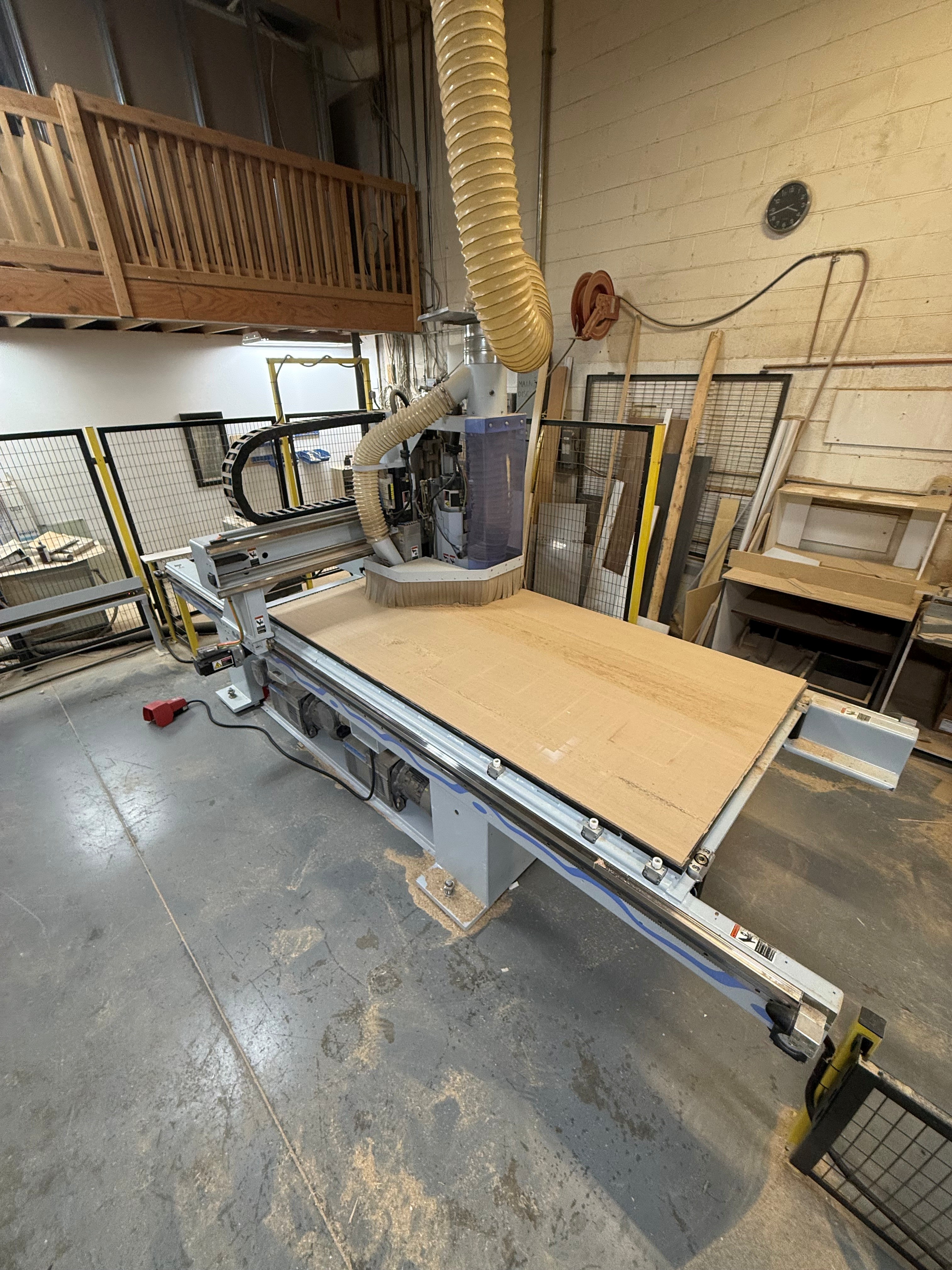

This Optimat BHP008 Vantech 480 (Weeke) CNC router is in excellent working condition and fully equipped for high‑precision panel processing. Featuring a full 3‑axis configuration, robust German engineering, and a complete safety enclosure, this machine is ideal for cabinet shops, millwork operations, and production facilities looking for reliability and accuracy.


Machine Features

  • 4' x 8' CNC router with full 3‑axis capability
  • Front light‑curtain safety system with safety cage on remaining sides
  • High‑precision guide system with THK guideways, rack‑and‑pinion (X‑axis), and ballscrews (Y + Z)
  • Matrix phenolic vacuum table with grooves for vacuum pods
  • Vacuum system includes three Becker pumps mounted under the machine table
  • 12 HP vertical router spindle with HSK63 tool holder
  • 7‑position automatic tool changer with dedicated pickup station
  • 7‑spindle drill block with individually selectable 10 mm chucks
  • Three reference pins for accurate panel alignment
  • WoodWOP programming system
  • Brand‑new 17" flat‑screen monitor
  • Transformer included for 600V → 480V operation


Technical Specifications

  • Router spindle power: 12.0 HP
  • Spindle speed range: 1,250 – 24,000 RPM
  • Tool magazine capacity: 7 tools
