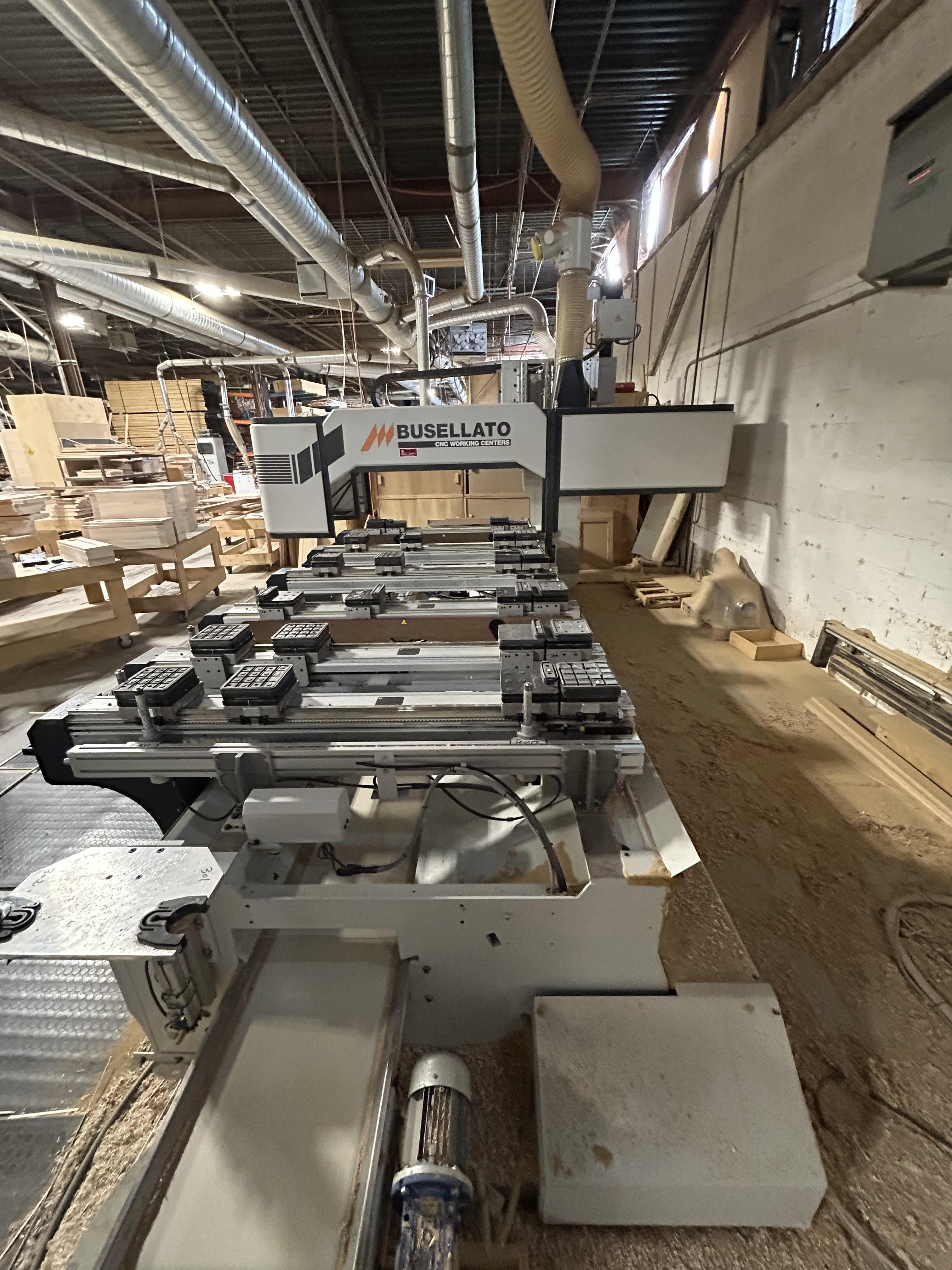

2012 SCM Busellato JET MASTER 20

Key Features

• Dual work zones for pendulum processing

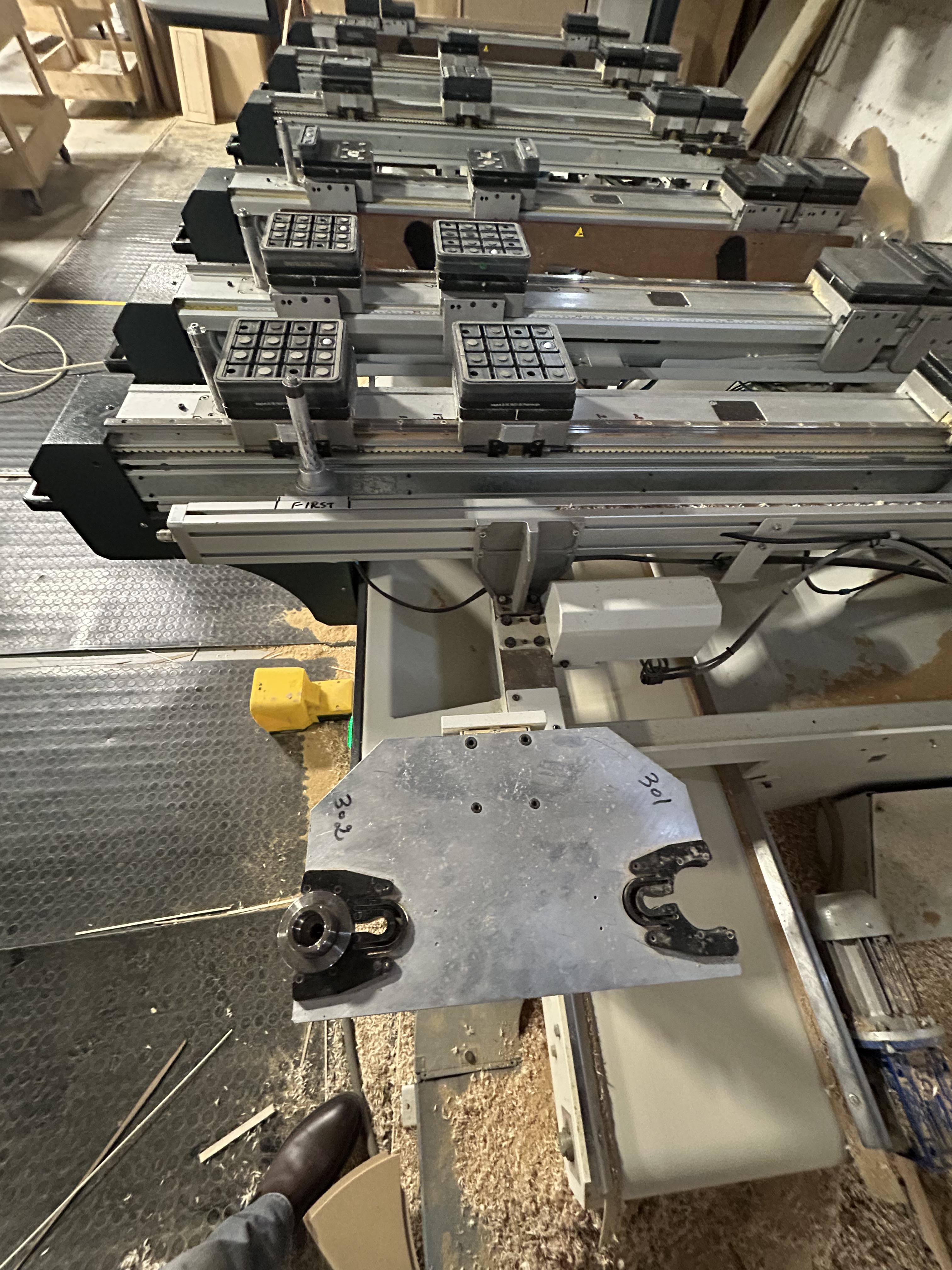

• Automatic motorized pod & rail positioning

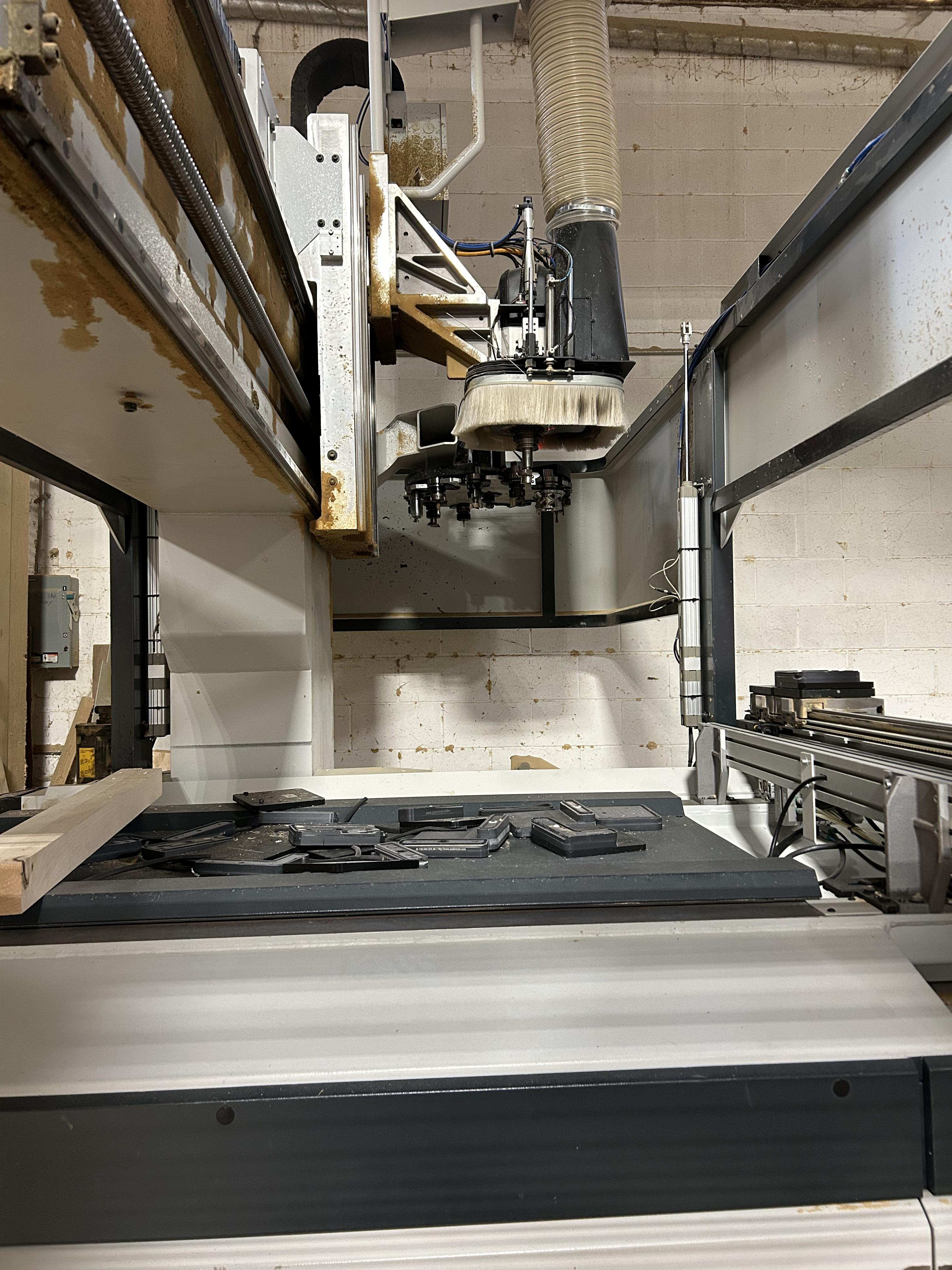

• 15HP electrospindle with HSK-F63 tool interface

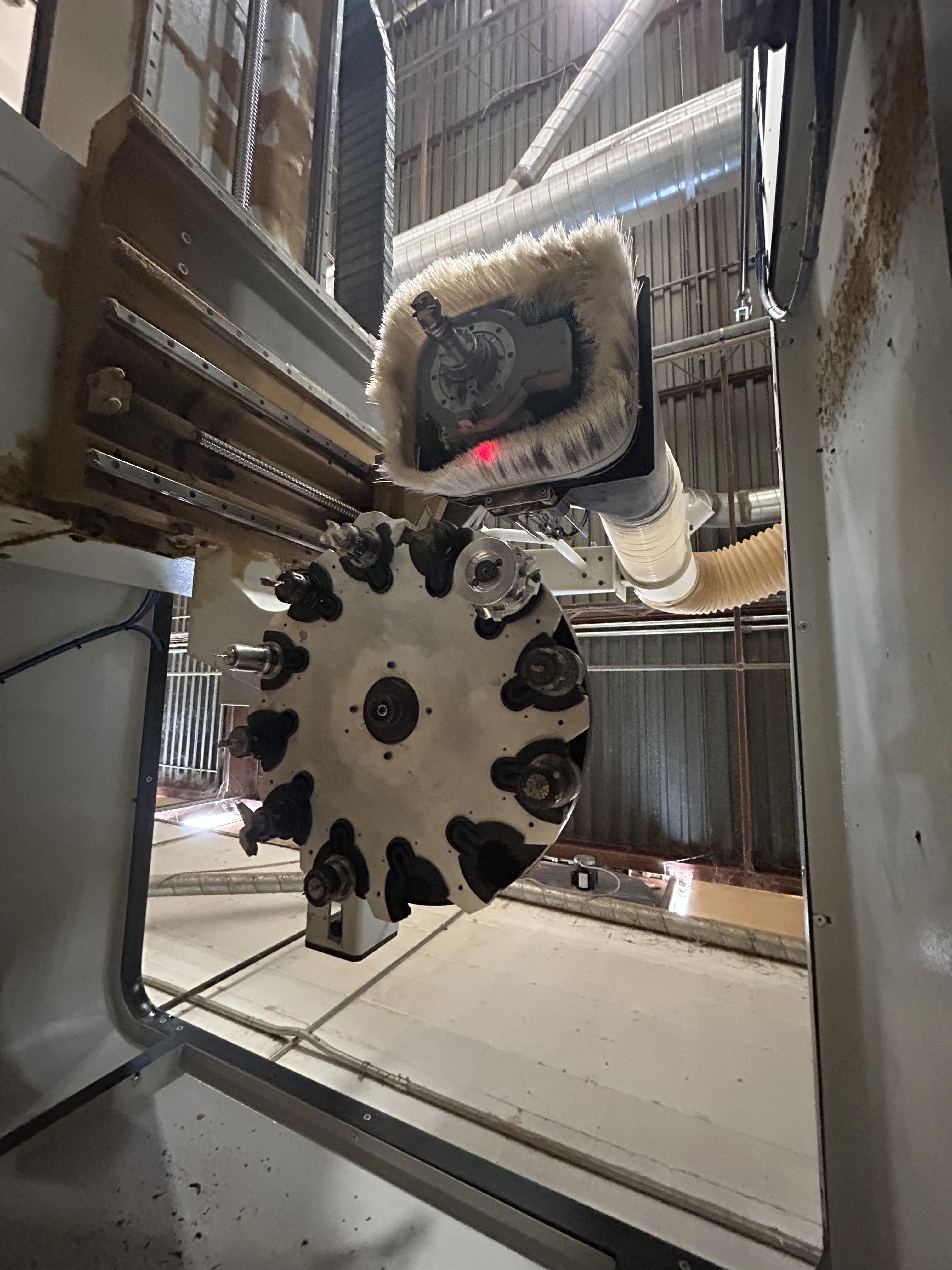

• 12-position rotary tool changer
• 0–24,000 RPM variable spindle speed
• C-axis rotary unit with full interpolation
• Chip conveyor and automatic lubrication
• Mobile PC control console

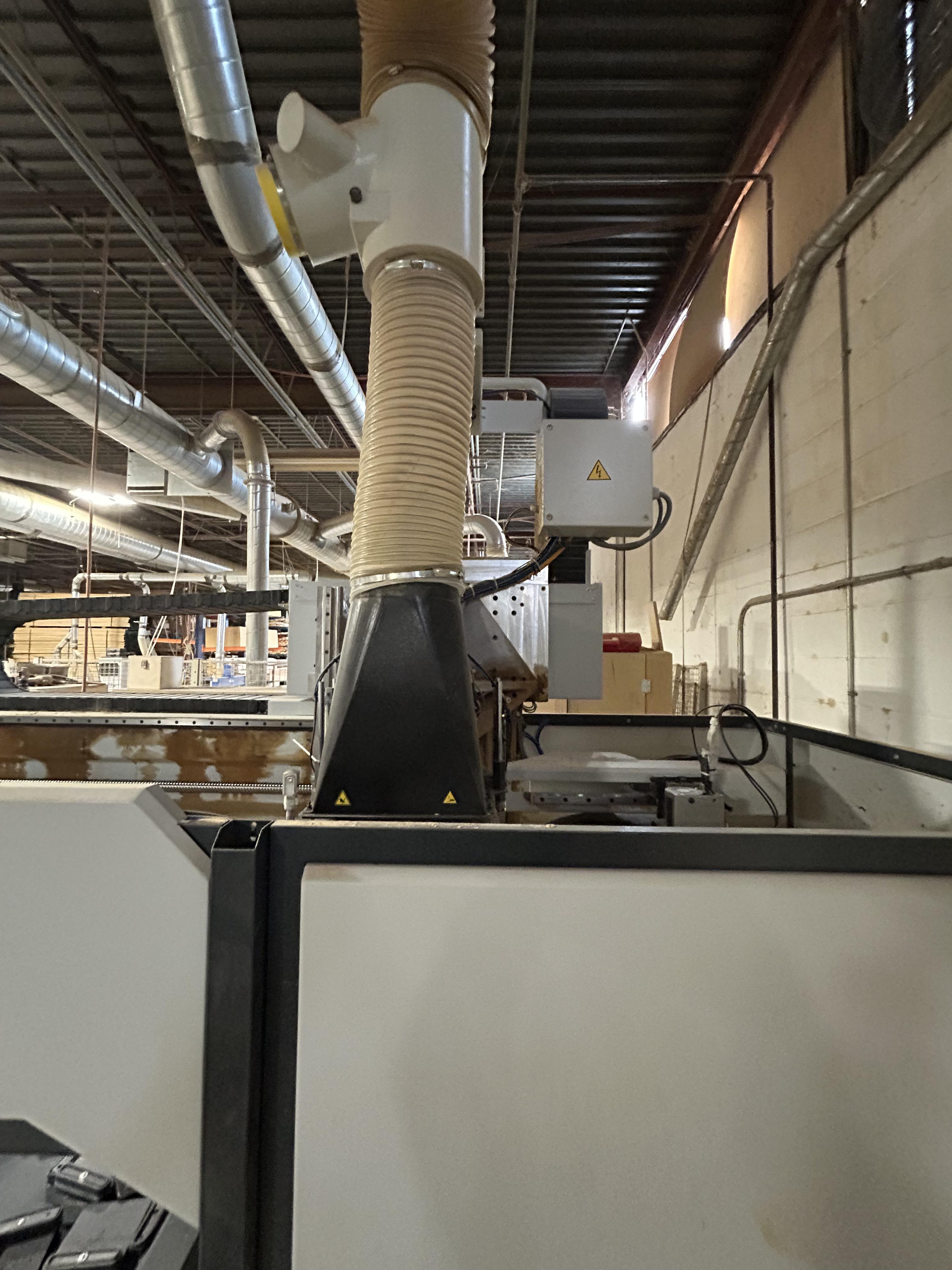

• Centralized dust extraction
• Control: Genesis Evolution CNC
• Manual tool loading station

Working Envelope

• X-Axis: 3,300 mm (129.9")
• Y-Axis: 1,550 mm (61.0")
• Z-Axis: 330 mm (13.0")

Rapid Traverse Speeds

• X-Axis: 70 m/min
• Y-Axis: 60 m/min
• Z-Axis: 15 m/min

Construction & Motion

• Heavy-duty stress-relieved steel frame
• Precision square linear guides on all axes
• Helical rack & pinion on X-axis
• Ball screw drive on Y and Z axes
• Automatic central lubrication system

Control System

• Genesis Evolution CNC control
• Graphical programming interface
• ISO and DXF file import
• Tool path optimization
• Program simulation
• Tool management up to 500 tools

PC Console

• Windows-based control
• 19" LCD monitor
• Wireless barcode scanner
• Mobile console for flexible positioning

Dimensions & Weight

• Weight: 5,200 kg (11,684 lbs)
• Footprint:
• 7,360 x 5,100 x 3,110 mm
• (24.2' x 16.7' x 10.2')
