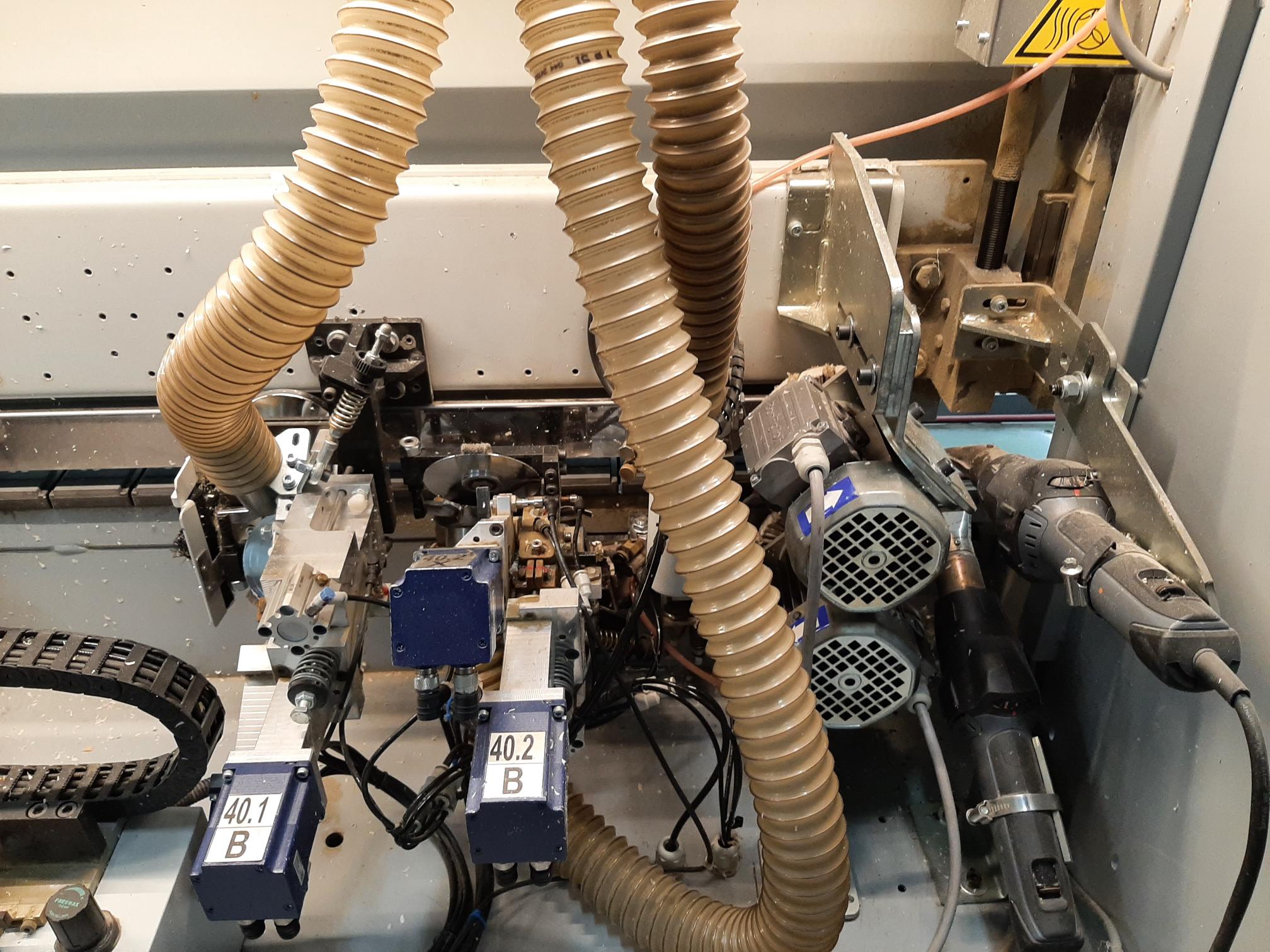

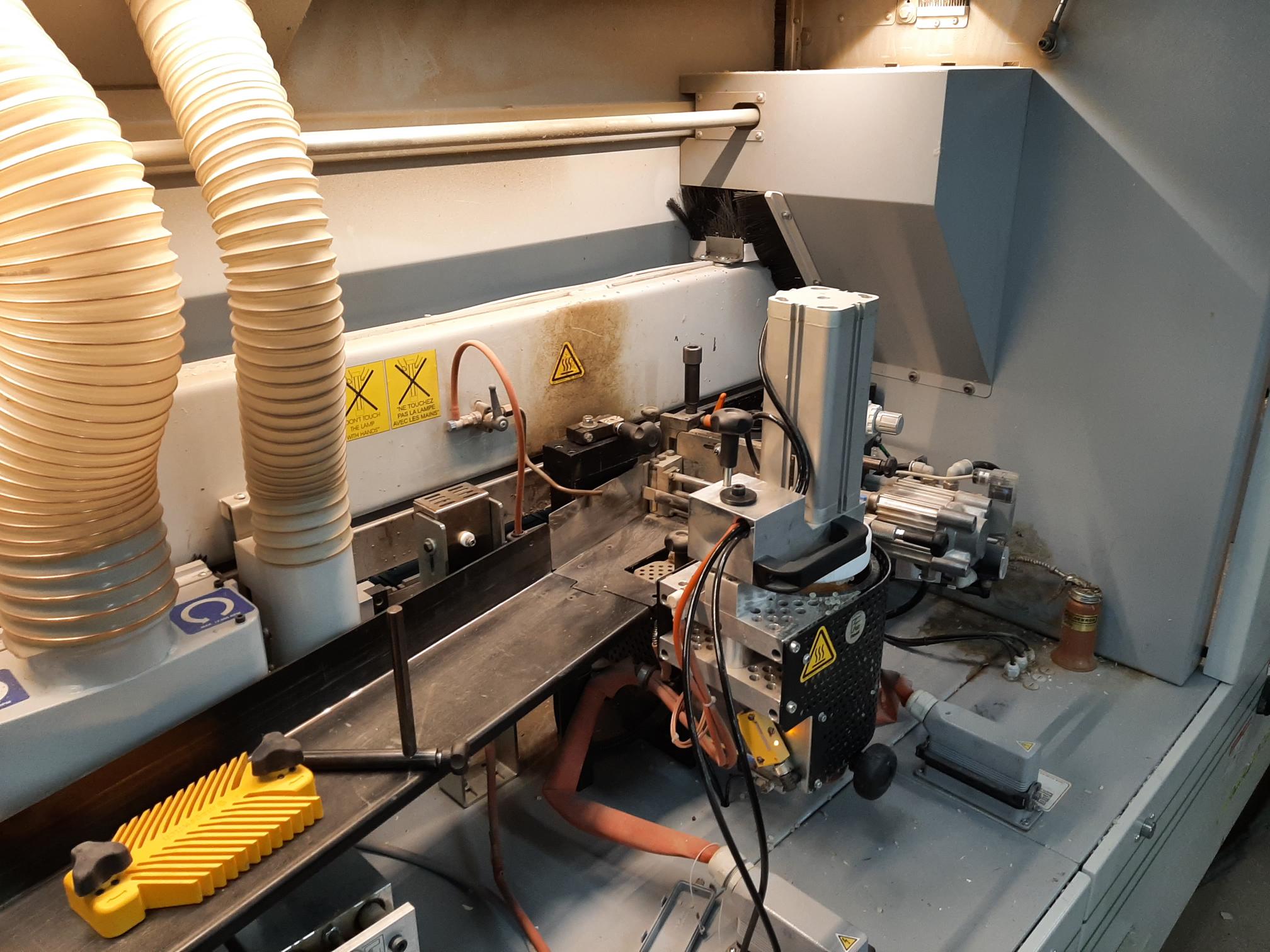

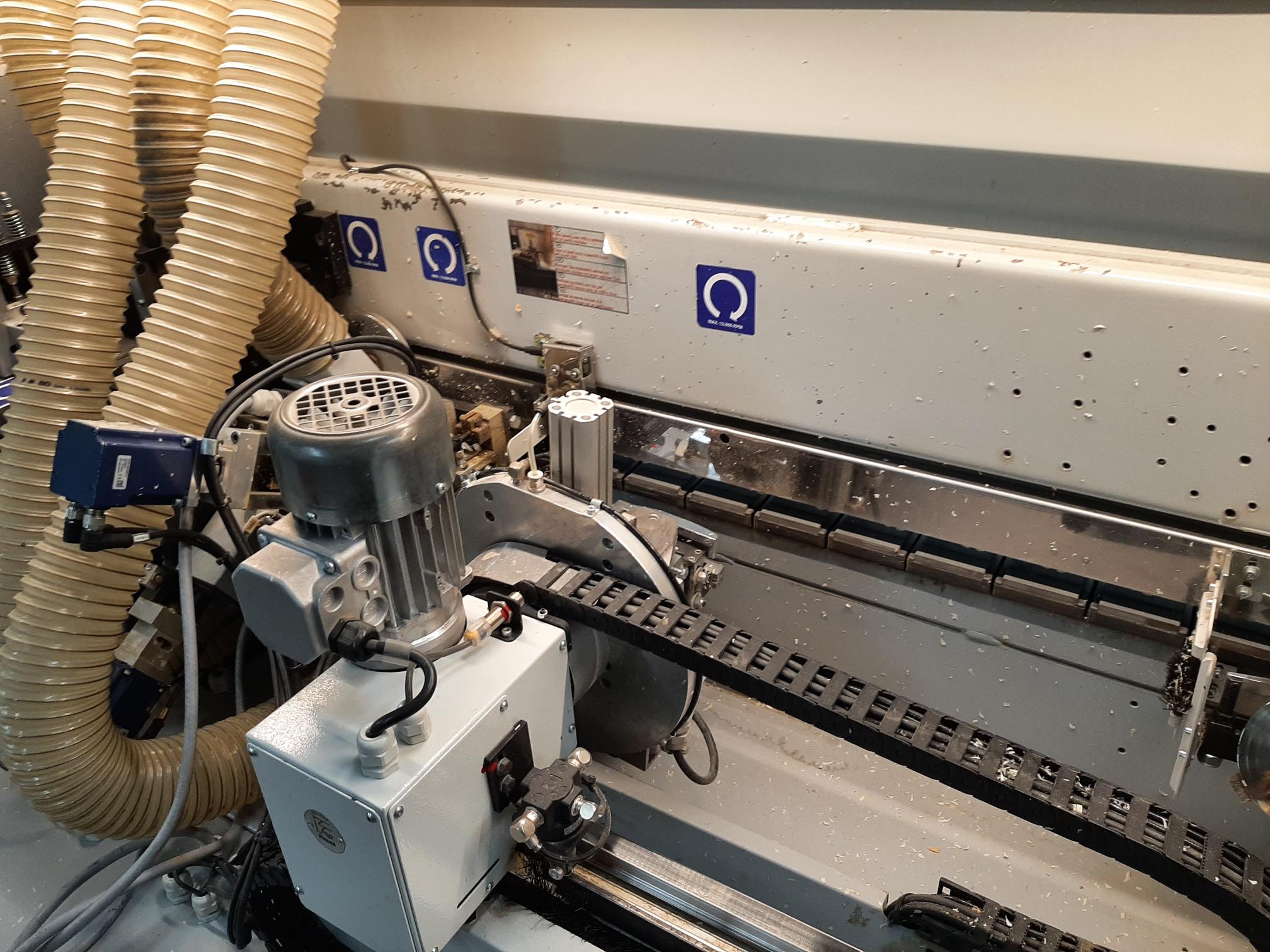

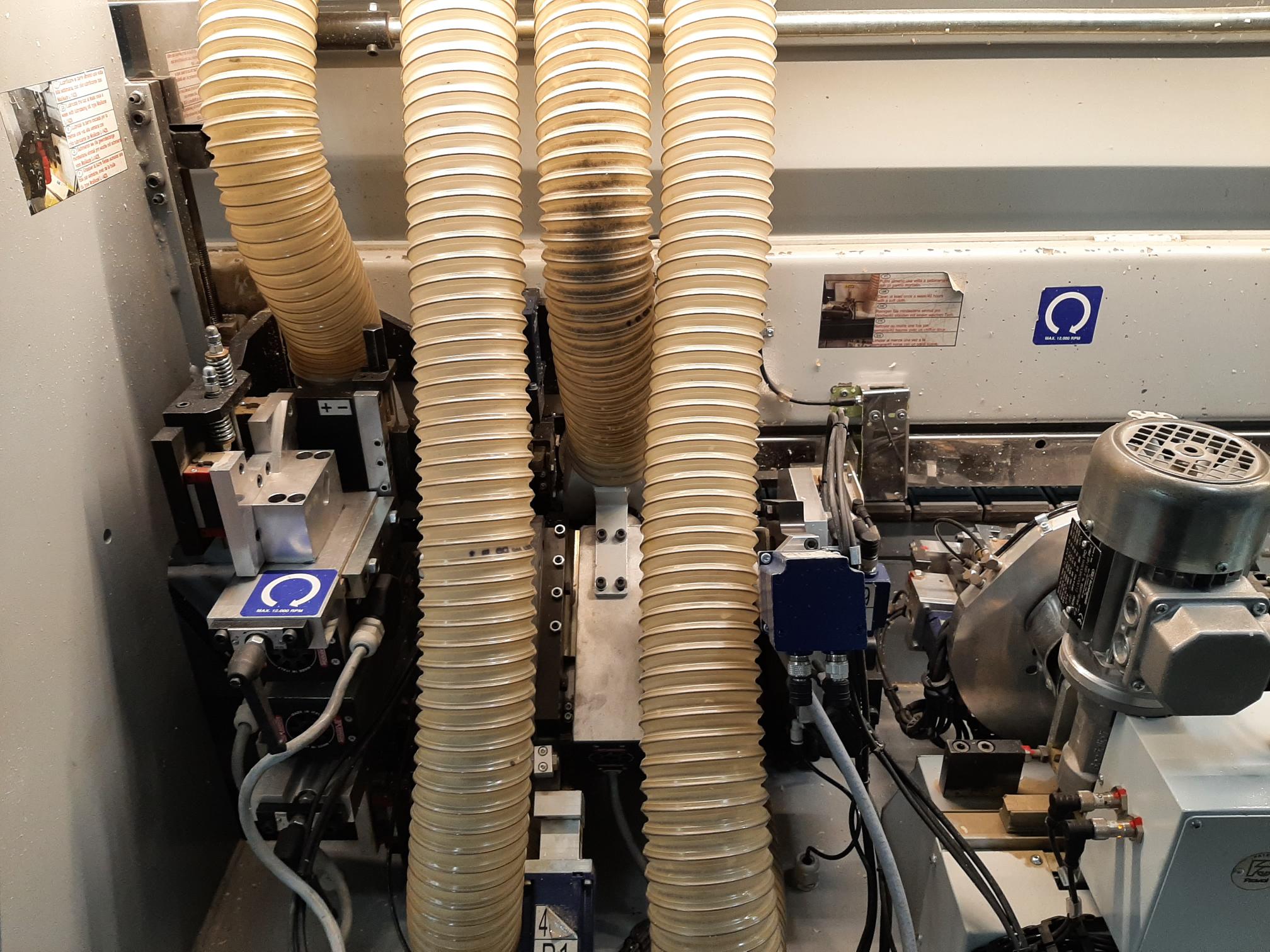

2019 Fravol Smart S600 Edgebander

Fully Functional

Complete with manuals, spare parts, and extra diamond cutter heads.

• PC with 16" colour touch screen and start and operating controls
• System with special release agent
• Mechanical/Pneumatic Panel lnfeed Safety
• Pre-Milling Unit
• IR Lamp
• Universal Gluing Unit for EVA or PU
• Three Pneumatically Assisted Pressure Rollers
• Front/Rear Trimming Units
• Automatic Tilting End trim unit
• Glue Scraping Unit
• Top and Bottom Rough Trimming Unit
• Nesting set-up for top and bottom
• Rough Trimming/ Bevel Trimming Unit
• SYNCRO Corner Rounding Unit
• Edge Scraping Unit with blower
• Tilting Brushing Unit with spray
• Soundproof booth with LED Inside Lighting

Panel thickness  0 - 80mm

Min. panel width  100mm

Edging width  15 - 85mm

Edge thickness  0.4 - 8mm (12mm if option 34 is selected)

Min. panel length (edging length side)  140 mm (5.5")

PVC Glue pot capacity  3 kg (6.6 lbs)

Feed speed  14 m/min (14 - 18 m/min if option 43 is selected)

Main voltage  460 v / 3 ph / 60 hz

Motor Kw and Amps  18.6 kw / 40.5 amps

Pneumatic power  6 bar

Weight  1800 kg

Working Temperature (room)  Min. 15° C / max 45° C (Min. 59° F/ max 113° F)
