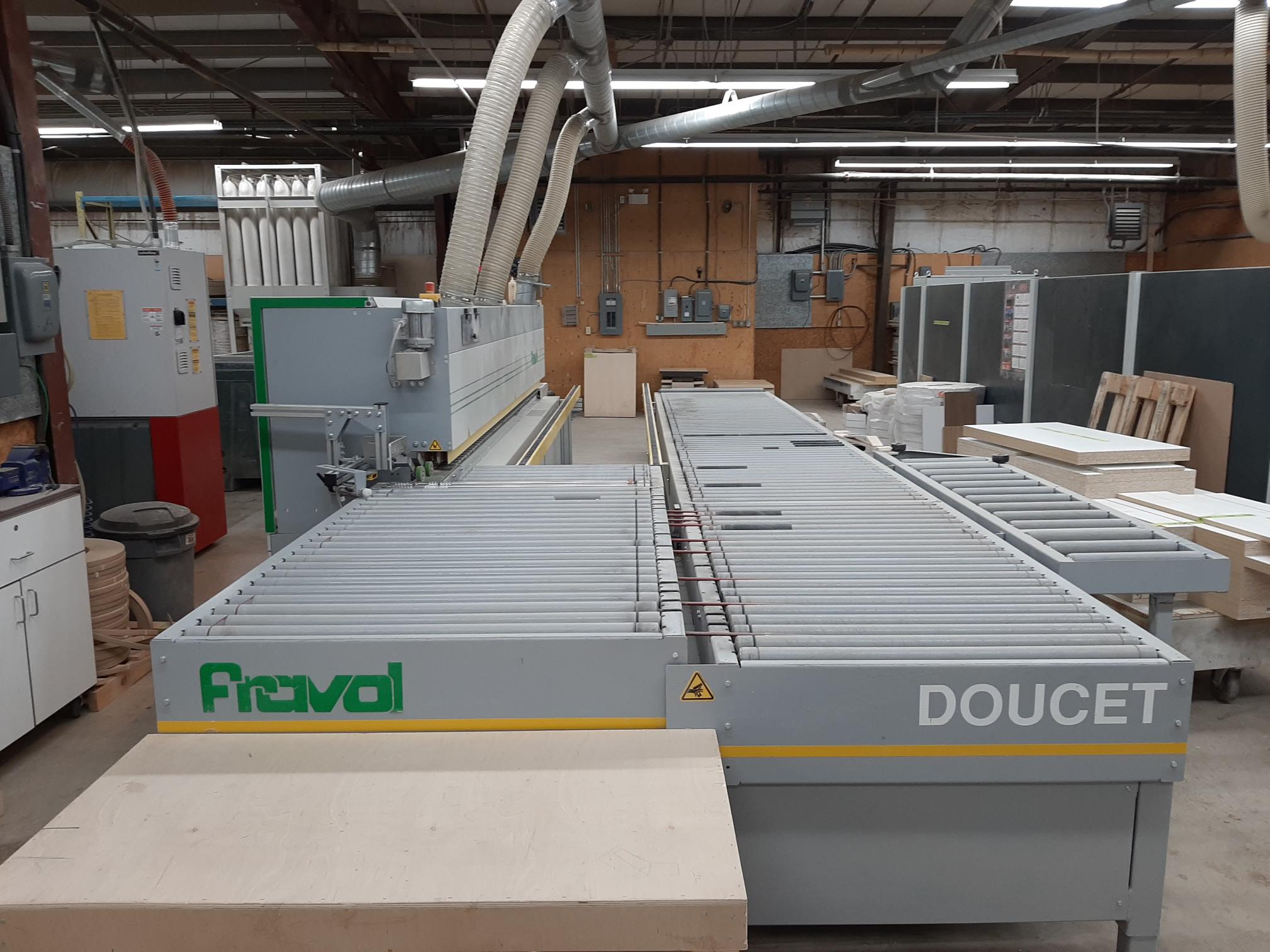

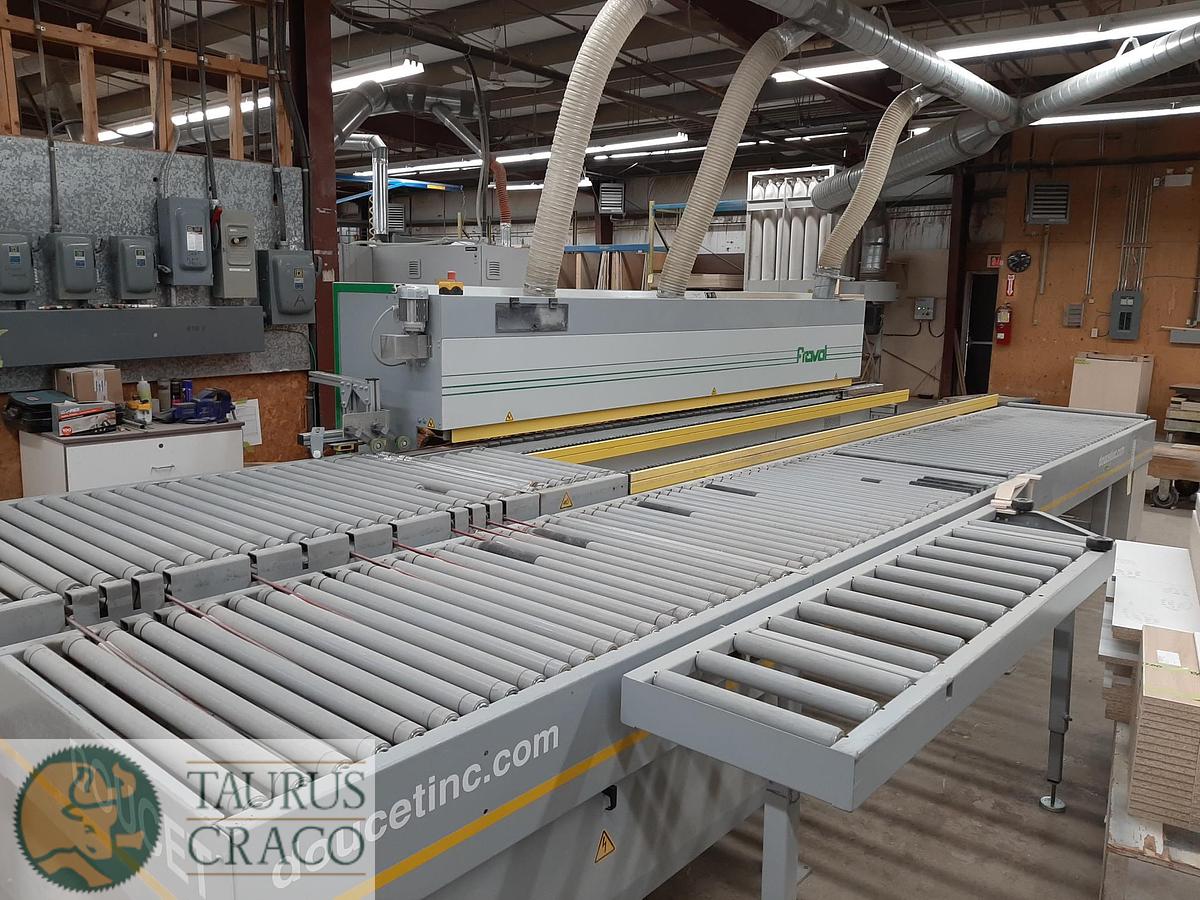

2019 Doucet Return Conveyor RT3-36

Fully Functional

With 19' return

• Minimum part sizes on conveyors: 12" x 12"

• Minimum part sizes on conveyors if equipped with panel deviator: 4" x 12"

• Maximum panel sizes feeding all 4 sides: 52" x 52"

• Maximum panel sizes feeding long sides: 52" x 96"

• Maximum panel sizes feeding short sides if equipped with PT-90 Turner Option: 36" x 90"

• Maximum panel weight capacity: 80 lbs

• Thin and lower density panels may reduce the maximum size capacities of the return conveyor

• a 36" wide x 5' long receiving conveyor with 2" 0 pvc rollers on 3" centers

• a 36" wide x 19' long return conveyor with 2" 0 pvc rollers on 3" centers

• a belt transfer device 6" wide featuring 9 transfer belts

• a transfer by-pass switch o voltage: 220, 440 or 600 / 3 / 60, 8 amps

• compressed air requirement: 10 cfm @ 90 psi

• a left hand return

A PT-90 panel turner to return long rectangular panels lengthwise rather after finishing of their narrow side and outfeed pressure 8-wheel kit with rheostat covered wheels for automatic thickness adjustment from 5/8" to 1-1 /8".
