2016 Omec 650 A Automatic Dovetail Machine
or
Call (905)-451-8430
Specifications
| Manufacturer | Omec |
| Model | 650 A |
| Year | 2016 |
| Stock Number | T4523RC |
| Voltage | 600V / 3ph / 60 Hz |
| Condition | Excellent |
Description

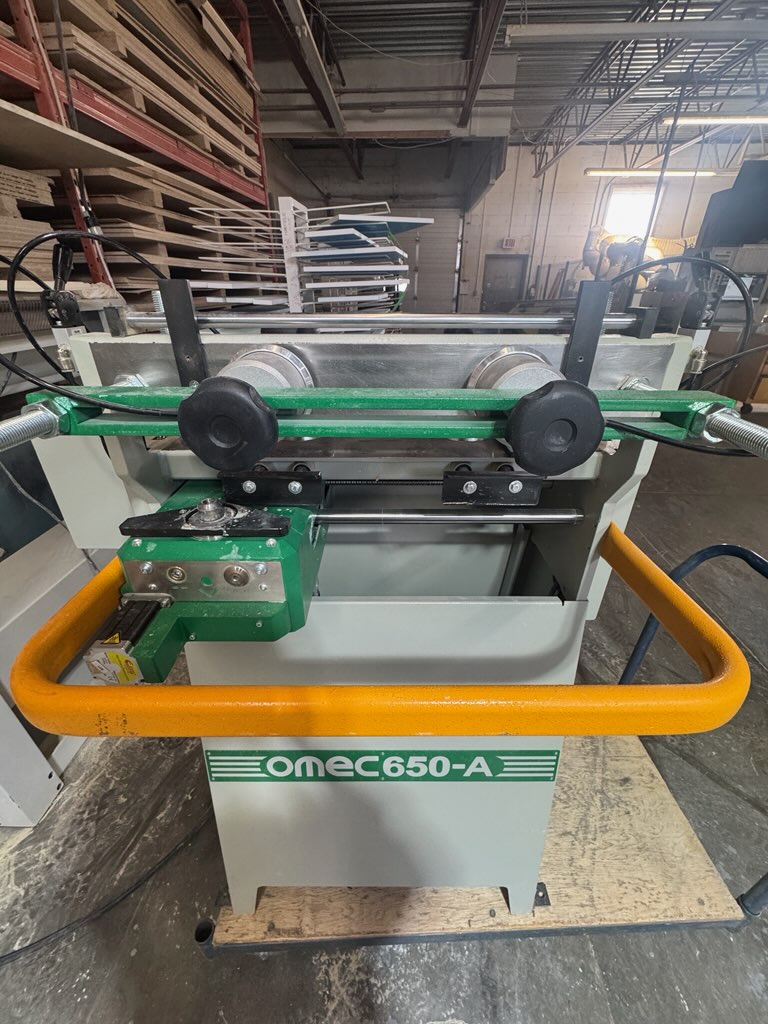

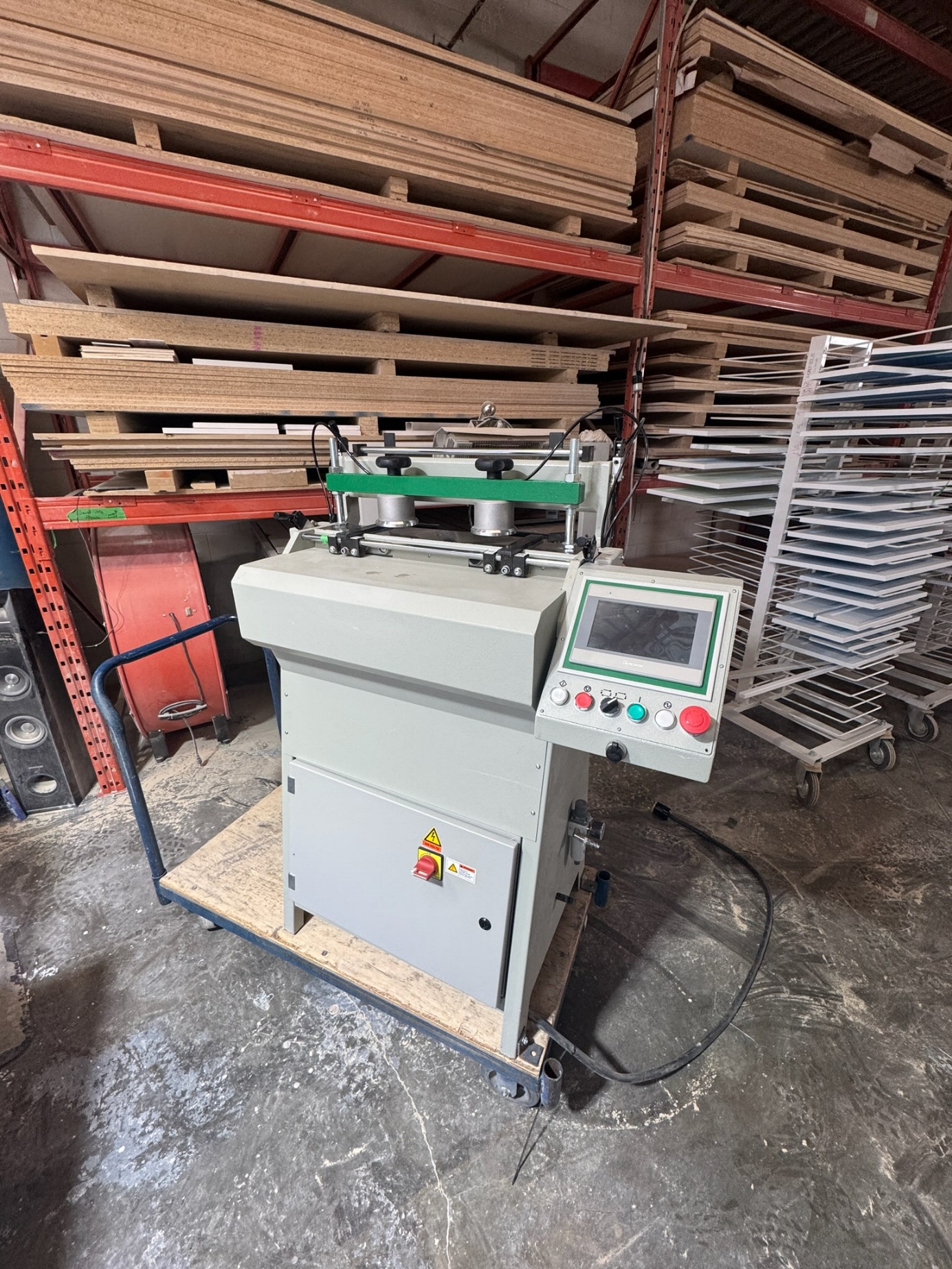

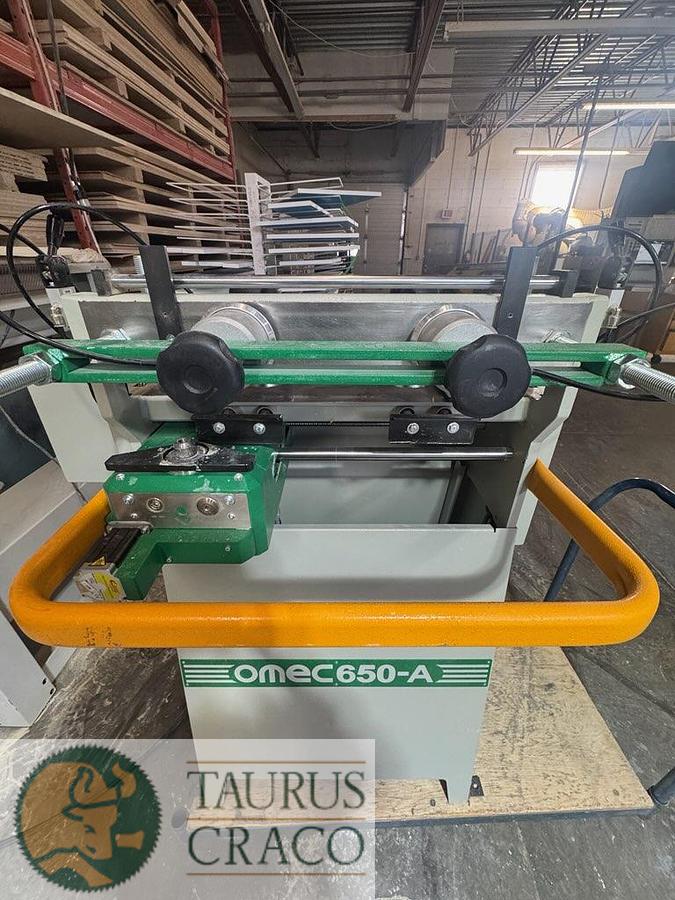

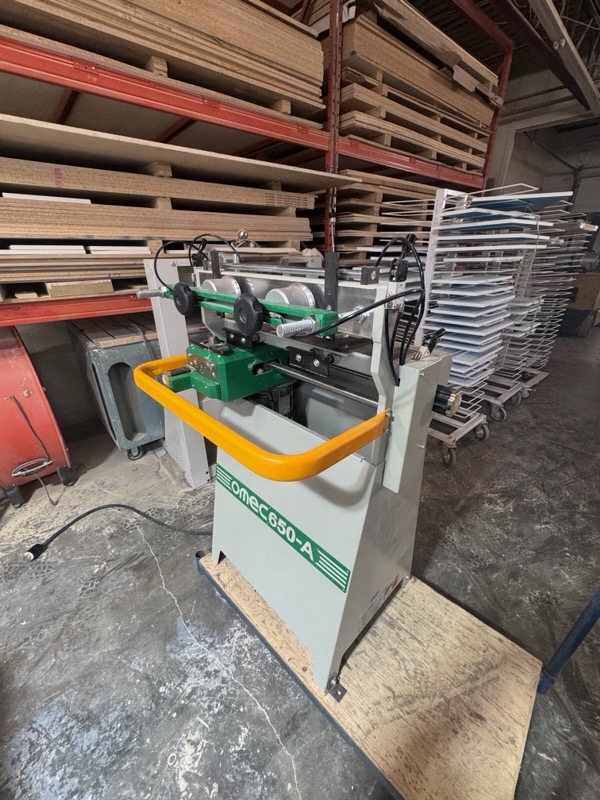

This two-axis automatic mill cutter with numerical control is designed to indent dovetails and parallel indents for drawers and furniture elements.
Omec 650 A Automatic Dovetail Machine - Features and Specifications:
- On board machine installed power: 1.7kw
- Working pressure: 0.7 MPa
- Spindle: 1
- Spindle revolutions: 16,500 RPM
- Center tot center of indents: 1" - 2" (25-50 mm)
- Drawer production: 40 per hour
- Dimensional Limits of Workpieces:
- Length: min. 7.9" / max. 59"
- Width: min. 2.4" / max. 15.7"
- Indent height: min. 0.33" / max 0.63"
- Front thickness: min. 0.31" / max. 2.4"
- Side thickness: min. 0.28" / max. 0.98"
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
