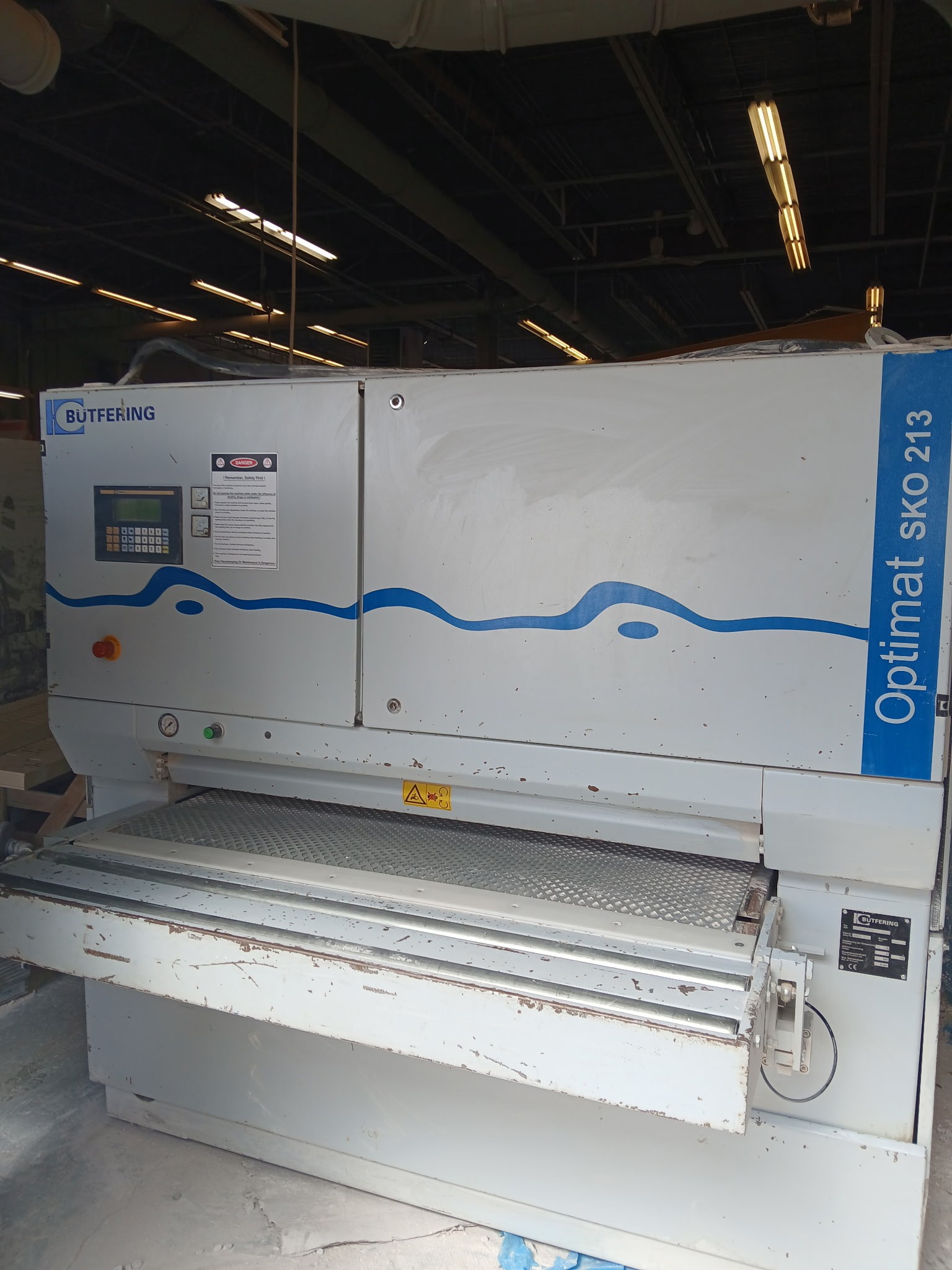

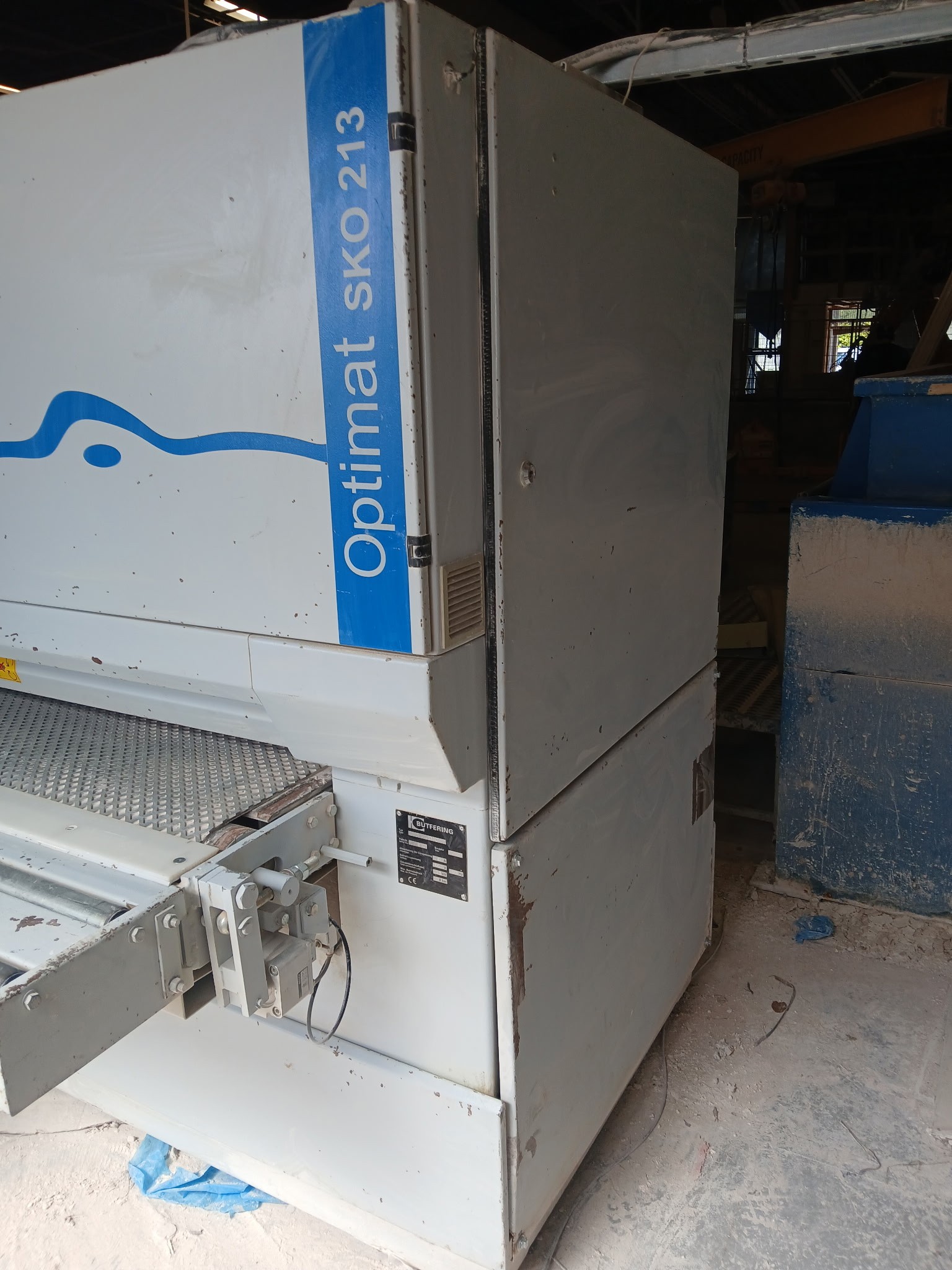

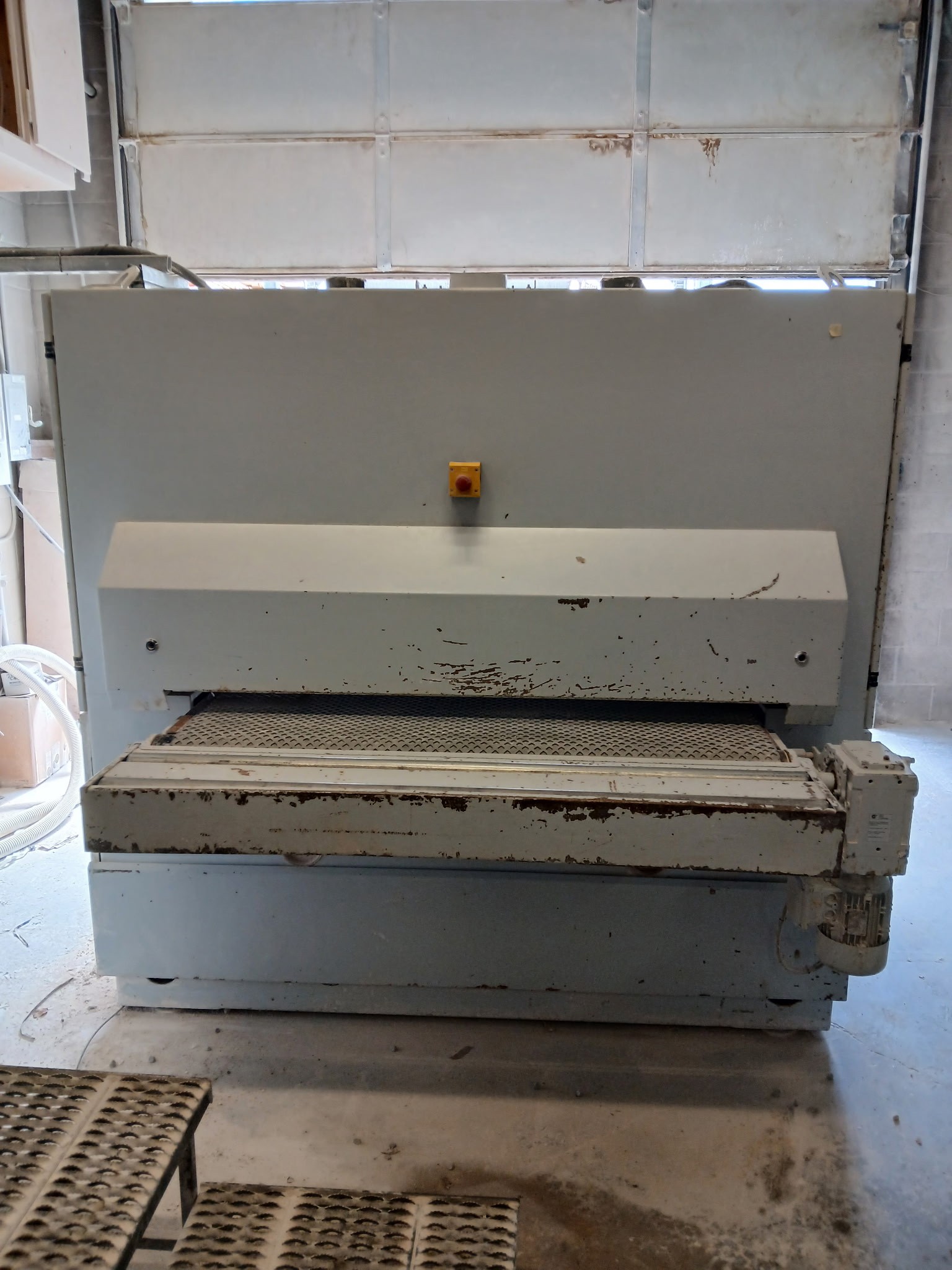

2004 Butfering Optimat 53” 2-Head Wide Belt Sander

Homag recently performed a full service, replacing all airlines and completing all necessary maintenance to prepare the unit for sale.

Optional features include:

• Panel cleaning brush with dust hood

• 300 mm (12") roller table out feed extension

• 300 mm (12") roller table infeed extension

Standard features:

• First sanding head with grooved steel contact roller with abrasive belt grit compensation

• Second sanding unit, rubber contact roller 85° Shore hardness, variable belt speed 2-18m/s, and electronically controlled segmented pad

• Air jet belt cleaner work piece activated

• Electronic belt oscillation

• Pneumatic belt tensioning with integrated belt edge compensation

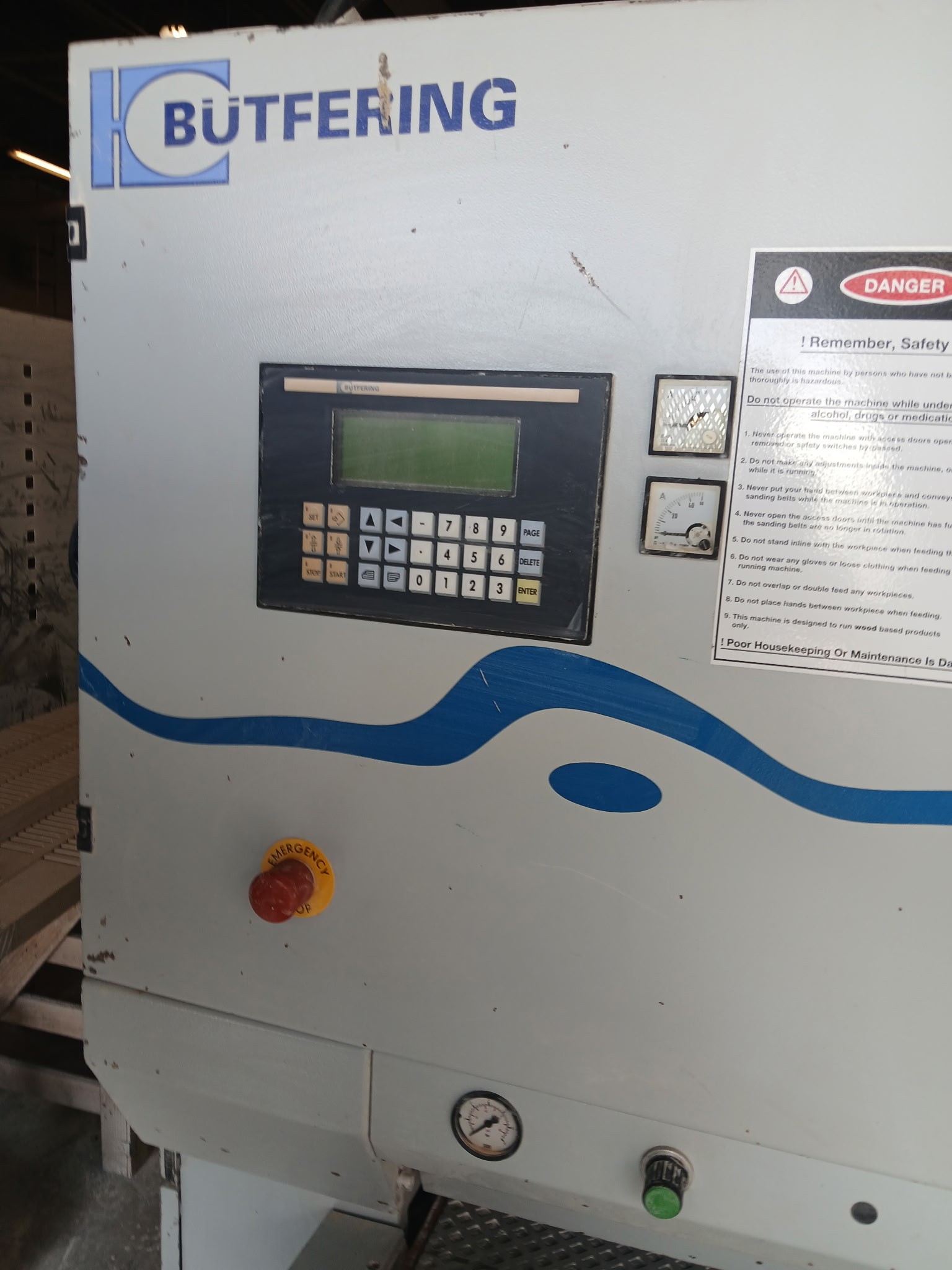

• Automatic machine control with display and 50 sanding programs

• Safety interlocks and limit switches for protection of all access and operation

• Work piece pressure guide rollers before, between and behind sanding unit

• Efficient dust extraction outlets (4)

Specs:

Working width: 53"

Working height: 1/8"-6"

Passline height: 35.5"

Drive motor - 1st head: 25hp

Drive motor - 2nd head: 20hp

Total load: 48hp

Dust outlets: 2 x 4"

Dust outlets: 2 x 8"

Variable feed speed: 8-40 FPM
