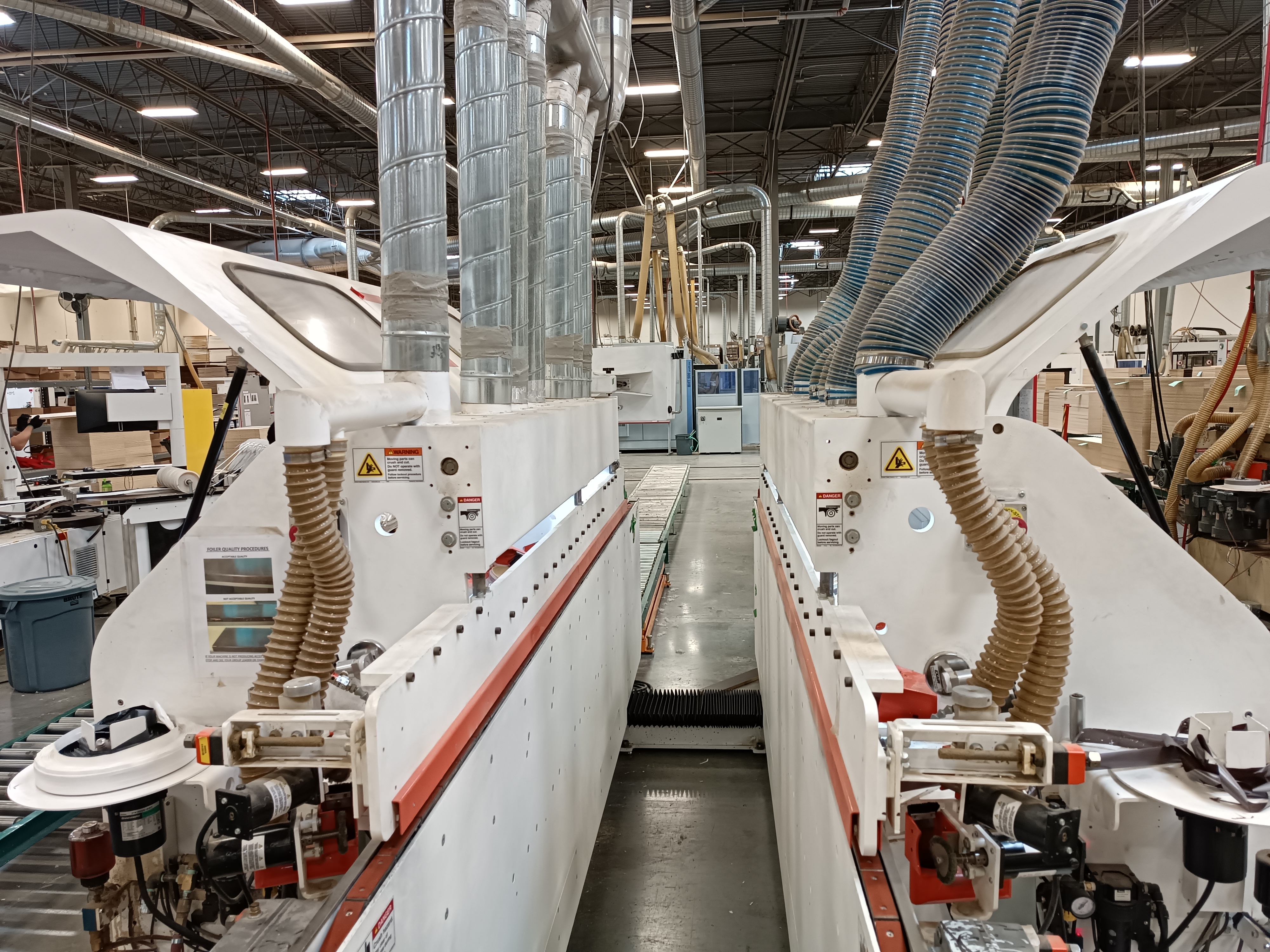

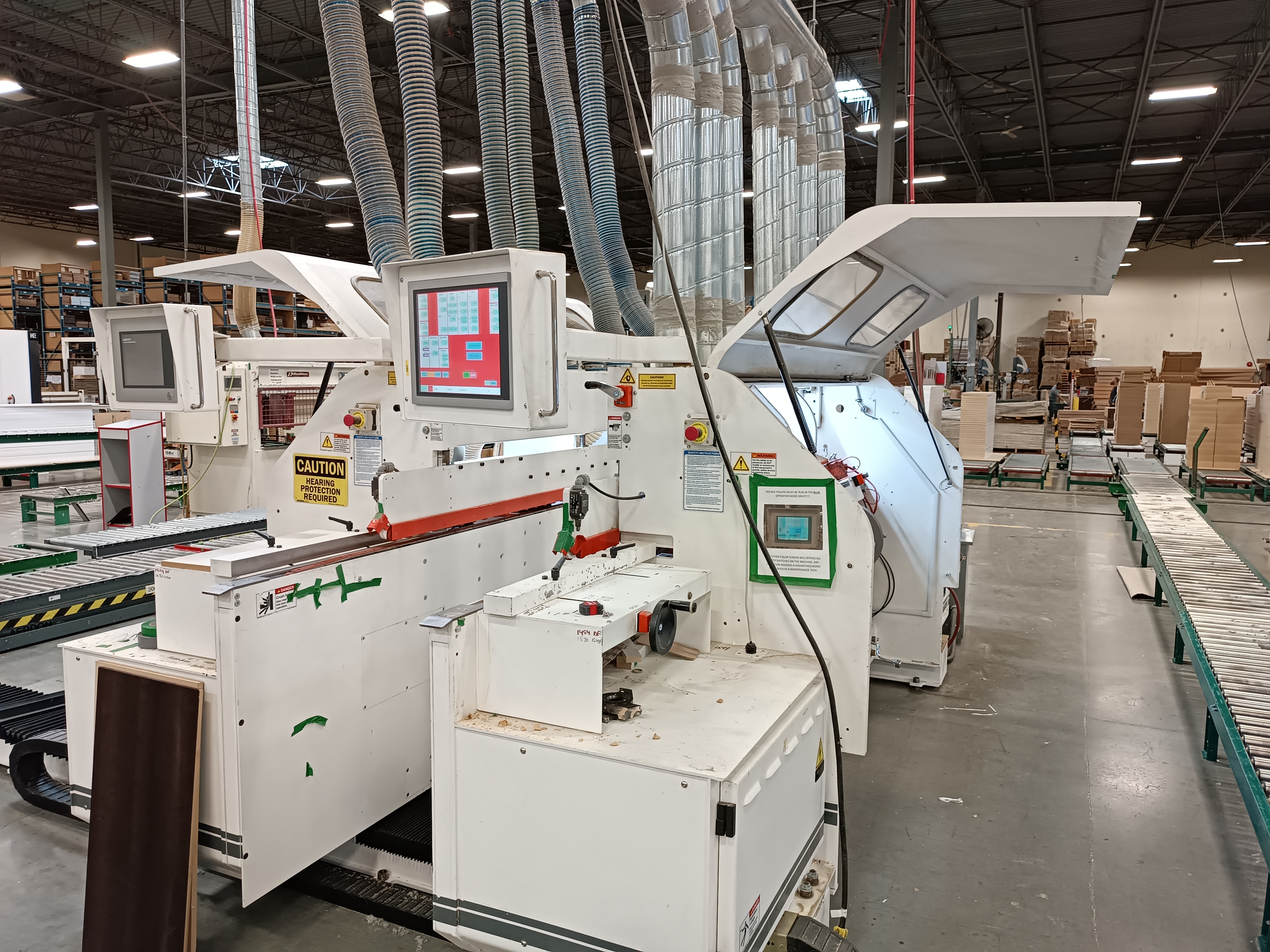

2019 Voorwood L217NH double sided edge foiler

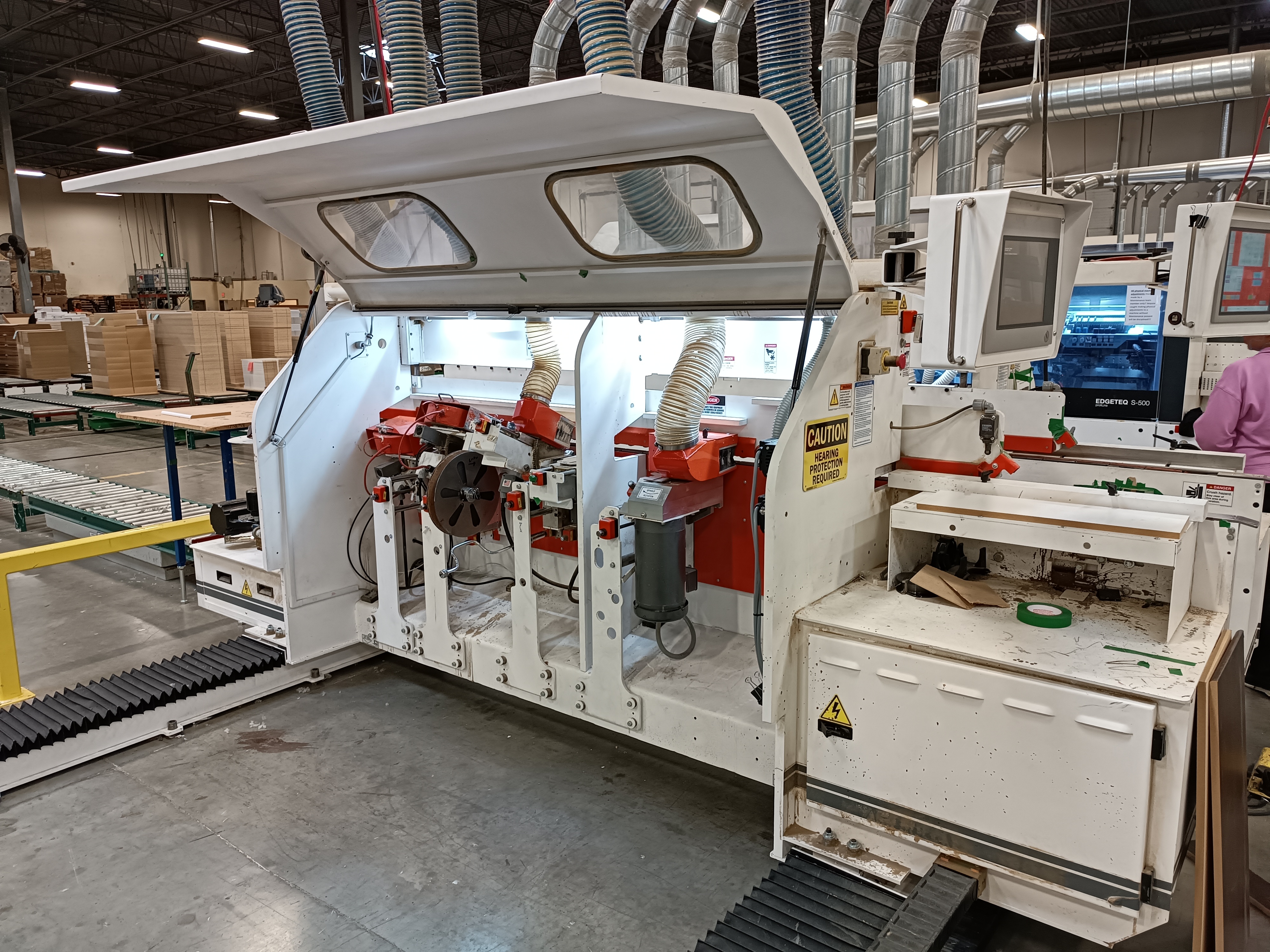

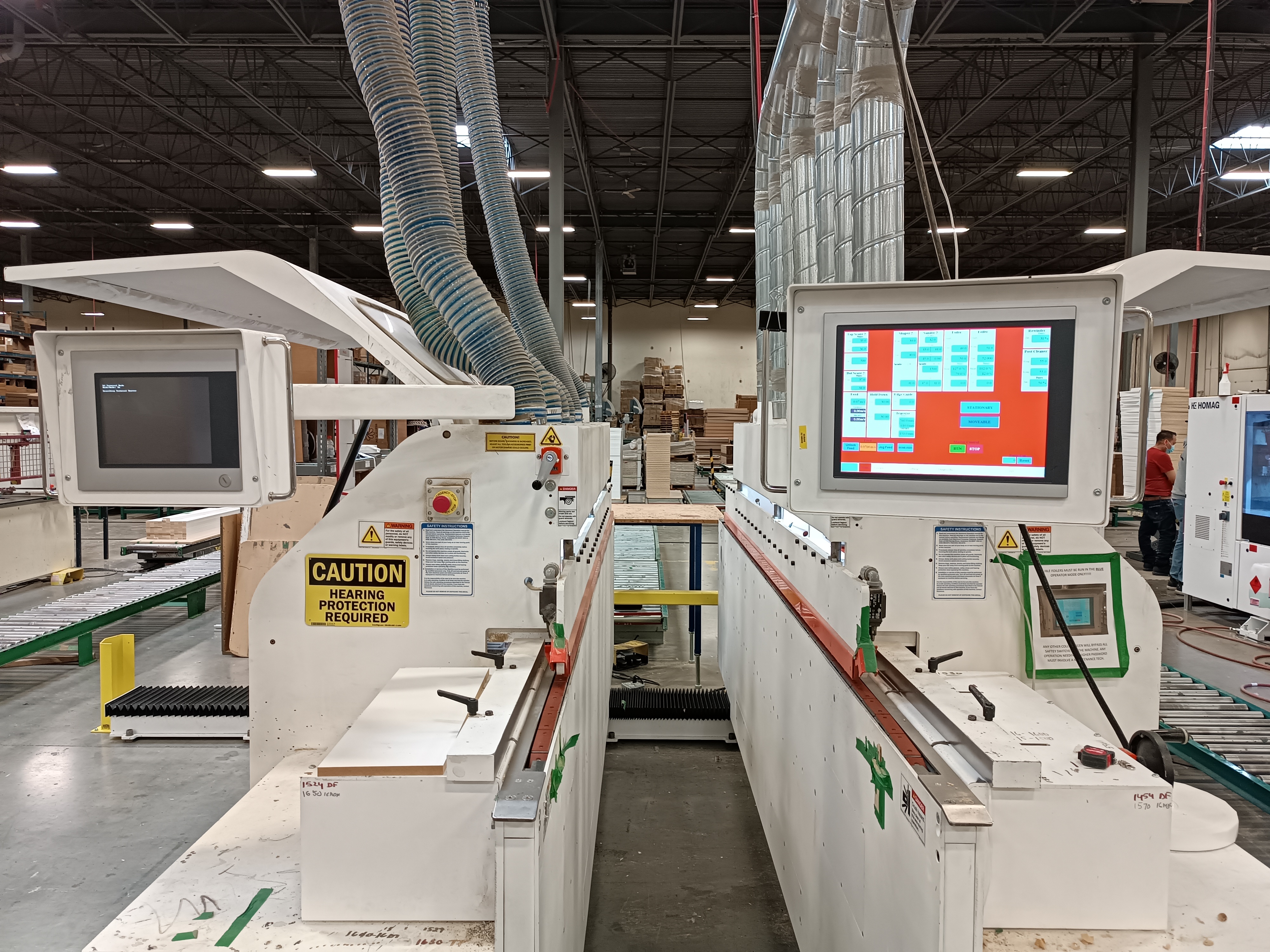

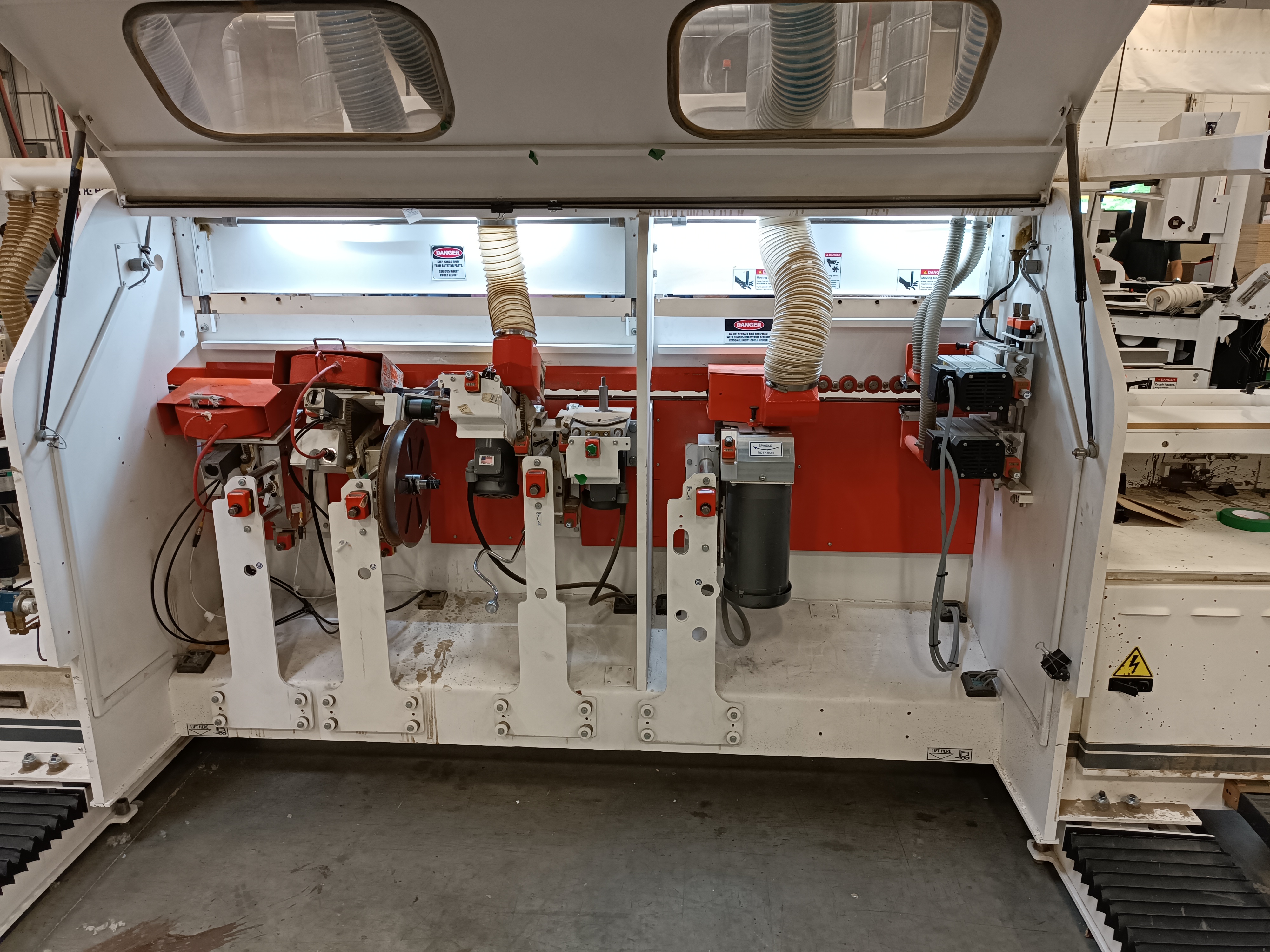

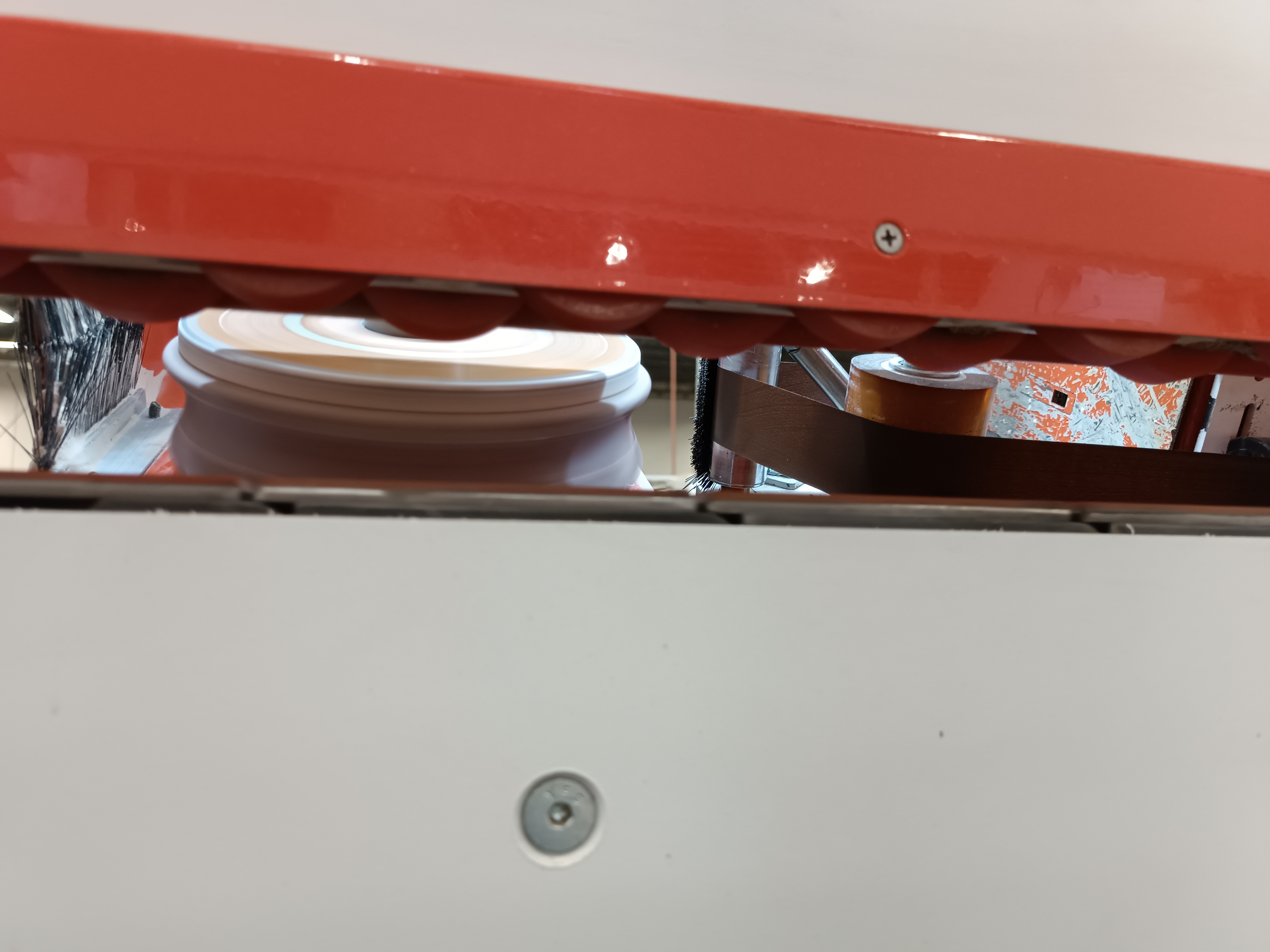

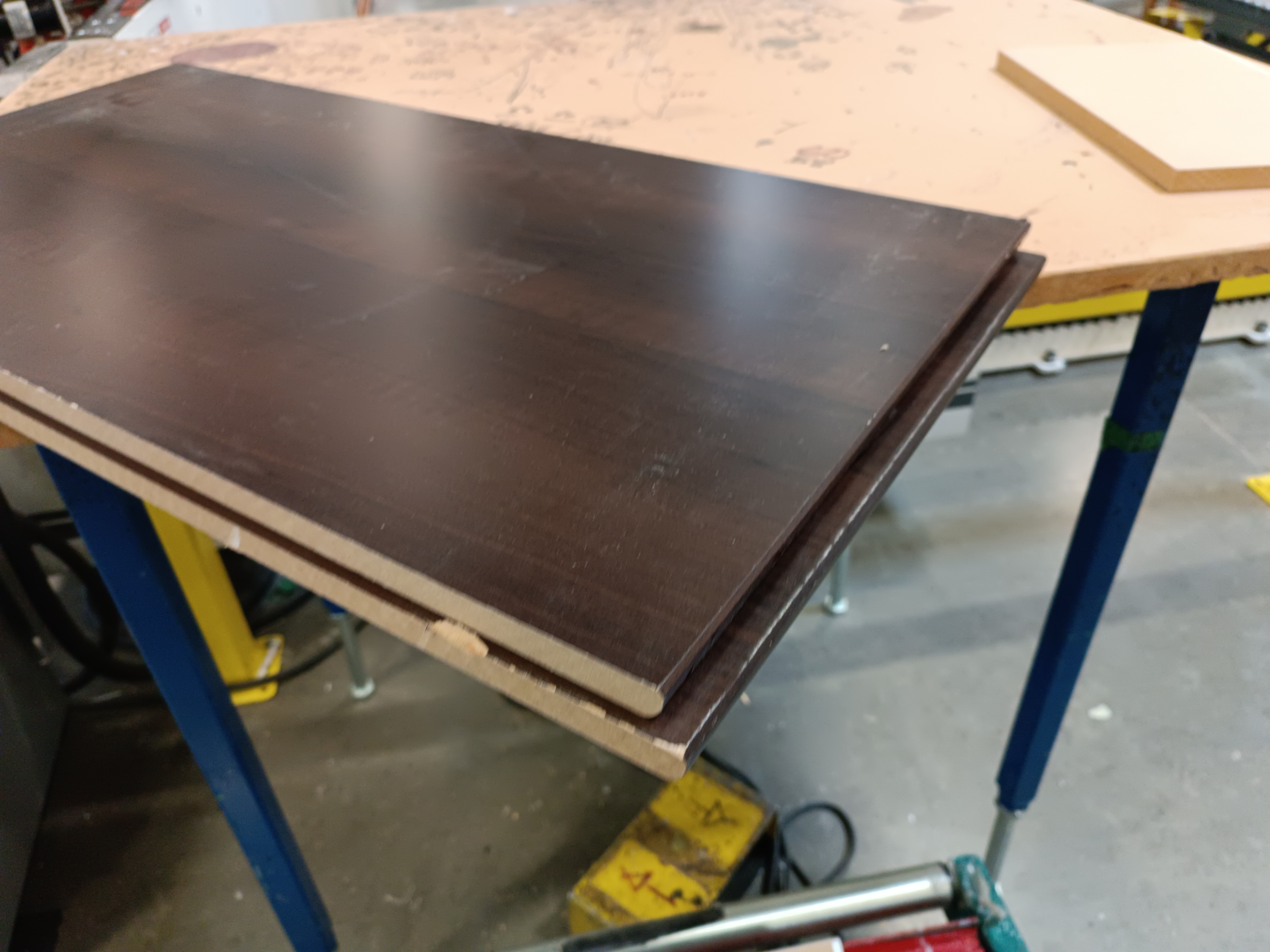

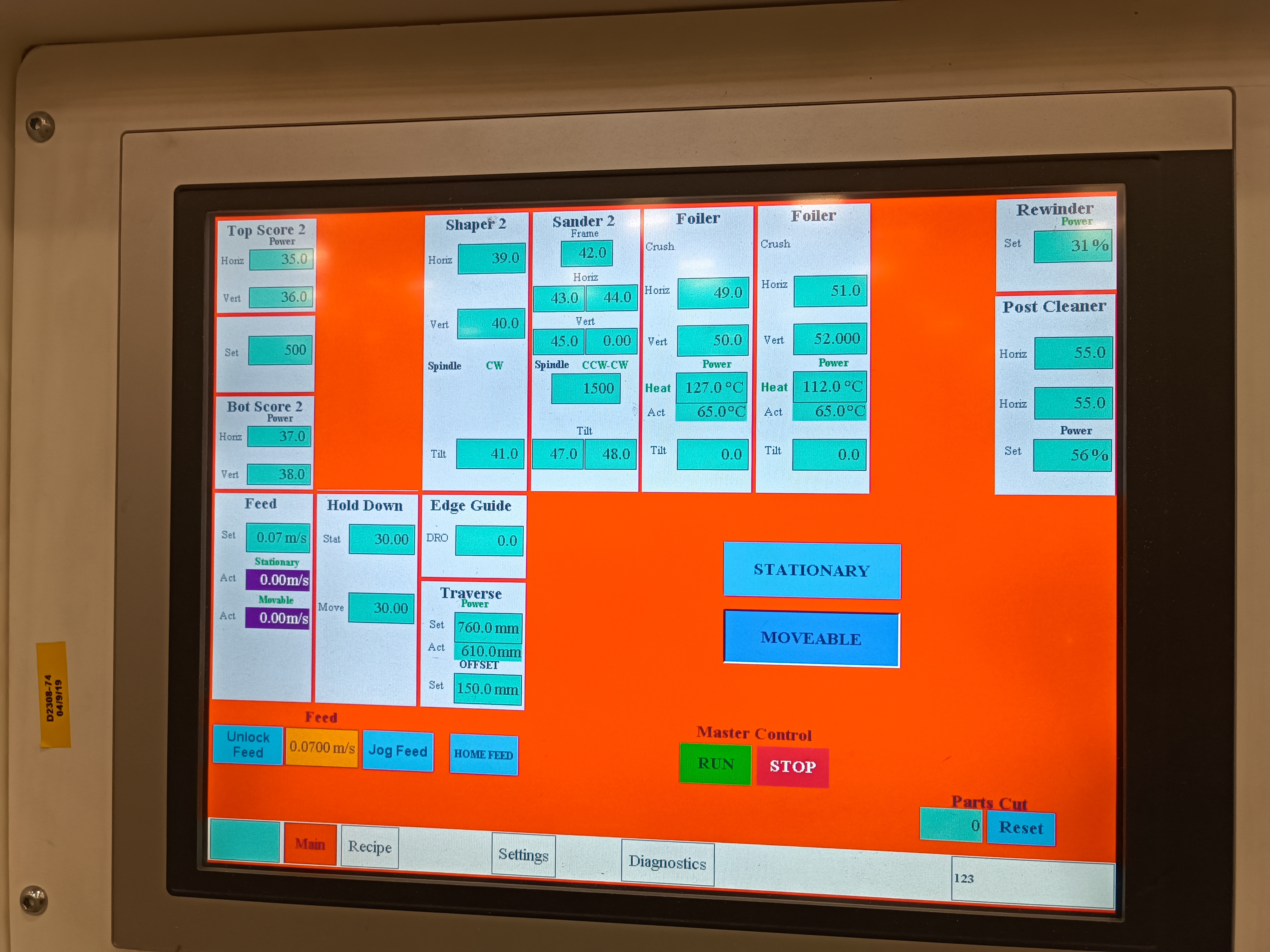

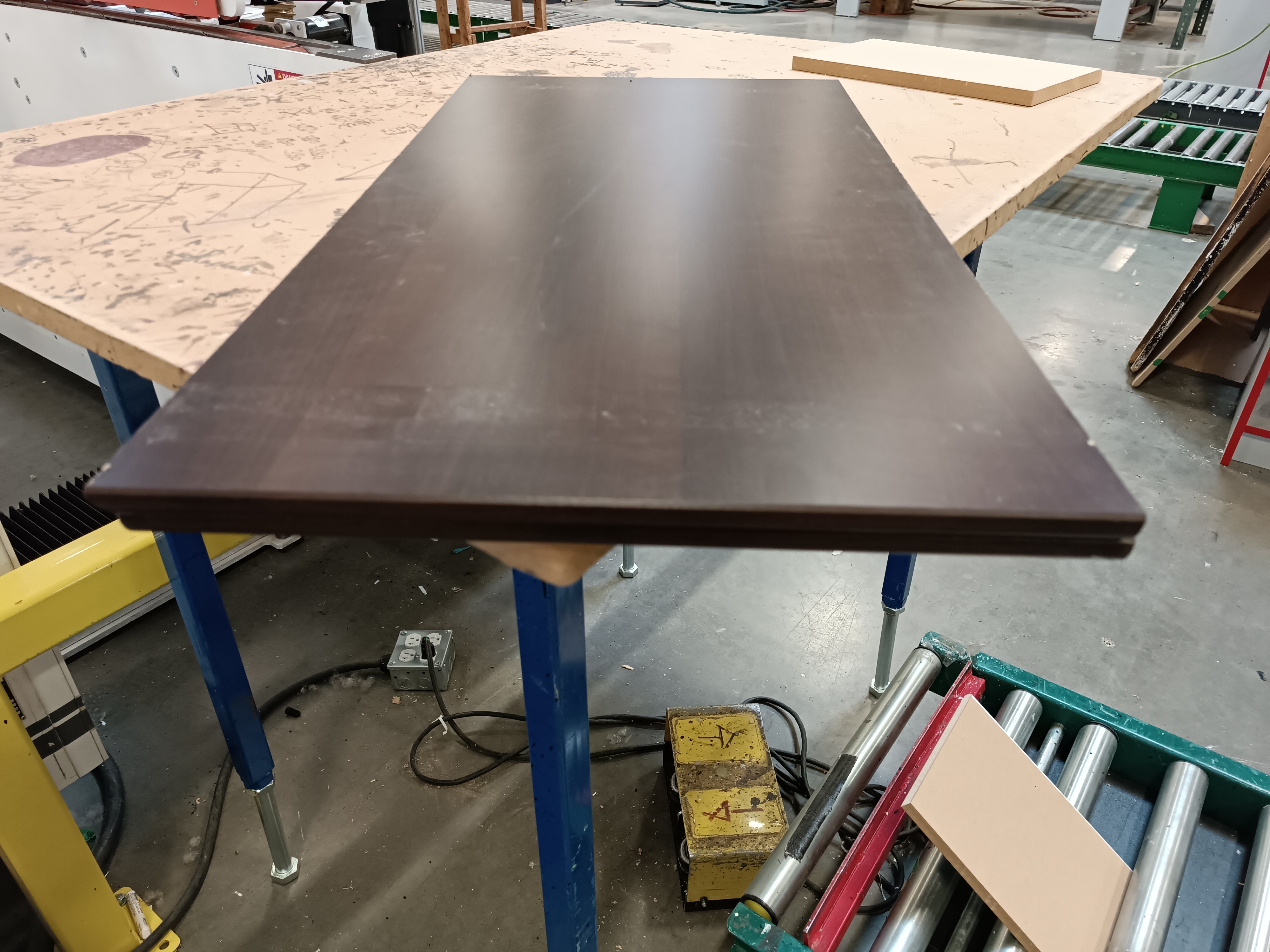

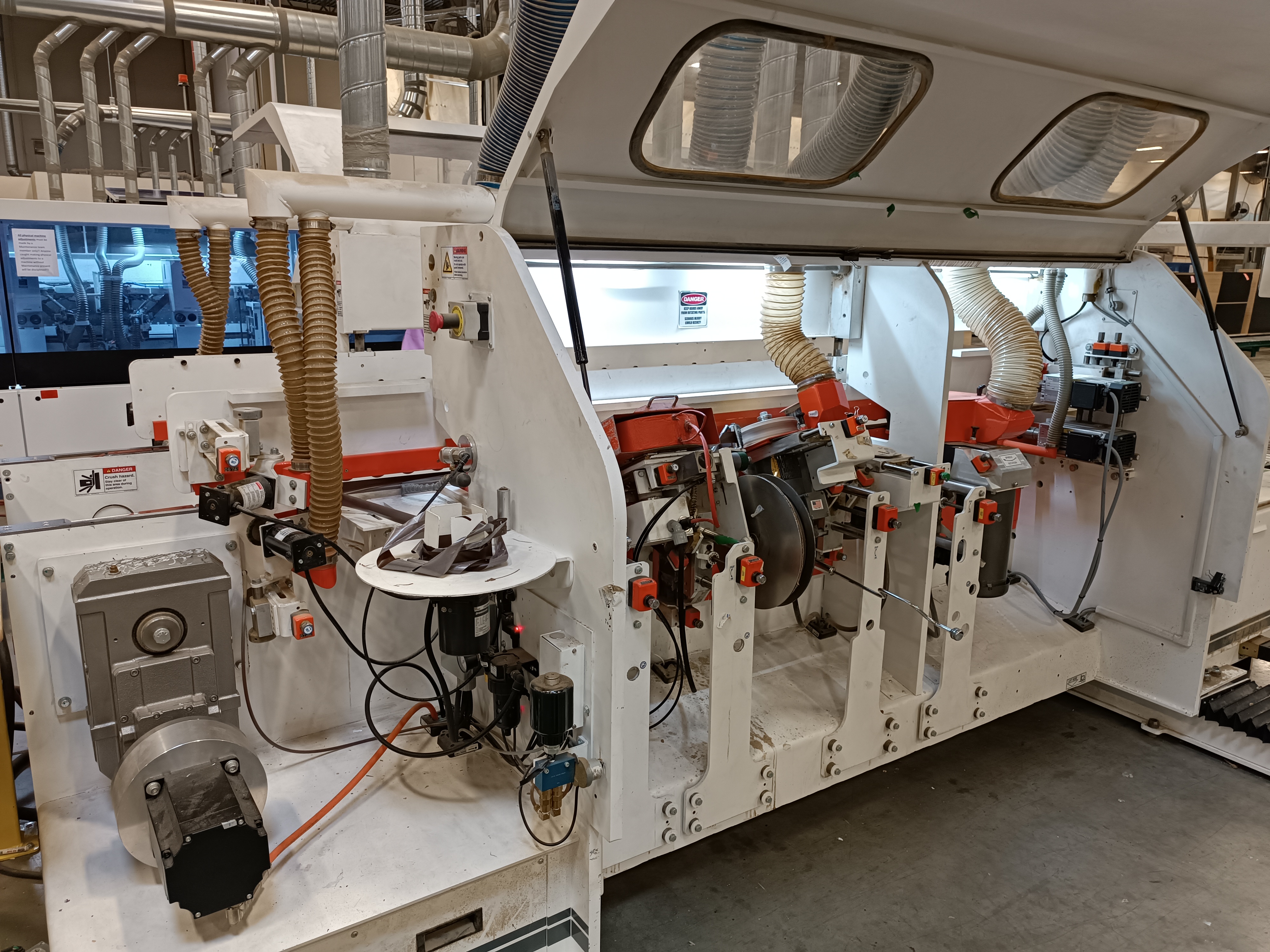

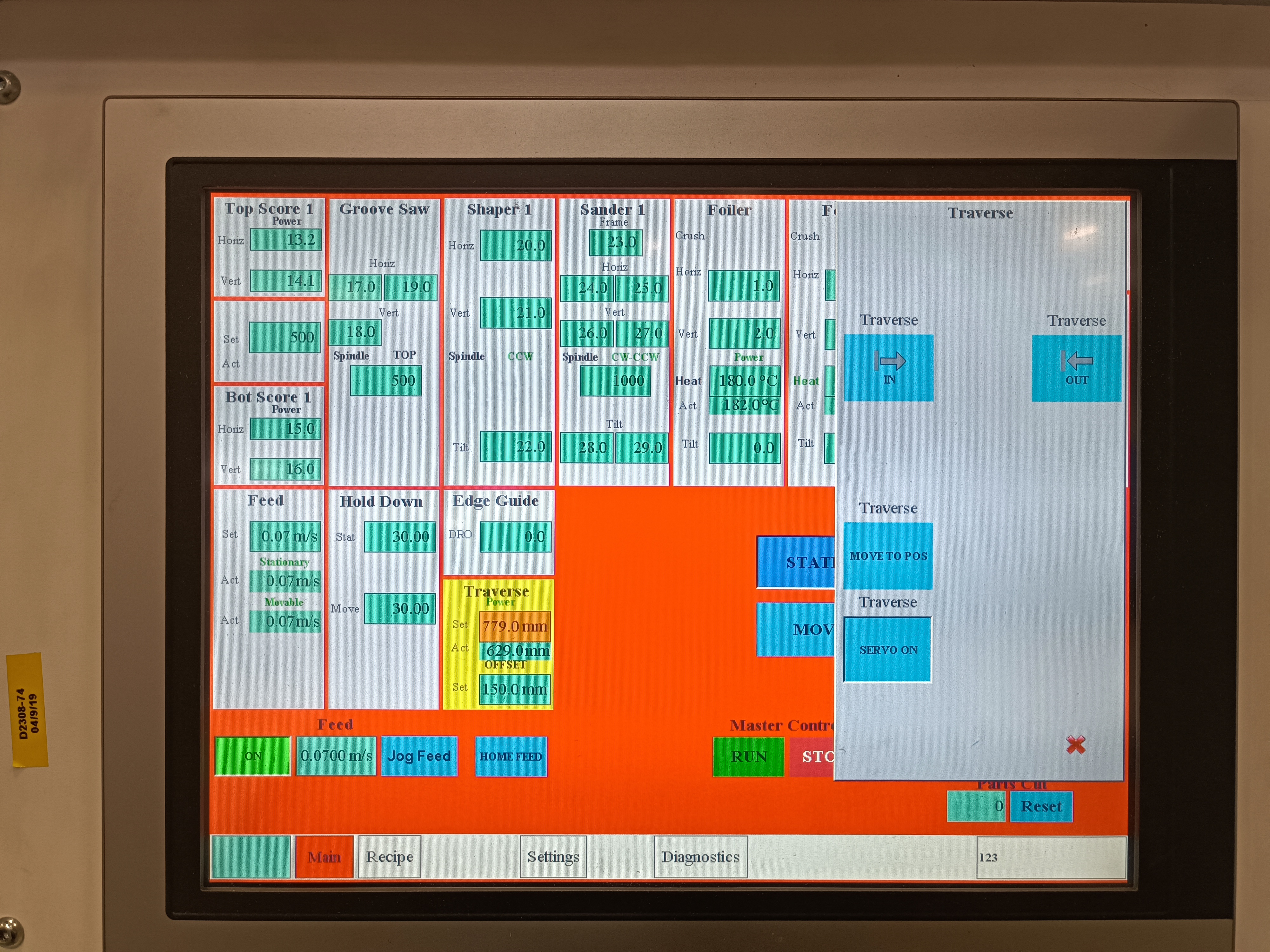

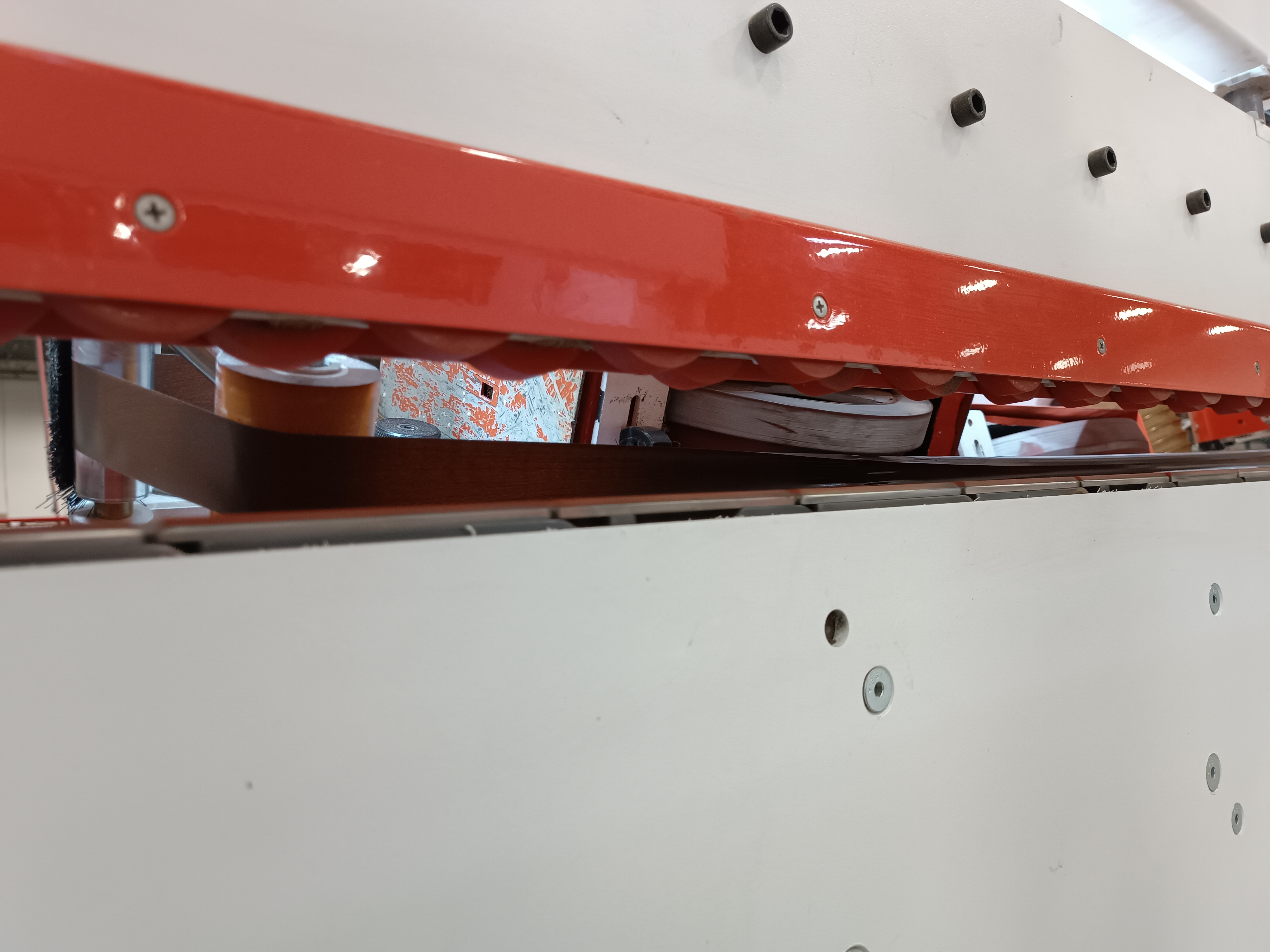

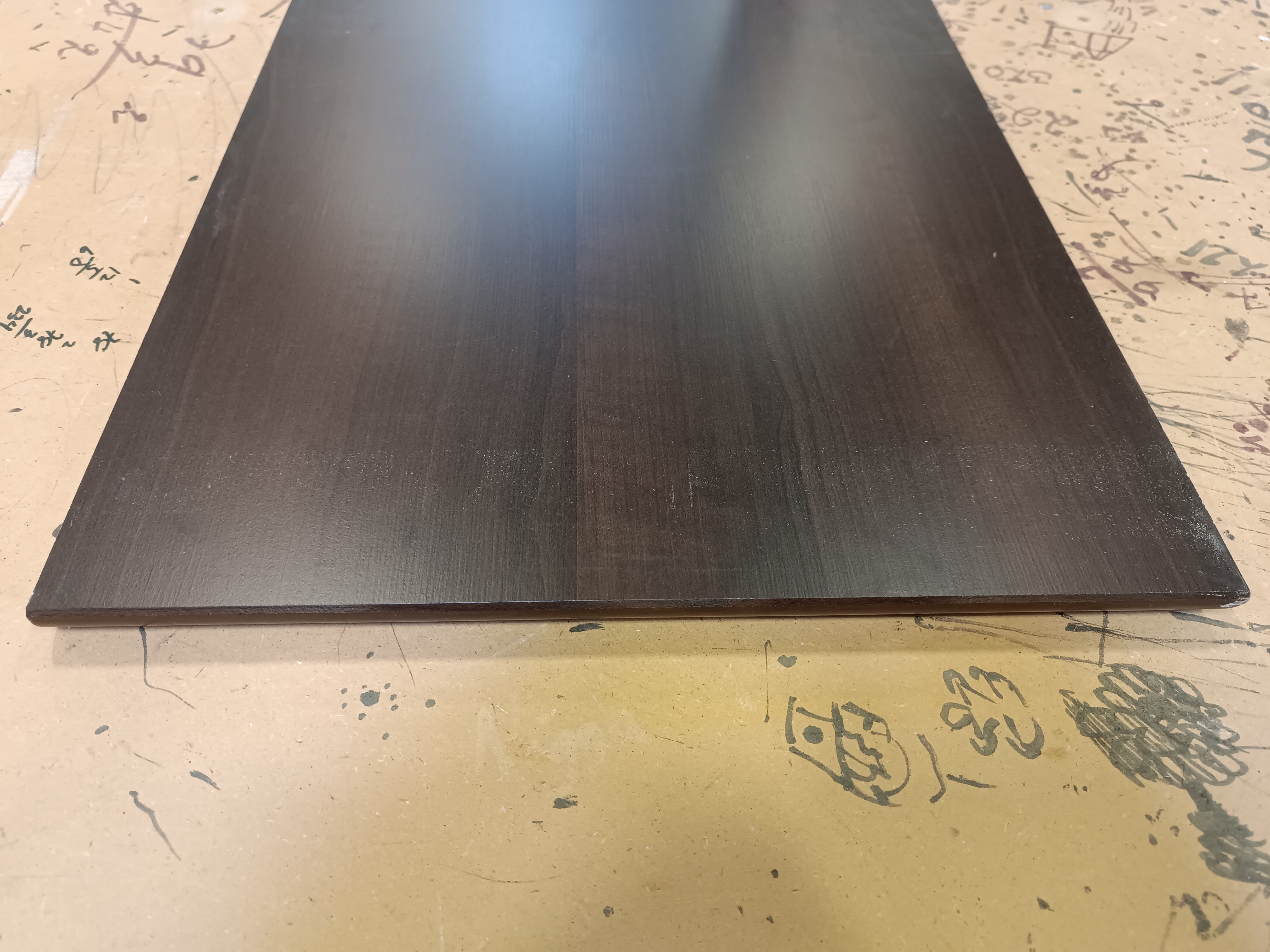

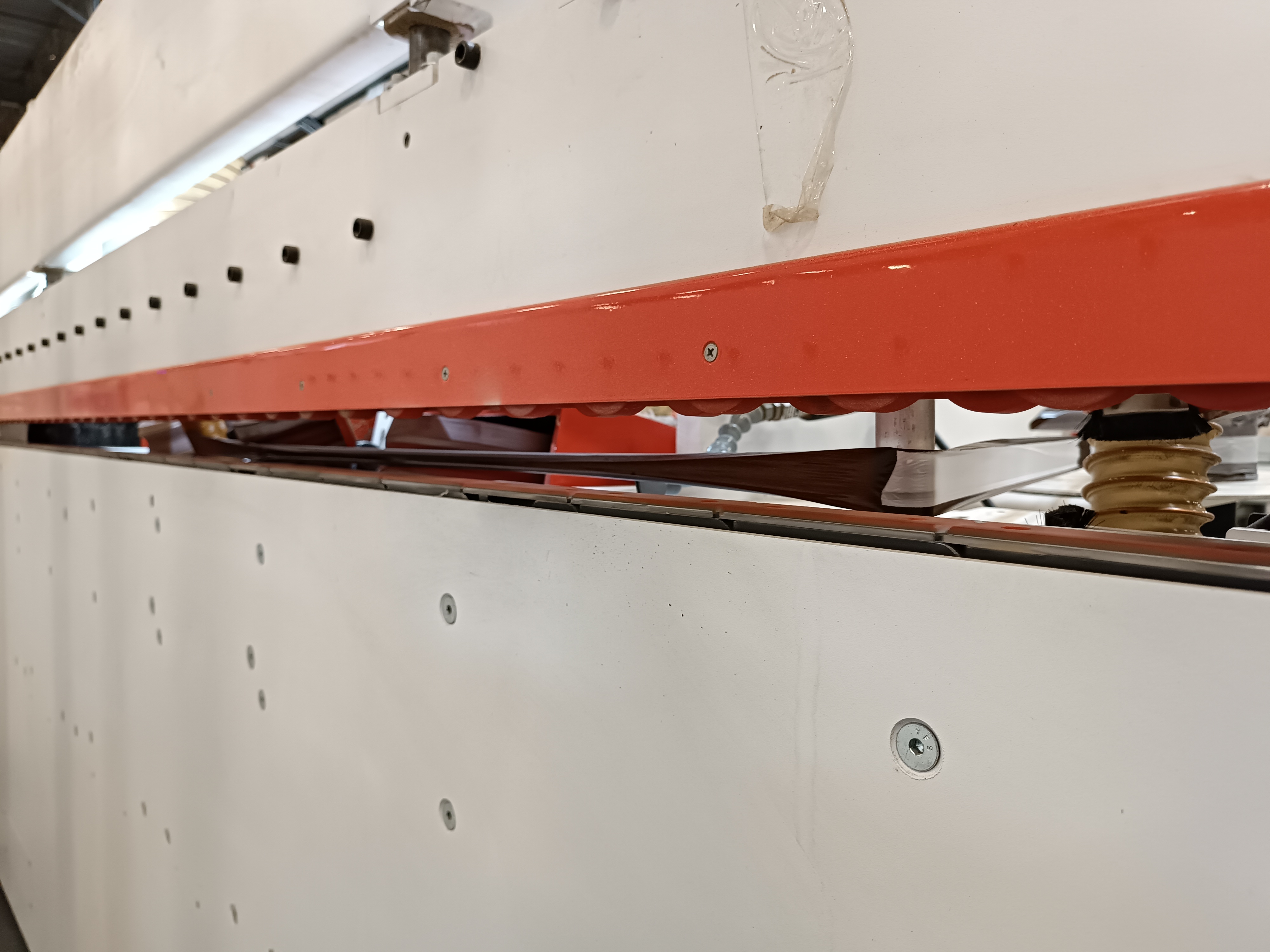

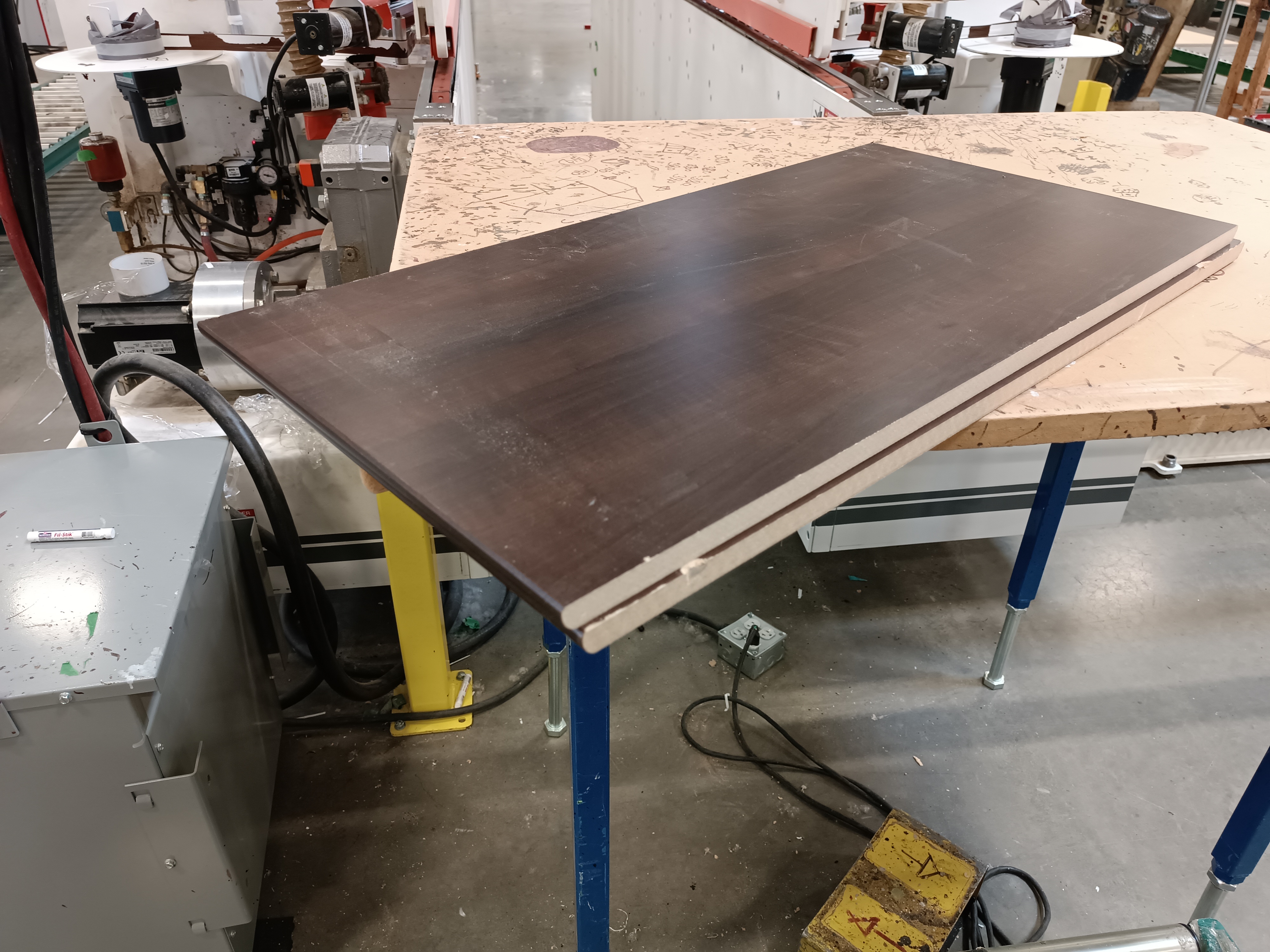

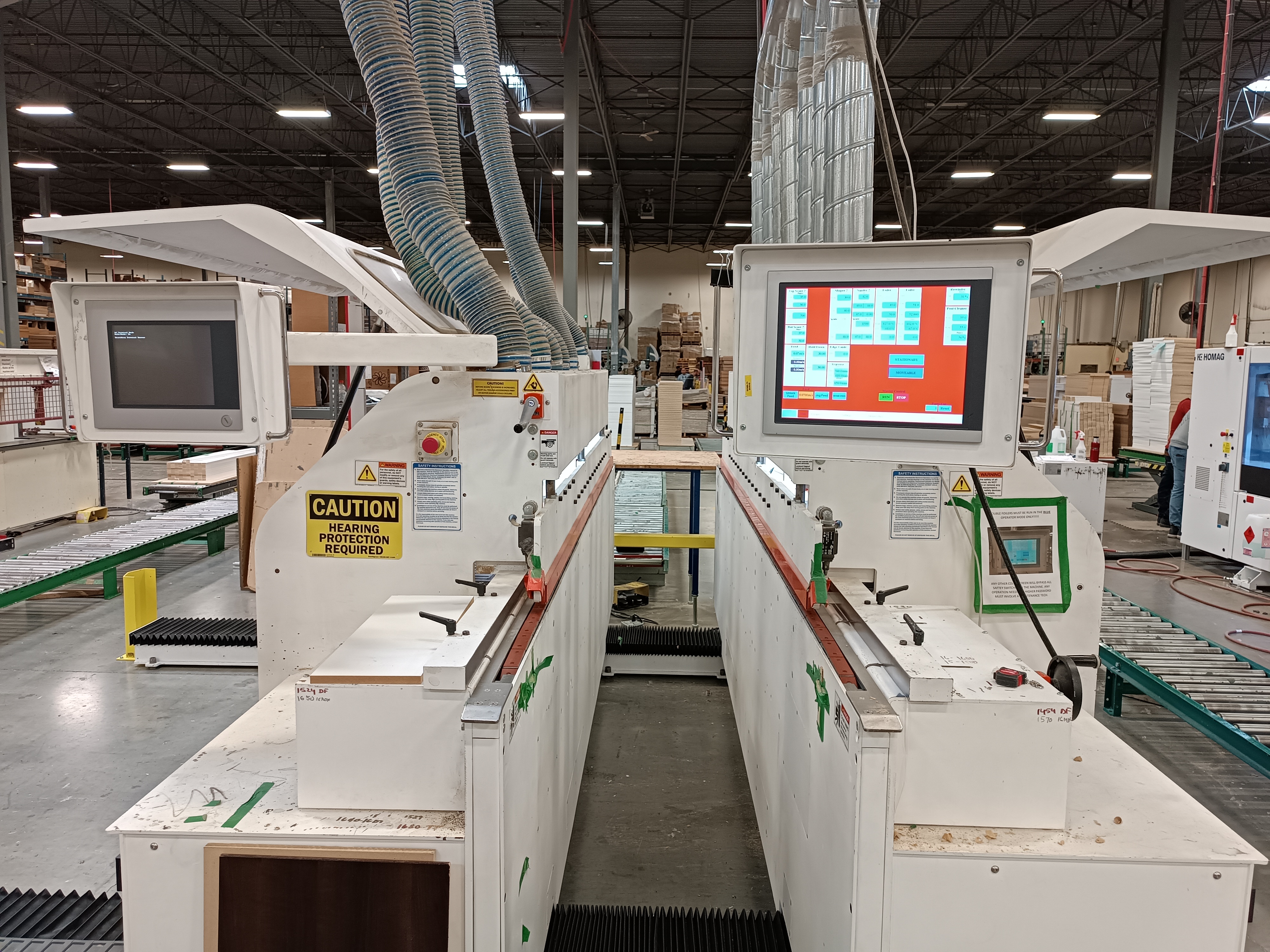

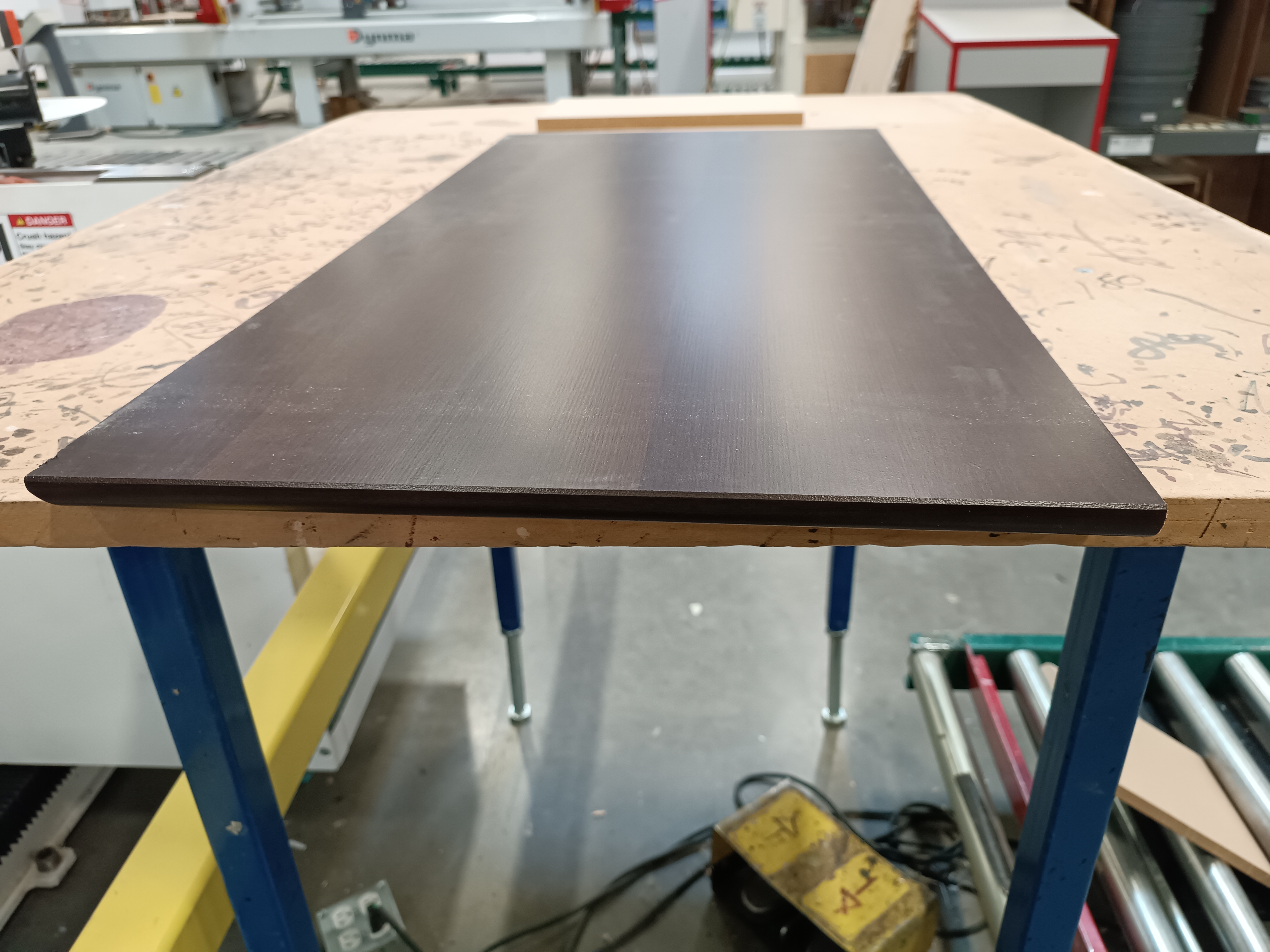

The Voorwood L217 Shaper Foiler is built to profile, sand, and apply transfer-finishing foil to both edges of MDF parts in a single pass. It’s capable of churning out over 27,000 lineal feet (around 8,200 meters) of finished product per shift—depending on part size and how you’re running it. The stock moves through on a bottom-feed chain with grippy pads that keep it locked in place as it hits each workstation. Digital readouts and MicroPoint tilt at the stations, plus a digital eversquare infeed guide, make setup a breeze and tool changes repeatable. The operating doors cover the stations for enhanced safety and reduced noise. This machine is all about efficiency and precision for high-volume MDF edge work.

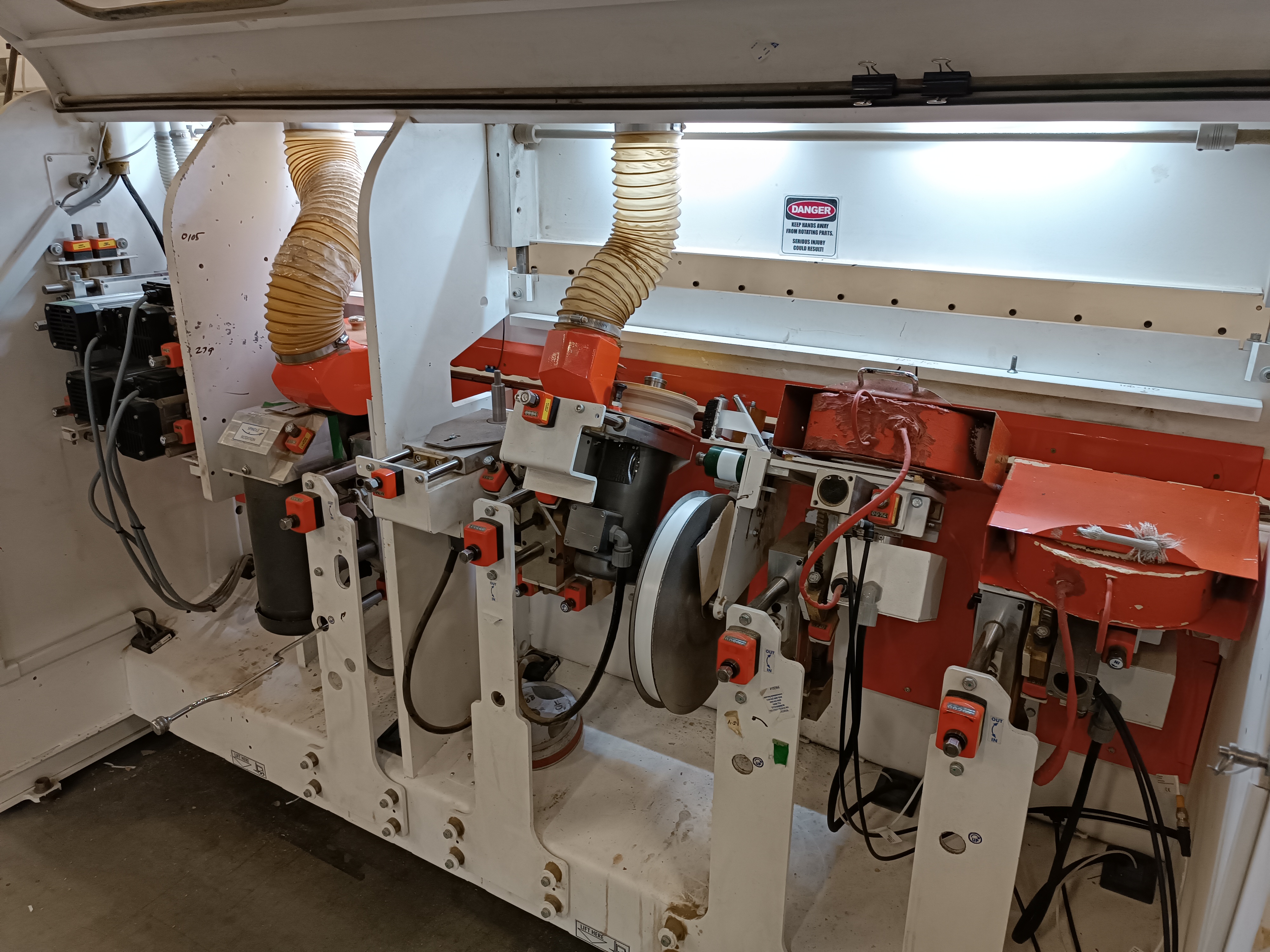

Scoring stations:

• saw dia 4.5"
• vertical adjustment 2.25"
• horizontal adjustment 3"
• 1.75 HP - 6,000 RPM.

Grooving station:

• 1" spindle
• spindle adjustments 3" horizontal and vertical
• 1.75 HP
• 5.5" blade diameter.

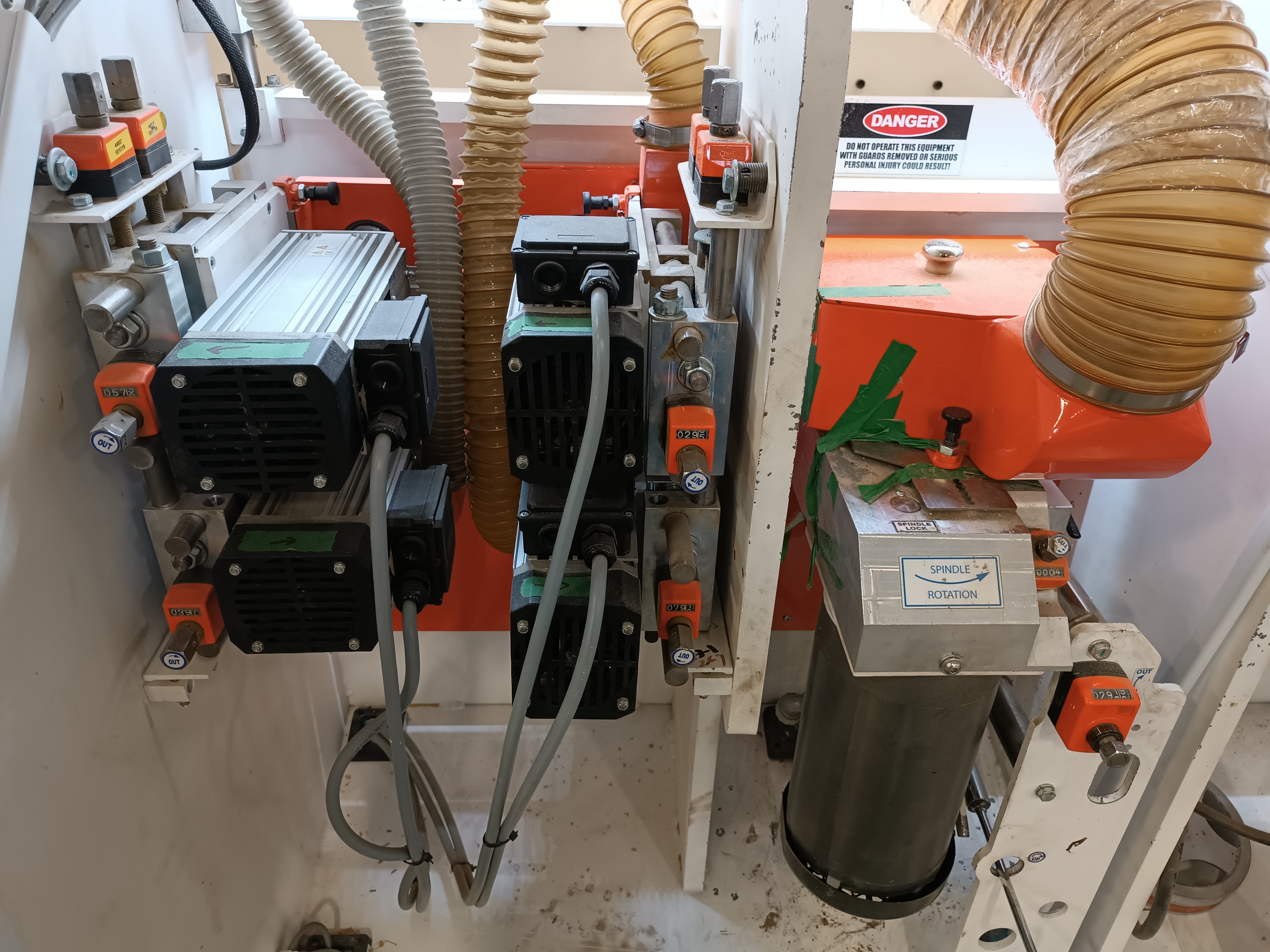

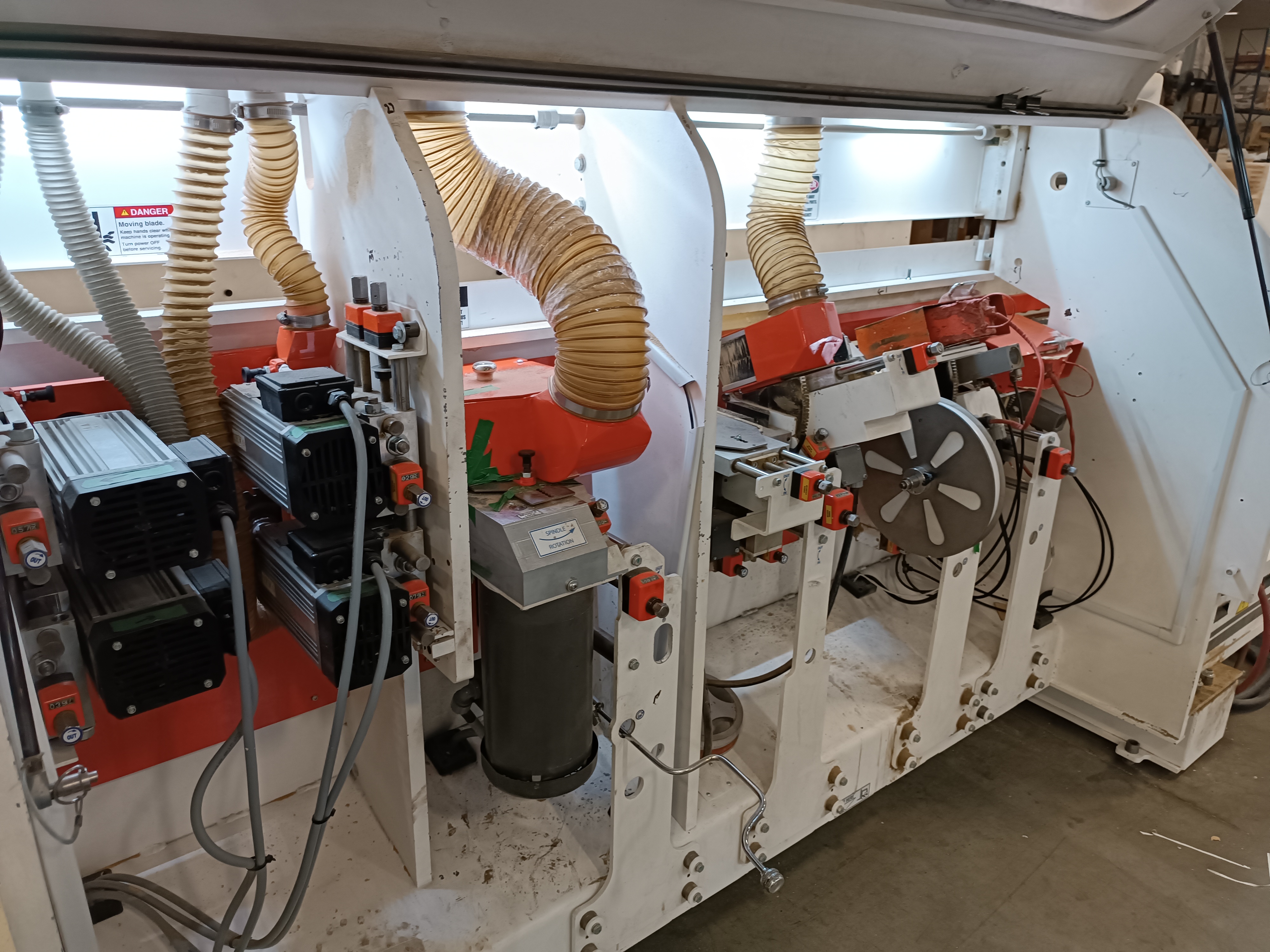

Shaping stations:

• 1.25" spindle
• 2.875" spindle length
• spindle adjustment 0-30 degree, 6" horizontal, 3" vertical
• 7.5 HP
• max cutting head dia 6"

Sanding station:

• spindle dia 0.984"
• spindle length 3"
• spindle adjustment 0-30 degree, 6" horizontal, 3" vertical
• 0.75 HP

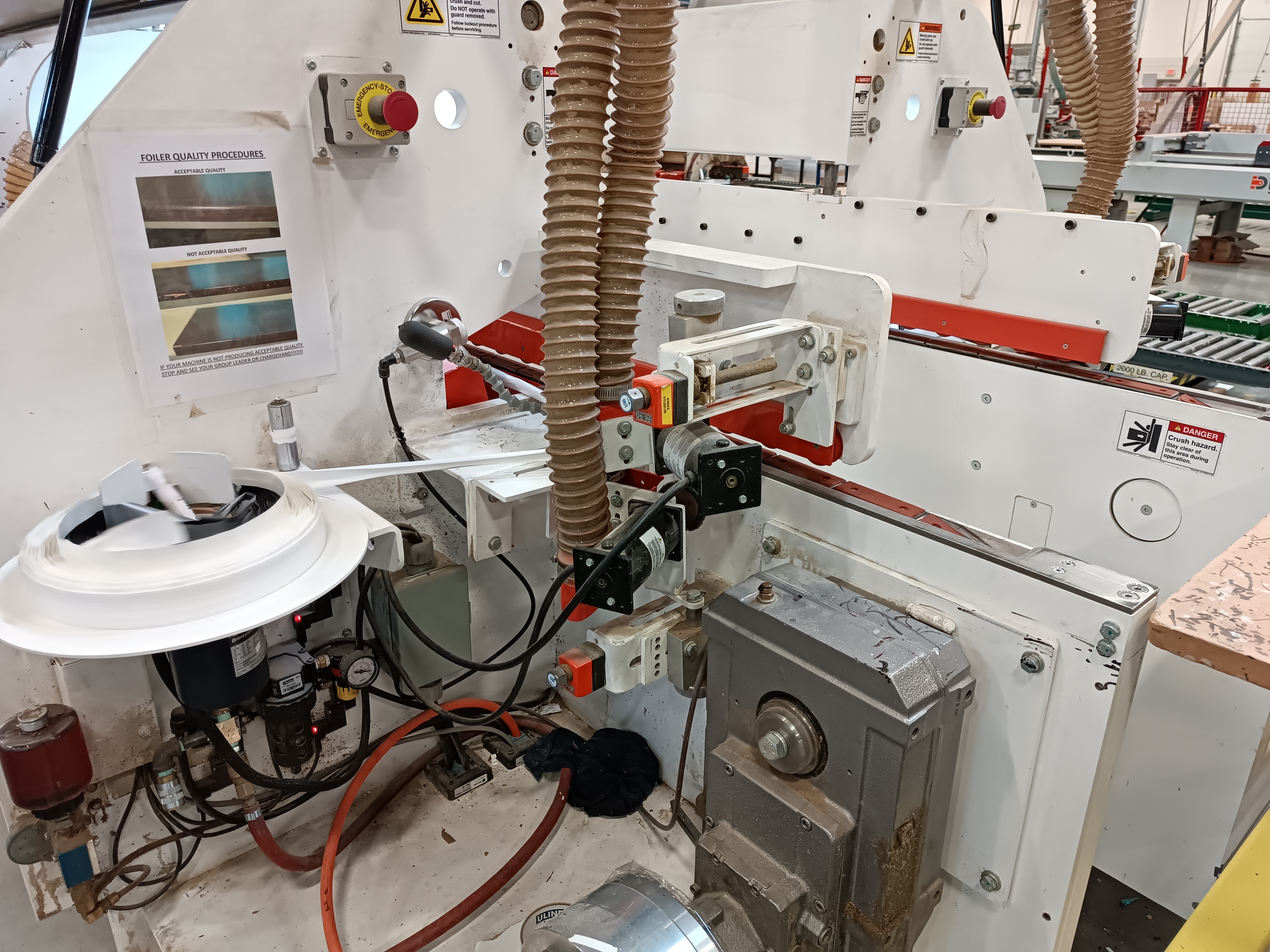

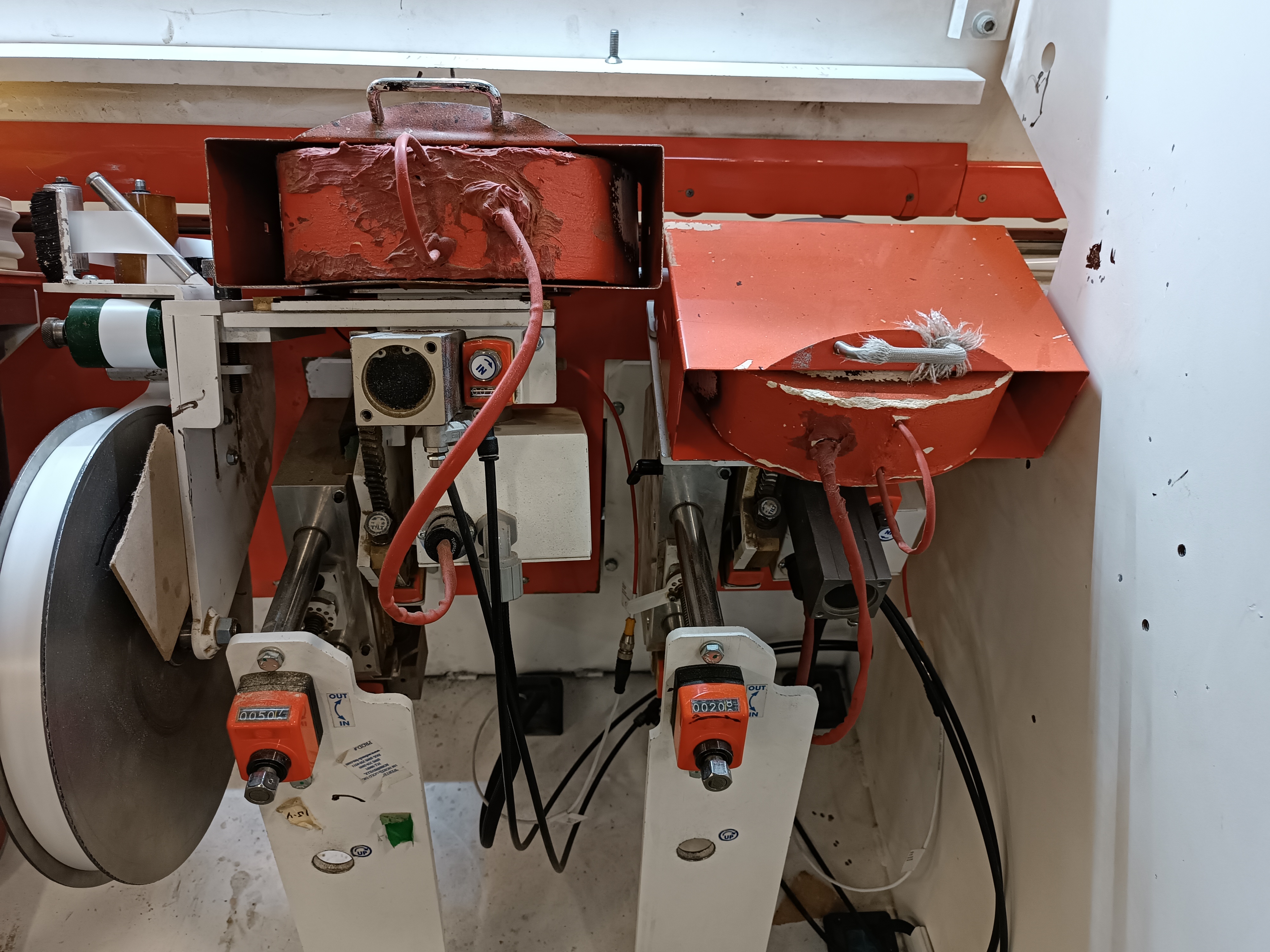

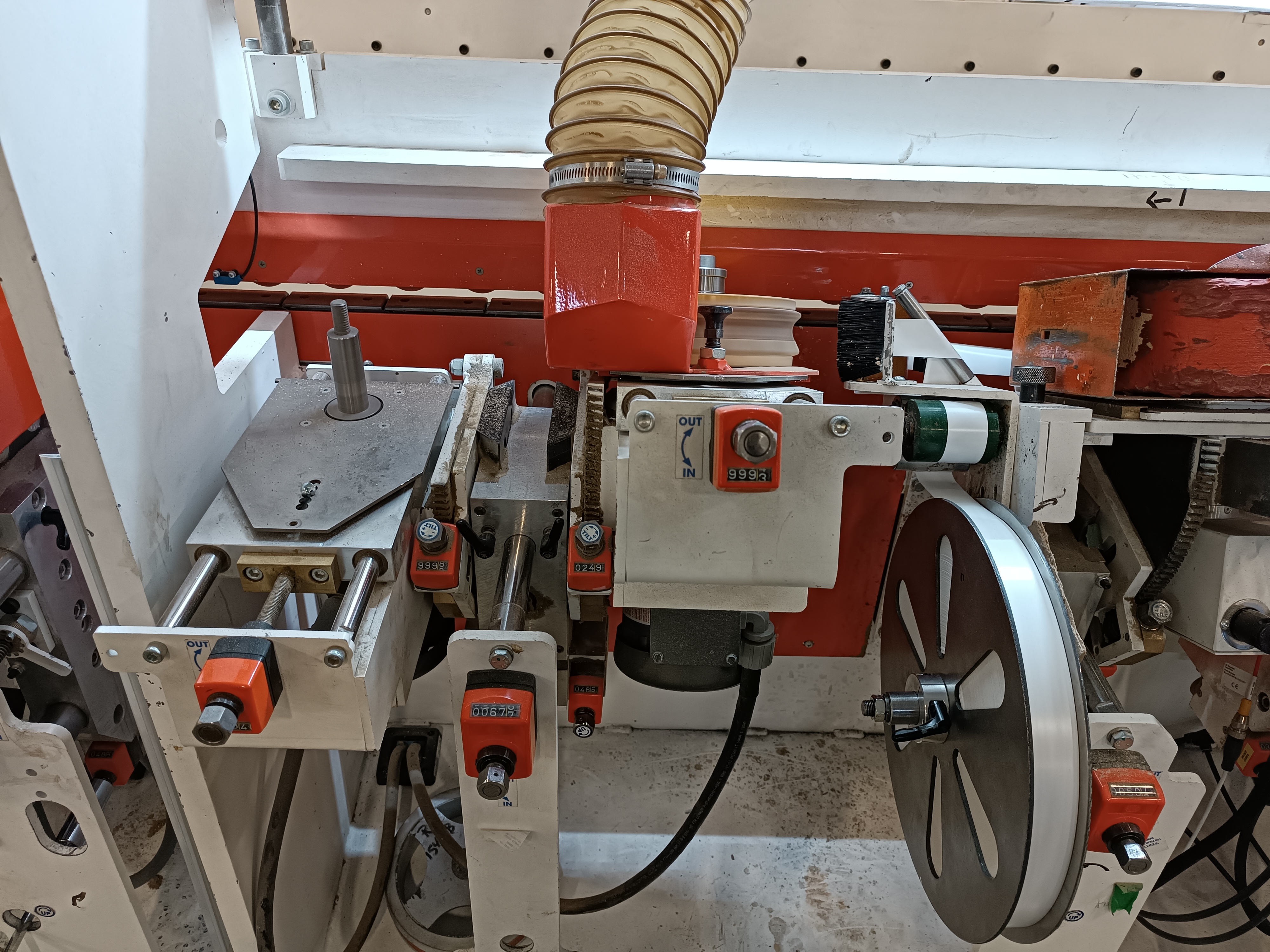

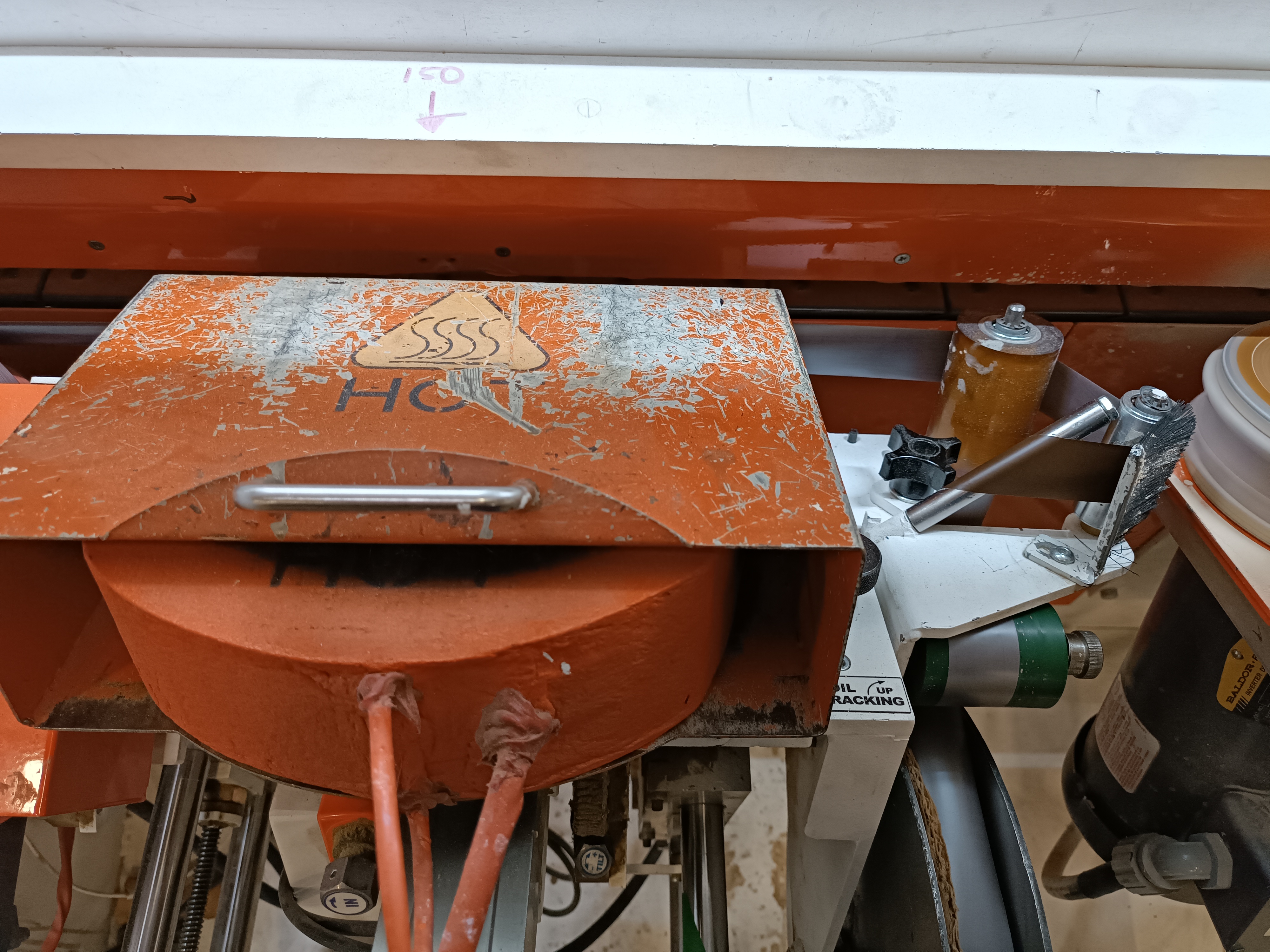

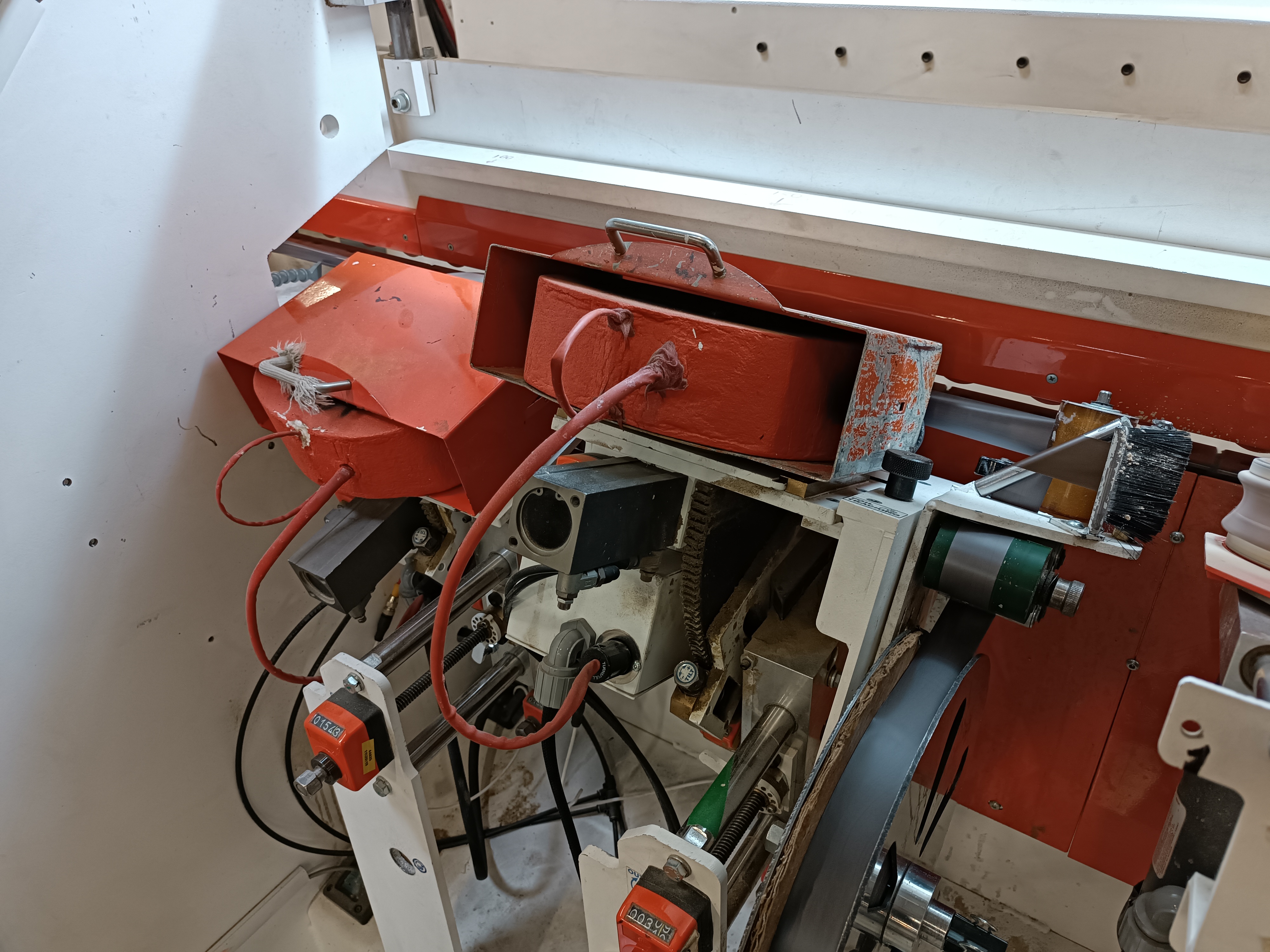

2 Foiling stations:

• up to 50 FPM
• 5.5" in/out
• 2.25: lateral
• -10 to +52 degree angle

Top and bottom post cleaners.
