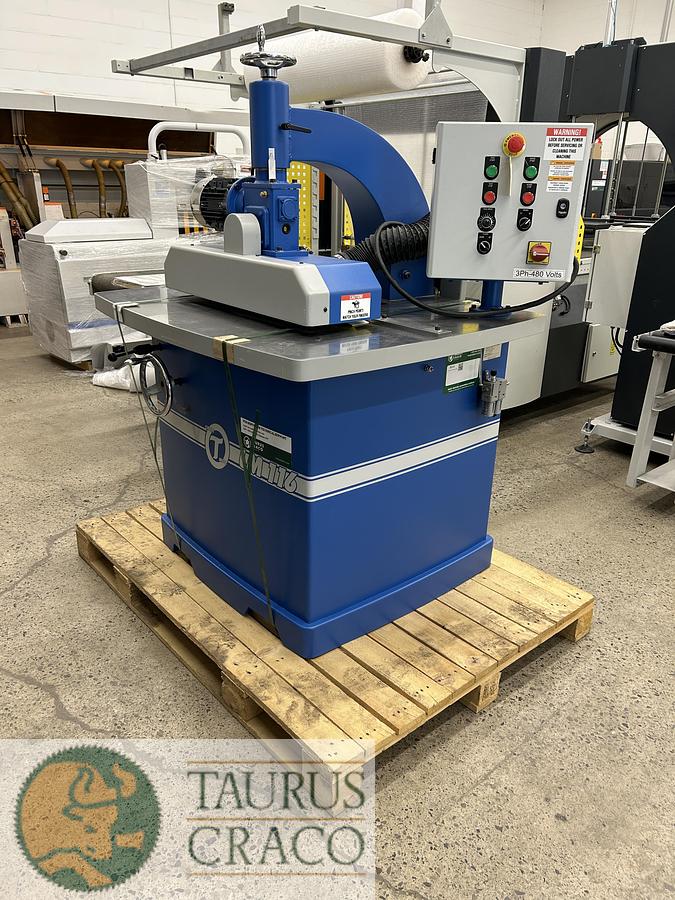

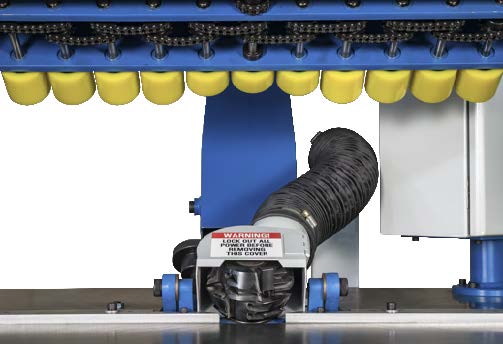

Circle T Easy Lock Miter Machine Model LM116

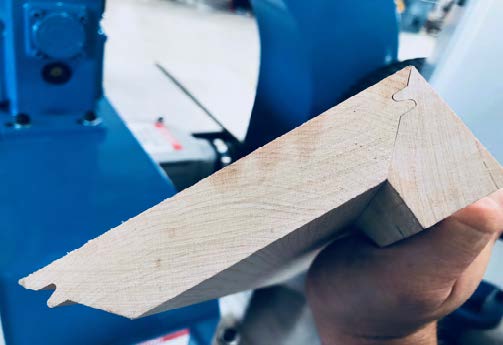

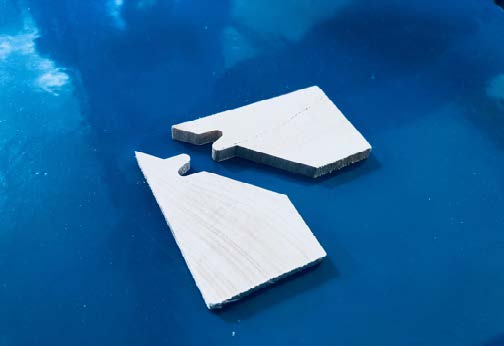

The Circle T LM116 Lock Miter Machine, a standout in woodworking. This machine is engineered for precision and simplicity, making it a go-to for crafting lock miter joints. It’s widely used for projects like face-frame cabinetry, beams, pillar and column wrapping, box newel posts, and even solid surface work.

Its key features really shine:

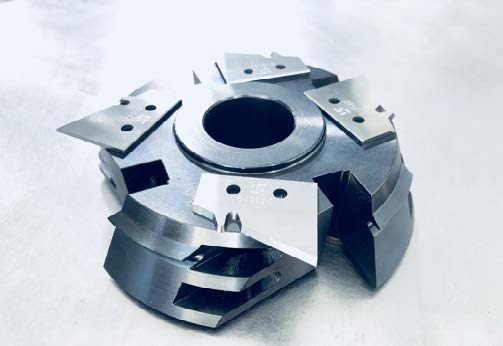

• Single Pneumatic Powered Tilting Spindle: Cuts both A and B profiles without needing separate setups, streamlining the process.
• No Downtime: Forget the hassle of constantly tweaking or swapping out tooling—once it’s set, you’re good to go.
• No Side-Running: Pieces stay flat, saving time and reducing awkward handling.

The “EASY LOCK MITER LM116” upgrade seems to promise even smoother operation, likely with enhanced controls or adjustments. It’s a solid pick for anyone looking to boost efficiency and nail those tight, clean joints every time.

APPLICATION SPECS:

•    Maximum Material Thickness: 1"

•    Minimum Material Thickness: 1/2"

•    Minimum Material Width: 1-1/4"

•    Minimum Material Length: 12"

•    Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)

•    Feeder Speed 5-30 FPM

DRIVE PACKAGE SPECS:

•    Spindle Motor: 5 HP, 230/460v, 3ph

•    Feed Motor: 0.5 HP

•    Spindle Diameter: 1-1/4"

•    Spindle Speed: 8,200 RPM

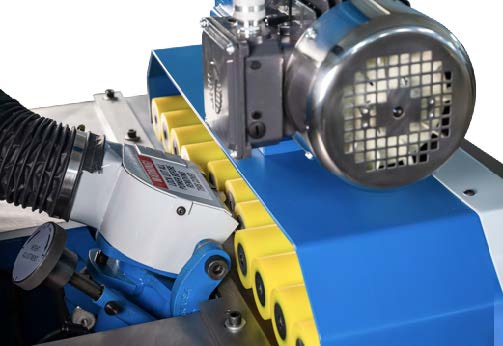

•    Variable Speed 11-Roll Positive Grip Feeder

UTILITY REQUIREMENTS:

•    Dust Collection Requirements: 670 CFM, 4" Outlet

•    Pneumatic Requirements: 100 PSI .5 CFM

•    25AMP Disconnect at 480 3 phase

DIMENSION SPECS:

•    Table Size: 40" x 47"

•    Footprint: 54"W x 42"L x 60"H

•    Shipping Dimensions 57”L x 48”W x 76"H

•    Shipping Weight 1,400 LBS
