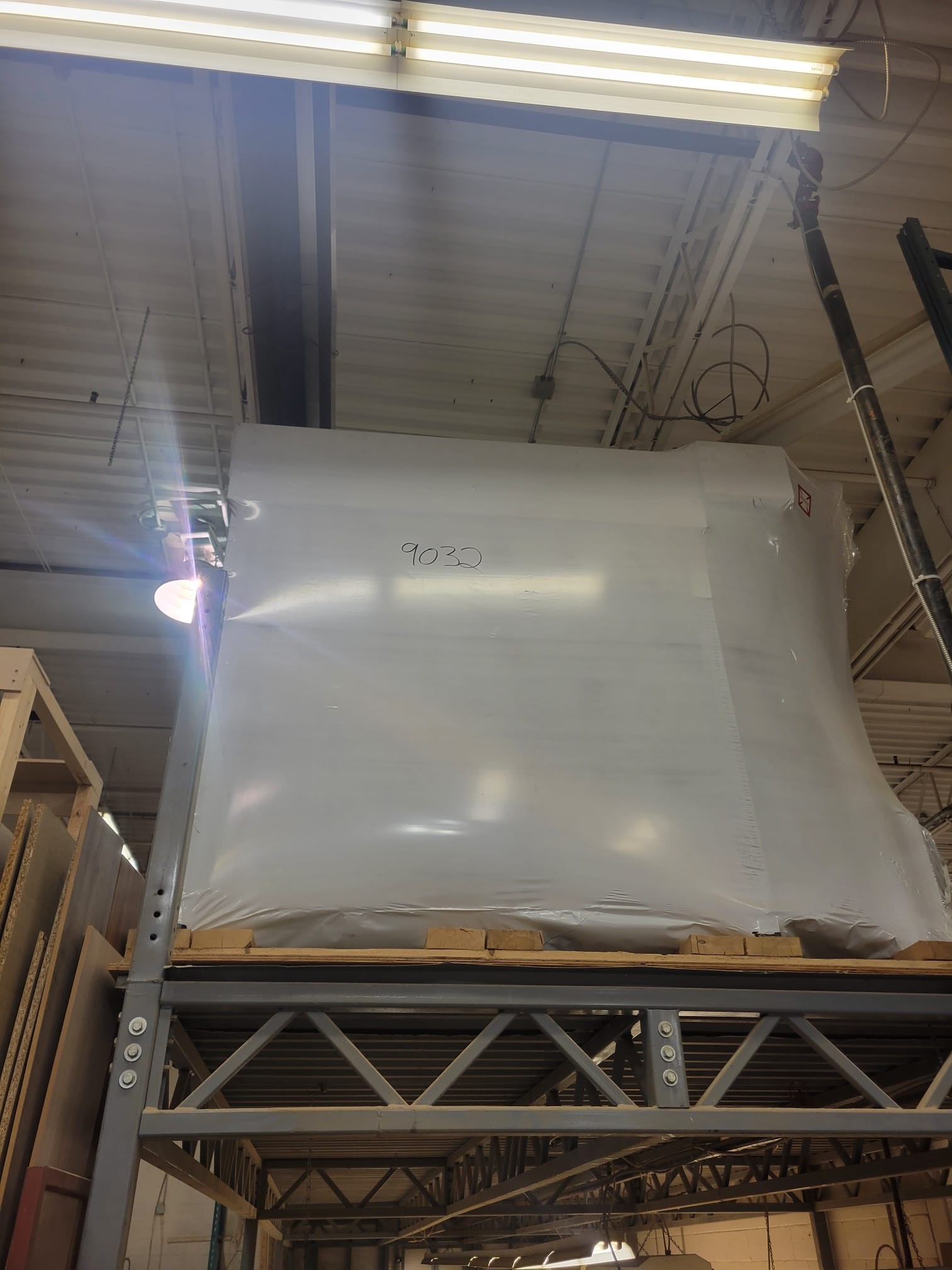

2023 Doucet (NEW) WHR-36 Return Conveyor with 3'x5' Air Table

Built for Holz-Her Edgebander, model SPRINT 1329 (with Holz-Her Infeed Air Table)

NOTE: will work for similar length edgebanders of different models

The Return Conveyor Model WHR-36 is configured as follows:

• 36" wide x 5' long receiving conveyor with 2" Ø PVC rollers on 3" centers
• 36" wide x 25' long return conveyor with 2" Ø PVC rollers on 3" centers
• Belt transfer device 12" wide featuring 9 transfer belts
• A transfer by-pass switch
• Variable speed switch located on operator console
• A panel deviator to redeploy narrow parts over several rollers
• A PT-90 panel turner to return long rectangular panels lengthwise after finishing of their narrow side with extended capacity
• Pass height: 30" to 42"
• Compressed air requirement: 10 cfm @ 90 psi
• A right hand return
• OEM FEATURES
• Transfer belts material is Celmire 10mm diameter color orange
• Moveable Outrigger Support (# D150-029)
• Infeed device for Holz-Her: motorized infeed rollers # 5L-6C-1B12-1B16
