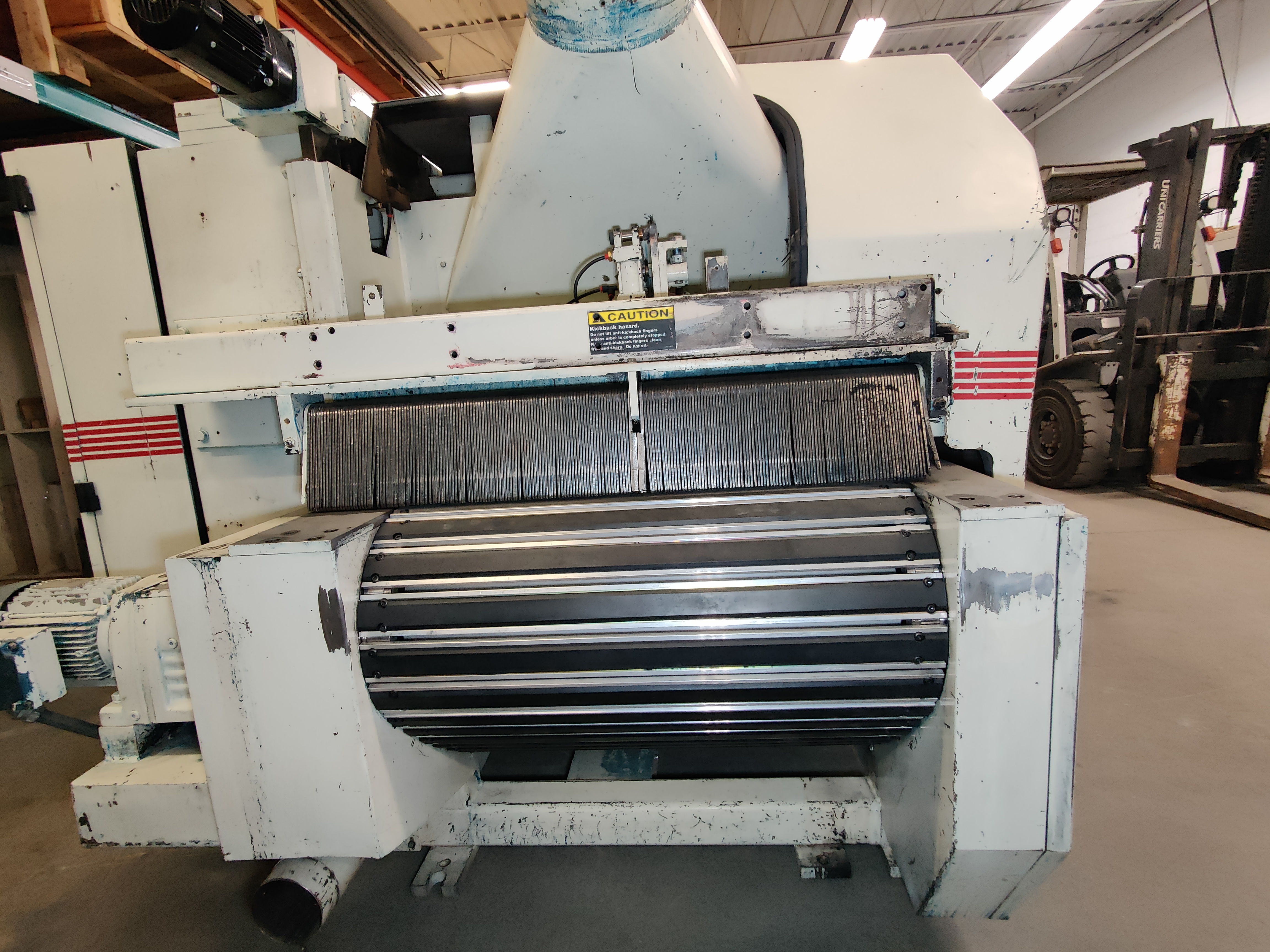

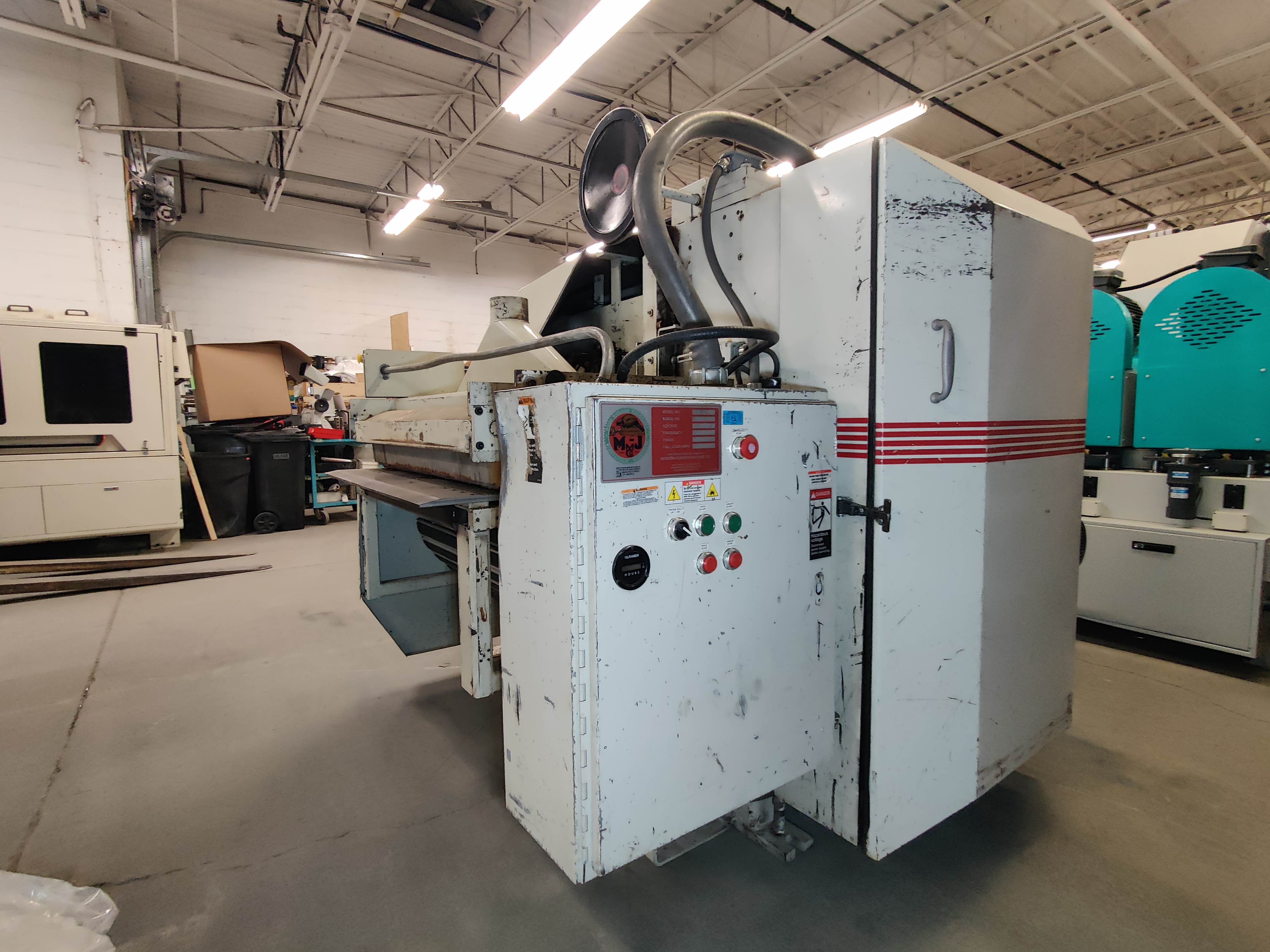

Mereen-Johnson 431 DC-J

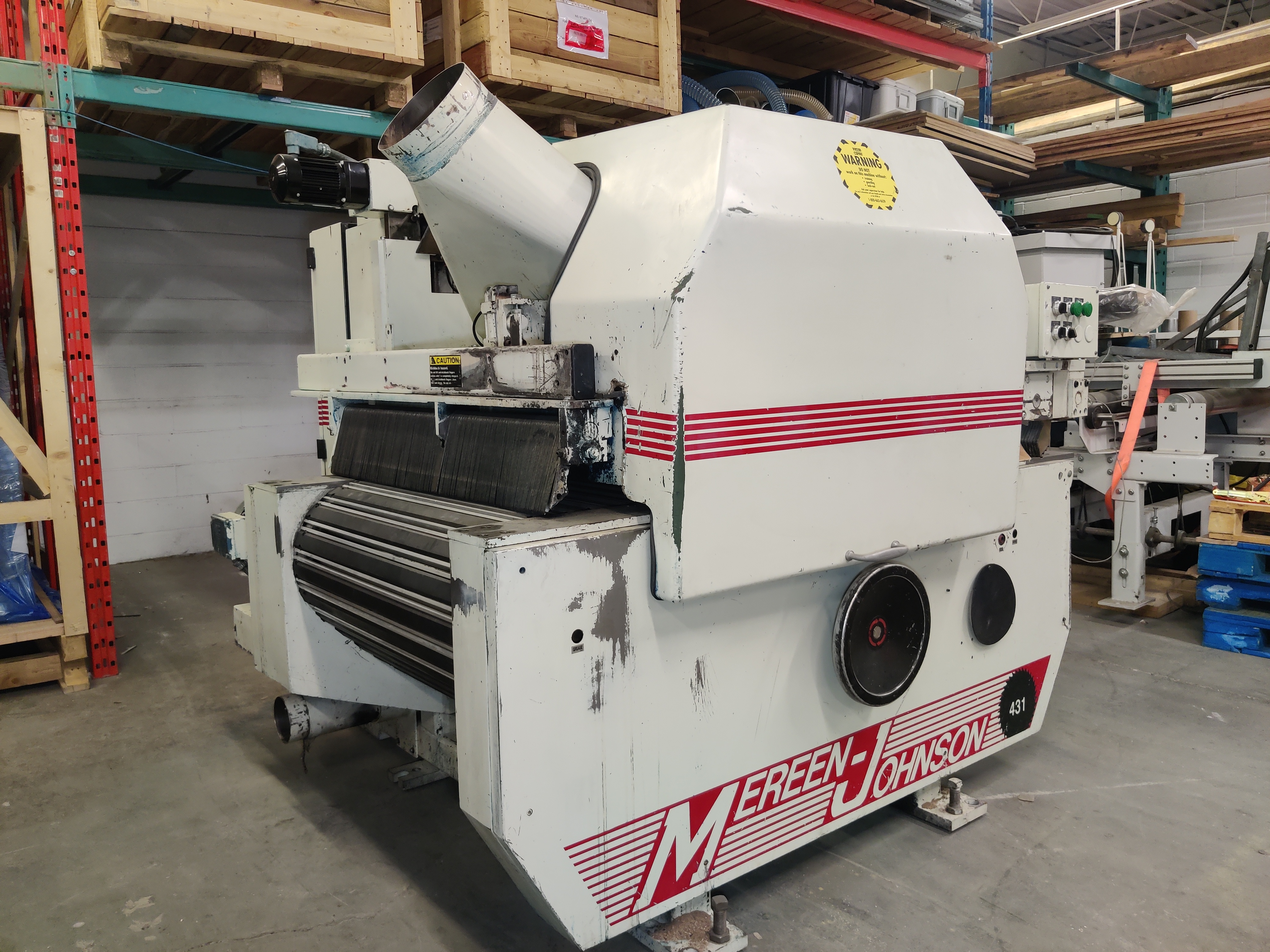

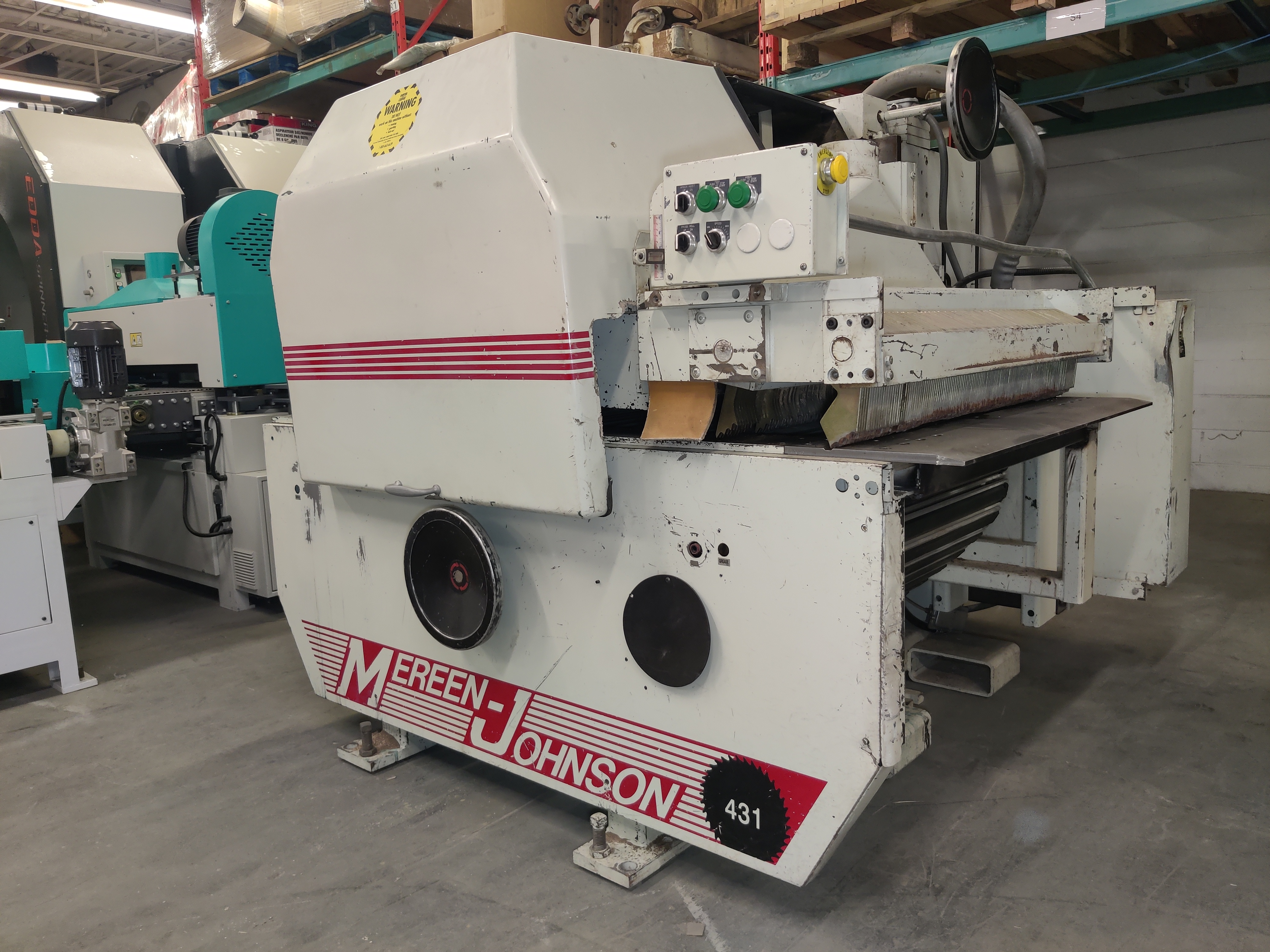

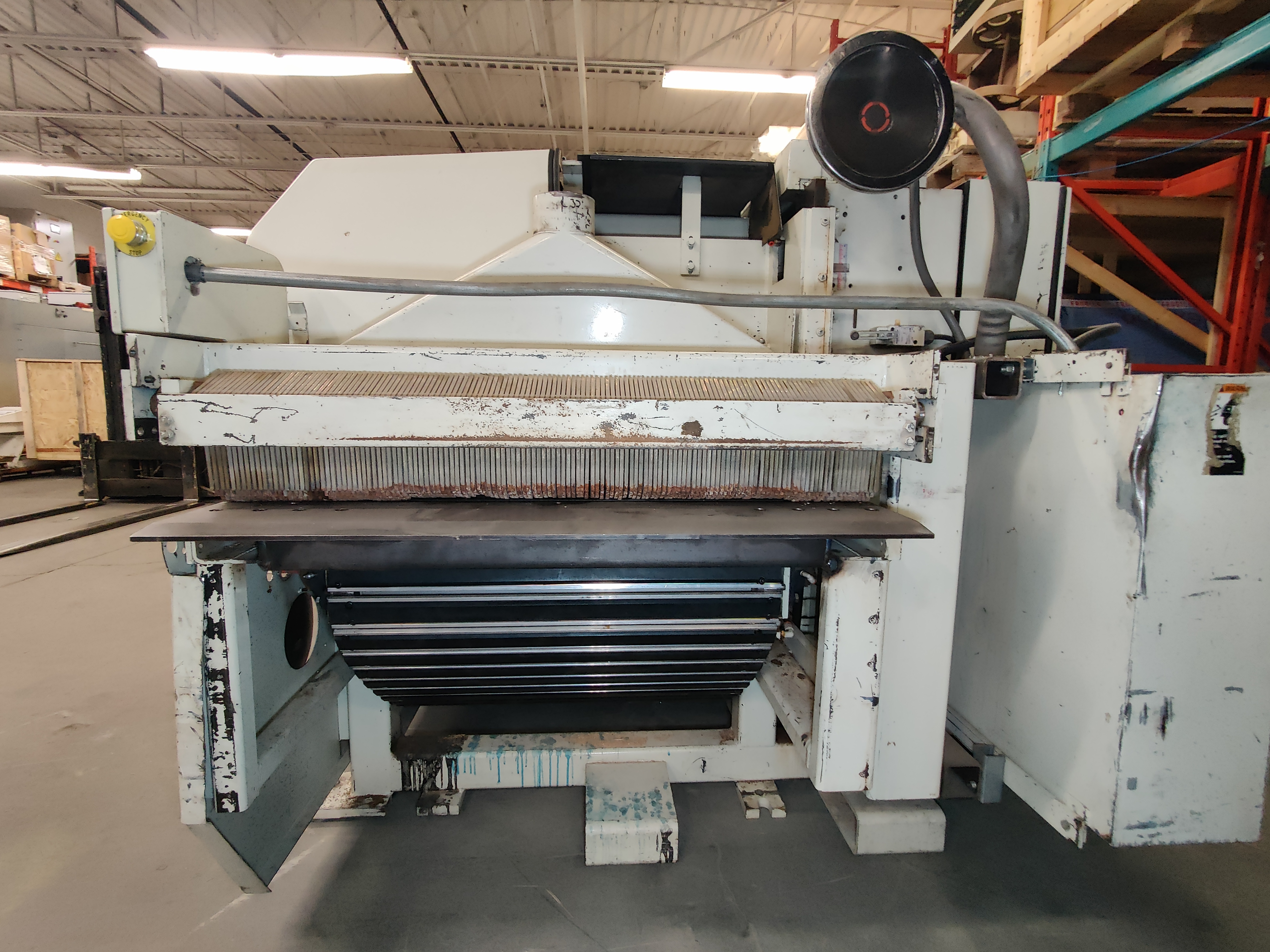

The Mereen-Johnson 431-DC is a gang rip saw known for its precision and performance in woodworking applications. Here are some key points about this model based on available information:

• Type: Fixed Arbor Gang Rip Saw
• Usage: Primarily used for ripping wood, including varying widths of solid lumber or MDF.

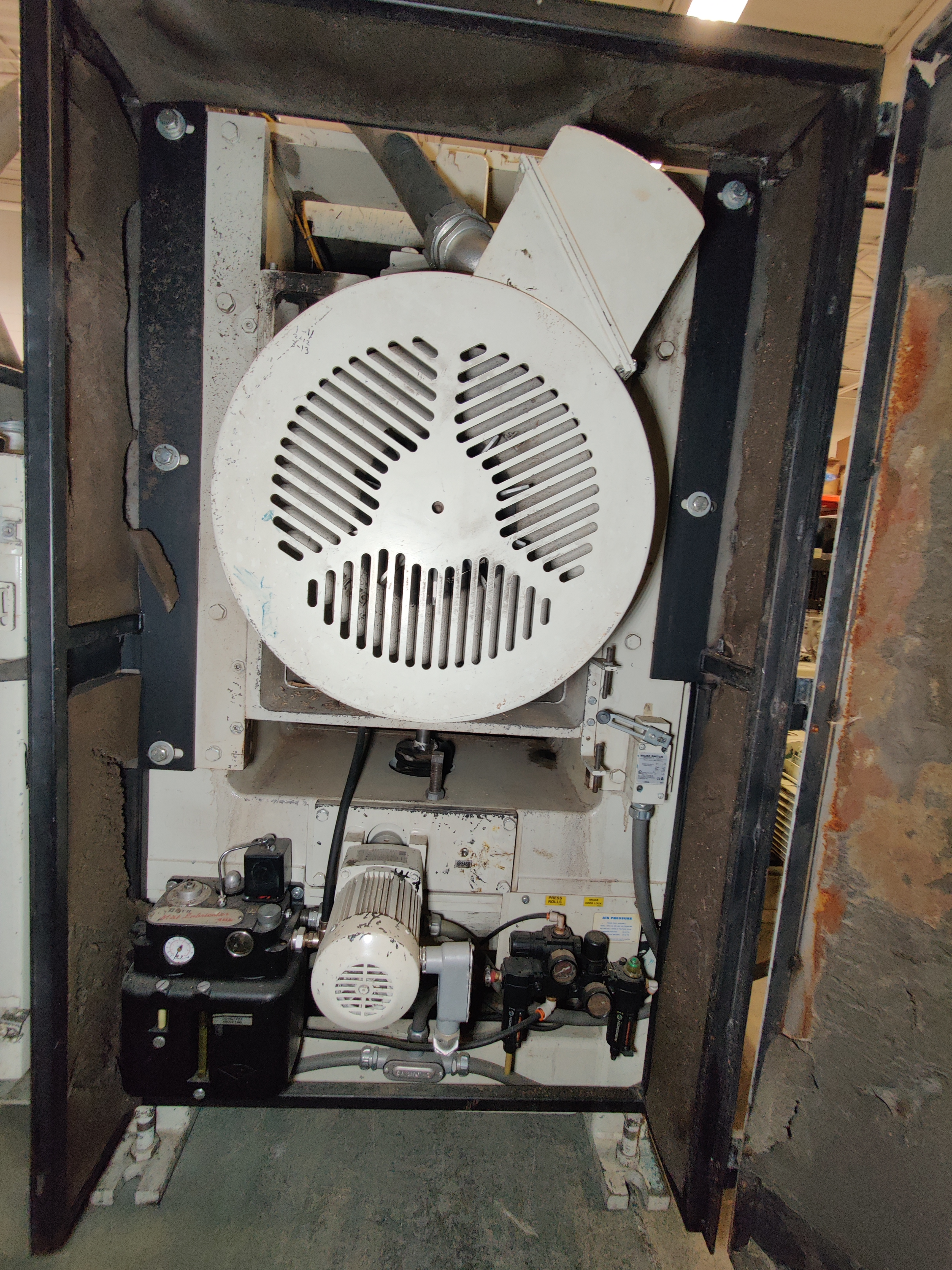

• Motor: Equipped with a 75 HP direct drive motor, running at 3600 RPM.

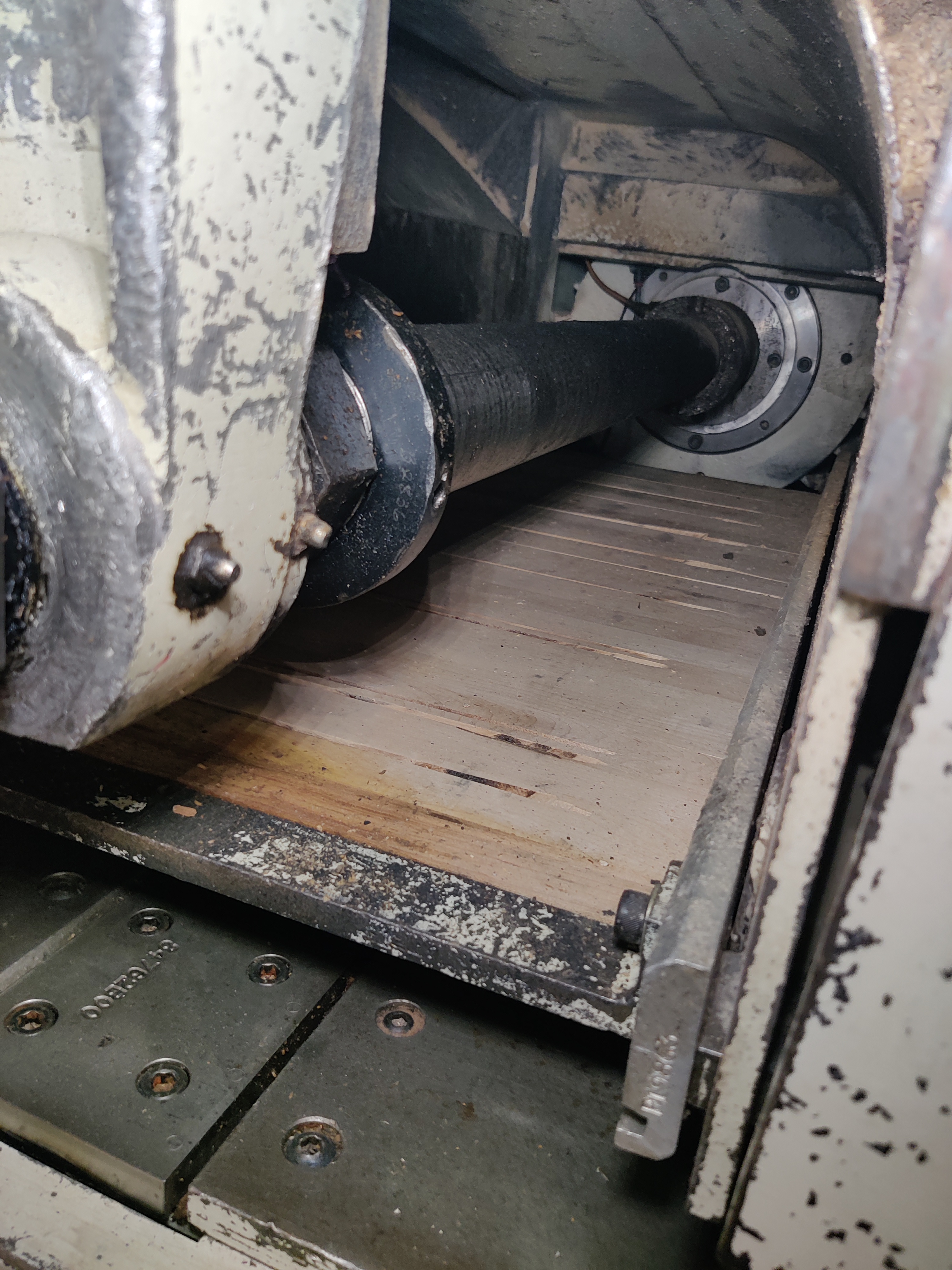

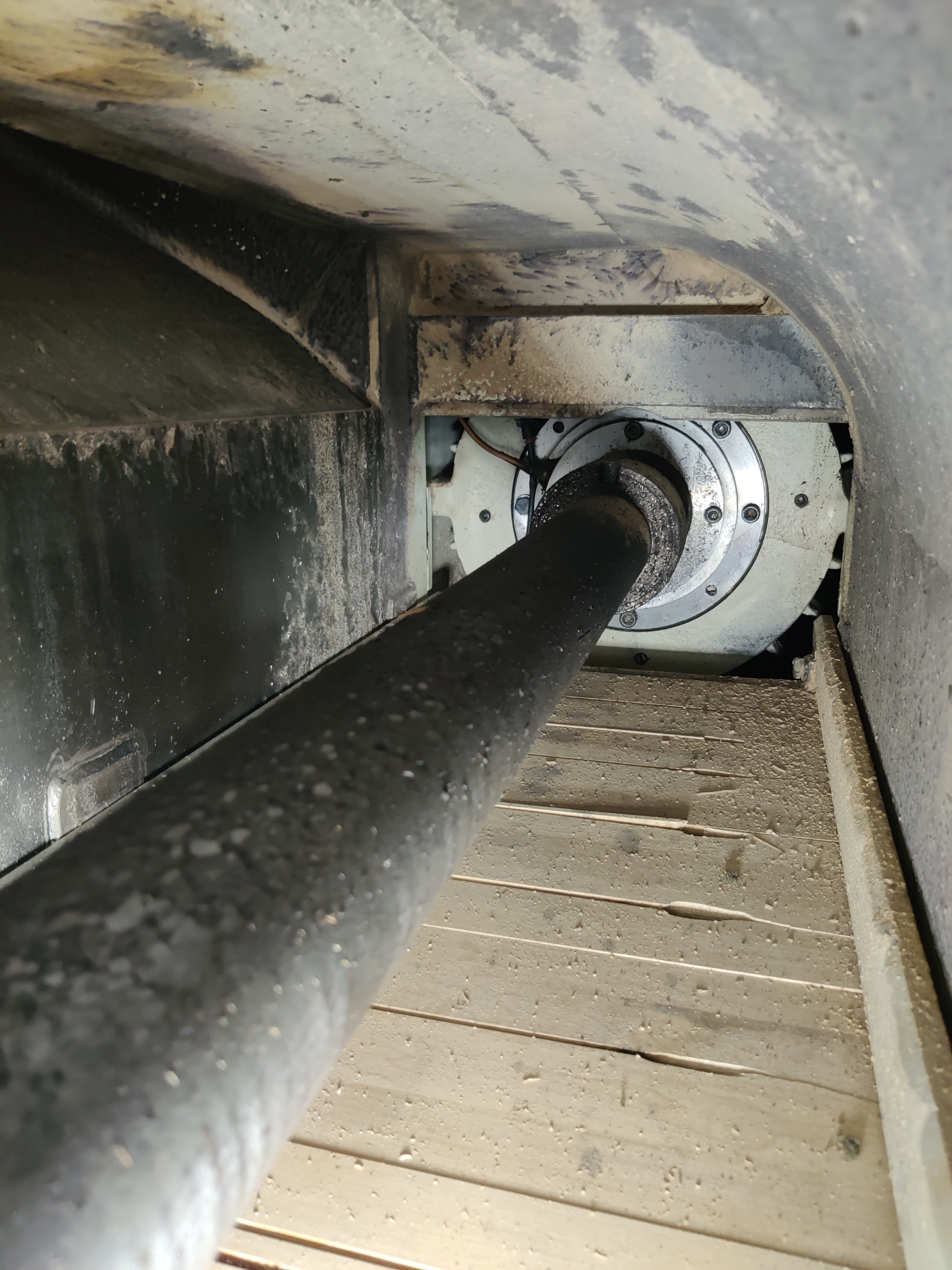

• Capacity: 31" arbor width capacity, with a maximum tooling diameter of 14" and can handle material up to 3.5" in thickness.

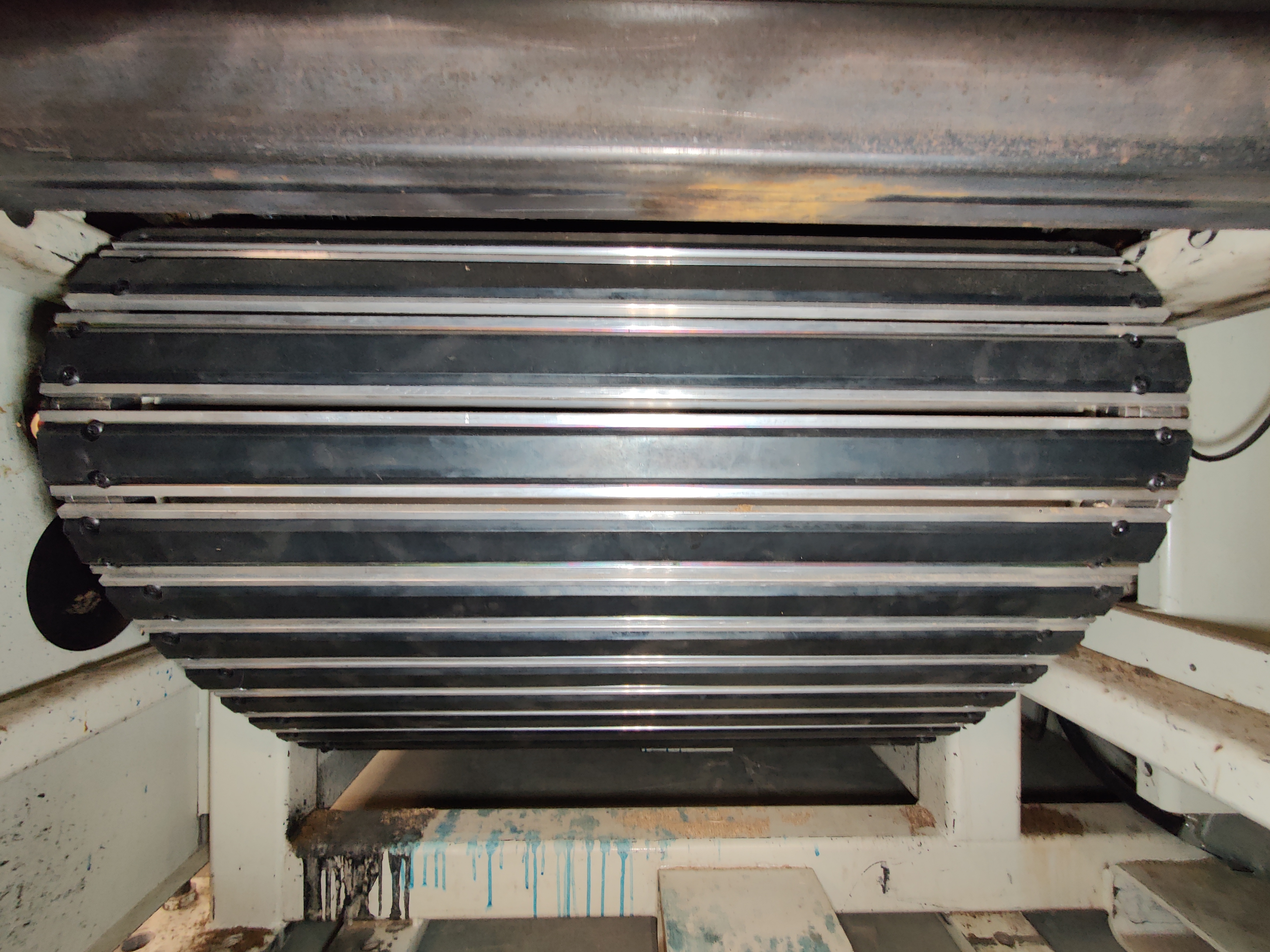

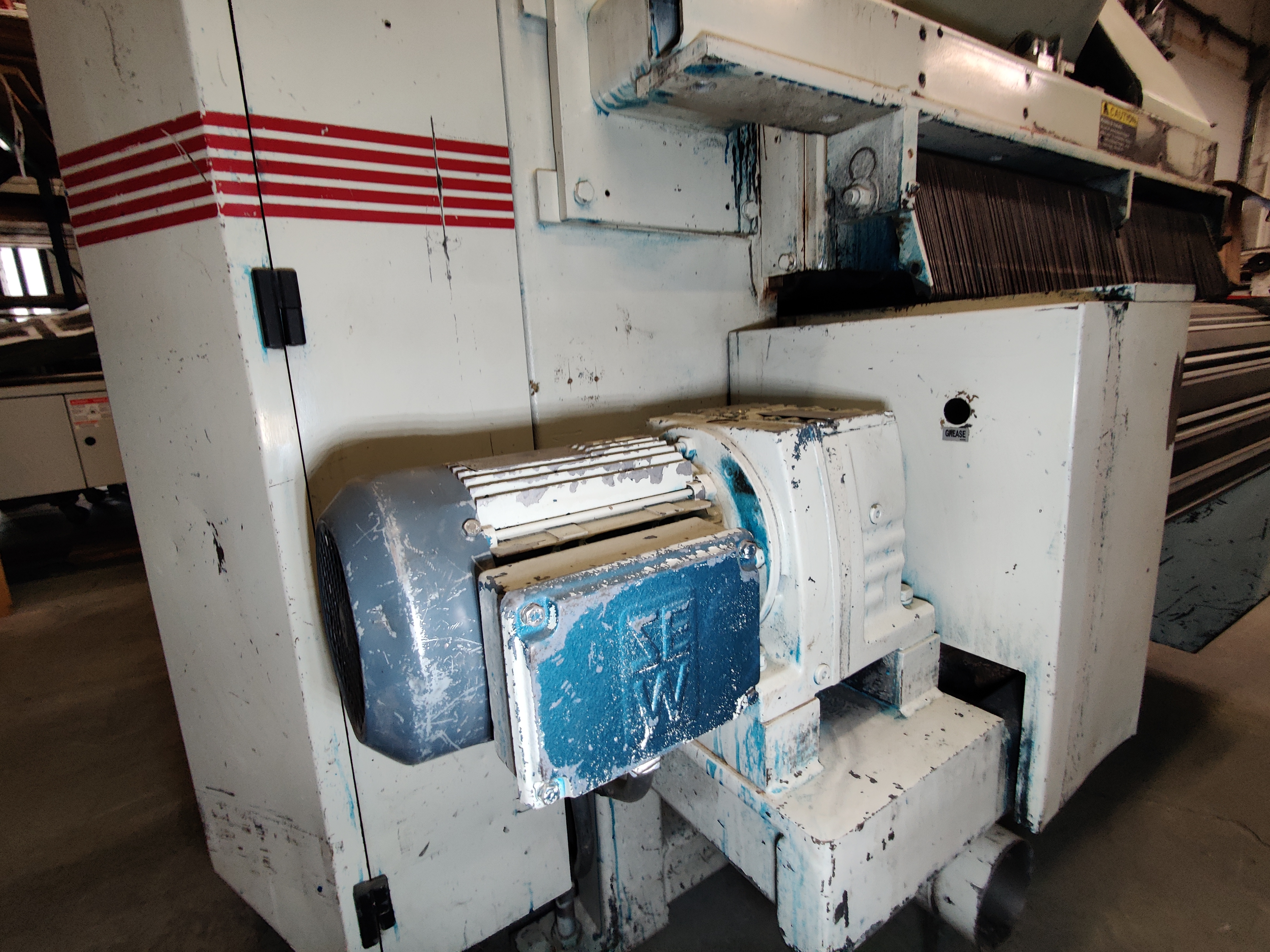

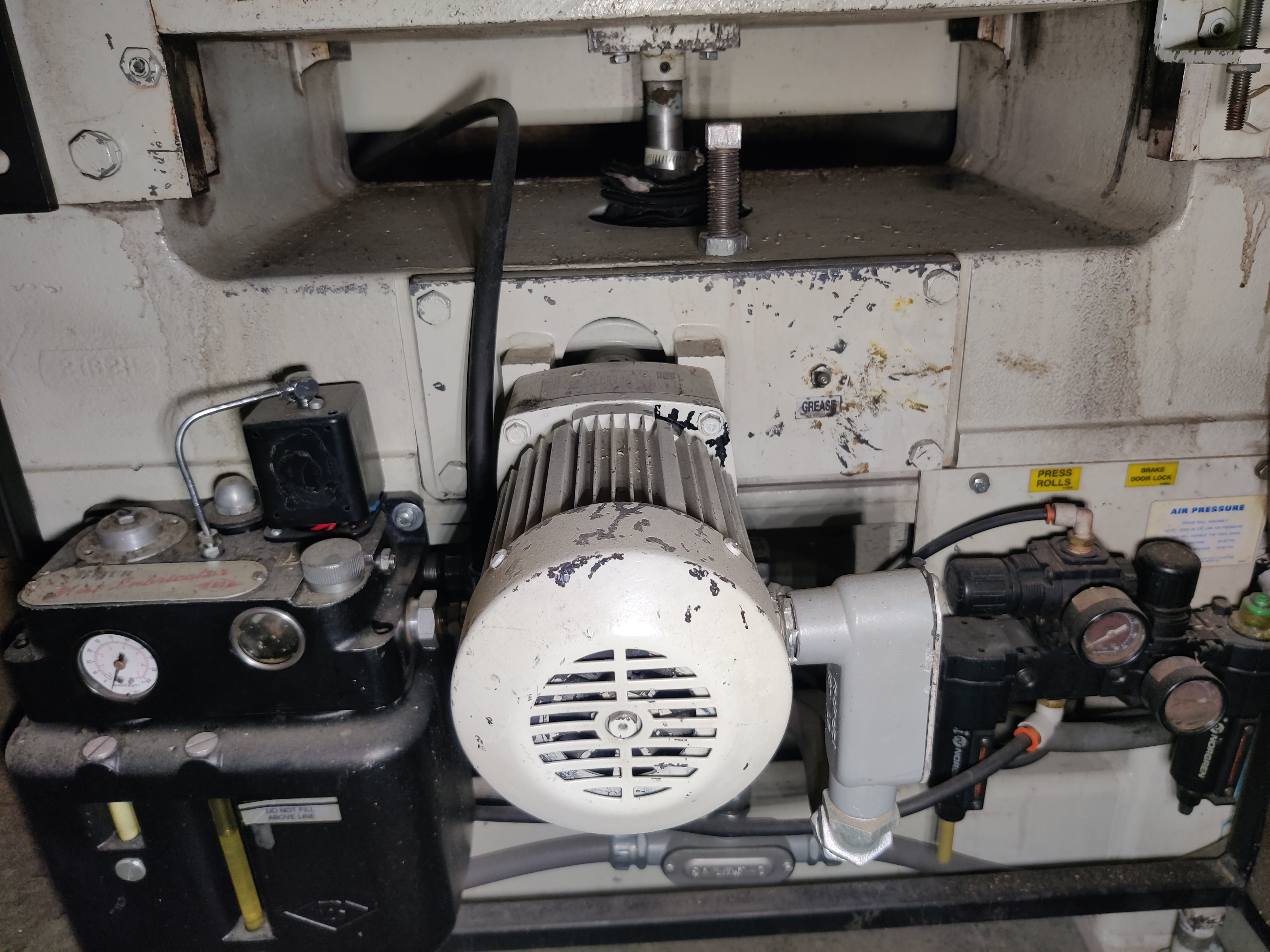

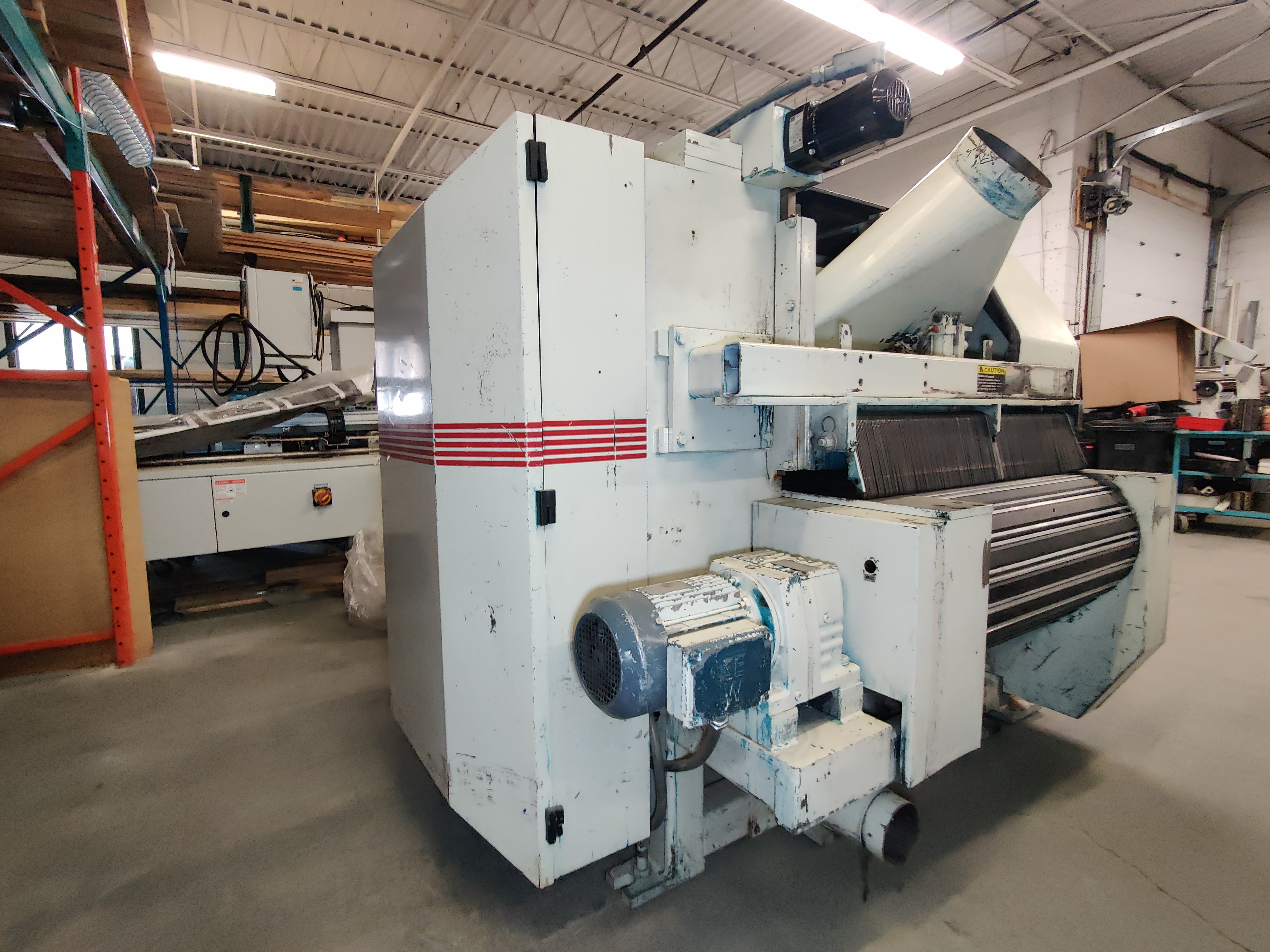

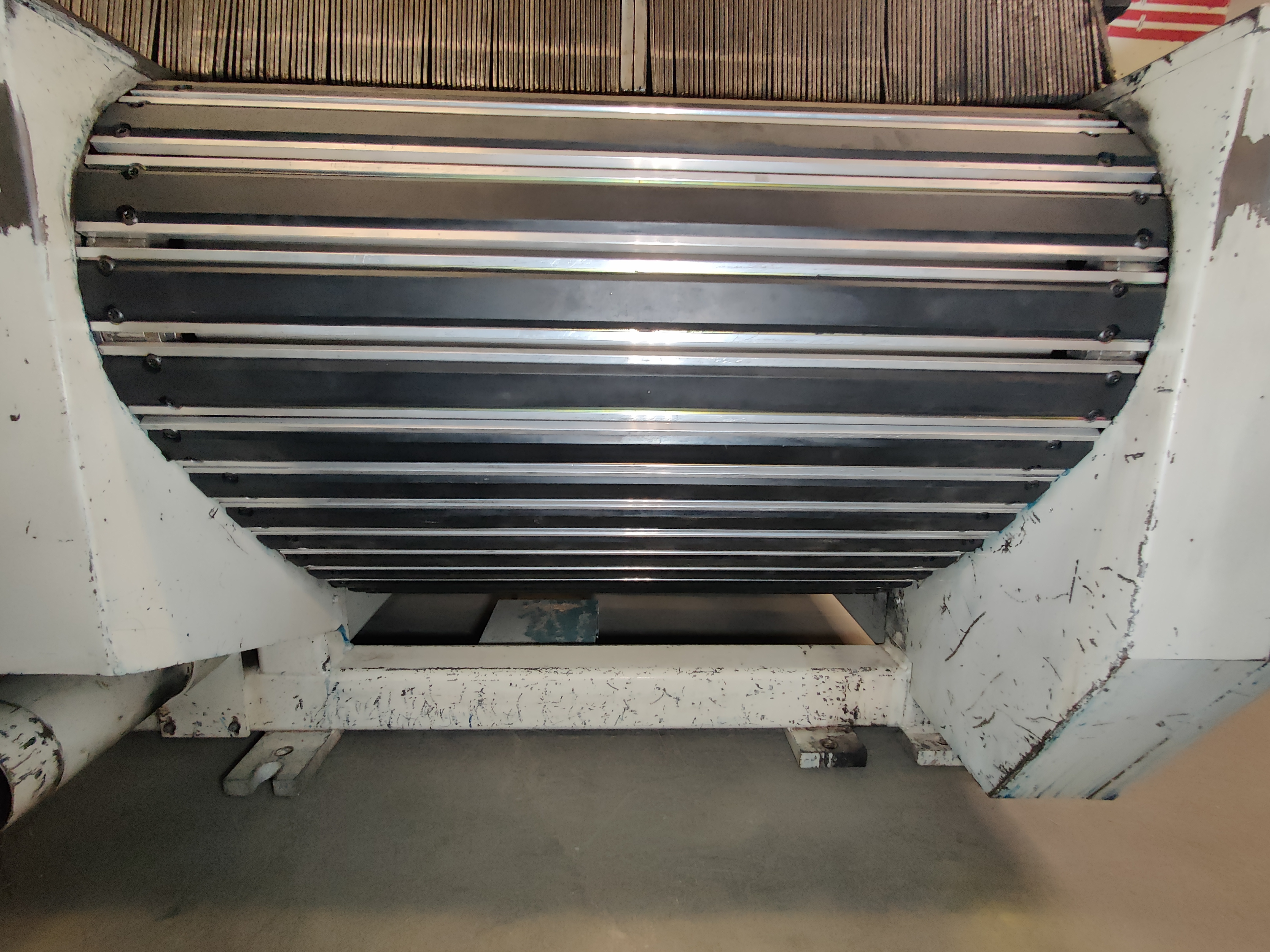

• Feed System: 5 HP variable speed feed motor with speeds from 30-150 FPM, along with an automatic chain lubricator and hardened dip cams for longevity and maintenance.

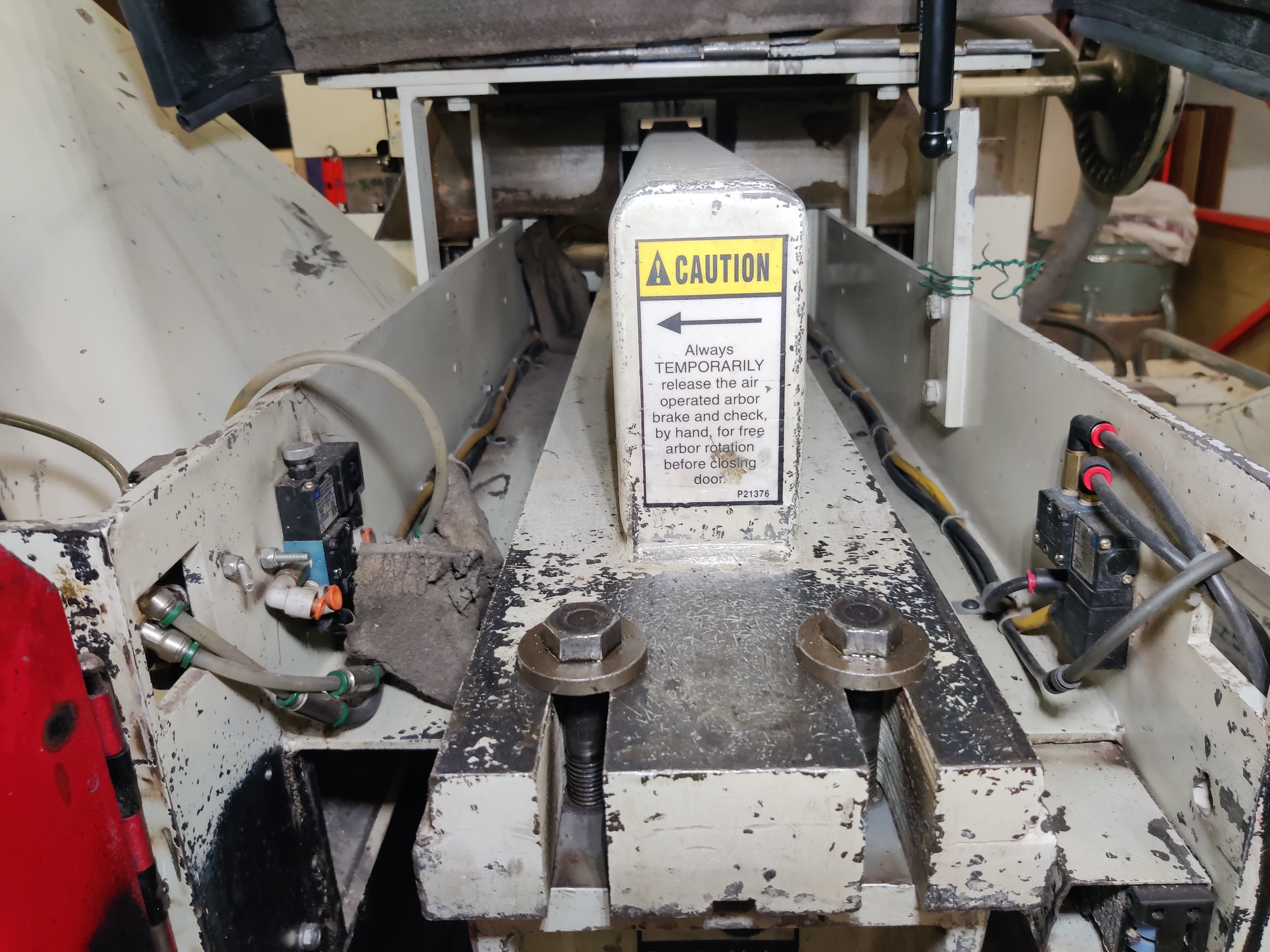

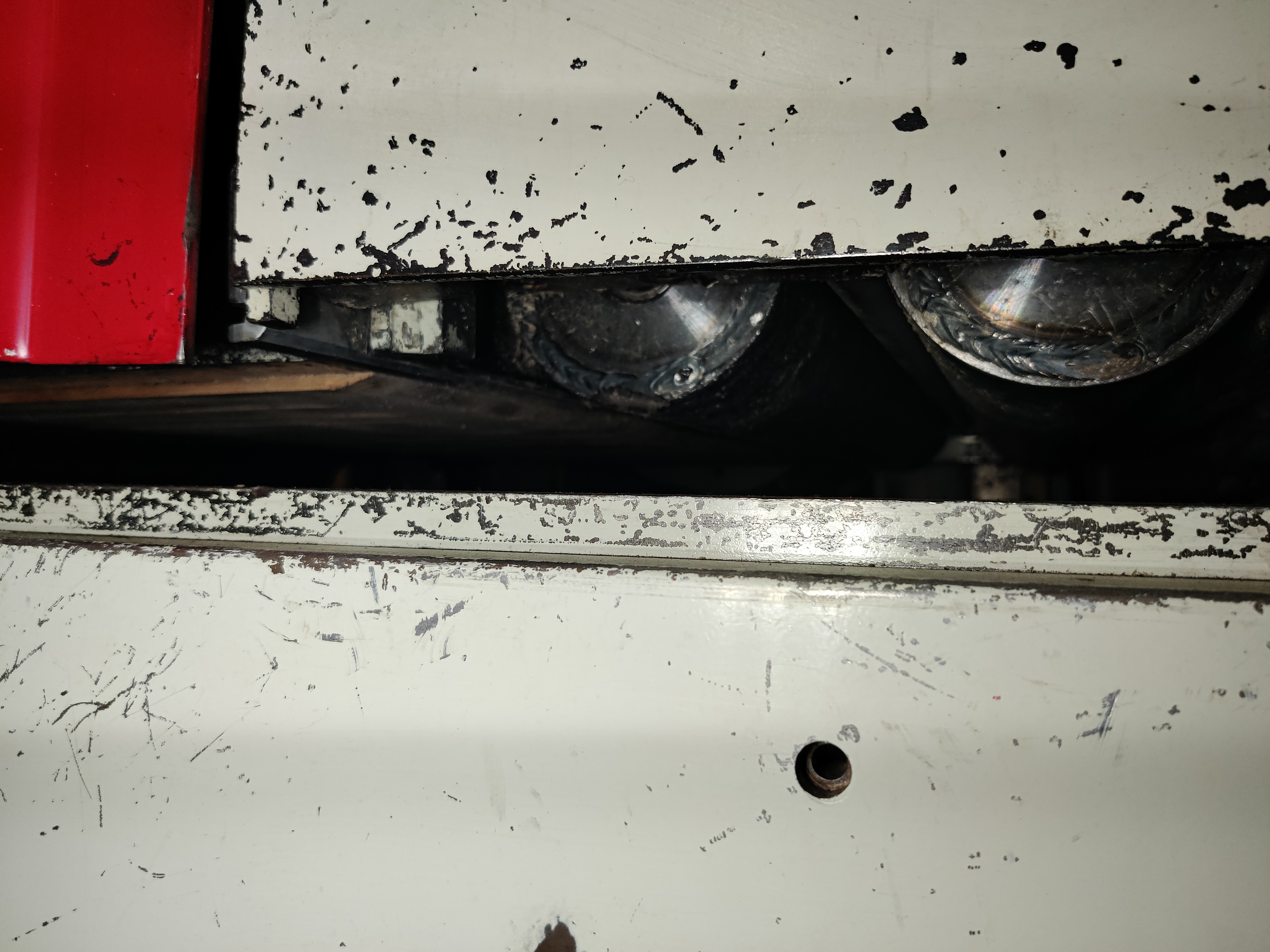

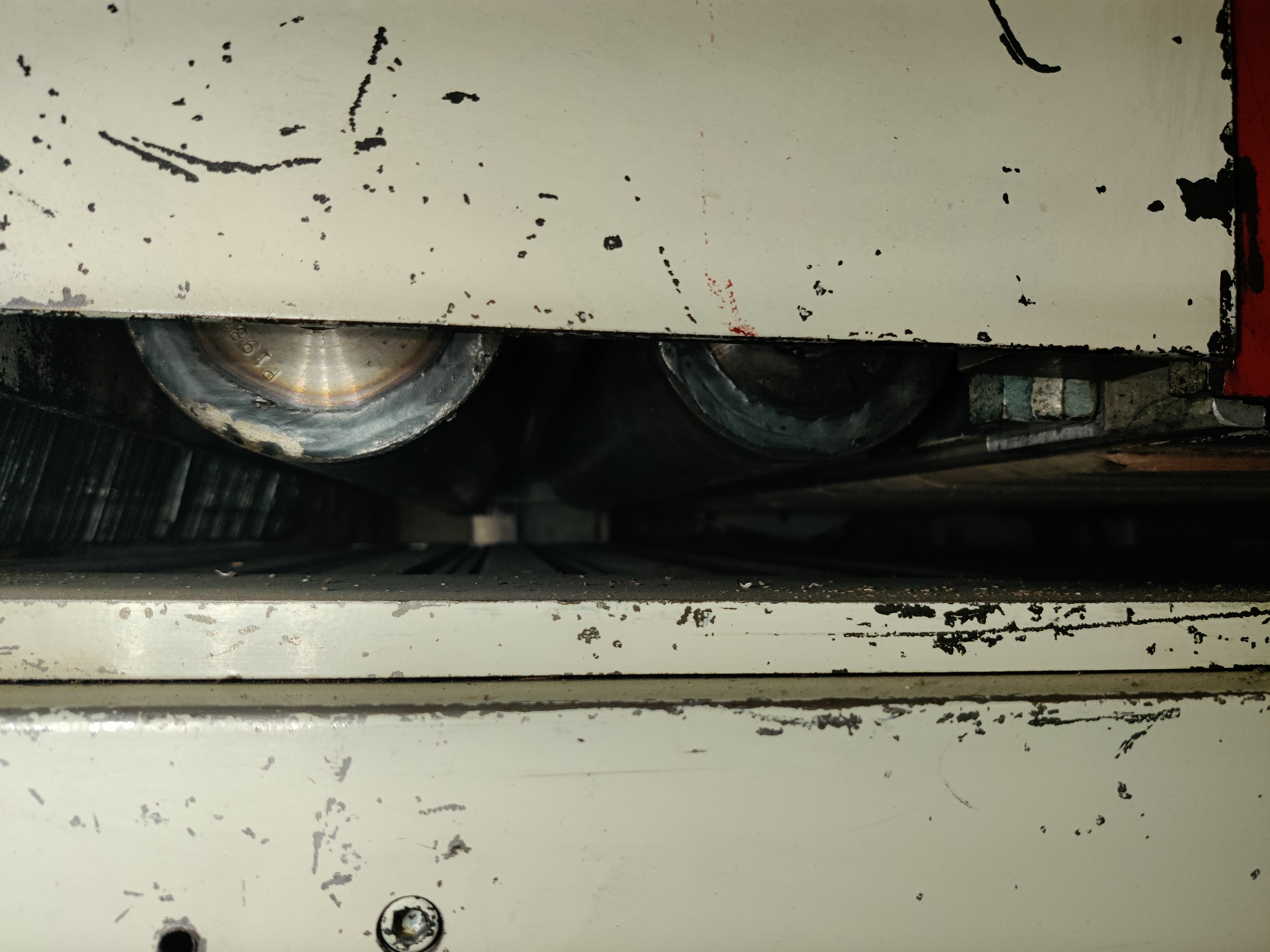

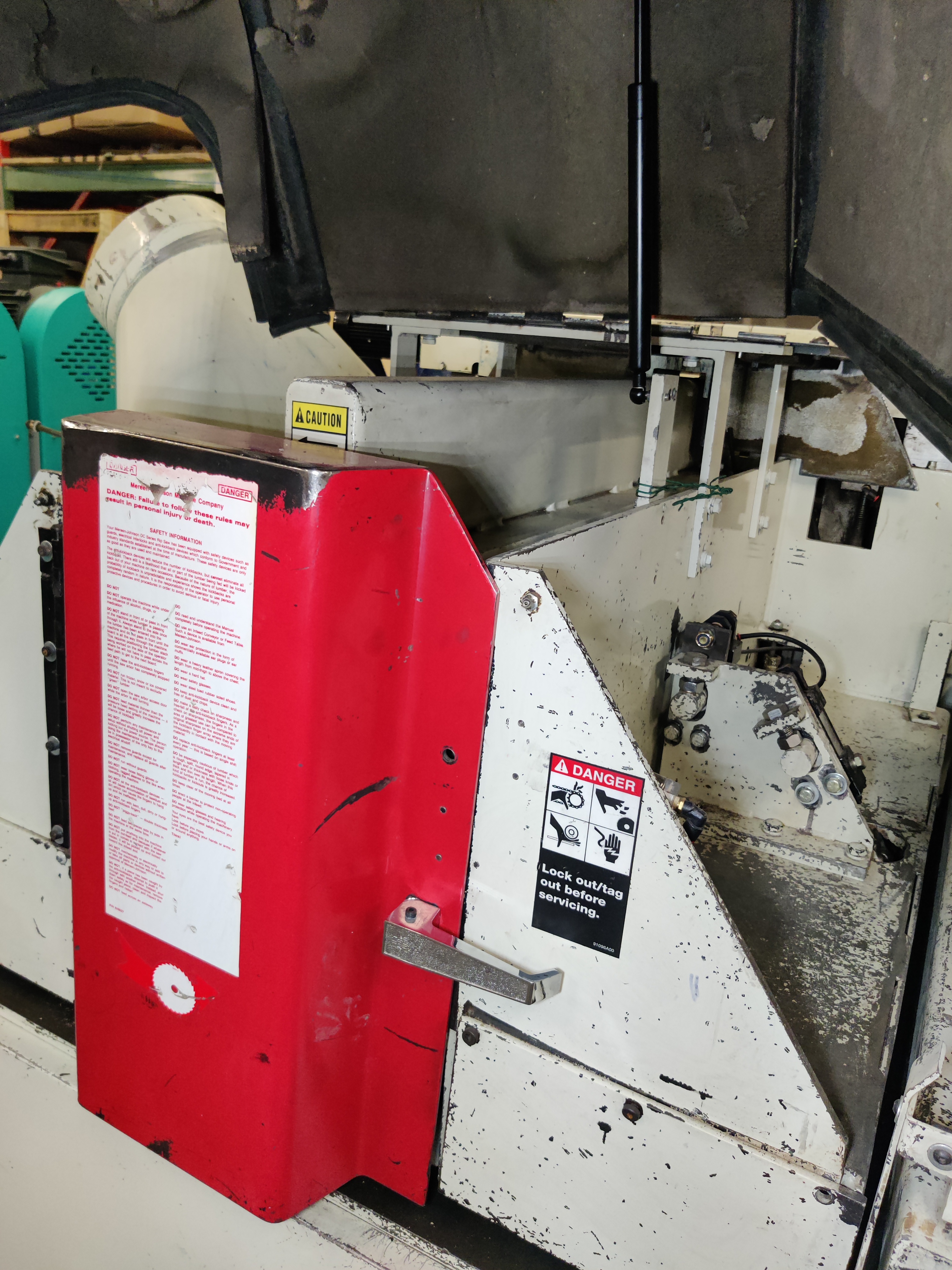

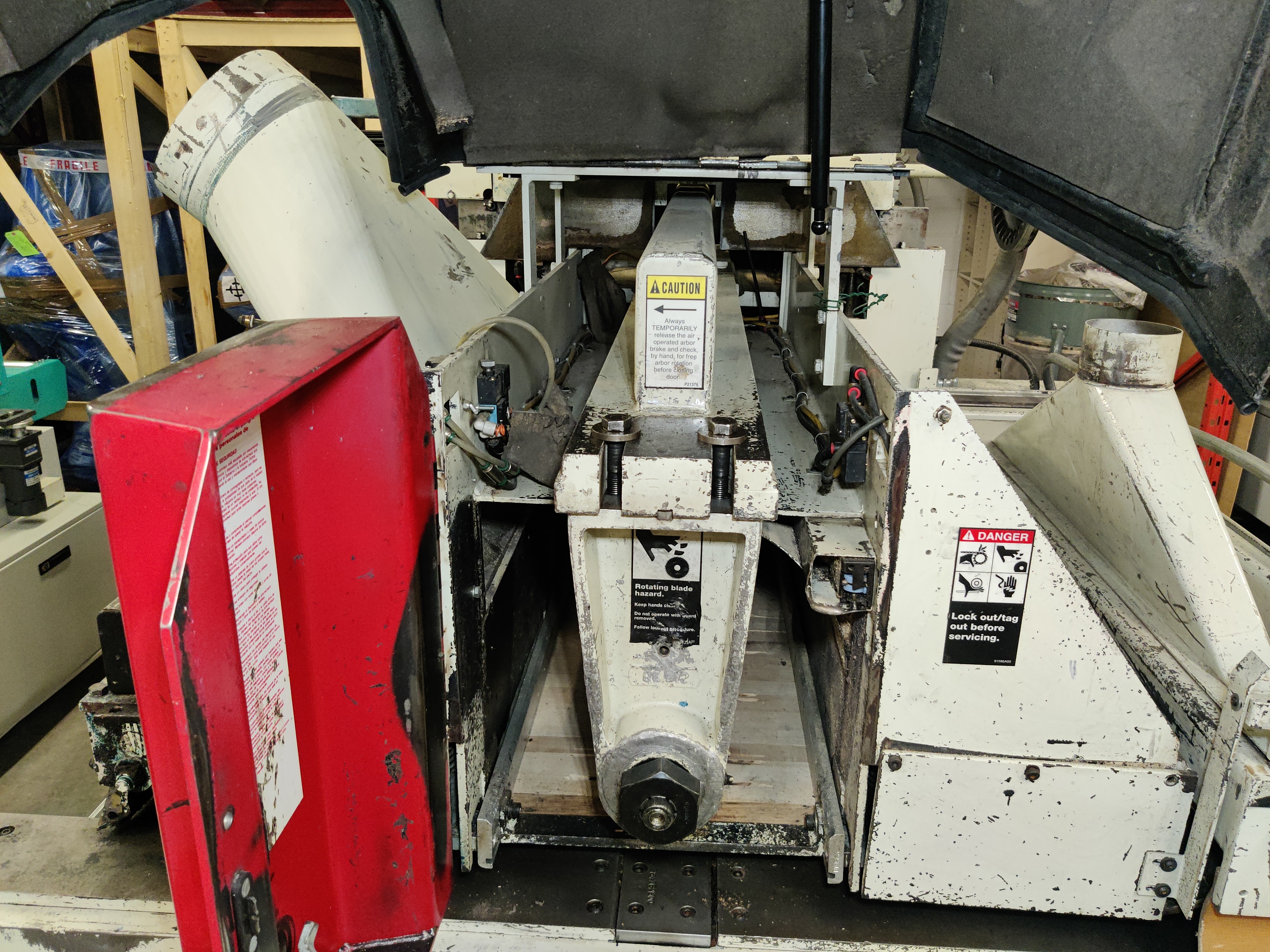

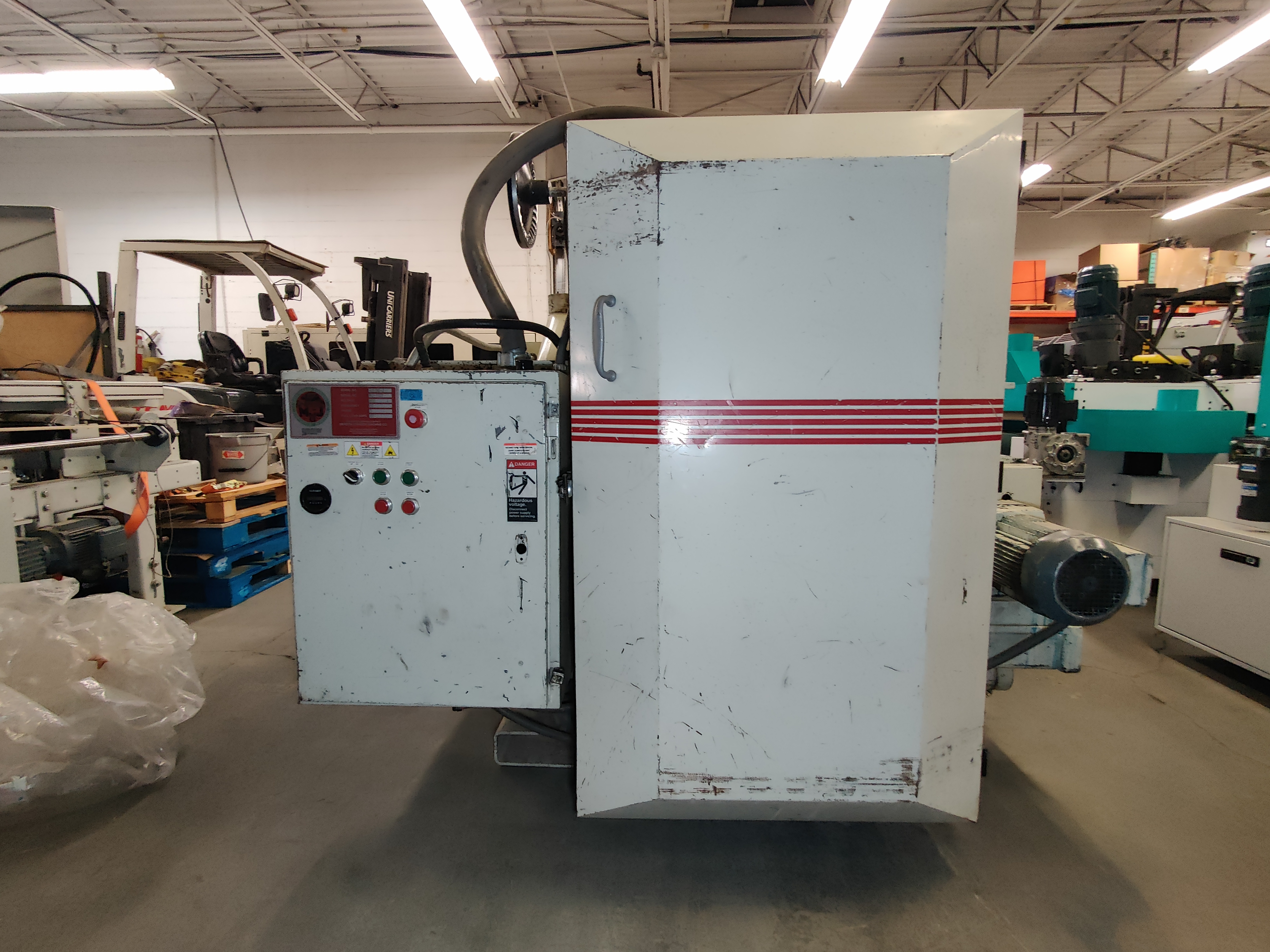

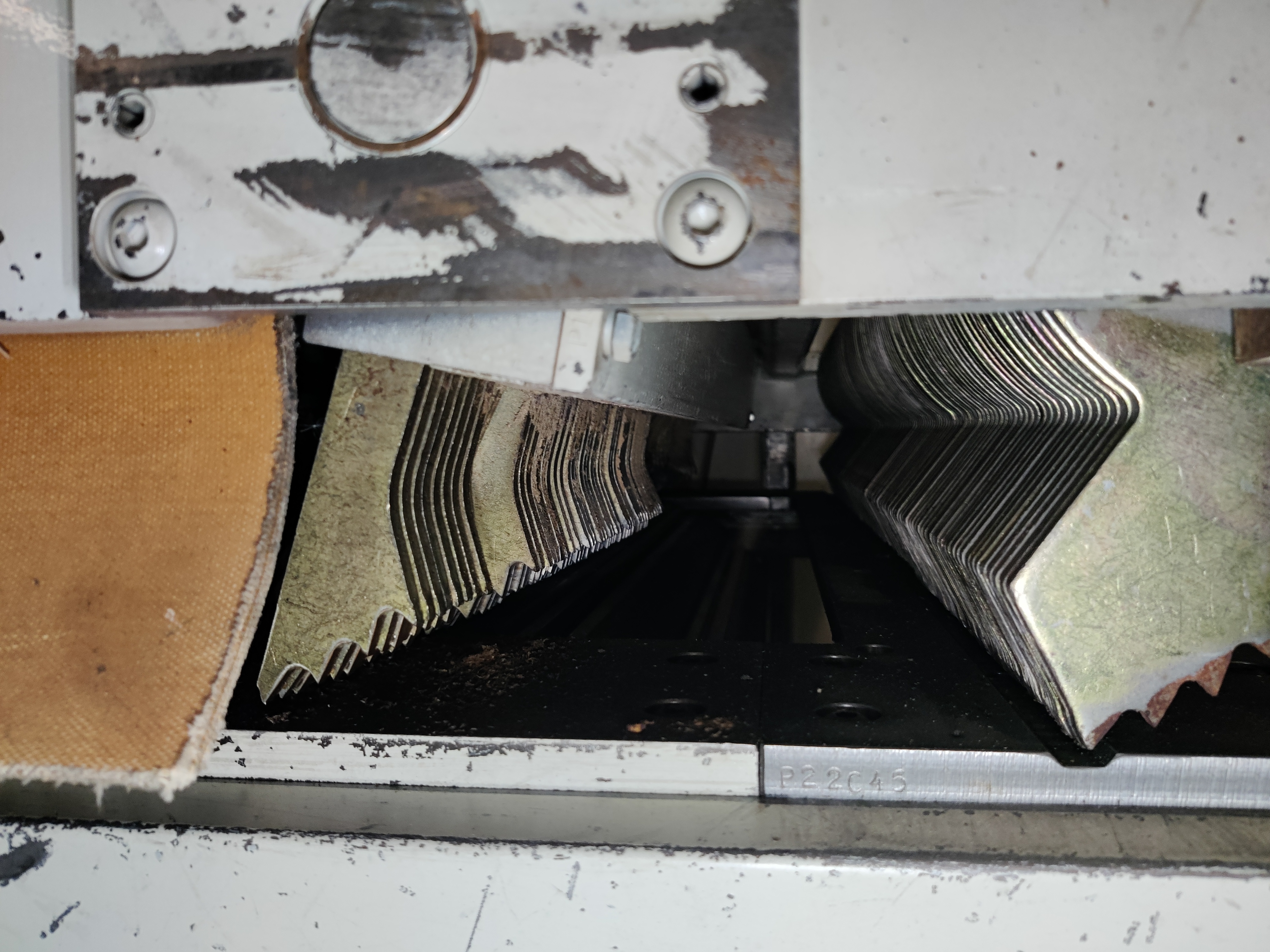

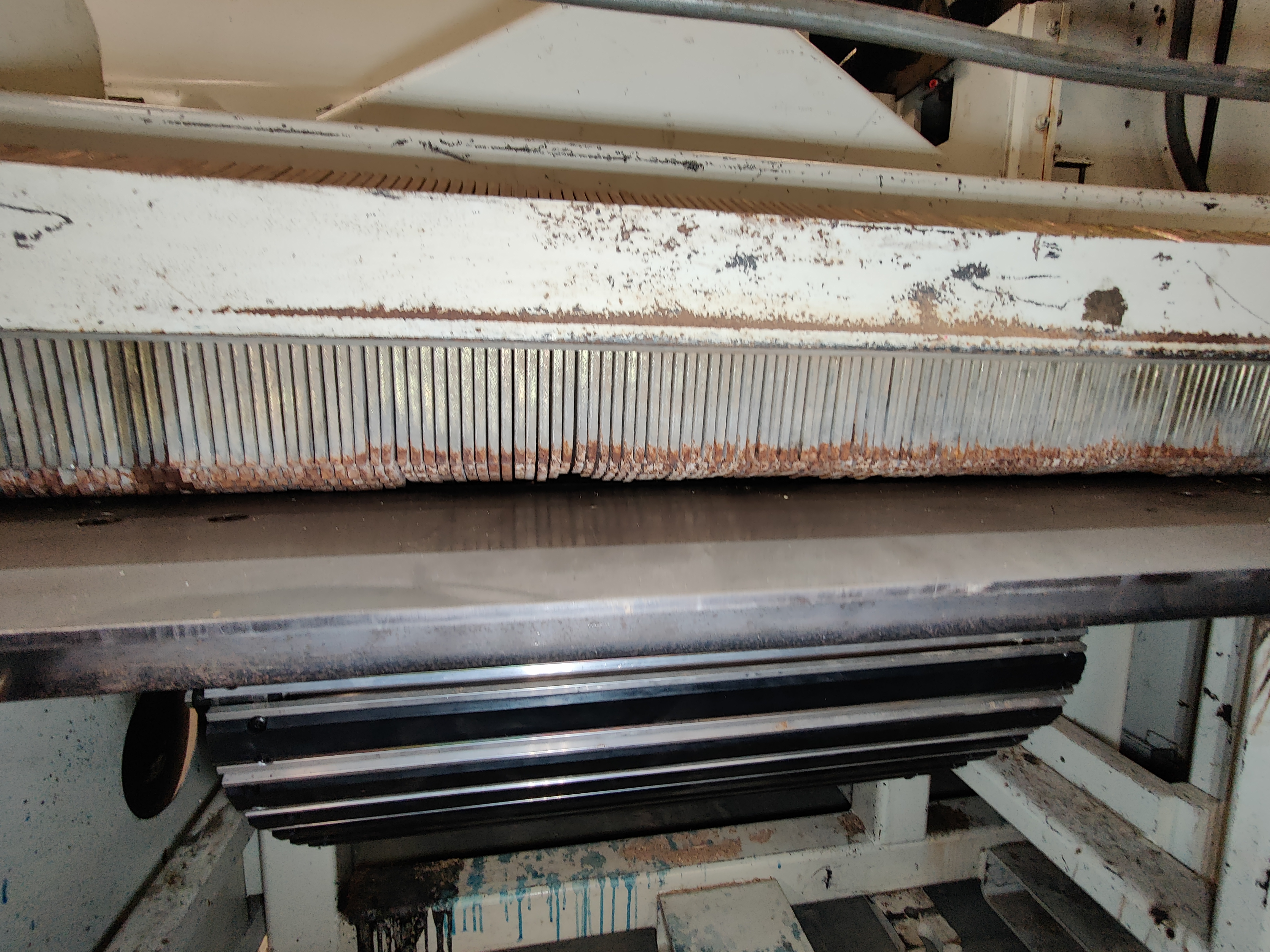

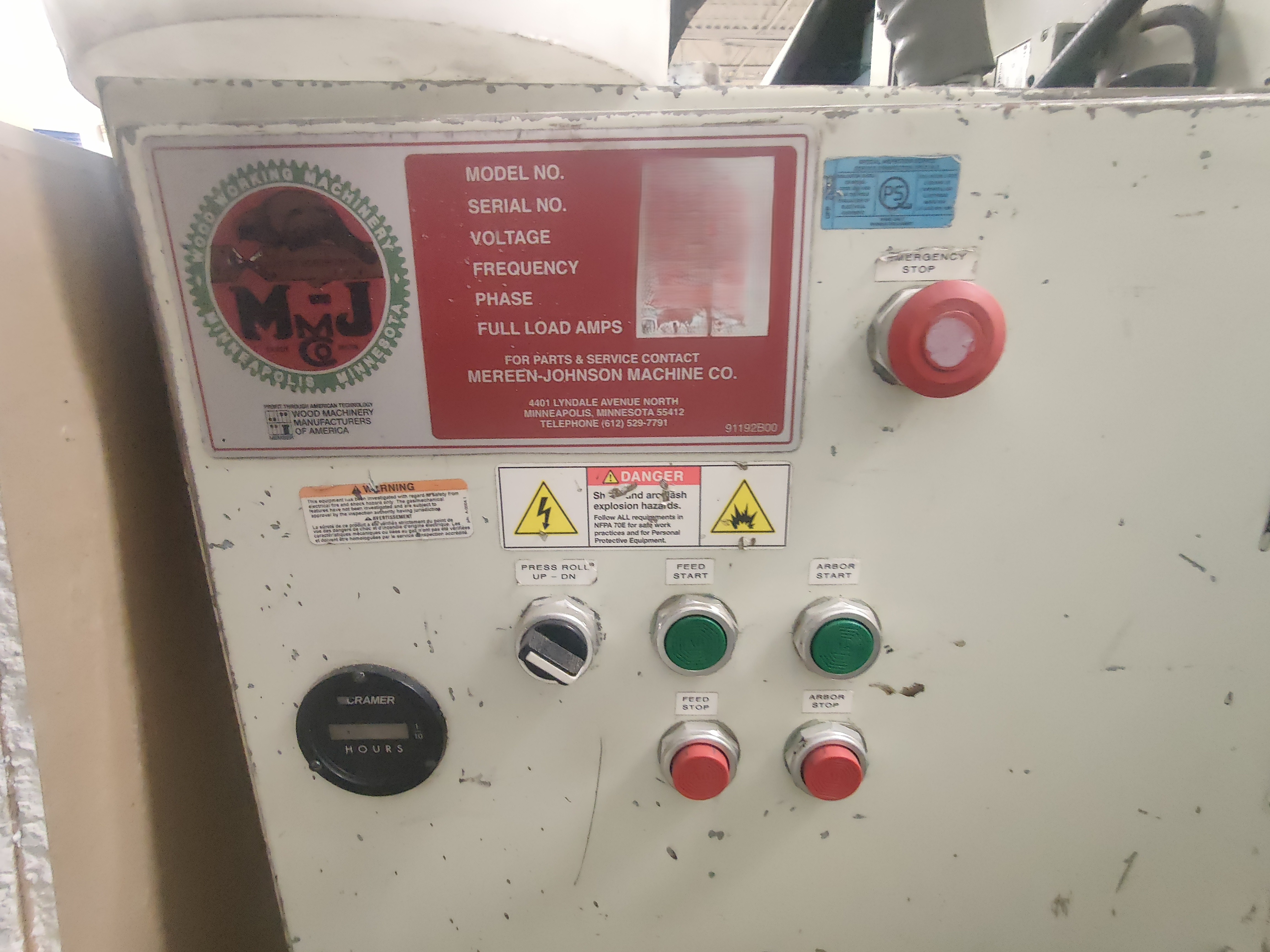

• Safety and Control: Includes features like disk brake, load meter, arbor lockout, and anti-kickback fingers for safety. It also has overhead pressure rolls and a system for motorized thickness adjustment.
• Applications: Suitable for panel ripping, grooving, and narrow rip applications. The saw can also be modified for other materials like corrugated paper, engineered wood, and composites.

Remember, the specifics of each machine can vary, especially with used equipment, so direct inspection or a demonstration might be necessary to assess the condition and suitability for your needs.

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
