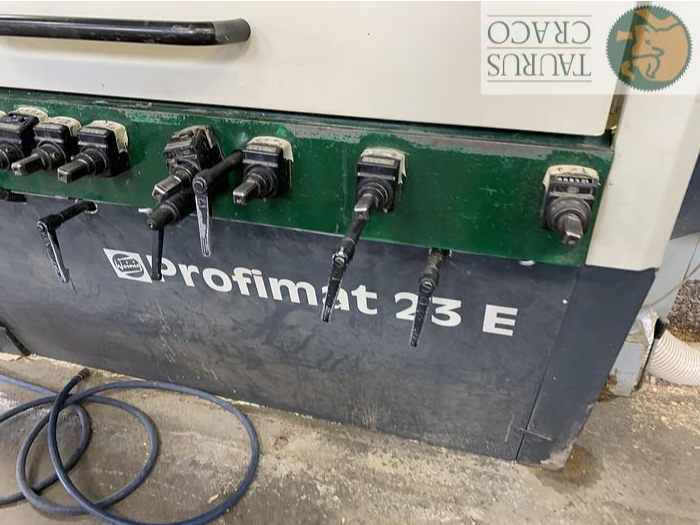

1996 Weinig Profimat 23 E

Sold

Specifications

ManufacturerWeinig
ModelProfimat 23 E
Year1996
Stock Number1339KM
Voltage230 V
LocationCentral Canada

Description

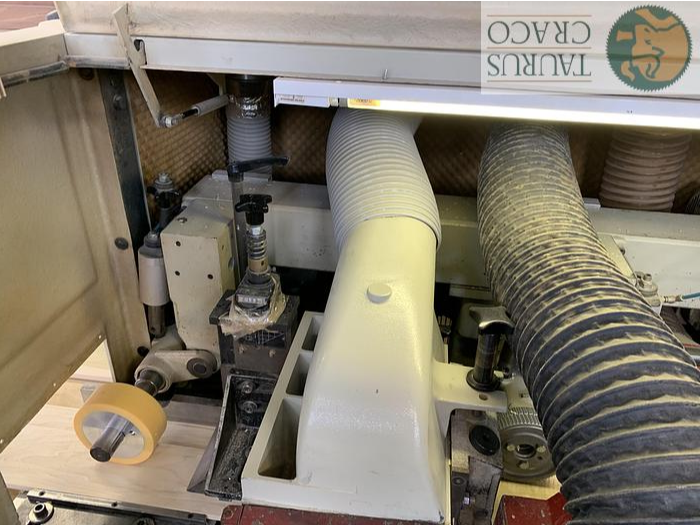

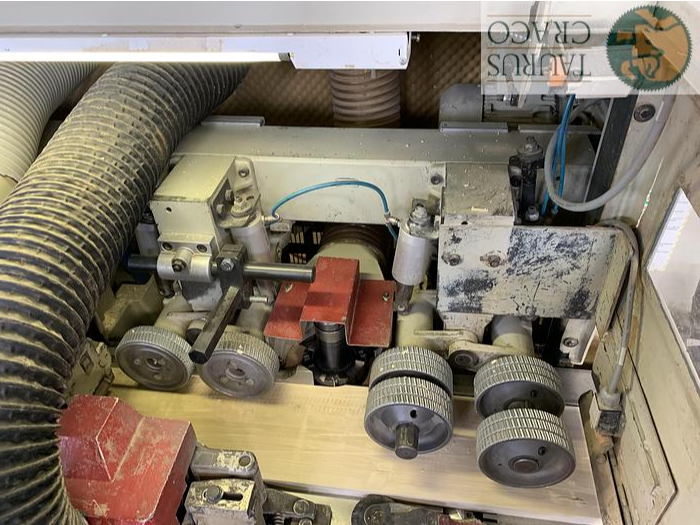

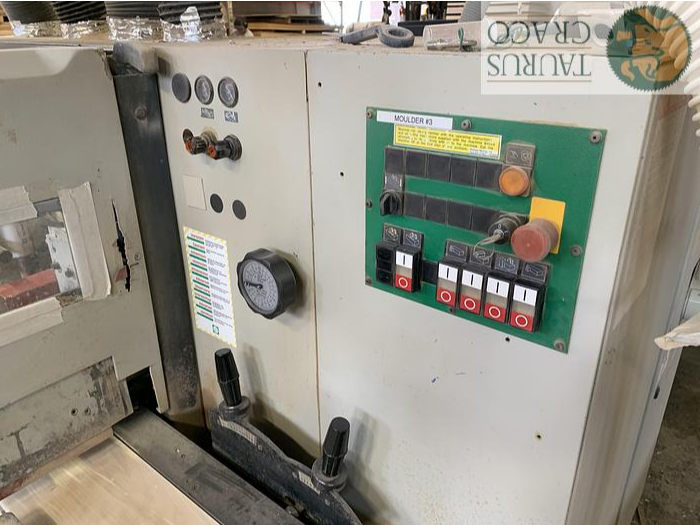

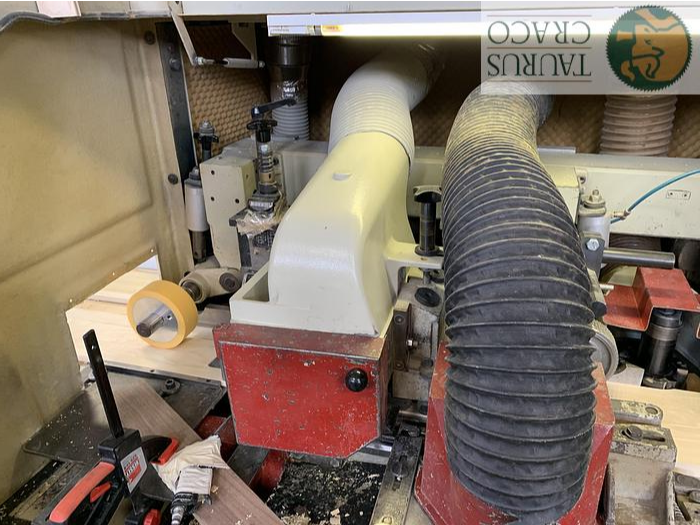

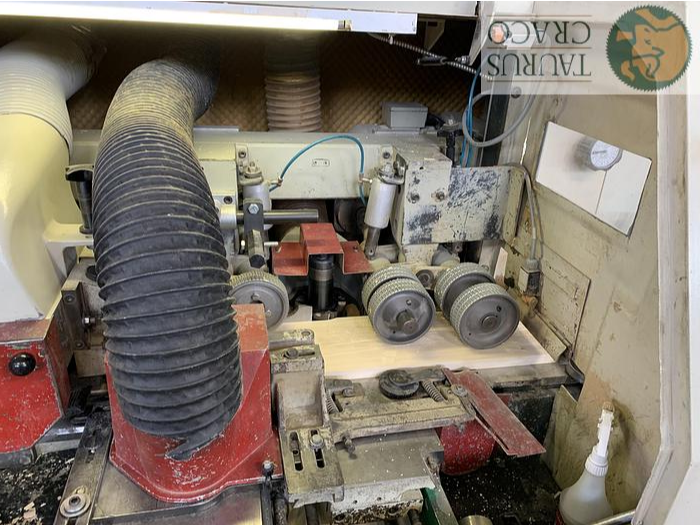

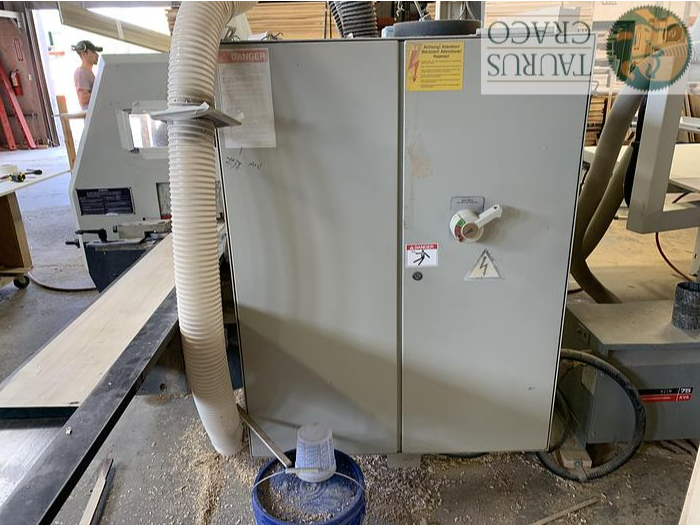

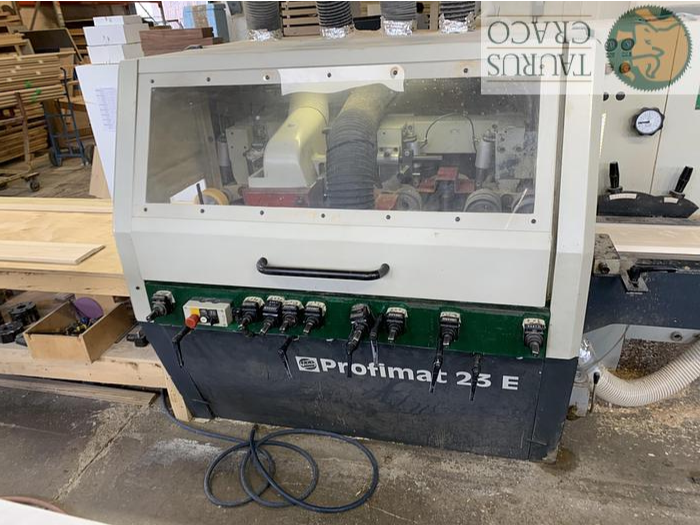

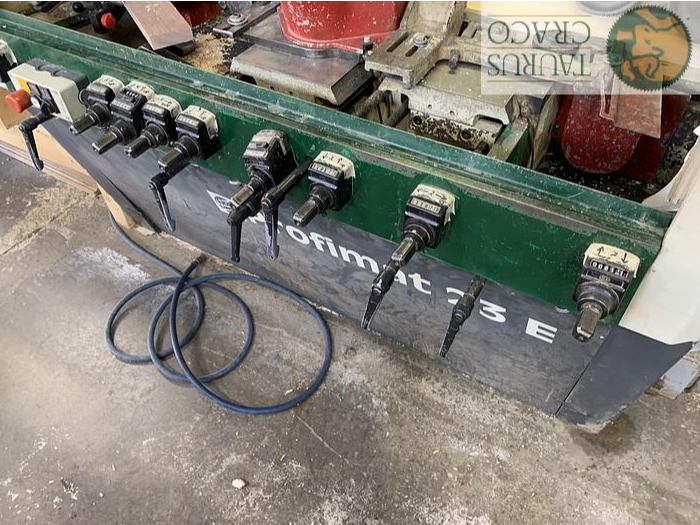

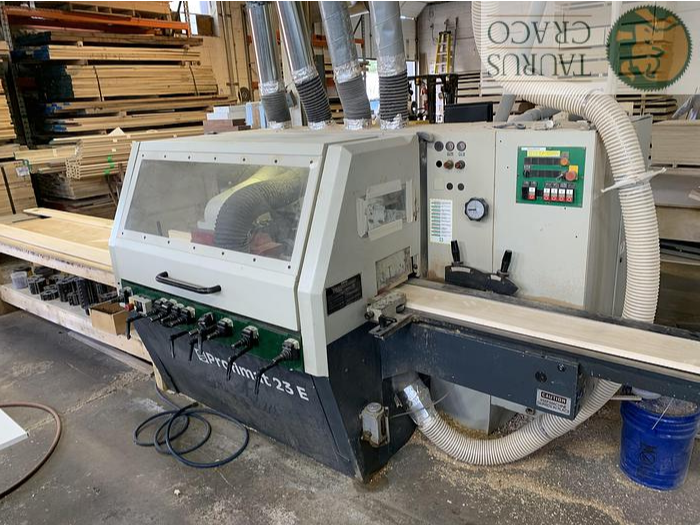

WEINIG PROFIMAT 23E Moulder Feed Through


Features and Specs

  • 5 Heads working cap. 230 x 160 mm (9" x 6.3").
  • Head sequence: Bottom 5.5 kW (7.3 HP), right & left by 7.5 kW (10 HP), top 7.5 kW (10 HP), bottom 5.5 kW (7.3 HP)
  • max. Workpiece width 230mm - max. Workpiece height 140mm
  • spindles: 1) horizontal lower 230mm 4kW 2) vertical right 140mm 3) vertical left 140mm, (spindle 2 and 3) 7.5kW 3 electric spindles adjustable front/rear 4) horizontal upper 230mm 5,5kW 4 spindle electrically adjustable top/bottom 5) horizontal lower 230mm 4kW
  • all spindles adjustable up / down, right / left
  • diameter of spindles 40mm
  • adjustable top / bottom
  • electric planing thickness adjustment
  • body lifting engine 0.55 kW
  • 5x140mm exhaust pipes, 1x150mm
  • 3kW feed motor
  • feed on Cardan
  • smooth feed speed regulation
