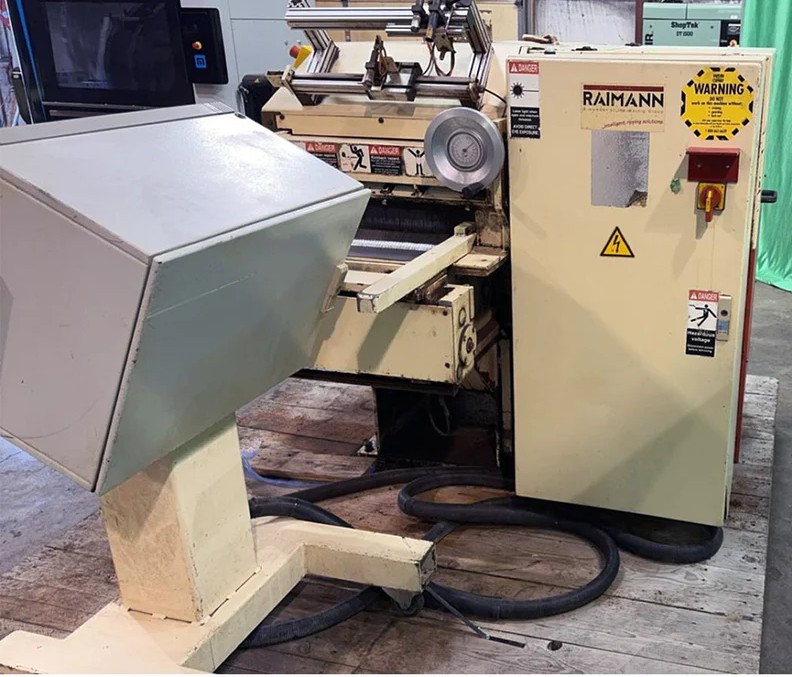

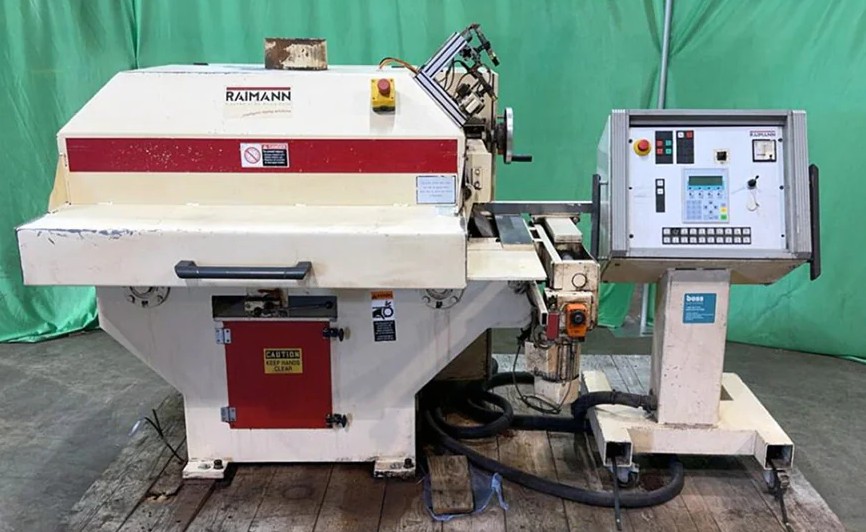

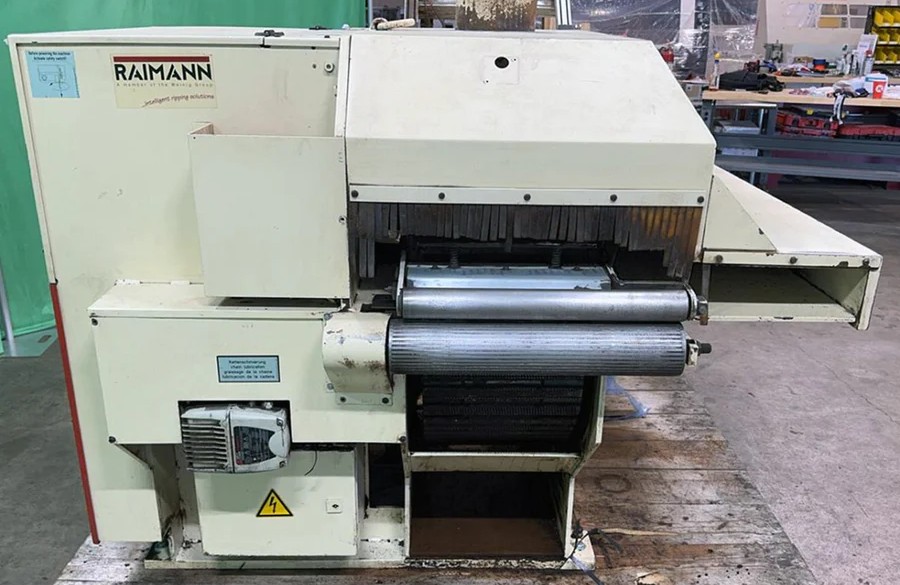

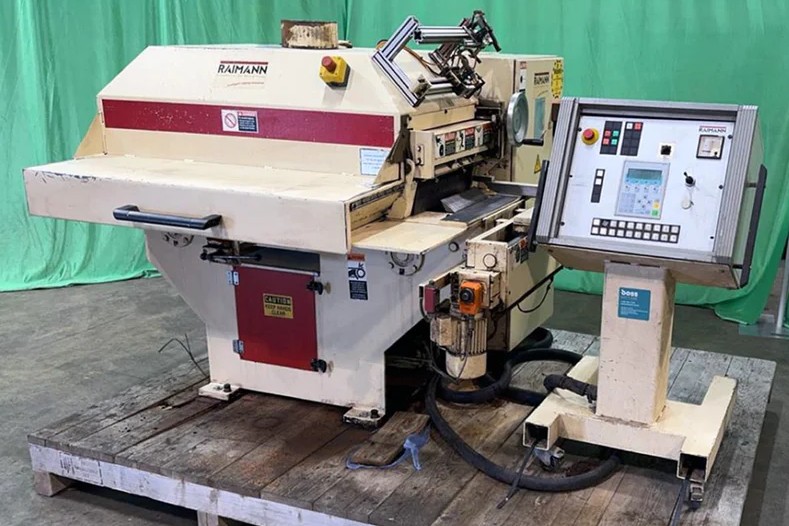

2001 Raimann VarioRip KM 310 BV Gang Rip Saw

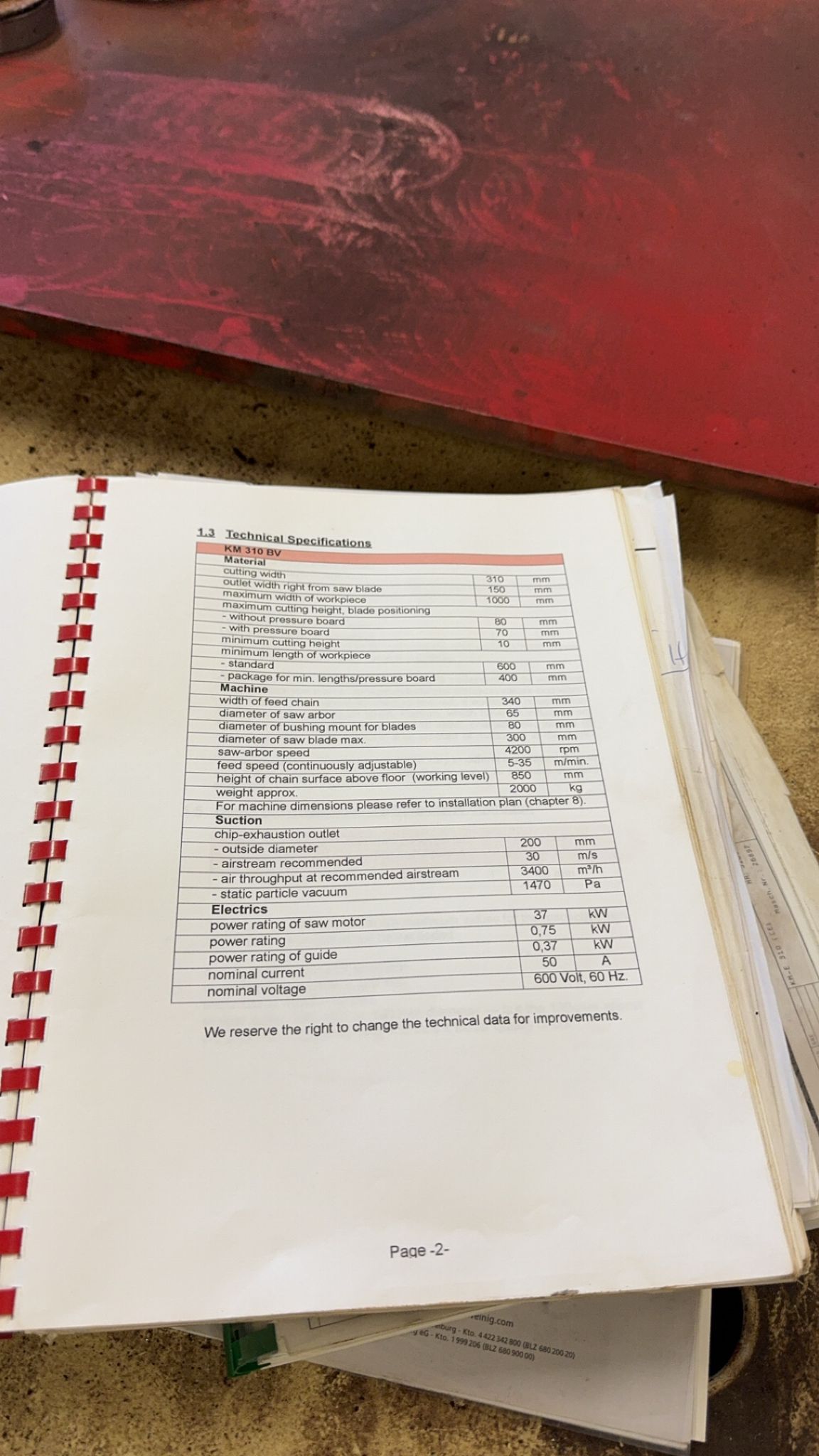

Raimann VarioRip 310 BV - Features and Specifications:

• Material
• Cutting width: (310 mm)
• Outlet width right from saw blade: (150 mm)
• Maximum width of workpiece: (1000 mm)
• Maximum cutting height, blade postitioning
• Without pressure board: (80 mm)
• With pressure board: (70 mm)
• Minimum cutting height: (10 mm)
• Machine
• Width of feed chain: (340 mm)
• Diameter of saw arbor: (65 mm)
• Diameter of bushing mount for blades: (80 mm)
• Diameter of saw blade maximum: (300 mm)
• Saw-arbor speed: 4200 RPM
• Feed speed (continuously adjustable): (5-35 m/min)
• Height of chain surface above floor (working level): (850 mm)
• Suction:
• Chip-exhaust outlet:
• Outside diameter: (200 mm)
• Airstream recommended: (30 m/s)
• Air throughput at recommended airstream: (3,400 m^3 / hour)
• Static particle vacuum: 1480 Pa

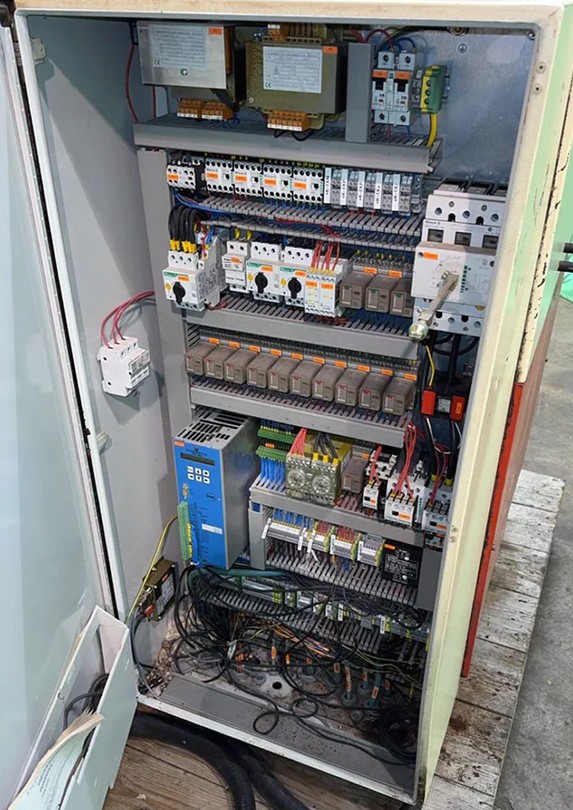

• Electrics:
• Power rating of saw motor: (37 kW)
• Power rating: (0.75 kW)
• Power rating of guide: (0.37 kW)
• Nominal current: 50 A
• Approximate dimensions: 75" x 75" x 60"
• Approximate weight: 4,409 lbs (2,000 kg)
