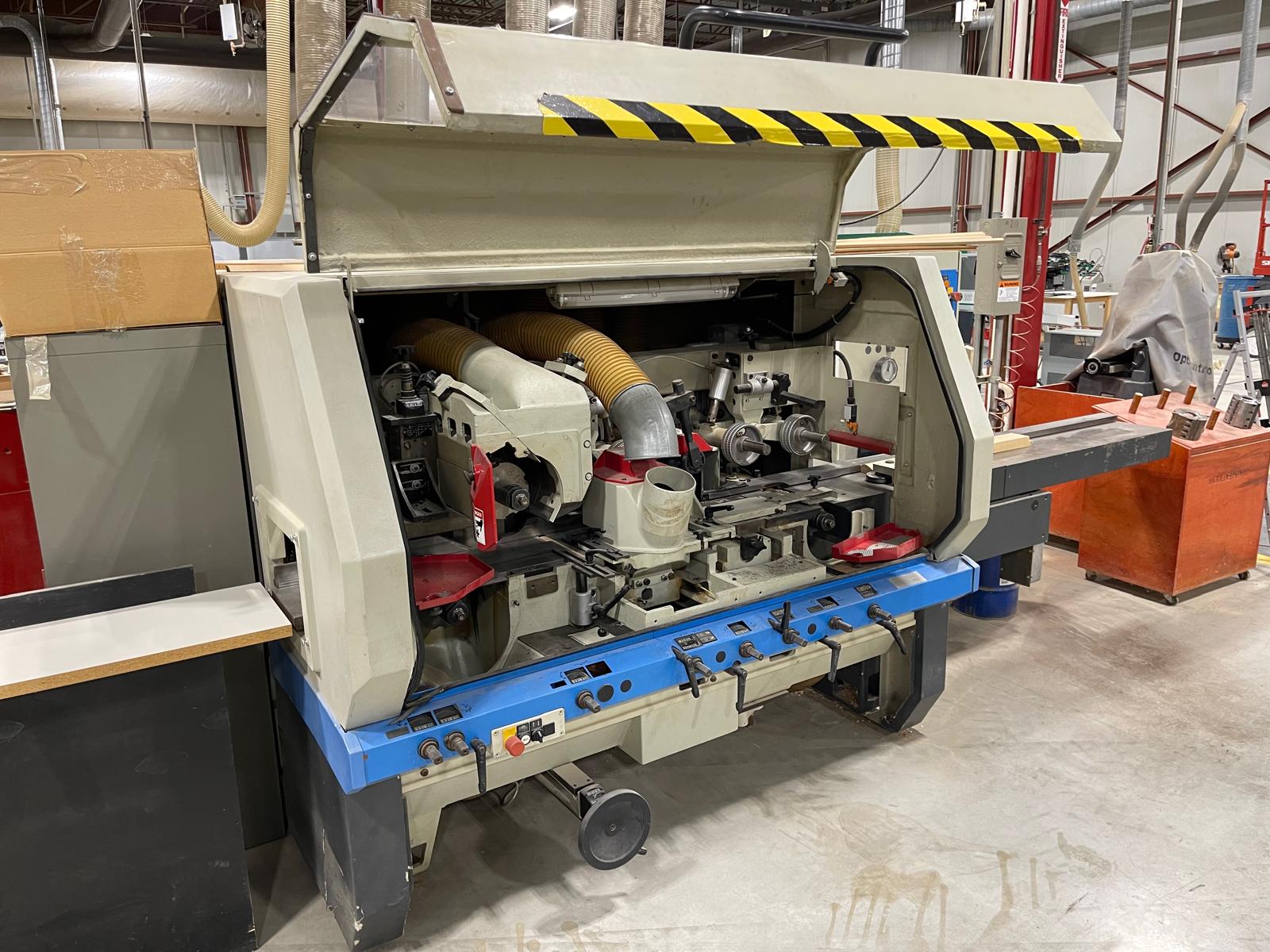

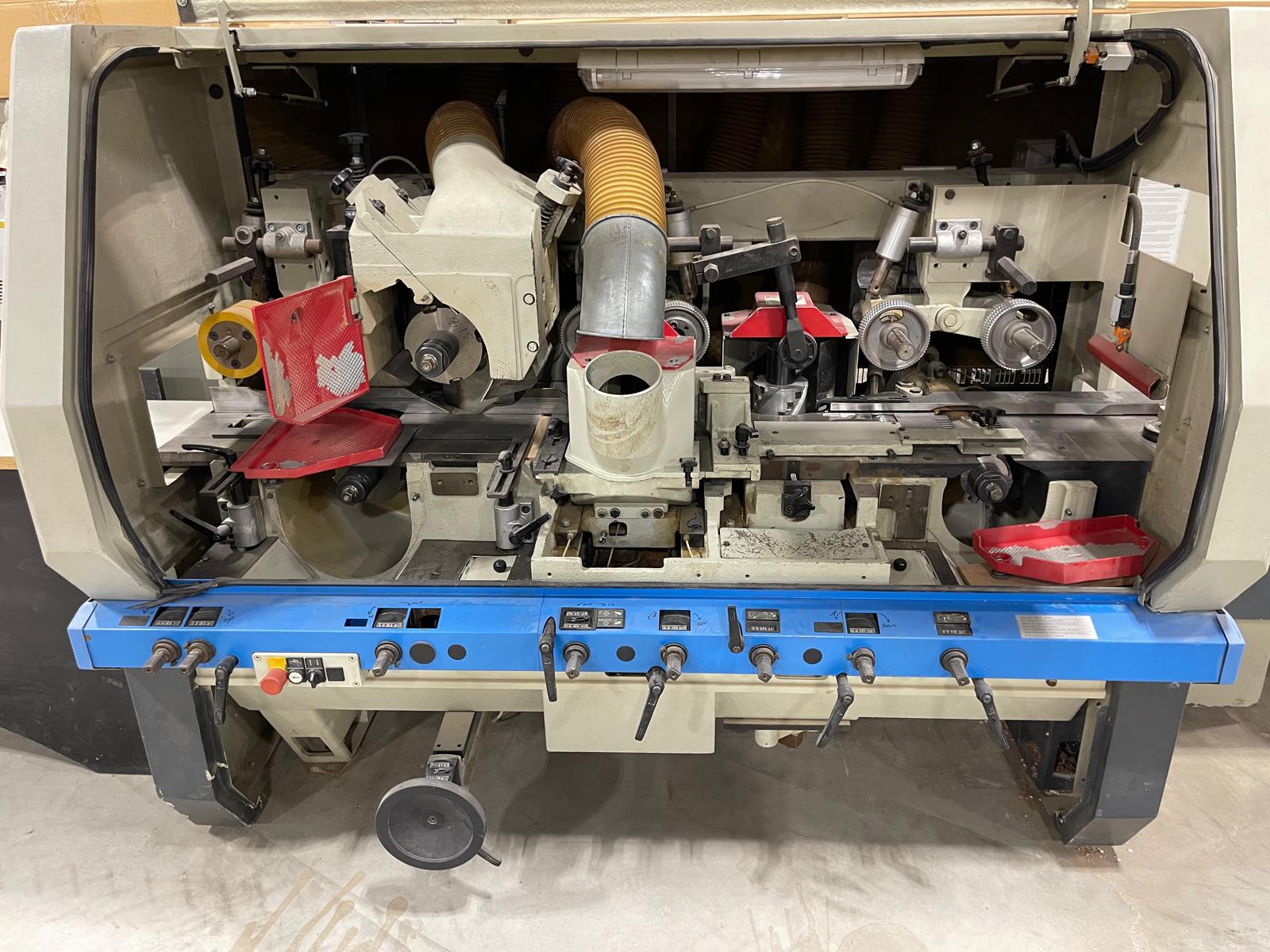

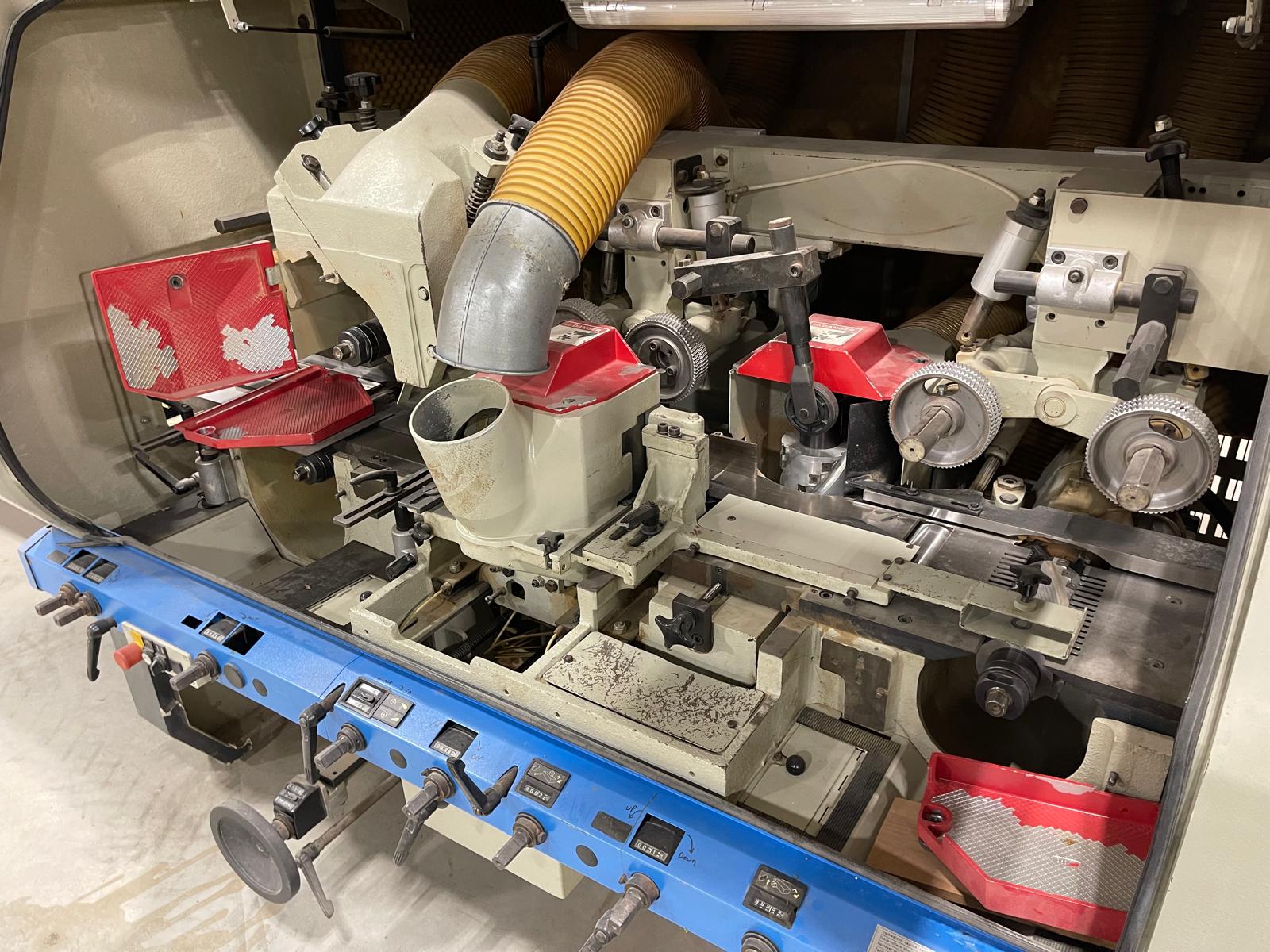

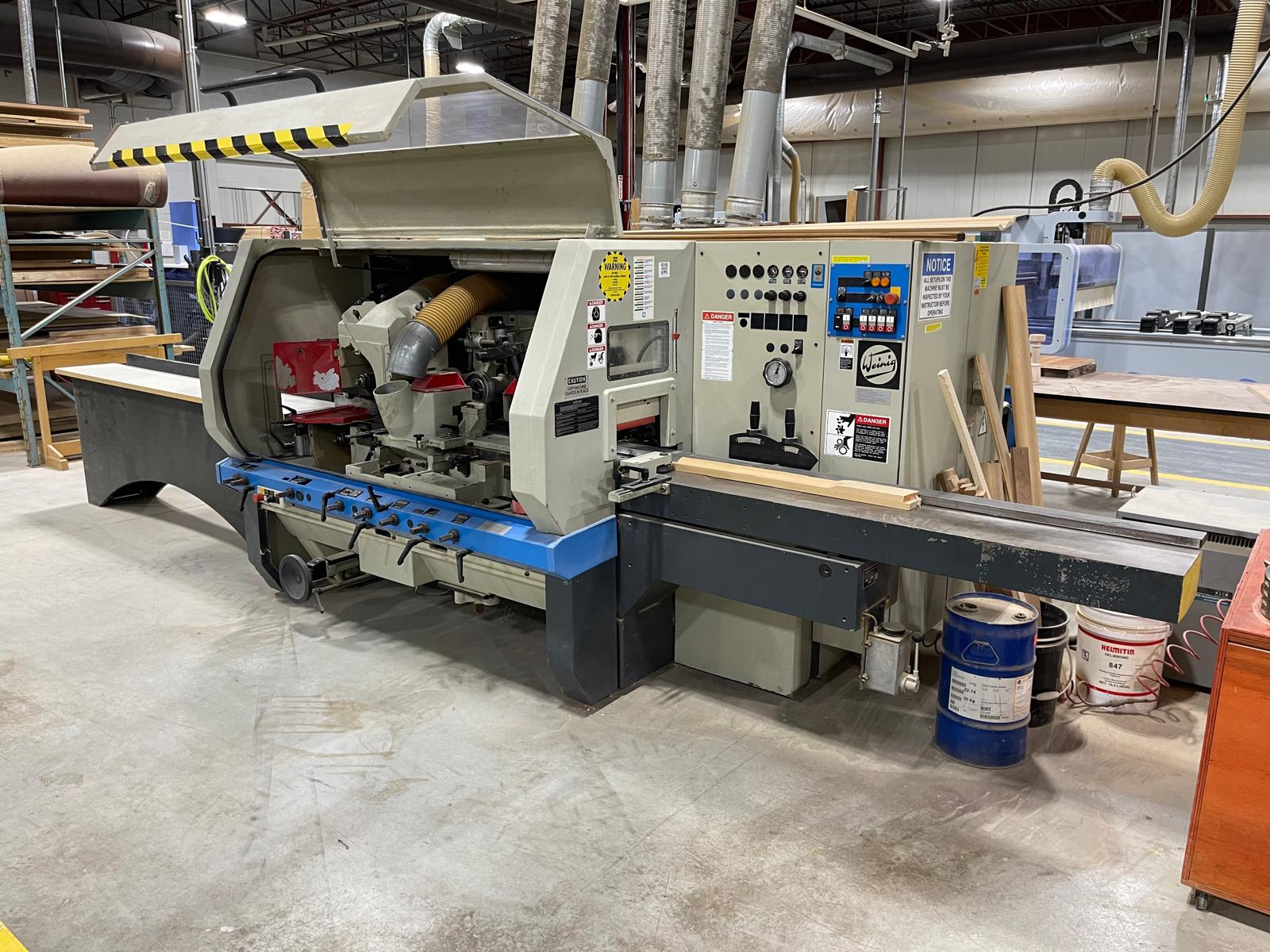

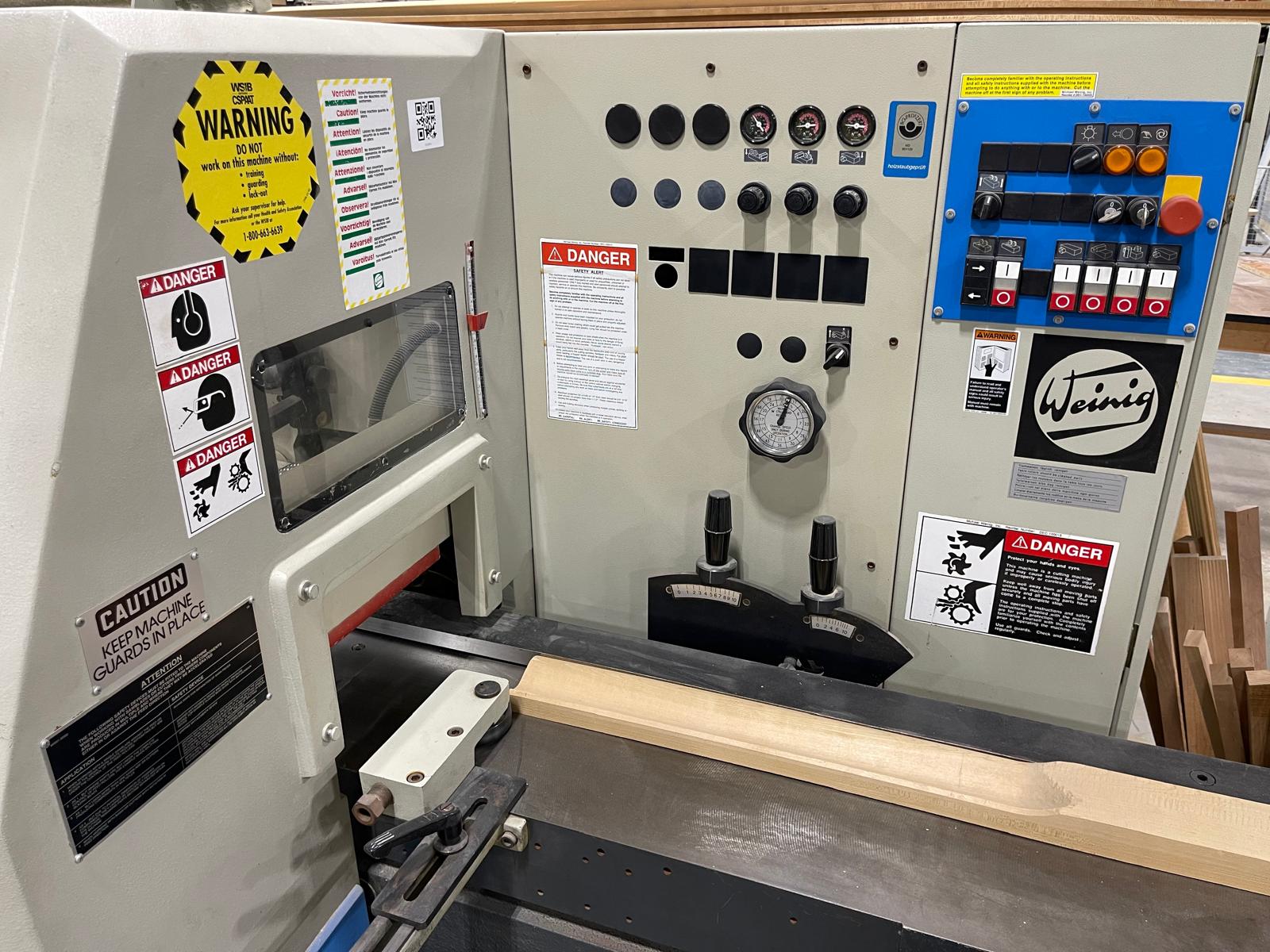

1999 Weinig Unimat 23 E 5-Head Moulder

Inquire today!

Weinig Unimat 23 E 5-Head Moulder - Features and Specifications

• 5-Head Moulder: B-R-L-T-B
• 9-1/16th x 4-3/4"
• Head sequence: Bottom 10 HP, right & left 15 HP, top 15 HP, bottom 10 HP
• Mechanical digital readouts on spindle adjustments for both axis except radial adjustment on 1st bottom head
• Digi-set readouts for left and top spindles
• Chipbreakers and pressure elements with mechanical digital readouts
• All spindles 1-13/16" dia. at 6,000 RPM with high precision bearings
• Motorized adjustment of feed beam, with independent adjustments of top heads
• Receding chip breakers on top spindle
• Variable feed speed: 16-78 FPM, 5.5 HP Cardan feed drive, overhead feed wheels with pneumatic pressure
• Vertical spindles with adjustable table plates to cutting circles
• Hardened infeed bed plates before & after 1st bottom head
• Powered bed rollers, (1) after 1st top head, (1) in outfeed table after last bottom head
• 78" infeed straightening talbe with adjustable fence & adjustable outfeed table
• Side pressure rollers

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
