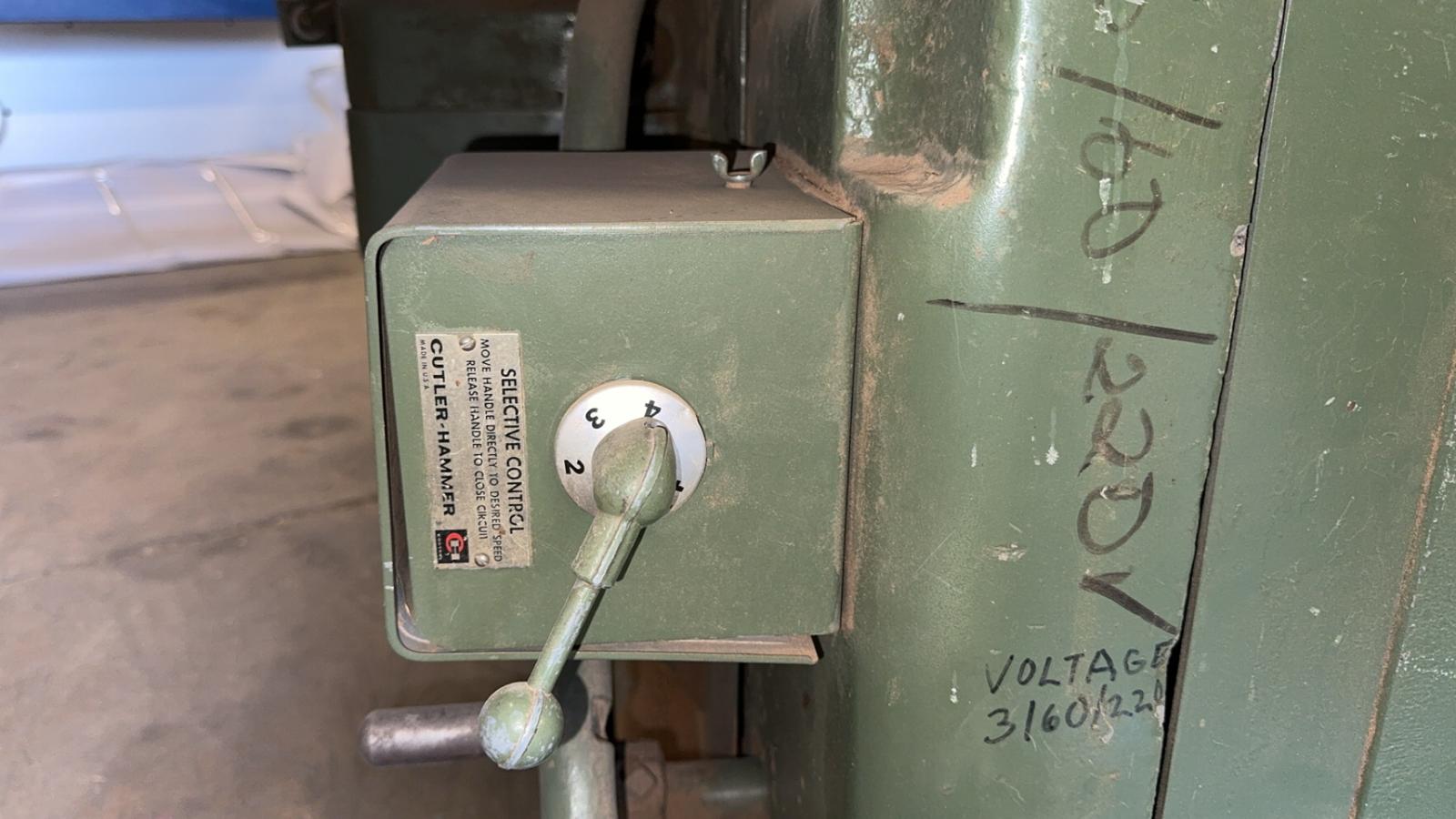

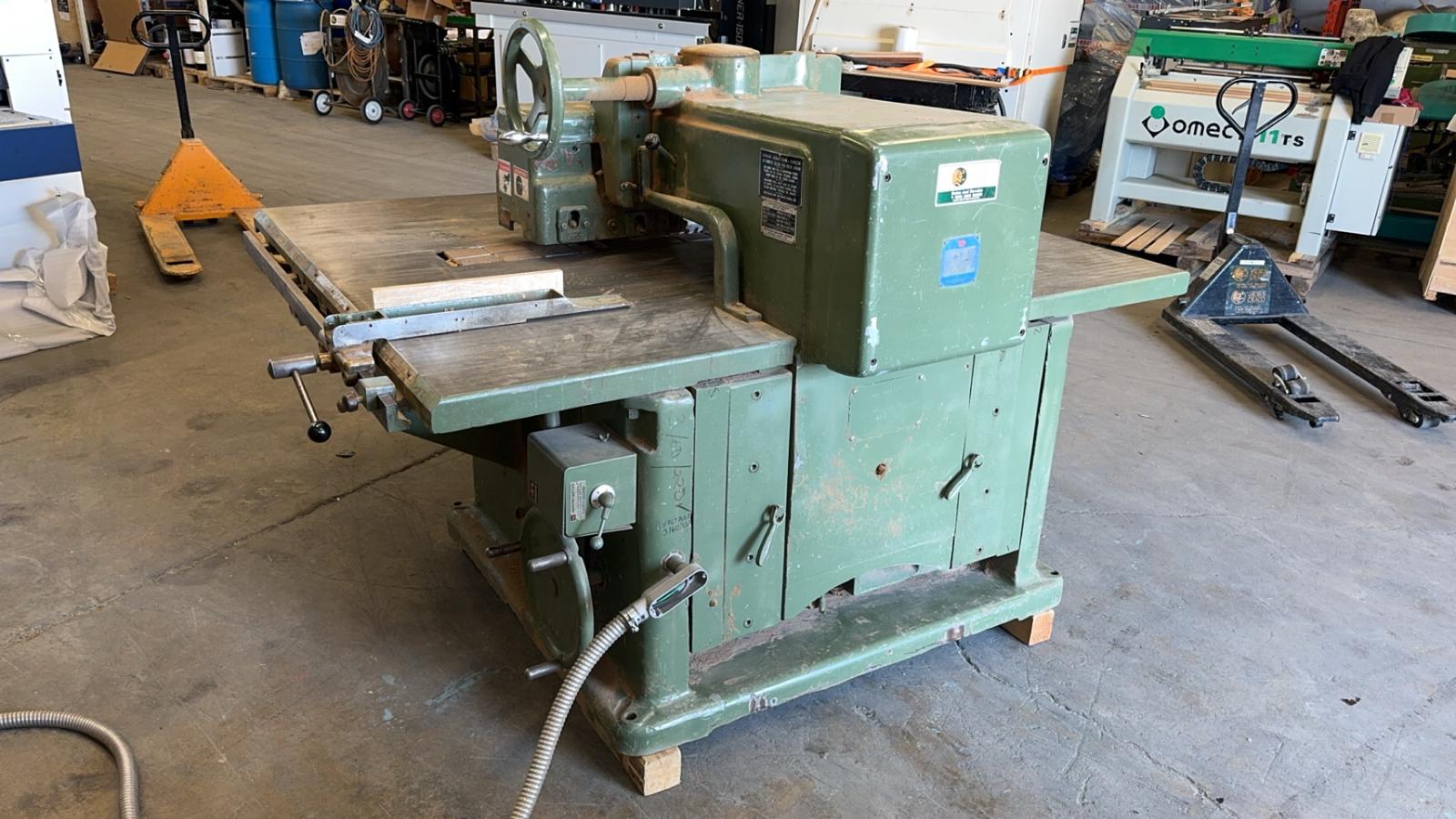

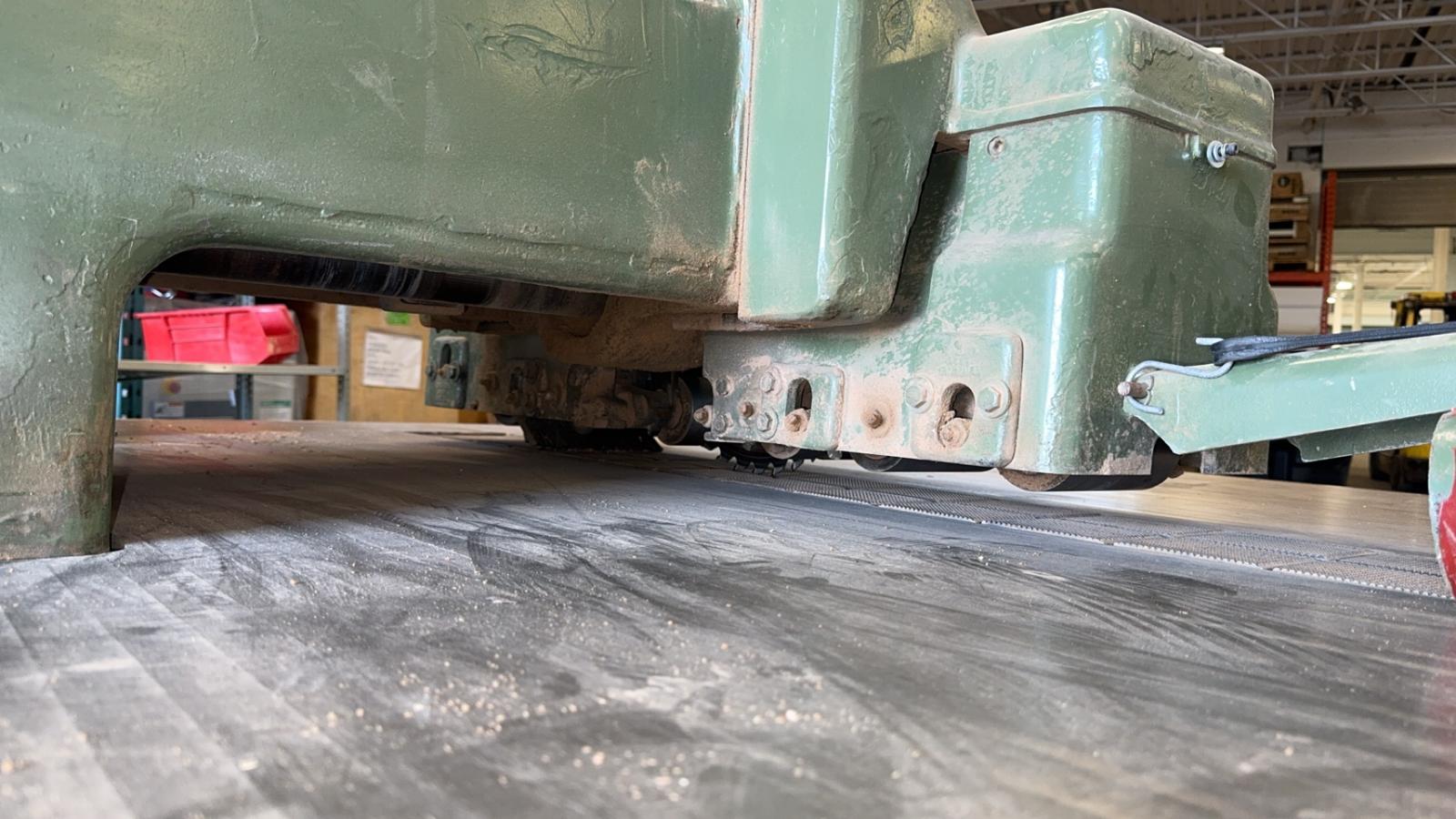

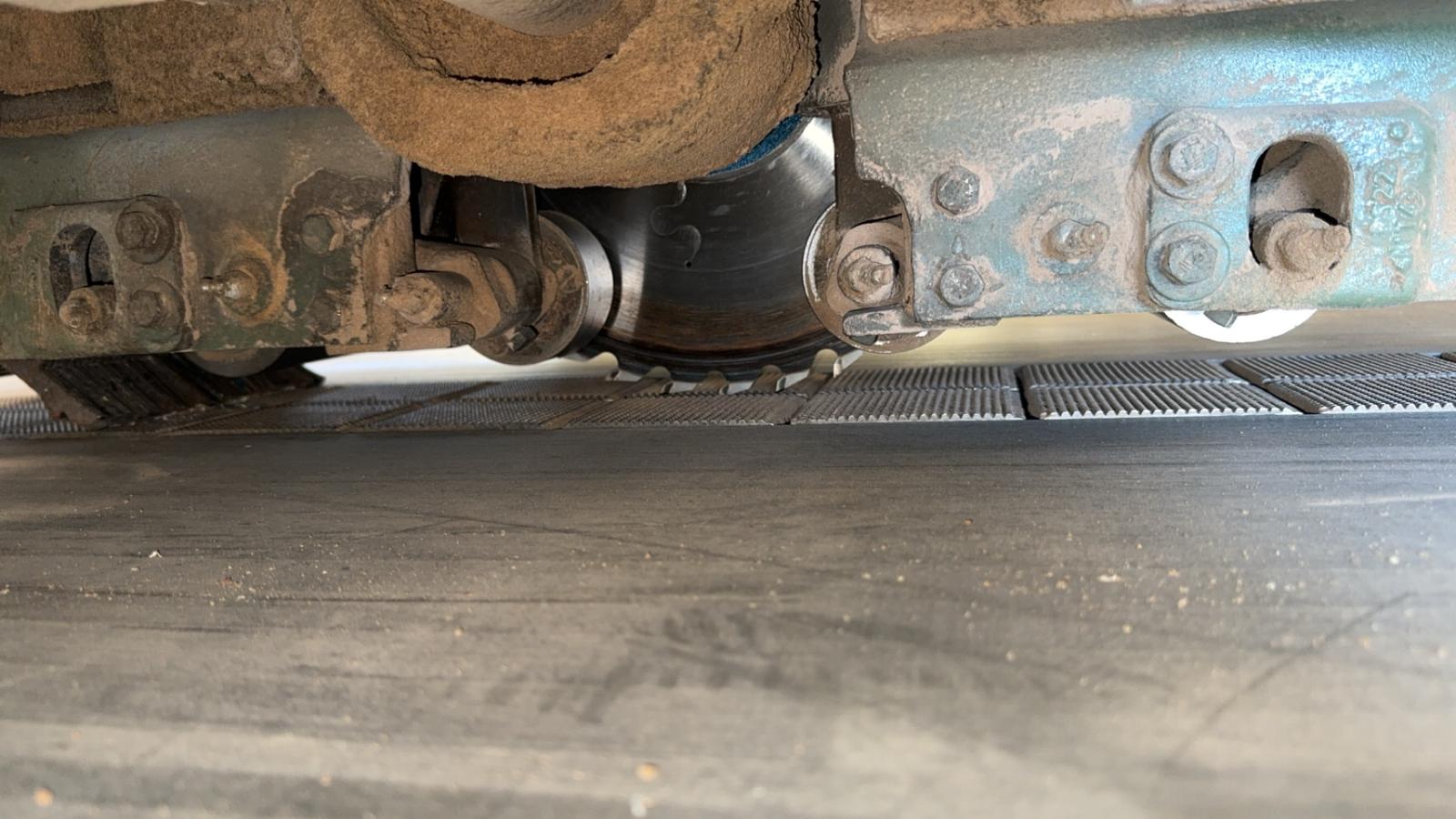

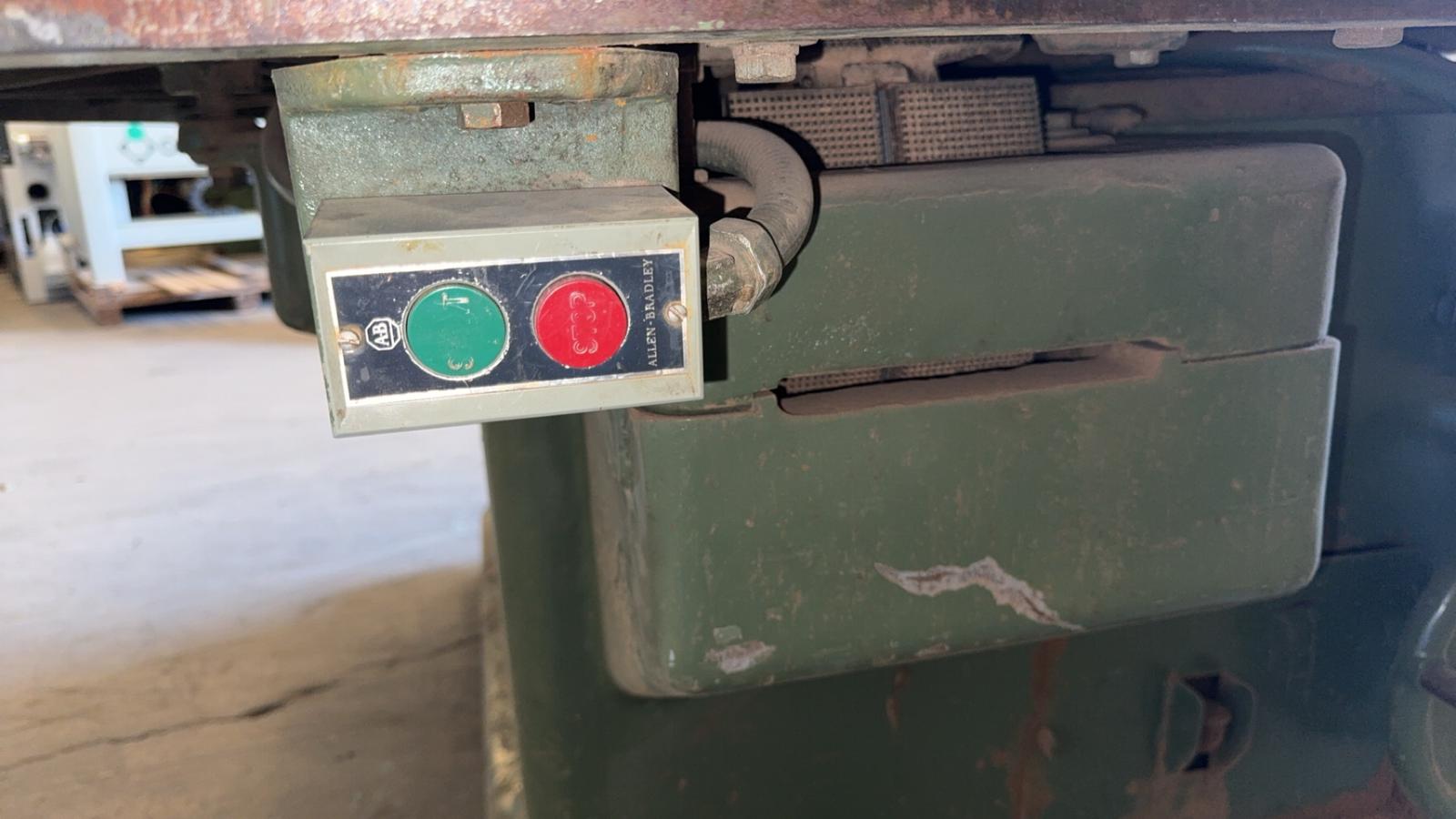

Mattison 404 Straight Line Rip Saw
No longer available
Specifications
| Manufacturer | Mattison |
| Model | 404 Straight Line Rip Saw |
| Stock Number | T4374KR |
Description
Inquire today! Photos coming soon!
Mattison 404 Straight Line Rip Saw - Features & Specifications:
- 20 HP
- 3,600 RPM direct drive arbor motor
- 14" diameter max. saw blade cap (smallest: 9")
- 1-1/2" diameter arbor; 4 " thickness capacity
- 30" distance from saw to left edge of table
- 24-1/3" between saw & column; 2" rip distance to right of a gauge
- Top roller holddown with 7-1/2" shortest stock handled under (1) roll, 1 5" under (2) rolls

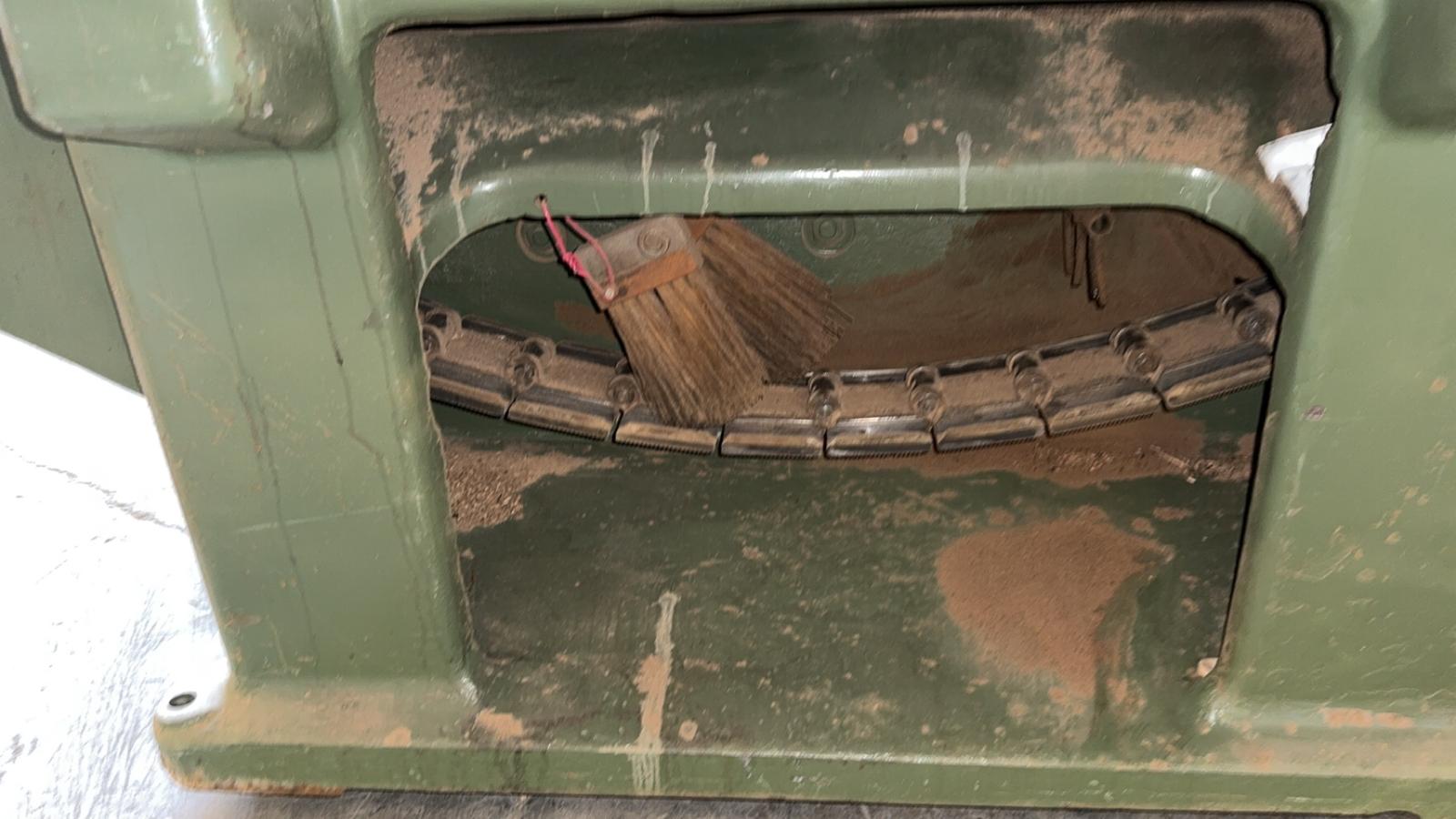

- Overeahd cutting design with single cast chain links
- Chain with automatic oil lubrication
- 20 HP feed motor with 2 feed speeds of 50 and 100 FPM
- Glue joint quality chain
- Approximate dimensions: 8' x 6' x 5'
- Approximate weight: 6,600 lbs
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
