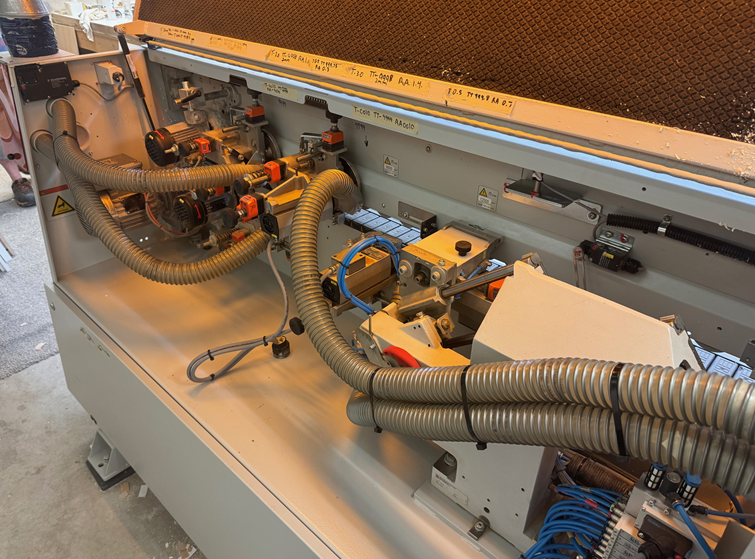

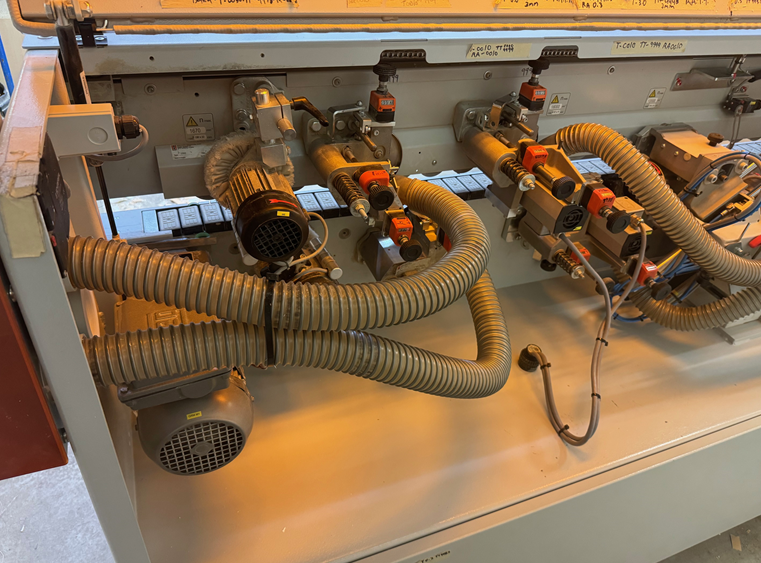

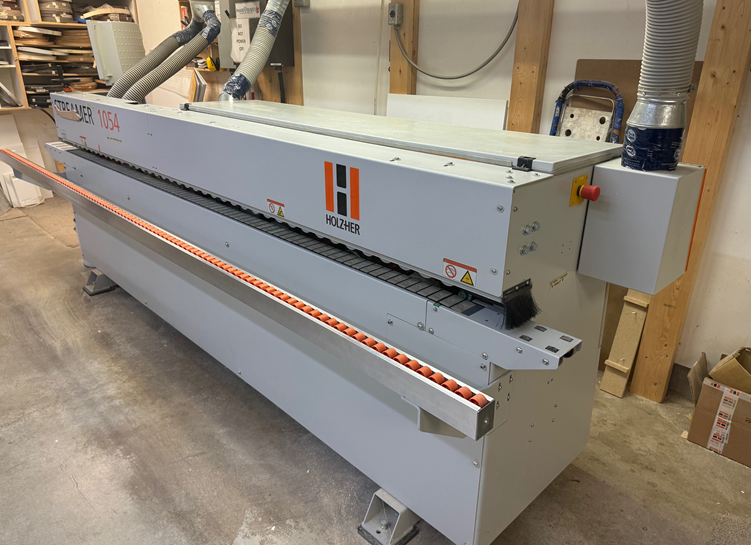

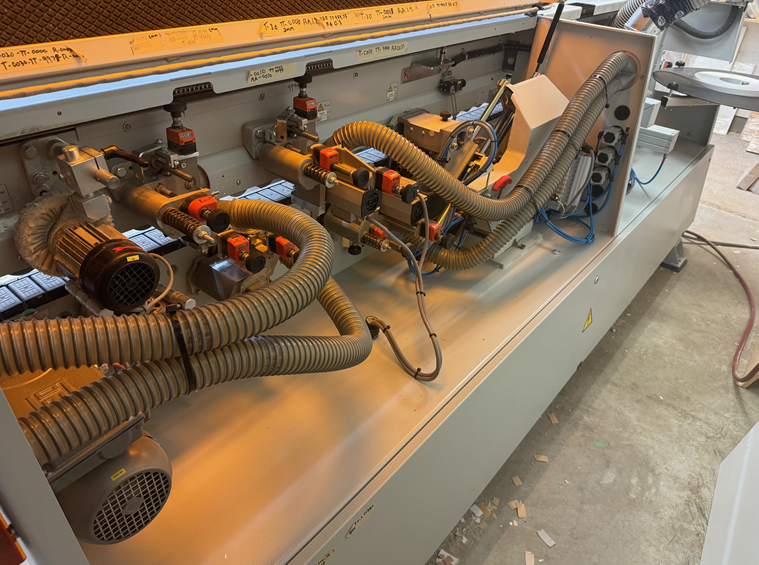

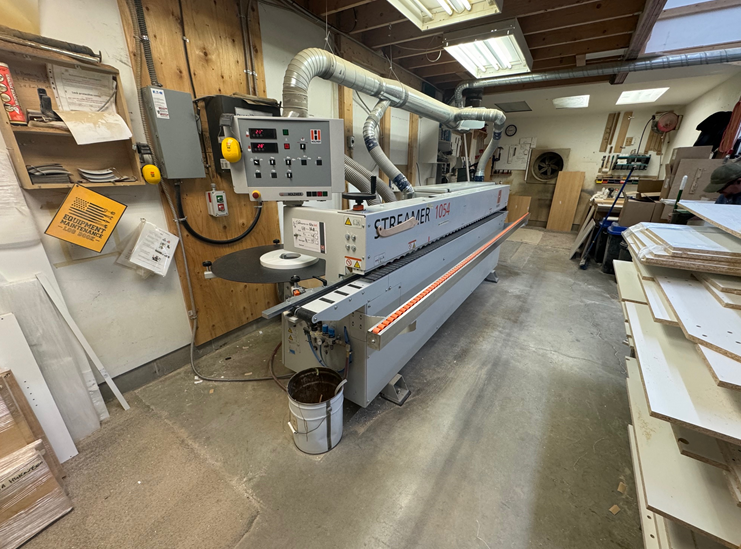

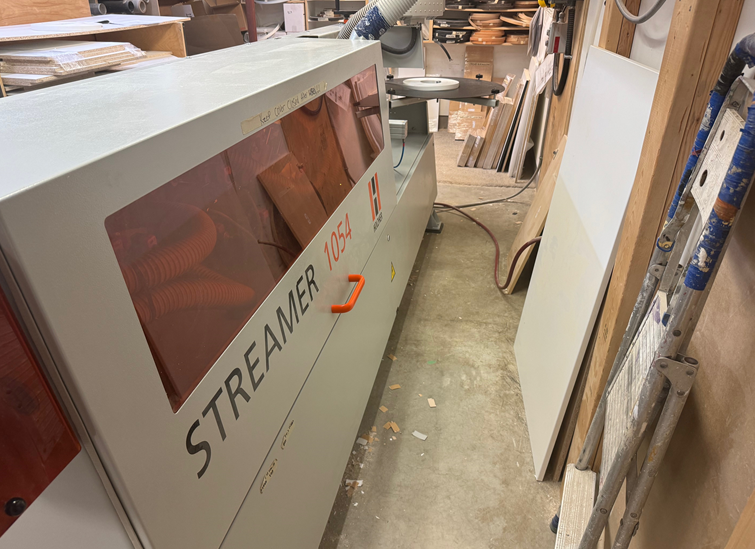

2020 Holz-Her Streamer 1054 Automatic Edgebander

orCall (905)-451-8430

Specifications

ManufacturerHolz-Her
ModelStreamer 1054 Automatic Edgebander
Year2020
Stock NumberT4367JL
Voltage230V / 1Ph / 60Hz

Description

Inquire today!


Holz-Her Streamer 1054 Edgebander - Features and Specifications

  • Edging thickness of coiled edging: 0.02" - 0.12" (0.4 - 3 mm), depending on material
  • Edging thickness of cut-length edging: 0.02" - 0.12" (0.4 - 3 mm)
  • Edging height max: 2.6" (65 mm)
  • Panel thickness: 0.31" - 1.8" (8 - 45 mm)
  • Edging cross section: Max. 6 x 42 mm (0.24" - 1.7")
  • Workpiece width: min. 2.6" (65 mm)
  • Workpiece length: min. 6.3" (160 mm)
  • Feed speed: 33 feet/min
  • Pre-Milling Unit
  • Diamond cutter Ø 2.8" x 1.9" x 1.2" (70 X 48 X 30 mm) 2+2 teeth, left hand
  • Diamond cutter Ø 2.8" x 1.9" x 1.2" (70 X 48 X 30 mm) 2+2 teeth, right hand

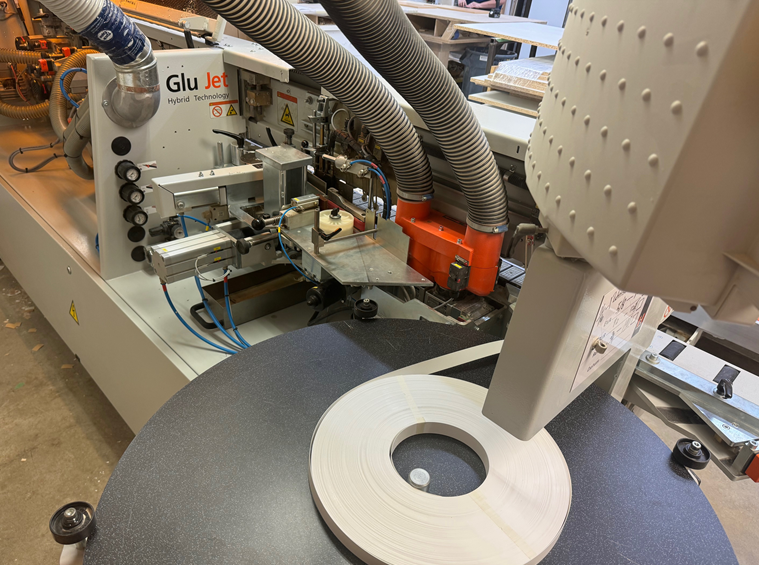

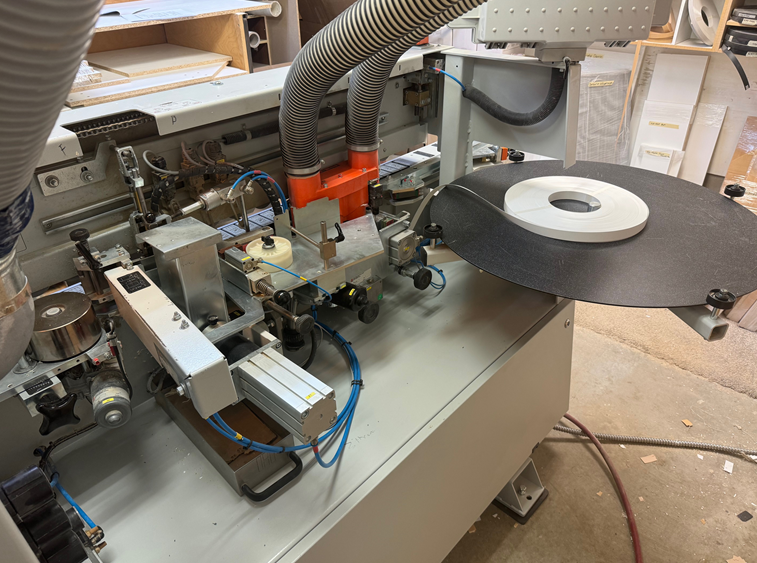

  • Edge Feeder
  • Max. load capacity: 1.6" (40 mm)
  • Max. edge thickness: 0.12" (3 mm), material dependent
  • Forward cut up to max. 2.6" (65 mm), material dependent
  • Max. cross section: 0.21"^2 (135 mm^2), material dependent
  • Support table for coils Ø 0.32" (820 mm)

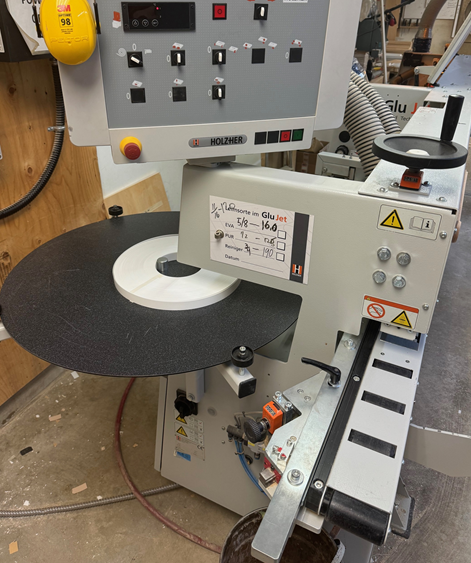

  • Glue application
  • Processing of EVA and PUR adhesives
  • Adhesive in cartridge or granule form
  • Processing of neutral and coloured adhesives
  • Heat up time: 3 mins
  • Magazine capacity: 1 cartridge (~ 330 g)
  • Pressure Unit
  • First roller driver, 2 support pressure rollers
  • End Trimming Unit
  • 2.4" (60 mm), pneumatic
  • Adjustment 0 - 10°
  • Multifunctional Trimming Unit
  • Multipurpose unit for flush trimming, radius, and chamfering
  • Scraper Unit
  • Workpiece thickness: min. 0.47" (12 mm)
  • R = 0.08" (2.0 mm)


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –


Please contact TCMI customer service for more information.


---


** Note: All information is to the best of our knowledge and may not apply exactly to the listed machine.**
