2002 Wil-Be SC2500 Countertop Saw

Inquire today!

Wil-Be SC2500 Countertop Saw - Features and Specifications:

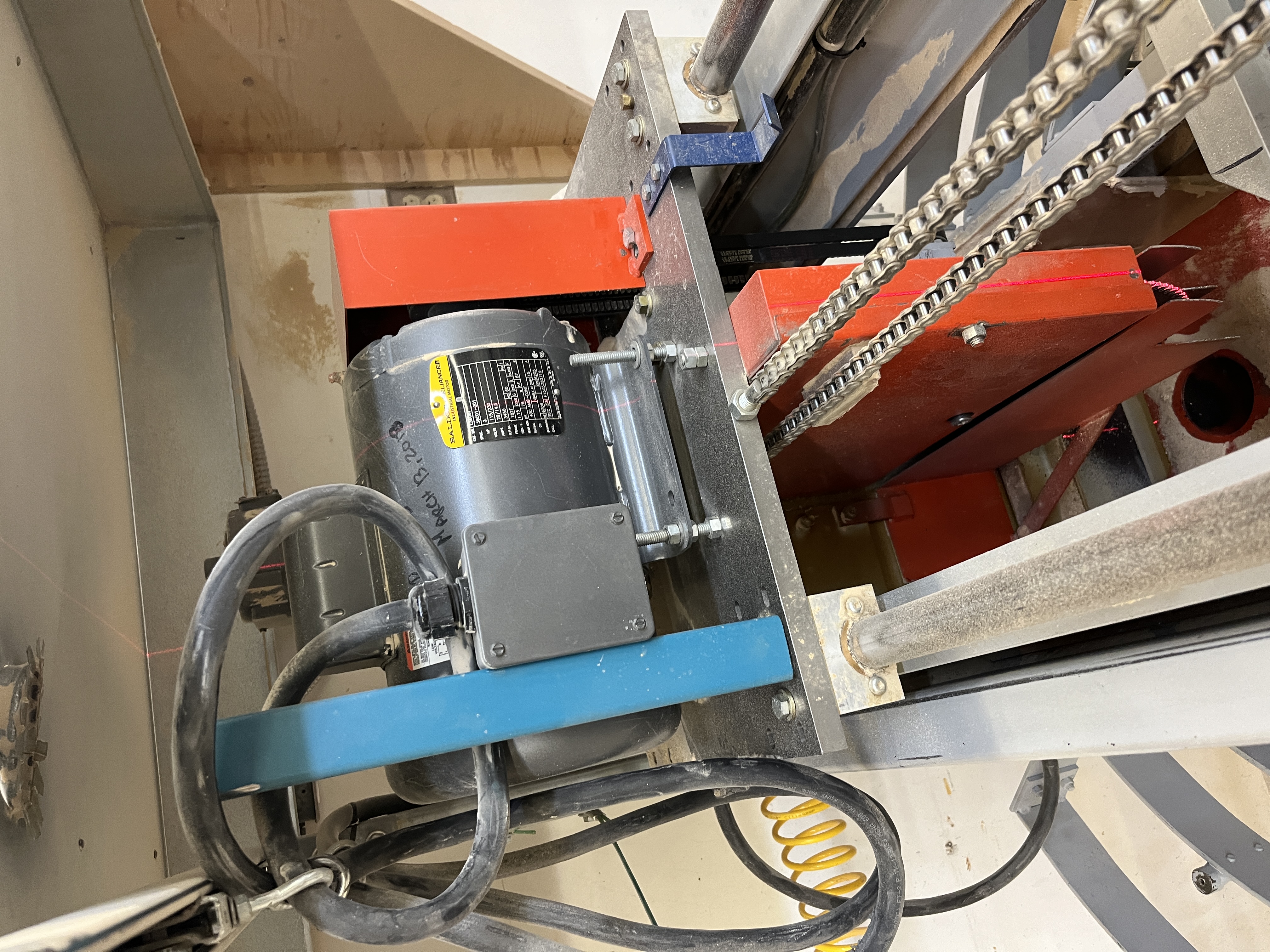

• Motor changed in 2018!
• Maximum cutting height: 5 ¾"
• Pivoting upper frame interior length: 97"
• Suction ports diameter: Ø 3" and Ø 4"
• Feed speed: 18 feet/min
• Maximum countertop width that can be cut:
• @ 22.5°: 56 ¼" / 55"
• @ 45°: 43 ⅛" / 42 ⅛"
• @ 90°: 61" / 59 ⅝"
• Pneumatic requirements: 1 CFM at 60 psi
• Dust ports: 2
• Spring latch system for easy positioning and locking at standard miter positions 22.5°, 45°, and 90°
• Saw carriage on linear bushings
• Fixed forward and return speed
• Variable traverse speed to allow controlled cutting
• Sturdy saw mandrel with sealed ball bearings and Ø 1" shaft (blade not included)
• Telescopic positioning ruler to support cut countertops
• Countertop positioning fences made of anodized aluminum

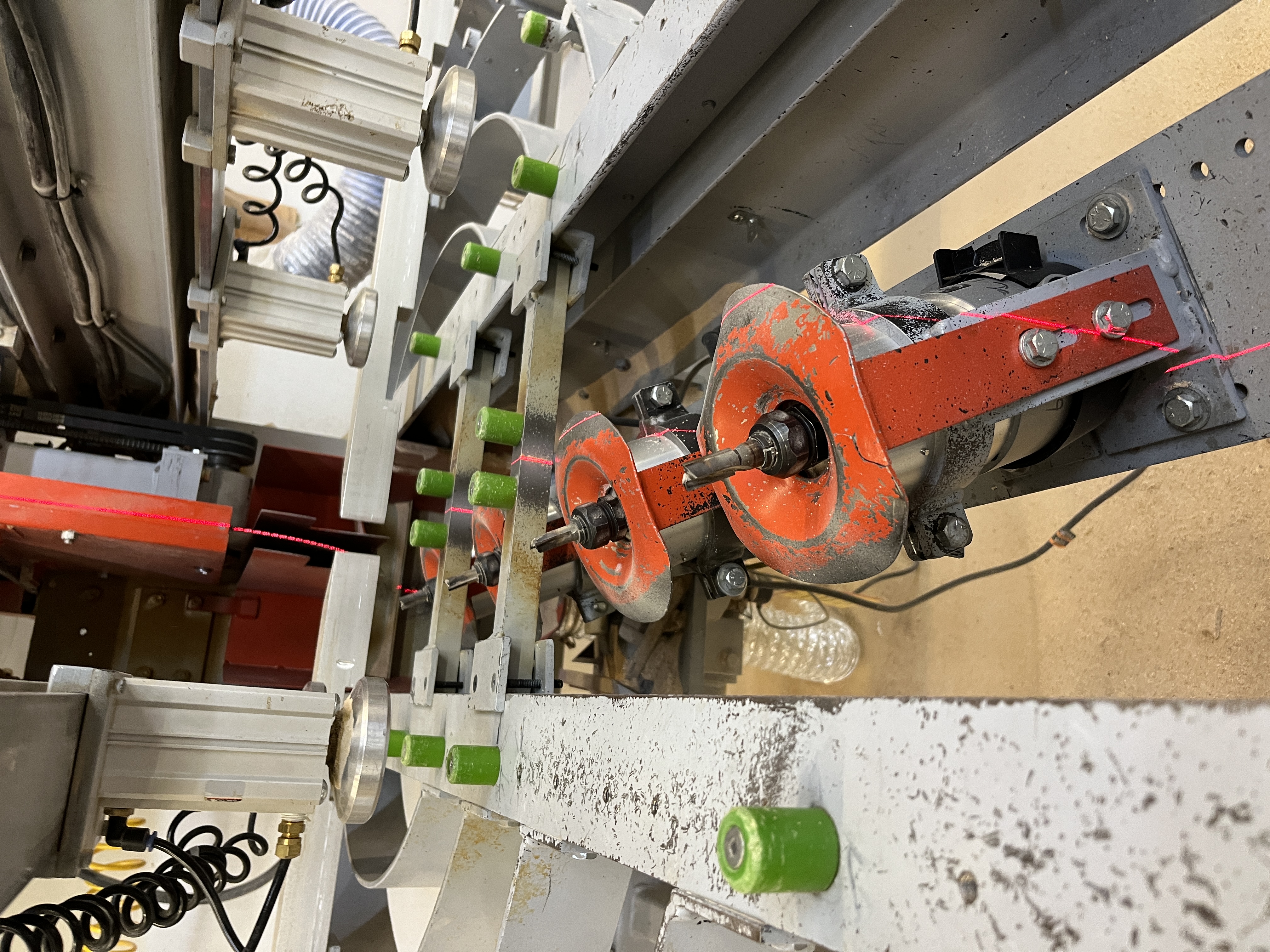

• Drawbolt cavities routing system with 4 router motors moved by the operator with help of handles bars guided by template (with a safety interlock). 4 pneumatic hold-down clamps independently posittionable for optimal hold of countertop
• Approximate dimensions (without conveyors): 123" x 93" x 70" (required space: 127"x 202" x 70")
• Approximate weight: 2,350 lbs

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
