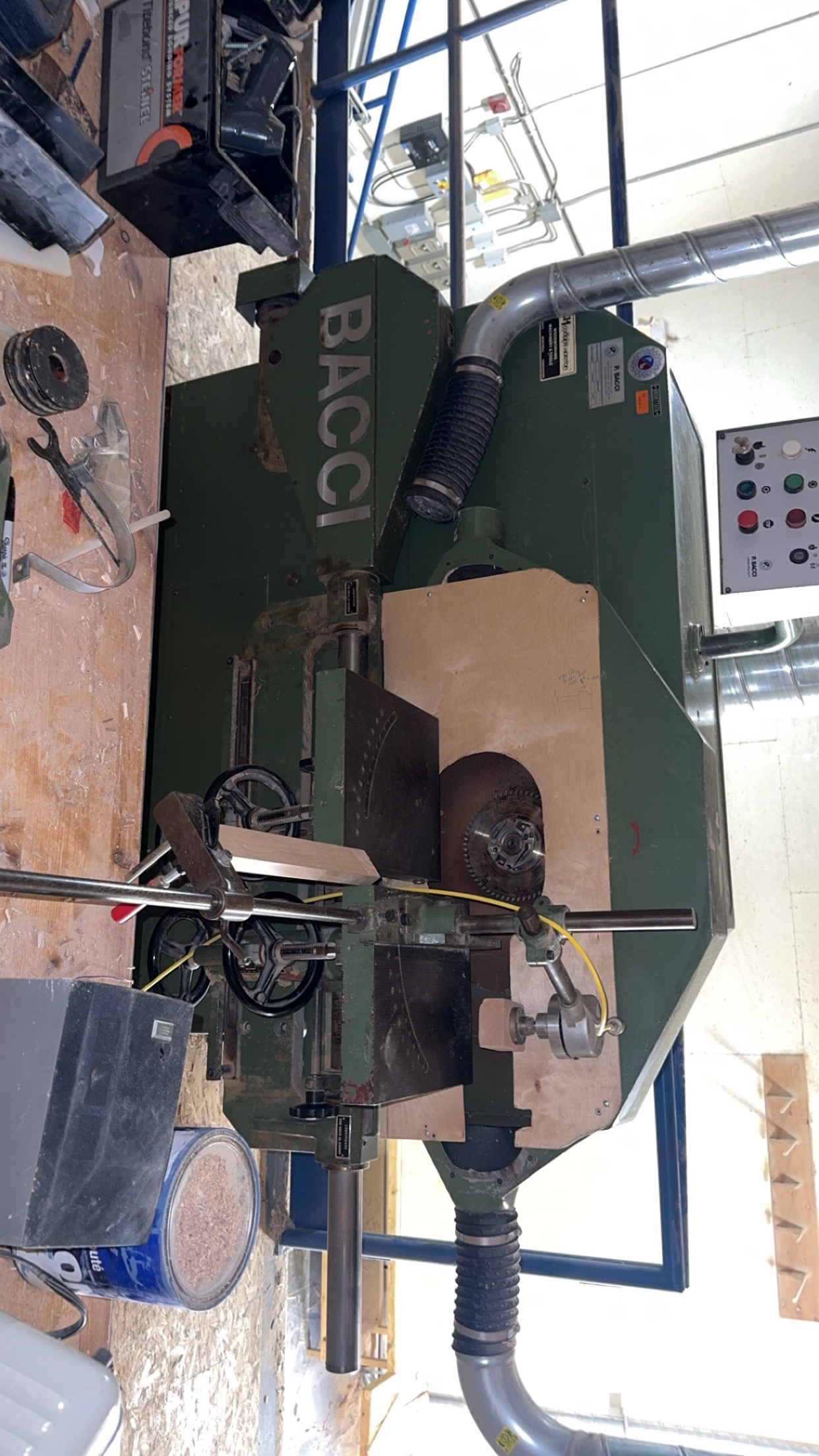

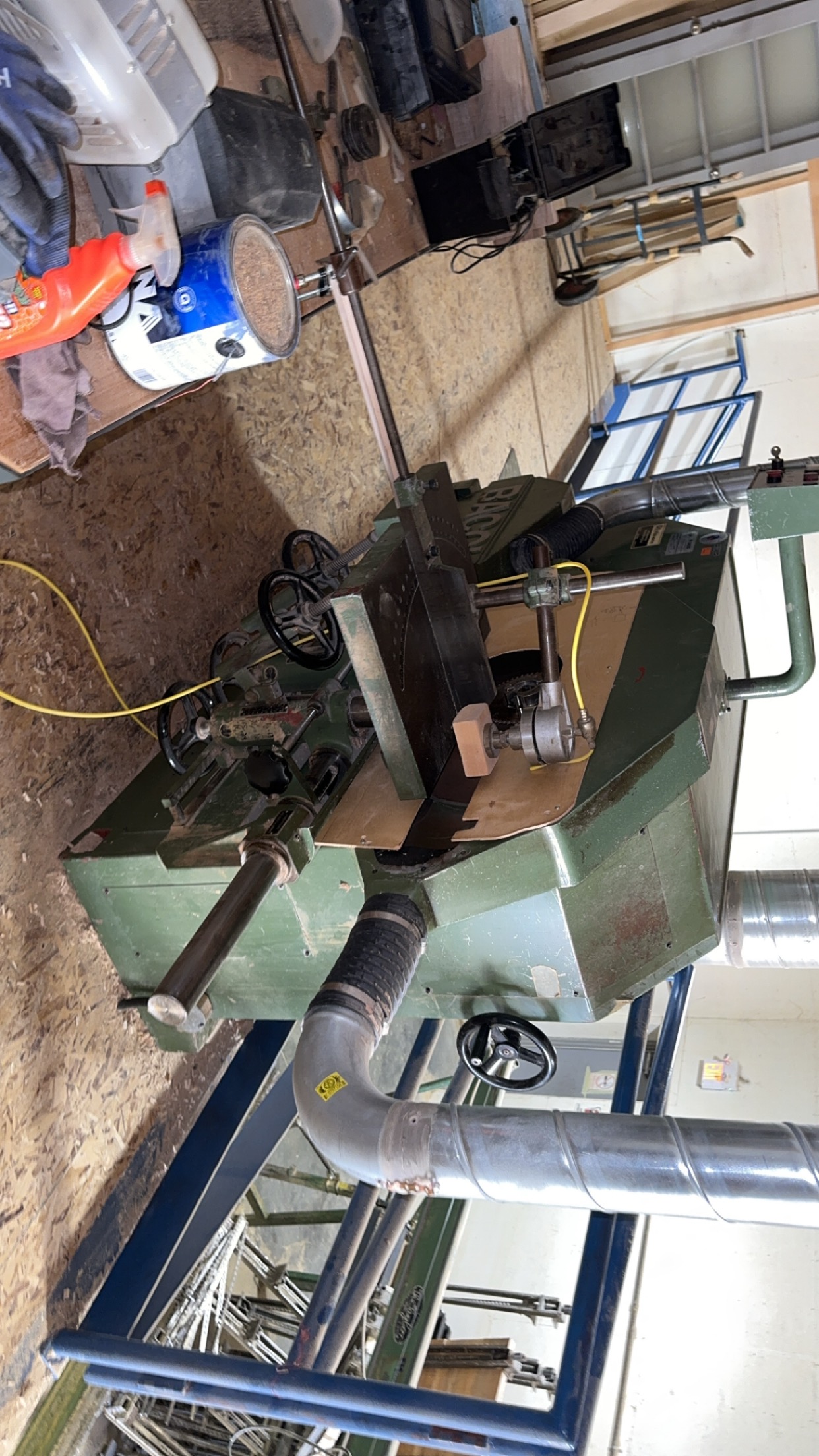

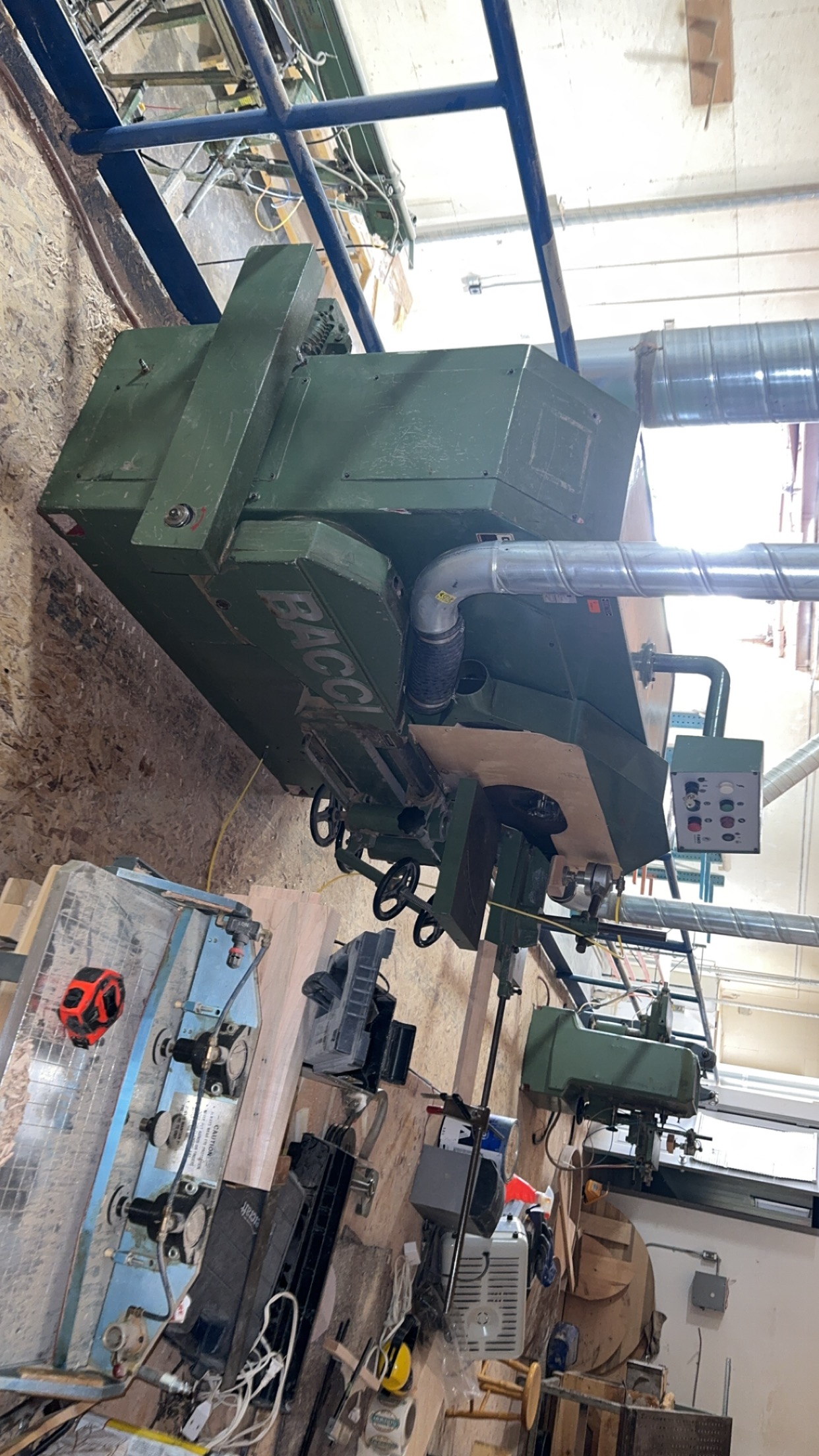

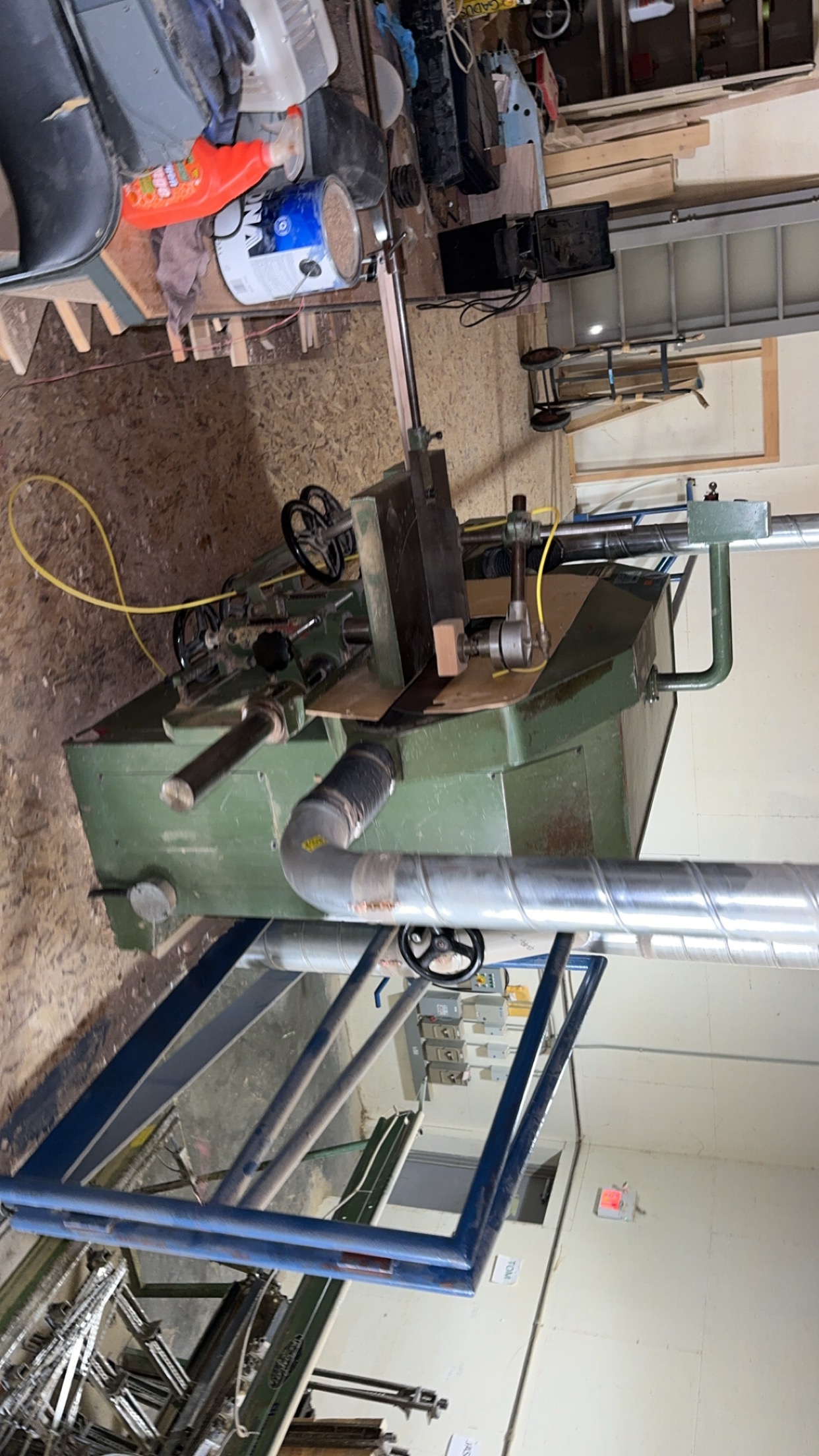

1987 Bacci TSG 2T Round End Tenoner

No longer available

Specifications

ManufacturerBacci
ModelTSG 2T Round End Tenoner
Year1987
Stock NumberT4358WL

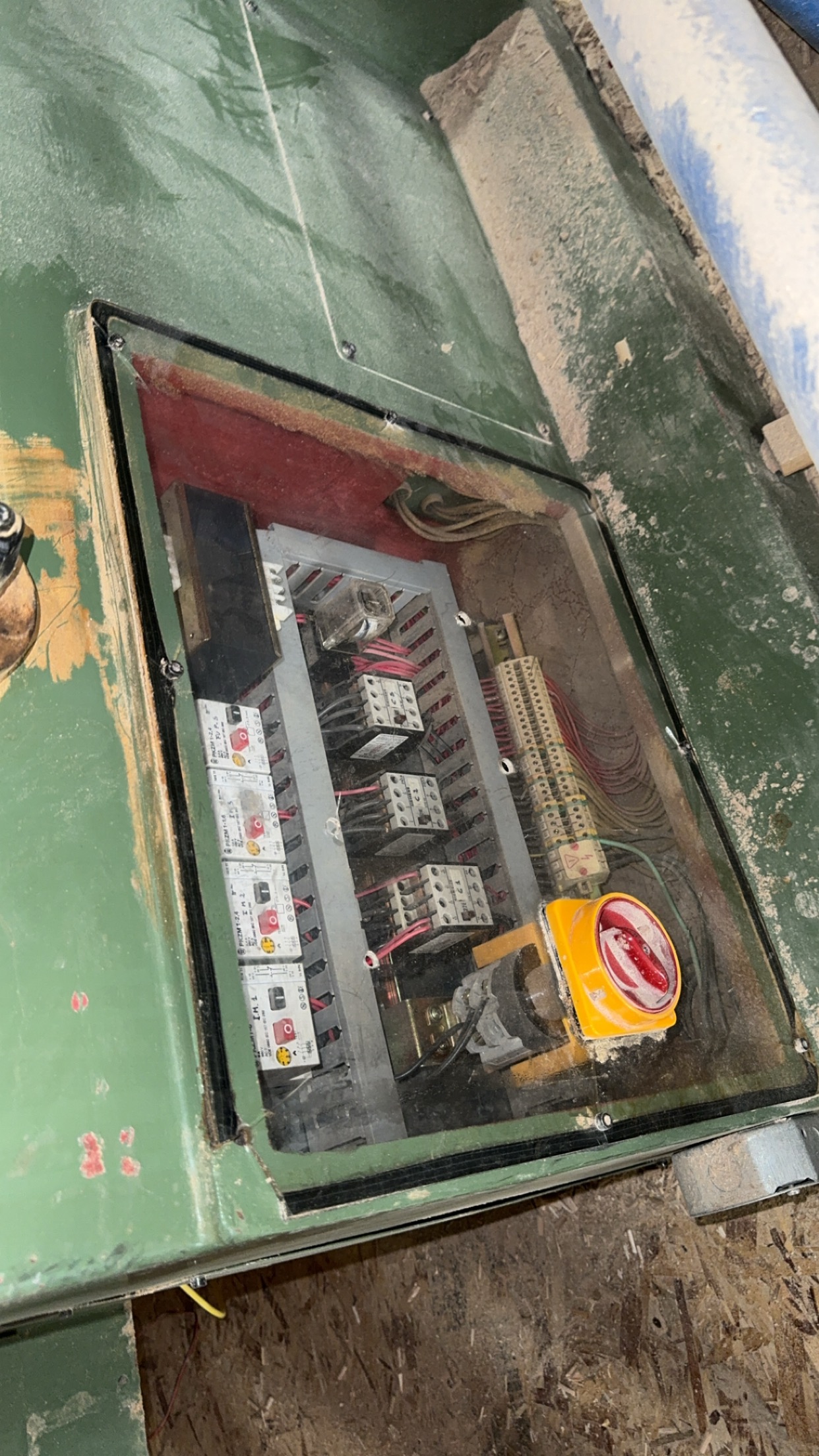

Voltage575V / 60Hz

Description

Inquire today!


Features and Specifications:

  • Spindle speed: 224" (5,700 mm)
  • Ø external of the cutter: 3.5" (90 mm)
  • Height of the cutter: 3.9" (100 mm)
  • Ø spindle: 1.2" (30 mm)

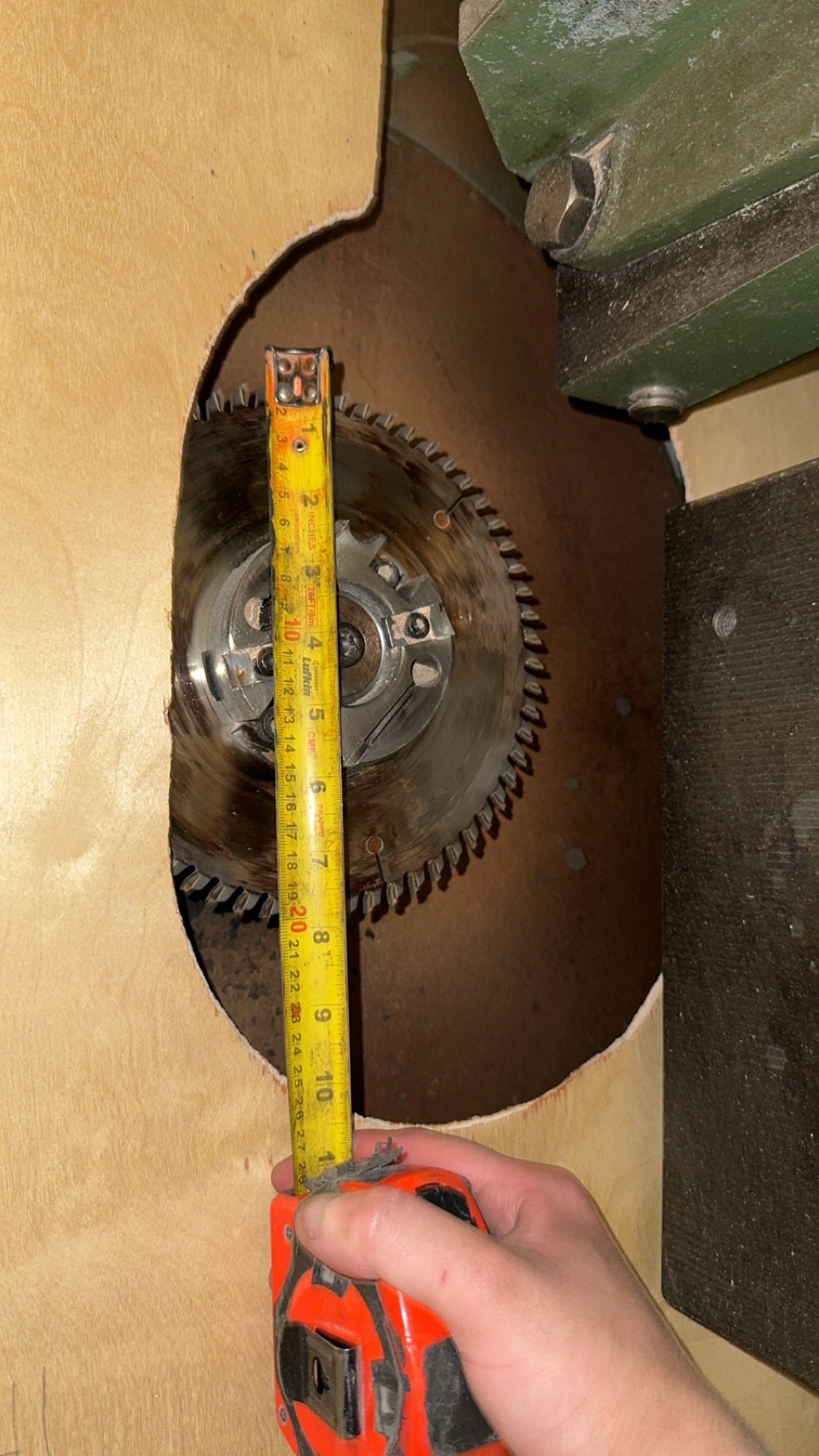

  • Ø of the circular saw: 5.1" (130 mm)
  • Max. tenon length: (120 + 2R mm)
  • Max. depth of the tenon: 2.0" (50 mm)
  • Max. thickness of the tenon: 1.5" (38 mm)
  • Ø max. of the dowel: 1.5" (38 mm)

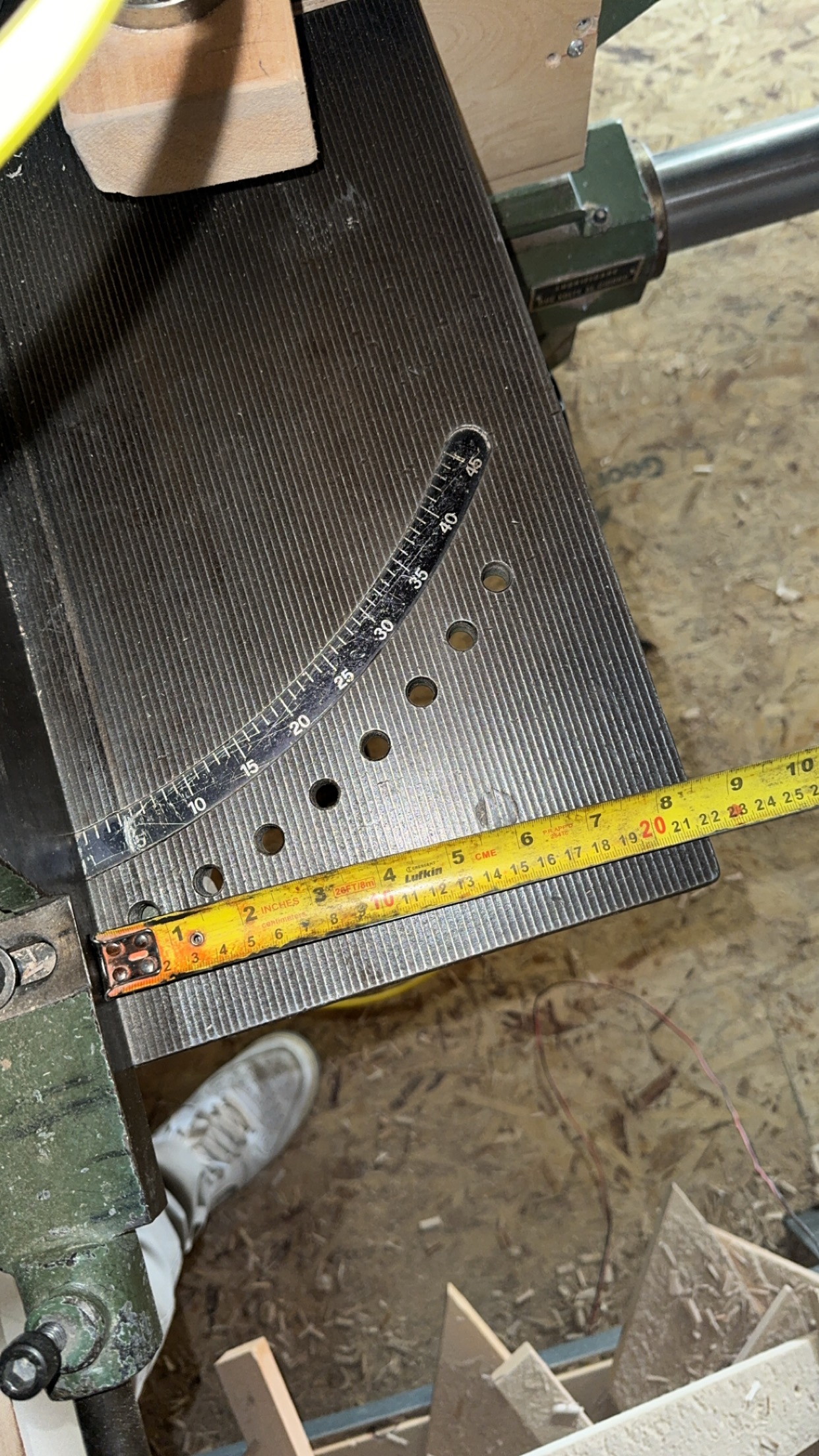

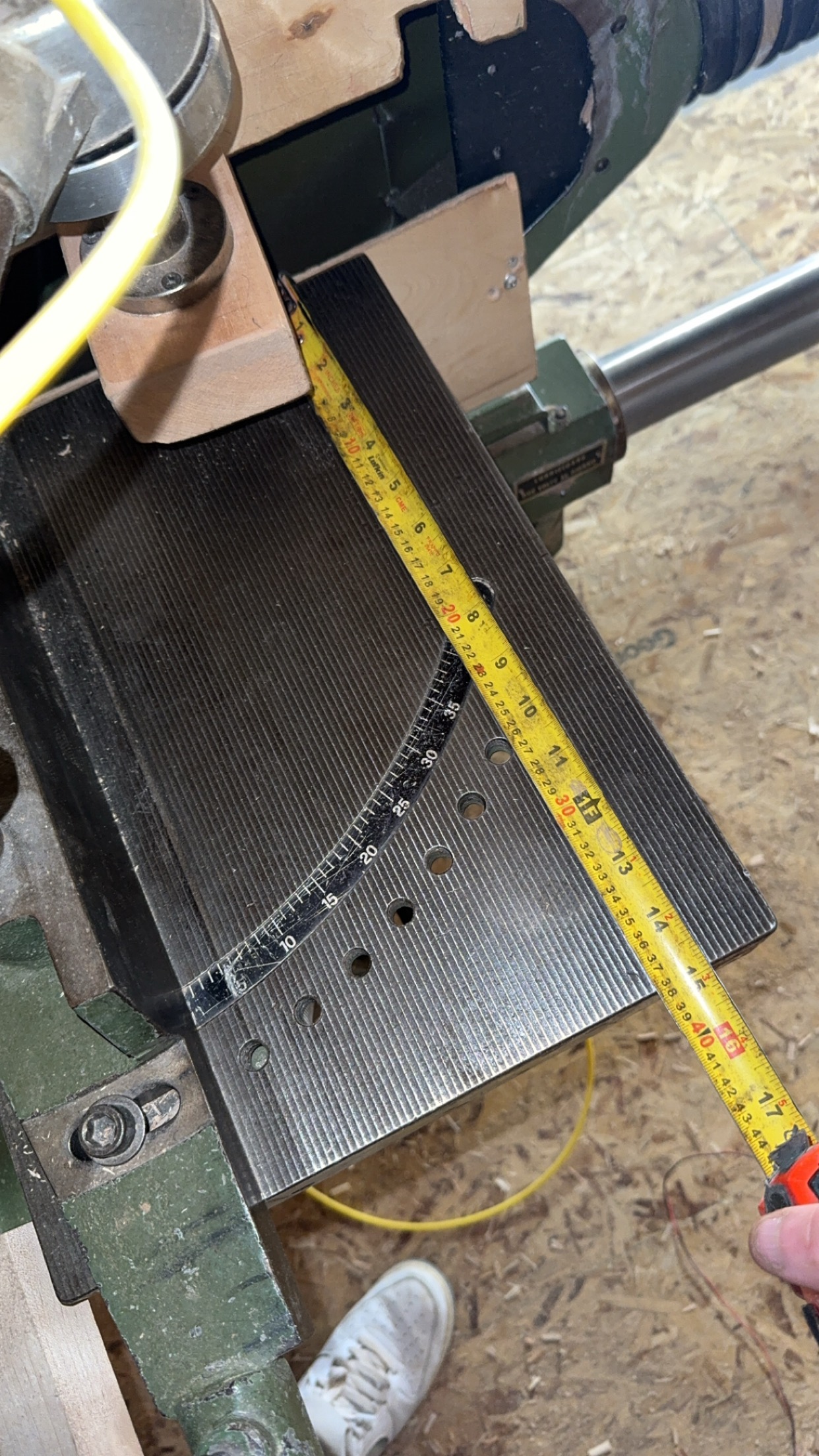

  • Transverse displacement of the table: 2.8" (70 mm)
  • Table upstroke: 3.1" (80 mm)
  • Horizontal canting of the table: +20 - 0 - 30
  • Lateral canting of the table: 0° - 15°
  • Radial displacement of the workpiece shoulder: 0° - 45°
  • Angled tenons up to (as regards the horizontal surface): 90°
  • Translation speed of the mobile equipment
  • Capacity per minute: From 6-12
  • Working pressure: 6 atmos
  • Compressed air consumption: 90 lt
  • Quick coupling for air tube: Ø 1/4"
  • Motor for cutterhead: 4 HP
  • Motor for the rotation of the cutterhead: 1 HP
  • Total installed power: 3.75 kW
  • Approximate dimensions: 85' x 85" x 62"
