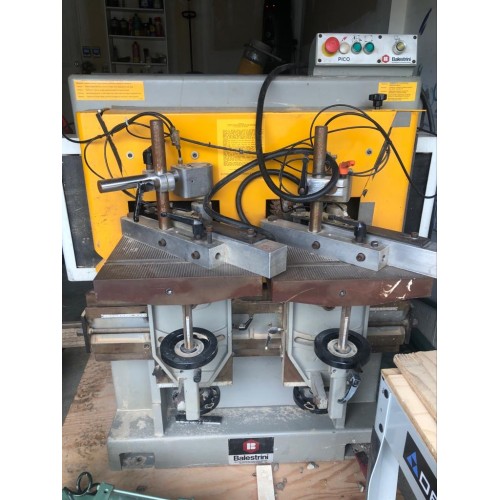

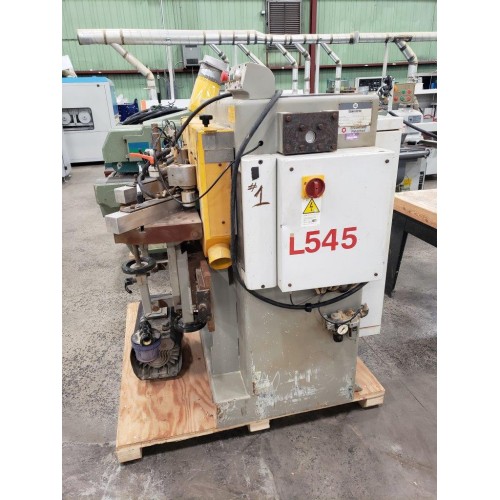

1991 Balestrini Pico Round End Tenoner

orCall (905)-451-8430

Specifications

ManufacturerBalestrini
ModelPico
Year1991
Stock Number1389KM
Voltage600 V / 60-Hz / 3-Phase
LocationCentral Canada

Description

Features and Specs

  • Produces straight, simple or compound angle round end tenons for blind tenons.
  • Right twin tables allow for (1) part to be tenoned while other table is unloaded and loaded
  • approx. (600 to 700) per hour
  • 2- 14" x 9" (355 x 230 mm) Tables tilt 0° - 20°
  • Table fence swivels up to 45°
  • 4-3/4" (120 mm) vertical table adjustment
  • (2) vertical pneumatic holddowns
  • 4 HP Cutter block motor
  • 1 HP cutter block rotation motor
  • 9,000 RPM spindle speed
  • Movement of table with 0.75 HP motor
  • 3-15/16" (100 mm) Max. tenon length
  • 1-3/16" (30 mm) max. thickness
  • 1-31/32" (50 mm) max. depth
