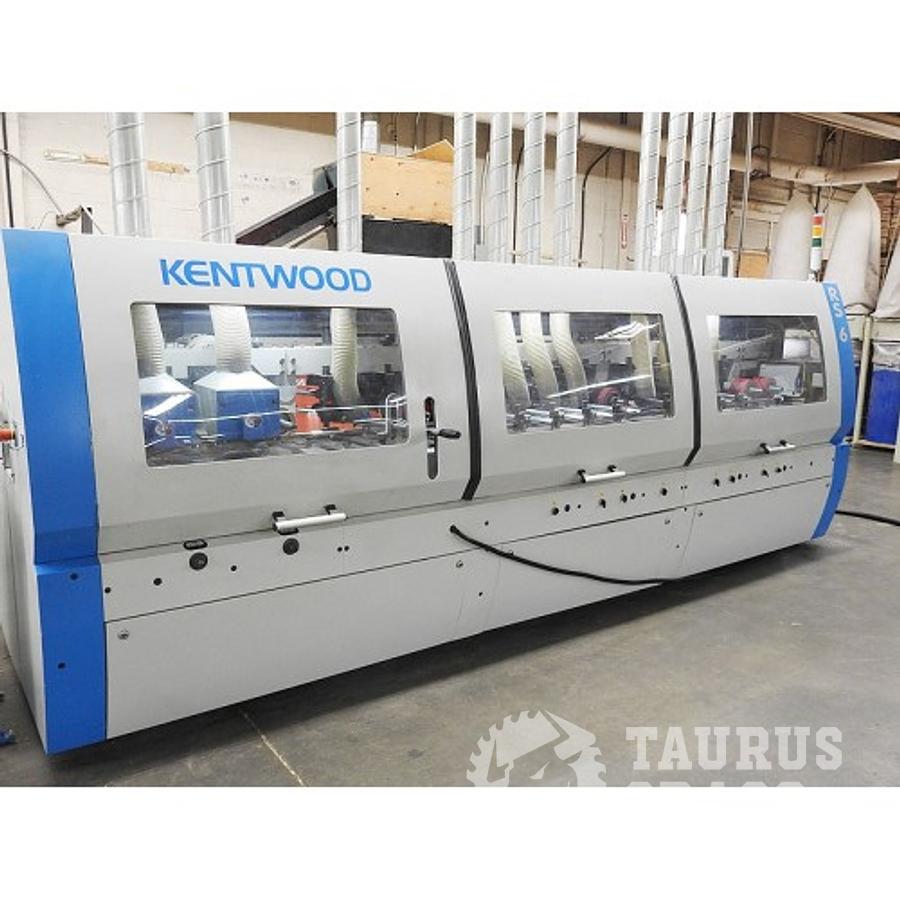

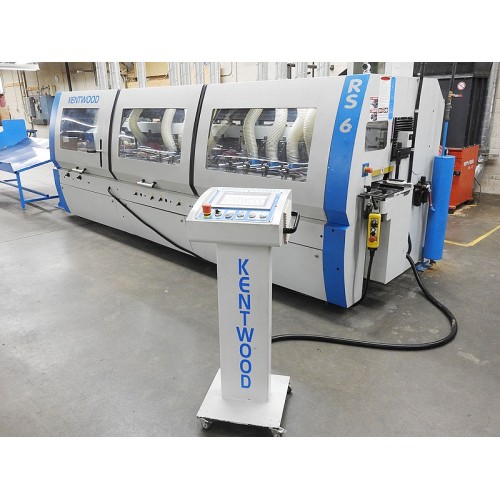

2014 Kentwood RS-6 Randomizer Automated Scraping Floor Machine

orCall (905)-451-8430

Specifications

ManufacturerKentwood
ModelRS-6 Randomizer
Year2014
Stock Number1172WL
Voltage460V / 60Hz / 3Ph
ConditionExcellent

Description

Automates the production of authentic looking antique wood scraped flooring creating hundreds of patterns that can be saved and used over again as needed. Can provide various radial, flat type scrapes, smooth and chatter cutting and jumping knives to create divots where the knife enters and exits the surface of the wood. Edge scrapers can provide chamfered and pillow type edge work


Features and Specifications:

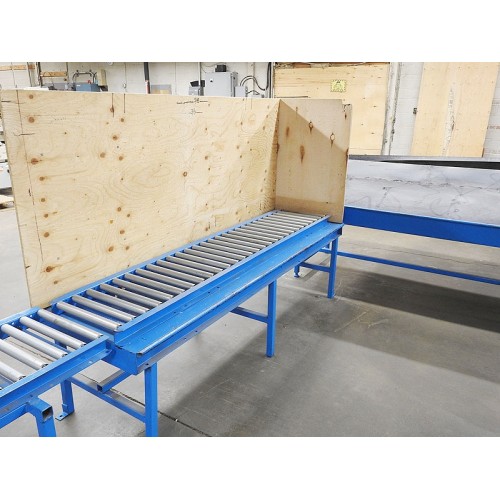

  • Sections of gravity roller conveyor: 14½” wide x 7’ long (each)
  • Width capacity: 3” - 6”
  • Thickness capacity: 0.375” - 3.00”
  • Variable feed speeds

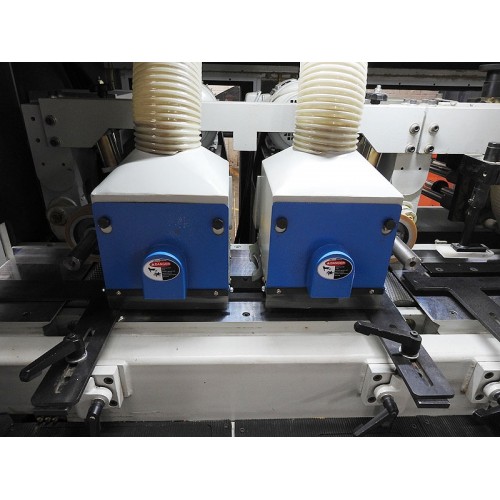

  • (2) Motorized denibbing stations
  • 8” wide x 8” diameter wire brush type head (each)
  • Dust hood (each)
  • 2HP, 230/460v, 3PH motor (each)

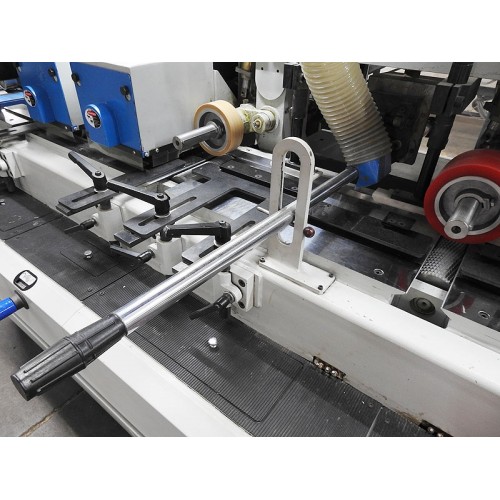

  • (5) Steel driven table feed rollers
  • Steel idler table feed roll
  • (8) Tiltable programmable Servo controlled axis scraping tool heads

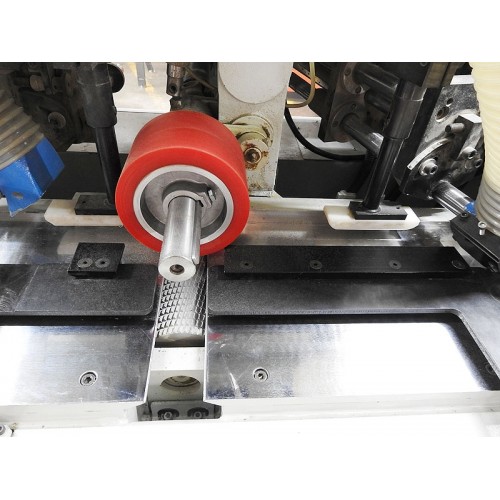

  • Top pneumatic rubber feed wheels over each table roller
  • Non-repeating scraping patterns
  • Manual station
  • Feed beam and tool actuators all move together
  • Programmable knives can oscillate side-to-side and jump up and down

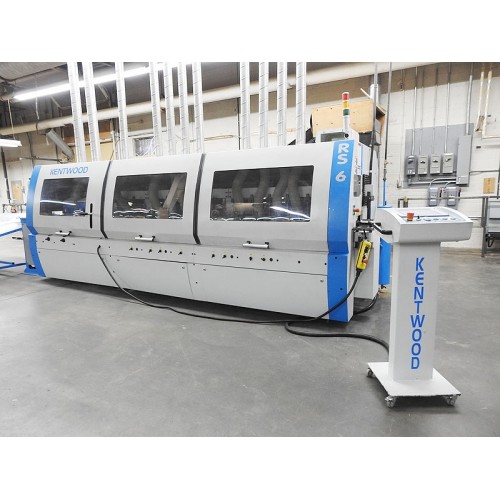

  • Siemens Simatic HM1 colored touch screen controller with memory setting

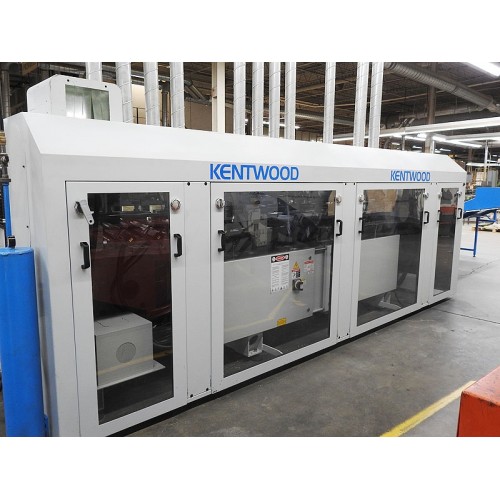

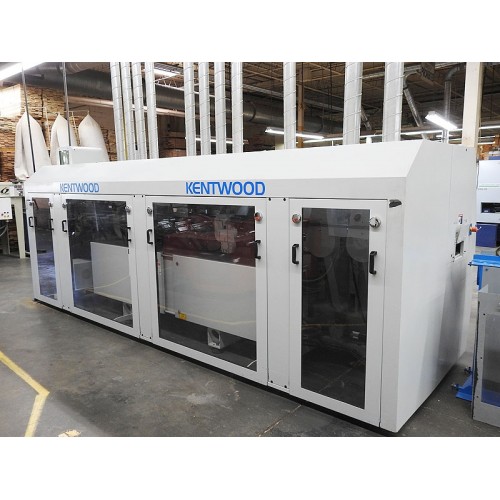

  • Sound safety enclosure with (3) lift up access hoods with large viewing windows
  • Dust manifold

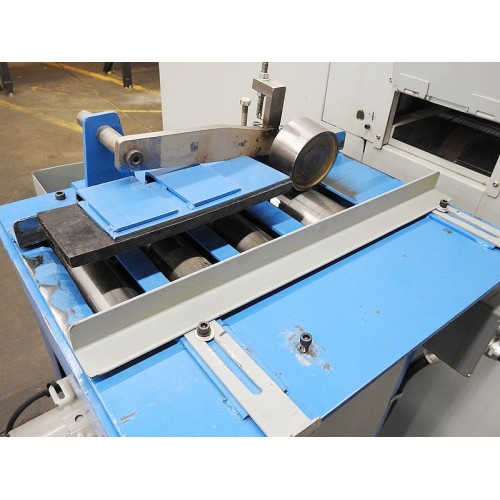

  • Free-standing outfeed roll feeder
  • Driven table roller 6½” wide
  • Idler table rollers
  • Top spring-loaded hold-down gravity roller
  • Incline slide table
  • Approximate shipping dimensions: 96'' L x 48'' W


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
