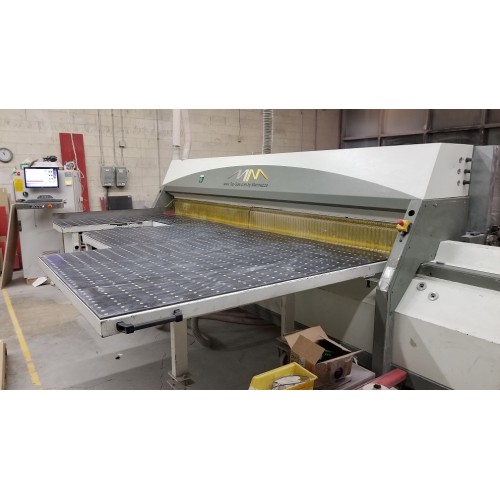

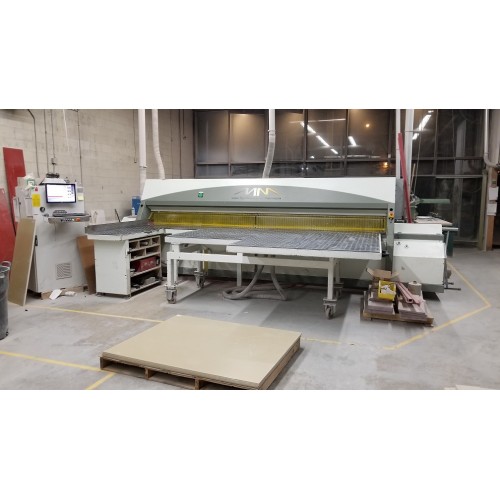

2013 Macmazza Top Saw TS010

orCall (905)-451-8430

Specifications

ManufacturerMacmazza
ModelTop Saw TS010
Year2013
Stock Number1402KR
Voltage380 V / 60-Hz / 3-Phase
Condition RatingExcellent

Description


·       Heavy Duty Panel Beam Saw

·       Cutting length 4300mm(14ft)

·       Useful cutting height 108mm (4.25”)

·       Main blade motor 30HP

·       Main blade RPM 3500-4500 giri/min

·       Main blade diameter/hole 400mm

·       Scoring blade RPM 5600-6200 giri/min

·       Scoring blade diameter/hole 160-320/55mm

·       Saw carriage forward speed 3-70m/min

·       Saw carriage return speed 40-70m/min

·       Pusher speed 2-40m/min

·       Pusher return speed 40-80m/min

·       Dust extraction outlets 4-7 @ 150mm

·       Compressed air pressure 6/7 bar

·       Compressed air consumption 20-100l/min

·       Dust extraction 4000-11000m3h-2500N/m2


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.
