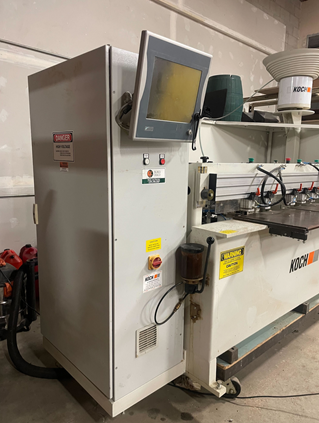

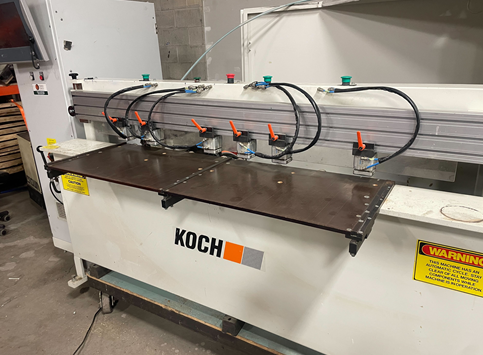

2013 Koch Sprint PTP Classic Boring and Insertion Dowel Machine

Inquire today!

Koch Sprint PTP Classic - Features and Specifications

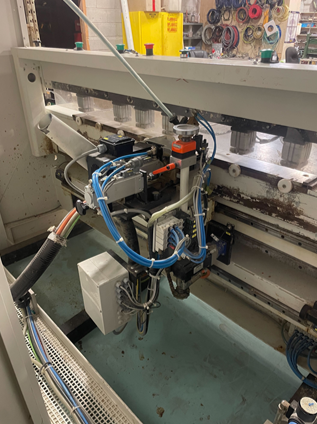

• Horizontal drilling station with 1 drilling spindle
• Drilling motor: 1.25 HP
• Drilling speed: 7200 RPM
• Max. drilling depth: 1.1" (28 mm)
• Drill bit mounting: ⌀ 0.39" (10 mm)
• Total length of drill bit: 2.8" (70 mm)
• W/ blow out jets to clean dowel holes
• 1 dowel drill

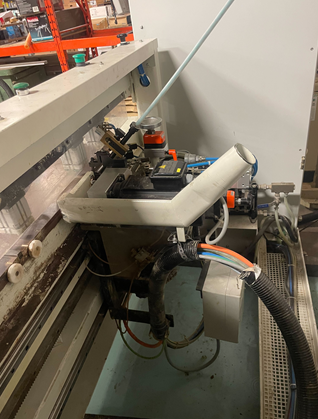

• Glue injecting and dowel insertion station w/ 1 dowel tool
• Dowel: ⌀ 0.31" (8 mm)
• Dowel length: 1.2" - 1.4" (30 - 35 mm)
• Dowel projection: 0.28" - 0.55" (7 - 14 mm)
• Adjusted to 14 mm
• Tolerances for wood dowels
• Dowel length: +/- 0.039" (1 mm)
• Dowel diameter: 0.0039" / 0.0079" (+0.1 / -0.2 mm)
• Glue delivery system: Graco Husky 307 Glue Pump (made in USA)
• Eliminates glue-fouling moisture and lubricants and nozzle-clogging contaminants found in compressed air, as well as the accelerated oxidation of glue that necessarily occurs when using compressed air to directly pressurize the glue system
• Dust extraction: 1 x 2.36" (60 mm) (~200 CFM)
• Dimensions of the table: 100" (2540 mm)
• Approximate dimensions: 100" x 55" x 71"
• Approximate weight: 2,200 lbs (1,000 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
