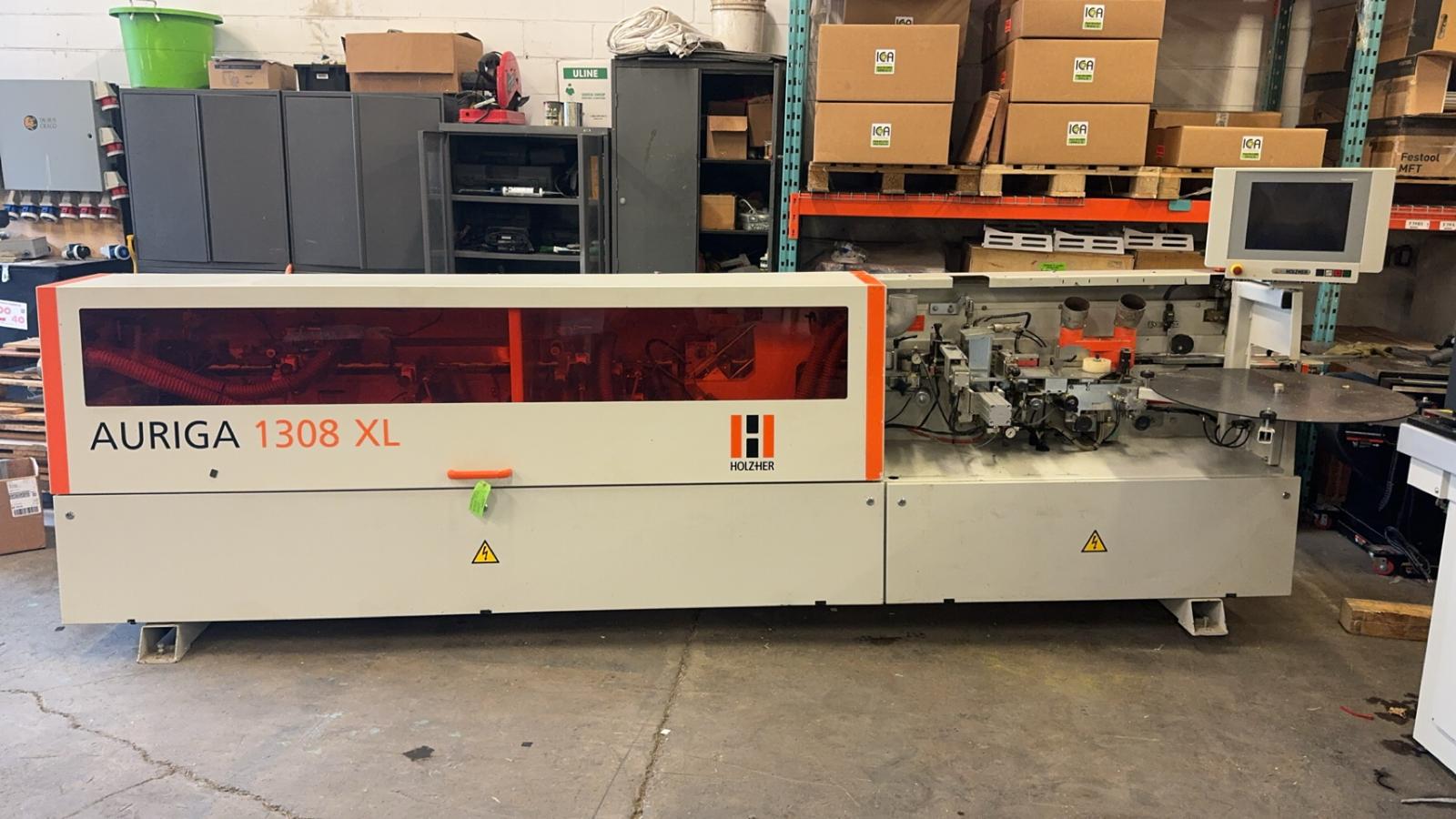

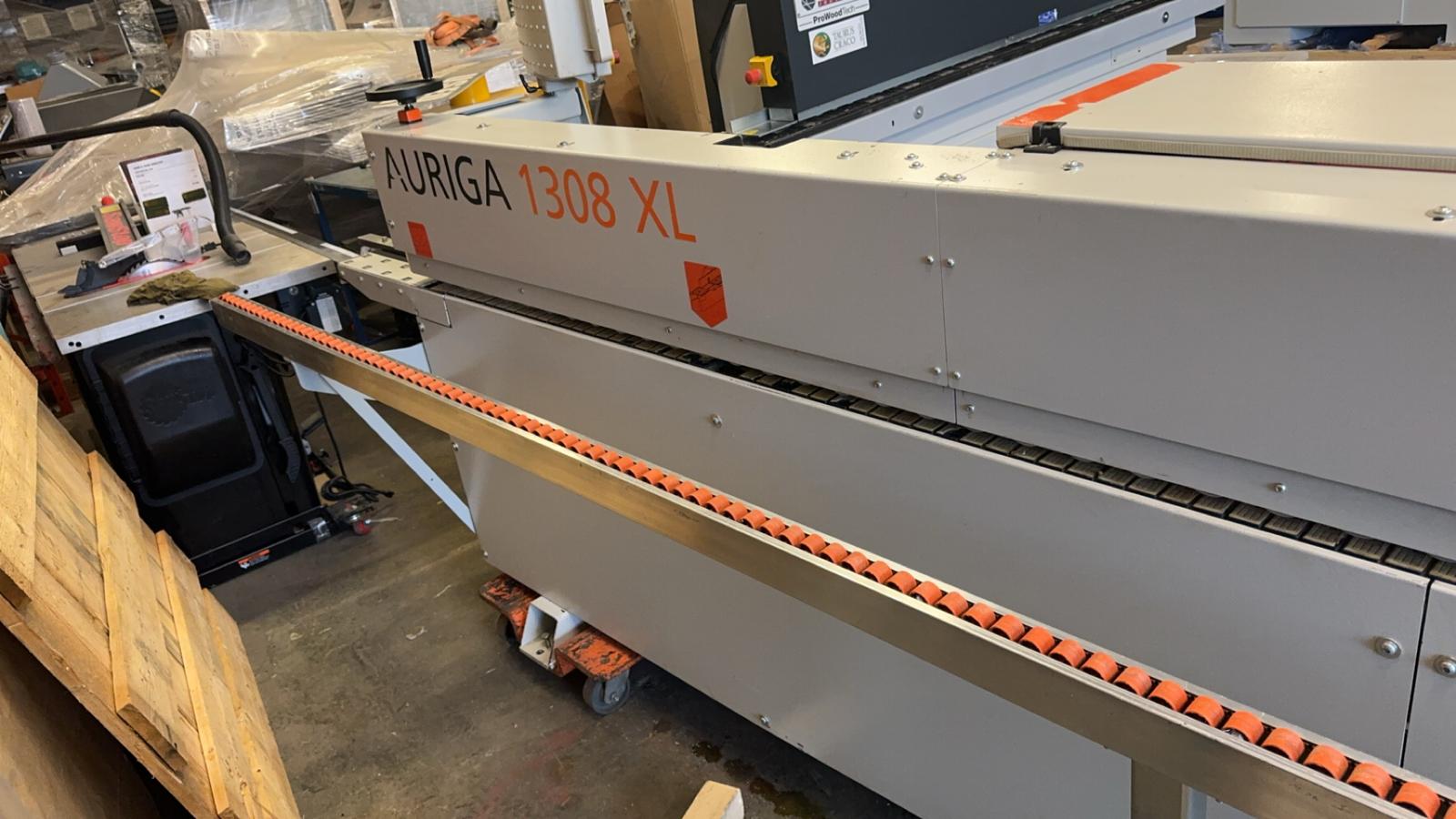

2013 Holz-Her Auriga 1308XL Edgebander

The Auriga series offers high tech in minimum space and concentrates of the significant aspects for high quality edgebanding.

Holz-Her Auriga 1308XL Edgebander - Features and Specifications:

• Working dimensions:
• Minimum workpiece length: 6.3" (160 mm)
• Workpiece thickness: 0.24" - 2.4" (6 - 60 mm)
• Edge thickness: 0.02" - 0.3" (0.4 - 8 mm)
• Feed speed: ~33 feet/min (10 m/min)
• Pre-milling: 1.8" (45 mm)
• End trimming: Two-motor 2.4" (60 mm) pneumatic pivoting feature
• Cutting: Multi-functional 0.24" (6 mm) pivotable 0° – 15°
• Buffing unit

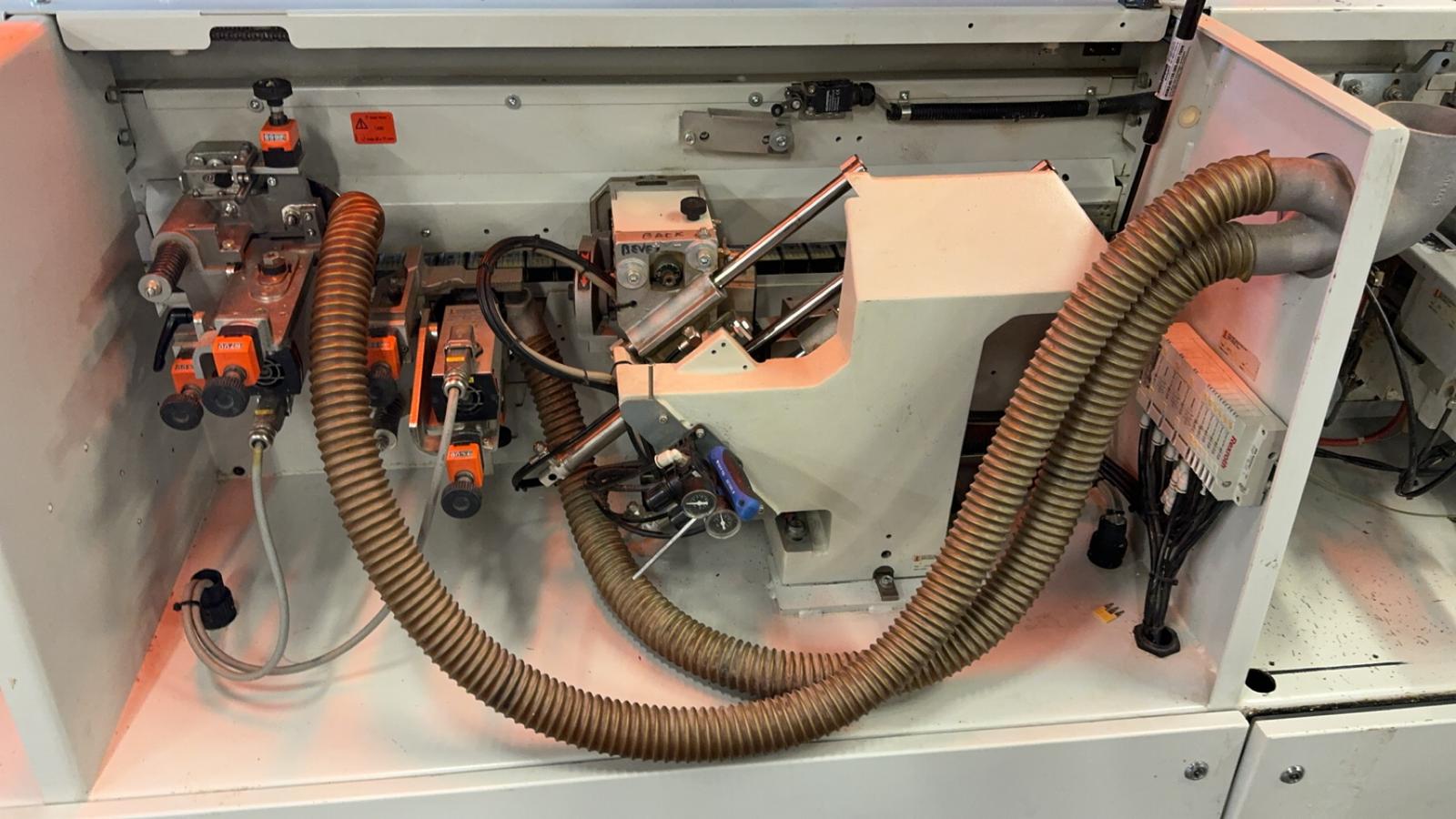

• NOTE: Machine does not include corner rounding; comes with rough and fine trim instead. Please refer to photos.
• Approximate dimensions: 190" x 55" x 65"
• Approximate weight: 3,100 lbs (1420 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine. Please refer to photos and call or email with questions.**
