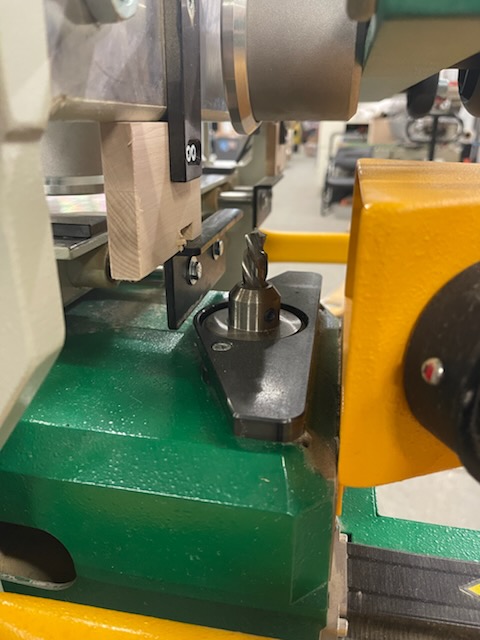

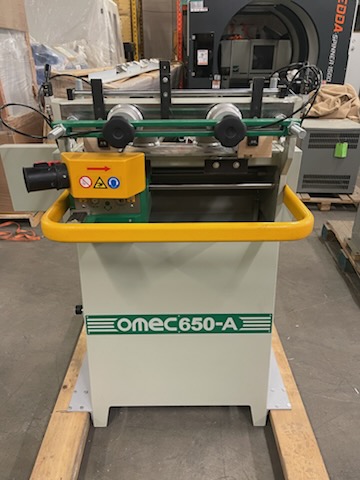

2017 Omec 650A Automatic Dovetail Machine
orCall (905)-451-8430
![Used 2017 Omec 650A Automatic Dovetail Machine](https://i.machineryhost.com/147702db07145348245dc5a2f2fe5683/14a41dd23d25d285e3ef2c65346bd6f2/original-used-2017-omec-650-a-automatic-dovetail-machine.png)
Specifications
Manufacturer | Omec |
Model | 650A Automatic Dovetail Machine |
Year | 2017 |
Stock Number | T4351KR |
Voltage | 208V / 3Ph |
Condition | Excellent |
Description
*Pictures and videos of machine to come*
This two-axis automatic mill cutter with numerical control is designed to indent dovetails and parallel indents for drawers and several furniture elements.
Omec 650A Automatic Dovetail Machine - Features and Specifications:
- On board machine installed power: 3.4 HP (2.5 kW)
- Working pressure: 0.7 MPa
- Spindle: 1
- Spindle revolutions: 16,500 RPM
- Center tot center of indents: 0.98" - 2.0" (25-50 mm)
- Drawer production: 40 per hour
- Dimensional Limits of Workpieces:
- Length: min. 7.9" / max. 59"
- Width: min. 2.4" / max. 15.7"
- Indent height: min. 0.33" / max 0.63"
- Front thickness: min. 0.31" / max. 2.4"
- Side thickness: min. 0.28" / max. 0.98"
- Approximate weight: 377 lbs (171 kg)
- Approximate dimensions: 38" x 30" x 54" (97 x 76 x 137 cm)
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
