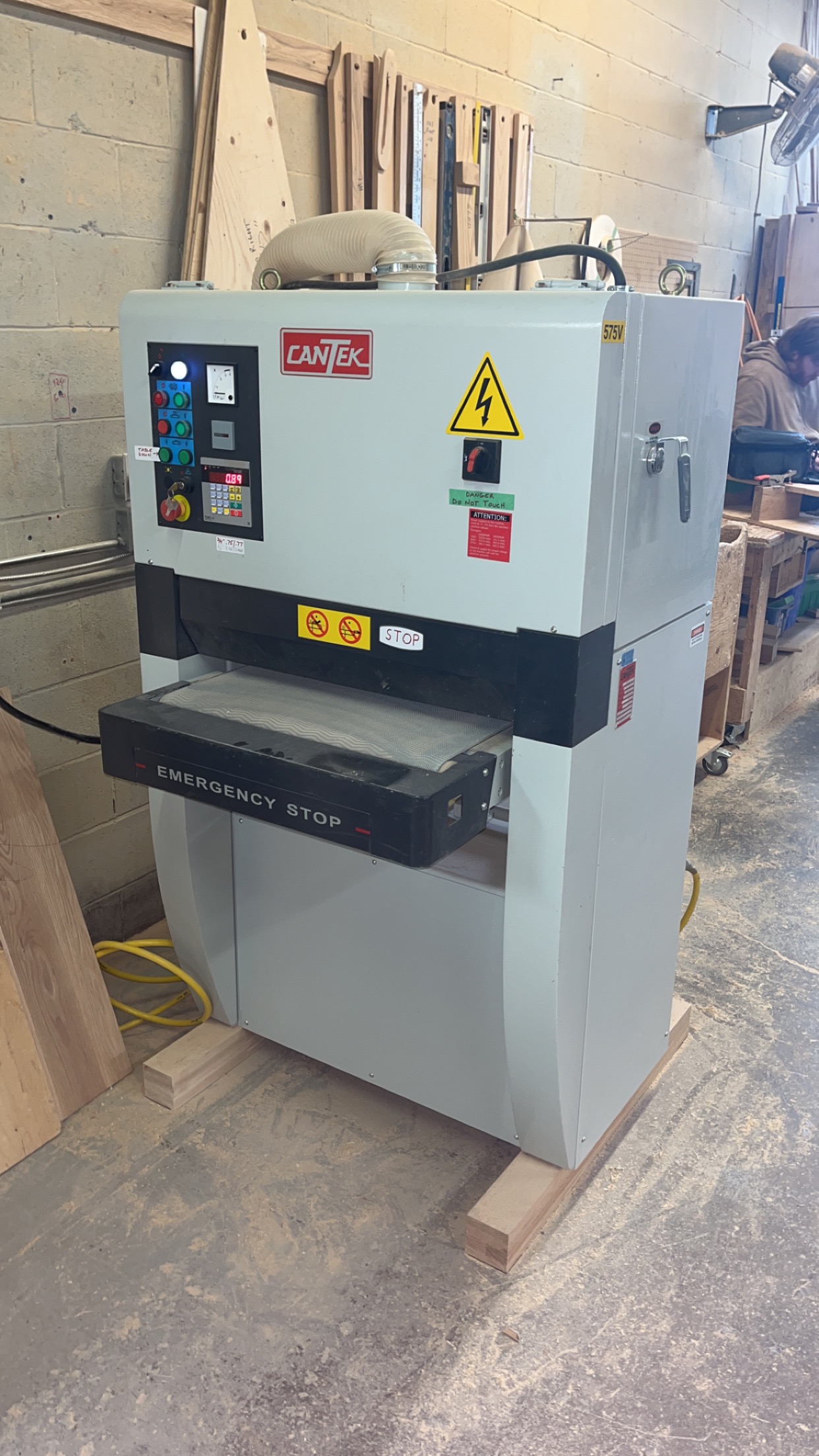

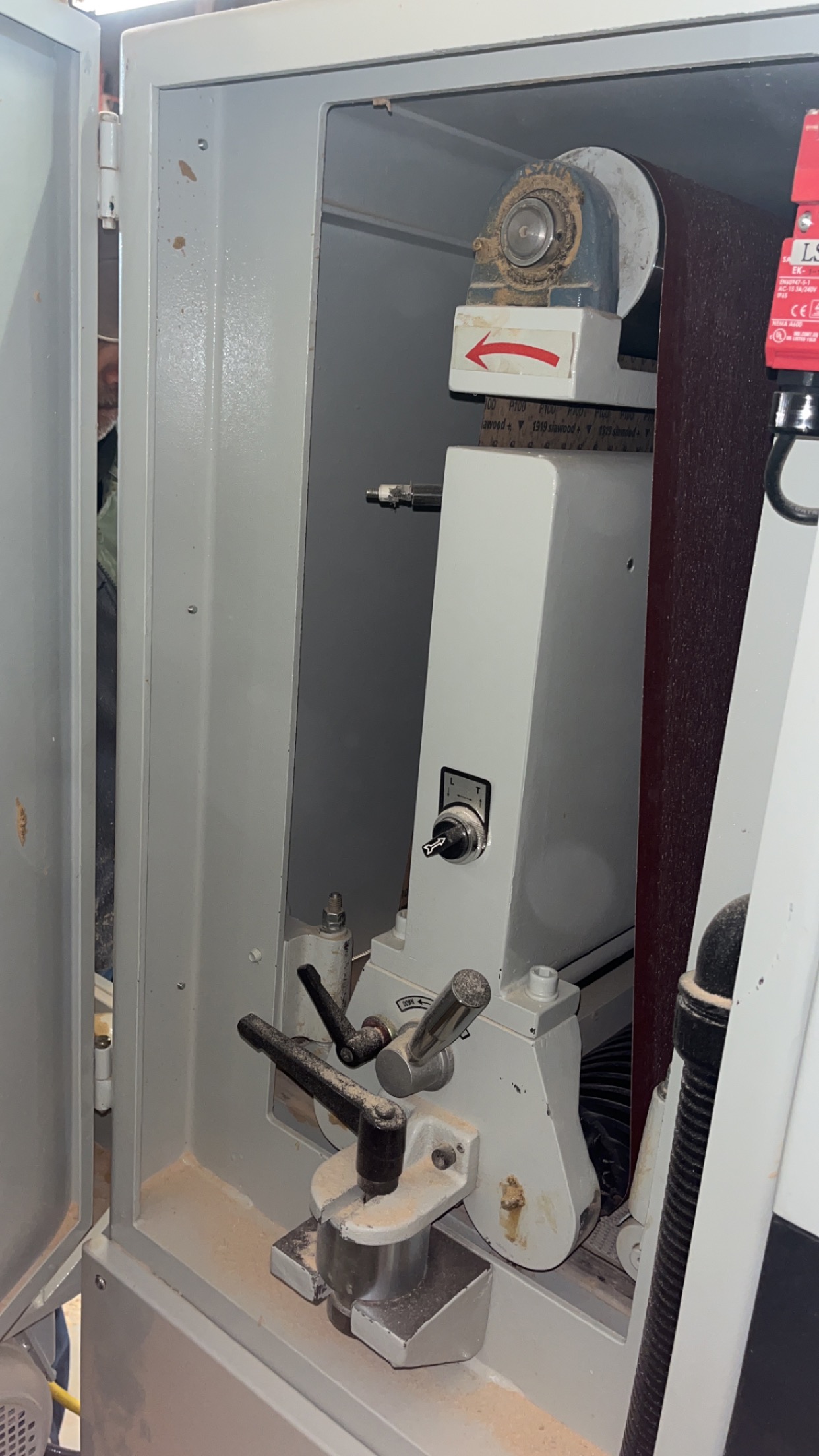

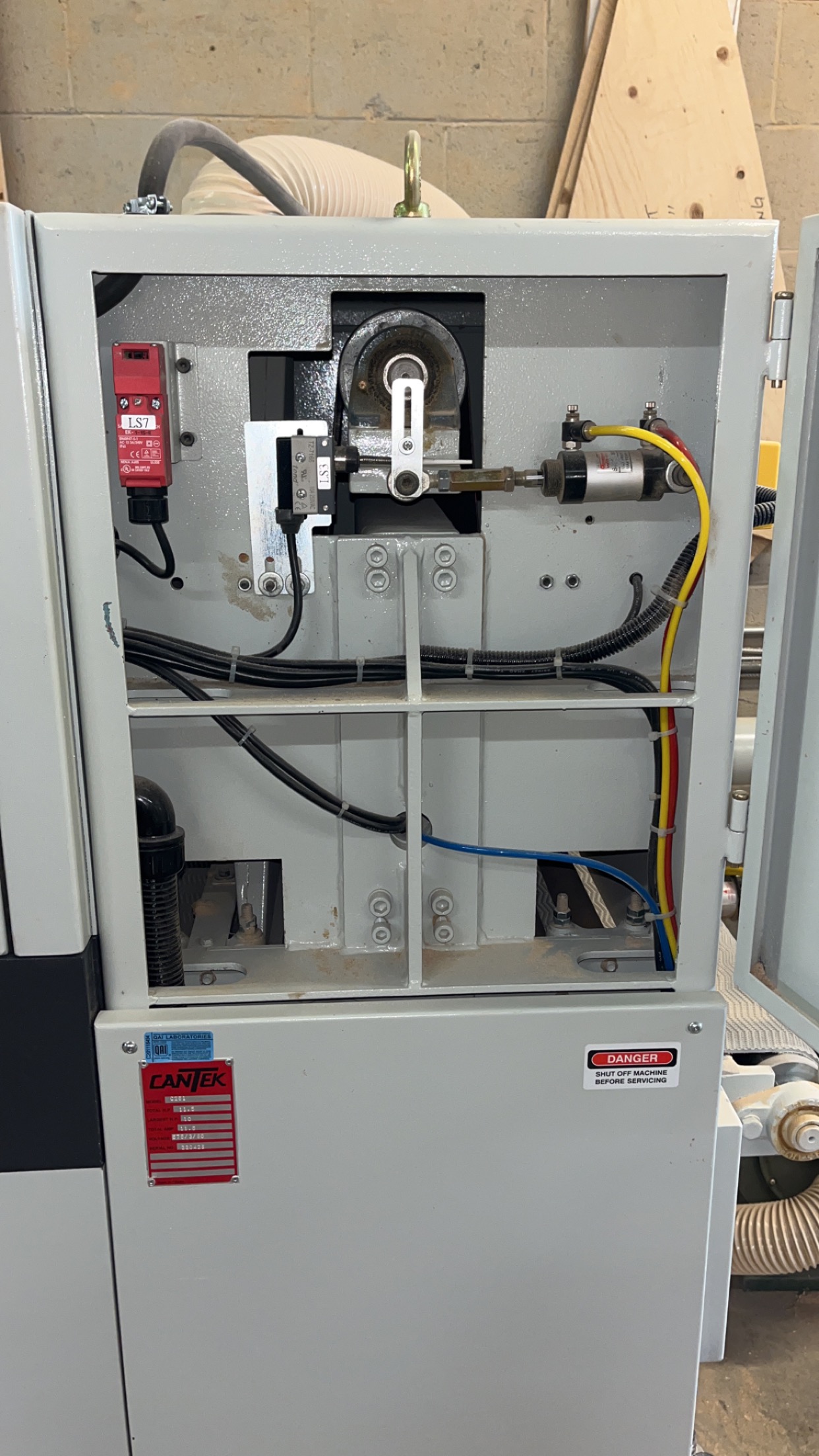

2022 Cantek C251 24" Wide Belt Sander

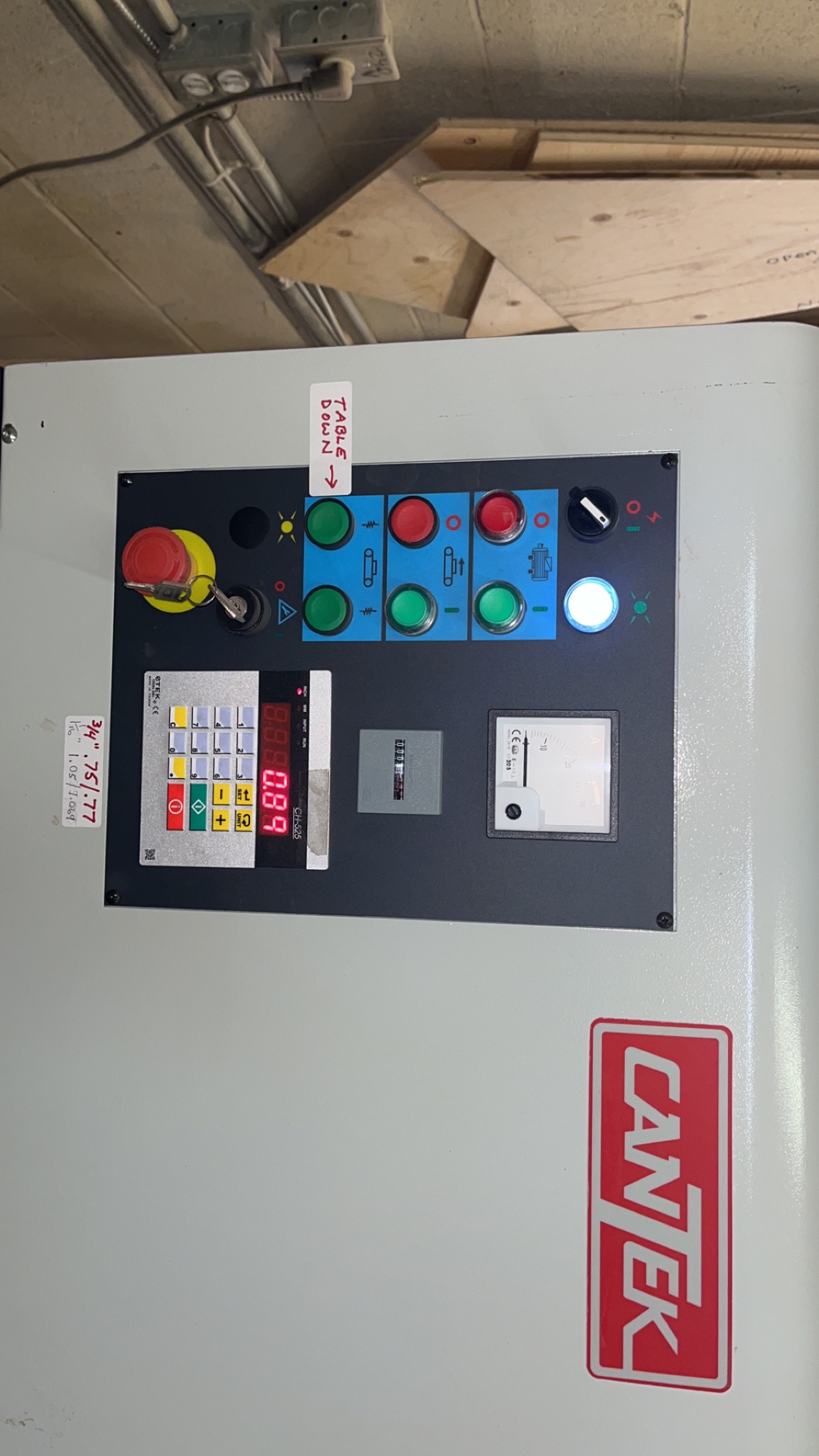

The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

Features & Specifications:

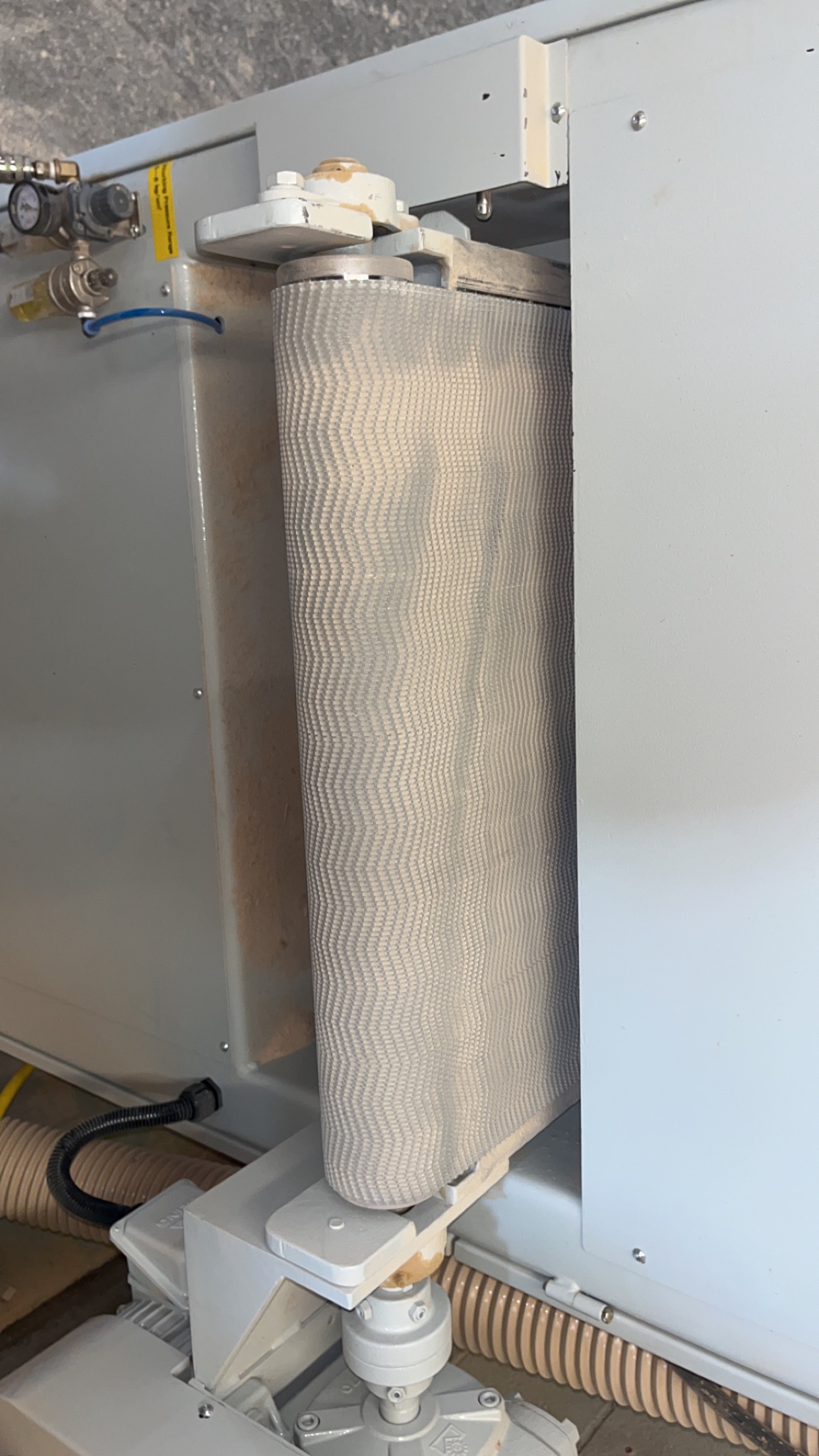

• Abrasive belt size: 25" x 60" (635 x 1524 mm)
• Maximum width stock: 24" (609 mm)
• Minimum part length: 13" (330 mm)
• Maximum thickness opening: 4" (100 mm)
• Feed speed - variable: 13 to 52 FPM (4 to 16 m/min)
• Passline height: 33" - 38" (838 - 965 mm)
• Infeed table: 11.5" (292 mm)

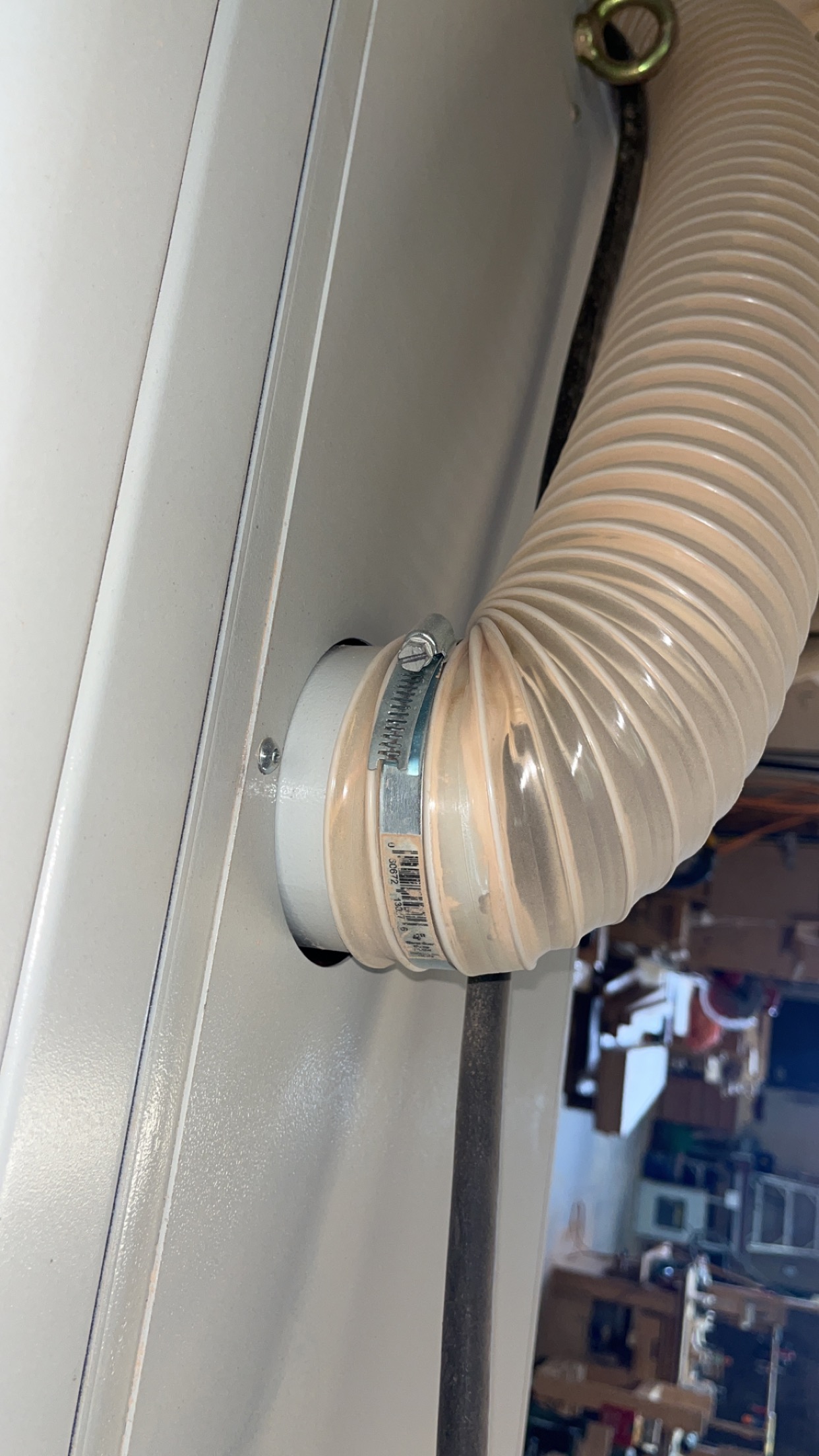

• Dust outlet: 1 @ 4" (1 @ 101 mm)

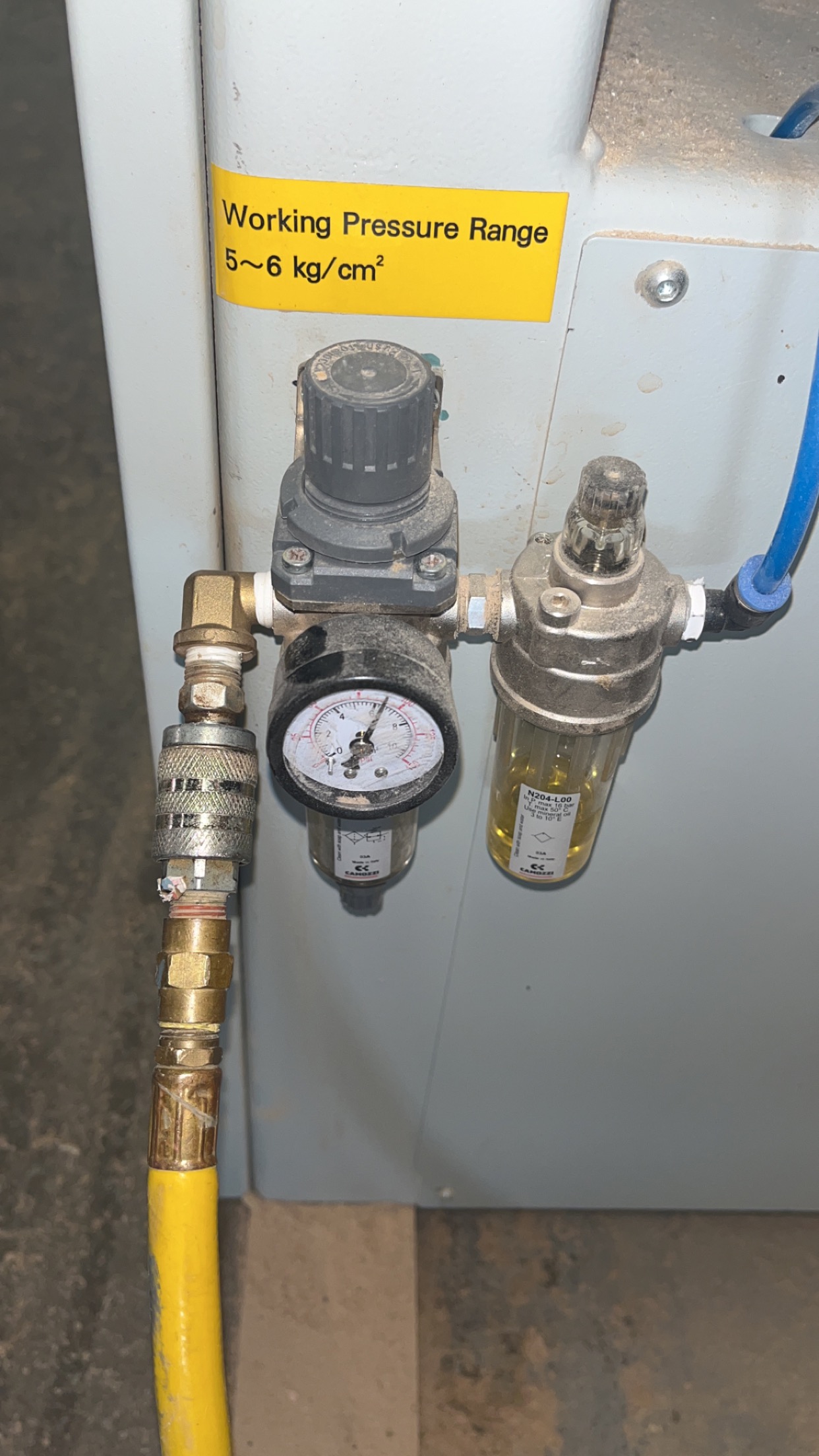

• Compressed air usage: 2 CFM @ 90 PSI
• Approximate dimensions: 53" x 50" x 63" (1346 x 1270 x 1600 mm)
• Approximate weight: 1,452 lbs (660 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
