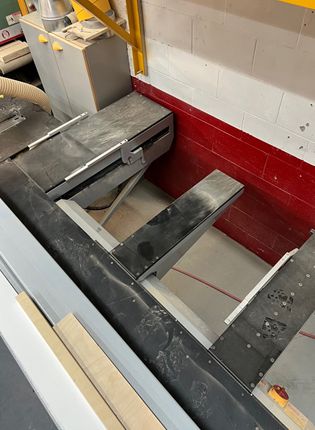

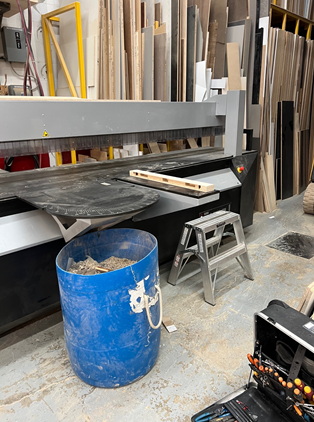

2016 Fimal Concept 350 3800 Beam Saw

Fimal Concept 350 Beam Saw - Features and Specifications

• Squaring length: 3,800mm
• Blade diameter allowed: 350-300mm
• Inner hole blade: 30mm
• Blade projection @ 90°:
• 350mm: 100mm
• 300mm: 75mm
• Blade projection @ 45°:
• 350mm: 67mm
• 300mm: 45mm
• Blade rotation speed: 4,000 g/min
• Blade carriage speed with inverter: 40 mt/min
• Main motor power: 7.5 HP (5 kW)
• Extraction outlet: 120/100mm
• Extraction air volume: 1,800 m^3/h
• Extraction air speed: 25 m/sec
• Operating pressure: 7 bar
• Air consumption: 85 L/h
• Approximate dimensions: 192'' x 112'' x 60'' (4,870 x 2,840 x 1,530mm)
• Approximate weight: 1,450 kg (3,197 lbs)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
