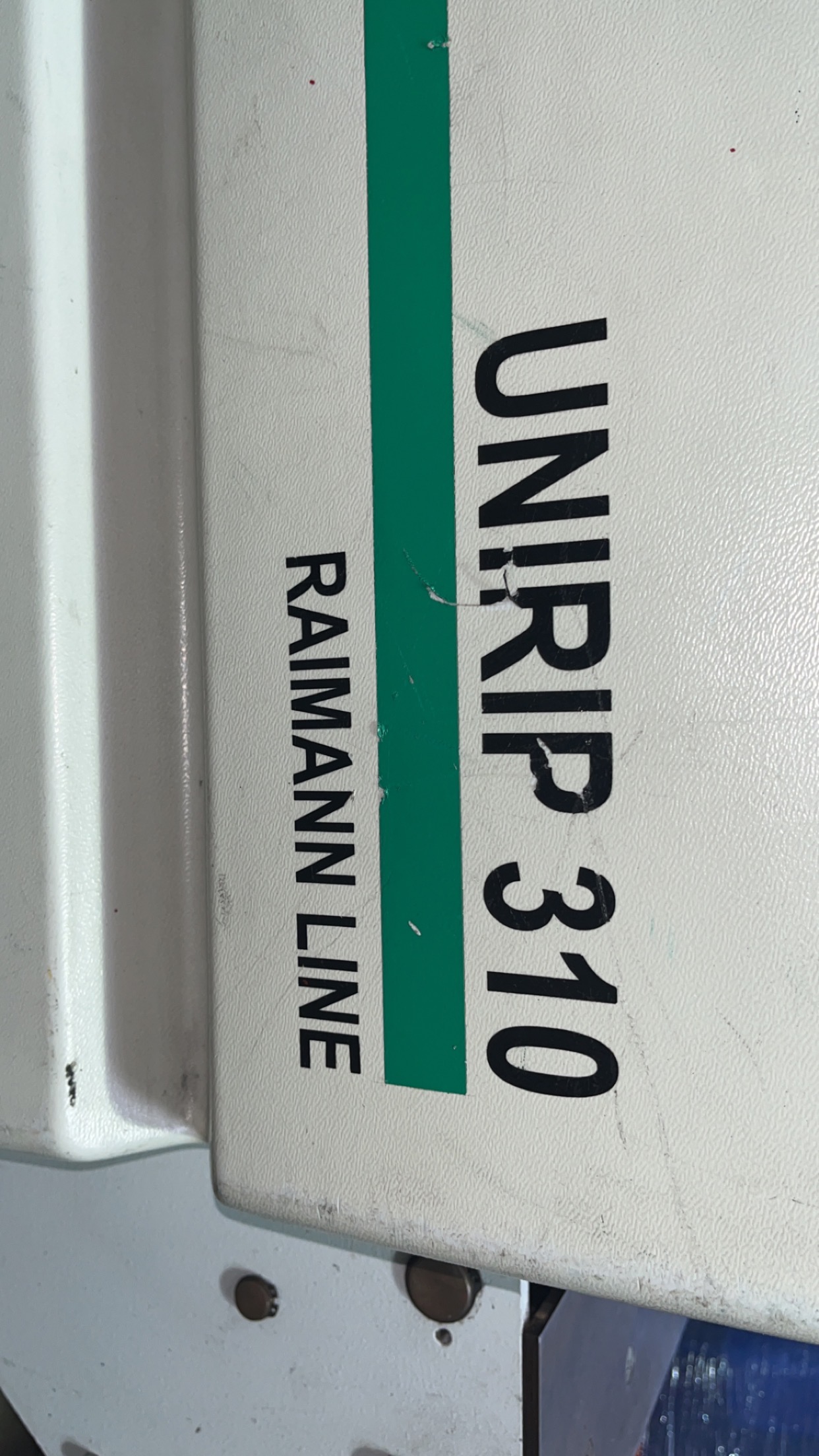

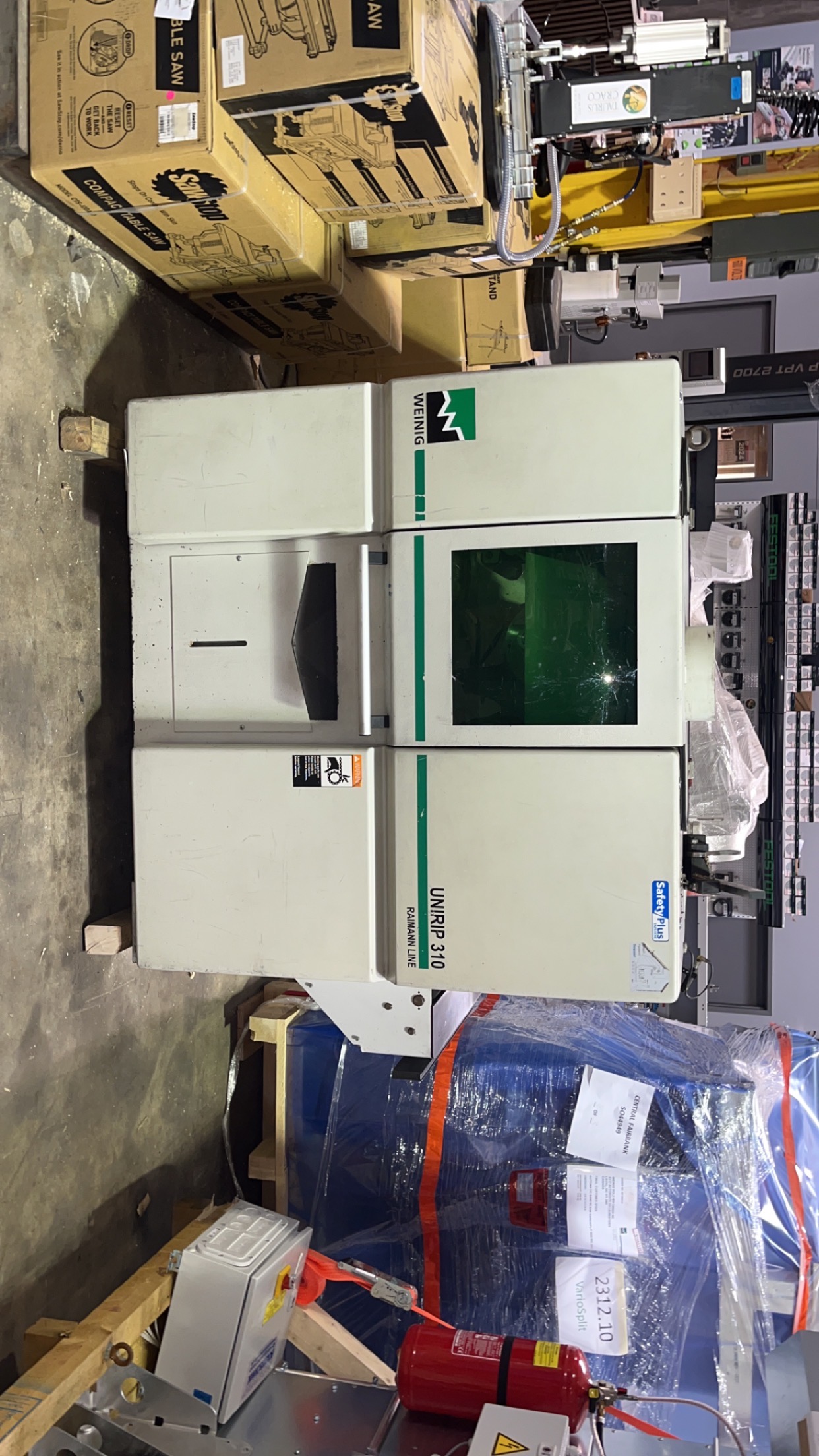

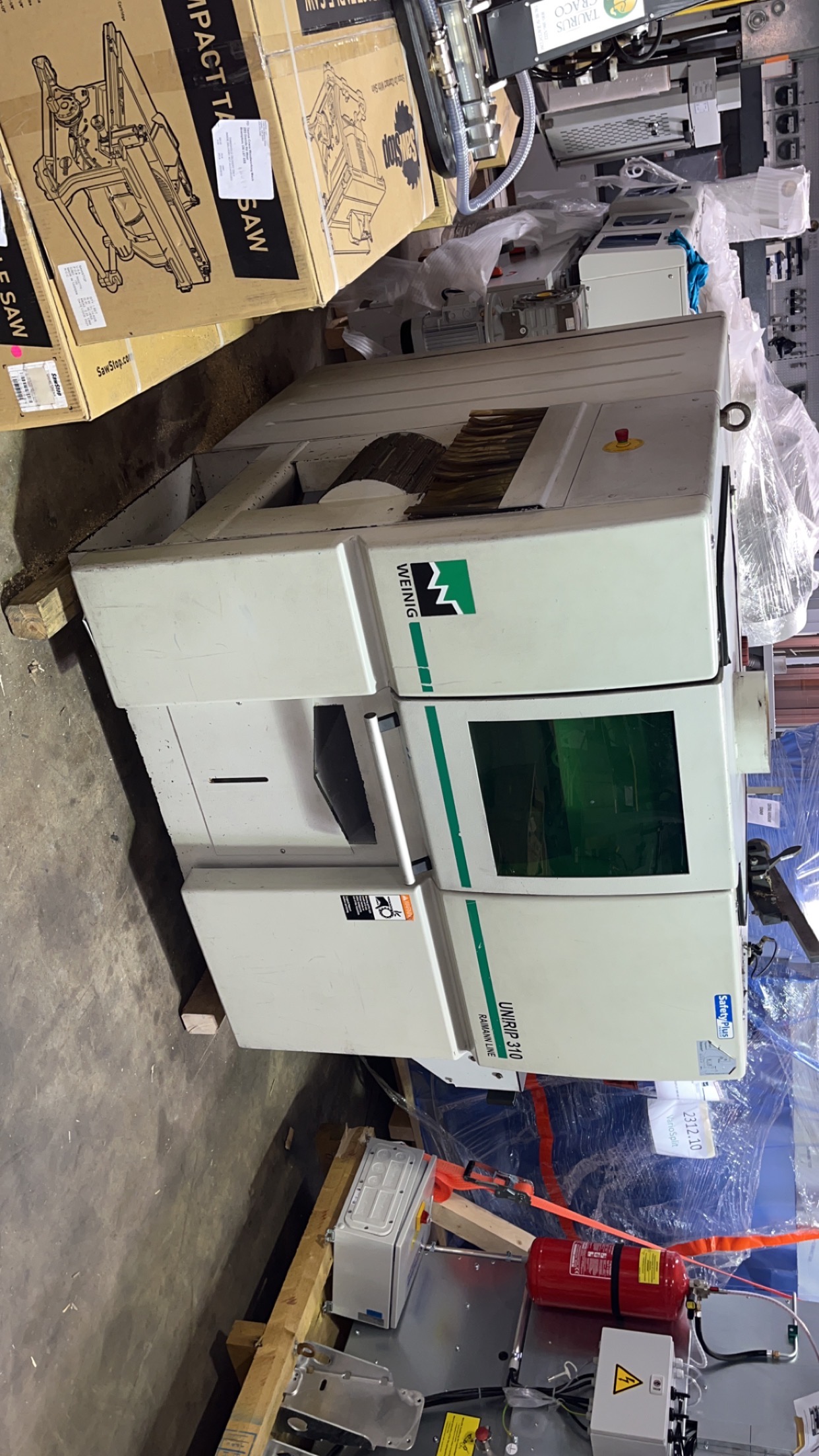

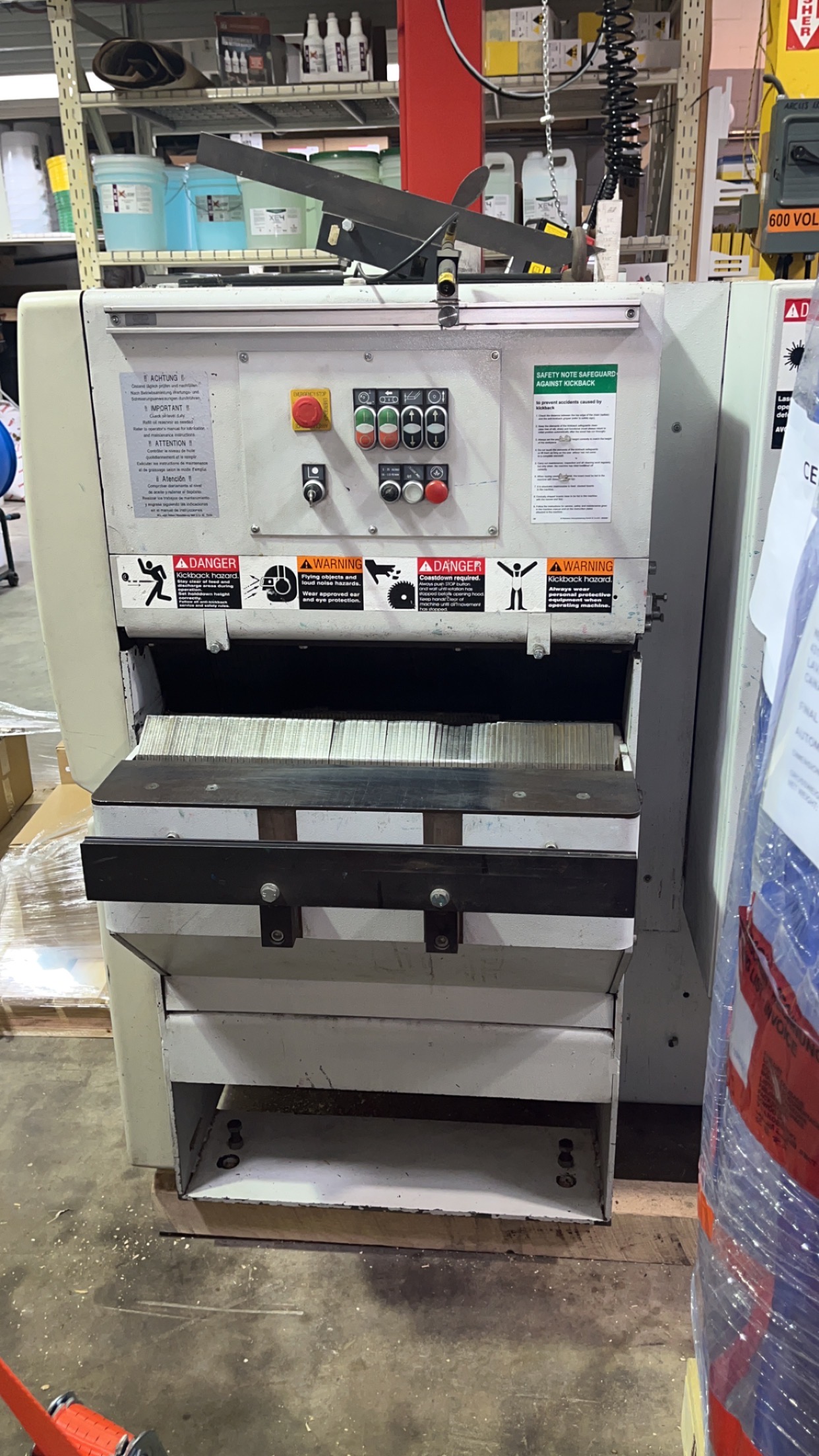

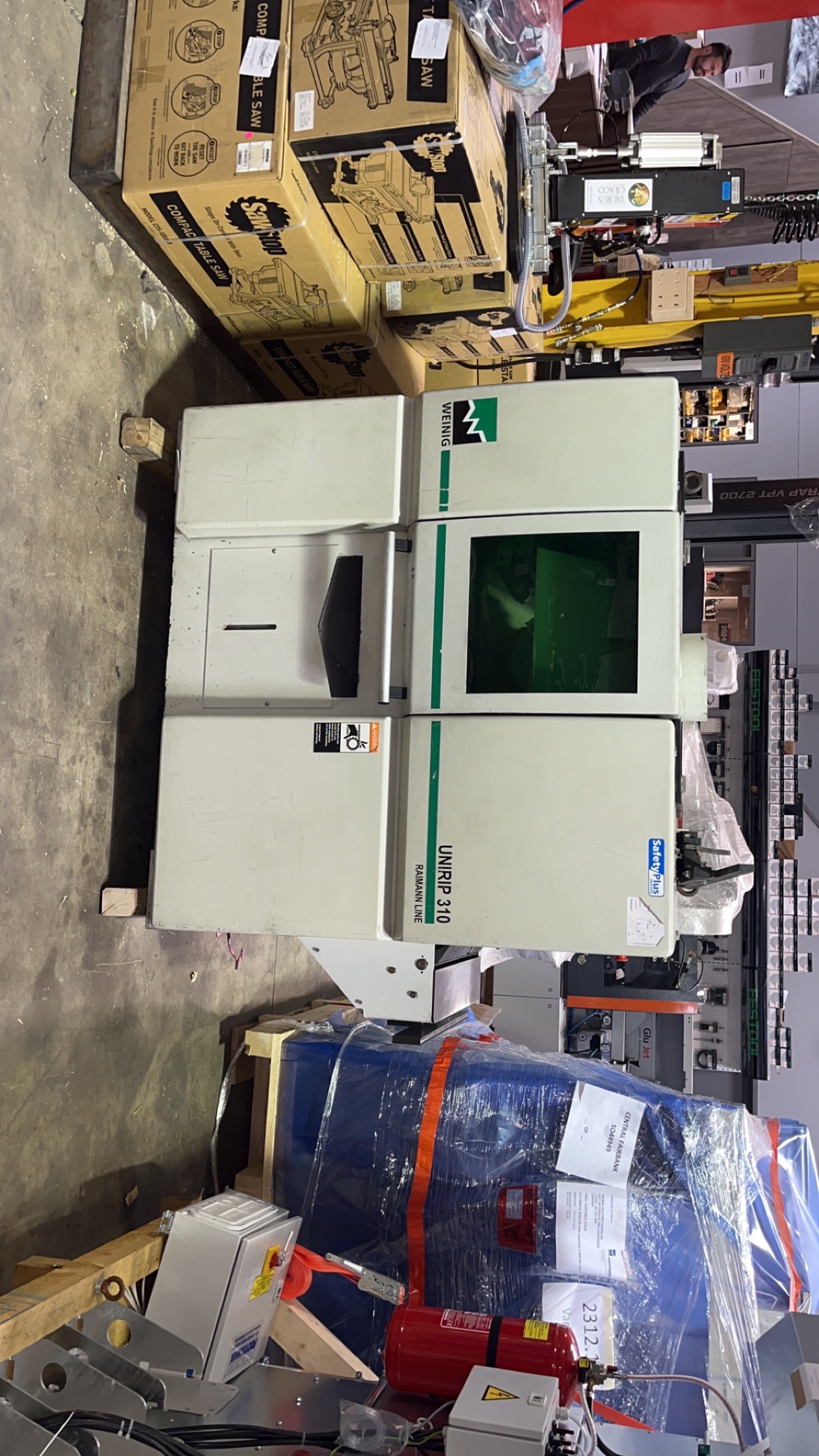

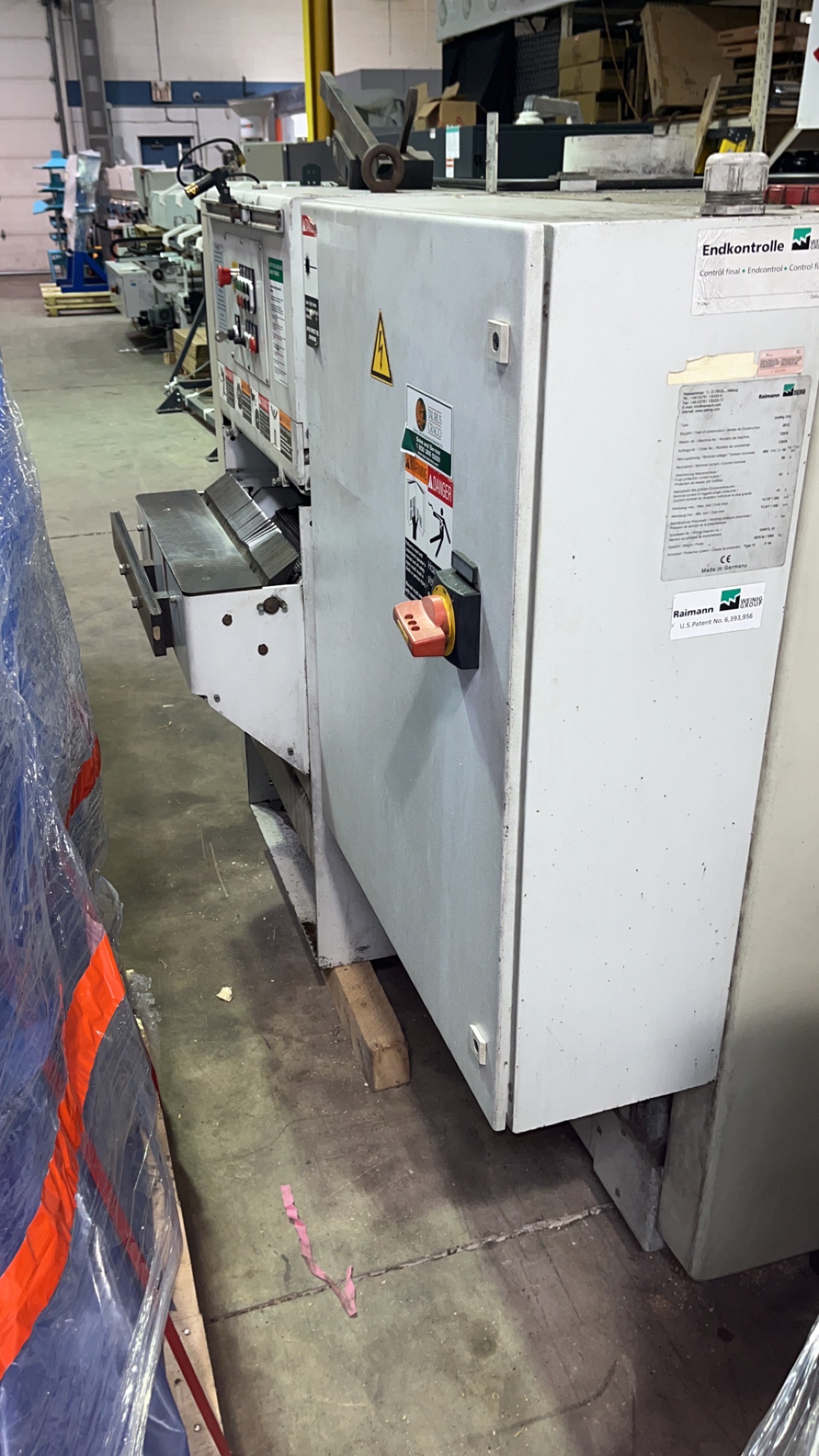

2012 Weinig Raimann UniRip 310 Multi-Blade Rip Saw

Features and Specifications:

• Saw assembly
• Cutting width max: 12 3/16'' (310 mm)
• Motor: 30 HP (22 kW)
• Maintenance-free support of saw arbor

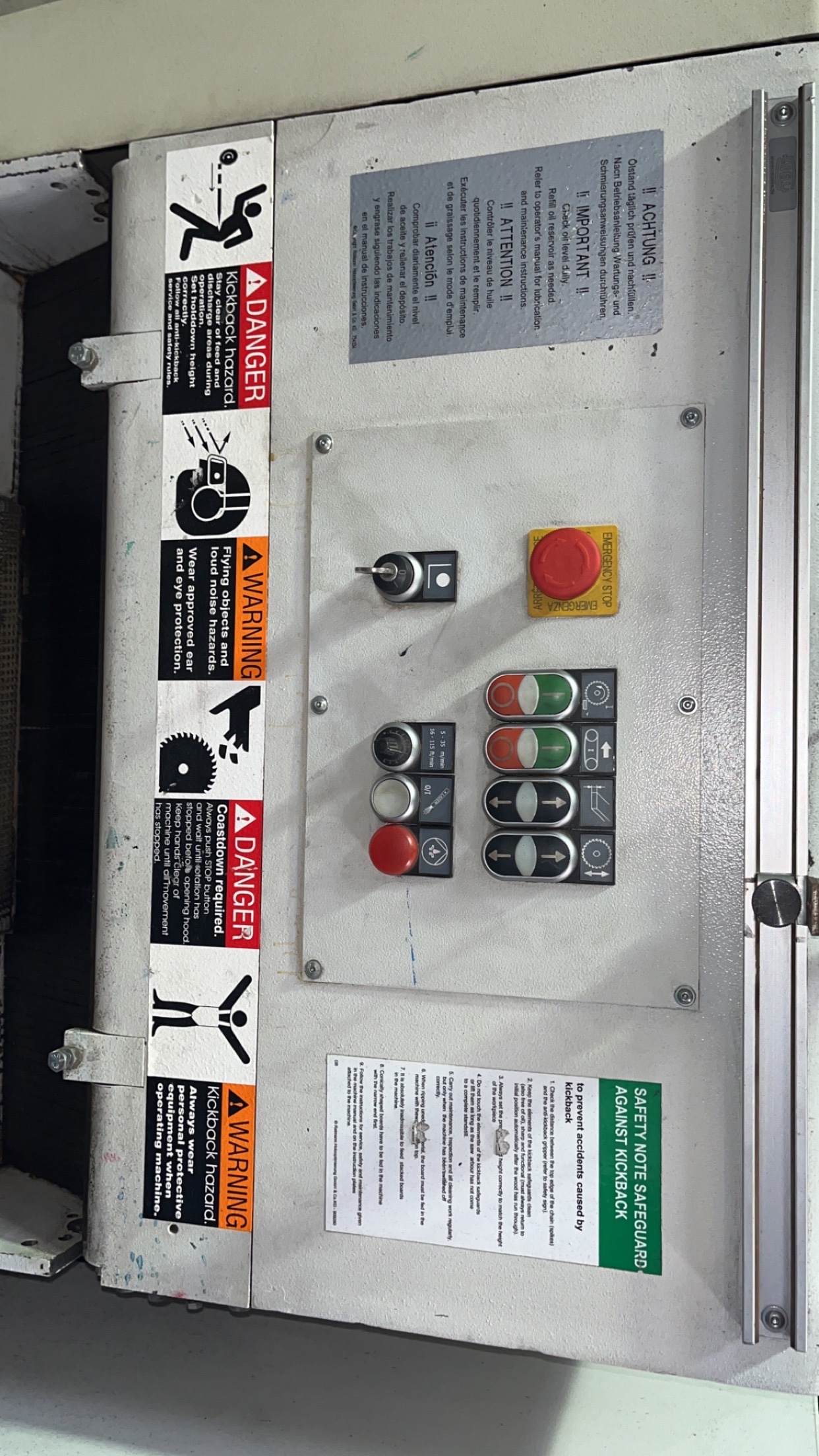

• Motorized height adjustment of saw arbor by push button
• V-Belt driven saw arbor, with safety guard
• Diameter of saw arbor: 65 mm (2.6")
• Revolutions of saw arbor: 4,200 RPM
• Hydro quick clamping system for the saw blades
• Incl. 4 clamping devices for 4 saw blades
• Min. strip width
• Saw blade bore: 80 mm (3.1")
• Saw blade diameter min./max.: 300 / 350 mm (11.8" / 13.8")
• Laser, red ,manually adjustable to indicate saw blade position: 20 mW
• Range, depending on lighting conditions: max. 5 m (197")
• Feed and Chain
• Infinitely variable feed speed via AC inverter
• Feed speed: 17 - 115 feet per minute (5 - 35 m/min)
• Feed system: 1 HP (0.75 kW)
• Infeed fence for processing edged timber
• Chain width: 13 3/8'' (340 mm)
• Automatic adjustable chain lubrication
• Automatic oil level control
• Close chain links
• Wear resisting chain deflection below saw blades

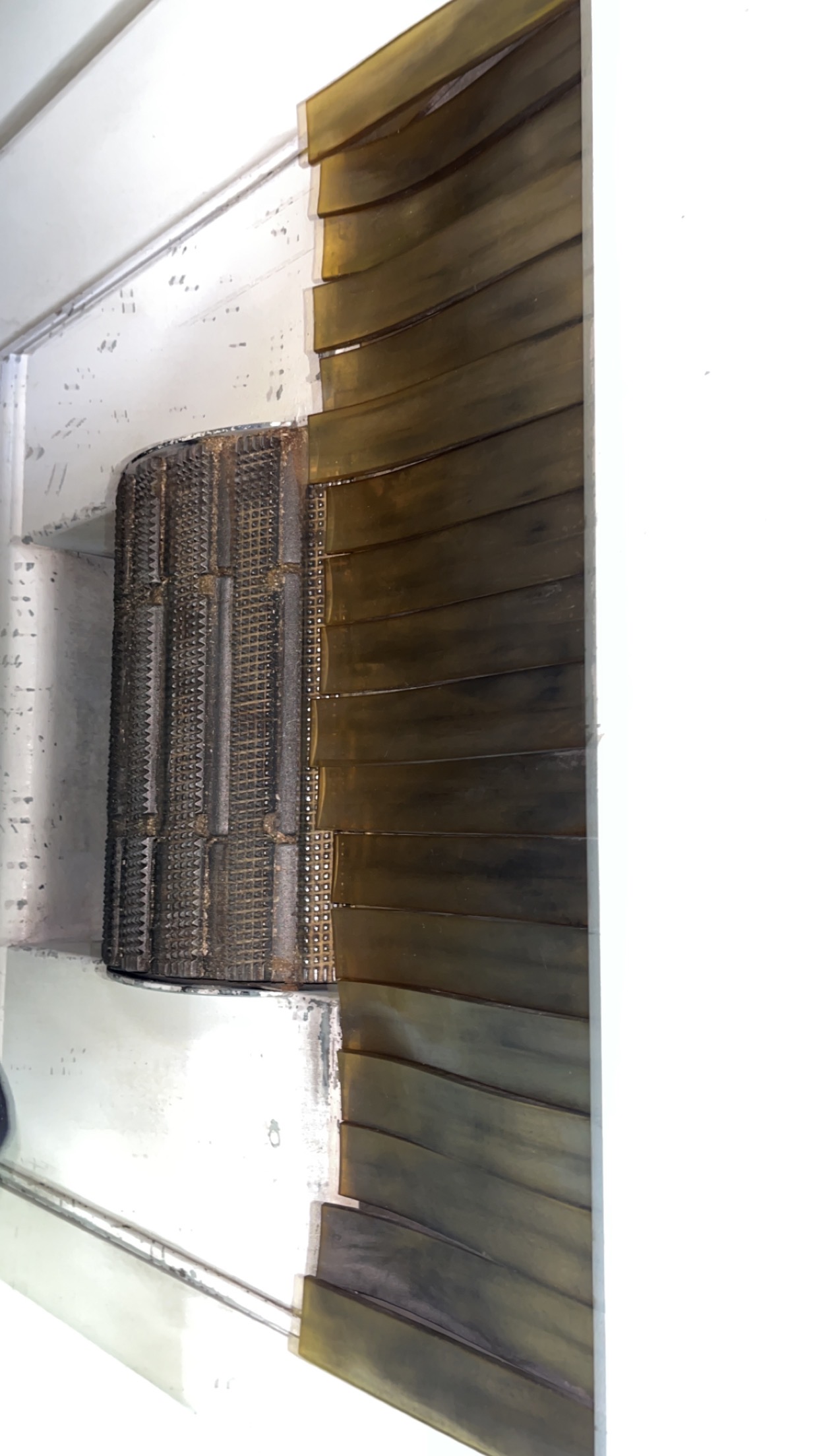

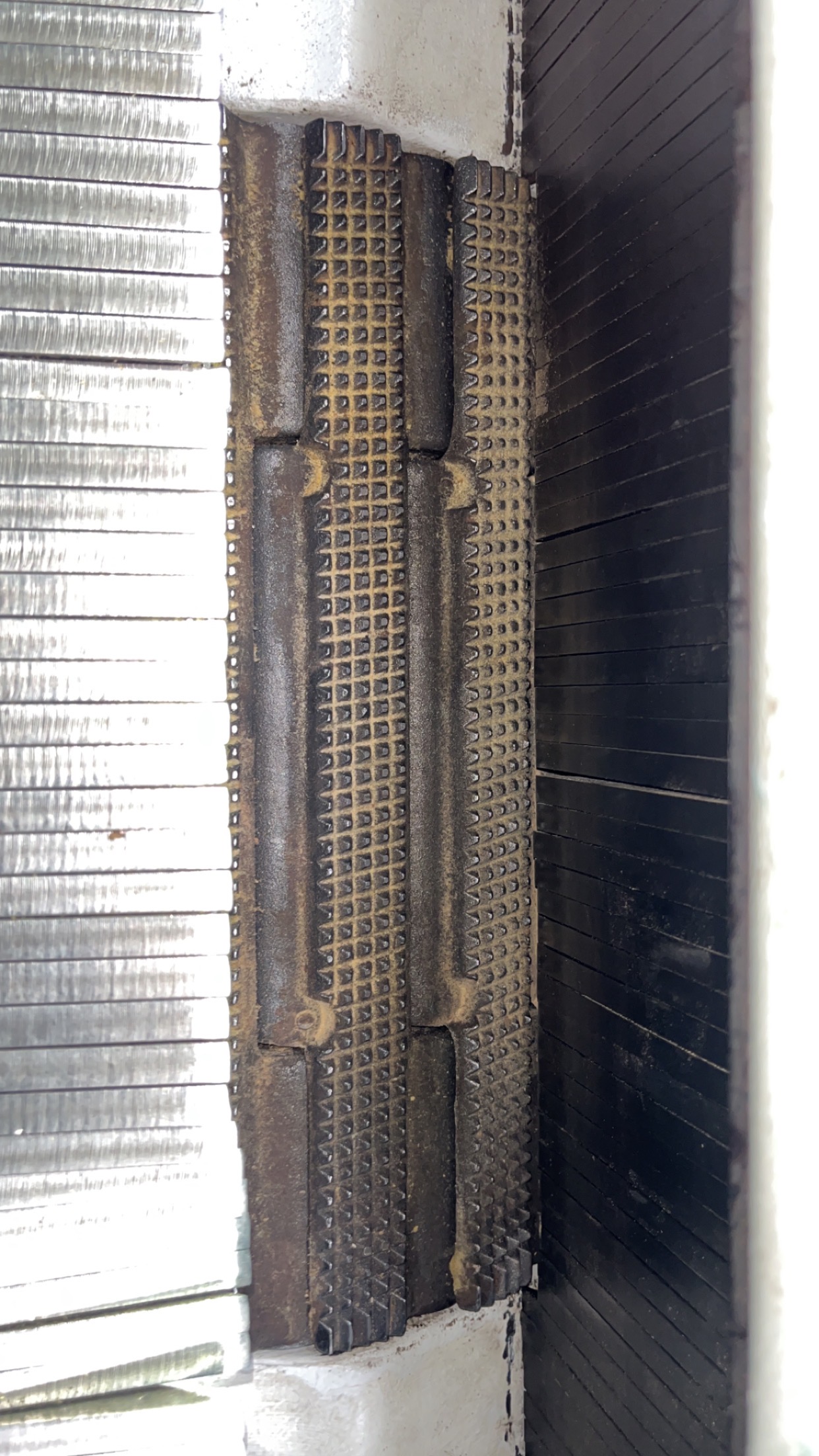

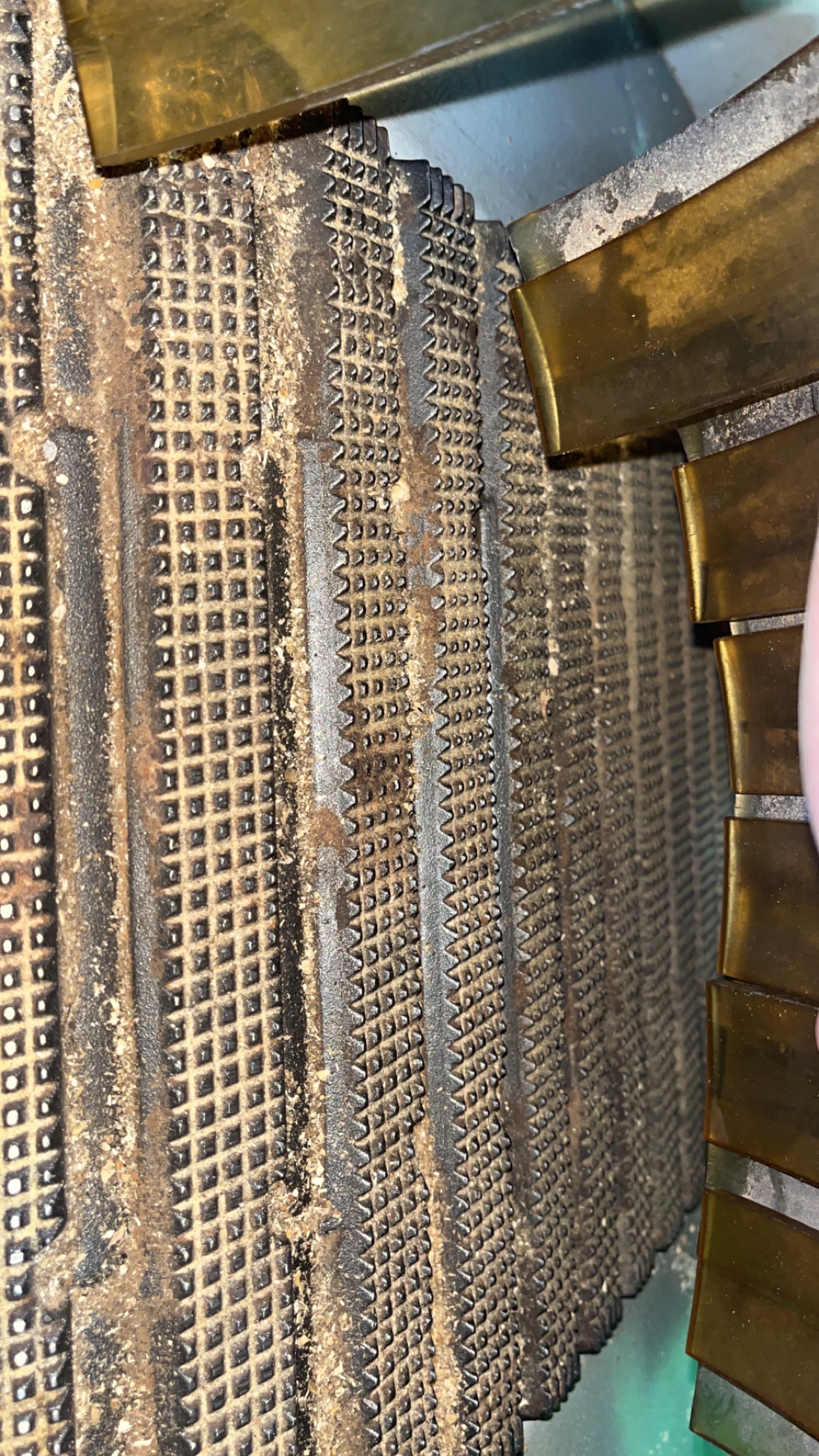

• Transport chain with wafer structure
• Approximate dimensions: 69'' x 69'' x 59'' (1750mm L x 1750mm H x 1500mm H)
• Approximate weight: 3,970 lbs (1,800 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: All information, including that on or derived from attached documents, is accurate to the best of our knowledge and may not apply exactly to the listed machine.**
