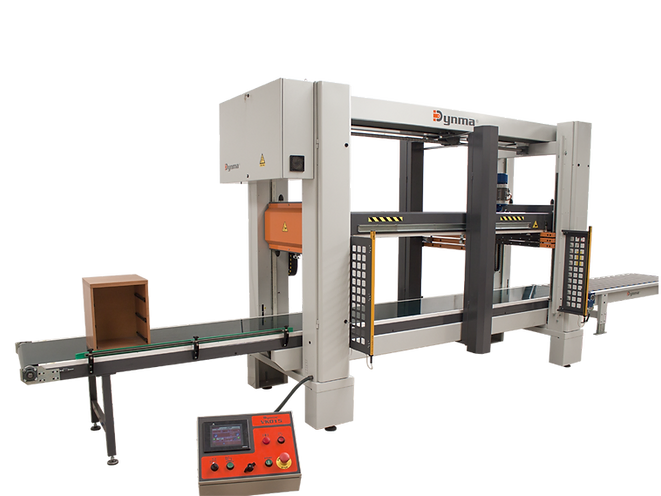

Dynma VK-015 Auto-Adjustable Electro-Mechanical Press

The Dynma VK-015 Auto-Adjustable Electro-Mechanical Press is the result of Dynma experience in the furniture assembly industry. With the adoption of new and advanced technology based on electronic control and using a wide range of high quality mechanic components, results an auto-adjustable press with high performance and high standard of safety, a suitable option for assembling lines with high production rates.

Features and Specifications:

• WORKING SIZES:
• Max. / Min cabinet length (X): 2.500 / 300 mm
• Max. / Min cabinet height (Y): 1.250 / 230 mm
• Max. / Min cabinet width (Z): 700 / 220 mm
• PRESS STRENGTH
• Max. lateral strength (Fx): 1.600 Kg
• Max. vertical strength (Fy): 2.000 Kg
• TRANSPORT SYSTEM
• PVC conveyor belt width (b): 700 mm
• Transport speed: 10-35 m/min
• Standard transport height (at): 500 mm
• Pre-assembly area length (lp): 2,200 mm
• ELECTRICAL CONNECTION
• Voltage / frequency: 400V / 50Hz
• Electrical power: 6 kW
• PNEUMATIC CONNECTION (B & C options)
• Min. working pressure: 5 bar
• Consumption: 2 Nl/min
• Overall dimensions / weight:
• Transport dimensions (L x W x H): 258'' x 103'' x 60'' (6,550 x 2,600 x 1,500 mm)
• Weight: 5,732 lbs (2,600 kg)
• Place dimensions (L x W x H): 258'' x 105'' x 77'' (6,550 x 2,650 x 1,950 mm)

Benefits:

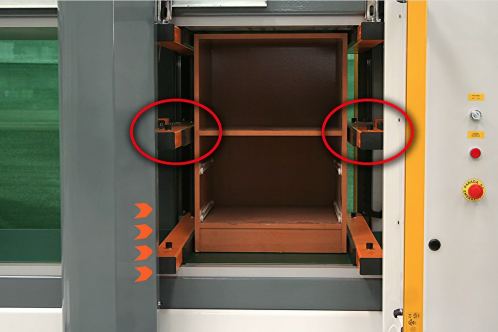

• Auto-adjustable press
• High production rates

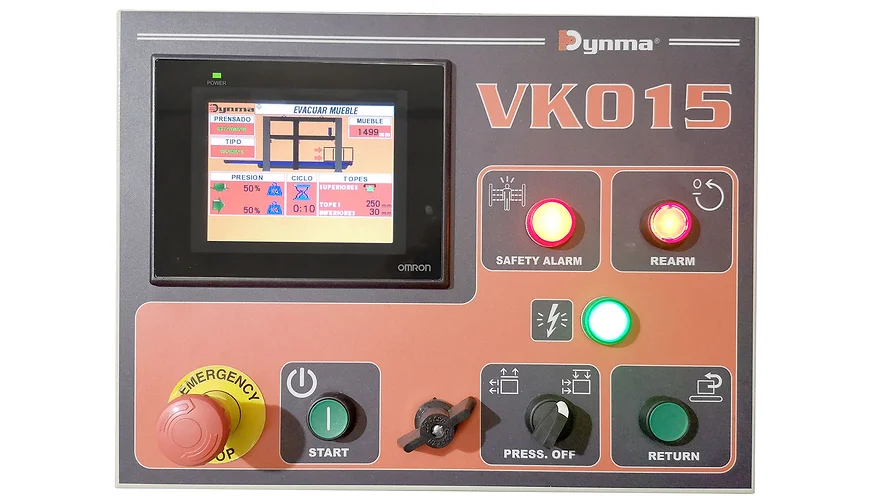

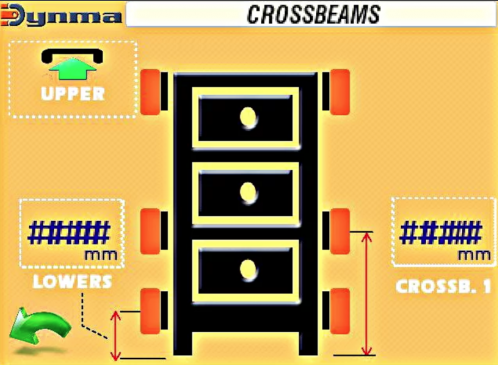

• Programable touchscreen.

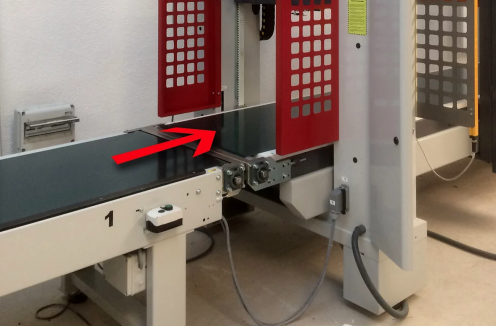

• Conveyor belt with adjustable speed
• Pre-assembling area integrated
• “CE” Safety Standards

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
