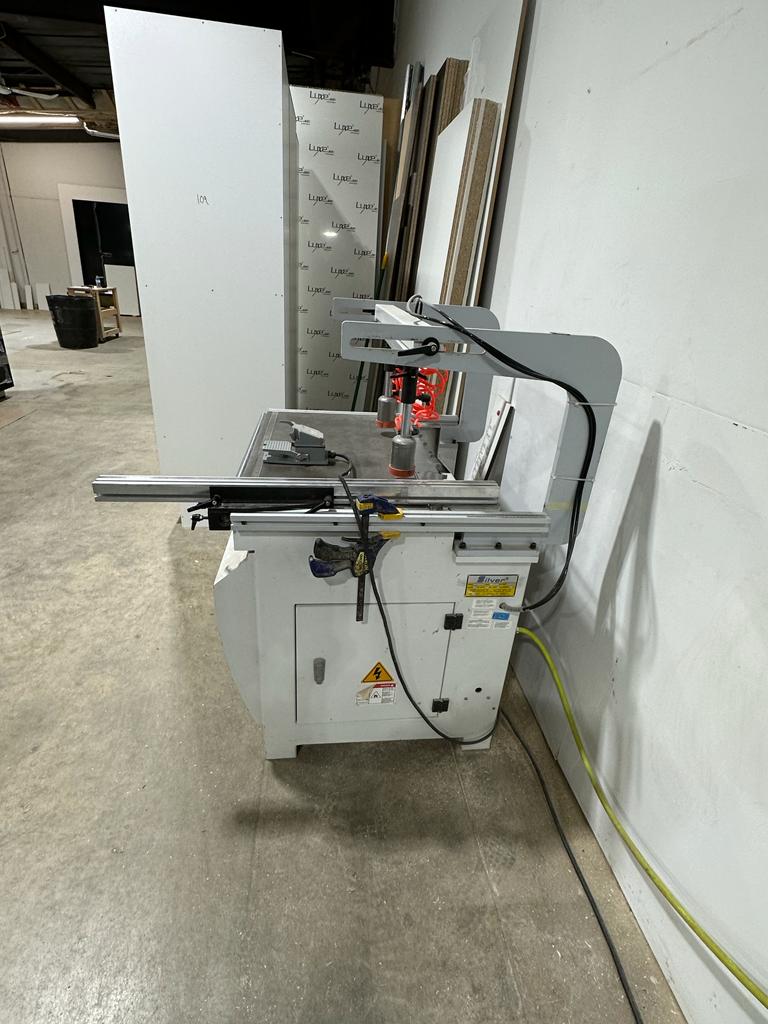

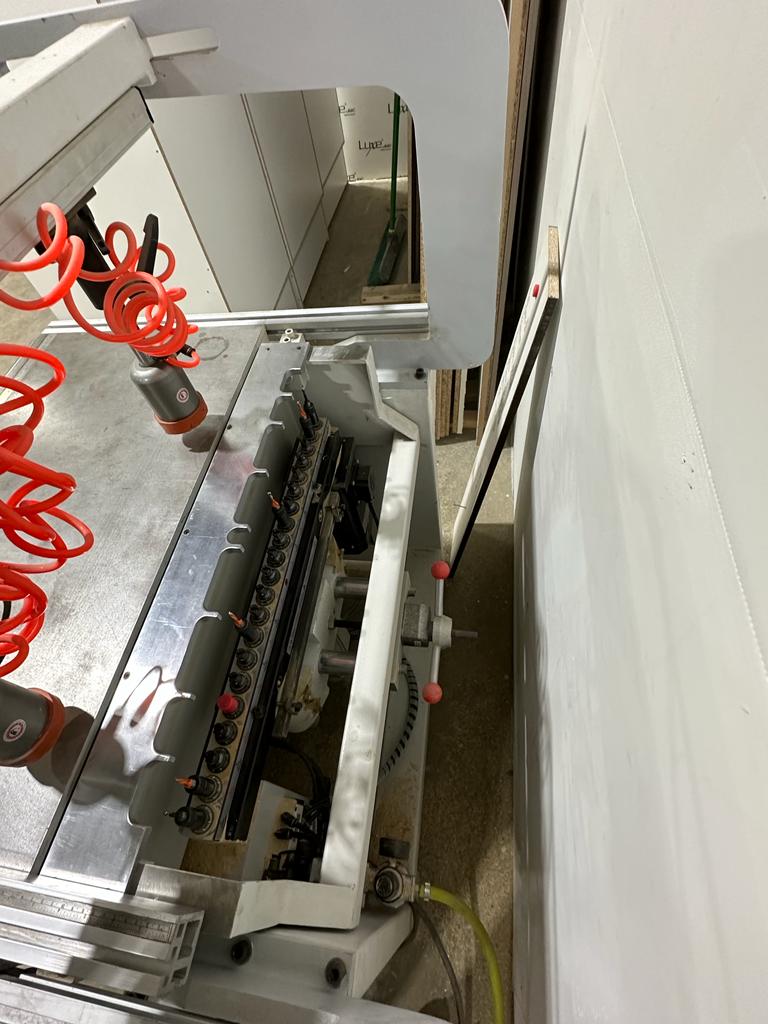

2016 Silver SJK-21A 21-Spindle Single Line Boring Machine

• Horizontal & Vertical single line boring machine with 21 spindles at 32mm centers

• Tiltable boring head can be changed from vertical to horizontal boring by pneumatic setting

• Pneumatic boring cycle by convenient foot pedal

• 2 Pneumatic cylinder clamp for solid hold-down to the material.

• Adjustable boring feed speed

• Mechanical digital readouts are provided for precise setting of the boring head

• Adjustable boring depth for fast changeover

• Aluminum alloy single block boring head

Features and Specifications:

• Distance between each bit: 32 mm
• No. of spindles of boring head: 21 pcs
• Max drilling diameter: 35 mm
• Max drill depth: 80 mm
• Table size: 920 x 500 mm
• Working table height: 900 mm
• Length of back fence: 3 m
• Motor power: 2 HP
• Motor speed: 2,840 RPM
• Approximate dimensions: 39'' x 40'' x 53'' (1,000 x 1,020 x 1,340 mm)
• Approximate weight: 705 lbs (320 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
