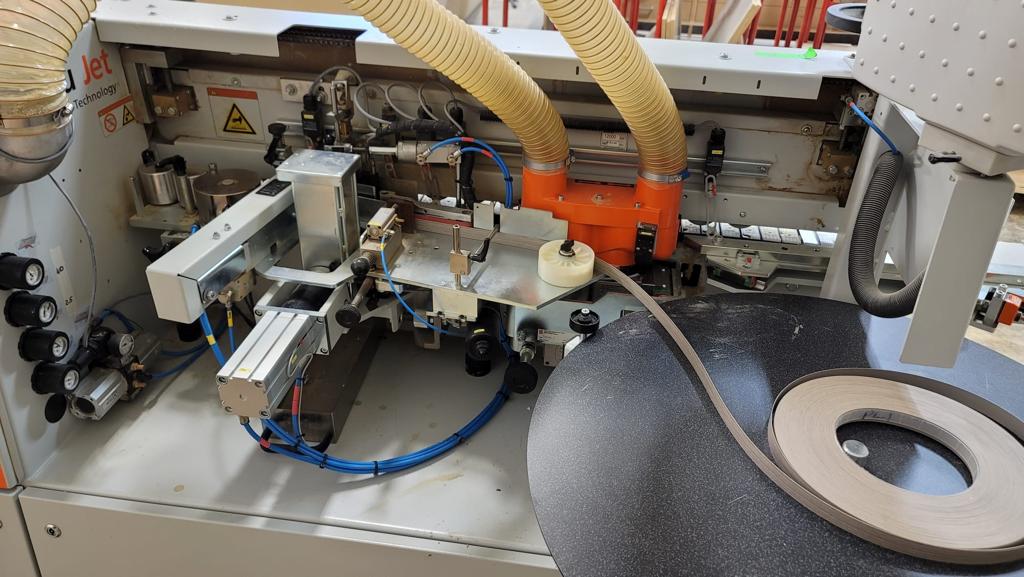

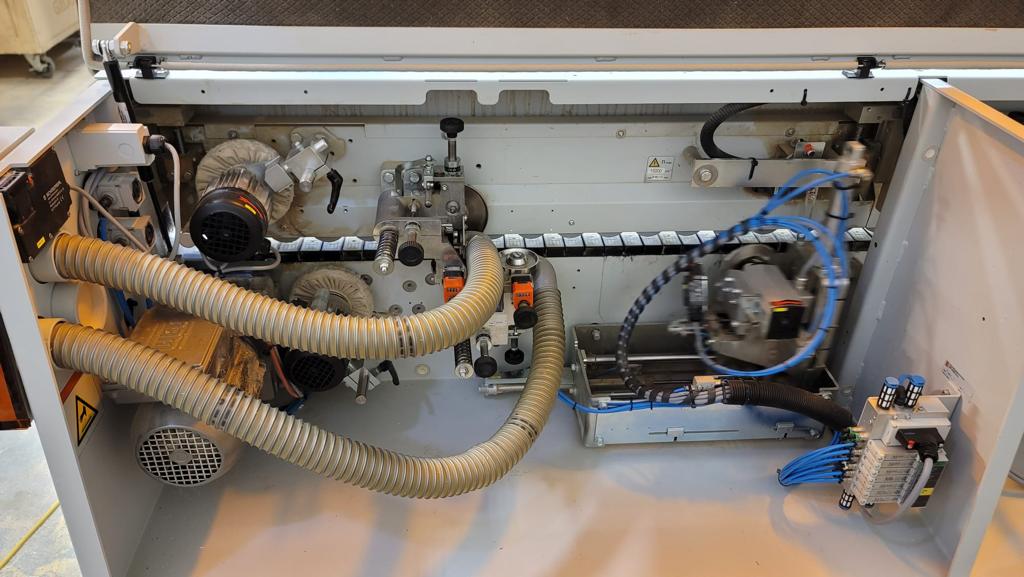

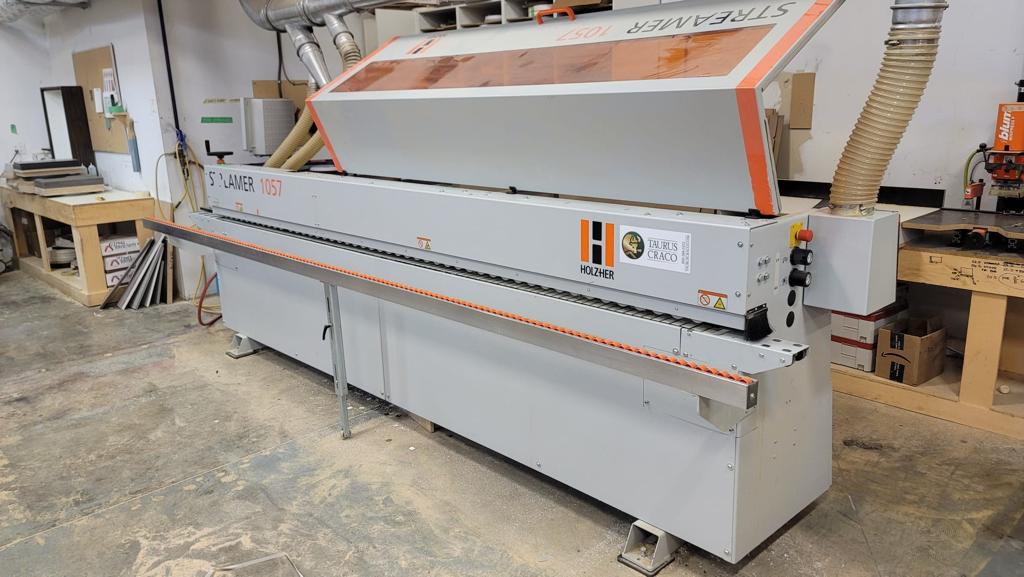

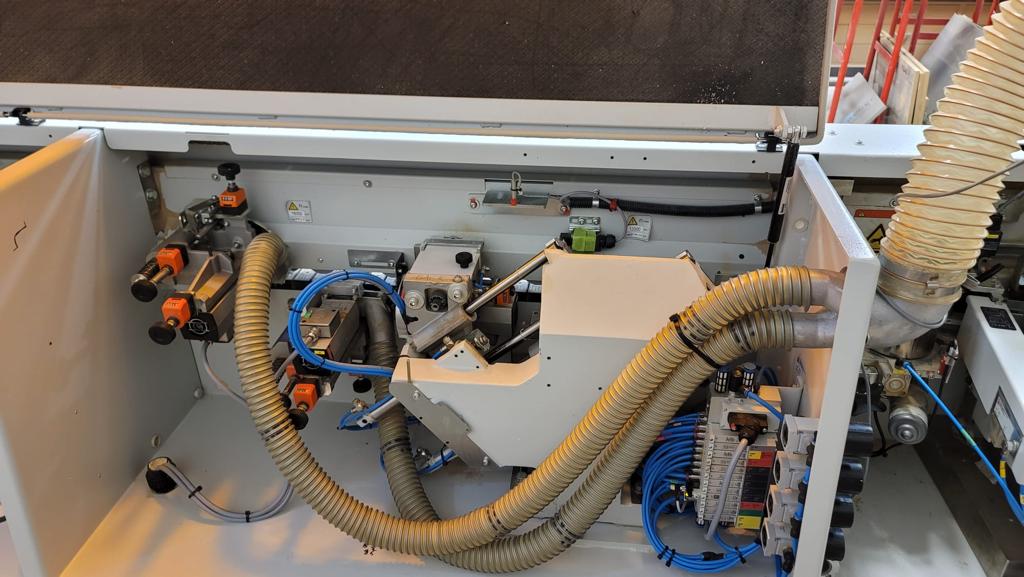

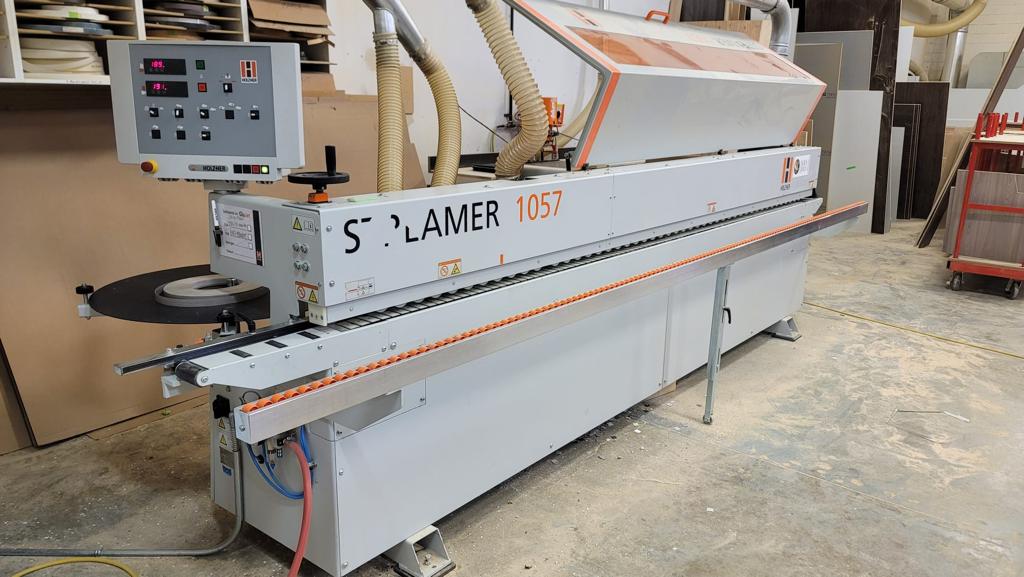

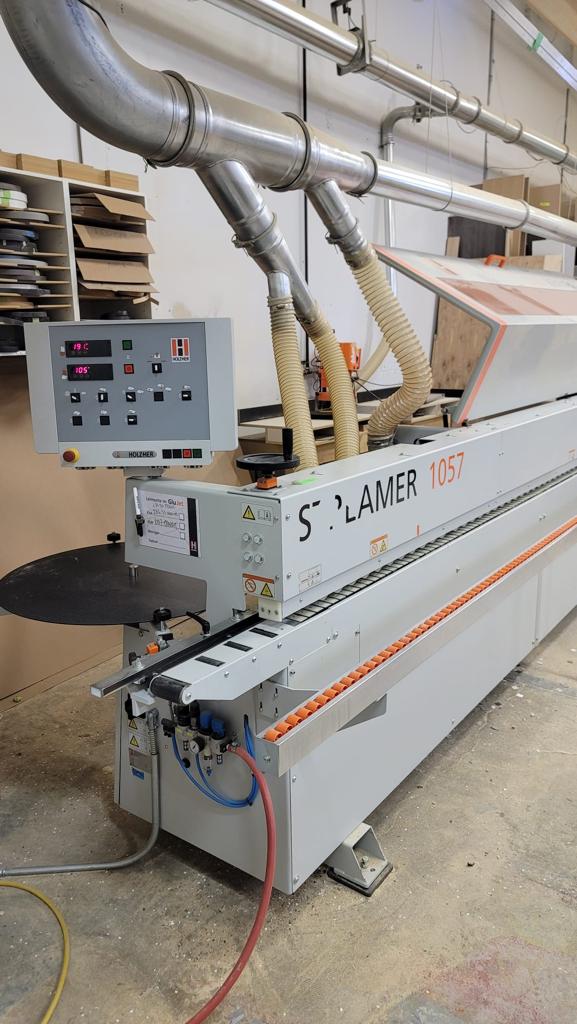

2018 Holz-Her Streamer 1057 Edgebander

Features and Specifications

• Edge thickness of colled edging: 0.4 - 3 mm (depending on material)
• Edging thickness of cut-length edging: 0.4 - 3 mm
• Edging height: max. 65 mm
• Panel thickness: 8 - 45 mm
• Edging cross section: max. 6 x 42 mm
• Workpiece width: min. 65 mm
• Workpiece length: min. 160 mm
• Feed speed: 10 m/min

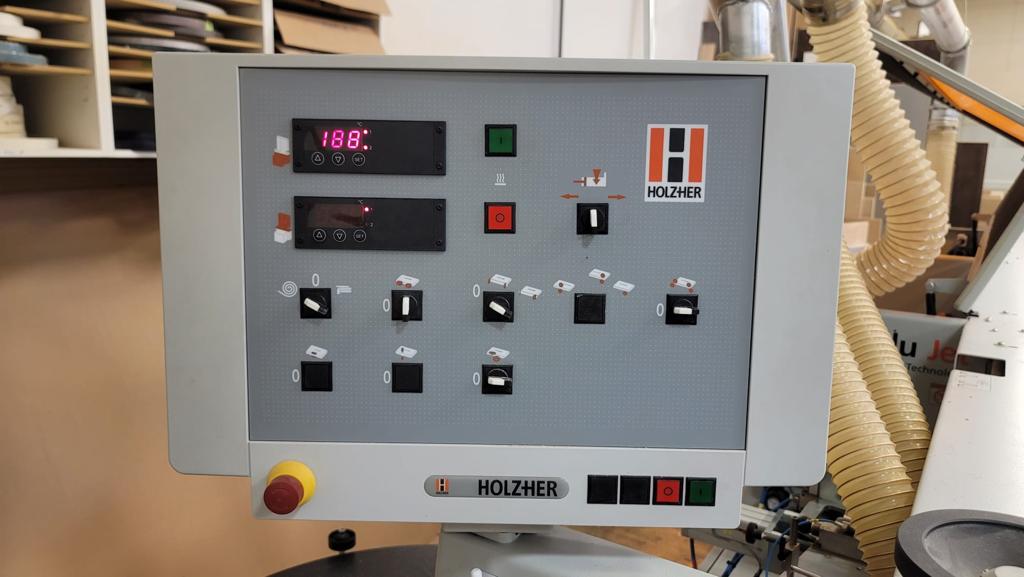

• Turnable and tiltable control panel
• Pre-milling unit
• 2 cutter units
• Diamond cutter Ø 70 x 64 x 30 mm, 2+2 teeth, left hand
• Diamond cutter Ø 70 x 64 x 30 mm, 2+2 teeth, right hand
• Edge feeder
• Max. load capacity: 40 mm
• Max. edge thickness: 3 mm (material dependent)
• Forward cut up to max 65 mm (material dependent)
• Max cross section: 135 m^2 (material dependent)
• Glue application system
• Processing of EVA and PUR adhesives
• Adhesive in cartridge or granules form
• Processing of neutral and coloured adhesives
• Heat up time: 3 mins
• Pressure unit
• First roller drive with plunge-in control, 2 conical support pressure rollers
• End trimming unit
• 60mm, pneumatic
• Multifunctional trimming unit
• Multipurpose unit for flush trimming, radius, and chamfering
• Diamond cutter Ø 57 x 17 mm Z = 2, R = 2,0 mm, left hand
• Diamond cutter Ø 57 x 17 mm Z = 2, R = 2,0 mm, right hand
• Form trimming
• Corner rounding unit
• Corner copying function up to 3mm edging thickness
• Workpiece thickness: 12 - 60 mm
• Max feed speed: 10 m/min

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine. All features and specifications listed are to the best of our knowledge.**
