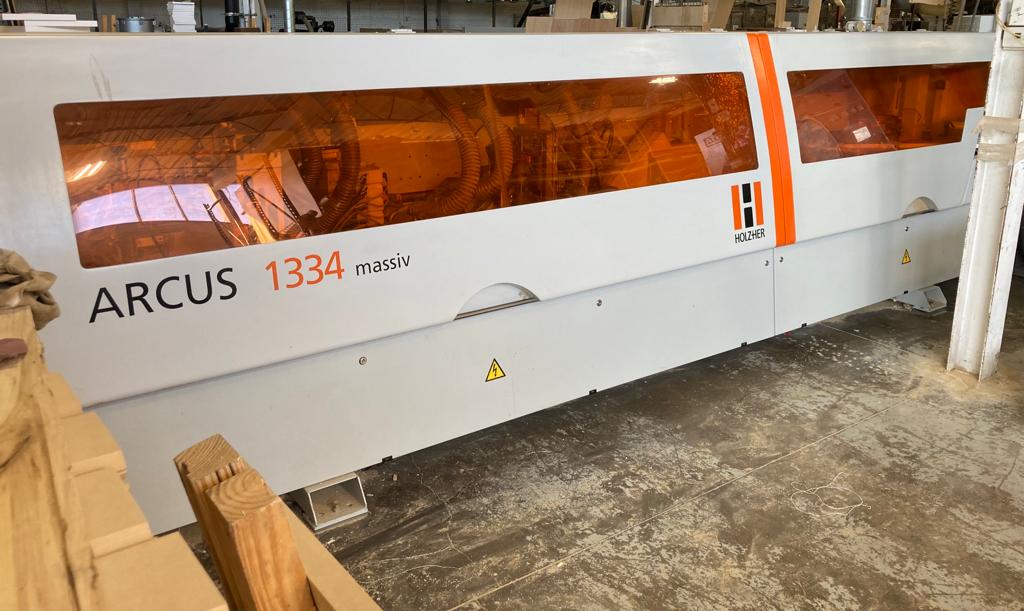

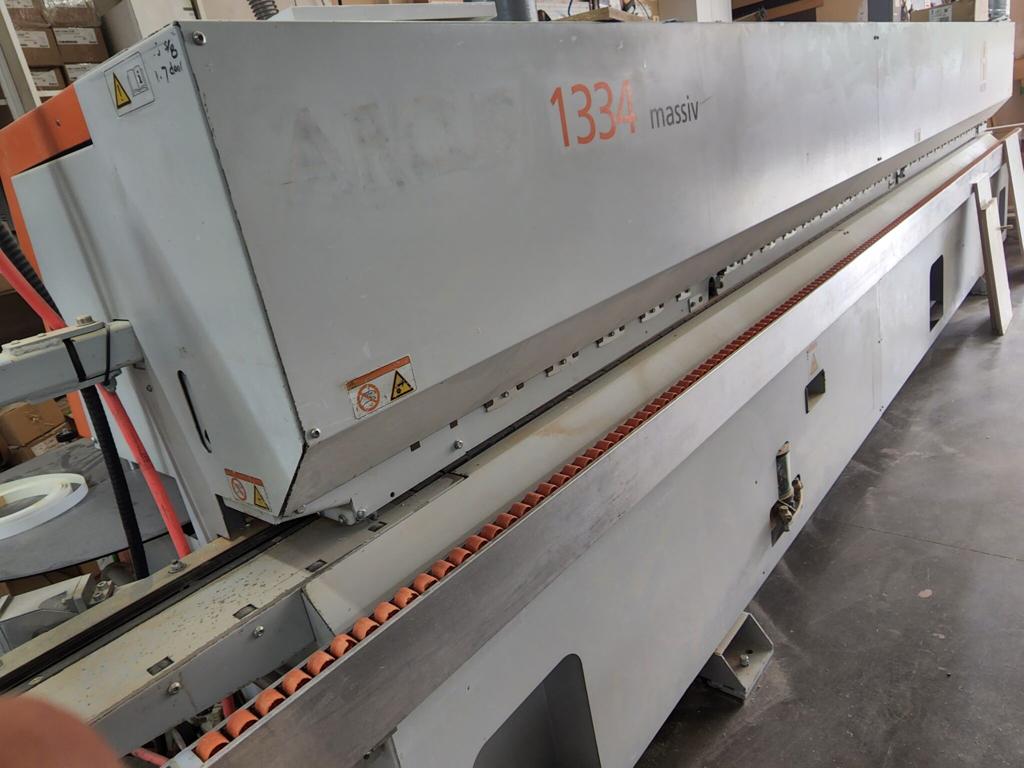

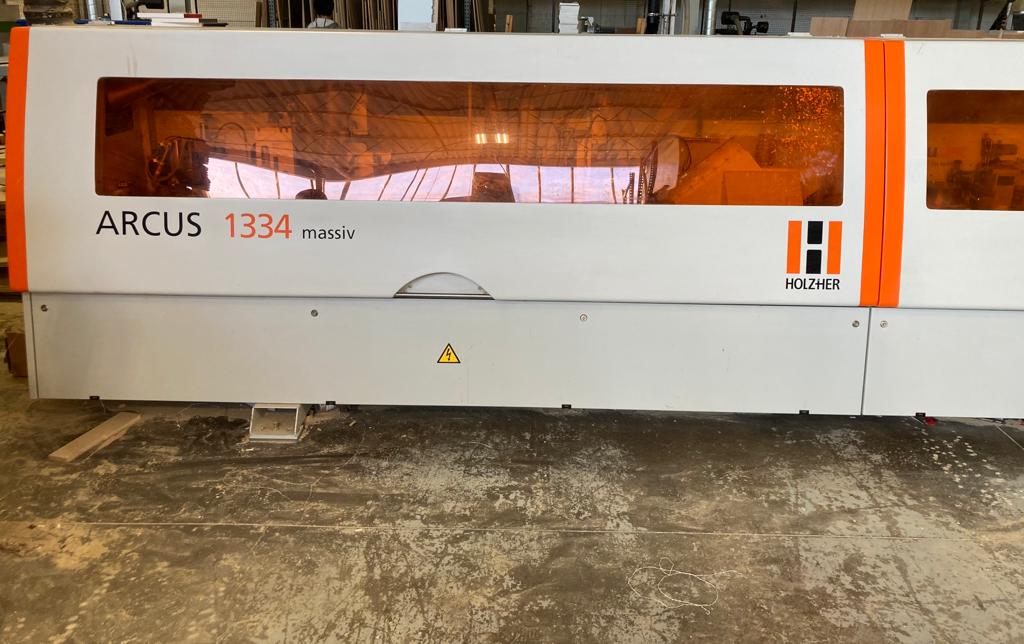

2014 Holz-Her Arcus 1334V2 Edgebander

Sold

Specifications

ManufacturerHolz-Her
ModelArcus 1334V2 Edgebander
Year2014
Stock Number1629EZ
Voltage230V / 3Ph / 60Hz
ConditionExcellent

Description

Higher performance, greater stability, as well as a machine design to set accents - the Arcus from Holz-Her redefines edgebanding machines.


Features and Specifications:

  • Pre-milling unit
  • Motors (x2): 2.0 kW, 200 Hz, 12000 min^-1
  • End-trimming, (60 mm) pneumatic
  • Motors (x2): 0.65 kW, 200 Hz, 12000 min^-1
  • Pneumatic pivoting feature 0/10°, every saw blade individually tiltable
  • Maximum edging cross section: 15 mm x 65 mm
  • Maximum feed speed: 10-18 m/min
  • Edge feeder SYNCHRO
  • Automatic transport of roll and strip products
  • Maximum load capacity: 150 mm
  • For coils:
  • Maximum edge thickness: 3 mm (material dependent)
  • Forward cut: max. 65 mm (material dependent)
  • Maximum cross section: 135 mm^2

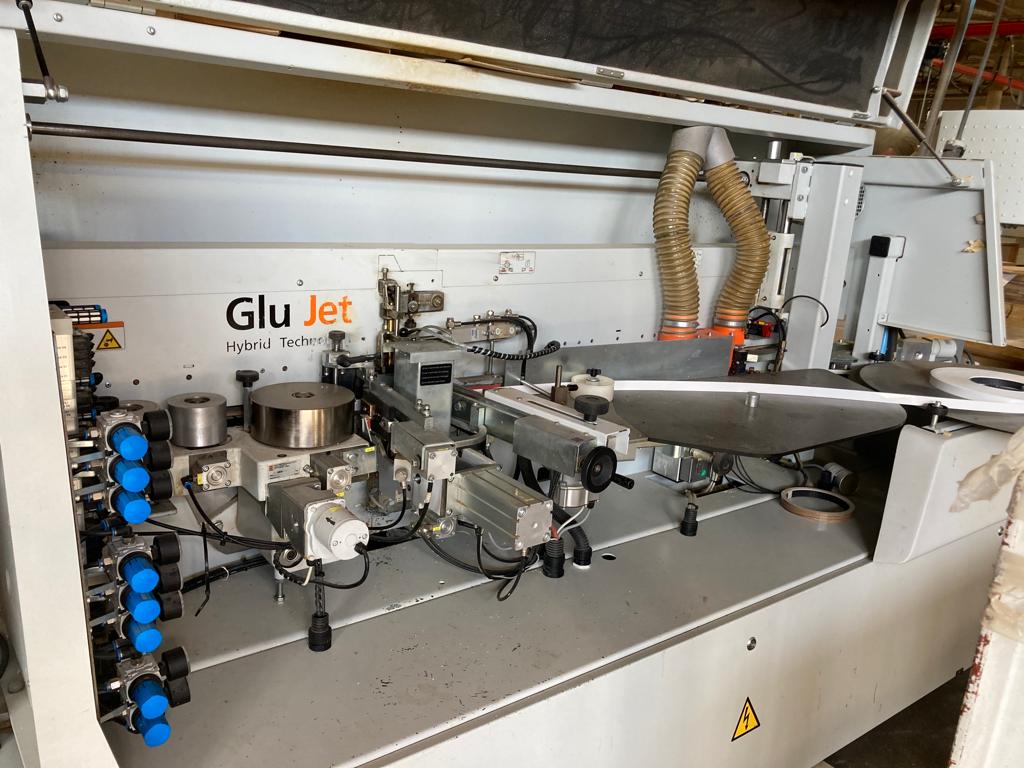

  • Glue application station
  • Magazine capacity: 4 cartridges (approx. 1.4 kg) / granulated glue: approx. 1.5 kg
  • MOT Pressure section
  • 4 separate contact-controlled pressure rollers for clean edge pressing on carrier panel

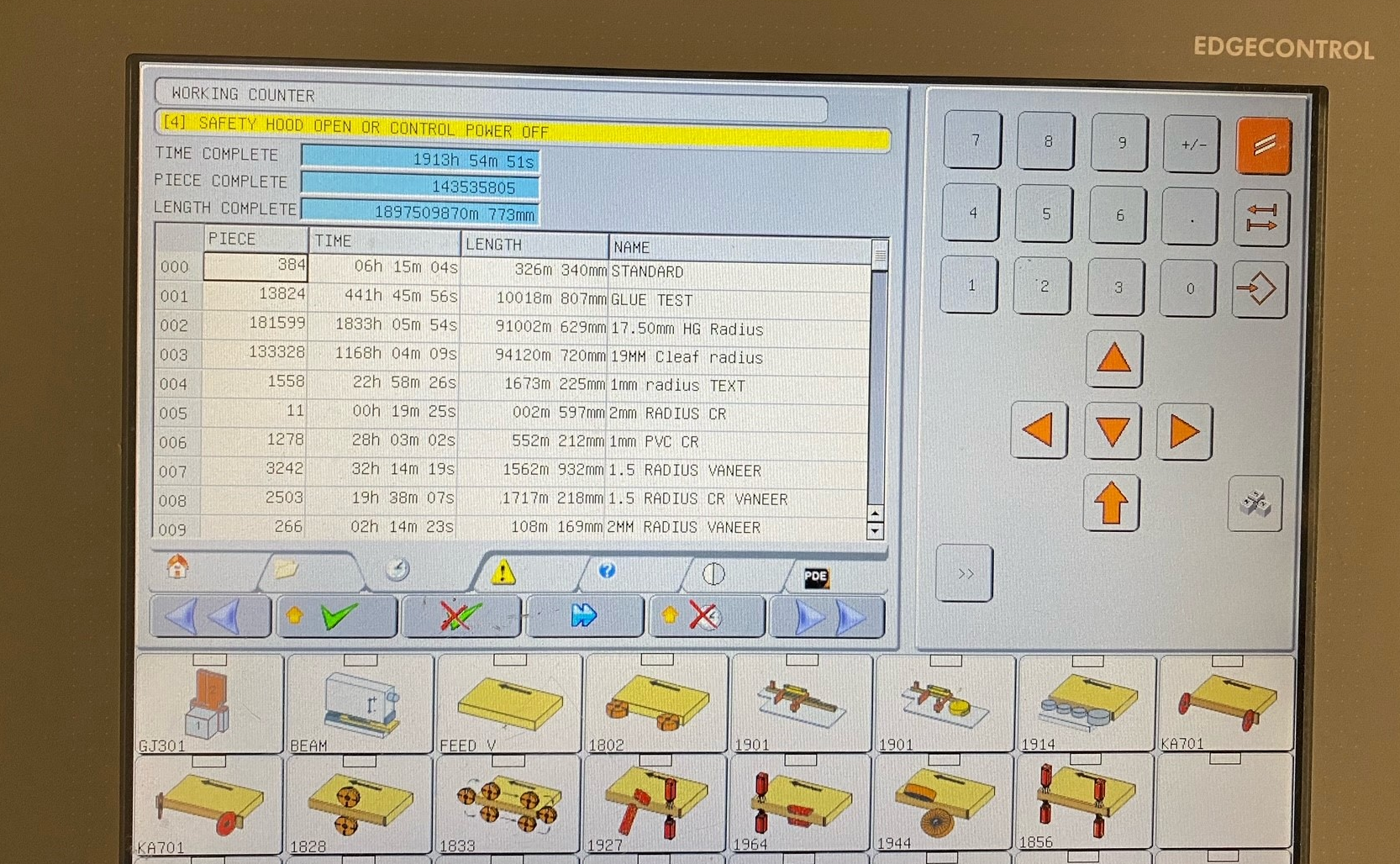

  • 15'' touch screen
  • Trimming unit
  • Form trimming unit
  • Scraper unit
  • Surface glue scraper
  • Buffing unit
  • Edging thickness for coils: 0.4 - 3 mm (material dependent0
  • Edging thickness for strips: maximum 0.4- 15 mm
  • Edge height: maximum 65 mm (limited edge cross section)
  • Work piece thickness: 6-60 mm
  • Work piece width: minimum 60 mm
  • Work piece length: minimum 140 mm
  • Feed speed: variable feed; 10-120 m/min
  • Approximate shipping dimensions: 247'' x 53'' x 63'' (6,265mm x 1,434 x 1,609 mm)
  • Approximate shipping weight: 5,600 lbs (2,560 kg)



Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
