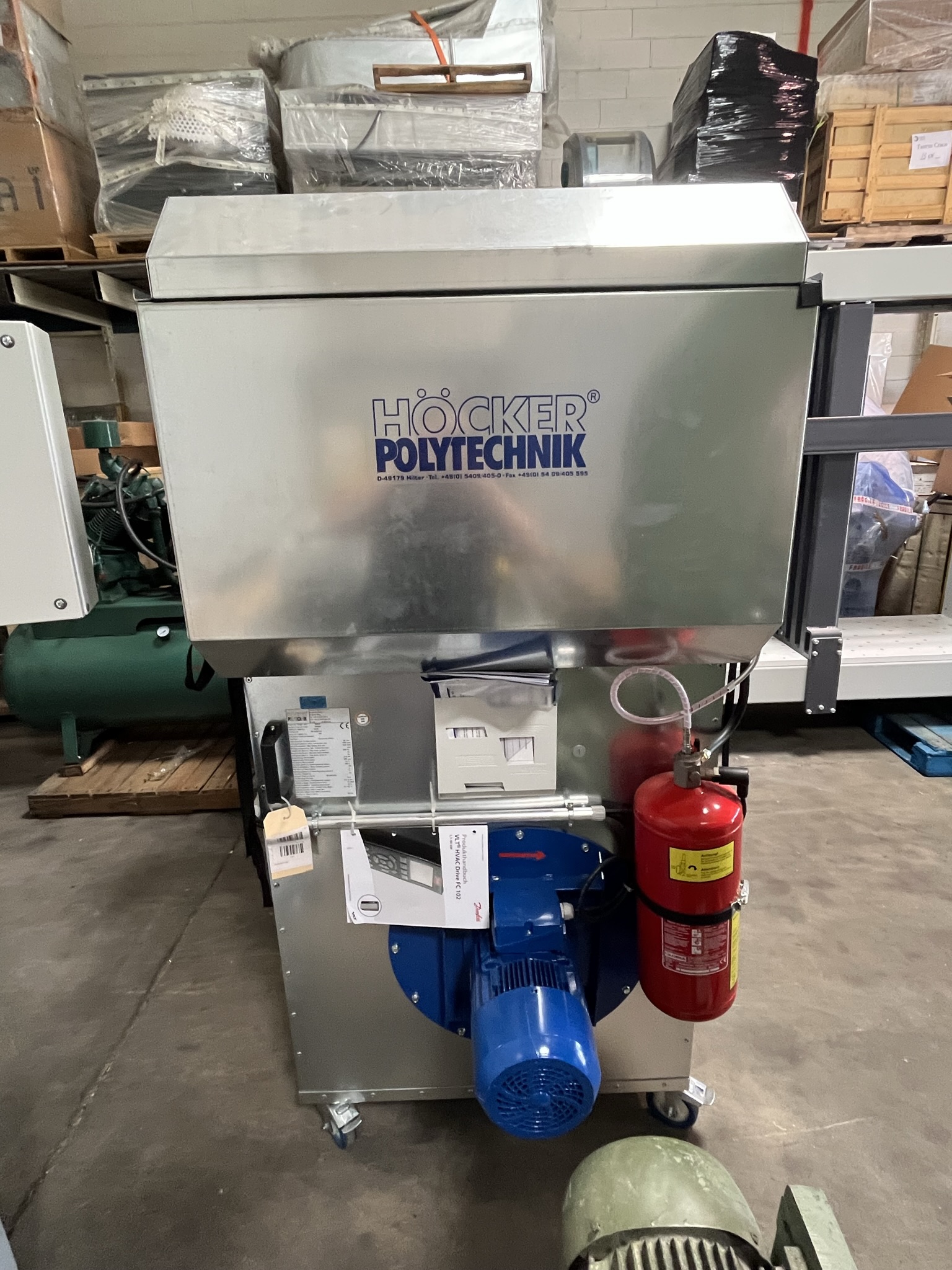

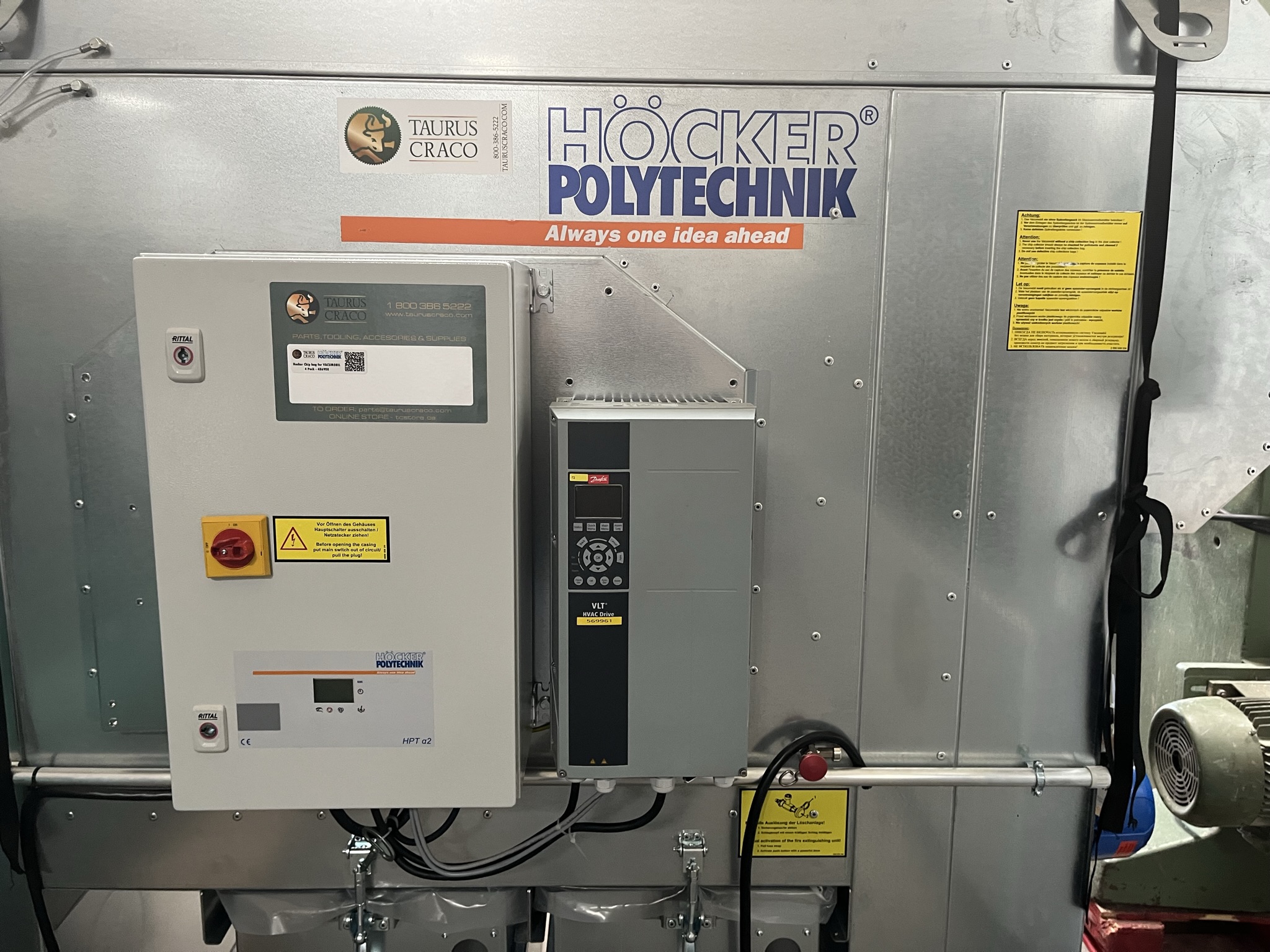

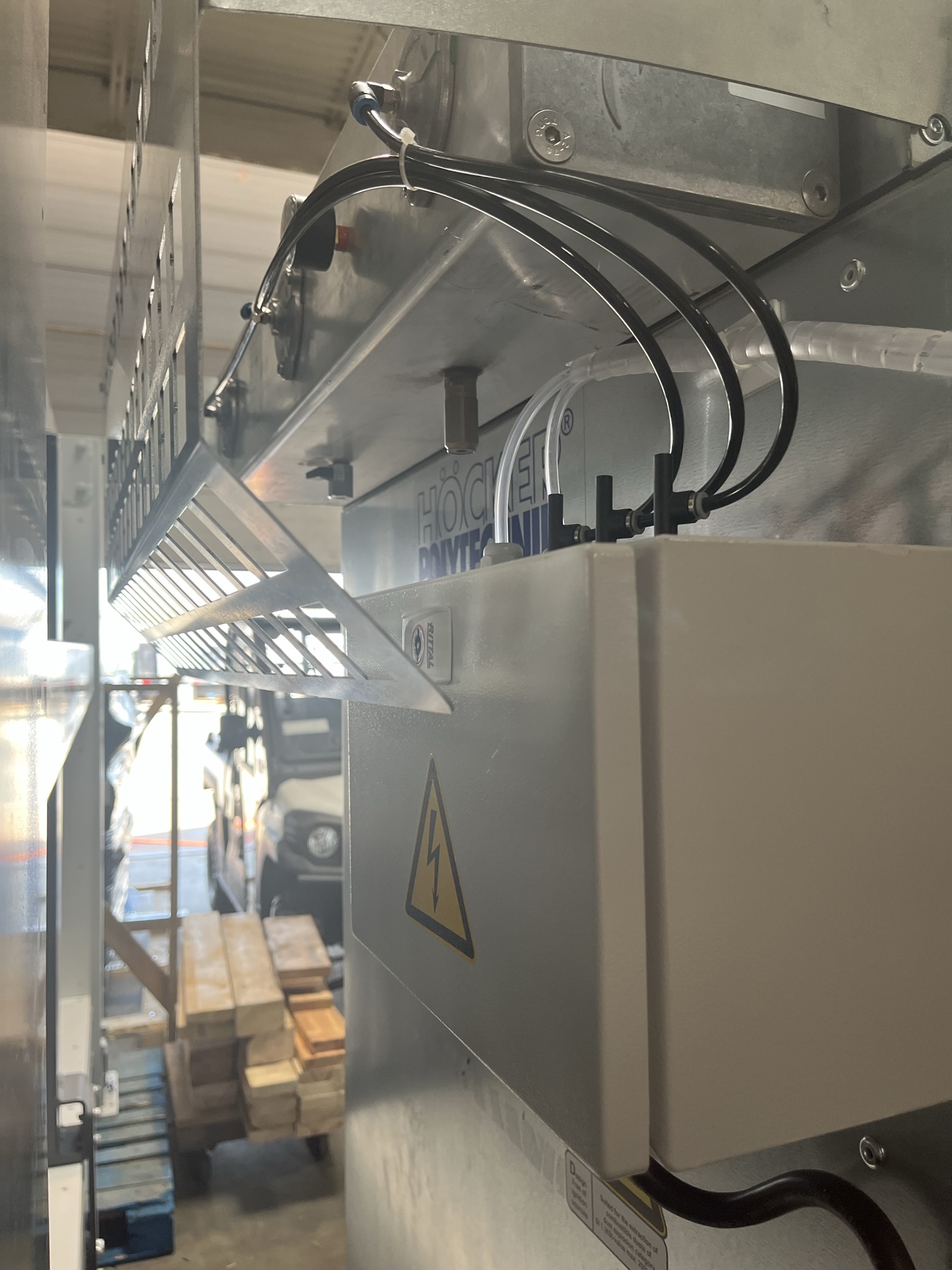

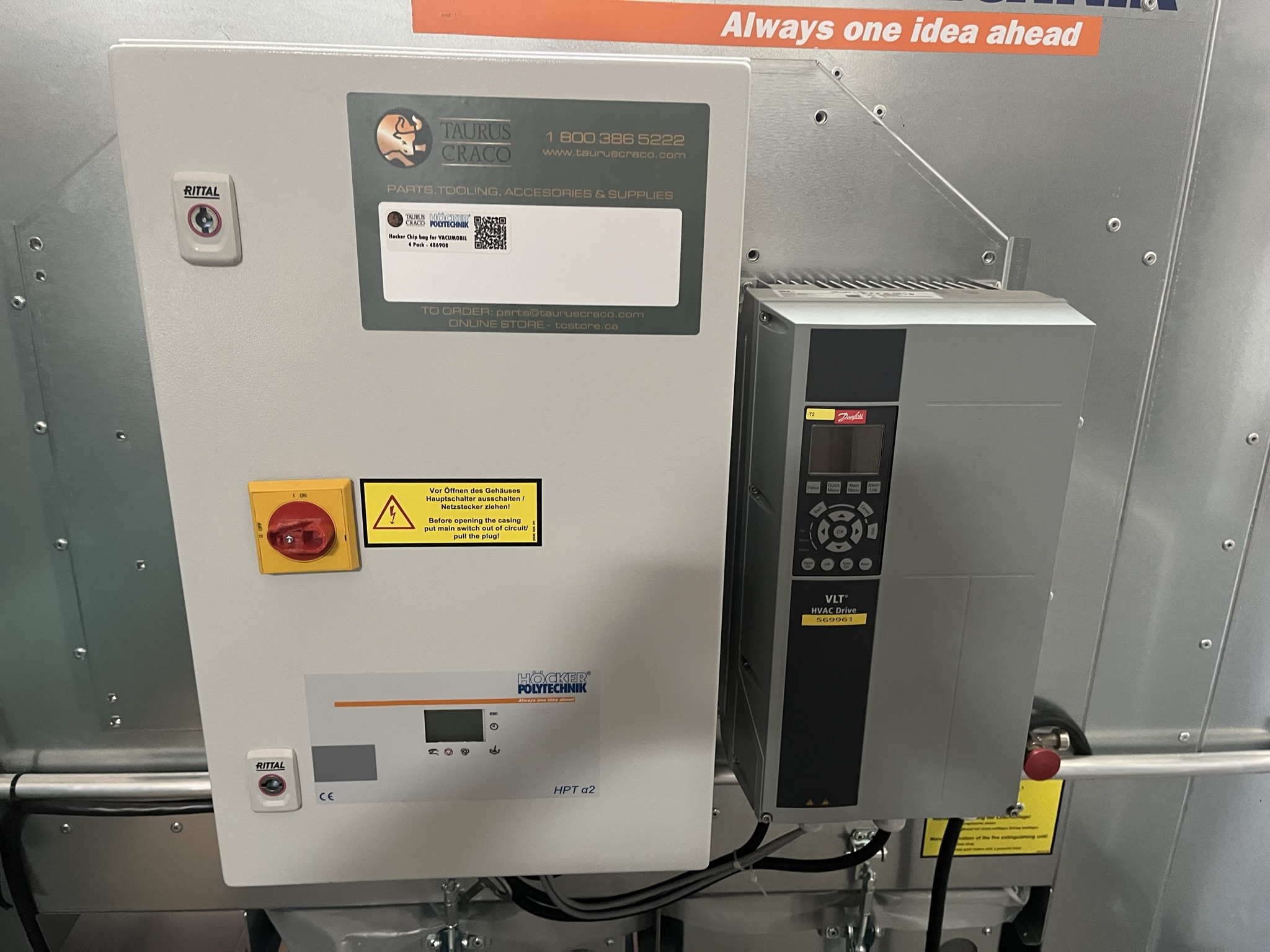

2023 Hocker Polytechnik Vacumobil JT200-L Dust Collector
Sold
Specifications
| Manufacturer | Hocker Polytechnik |
| Model | Vacumobil JT200-L Dust Collector |
| Year | 2023 |
| Stock Number | 1626WL |
| Voltage | 400V |
| Condition | Almost brand new, floor demo unit |
Description
High-performance dedusting device designed for the extraction of processing machines and suitable for work room installation.
Hocker Polytechnik JT200-L - Features and Specifications:
- Online surge cleaning

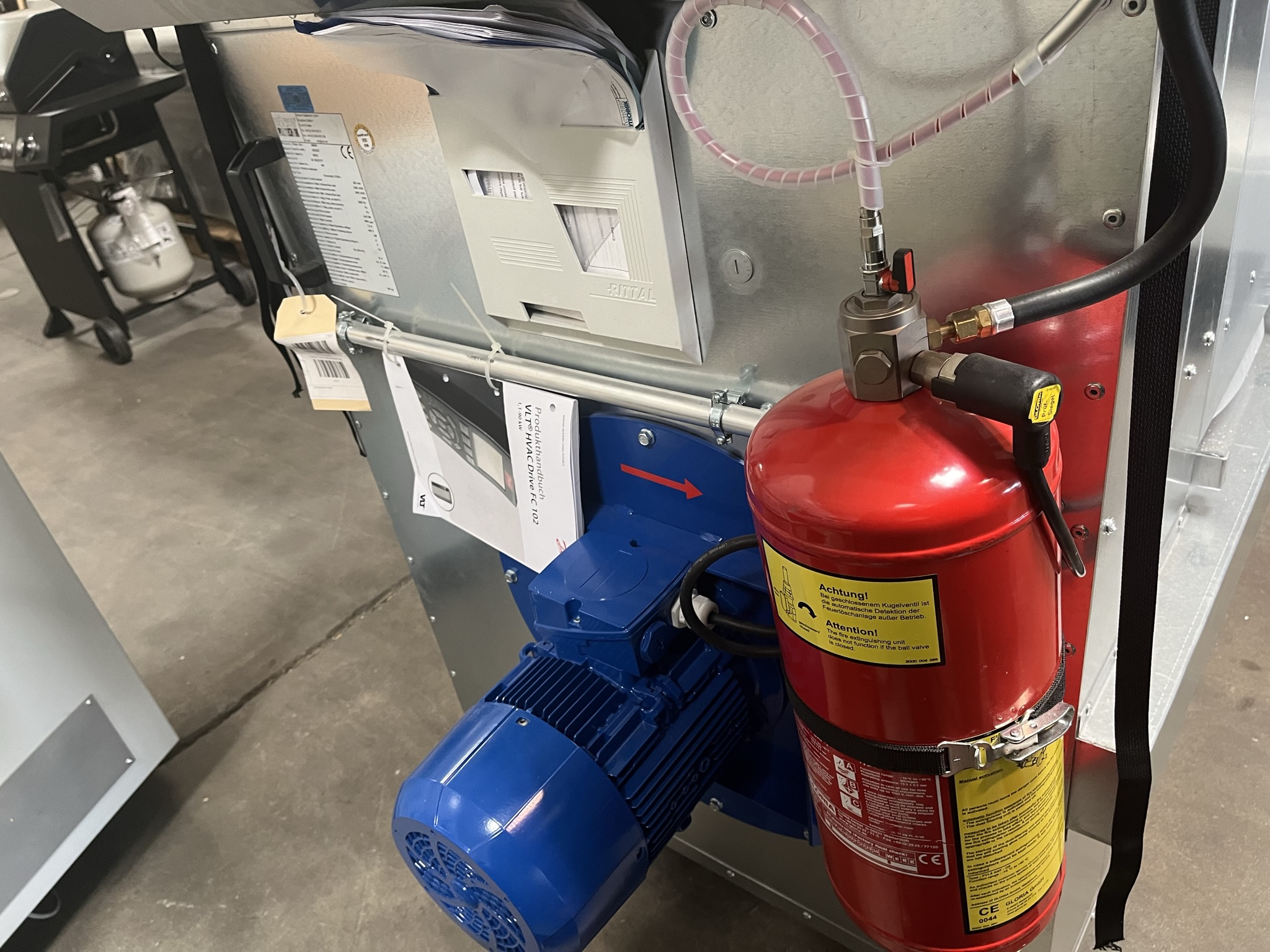

- Fire suppression
- Suction socket: 200 mm
- Nominal air volume: 2,260 m^3/h
- Maximum air volume: 3,400 m^3/h
- Negative pressure at the interface:
- At nominal air volume: 2,900 Pa
- At maximum air volume: 2,100 Pa
- Filter area: 12.05 m^2

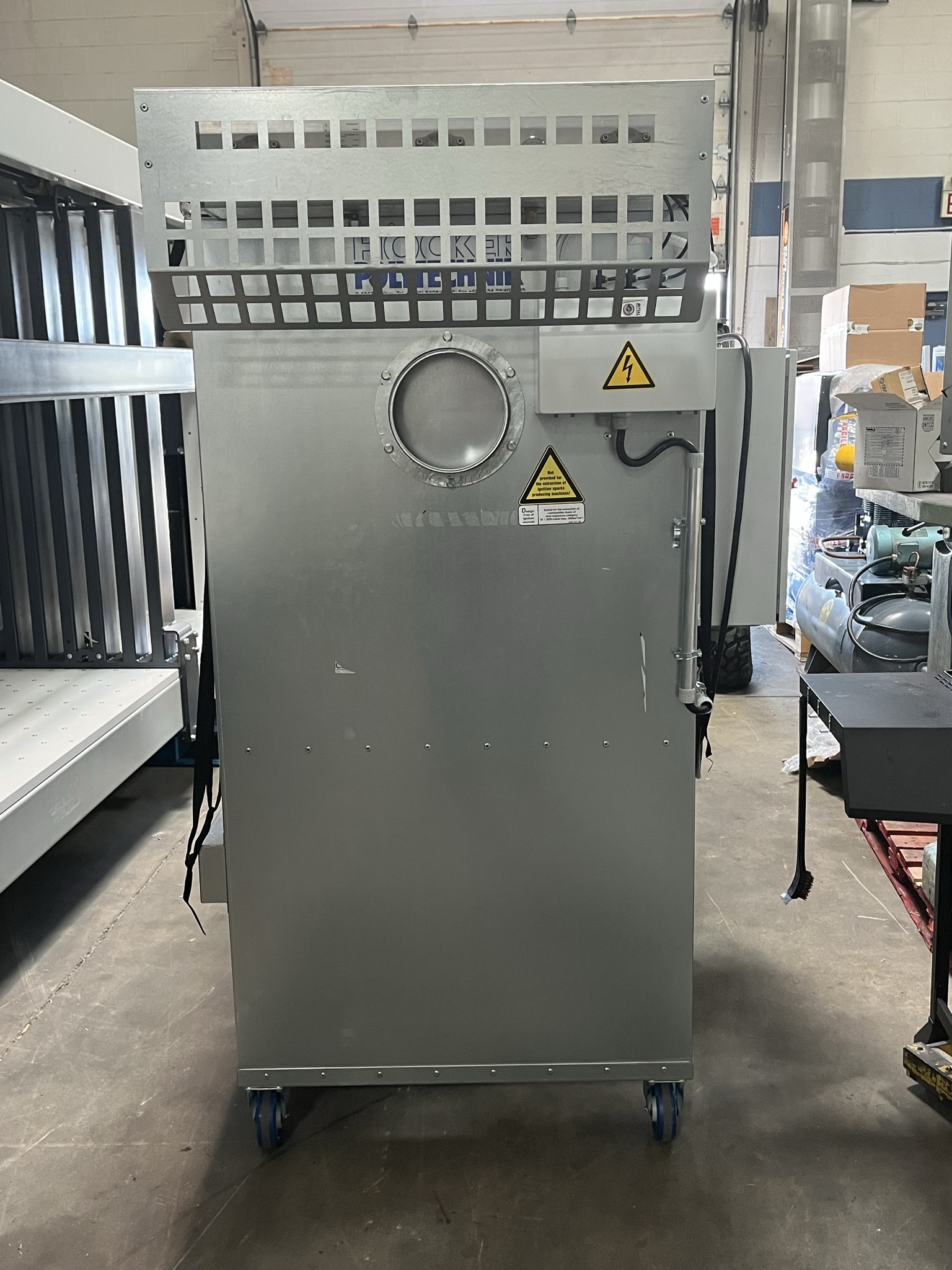

- Connection socket: 200mm diameter
- Height of socket: 1,500mm, mid-point
- Fan motor: 4.00 kW, 3 x 400V, 50 Hz
- Working pressure: 4.5 bar
- Sound pressure level: 71.0 dB (A)
- Motor power: 4.00 kW
- Rated speed: 3,000 min^-1
- Induction coil
- Antistatic filter
- 'Online cleaning'
- Fire suppression
- Powerpack IE3

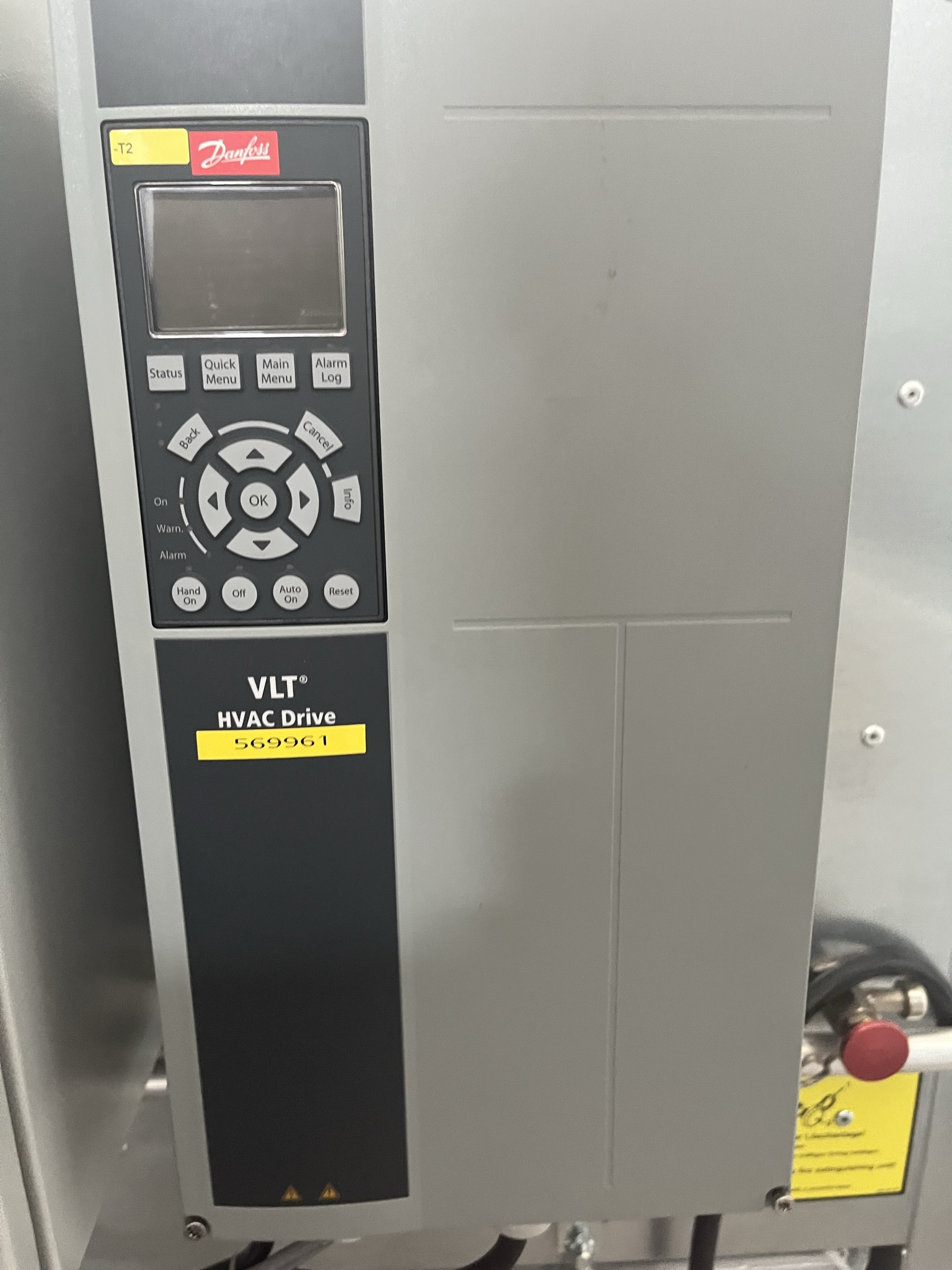

- With stepless power control for energy-saving and "Boost" function for up to 20% more suction power
- Approximate shipping dimensions: 85'' x 40'' x 78'' (2,160 x 1,020 x 1,990 mm)
- Approximate shipping weight: 937 lbs (425 kg)
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
