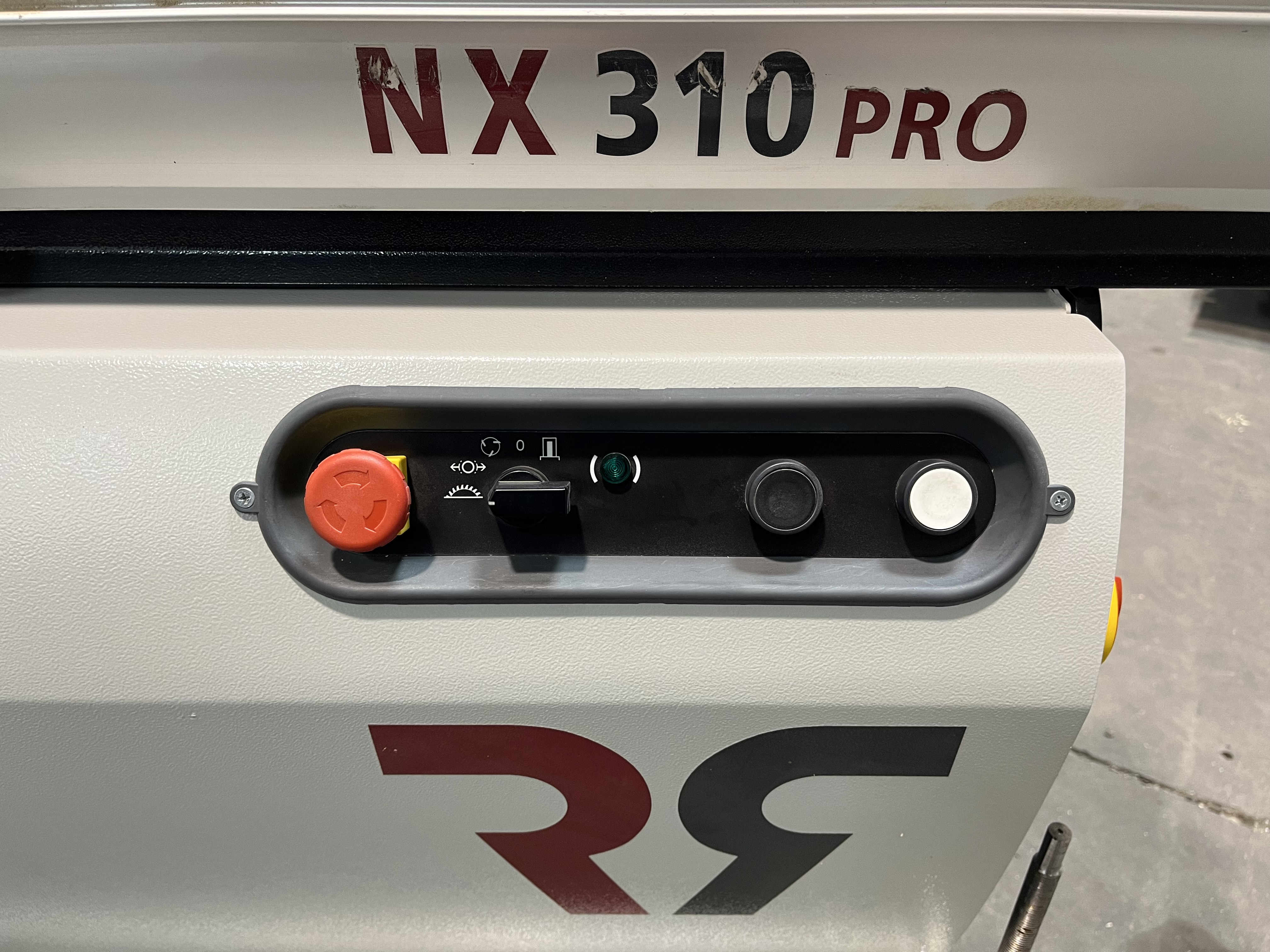

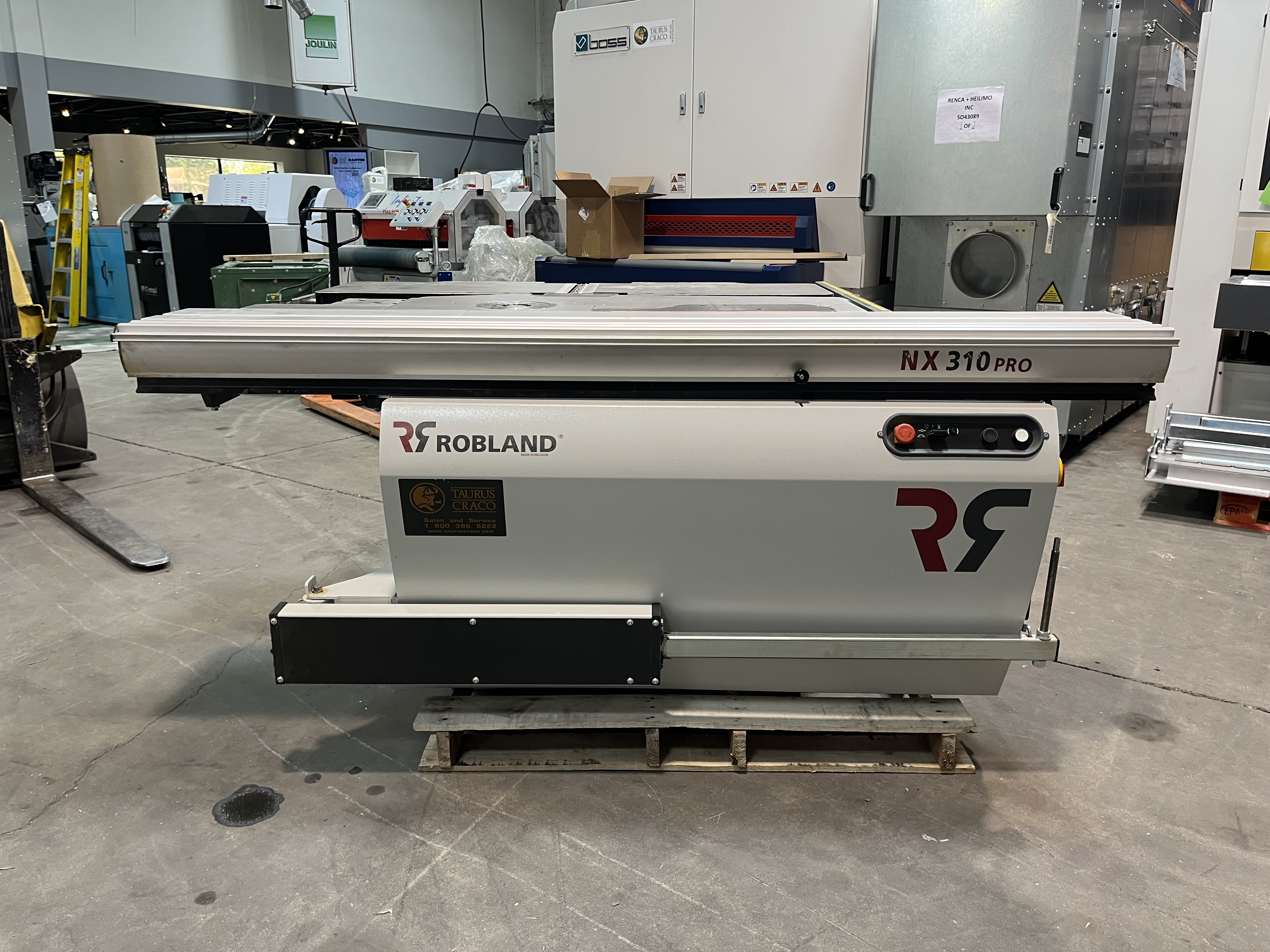

2015 Robland NX 310 PRO Combination Machine

Specifications

ManufacturerRobland
ModelNX 310 PRO Combination Machine
Year2015
Stock Number1574EZ

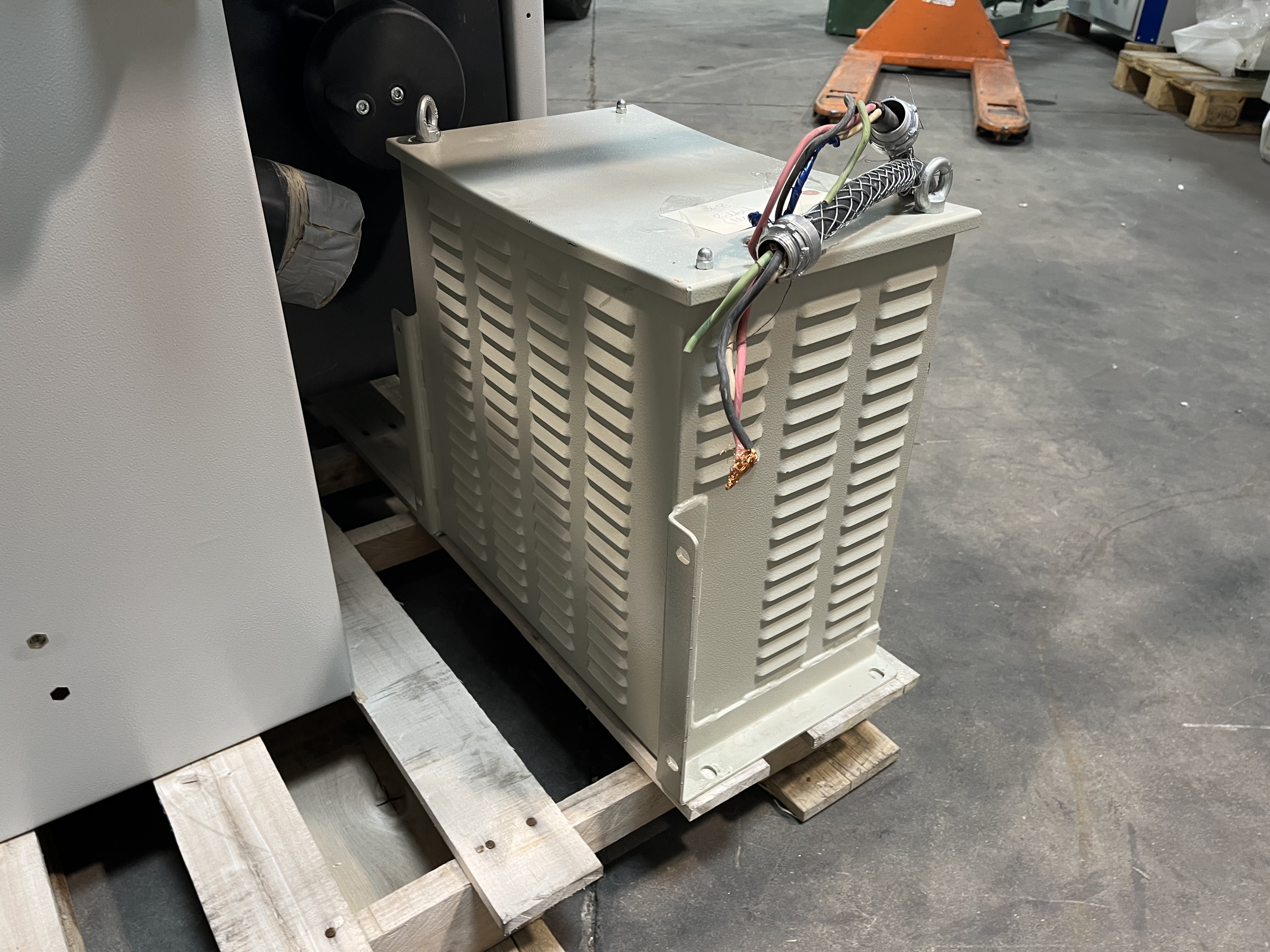

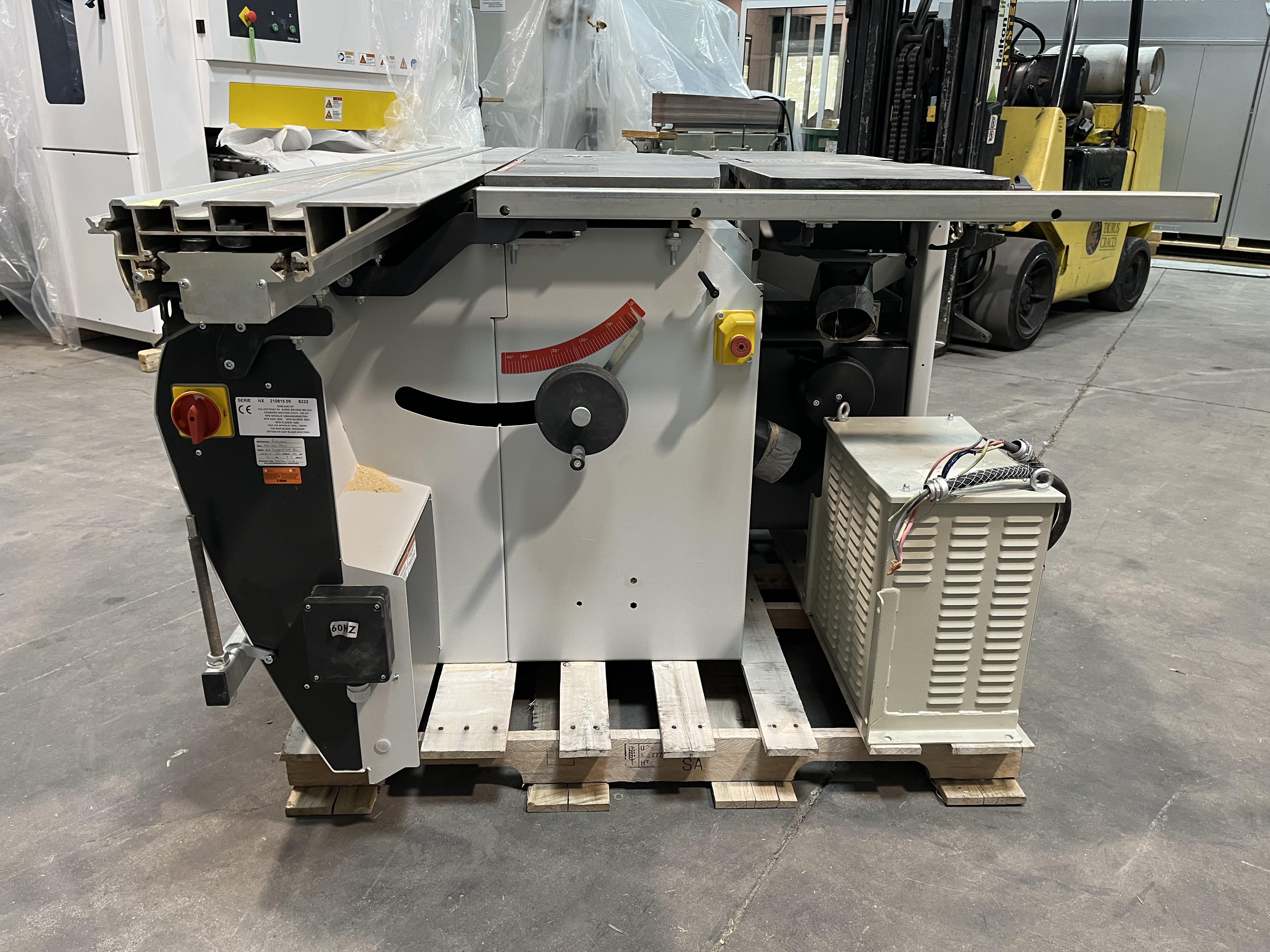

Voltage 400V / 3Ph (600V / 3Ph Transformer Included)
ConditionExcellent

Description

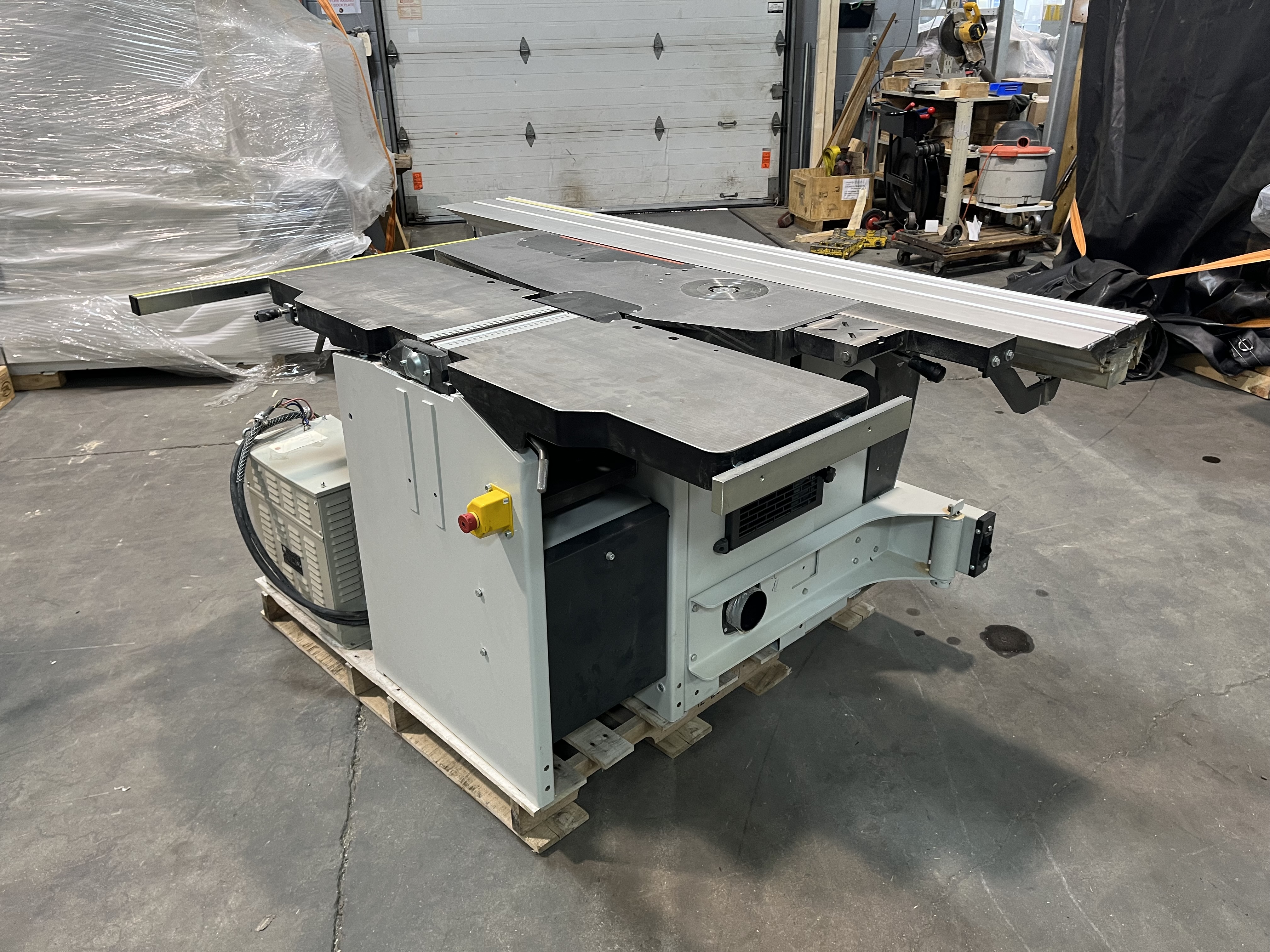

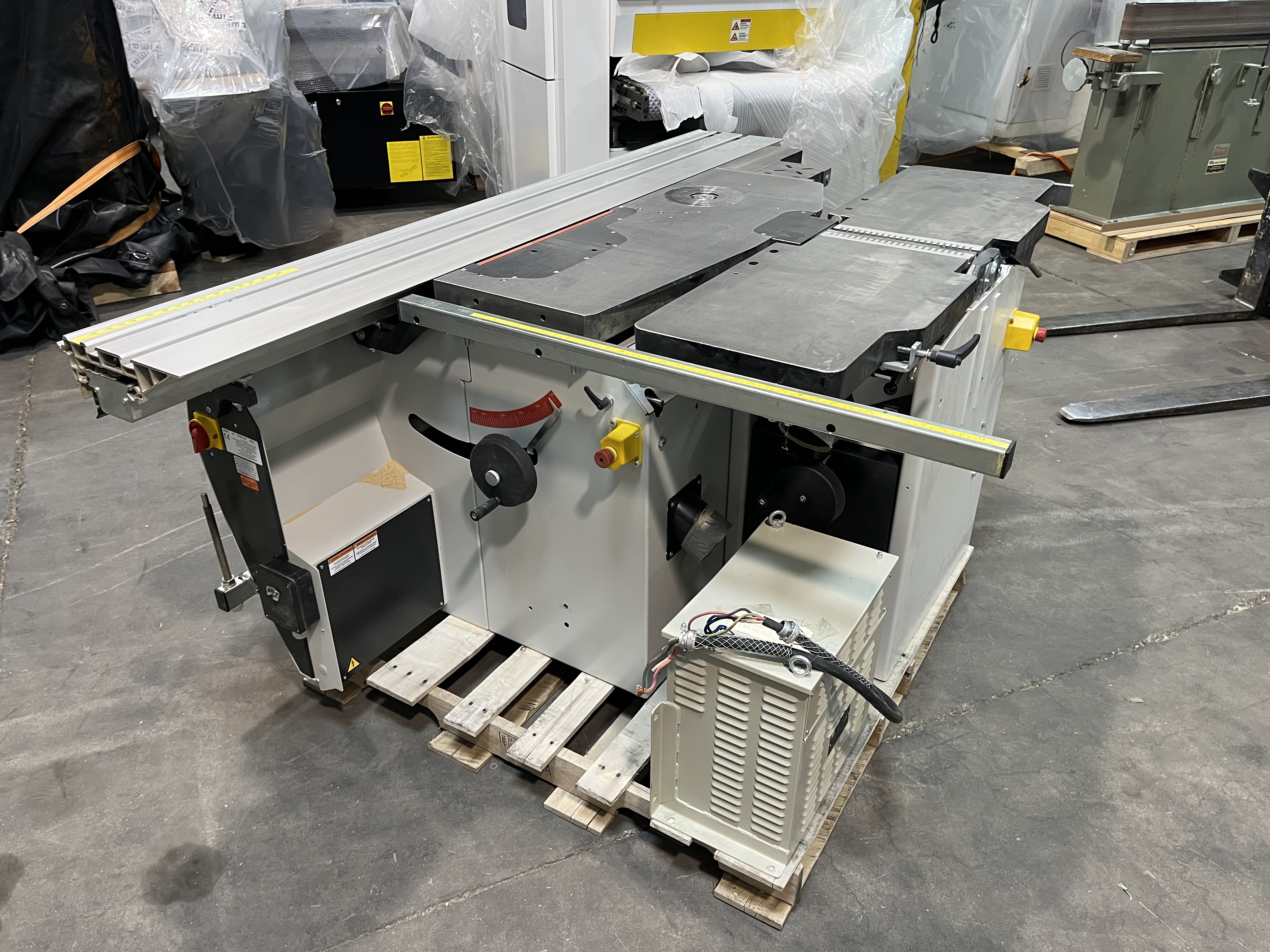

Sliding Table Saw, Planer/Thicknesser, Shaper, Jointer


Combination machines have the advantage of bringing you operations within a limited floorspace and at a very accessible budget.


With modern Robland design, changing over from one operation to another is both easy and fast. Robland combination machines are designed by the same engineers and built in the same Belgian factory as their more industrial equipment. Spare parts are still available decades after the product launch.

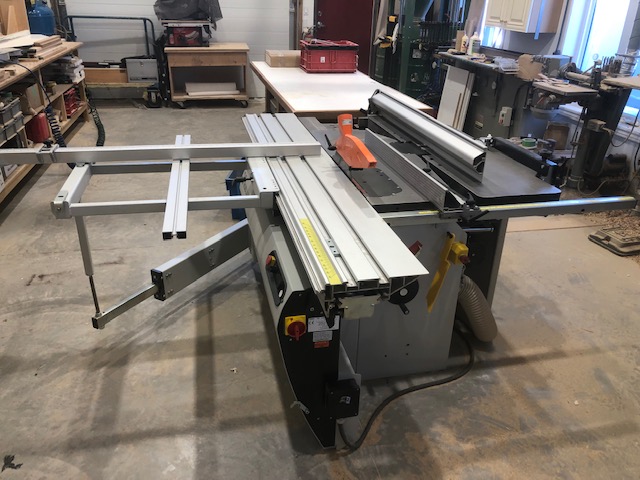

Sliding table saw w/ scoring (blades NOT included)


Robland NX 310 PRO Combination Machine - Features and Specifications:

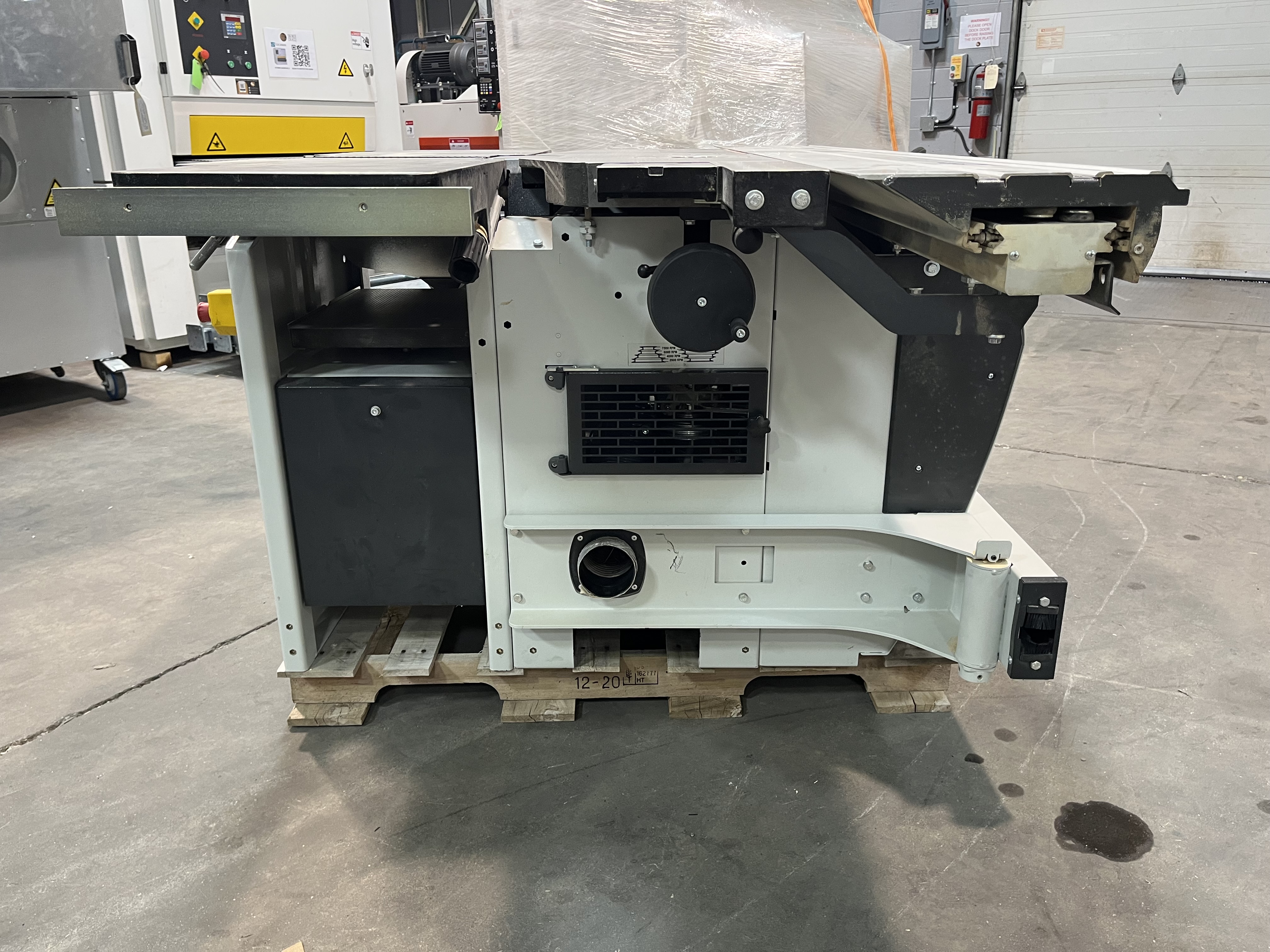

  • Dust suction ports: 100mm
  • Approximate shipping dimensions: 60'' L x 81'' W x 60'' H
  • Approximate shipping weight: 1,213 lbs (550 kg)

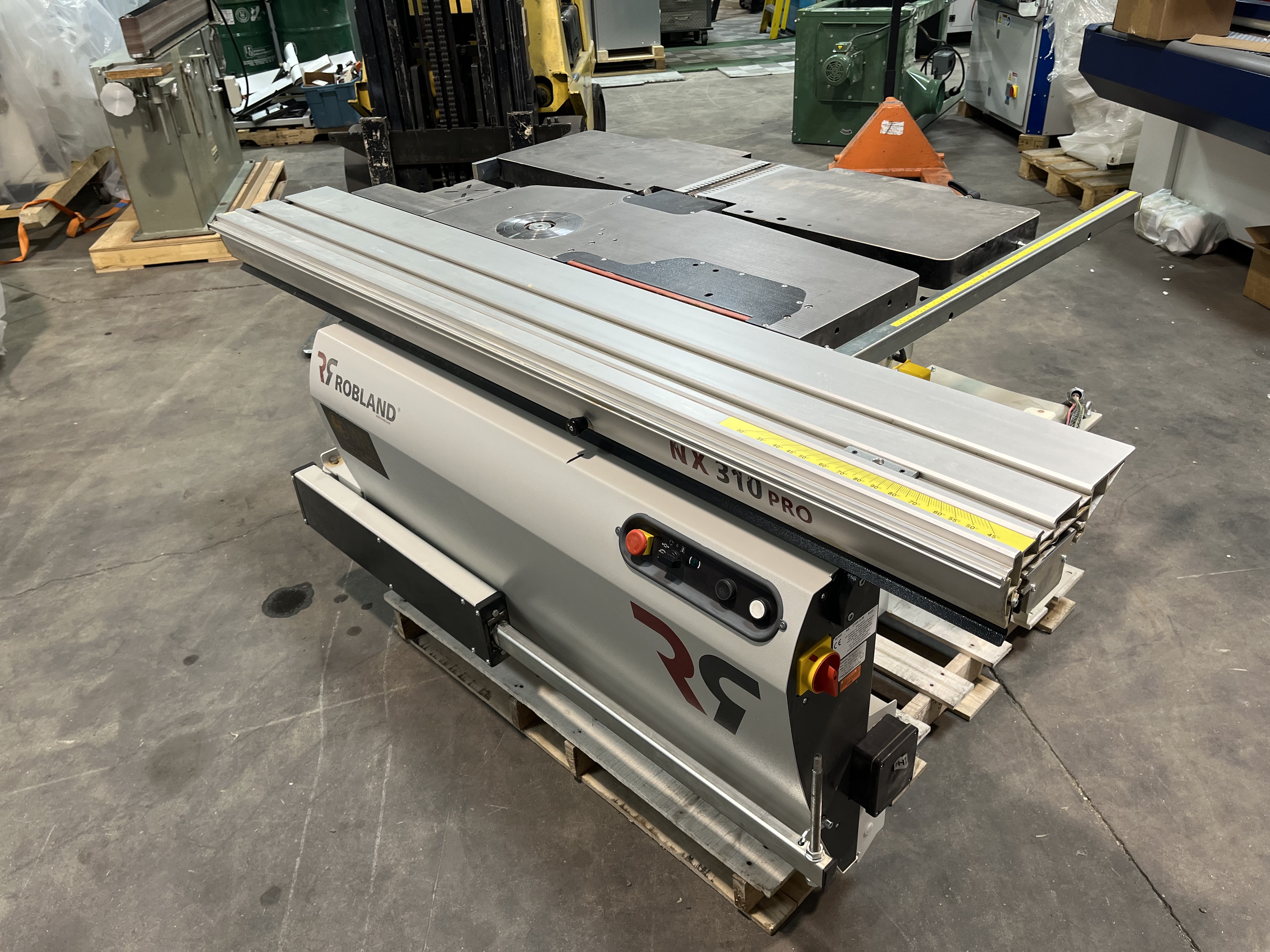

Sliding Table Saw:

  • RPM: 4500
  • Diameter saw blade and bore: 315 x 30 mm
  • Cutting depth at 90°: 107mm

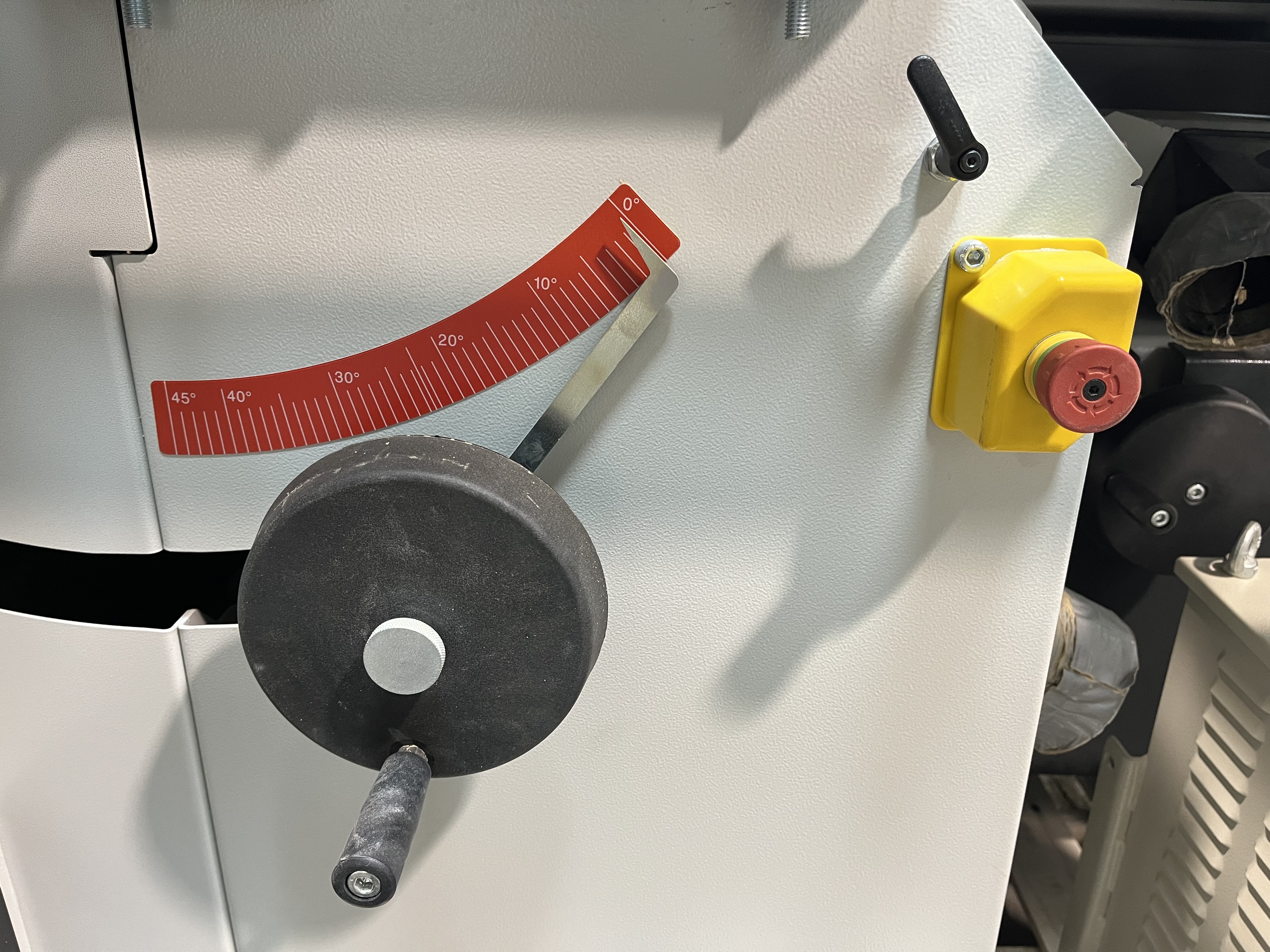

  • Cutting depth at 45°: 65 mm
  • Dimensions cast iron table: 1080 mm x 410mm

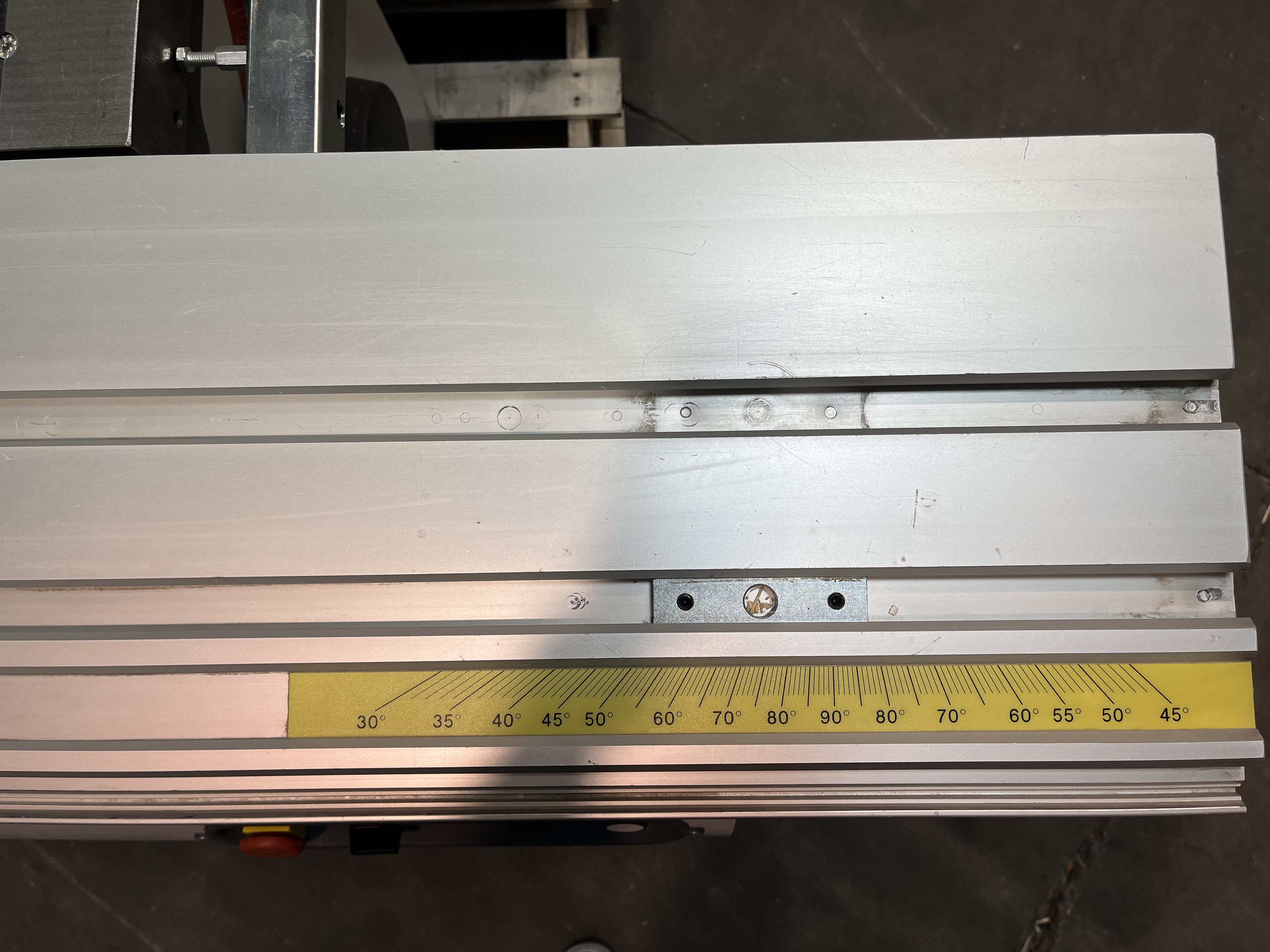

  • Length sliding table: 2500 x 320 mm
  • Cutting width parallel fence: 800 mm
  • Motor power: 5 HP


Spindle-Shaper

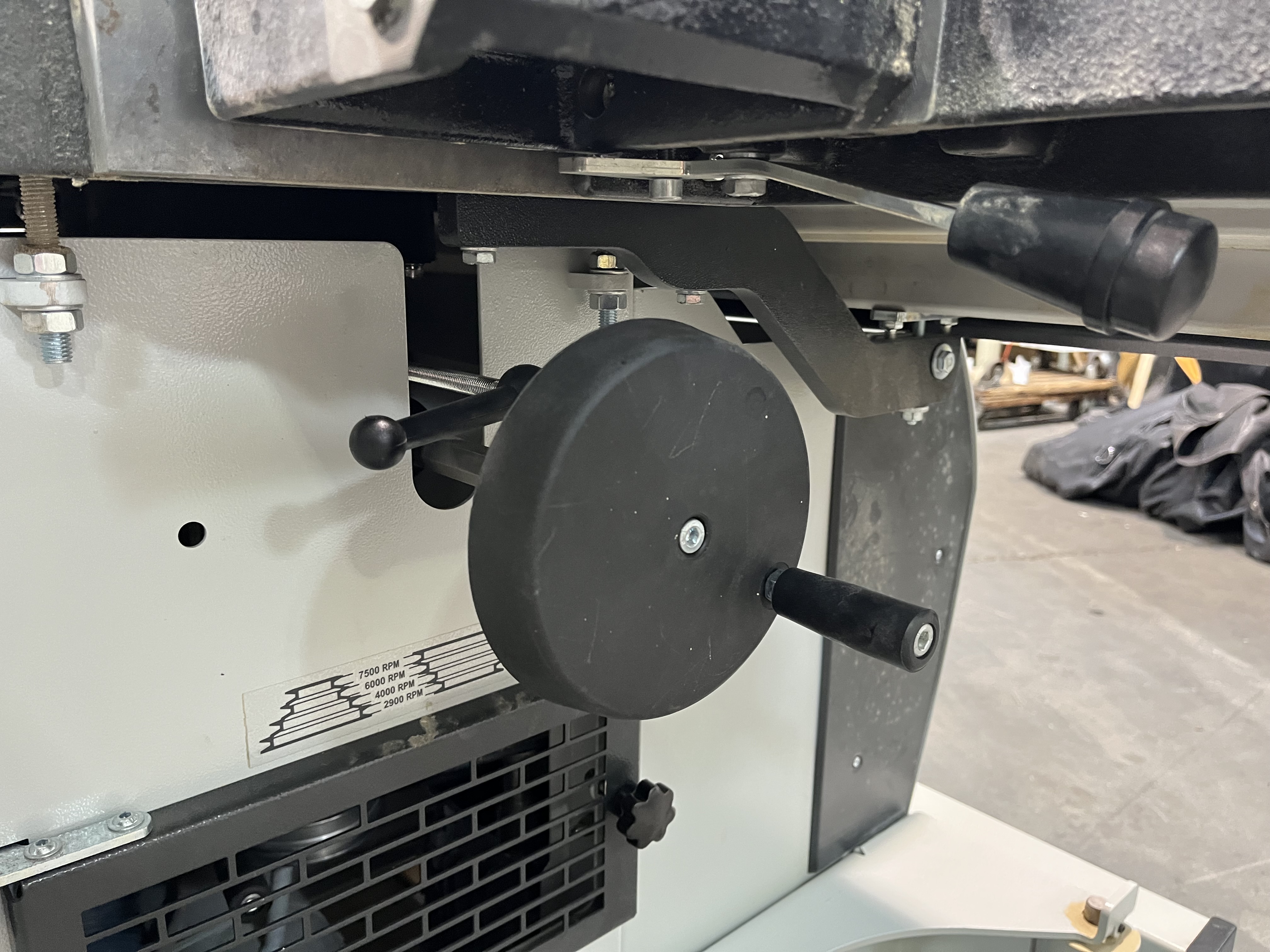

  • RPM: 2900/4000/6000/7500
  • Diameter spindle arbor: 30 mm
  • Capacity spindle arbor: 122 mm
  • Travel: 140 mm
  • Dimensions table opening: 180 mm
  • Motor power: 5 HP

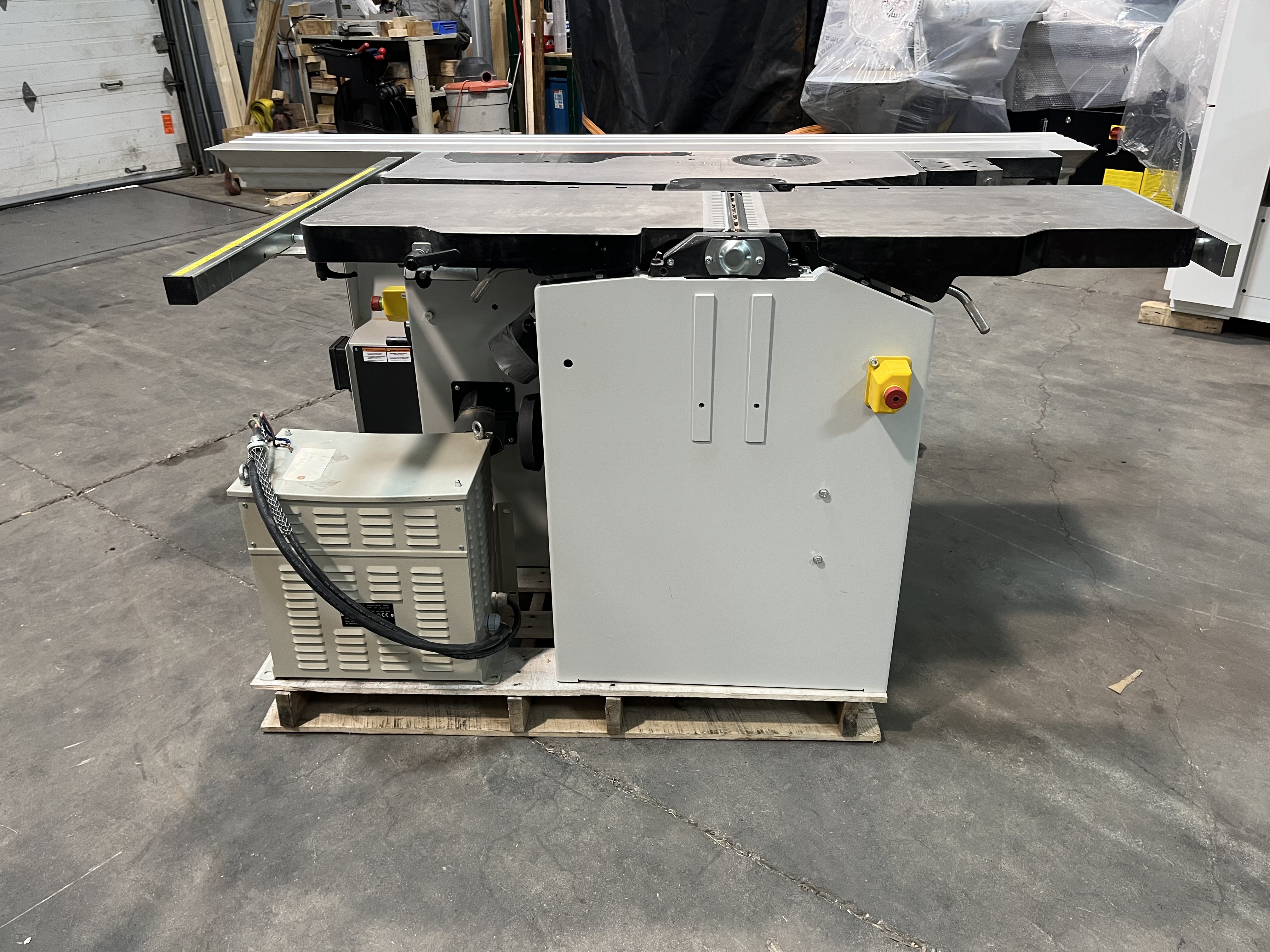

Planer/Thicknesser

  • Total length planer tables: 1400mm
  • Capacity thicknesser: 230mm
  • Diameter cutterblock: 70mm
  • Knives: 3
  • Dimensions knives: 310 x 23 x 3 mm
  • Feeding speed: 6 m/min
  • RPM: 5500
  • Motor: 5 HP



Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
